基于matlab点云工具箱对点云进行处理三：对点云进行欧式聚类，使用三角剖分处理后获取点云簇的外接凸多边形

本文主要是介绍基于matlab点云工具箱对点云进行处理三：对点云进行欧式聚类，使用三角剖分处理后获取点云簇的外接凸多边形，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

基于matlab点云工具箱对点云进行处理三：对点云进行欧式聚类，使用三角剖分处理后获取点云簇的外接凸多边形

步骤：

1. 读取velodyne数据包pcap文件内的点云数据
2. 使用pcdownsample函数对点云数据进行体素化采样，减少点云数量
3. 使用find函数对点云进行筛选
4. 使用pcdnoise去除点云内的噪声
5. 使用pcsegdist进行欧式聚类
6. 使用delaunayTriangulation进行三角剖分
7. 使用convexHull获得外接凸包的顶点ID

相关程序在这里https://download.csdn.net/download/rmrgjxeivt/59557139

存在的问题：

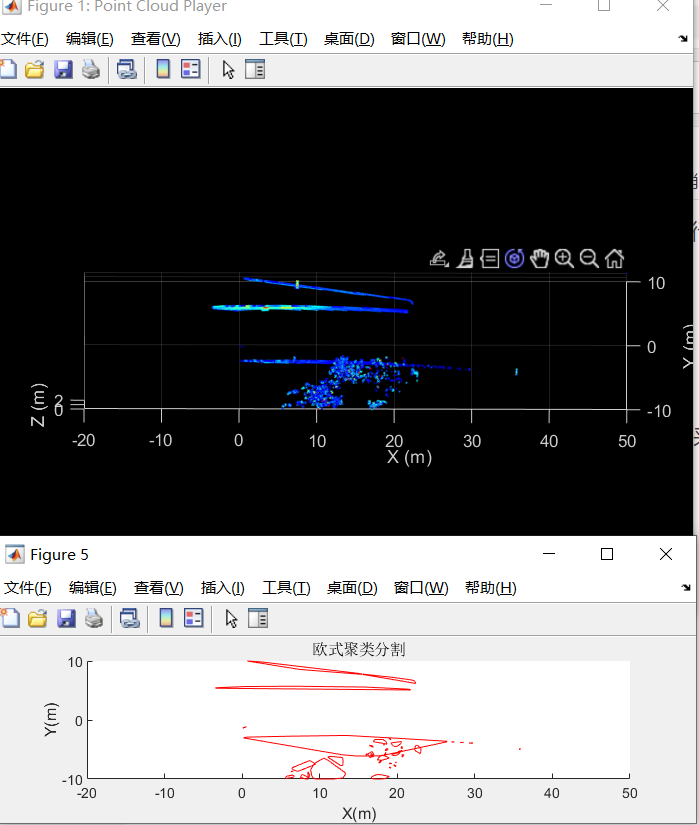

弯曲道路的护栏（例如匝道）被识别为半圆形状，误识别区域巨大
