VHDL逐级进位加法器

本文主要是介绍VHDL逐级进位加法器，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

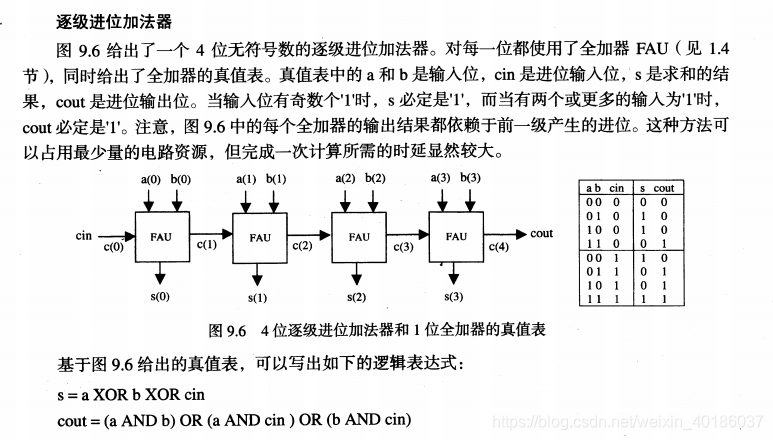

关于逐级进位加法器：
在这里插入图片描述
VHDL实现：

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;entity adder_cripple isgeneric(n:integer:=4);port(a,b:in std_logic_vector(n-1 downto 0);cin: in std_logic;s:out std_logic_vector(n-1 downto 0);cout: out std_logic);
end adder_cripple;architecture Behavioral of adder_cripple issignal c:std_logic_vector(n downto 0);
beginc(0)<= cin;  --这里的c是信号G1: for i in 0 to n-1 generates(i)<= a(i) xor b(i) xor c(i);c(i+1) <= (a(i) and b(i)) or (a(i) and c(i)) or (b(i) and c(i));end generate;cout <= c(n);end Behavioral;

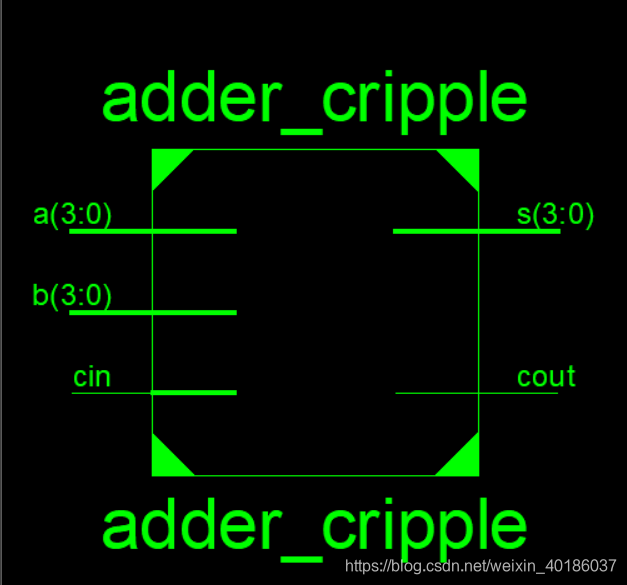

原理图：
在这里插入图片描述
进行测试：

LIBRARY ieee;
USE ieee.std_logic_1164.ALL;ENTITY tb_addcri IS
END tb_addcri;ARCHITECTURE behavior OF tb_addcri IS COMPONENT adder_cripplePORT(a : IN  std_logic_vector(3 downto 0);b : IN  std_logic_vector(3 downto 0);cin : IN  std_logic;s : OUT  std_logic_vector(3 downto 0);cout : OUT  std_logic);END COMPONENT;--Inputs---signal a : std_logic_vector(3 downto 0) := (others => '0');---signal b : std_logic_vector(3 downto 0) := (others => '0');
signal a : std_logic_vector(3 downto 0) := "0001";
signal b : std_logic_vector(3 downto 0) := "0000";
signal cin : std_logic := '0';--Outputssignal s : std_logic_vector(3 downto 0);signal cout : std_logic;signal clk,rst:std_logic;constant clk_period : time := 10 ns;BEGIN-- Instantiate the Unit Under Test (UUT)uut: adder_cripple PORT MAP (a => a,b => b,cin => cin,s => s,cout => cout);clk_process :processbeginclk <= '0';wait for clk_period/2;clk <= '1';wait for clk_period/2;end process;stim_proc: processbegin		rst<='0';wait for 10 ns;rst<='1';wait;	  end process;END;

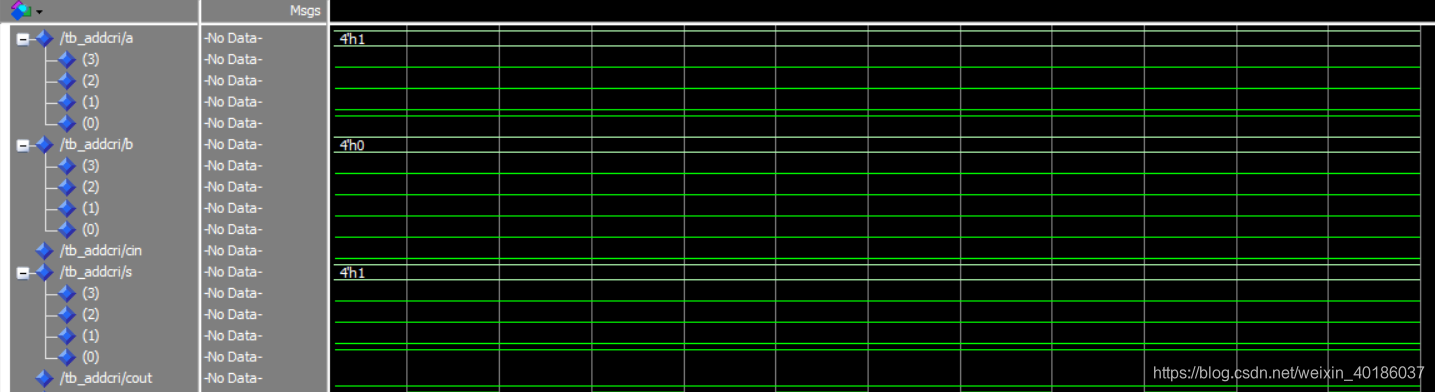

modelsim仿真：
在这里插入图片描述
