Dvide and Conquer
Implement the algorithm for the closest pair problem in your favourite language.
INPUT: n points in a plane.OUTPUT: The pair with the least Euclidean distance.
算法的思想:
首先对所有的点按照x坐标进行从小到大排序,然后利用二分法进行分割,直到区间范围变为2 or 3(即只有2个点或只有3个点),然后可以求这2个点或是3个点的距离(很小的子问题)。
对于每一部分子问题,求其中间mid左右各min范围内的点的距离,如图:

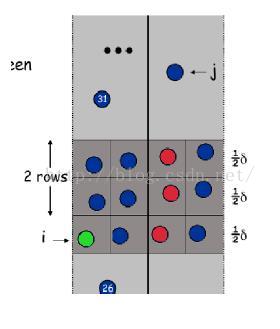

对于这幅图中,只需将绿色的点与右边3个红色的点比较即可(格子按1/2&距离分割,可以保证每个格子内只有1个点)。

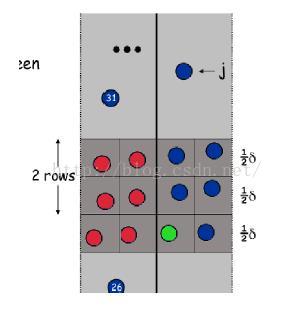

对于这幅图,只需将绿色的点与左边6个点比较即可
这里,当我们按照y坐标进行排序后(不考虑x坐标),因此对于每一个点,只需要将其与附近的11个点比较即可。
算法的合并时间:边界附近的点进行排序需要O(nlogn)。
如果每一次迭代保持2个序列,一个按照x进行排序,一个按照y进行排序,像归并排序一样,将预先排序好的2个方向的序列合并起来,实际上只需要0(n)时间。
因此算法的时间复杂度为T(n)=2T(n)+O(n)=0(nlogn)。
input:
-5,-5
-4,-4
-3,-6
-3,-3
-2,-3
-1,-5
0,-3
1,-4
0.5,-3
0.5,-4
output:
#include<iostream>
#include<string.h>
#include<math.h>
#include <fstream>
#include<iomanip>
#include<algorithm>
using namespace std;
int k=0; struct Record
{int c1,c2;double ds;
}record[10000];struct Points
{double x,y;
}*points;double dis(int a,int b)
{double dx = points[a].x-points[b].x,dy = points[a].y-points[b].y;return sqrt(dx*dx+dy*dy);
}double min(double a,double b)
{return a>b?b:a;
}int cmpx(const Points &a,const Points &b)
{ if(a.x<b.x) return 1; else return 0;
} int cmpy(const Points &a,const Points &b)
{ if(a.y<b.y) return 1; else return 0;
} void storage(double c,int l,int r)
{ //记录最近点对,用于输出record[k].c1 = l;record[k].c2 = r;record[k++].ds = c;
}double ClosestPair(int l, int r)
{if(1==r-l){double d = dis(l,r);storage(d,l,r);return d;}if(2==r-l){double ll = dis(l,l+1);double rr = dis(l+1,r);storage(ll,l,l+1);storage(rr,l+1,r);return min(ll,rr);}int mid = l+((r-l)>>1);double dl = ClosestPair(l,mid);double dr = ClosestPair(mid+1,r);double Min=min(dl,dr);int h1=mid,h2=mid;while((points[mid].x-points[h1].x<=Min && h1>=l) || (points[h2].x-points[mid].x<=Min && h2<=r)){ //得到mid附近2&距离内的区间范围h1--;h2++;}sort(&points[l],&points[r],cmpy); //将mid附近2&距离内的点按照y坐标从小到大排序for(int i=h1+1;i<h2;i++){int k=(i+11)>h2?h2:(i+11); //只需要比较附近11个点即可for(int j=i+1;j<k;j++){double d=dis(i,j);if(d>=Min)break;Min = d;storage(d,i,j);}}return Min;
}int main()
{ifstream infile("./points.txt", ios::in); char buf[30];double (*data)[2]; char *subarr=NULL;char *delims = ",";int n;cout<<"Please input the number of points(eg.input 10 int this test):"<<endl;cin>>n;points = new struct Points[n];data = new double[n][2];if(!infile.is_open()){cout<<"Error opening file!";exit(1);}int i=0,j=0,p=0;while(infile.getline(buf,30)!=NULL){j = 0;subarr = strtok(buf,delims);while(subarr!=NULL){data[i][j] = atof(subarr); subarr = strtok(NULL,delims);j++;}points[p].x = data[i][0];points[p++].y = data[i][1];i++;}infile.close();sort(&points[0],&points[n],cmpx); //按横坐标从小到大排序double value = ClosestPair(0,n-1);int x,y;for(i=0;i<k;i++){if(record[i].ds==value){x = record[i].c1;y = record[i].c2;cout<<"points("<<points[x].x<<","<<points[x].y<<")and("<<points[y].x<<","<<points[y].y<<")"<<endl;}}cout<<"have the shortest distance :"<<value<<endl;return 0;
}
