threejs边缘暗角shader

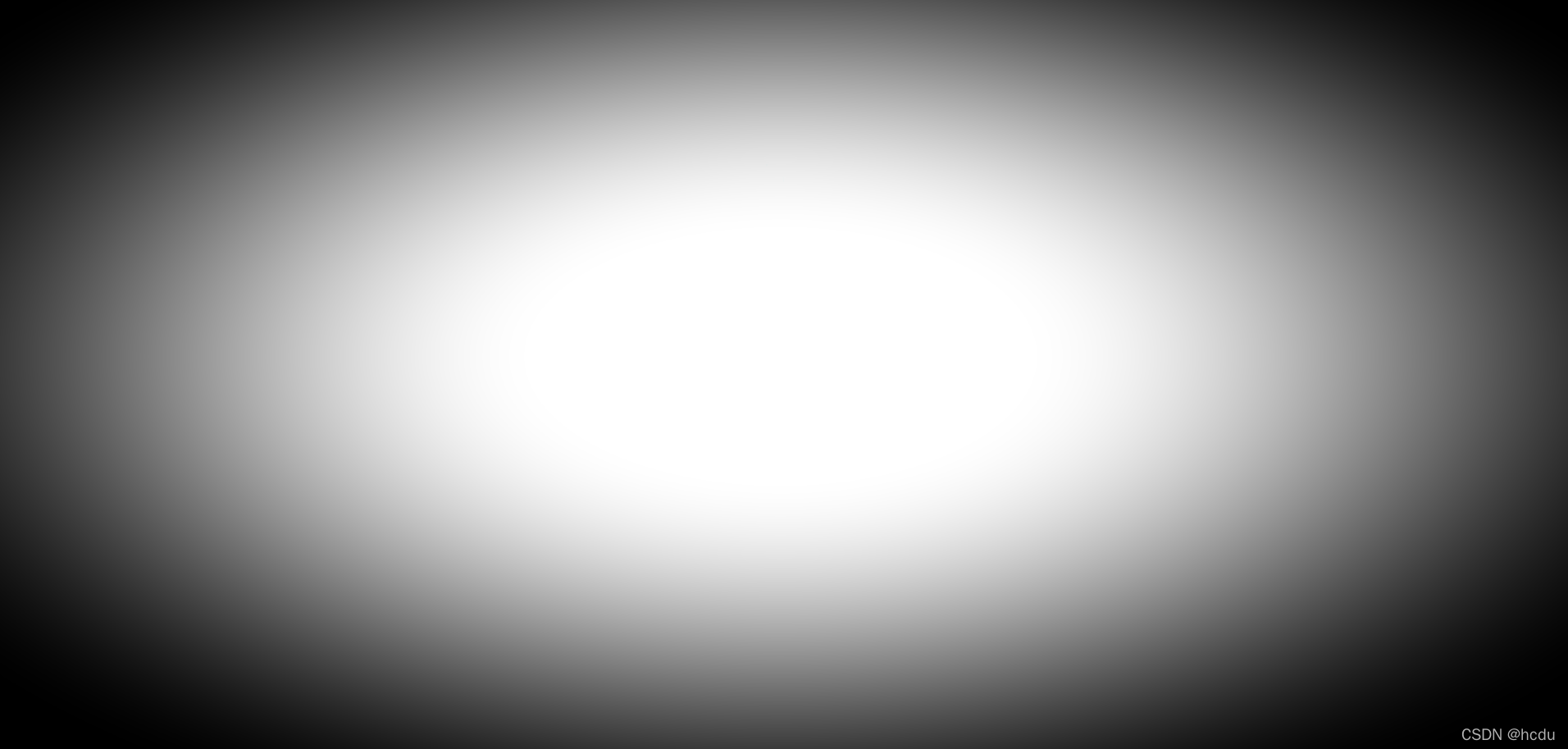

效果

引入库

import { OutlinePass } from 'three/examples/jsm/postprocessing/OutlinePass'
import { EffectComposer } from 'three/examples/jsm/postprocessing/EffectComposer'
import { ShaderPass } from 'three/examples/jsm/postprocessing/ShaderPass'
import { RenderPass } from 'three/examples/jsm/postprocessing/RenderPass'
import { FXAAShader } from 'three/examples/jsm/shaders/FXAAShader'

shader

var DarkMaskShader = {uniforms: {'tDiffuse': {value: null},'maskColor': {value: new THREE.Color(0x000000)},'maskAlpha': {value: 1.0},'markRadius': {value: 0.15},'smoothSize': {value: 0.5}},vertexShader: ['varying vec2 vUv;','void main() {','	vUv = uv;','	gl_Position = projectionMatrix * modelViewMatrix * vec4( position, 1.0 );','}'].join('\n'),fragmentShader: ['uniform float maskAlpha;','uniform vec3 maskColor;','uniform float markRadius;','uniform float smoothSize;','uniform sampler2D tDiffuse;','varying vec2 vUv;','float sdfCircle(vec2 coord, vec2 center, float radius)','{','	vec2 offset = coord - center;','	return sqrt((offset.x * offset.x) + (offset.y * offset.y)) - radius;','}','void main() {','	vec4 texel = texture2D( tDiffuse, vUv );','   float sdfValue = sdfCircle(vUv, vec2(0.5, 0.5), markRadius);','	if (sdfValue < 0.0){',' 		gl_FragColor = texel;','	}else{','		float a = smoothstep(0.0, smoothSize, sdfValue);','   	gl_FragColor = mix(texel, vec4(maskColor, maskAlpha), a);','	}','}'].join('\n')
}

窗口监测里添加

function onWindowResize() {camera.aspect = document.getElementById('threecanvas').offsetWidth / document.getElementById('threecanvas').offsetHeightcamera.updateProjectionMatrix()/*********************************************************************/// 暗角范围composer.setSize(document.getElementById('threecanvas').offsetWidth, document.getElementById('threecanvas').offsetHeight) // 暗角renderer.setSize(document.getElementById('threecanvas').offsetWidth, document.getElementById('threecanvas').offsetHeight)
}

添加效果合成器

function initEffectComposer() {// 处理模型闪烁问题【优化展示网格闪烁】const parameters = { format: THREE.RGBFormat }const size = renderer.getDrawingBufferSize(new THREE.Vector2())const renderTarget = new THREE.WebGLMultisampleRenderTarget(size.width, size.height, parameters)/******************************************边缘暗角****************************************/renderScene = new RenderPass(scene, camera)renderScene.clear = trueconst effectDarkMask = new ShaderPass(DarkMaskShader)composeraj = new EffectComposer(renderer, renderTarget)composeraj.addPass(renderScene)composeraj.addPass(effectDarkMask)// 开启圆形暗角，需要处理模型边缘失真
}

处理模型边缘锯齿

添加特效合成器后，会出现模型边缘锯齿
推荐使用 FXAA 处理
具体请到：

// 效果合成器，shader渲染使用
function initEffectComposer() {// 处理模型闪烁问题【优化展示网格闪烁】const parameters = { format: THREE.RGBFormat }const size = renderer.getDrawingBufferSize(new THREE.Vector2())const renderTarget = new THREE.WebGLMultisampleRenderTarget(size.width, size.height, parameters)/******************************************边缘暗角****************************************/renderScene = new RenderPass(scene, camera)renderScene.clear = trueconst effectDarkMask = new ShaderPass(DarkMaskShader)composeraj = new EffectComposer(renderer, renderTarget)composeraj.addPass(renderScene)composeraj.addPass(effectDarkMask)// 开启圆形暗角，需要处理模型边缘失真/*********************************************特效锯齿处理****************************************/// 增加fxaashader处理模型边缘锯齿,开启EffectComposer后才能生效【开启特效合成之后的展示优化】var FXAAShaderPass = new ShaderPass(FXAAShader)const pixelRatio = renderer.getPixelRatio()const width = document.getElementById('threecanvas').offsetWidthconst height = document.getElementById('threecanvas').offsetHeightFXAAShaderPass.uniforms['resolution'].value.set(1 / (width * pixelRatio), 1 / (height * pixelRatio))FXAAShaderPass.renderToScreen = truecomposeraj.addPass(FXAAShaderPass)
}

渲染

渲染部分，如果添加了特效合成器，则要把传统的渲染方式替换为特效的通道

// 渲染
function render() {update()requestAnimationFrame(render)// 执行一个动画.并在动画执行后重新渲染// 传统渲染器，如果使用shader着色器，则注掉这个，增加效果合成器，增加通道渲染 // renderer.render(scene, camera)composeraj.render()
}

后续

这一部分特效也是参考了大部分其他知乎、博客、简书等等…
话说，找一个特效真难，搜到的好的特效后边都是两个字，买断 &T~T&，都拿去作商业用途了，如果一个小白从头开始，跟着three官网做一些基础的三维物体或基础场景还是可以的，那些进阶的东西，特效、动效什么的，真的是难找的要死，现在学个东西，自学还真是难啊，高级一点的接触都接触不到，像我这样的，自己扣一扣底层代码，然后往上一步一个坑真的难的一批，各种搜索，找一找成型的源码，自己对照着底层，硬理解，难搞。 想速成的话…多花钱，想按部就班的搞一搞，吃的透就要从简到繁，从底层到显示…一步一坑，从three进去，到webgl，再看OpenGL，对照底层封装three上的缺陷，然后完善，形成一套自己的基础引擎。
