一、环境准备

1、安装 VMvare

2、安装 Centos

二、安装docker

1、安装前置环境

2、安装docker

3、启动

4、配置加速

三、安装K8S

1、基础环境

2、安装kubelet、kubeadm、kubectl

3、使用kubeadm引导集群

4、初始化主节点

5、初始化node节点

6、部署dashboard

然后执行

一、环境准备

虚拟机：centos 7以上 3台

网盘地址：

阿里云盘分享

下载 VMvare 和 CentOS-7-x86_64-DVD-2009.iso（包括注册码）

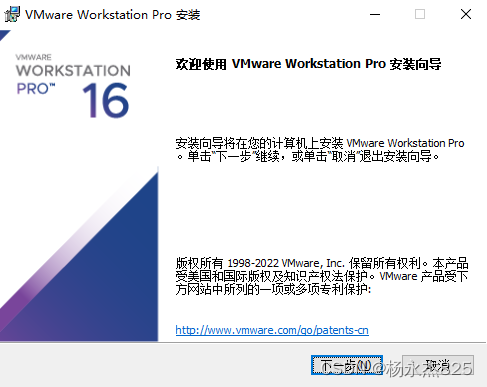

1、安装 VMvare

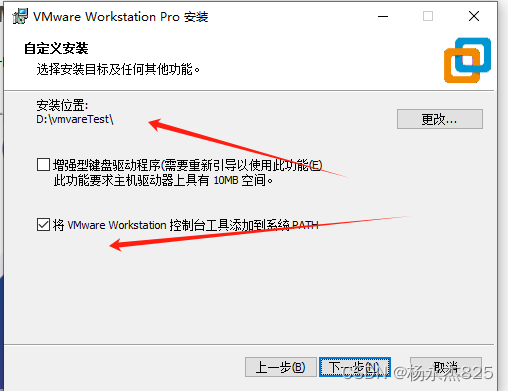

更改文件安装位置

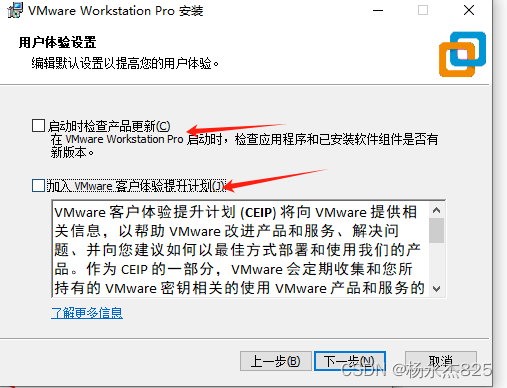

去掉自动更新

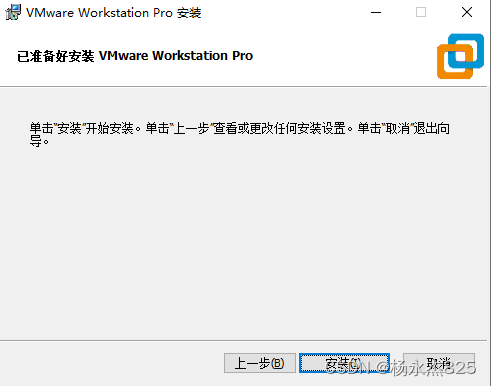

一直点下一步，点击安装

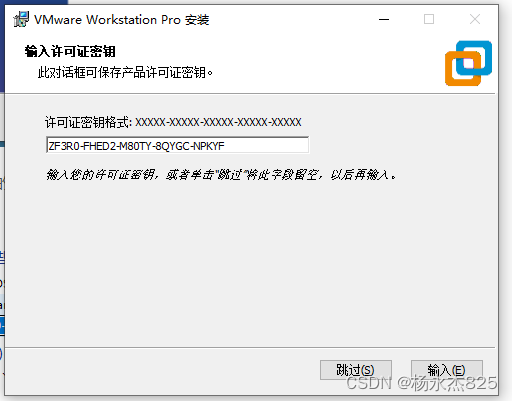

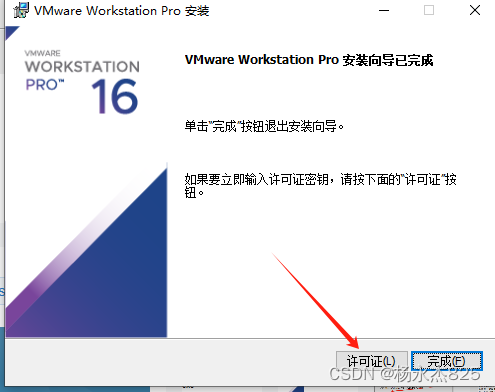

点击许可证

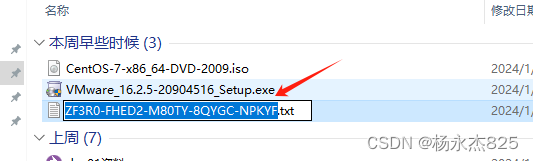

输入刚才下载的txt，文件名就是证书

点击输入即可完成。

2、安装 Centos

目标三台

三台是2cpu 4G （至少，越大越好）

打开 VMvare

新建虚拟机

下一步

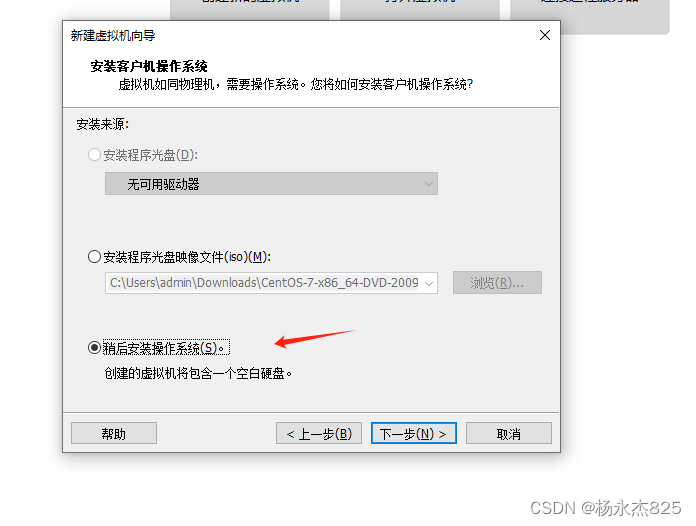

稍后安装虚拟机

选择centos 7 64位

设置路径

选择磁盘大小

注意：建议第一台master 是50G，如果电脑很强，可以扩大

点击下一步完成

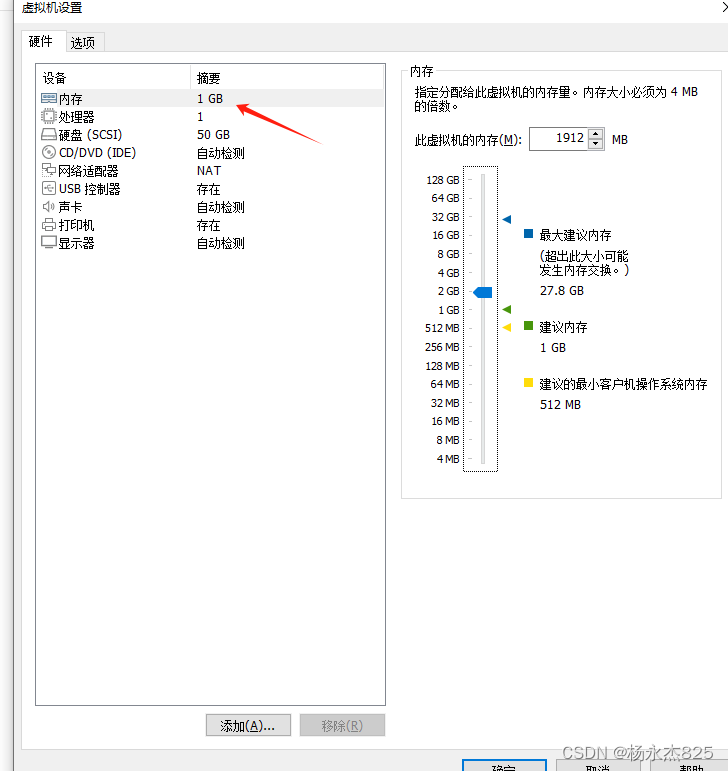

编辑虚拟机

内存至少2G，取决你的电脑

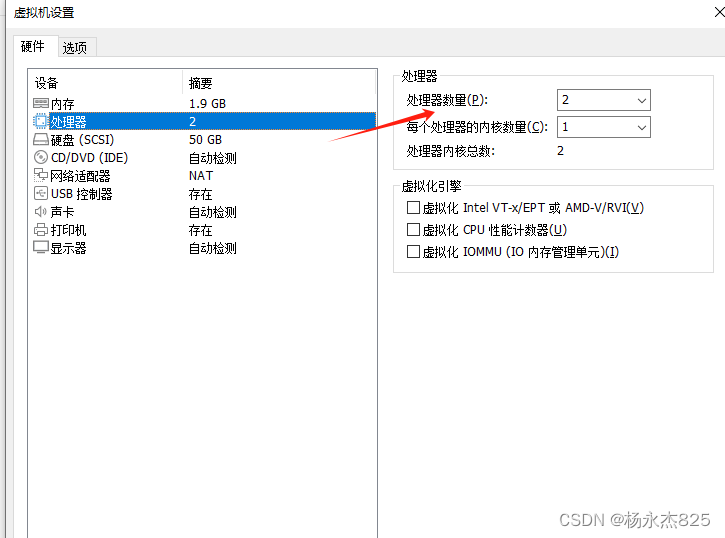

处理器最少2CPU ,取决你的电脑

配置iso

点击浏览，选择刚才下载的centos 7 ios 文件

网络选择桥接

注意，当然你也可以选择NAT固定模式，固定IP，具体自行百度

然后点击完成确定

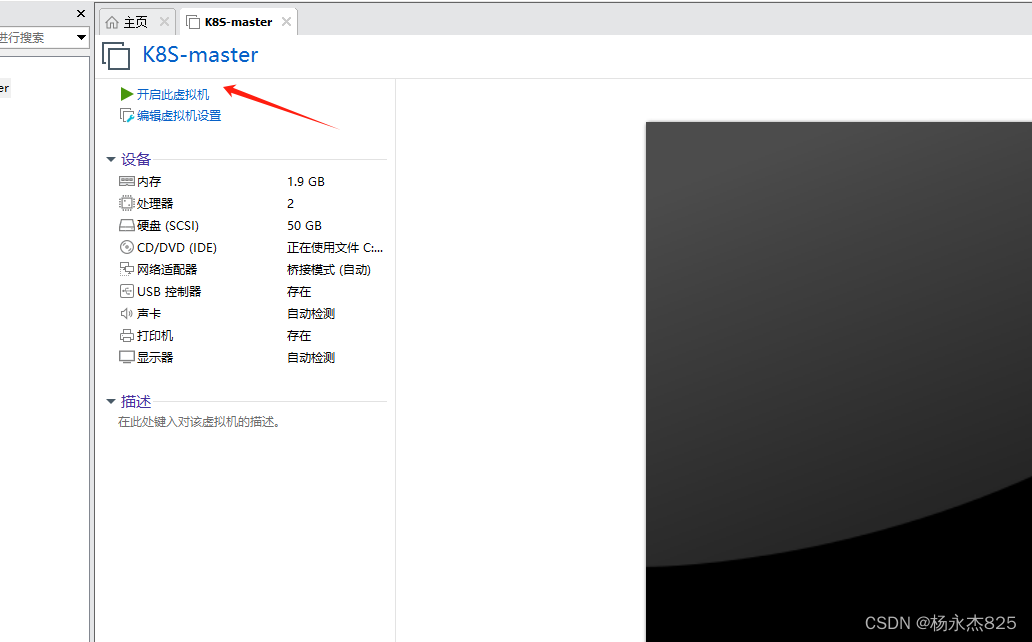

点击开启虚拟机

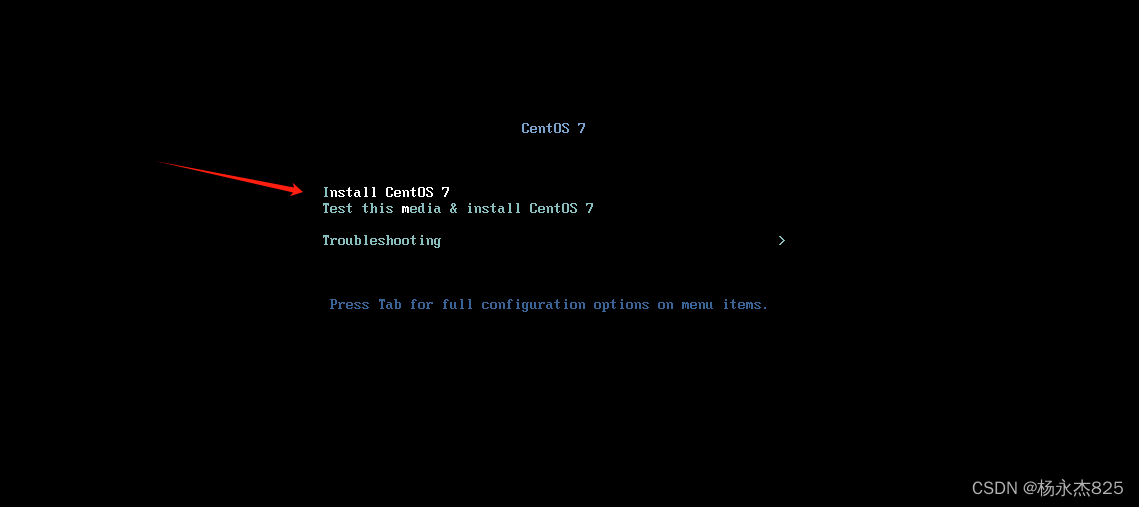

按住crtl+G，上下键，选择第一个，切记

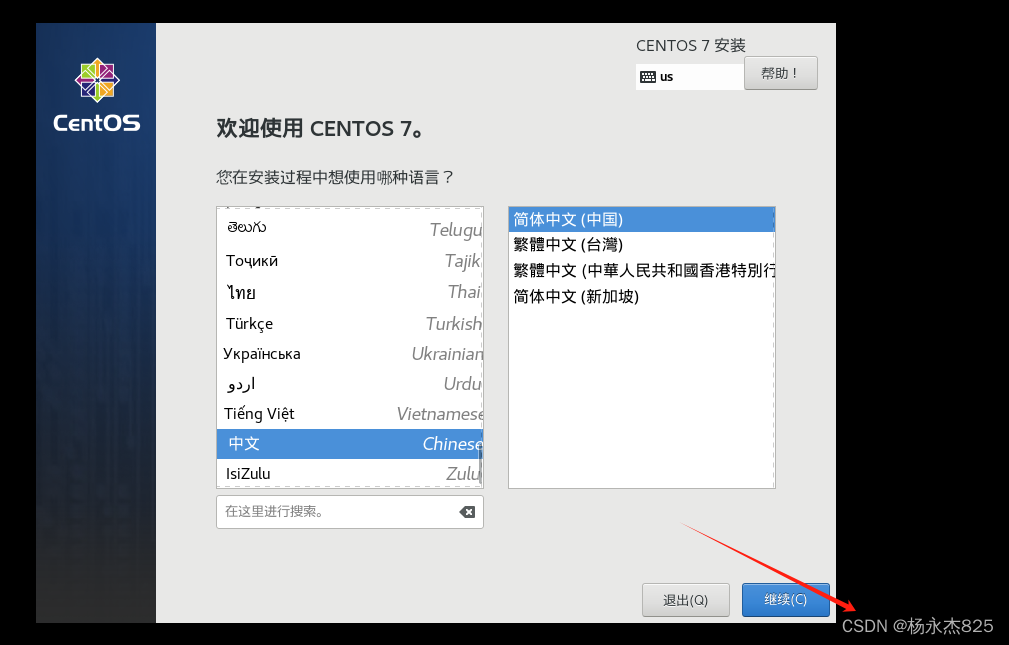

配置参数，一般配置中文，如果你是英文大佬，可以弄英文

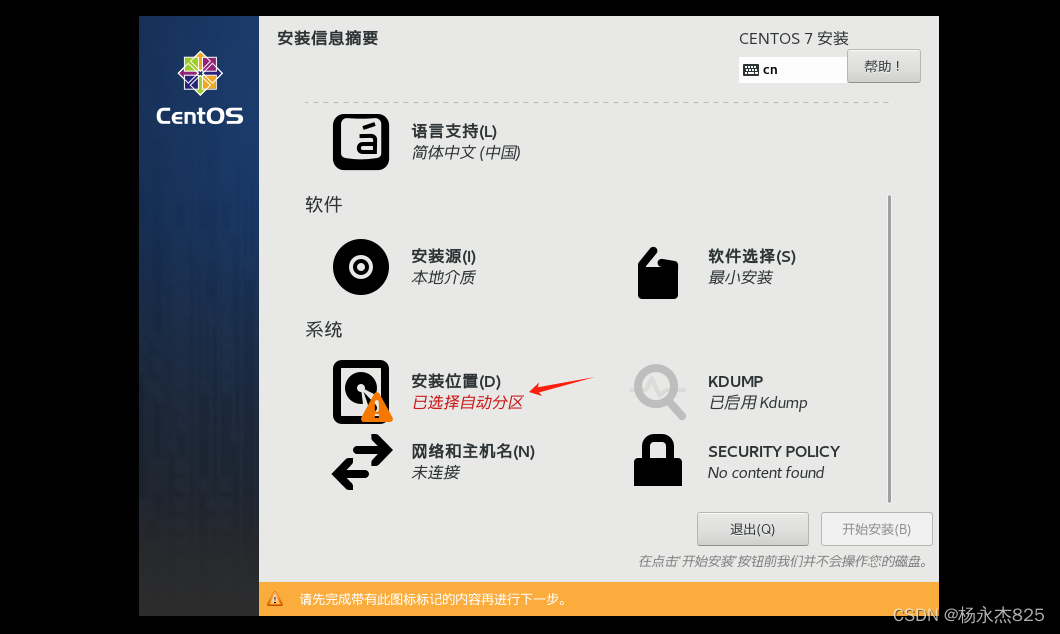

选择安装位置

越大越好，看你电脑配置。。。。至少得20G。。。

配置网络

记住，一定要修改主机名，因为K8S必须不同的主机名

点击左上角，完成，然后开始安装

配置密码

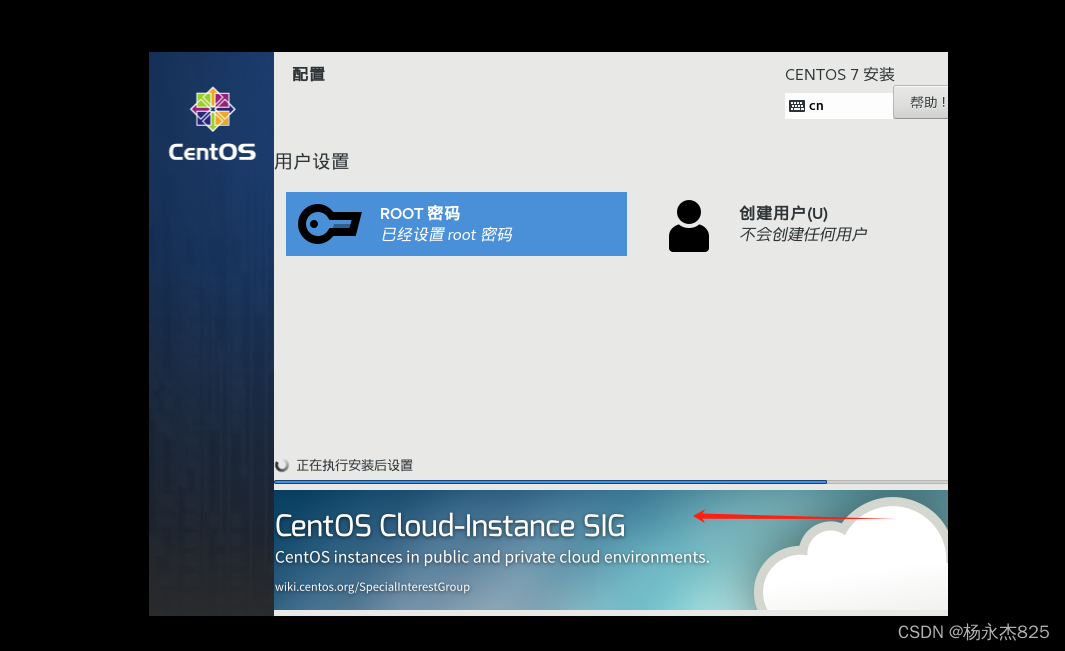

然后等待。。。一般几分钟就可以了。。

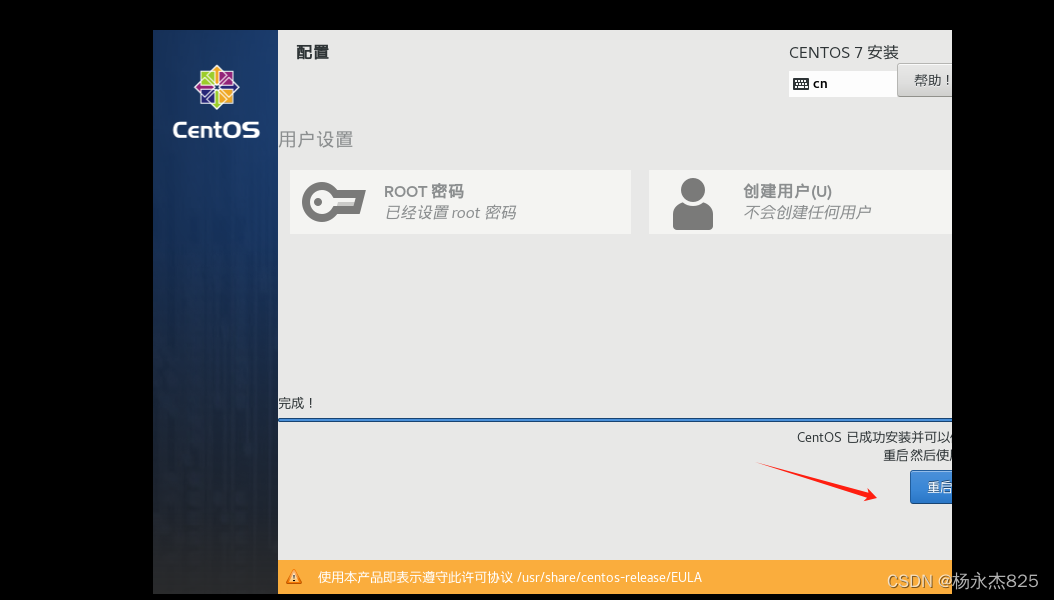

点击重启，安装成功。。。

同样的方法，继续装两台虚拟机，

保证一台名字是k8s-node1 ，另一台是k8s-node2

配置至少是2核4G

二、安装docker

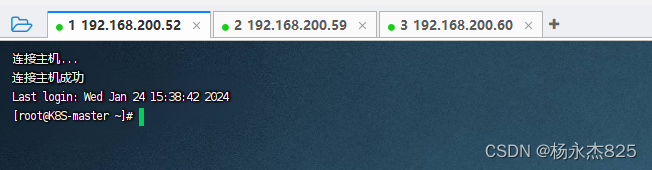

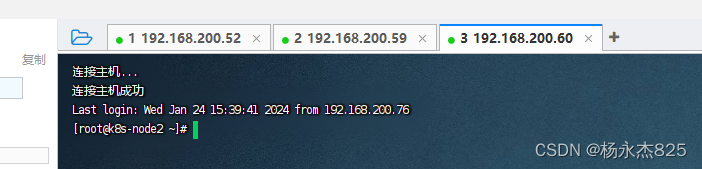

用xshell 等工具连接上虚拟机

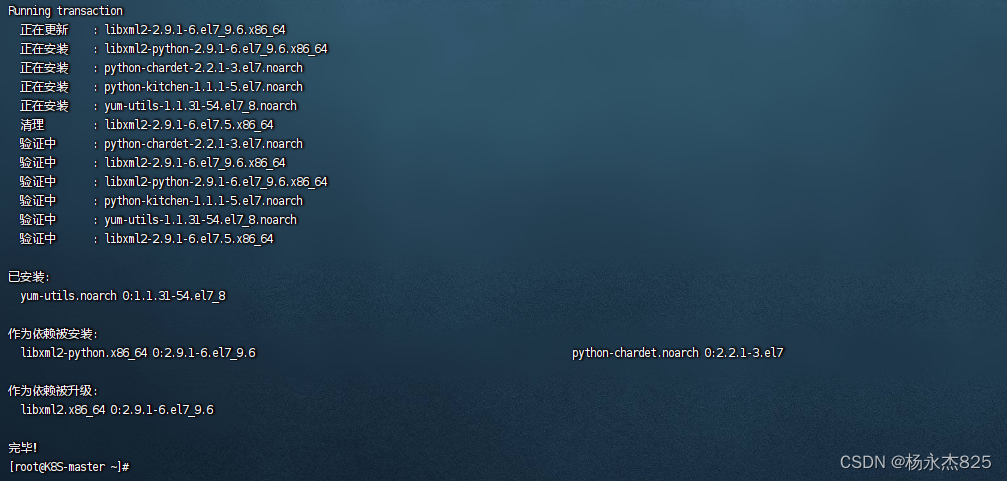

1、安装前置环境

（三台机器都安装）

yum install -y yum-utils

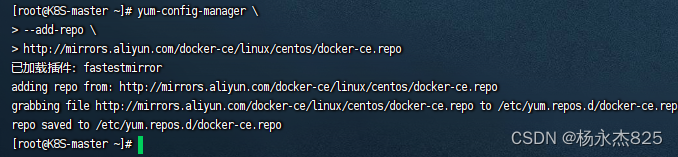

yum-config-manager \
--add-repo \
http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

2、安装docker

三台机器都安装

yum install -y docker-ce-20.10.7 docker-ce-cli-20.10.7  containerd.io-1.4.6

注意：必须是上面版本，如果你对K8S熟悉，可以换版本，docker 和K8S版本必须对应

3、启动

三台机器都安装

systemctl enable docker --now

4、配置加速

三台机器都安装

sudo mkdir -p /etc/docker
sudo tee /etc/docker/daemon.json <<-'EOF'
{"registry-mirrors": ["https://82m9ar63.mirror.aliyuncs.com"],"exec-opts": ["native.cgroupdriver=systemd"],"log-driver": "json-file","log-opts": {"max-size": "100m"},"storage-driver": "overlay2"
}
EOF
sudo systemctl daemon-reload
sudo systemctl restart docker

到此安装成功

可以用docker info 查询是否安装成功

三、安装K8S

1、基础环境

别问，问就是K8S让这样的，哈哈

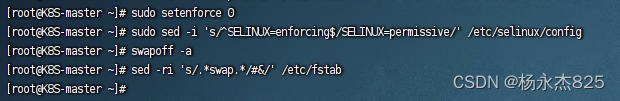

# 将 SELinux 设置为 permissive 模式（相当于将其禁用）
sudo setenforce 0
sudo sed -i 's/^SELINUX=enforcing$/SELINUX=permissive/' /etc/selinux/config#关闭swap
swapoff -a
sed -ri 's/.*swap.*/#&/' /etc/fstab

三台机器都执行哈

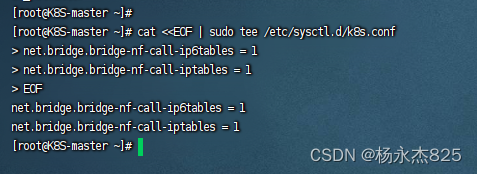

#允许 iptables 检查桥接流量
cat <<EOF | sudo tee /etc/modules-load.d/k8s.conf
br_netfilter
EOFcat <<EOF | sudo tee /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF

最后执行

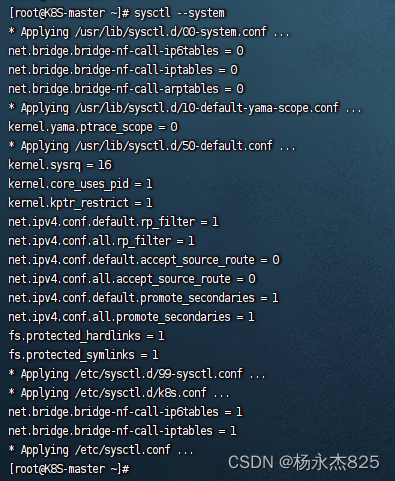

sysctl --system

2、安装kubelet、kubeadm、kubectl

执行，就是源，没别的意思

cat <<EOF | sudo tee /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=http://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=http://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpghttp://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
exclude=kubelet kubeadm kubectl
EOF

执行

yum install -y kubelet-1.20.9 kubeadm-1.20.9 kubectl-1.20.9 --disableexcludes=kubernetes

大概需要一分钟左右，如果你服务器厉害，那估计很快

执行

systemctl enable --now kubelet

3、使用kubeadm引导集群

每个机器都执行

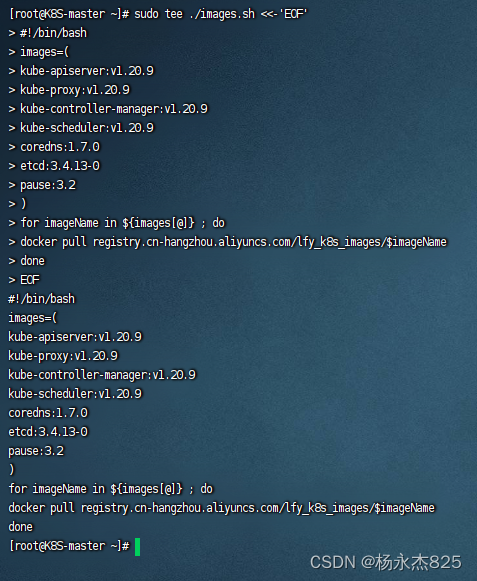

sudo tee ./images.sh <<-'EOF'
#!/bin/bash
images=(
kube-apiserver:v1.20.9
kube-proxy:v1.20.9
kube-controller-manager:v1.20.9
kube-scheduler:v1.20.9
coredns:1.7.0
etcd:3.4.13-0
pause:3.2
)
for imageName in ${images[@]} ; do
docker pull registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images/$imageName
done
EOF

然后执行

chmod +x ./images.sh && ./images.sh

大概执行几分钟，如果你服务器厉害，不多说，肯定很快

4、初始化主节点

所有机器执行

echo "192.168.200.52  cluster-endpoint" >> /etc/hosts

注意：192.168.200.52换成你master节点的IP，然后三台都执行，不要变IP

下面是住节点初始化

kubeadm init \
--apiserver-advertise-address=192.168.200.52 \
--control-plane-endpoint=cluster-endpoint \
--image-repository registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images \
--kubernetes-version v1.20.9 \
--service-cidr=10.96.0.0/16 \
--pod-network-cidr=172.16.0.0/16

大概持续几分钟，看你服务器配置时间不固定

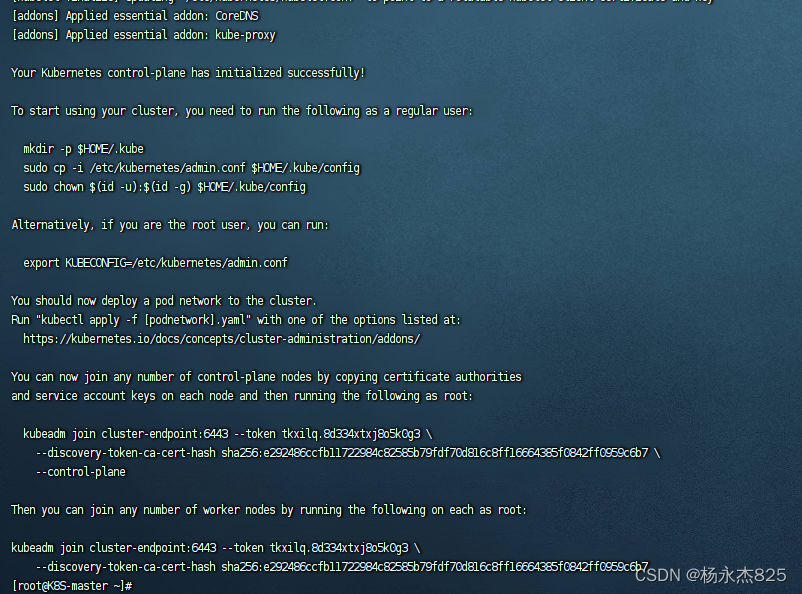

执行成功后的截图

注意：注意：注意：

把上面的复制到一个地方，有用

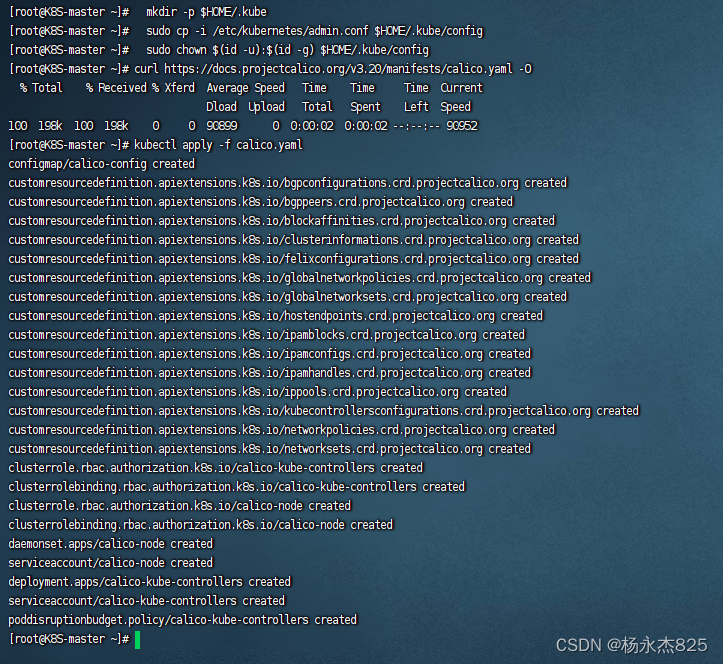

主节点执行上面的红框

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

主节点执行安装网络组件

curl https://docs.projectcalico.org/v3.20/manifests/calico.yaml -O

kubectl apply -f calico.yaml

5、初始化node节点

下面的语句在两个node 执行哈

执行刚才文本的


kubeadm join cluster-endpoint:6443 --token tkxilq.8d334xtxj8o5k0g3 \--discovery-token-ca-cert-hash sha256:e292486ccfb11722984c82585b79fdf70d816c8ff16664385f0842ff0959c6b7

如果执行失败，关闭防火墙，执行自己的啊，token 不一样的

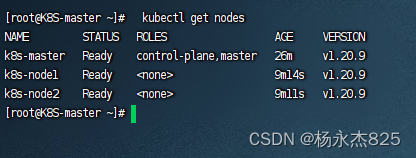

然后验证

kubectl get nodes

6、部署dashboard

主节点执行

新增一个文件叫 dashboard.yaml,把下面的复制进去

# Copyright 2017 The Kubernetes Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.apiVersion: v1
kind: Namespace
metadata:name: kubernetes-dashboard---apiVersion: v1
kind: ServiceAccount
metadata:labels:k8s-app: kubernetes-dashboardname: kubernetes-dashboardnamespace: kubernetes-dashboard---kind: Service
apiVersion: v1
metadata:labels:k8s-app: kubernetes-dashboardname: kubernetes-dashboardnamespace: kubernetes-dashboard
spec:ports:- port: 443targetPort: 8443selector:k8s-app: kubernetes-dashboard---apiVersion: v1
kind: Secret
metadata:labels:k8s-app: kubernetes-dashboardname: kubernetes-dashboard-certsnamespace: kubernetes-dashboard
type: Opaque---apiVersion: v1
kind: Secret
metadata:labels:k8s-app: kubernetes-dashboardname: kubernetes-dashboard-csrfnamespace: kubernetes-dashboard
type: Opaque
data:csrf: ""---apiVersion: v1
kind: Secret
metadata:labels:k8s-app: kubernetes-dashboardname: kubernetes-dashboard-key-holdernamespace: kubernetes-dashboard
type: Opaque---kind: ConfigMap
apiVersion: v1
metadata:labels:k8s-app: kubernetes-dashboardname: kubernetes-dashboard-settingsnamespace: kubernetes-dashboard---kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:labels:k8s-app: kubernetes-dashboardname: kubernetes-dashboardnamespace: kubernetes-dashboard
rules:# Allow Dashboard to get, update and delete Dashboard exclusive secrets.- apiGroups: [""]resources: ["secrets"]resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]verbs: ["get", "update", "delete"]# Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.- apiGroups: [""]resources: ["configmaps"]resourceNames: ["kubernetes-dashboard-settings"]verbs: ["get", "update"]# Allow Dashboard to get metrics.- apiGroups: [""]resources: ["services"]resourceNames: ["heapster", "dashboard-metrics-scraper"]verbs: ["proxy"]- apiGroups: [""]resources: ["services/proxy"]resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"]verbs: ["get"]---kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:labels:k8s-app: kubernetes-dashboardname: kubernetes-dashboard
rules:# Allow Metrics Scraper to get metrics from the Metrics server- apiGroups: ["metrics.k8s.io"]resources: ["pods", "nodes"]verbs: ["get", "list", "watch"]---apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:labels:k8s-app: kubernetes-dashboardname: kubernetes-dashboardnamespace: kubernetes-dashboard
roleRef:apiGroup: rbac.authorization.k8s.iokind: Rolename: kubernetes-dashboard
subjects:- kind: ServiceAccountname: kubernetes-dashboardnamespace: kubernetes-dashboard---apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:name: kubernetes-dashboard
roleRef:apiGroup: rbac.authorization.k8s.iokind: ClusterRolename: kubernetes-dashboard
subjects:- kind: ServiceAccountname: kubernetes-dashboardnamespace: kubernetes-dashboard---kind: Deployment
apiVersion: apps/v1
metadata:labels:k8s-app: kubernetes-dashboardname: kubernetes-dashboardnamespace: kubernetes-dashboard
spec:replicas: 1revisionHistoryLimit: 10selector:matchLabels:k8s-app: kubernetes-dashboardtemplate:metadata:labels:k8s-app: kubernetes-dashboardspec:containers:- name: kubernetes-dashboardimage: kubernetesui/dashboard:v2.3.1imagePullPolicy: Alwaysports:- containerPort: 8443protocol: TCPargs:- --auto-generate-certificates- --namespace=kubernetes-dashboard# Uncomment the following line to manually specify Kubernetes API server Host# If not specified, Dashboard will attempt to auto discover the API server and connect# to it. Uncomment only if the default does not work.# - --apiserver-host=http://my-address:portvolumeMounts:- name: kubernetes-dashboard-certsmountPath: /certs# Create on-disk volume to store exec logs- mountPath: /tmpname: tmp-volumelivenessProbe:httpGet:scheme: HTTPSpath: /port: 8443initialDelaySeconds: 30timeoutSeconds: 30securityContext:allowPrivilegeEscalation: falsereadOnlyRootFilesystem: truerunAsUser: 1001runAsGroup: 2001volumes:- name: kubernetes-dashboard-certssecret:secretName: kubernetes-dashboard-certs- name: tmp-volumeemptyDir: {}serviceAccountName: kubernetes-dashboardnodeSelector:"kubernetes.io/os": linux# Comment the following tolerations if Dashboard must not be deployed on mastertolerations:- key: node-role.kubernetes.io/mastereffect: NoSchedule---kind: Service
apiVersion: v1
metadata:labels:k8s-app: dashboard-metrics-scrapername: dashboard-metrics-scrapernamespace: kubernetes-dashboard
spec:ports:- port: 8000targetPort: 8000selector:k8s-app: dashboard-metrics-scraper---kind: Deployment
apiVersion: apps/v1
metadata:labels:k8s-app: dashboard-metrics-scrapername: dashboard-metrics-scrapernamespace: kubernetes-dashboard
spec:replicas: 1revisionHistoryLimit: 10selector:matchLabels:k8s-app: dashboard-metrics-scrapertemplate:metadata:labels:k8s-app: dashboard-metrics-scraperannotations:seccomp.security.alpha.kubernetes.io/pod: 'runtime/default'spec:containers:- name: dashboard-metrics-scraperimage: kubernetesui/metrics-scraper:v1.0.6ports:- containerPort: 8000protocol: TCPlivenessProbe:httpGet:scheme: HTTPpath: /port: 8000initialDelaySeconds: 30timeoutSeconds: 30volumeMounts:- mountPath: /tmpname: tmp-volumesecurityContext:allowPrivilegeEscalation: falsereadOnlyRootFilesystem: truerunAsUser: 1001runAsGroup: 2001serviceAccountName: kubernetes-dashboardnodeSelector:"kubernetes.io/os": linux# Comment the following tolerations if Dashboard must not be deployed on mastertolerations:- key: node-role.kubernetes.io/mastereffect: NoSchedulevolumes:- name: tmp-volumeemptyDir: {}

然后执行

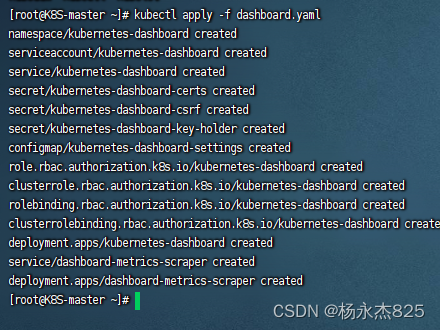

kubectl apply -f dashboard.yaml

设置端口

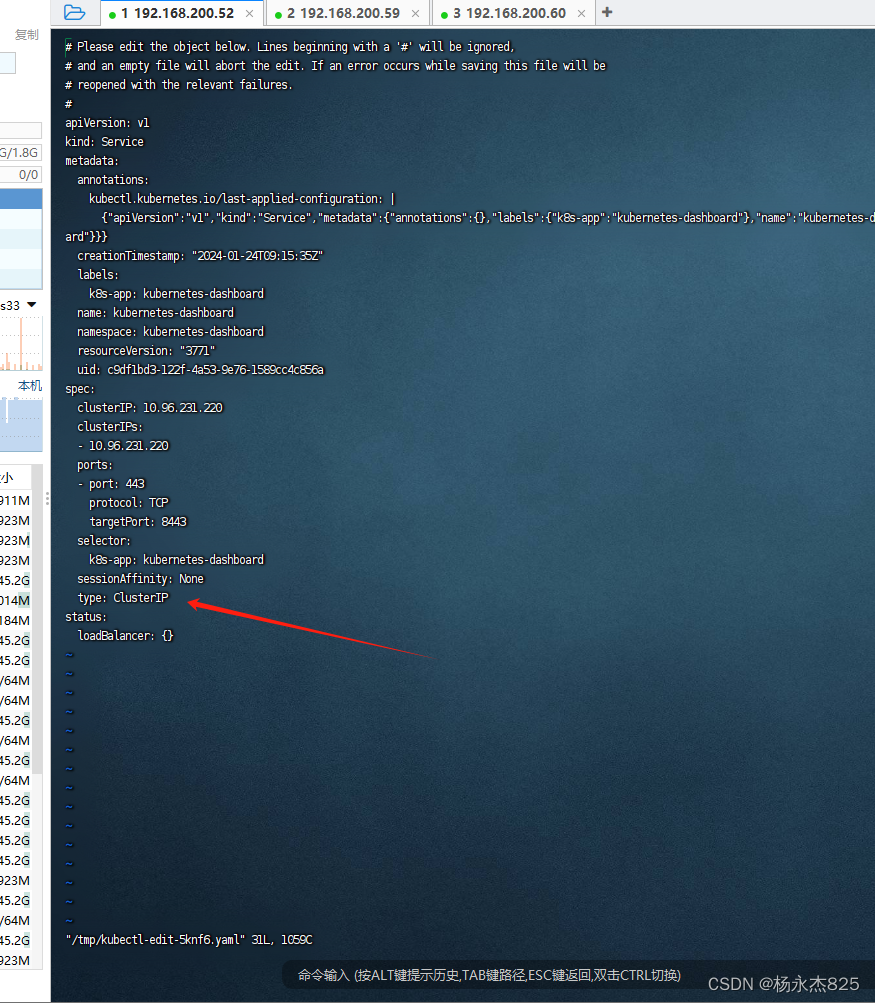

kubectl edit svc kubernetes-dashboard -n kubernetes-dashboard

type: ClusterIP 改为 type: NodePort

找到端口

kubectl get svc -A |grep kubernetes-dashboard

新增一个dash.yaml输入下面内容（创建账号用的哈哈）

#创建访问账号，准备一个yaml文件； vi dash.yaml
apiVersion: v1
kind: ServiceAccount
metadata:name: admin-usernamespace: kubernetes-dashboard
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:name: admin-user
roleRef:apiGroup: rbac.authorization.k8s.iokind: ClusterRolename: cluster-admin
subjects:
- kind: ServiceAccountname: admin-usernamespace: kubernetes-dashboard

然后执行

kubectl apply -f dash.yaml

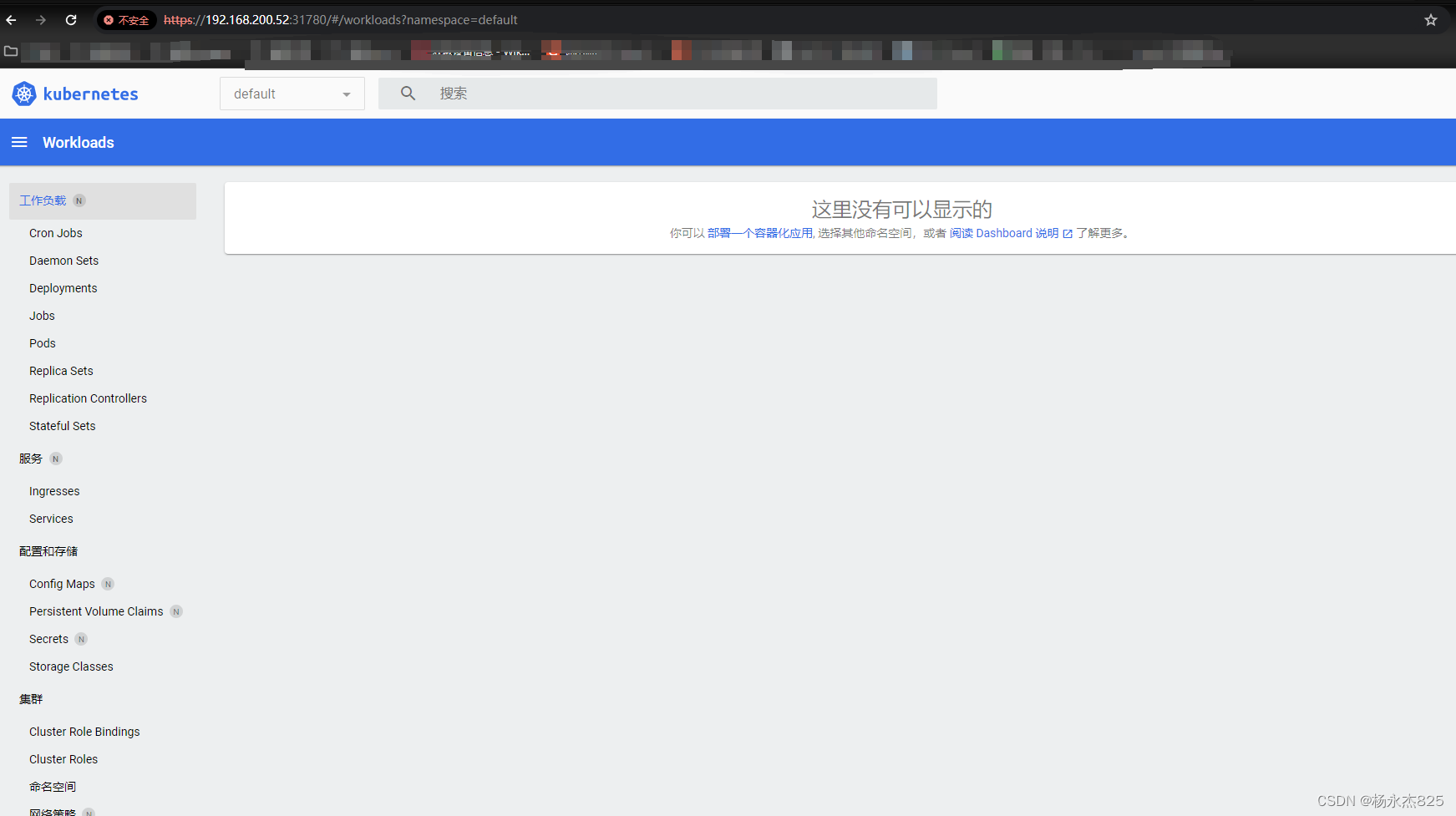

然后上面端口好31780找到在浏览器输入https:// 192.168.200.52:31780

没token，那就执行

kubectl -n kubernetes-dashboard get secret $(kubectl -n kubernetes-dashboard get sa/admin-user -o jsonpath="{.secrets[0].name}") -o go-template="{{.data.token | base64decode}}"
