本文主要是介绍scikit-learn KNN实现糖尿病预测,希望对大家解决编程问题提供一定的参考价值,需要的开发者们随着小编来一起学习吧!
随书代码,阅读笔记。
KNN是一种有监督的机器学习算法,可以解决分类问题,也可以解决回归问题。
算法优点:准确性高,对异常值和噪声有较高的容忍度;
算法缺点:计算量大,内存消耗也比较大。
针对算法计算量大,有一些改进的数据结构,避免重复计算K-D Tree, Ball Tree。
算法变种:根据邻居的距离,分配不同权重。另外一个变种是指定半径。
- KNN进行分类
%matplotlib inline
import matplotlib.pyplot as plt
import numpy as np
import pandas as pdfrom sklearn.datasets.samples_generator import make_blobs
# 生成数据
centers = [[-2, 2], [2, 2], [0, 4]]
X, y = make_blobs(n_samples=60, centers=centers, random_state=0, cluster_std=0.60)# 画出数据
plt.figure(figsize=(16, 10), dpi=144)
c = np.array(centers)
plt.scatter(X[:, 0], X[:, 1], c=y, s=100, cmap='cool'); # 画出样本
plt.scatter(c[:, 0], c[:, 1], s=100, marker='^', c='orange'); # 画出中心点from sklearn.neighbors import KNeighborsClassifier
# 模型训练
k = 5
clf = KNeighborsClassifier(n_neighbors=k)
clf.fit(X, y);# 进行预测
X_sample = [0, 2]
y_sample = clf.predict(X_sample);
neighbors = clf.kneighbors(X_sample, return_distance=False);# 画出示意图
plt.figure(figsize=(16, 10), dpi=144)
plt.scatter(X[:, 0], X[:, 1], c=y, s=100, cmap='cool'); # 样本
plt.scatter(c[:, 0], c[:, 1], s=100, marker='^', c='k'); # 中心点
plt.scatter(X_sample[0], X_sample[1], marker="x", c=y_sample, s=100, cmap='cool') # 待预测的点for i in neighbors[0]:plt.plot([X[i][0], X_sample[0]], [X[i][1], X_sample[1]], 'k--', linewidth=0.6); # 预测点与距离最近的 5 个样本的连线

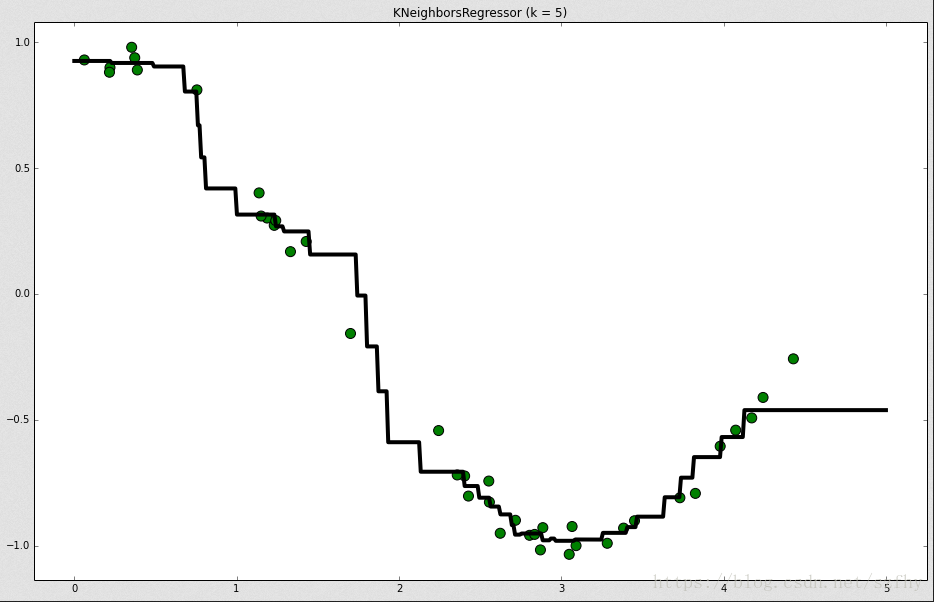

- KNN进行回归拟合
%matplotlib inline
import matplotlib.pyplot as plt
import numpy as np# 生成训练样本
n_dots = 40
X = 5 * np.random.rand(n_dots, 1)
y = np.cos(X).ravel()# 添加一些噪声
y += 0.2 * np.random.rand(n_dots) - 0.1# 训练模型
from sklearn.neighbors import KNeighborsRegressor
k = 5
knn = KNeighborsRegressor(k)
knn.fit(X, y);# 生成足够密集的点并进行预测
T = np.linspace(0, 5, 500)[:, np.newaxis]
y_pred = knn.predict(T)
knn.score(X, y)#output:0.98579189493611052# 画出拟合曲线
plt.figure(figsize=(16, 10), dpi=144)
plt.scatter(X, y, c='g', label='data', s=100) # 画出训练样本
plt.plot(T, y_pred, c='k', label='prediction', lw=4) # 画出拟合曲线
plt.axis('tight')
plt.title("KNeighborsRegressor (k = %i)" % k)
plt.show()

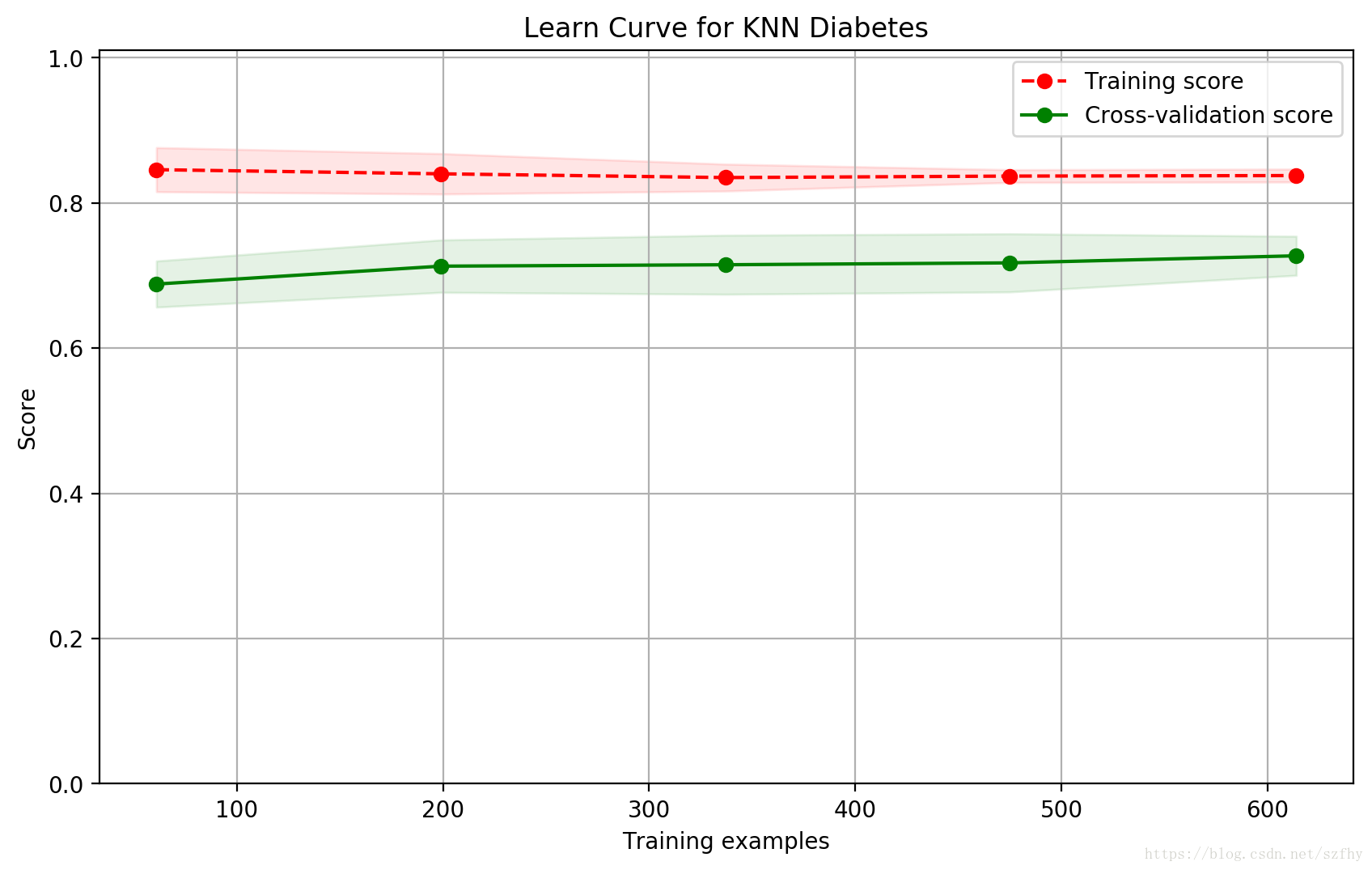

- KNN 实现糖尿病预测
%matplotlib inline import matplotlib.pyplot as plt import numpy as np import pandas as pd# 加载数据 data = pd.read_csv('datasets/pima-indians-diabetes/diabetes.csv') print('dataset shape {}'.format(data.shape)) data.head()data.groupby("Outcome").size() #Outcome #0 500 无糖尿病 #1 268 有糖尿病 #dtype: int64X = data.iloc[:, 0:8] Y = data.iloc[:, 8] print('shape of X {}; shape of Y {}'.format(X.shape, Y.shape))from sklearn.model_selection import train_test_split X_train, X_test, Y_train, Y_test = train_test_split(X, Y, test_size=0.2);from sklearn.neighbors import KNeighborsClassifier, RadiusNeighborsClassifiermodels = [] models.append(("KNN", KNeighborsClassifier(n_neighbors=2))) models.append(("KNN with weights", KNeighborsClassifier(n_neighbors=2, weights="distance"))) models.append(("Radius Neighbors", RadiusNeighborsClassifier(n_neighbors=2, radius=500.0)))results = [] for name, model in models:model.fit(X_train, Y_train)results.append((name, model.score(X_test, Y_test))) for i in range(len(results)):print("name: {}; score: {}".format(results[i][0],results[i][1]))#name: KNN; score: 0.681818181818 #name: KNN with weights; score: 0.636363636364 #name: Radius Neighbors; score: 0.62987012987from sklearn.model_selection import KFold from sklearn.model_selection import cross_val_score#kfold 训练10次,计算10次的平均准确率 results = [] for name, model in models:kfold = KFold(n_splits=10)cv_result = cross_val_score(model, X, Y, cv=kfold)results.append((name, cv_result)) for i in range(len(results)):print("name: {}; cross val score: {}".format(results[i][0],results[i][1].mean()))#name: KNN; cross val score: 0.714764183185 #name: KNN with weights; cross val score: 0.677050580998 #name: Radius Neighbors; cross val score: 0.6497265892#模型训练 knn = KNeighborsClassifier(n_neighbors=2) knn.fit(X_train, Y_train) train_score = knn.score(X_train, Y_train) test_score = knn.score(X_test, Y_test) print("train score: {}; test score: {}".format(train_score, test_score))#画出学习曲线 from sklearn.model_selection import ShuffleSplit from common.utils import plot_learning_curveknn = KNeighborsClassifier(n_neighbors=2) cv = ShuffleSplit(n_splits=10, test_size=0.2, random_state=0) plt.figure(figsize=(10, 6), dpi=200) plot_learning_curve(plt, knn, "Learn Curve for KNN Diabetes", X, Y, ylim=(0.0, 1.01), cv=cv);#数据可视化 # 从8个特征中选择2个最重要的特征进行可视化from sklearn.feature_selection import SelectKBestselector = SelectKBest(k=2) X_new = selector.fit_transform(X, Y) X_new[0:5]results = [] for name, model in models:kfold = KFold(n_splits=10)cv_result = cross_val_score(model, X_new, Y, cv=kfold)results.append((name, cv_result)) for i in range(len(results)):print("name: {}; cross val score: {}".format(results[i][0],results[i][1].mean()))# 画出数据 plt.figure(figsize=(10, 6), dpi=200) plt.ylabel("BMI") plt.xlabel("Glucose") plt.scatter(X_new[Y==0][:, 0], X_new[Y==0][:, 1], c='r', s=20, marker='o'); # 画出样本 plt.scatter(X_new[Y==1][:, 0], X_new[Y==1][:, 1], c='g', s=20, marker='^'); # 画出样本#2个特征和8个特征得到的结果差不多。分类效果达到了瓶颈
KNN对糖尿病进行测试,无法得到比较高的预测准确性
