AndroidUI系列 - View实现圆形进度条

本文主要是介绍AndroidUI系列 - View实现圆形进度条，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

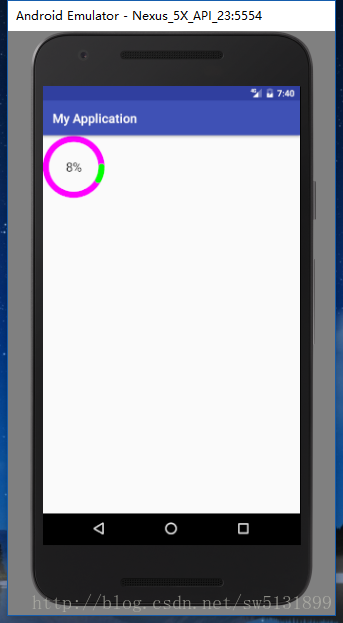

我就不从canvas和paint开始说了，onMeasure,onLayout,onDraw这些方法的介绍和源码解析。网上一搜很多。一篇解释不清楚，多看几篇。话不多说了，先看看效果吧。

做成gif显示会有问题。我们先来分析一下需要什么数据、
1、需要一个进度
2、需要进度条基本信息，颜色，宽度，大小
3、需要字体大小，颜色

那么就来看看具体逻辑。

package com.example.administrator.myapplication.circle;import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.RectF;
import android.support.annotation.Nullable;
import android.util.AttributeSet;
import android.view.View;import com.example.administrator.myapplication.R;/*** Created by ShuWen on 2017/6/10.*/public class CircleProgressBar extends View {//进度条背景色private int mCircleBgColor = Color.BLUE;//进度条文字展示颜色private int mTextColor = Color.GRAY;//进度条宽度private float mCircleWidth = 50;//进度条颜色private int mProgressColor = Color.GREEN;//进度条展示文字大小private float mTextSize = 50;private int progress;private int max = 100;private Paint paint = new Paint();public CircleProgressBar(Context context) {super(context);init(context,null);}public CircleProgressBar(Context context, @Nullable AttributeSet attrs) {super(context, attrs);init(context,attrs);}public CircleProgressBar(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {super(context, attrs, defStyleAttr);init(context,attrs);}public void init(Context context,AttributeSet attrs){TypedArray array = context.obtainStyledAttributes(attrs,R.styleable.CircleProgressBar);mCircleBgColor = array.getColor(R.styleable.CircleProgressBar_mCircleBgColor,Color.BLUE);mTextColor = array.getColor(R.styleable.CircleProgressBar_mTextColor,Color.GRAY);mProgressColor = array.getColor(R.styleable.CircleProgressBar_mProgressColor,Color.GREEN);mCircleWidth = array.getDimension(R.styleable.CircleProgressBar_mCircleWidth,50);mTextSize = array.getDimension(R.styleable.CircleProgressBar_mTextSize,50);array.recycle();}@Overrideprotected void onDraw(Canvas canvas) {super.onDraw(canvas);//画背景paint.setColor(mCircleBgColor);paint.setStyle(Paint.Style.STROKE);paint.setAntiAlias(true);paint.setStrokeWidth(mCircleWidth);int center = getWidth() / 2;int radius = (int) (center - mCircleWidth / 2);canvas.drawCircle(center,center,radius,paint);//写文字int percent = (int) (( progress / (float)max ) * 100);String percentStr = percent + "%";paint.setStrokeWidth(0);paint.setColor(mTextColor);paint.setTextSize(mTextSize);Paint.FontMetricsInt fm = paint.getFontMetricsInt();if (progress != 0){canvas.drawText(percentStr,center - paint.measureText(percentStr) / 2,center + (fm.bottom - fm.top) / 2 -fm.bottom,paint);}//画弧形RectF oval = new RectF(center - radius,center - radius,center + radius,center + radius);paint.setStrokeWidth(mCircleWidth);paint.setColor(mProgressColor);paint.setStrokeCap(Paint.Cap.ROUND);canvas.drawArc(oval,0,360 * progress/max,false,paint);}//设置进度条public void setProgress(int progress){if (progress > max){progress = max;}if (progress <= max){this.progress = progress;postInvalidate();}}
}

需要自定义的属性。

<?xml version="1.0" encoding="utf-8"?>
<resources><declare-styleable name="CircleProgressBar"><attr name="mCircleBgColor" format="color"/><attr name="mTextColor" format="color"/><attr name="mCircleWidth" format="dimension"/><attr name="mTextSize" format="dimension"/><attr name="mProgressColor" format="color"/></declare-styleable>
</resources>

详细布局

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"xmlns:tools="http://schemas.android.com/tools"android:layout_width="match_parent"android:layout_height="match_parent"xmlns:app="http://schemas.android.com/apk/res-auto"tools:context="com.example.administrator.myapplication.MainActivity"><com.example.administrator.myapplication.circle.CircleProgressBar
        android:id="@+id/progressBar"android:layout_width="100dp"android:layout_height="100dp"app:mCircleBgColor="#ff00ff"app:mCircleWidth="10dp"app:mProgressColor="#00ff00"app:mTextColor="#000"app:mTextSize="20dp"/>
</RelativeLayout>

ManActivity，开启一个线程，休眠100ms，重新设置进度。

package com.example.administrator.myapplication;import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ImageView;import com.example.administrator.myapplication.circle.CircleProgressBar;
import com.example.administrator.myapplication.flow.WaterFallLayout;import java.util.Random;public class MainActivity extends AppCompatActivity {WaterFallLayout waterfall;private static int IMG_COUNT = 5;@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);final CircleProgressBar progressBar = (CircleProgressBar) findViewById(R.id.progressBar);progressBar.setOnClickListener(new View.OnClickListener() {@Overridepublic void onClick(View v) {new Thread(new Runnable() {@Overridepublic void run() {int progress = 0;while (progress <= 100){progress += 2;progressBar.setProgress(progress);try {Thread.sleep(100);} catch (InterruptedException e) {e.printStackTrace();}}}}).start();}});}}

圆形进度条呢，网上其实很多。写的也很详细，我这里只是做一个学习笔记。
