Springboot借助微信开发工具weixin.java.tools完成微信授权登录，发送模板消息，发送客服消息，拉取用户信息列表功能

公司要求实现微信公众号的一些功能，本人经过查阅资料发现使用weixin.java.tools对微信进行开发十分便捷，遂将完成的几个小功能贴出来进行记录。

主要接入步骤：

• 通过ngrok获取动态测试域名。(如果有的话可以用自己的域名，如果想要免费使用域名的话建议使用ngrok内网穿透工具。它的缺点是每次运行ngrok都会变更域名，免费的要求也不要这么多啦)
• 申请测试公众号。(想要使用微信服务器提供的所有接口的话需要认证公众号，认证公众号一年掏三百多这里不建议)
• 将微信端与本地服务器端进行对接。

开发工具：idea

其他工具 ：ngrok（本文含下载链接）,测试公众号（官网注册）

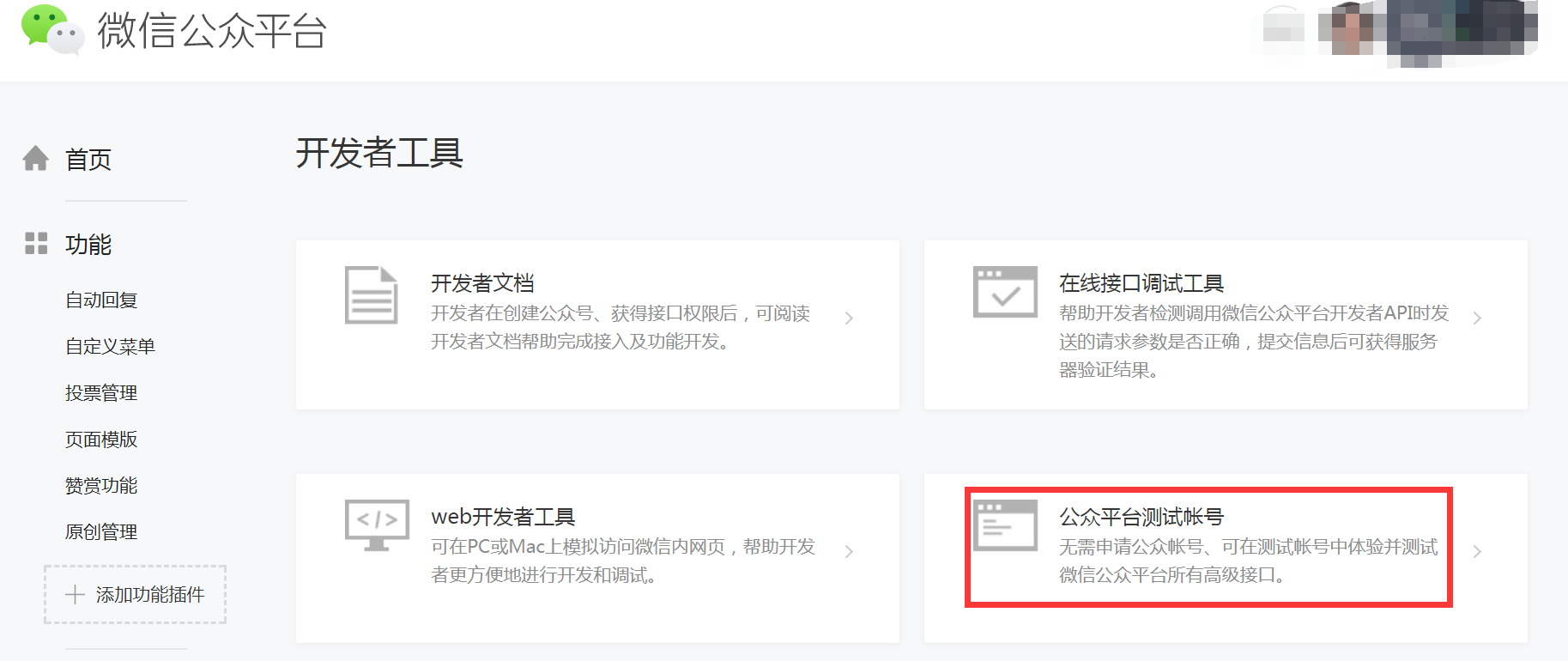

1.注册公众号：

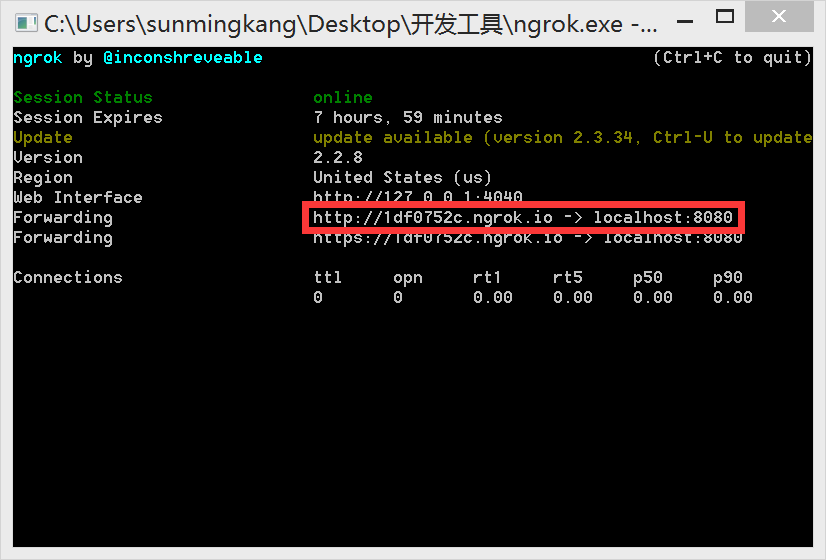

2.运行ngrok内网穿透工具

输入命令行：ngrok 8080（如不行输入ngrok http 8080）

若运行成功则会动态分配一个域名

3.创建Springboot+Maven项目（如不会的自行百度）

4.引入Maven依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><parent><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-parent</artifactId><version>2.1.6.RELEASE</version><relativePath/> <!-- lookup parent from repository --></parent><groupId>com.example</groupId><artifactId>weixin</artifactId><packaging>jar</packaging><version>0.0.1-SNAPSHOT</version><name>weixin</name><description>Demo project for Spring Boot</description><properties><java.version>1.8</java.version></properties><dependencies><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-test</artifactId><scope>test</scope></dependency><dependency><groupId>com.github.binarywang</groupId><artifactId>weixin-java-mp</artifactId><version>3.4.9.B</version></dependency><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId><version>1.16.10</version></dependency><dependency><groupId>junit</groupId><artifactId>junit</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-test</artifactId></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-test</artifactId><version>5.1.8.RELEASE</version></dependency><dependency><groupId>net.minidev</groupId><artifactId>json-smart</artifactId><version>2.3</version></dependency><dependency><groupId>com.alibaba</groupId><artifactId>fastjson</artifactId><version>1.2.31</version></dependency></dependencies><build><plugins><plugin><groupId>org.springframework.boot</groupId><artifactId>spring-boot-maven-plugin</artifactId></plugin></plugins></build></project>

其中引入的weixin-java-mp依赖就是我们今天的主角，weixin-java-tools是大神binarywang写的开发工具包，有了它我们将减少很多底层的工作量，如token的加密，accesstoken的周期管理，传入传出数据的封装与解析等都不用我们亲自动手完成：

<dependency><groupId>com.github.binarywang</groupId><artifactId>weixin-java-mp</artifactId><version>3.4.9.B</version>
</dependency>

5.进行微信服务器端与本地服务器端的对接工作（代码模块正式开始）

配置文件

server.port = 8080
server.servlet.context-path = /weixin
mpAppId=        #公众号id
mpAppSecret=    #公众号密匙
token=smk666

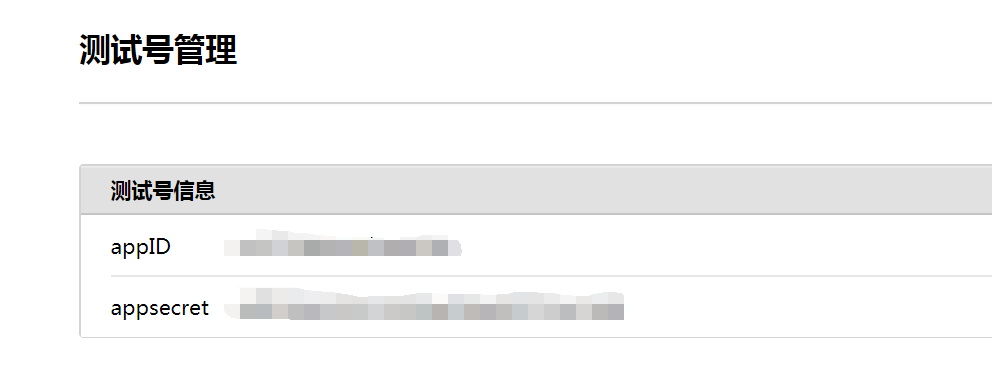

其中公众号的信息在测试号里面都有：

微信服务器对接代码块

package com.example.demo.web;@SpringBootApplication
@Controller
public class LoginController {@Value("${token}")//获取配置文件的值private String token;@RequestMapping(value = "/wx",method= RequestMethod.GET)public void login(HttpServletRequest request, HttpServletResponse response) throws IOException {System.out.println(token);//微信服务器get传递的参数String signature = request.getParameter("signature");//微信加密签名String timestamp = request.getParameter("timestamp");//时间戳String nonce = request.getParameter("nonce");//随机数String echostr = request.getParameter("echostr");//随机字符串（用来进行返回）//微信工具类WxMpService wxService=new WxMpServiceImpl();//注入token的配置参数/*** 生产环境 建议将WxMpInMemoryConfigStorage持久化*/WxMpInMemoryConfigStorage wxConfigProvider=new WxMpInMemoryConfigStorage();//注入token值wxConfigProvider.setToken(token);wxService.setWxMpConfigStorage(wxConfigProvider);boolean flag=wxService.checkSignature(timestamp, nonce, signature);System.out.println(flag);PrintWriter out=response.getWriter();if(flag){out.print(echostr);}out.close();}
}

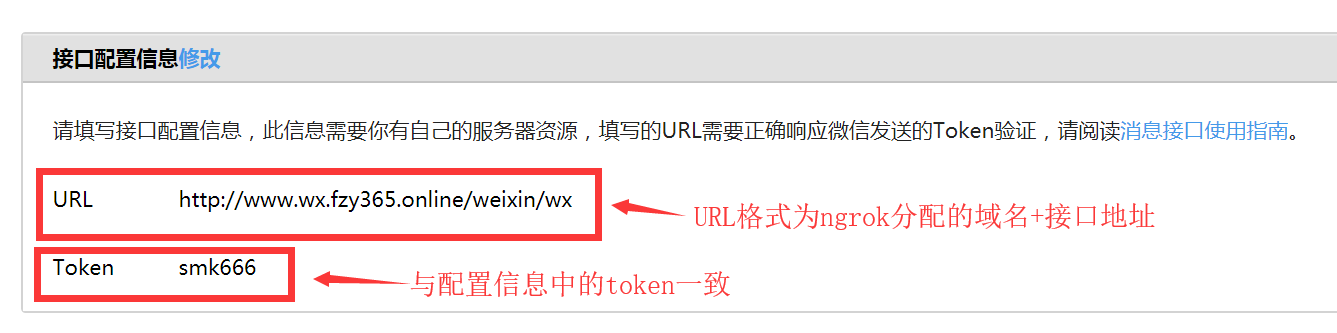

写完后在公众号测试号端进行测试，需要重点说明的是URL。

如以下URL：http://www.wx.fzy365.online（域名）+/weixin/wx（对接接口的地址）

测试成功后我们进行下一步

6.模板推送功能的实现

新增测试模板

其中模板ID用于我们后台接口的调用，模板内容为键值对形式，key1、key2为传入参数的键值且后缀加.DATA。

示例：姓名 {{key1.DATA}}

获取Accesstoken

调用微信接口必须得获取调用权限，其中Accesstoken就是该权限的凭证，两小时刷新一次，weixin.java.tool中已经封装好相关的管理方法，这里我将获取Accesstoken部分的代码单独写成一个工具类以便调用：

package com.example.demo.Util;import me.chanjar.weixin.mp.api.WxMpInMemoryConfigStorage;
import me.chanjar.weixin.mp.api.WxMpService;
import me.chanjar.weixin.mp.api.impl.WxMpServiceImpl;
import java.io.IOException;
import java.util.Properties;/*** @说明：* @创建人：孙明康* @创建时间：2019/8/1 15:57*/
public class GetAccessTokenUtil {/*** @Description:根据微信公众号id，secret获取access_token* @return: wxMpService（封装好的服务，内含调用微信接口必须的access_token）* @author: 孙明康 2019/8/3 17:06*/private static Properties properties;public static WxMpService getAccessToken() {//获取配置信息中的公众号信息if (properties==null) {properties = new Properties();ClassLoader loader = Thread.currentThread().getContextClassLoader();try {properties.load(loader.getResourceAsStream("application.properties"));} catch (IOException e) {e.printStackTrace();}}String mpAppId = properties.getProperty("mpAppId");String mpAppSecret =properties.getProperty("mpAppSecret");WxMpInMemoryConfigStorage wxStorage = new WxMpInMemoryConfigStorage();wxStorage.setAppId(mpAppId);wxStorage.setSecret(mpAppSecret);WxMpService wxMpService = new WxMpServiceImpl();wxMpService.setWxMpConfigStorage(wxStorage);return wxMpService;}}

模版消息推送功能的代码实现

传入值为json格式，注释@param里面有写（后面的controller同理）：

package com.example.demo.web;import java.util.List;/*** @说明：模版消息推送*/
@CrossOrigin
@RestController
public class PushController {/*** @Description:模板消息推送* @param:目标用户id，推送模板id，模板信息列表：{'openid':'oopKVw3CjDqczvJ9fLSecbYZYl14','templateId':'eBcuETQZjL_R4ZzLd6L9rIehSiSGGCtWe_xpWqBkMnI','returnUrl':'www.baidu.com/','wxMpTemplateDataList':[{'name':'key1','value':'孙明康','color':'#FF00FF'},{'name':'key2','value':'您的服务器有新的预警情况哦','color':'#FF00FF'}]}* @return:状态返回值：{"statusMessage":true}* @author: 孙明康 2019/8/3 16:20*/ @PostMapping("/push")//正式发布public ApiResult push(String jsonString) throws WxErrorException {public ApiResult push(@RequestBody String jsonString) throws WxErrorException {String openid = null;String templateId= null;String returnUrl = null;String templateJsonArray = null;List<WxMpTemplateData> wxMpTemplateDataList = null;JSONObject jsonObj = JSONObject.parseObject(jsonString);if(null != jsonObj) {openid = jsonObj.getString("openid");templateId = jsonObj.getString("templateId");returnUrl = jsonObj.getString("returnUrl");//JSONArray templateJsonArray = jsonObj.getJSONArray("wxMpTemplateDataList");templateJsonArray = jsonObj.getString("wxMpTemplateDataList");wxMpTemplateDataList=JSONArray.parseArray(templateJsonArray,WxMpTemplateData.class);}//access_token为获取的接口调用takenWxMpService access_token = GetAccessTokenUtil.getAccessToken();//设置推送对象信息WxMpTemplateMessage templateMessage = WxMpTemplateMessage.builder()//.toUser(openid)//要推送的用户openid.templateId(templateId)//模版id.url(returnUrl)//点击模版消息要访问的网址.build();// 模板中的map值templateMessage.addData(new WxMpTemplateData(name2, value2, color2));String name = null;String value = null;String color = null;System.out.println("获取templateId的值----"+templateId);System.out.println("获取openid的值----"+openid);System.out.println("获取returnUrl的值----"+returnUrl);for(int i = 0;i < wxMpTemplateDataList.size(); i ++){WxMpTemplateData  wxMpTemplateDataEx =  wxMpTemplateDataList.get(i);name = wxMpTemplateDataEx.getName();value = wxMpTemplateDataEx.getValue();color = wxMpTemplateDataEx.getColor();templateMessage.addData(new WxMpTemplateData(name, value, color));}boolean statusMessage = true;try {//调用String zhaungtai = access_token.getTemplateMsgService().sendTemplateMsg(templateMessage);System.out.println("若传输成功返回的状态是"+zhaungtai);} catch (Exception e) {System.out.println("推送失败：" + e.getMessage());statusMessage = false;e.printStackTrace();}finally {JSONObject jsonObject = new JSONObject();jsonObject.put("statusMessage",statusMessage);return ResultApiUtils.getSuccessResult(jsonObject);}}}

7.客服信息功能（主动向用户发送信息）功能的代码实现

这个功能比较鸡肋，如果客户在48小时之内没有跟你的公众号说过话就没法调用。

package com.example.demo.web;/*** @说明：主动发送消息（客服消息）* @创建人：孙明康* @创建时间：2019/8/2 14:30*/
@CrossOrigin
@RestController
public class KefuMessageController {/*** @Description:微信测试账号推送* @param:用户id及向用户发送的具体消息{openid:'oopKVw3CjDqczvJ9fLSecbYZYl14',content:'测试:\n超链接：<a href="http://www.4399.com/">预警情况</a>'}* @return:状态返回值：{"statusMessage":true}* @author: 孙明康 2019/8/3 16:47*/@PostMapping("/kefu")// 正式发布public ApiResult kefu(String jsonString) {public ApiResult kefu(@RequestBody String jsonString) {String openid = null;String content = null;JSONObject jsonObj = JSONObject.parseObject(jsonString);if(null != jsonObj) {openid = jsonObj.getString("openid");content = jsonObj.getString("content");}//access_token为获取的接口调用accesstaken（接口自动刷新）WxMpService access_token = GetAccessTokenUtil.getAccessToken();//设置推送的具体信息WxMpKefuMessage message = new WxMpKefuMessage();message.setMsgType(WxConsts.KefuMsgType.TEXT);message.setToUser(openid);//测试:\n超链接：<a href="http://www.4399.com/">预警情况</a>message.setContent(content);boolean statusMessage = true;try {//getAccessTokenUtil.getAccessToken()用来设置accesstokenaccess_token.getKefuService().sendKefuMessage(message);} catch (Exception e) {System.out.println("推送失败：" + e.getMessage());statusMessage = false;e.printStackTrace();}finally {JSONObject jsonObject = new JSONObject();jsonObject.put("statusMessage",statusMessage);return ResultApiUtils.getSuccessResult(jsonObject);}}
}

8.客户信息列表的拉取

这里我调用了两个微信服务器提供的接口，分别为客户openID的批量拉取接口、单个客户信息的获取接口。

package com.example.demo.web;/*** @说明：* @创建人：孙明康* @创建时间：2019/8/2 15:16*/
@CrossOrigin
@RestController
public class WxUserController {/*** @Description:从微信端获取用户ID和个人信息* @param:拉取所有用户：{next_openid:''}or从该id向下进行拉取（不包含改id）：{next_openid:'oopKVw10zjn0cqTCapx1wKY9WYF8'}* @return:用户信息列表userList：[{"subscribe":true,"openId":"oopKVw3CjDqczvJ9fLSecbYZYl14","nickname":"孙明康","sexDesc":"男","sex":1,"language":"zh_CN","city":"珠海","province":"广东","country":"中国","headImgUrl":"http://thirdwx.qlogo.cn/mmopen/1kc9BKglZaKic1etEeibLCvia5qSaz7tO5MePZe7BPtTxibXcWPRc6KMeFa7KatdW8Sm9BncY54vbdxWVvEwJO6Hbxy42q7z0HuC/132","subscribeTime":1564645086,"remark":"","groupId":0,"tagIds":[],"subscribeScene":"ADD_SCENE_QR_CODE","qrScene":"0","qrSceneStr":""}]* @author: 孙明康 2019/8/2 15:21*/@GetMapping("/wxUser")//正式发布public ApiResult wxUser(String jsonString) throws WxErrorException {public ApiResult wxUser(@RequestBody String jsonString) throws WxErrorException {String next_openid = "";JSONObject jsonObj = JSONObject.parseObject(jsonString);if(null != jsonObj) {next_openid = jsonObj.getString("next_openid");}//access_token为获取的接口调用accesstaken（接口自动刷新）WxMpService access_token = GetAccessTokenUtil.getAccessToken();//获取存储在微信端的用户个人信息WxMpUserList wxUserList = access_token.getUserService().userList(next_openid);//获取用户信息List<WxMpUser> userList = new ArrayList();for(String userOpenId : wxUserList.getOpenids()) {String lang = "zh_CN"; //语言WxMpUser userMessage = access_token.getUserService().userInfo(userOpenId, lang);System.out.println("用户的个人信息：——————" + userMessage);userList.add(userMessage);}System.out.println("用户信息列表：——————" + userList);Map<String, Object> resultMap = new HashMap<>();resultMap.put("userList",userList);return ResultApiUtils.getSuccessResult(resultMap);}
}

9.一些封装json的类

APIResult

package com.example.demo.entity;/*** @说明：* @创建人：孙明康* @创建时间：2019/8/3 10:21*/
//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by Fernflower decompiler)
//import java.io.Serializable;
import java.util.Calendar;
import java.util.Date;
import java.io.Serializable;
import java.util.Calendar;
import java.util.Date;public class ApiResult implements Serializable {private static final long serialVersionUID = -7595446147358370950L;private int status;private String message;private Object data;private Date requesttime = Calendar.getInstance().getTime();public ApiResult() {}public Date getRequesttime() {return this.requesttime;}public ApiResult setRequesttime(Date requesttime) {this.requesttime = requesttime;return this;}public int getStatus() {return this.status;}public ApiResult setStatus(int status) {this.status = status;return this;}public String getMessage() {return this.message;}public ApiResult setMessage(String message) {this.message = message;return this;}public Object getData() {return this.data;}public ApiResult setData(Object data) {this.data = data;return this;}
}

ResultApiUtils

package com.example.demo.entity;/*** @说明：* @创建人：孙明康* @创建时间：2019/8/3 10:24*/
//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by Fernflower decompiler)
//import com.alibaba.fastjson.JSONObject;
import org.springframework.http.HttpStatus;
import com.example.demo.entity.ApiResult;public class ResultApiUtils {private static final String DEFAULT_SUCCESS_MESSAGE = "success";private static final String DEFAULT_FAIL_MESSAGE = "fail";public ResultApiUtils() {}public static ApiResult getDefaultResult() {return new ApiResult();}public static ApiResult getSuccessResult() {return (new ApiResult()).setStatus(HttpStatus.OK.value()).setMessage("success");}public static ApiResult getSuccessResult(Object data) {return (new ApiResult()).setStatus(HttpStatus.OK.value()).setMessage("success").setData(data);}public static ApiResult getSuccessResult(int statusCode, String message, Object data) {return null == message?(new ApiResult()).setStatus(statusCode).setMessage("success").setData(data):(null == data?(new ApiResult()).setStatus(statusCode).setMessage(message):(new ApiResult()).setStatus(statusCode).setMessage(message).setData(data));}public static ApiResult getFailResult() {return (new ApiResult()).setStatus(HttpStatus.BAD_REQUEST.value()).setMessage("fail");}public static ApiResult getFailResult(String message) {return (new ApiResult()).setStatus(HttpStatus.BAD_REQUEST.value()).setMessage(message);}public static ApiResult getFailResult(int statusCode, String message) {return null == message?(new ApiResult()).setStatus(statusCode).setMessage("success"):(new ApiResult()).setStatus(statusCode).setMessage(message);}public static ApiResult getFailResult(int statusCode, String message, Object data) {return null == message?(new ApiResult()).setStatus(statusCode).setMessage("success").setData(data):(null == data?(new ApiResult()).setStatus(statusCode).setMessage(message):(new ApiResult()).setStatus(statusCode).setMessage(message).setData(data));}public static String resultToJson(ApiResult apiResult) {return JSONObject.toJSONString(apiResult);}
}

10.测试

好不容易就都写完啦，这里就展示一个模板消息推送接口的测试，其余测试同理。

PushControllerTest

package com.example.demo.Test;/*** @说明：* @创建人：孙明康* @创建时间：2019/8/1 16:51*/
import com.example.demo.entity.ApiResult;
import com.example.demo.web.PushController;
import me.chanjar.weixin.common.error.WxErrorException;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;import static org.junit.Assert.*;@RunWith(SpringRunner.class)
@SpringBootTest
public class PushControllerTest {@AutowiredPushController pushController;@Testpublic void push() throws WxErrorException {ApiResult status=pushController.push("{'openid':'oopKVw3CjDqczvJ9fLSecbYZYl14','templateId':'eBcuETQZjL_R4ZzLd6L9rIehSiSGGCtWe_xpWqBkMnI','returnUrl':'www.baidu.com/','wxMpTemplateDataList':[{'name':'key1','value':'孙明康','color':'#FF00FF'},{'name':'key2','value':'您的服务器有新的预警情况哦','color':'#FF00FF'}]}");System.out.println(status.getData());}
}

11.小结

到这里本次微信接口demo的编写就全部完成辽，感觉目前网上面关于weixin.java.tool工具包的介绍不是很多，如果想自学的话建议去GitHub上面直接搜开发文档看。
