通俗易懂的Spatial Transformer Networks(STN)(二)

本文主要是介绍通俗易懂的Spatial Transformer Networks(STN)(二)，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

导读

上一篇通俗易懂的Spatial Transformer Networks(STN)(一)中，我们详细介绍了STN中会使用到的几个模块，并且用pytorch和numpy来实现了，这篇文章我们将会利用pytorch来实现一个MNIST的手写数字识别并且将STN模块嵌入到CNN中

STN关键点解读

STN有一个最大的特点就是STN模块能够很容易的嵌入到CNN中，只需要进行非常小的修改即可。上一篇文章我们也说了STN拥有平移、旋转、剪切、缩放等不变性，而这一特点主要是依赖 $\theta$ 参数来实现的。刚开始的时候我还以为训练STN还需要准备 $\theta$ 标签数据，实际上并不需要。

当输入图片通过STN模块之后获得变换后的图片，然后我们再将变换后的图片输入到CNN网络中，通过损失函数计算loss，然后计算梯度更新 $\theta$ 参数，最终STN模块会学习到如何矫正图片。

代码实现

导包

import torch,torchvision
import matplotlib.pyplot as plt
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim
from torchvision import datasets,transforms
import numpy as np
from torchsummary import summary
import argparse

定义网络结构

class STN_Net(nn.Module):def __init__(self,use_stn=True):super(STN_Net, self).__init__()self.conv1 = nn.Conv2d(1,10,kernel_size=5)self.conv2 = nn.Conv2d(10,20,kernel_size=5)self.conv2_drop = nn.Dropout2d()self.fc1 = nn.Linear(320,50)self.fc2 = nn.Linear(50,10)#用来判断是否使用STNself._use_stn = use_stn#localisation net#从输入图像中提取特征#输入图片的shape为(-1,1,28,28)self.localization = nn.Sequential(#卷积输出shape为(-1,8,22,22)nn.Conv2d(1,8,kernel_size=7),#最大池化输出shape为(-1,1,11,11)nn.MaxPool2d(2,stride=2),nn.ReLU(True),#卷积输出shape为(-1,10,7,7)nn.Conv2d(8,10,kernel_size=5),#最大池化层输出shape为(-1,10,3,3)nn.MaxPool2d(2,stride=2),nn.ReLU(True))#利用全连接层回归\theta参数self.fc_loc = nn.Sequential(nn.Linear(10 * 3 * 3,32),nn.ReLU(True),nn.Linear(32,2*3))self.fc_loc[2].weight.data.zero_()self.fc_loc[2].bias.data.copy_(torch.tensor([1,0,0,0,1,0],dtype=torch.float))def stn(self,x):#提取输入图像中的特征xs = self.localization(x)xs = xs.view(-1,10*3*3)#回归theta参数theta = self.fc_loc(xs)theta = theta.view(-1,2,3)#利用theta参数计算变换后图片的位置grid = F.affine_grid(theta,x.size())#根据输入图片计算变换后图片位置填充的像素值x = F.grid_sample(x,grid)return xdef forward(self,x):#使用STN模块if self._use_stn:x = self.stn(x)#利用STN矫正过的图片来进行图片的分类#经过conv1卷积输出的shape为(-1,10,24,24)#经过max pool的输出shape为(-1,10,12,12)x = F.relu(F.max_pool2d(self.conv1(x),2))#经过conv2卷积输出的shape为(-1,20,8,8)#经过max pool的输出shape为(-1,20,4,4)x = F.relu(F.max_pool2d(self.conv2_drop(self.conv2(x)),2))x = x.view(-1,320)x = F.relu(self.fc1(x))x = F.dropout(x,training=self.training)x = self.fc2(x)return F.log_softmax(x,dim=1)

加载数据集

def get_dataloader(batch_size):# 加载数据集# 如果GPU可用就用GPU,否则用CPUdevice = torch.device("cuda" if torch.cuda.is_available()else "cpu")# 加载训练集train_dataloader = torch.utils.data.DataLoader(datasets.MNIST(root="D:/dataset", train=True, download=True,transform=transforms.Compose([transforms.ToTensor(),transforms.Normalize((0.1307,), (0.3081,))])), batch_size=batch_size, shuffle=True)# 加载测试集test_dataloader = torch.utils.data.DataLoader(datasets.MNIST(root="D:/dataset", train=False,transform=transforms.Compose([transforms.ToTensor(),transforms.Normalize((0.1307,), (0.3081,))])), batch_size=batch_size, shuffle=True)return train_dataloader,test_dataloader

训练模型

def train(net,epoch_nums,lr,train_dataloader,per_batch,device):#使用训练模式net.train()#选择梯度下降优化算法optimizer = optim.SGD(net.parameters(),lr=lr)#训练模型for epoch in range(epoch_nums):for batch_idx,(data,label) in enumerate(train_dataloader):data,label = data.to(device),label.to(device)optimizer.zero_grad()pred = net(data)loss = F.nll_loss(pred,label)loss.backward()optimizer.step()if batch_idx % per_batch == 0:print("Train Epoch:{} [{}/{} ({:.0f}%)]\tLoss:{:.6f}".format(epoch,batch_idx * len(data),len(train_dataloader.dataset),100. * batch_idx /len(train_dataloader),loss.item()))

评估模型

def evaluate(net,test_dataloader,device):with torch.no_grad():#使用评估模式net.eval()eval_loss = 0eval_acc = 0for data,label in test_dataloader:data,label = data.to(device),label.to(device)pred = net(data)eval_loss += F.nll_loss(pred,label,size_average=False).item()pred_label = pred.max(1,keepdim=True)[1]eval_acc += pred_label.eq(label.view_as(pred_label)).sum().item()eval_loss /= len(test_dataloader.dataset)print("evaluate set: Average loss: {:.4f},Accuracy:{}/{} ({:.2f}%)\n".format(eval_loss,eval_acc,len(test_dataloader.dataset),100*eval_acc / len(test_dataloader.dataset)))

将pytorch的tensor转换为numpy的array

def tensor_to_array(img_tensor):img_array = img_tensor.numpy().transpose((1,2,0))mean = np.array([0.485,0.456,0.406])std = np.array([0.229,0.224,0.225])img_array = std * img_array + meanimg = np.clip(img_array,0,1)return img

可视化STN变换图片

def visualize_stn(net,dataloader,device):with torch.no_grad():data = next(iter(dataloader))[0].to(device)input_tensor = data.cpu()t_input_tensor = net.stn(data).cpu()in_grid = tensor_to_array(torchvision.utils.make_grid(input_tensor))out_grid = tensor_to_array(torchvision.utils.make_grid(t_input_tensor))f,axarr = plt.subplots(1,2)axarr[0].imshow(in_grid)axarr[0].set_title("input images")axarr[1].imshow(out_grid)axarr[1].set_title("stn transformed images")plt.show()

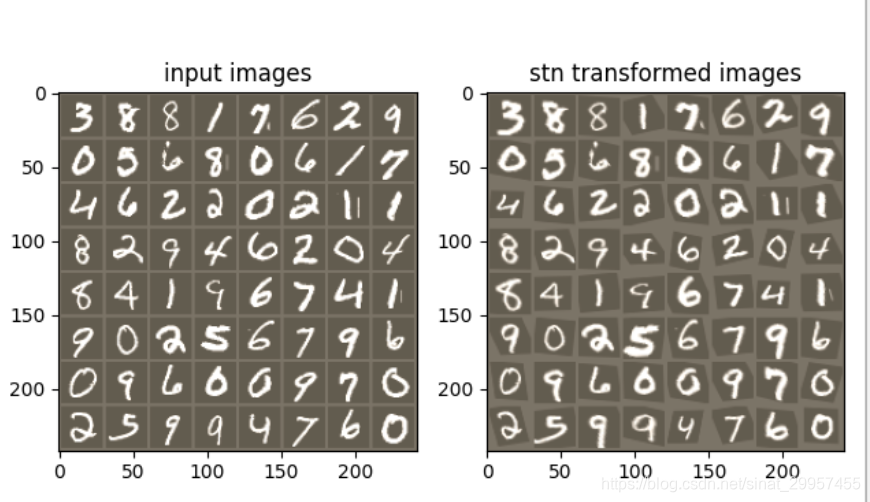

在这里插入图片描述
通过对比输入图片和经过STN变换后的图片能够很明显发现，经过STN之后能将旋转的图片进行明显的纠正。

参数设置

def parse_args():parse = argparse.ArgumentParser("config stn args")parse.add_argument("--lr",default=0.01,type=float,help="learning rate")parse.add_argument("--epoch_nums",default=20,type=int,help="iterated epochs")parse.add_argument("--use_stn",default=True,type=bool,help="whether to use STN module")parse.add_argument("--batch_size",default=64,type=int,help="batch size")parse.add_argument("--use_eval",default=True,type=bool,help="whether to evaluate")parse.add_argument("--use_visual",default=True,type=bool,help="visual STN transform image")parse.add_argument("--use_gpu",default=True,type=bool,help="whether to use GPU")parse.add_argument("--show_net_construct",default=False,type=bool,help="print net construct info")return parse.parse_args()

主函数

if __name__ == "__main__":args = parse_args()if args.use_gpu and torch.cuda.is_available():device = "cuda"else:device = "cpu"#加载数据集train_loader,test_loader = get_dataloader(args.batch_size)#创建网络net = STN_Net(args.use_stn).to(device)#打印网络的结构信息if args.show_net_construct:summary(net,(1,28,28))#训练模型train(net,args.epoch_nums,args.lr,train_loader,args.batch_size,device)if args.use_eval:#评估模型evaluate(net,test_loader,device)if args.use_visual:#可视化展示效果visualize_stn(net,test_loader,device)
