General Algorithms

本文主要是介绍General Algorithms - Graph，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

BFS
- - - Red Knights Shortest Path - World CodeSprint 12 -
DFS
- - - Even Tree
    - Roads and Libraries
MST
- - - Kruskal MST Really Special Subtree
A

BFS

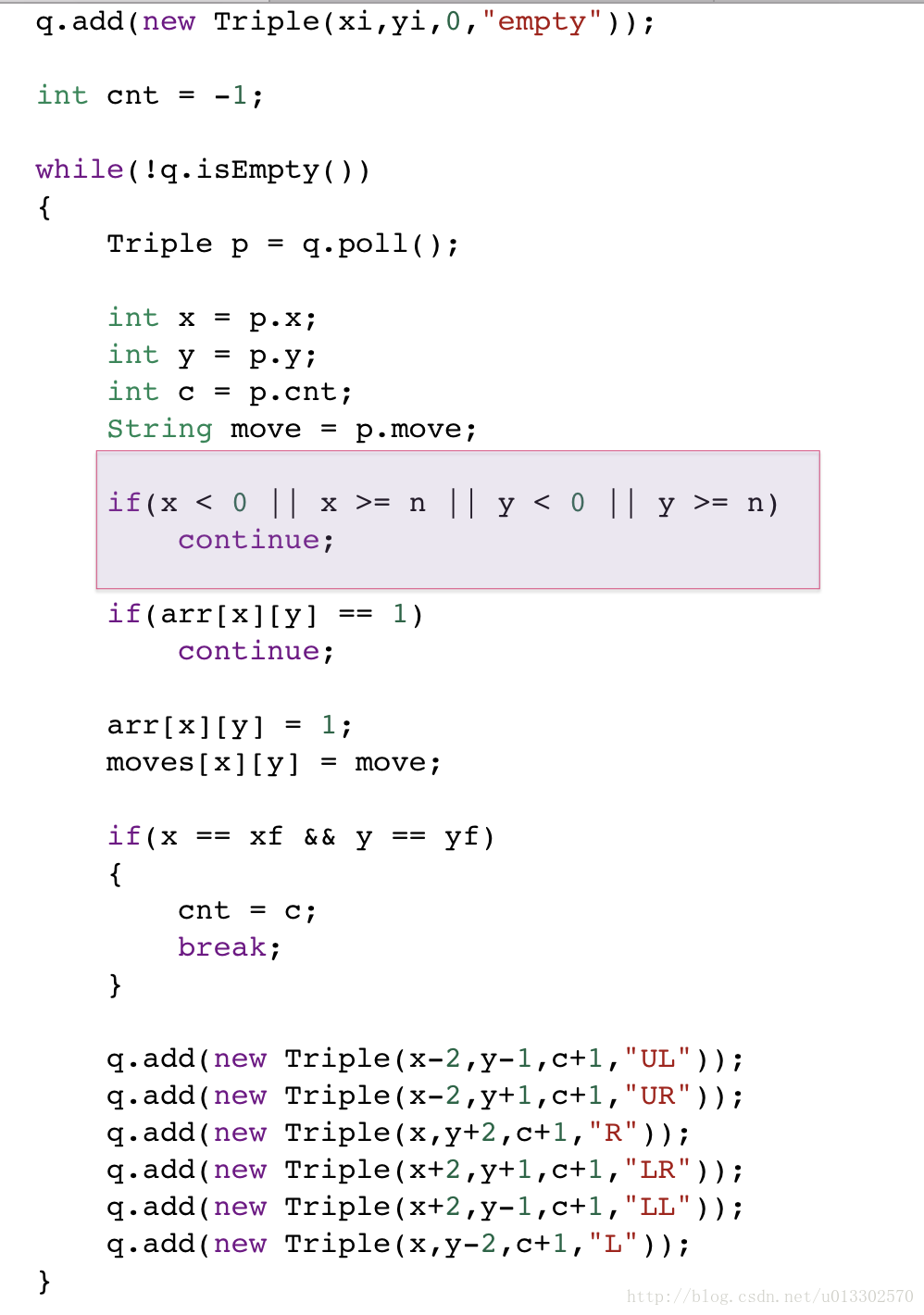

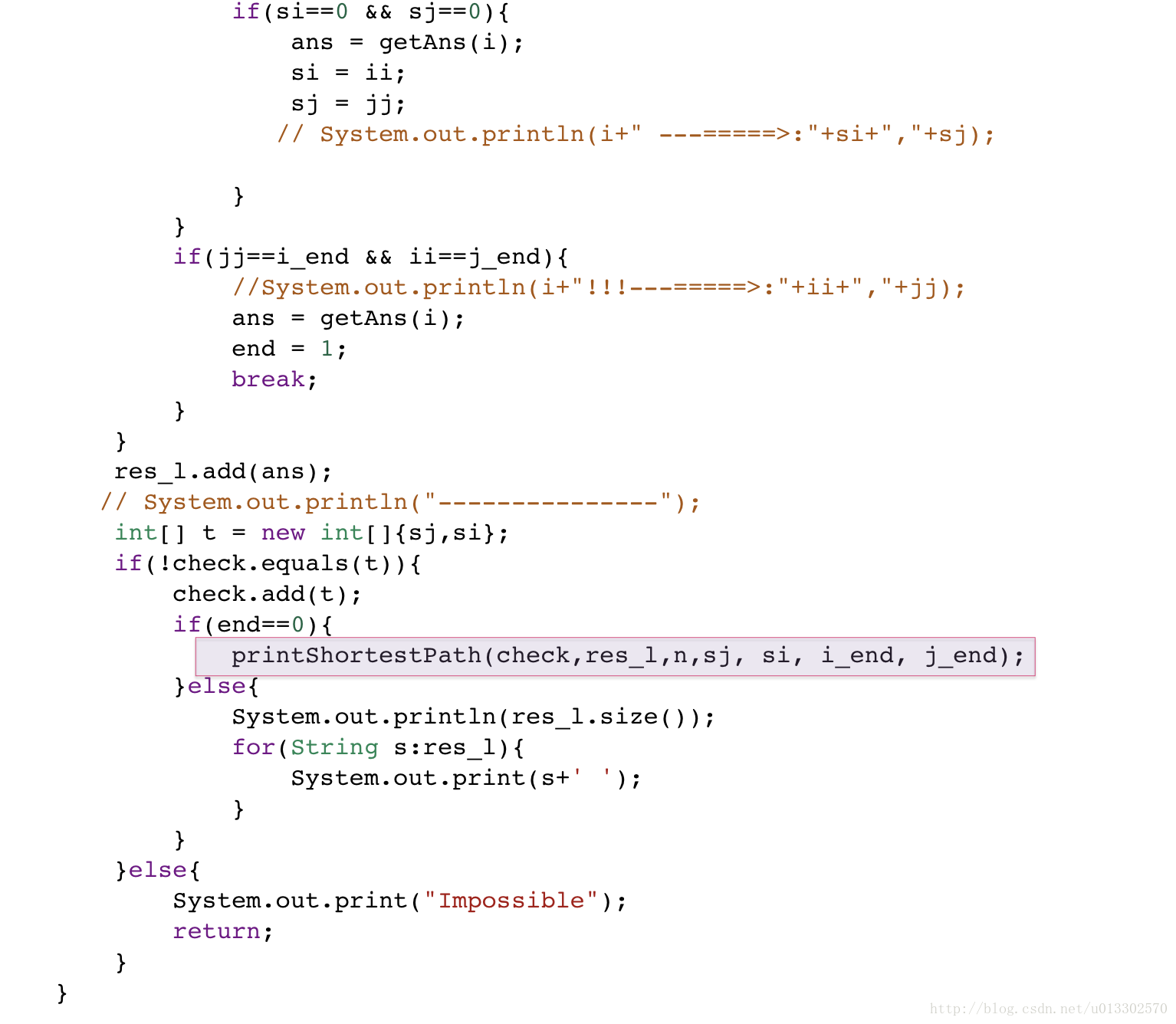

Red Knight’s Shortest Path - World CodeSprint 12 -

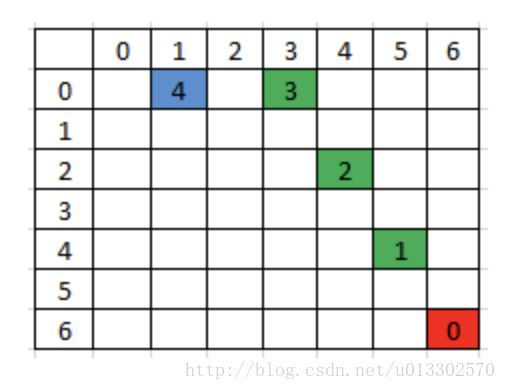

While loop 和 Recusive function可以互相用来替换; 0 为任意随机起始点， 4 为任意终点， 1，2，3为过程中步骤

DFS

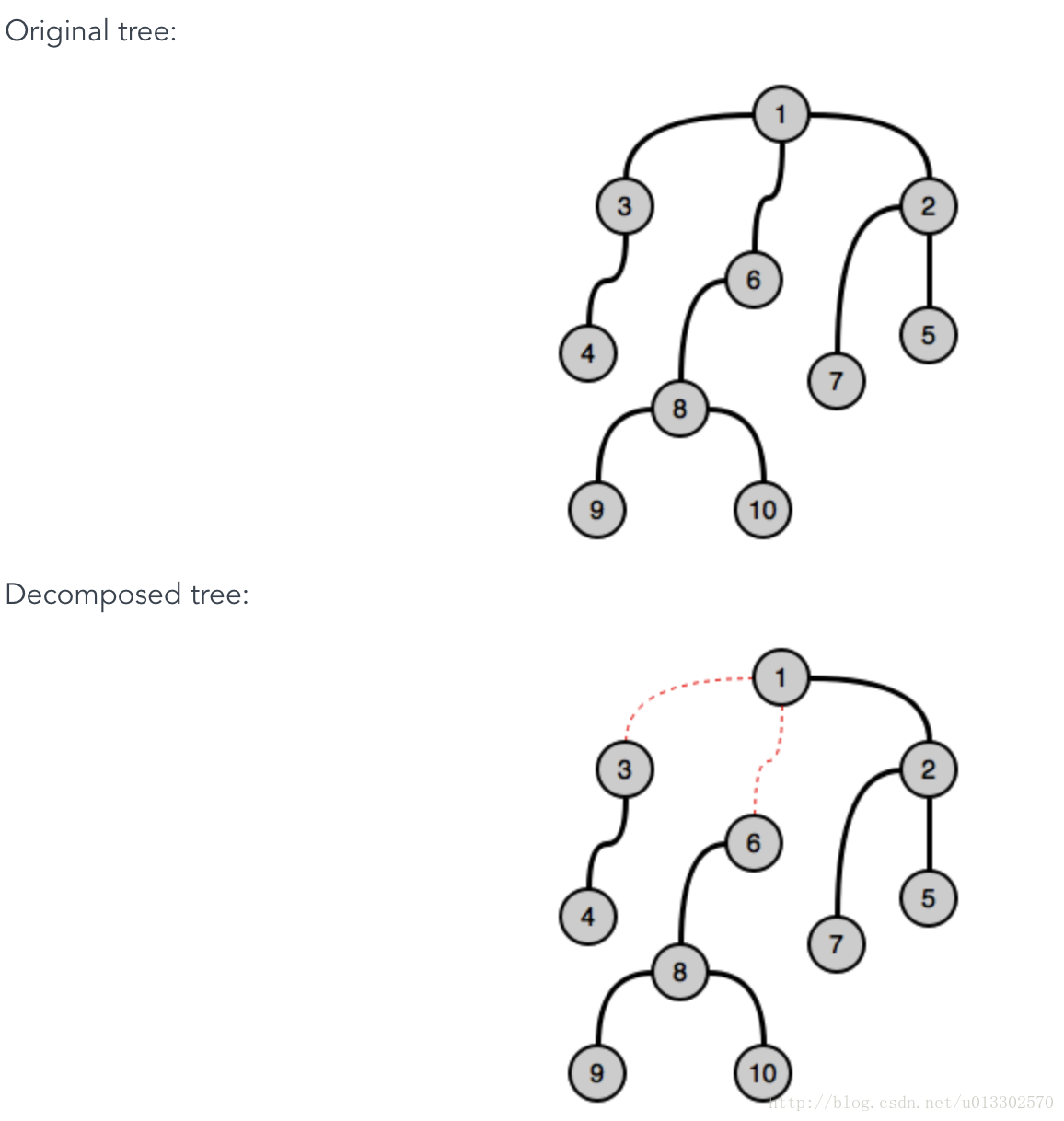

Even Tree

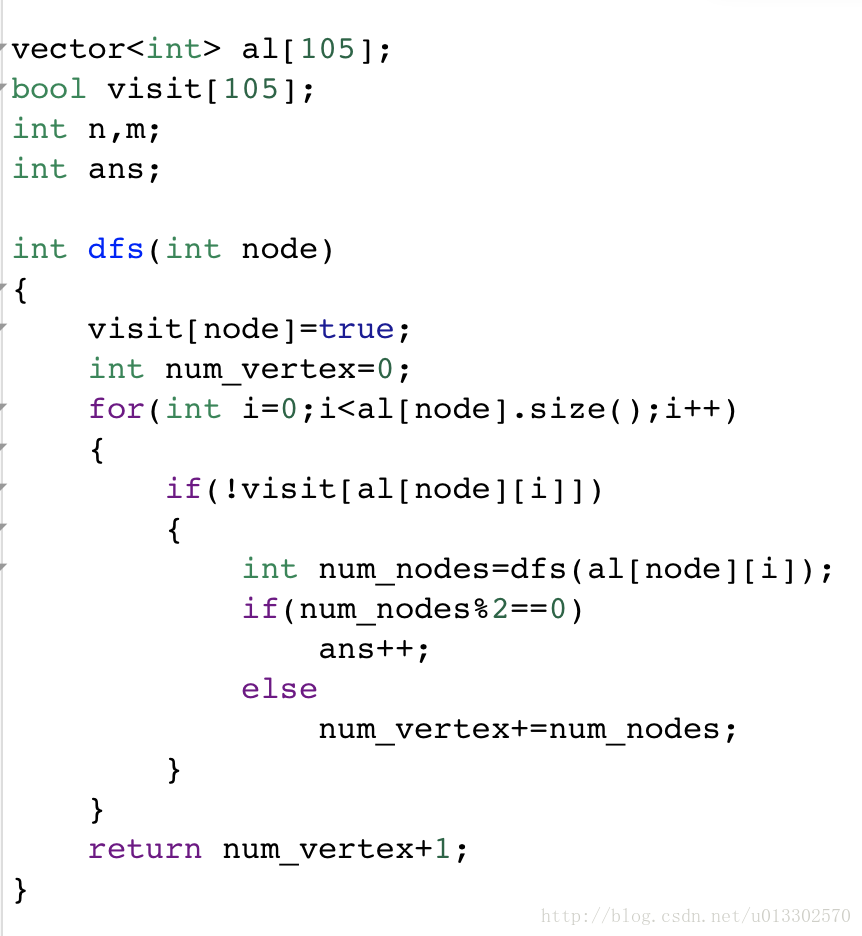

由于已知node范围在2-100，把adjacency list(vector)的范围直接写成 ”>100” 大一点的可以帮助更快确定位置。Sparse 的这种不确定分布的图，使用matrix会增加storage的负担，最大情况会需要一个100x100的matrix，然而不是每个matrix 的cell都会用到。
整个DFS里，不用一个一个node来回测试相连为不为even的tree，只用计算出DFS 遍历的nodes的和能不能被%2。使用公共的Variable来 counts 可以砍掉的edges的数量。
最要小心是return的时候，nodes的总和计算要加上当前的这一个node （1）, 即：dfs(当前node)+1。dfs(当前node) recursion （back tracking）的作用是累计当前node的子nodes 的个数。
用 num_vertex+=num_nodes 累计到当前node，需要经过的子nodes.
Visit[] 的boolean判断在DFS非要不可，是为了track node.

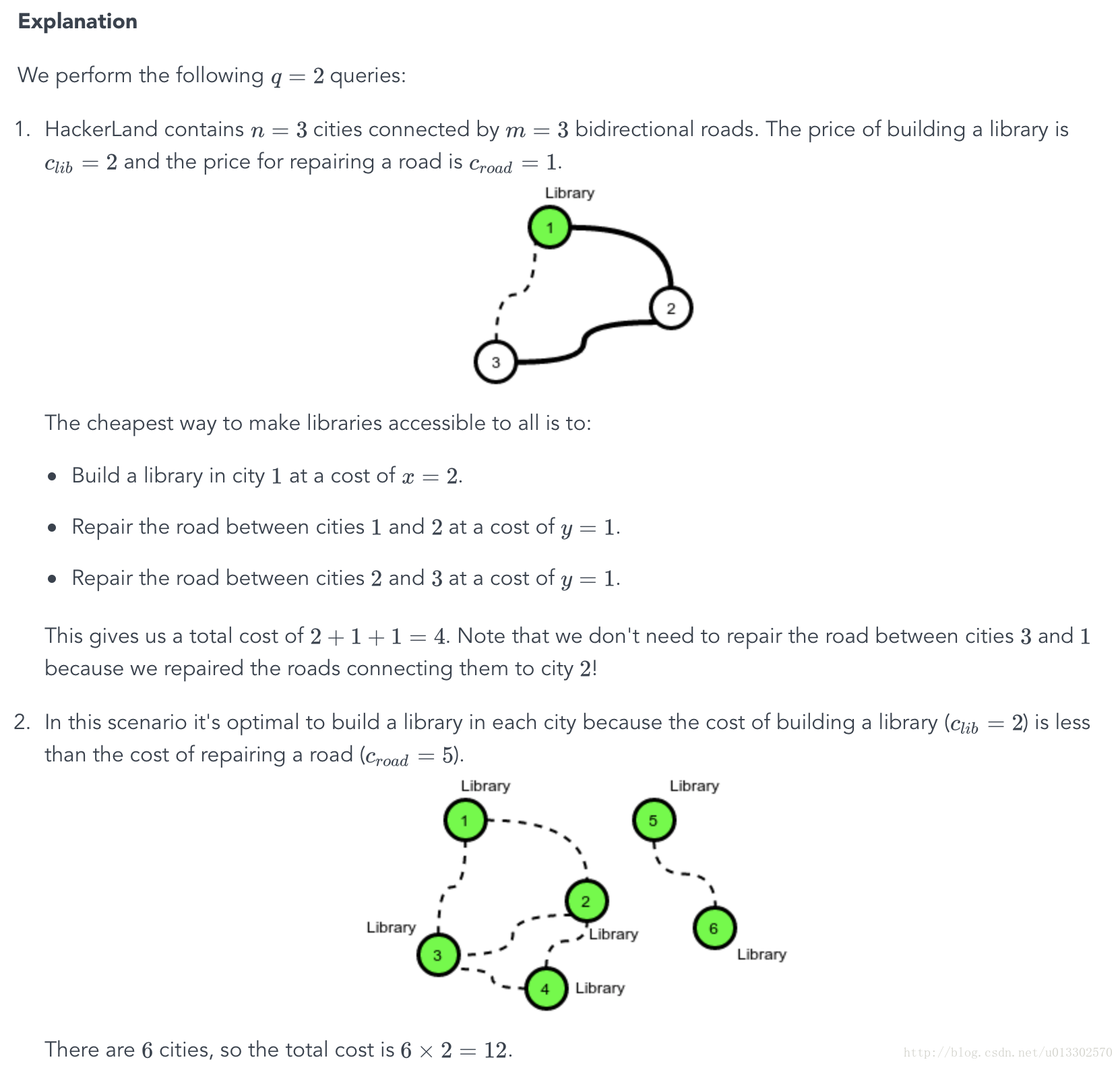

Roads and Libraries

这里写图片描述

此题已知edge 和 node统一Weights，则BFS没有优势但也可以用
除了BFS， DFS这些能够确保每个点和边都会经过的，还有Minimum Spanning Tree 可以用. MST运用了Union-Find的Data structure，比如根据Weight来Swap

MST解法 1

import java.io.BufferedReader;
import java.io.InputStreamReader;
import java.util.*;class MinSpanningTree {public static final class Edge implements Comparable<Edge> {final int srcId;final int trgId;final long value;Edge(int srcId, int trgId, long value) {this.srcId = srcId;this.trgId = trgId;this.value = value;}public int compareTo(Edge o) {return (value < o.value) ? -1 : (value > o.value) ? 1 : 0;}}private static final class NodeEntry {NodesSet owner;NodeEntry next;     }private static final class NodesSet {int size;NodeEntry first;NodeEntry last;NodesSet(NodeEntry node) {size = 1;first = node;last = node;}static void merge(NodesSet set1, NodesSet set2) {if (set1.size < set2.size) {merge(set2, set1);return;}set1.size += set2.size;set1.last.next = set2.first;set1.last = set2.last;NodeEntry node = set2.first;while (node != null) {node.owner = set1;node = node.next;}}}private int nodesCount;private int edgesCount;private Edge[] edges;public MinSpanningTree(int nodes) {this.nodesCount = nodes;this.edgesCount = 0;this.edges = new Edge[nodesCount];}public void addEdge(int srcId, int trgId, long value) {if (edgesCount == edges.length) {edges = Arrays.copyOf(edges, 2 * edges.length);}edges[edgesCount++] = new Edge(srcId, trgId, value);}public Edge[] getMinSpanningTree() {NodeEntry[] nodes = new NodeEntry[nodesCount];for (int i = 0; i < nodesCount; i++) {nodes[i] = new NodeEntry();nodes[i].owner = new NodesSet(nodes[i]);}edges = Arrays.copyOf(edges, edgesCount);Arrays.sort(edges, 0, edgesCount);Edge[] spanningTree = new Edge[nodesCount-1];int k = 0;for (int i = 0; i < edgesCount & k+1 < nodesCount; i++) {NodesSet set1 = nodes[edges[i].srcId].owner;NodesSet set2 = nodes[edges[i].trgId].owner;if (set1 != set2) {NodesSet.merge(set1, set2);spanningTree[k++] = edges[i];}}return (k+1 < nodesCount) ? null : spanningTree;}public long getMinSpanningTreeSize() {Edge[] spanningTree = getMinSpanningTree();if (spanningTree == null) return -1;long treeSize = 0;for (Edge edge : spanningTree) treeSize += edge.value;return treeSize;}
}public class Solution {public static void main(String[] args) {Scanner in = new Scanner(new BufferedReader(new InputStreamReader(System.in), 256 << 10));int testsNumber = in.nextInt();for (int test = 0; test < testsNumber; test++) {int n = in.nextInt();int m = in.nextInt();int costOfLib = in.nextInt();int costOfRoad = in.nextInt();MinSpanningTree tree = new MinSpanningTree(n+1);for (int i = 0; i < n; i++) {tree.addEdge(0, i+1, costOfLib);}for (int i = 0; i < m; i++) {int v1 = in.nextInt();int v2 = in.nextInt();tree.addEdge(v1, v2, costOfRoad);}System.out.println(tree.getMinSpanningTreeSize());}in.close();}
}

MST解法2

import java.io.*;
import java.util.*;
import java.text.*;
import java.math.*;
import java.util.regex.*;public class Solution {public static class Edge {public int u, v;public long w;public Edge(int u, int v, long w) {this.u = u;this.v = v;this.w = w;}}public static class UnionFind {private int parent[];private int rank[];public UnionFind(int n) {parent = new int[n];rank = new int[n];for (int i = 0; i < n; i++) {parent[i] = i;}}public int findSet(int x) {while (parent[x] != x) {parent[x] = parent[parent[x]];x = parent[x];}return x;}public void union(int a, int b) {int setA = findSet(a);int setB = findSet(b);if (rank[setA] > rank[setB]) {parent[setB] = setA;} else {parent[setA] = setB;if (rank[setA] == rank[setB]) {rank[setB] += 1;}}}public boolean connected(int a, int b) {return (findSet(a) == findSet(b));}}public static void main(String[] args) {Scanner in = new Scanner(System.in);int q = in.nextInt();for(int a0 = 0; a0 < q; a0++){long n = in.nextLong();long m = in.nextLong();long lib = in.nextLong();long road = in.nextLong();List<Edge> edges = new ArrayList<>();for(int a1 = 0; a1 < m; a1++){int city_1 = in.nextInt();int city_2 = in.nextInt();edges.add(new Edge(city_1, city_2, road));}UnionFind uf = new UnionFind((int)(n + 1));long minCost = n * lib;long roadCosts = 0;long libCosts = n * lib;for (Edge edge : edges) {if (!uf.connected(edge.u, edge.v)) {uf.union(edge.u, edge.v);roadCosts += road;libCosts -= lib;minCost = Math.min(minCost, roadCosts + libCosts);}}System.out.println(minCost);}}
}

MST

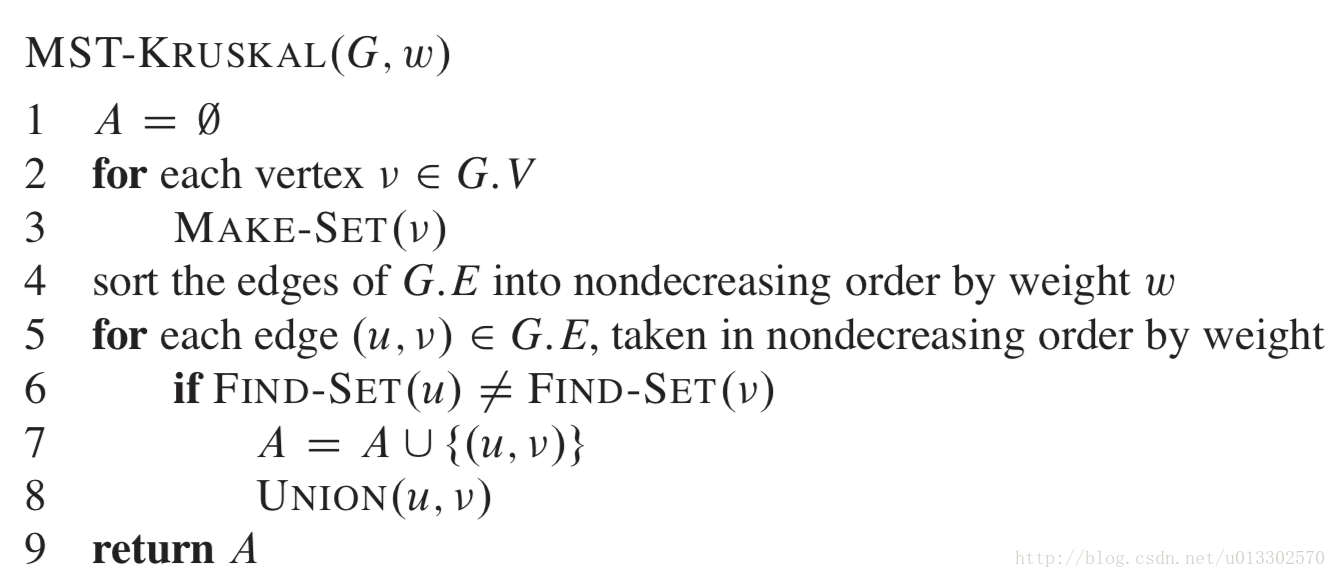

Kruskal (MST): Really Special Subtree

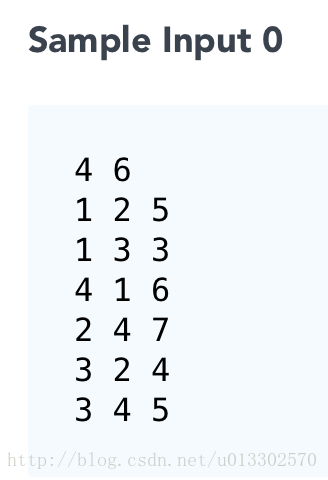

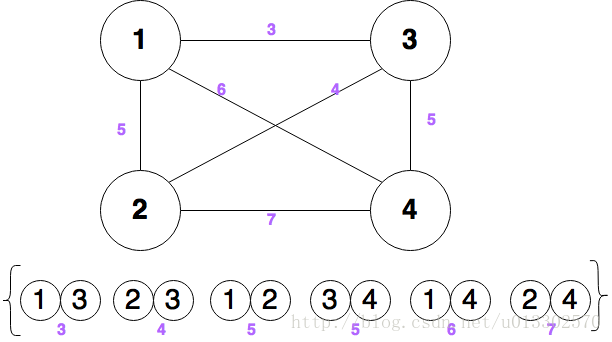

按照算法，右图的大括号里的已经是所有edges从小到大的排序。已知从最小的那个开始直到所有nodes都包含在一个Minimum Spanning Tree里：先是Edge(1,3), 到Edge(2,3),当到Edge(1,2)时，由于前面的两个Edges已经包含了1 与 2 这两个node,所以忽略Edge(1,2)；到Edge(3,4), 然后到Edge(1,4),由于前面也已经包含了Node 1 和 4，所以忽略Edge(1,4), 到Edge(2,4)同理，也被忽略。则最后只留有：
