创建CustomSurfaceView

public class CustomSurfaceView extends SurfaceView {int viewWidth,viewHeight;//管理surfaceviewSurfaceHolder surfaceHolder;public CustomSurfaceView(Context context, AttributeSet attrs) {super(context, attrs);surfaceHolder = getHolder();MyCallback myCallback = new MyCallback();surfaceHolder.addCallback(myCallback);}class MyCallback implements SurfaceHolder.Callback{//surfaceview创建完成@Overridepublic void surfaceCreated(SurfaceHolder surfaceHolder) {}//surfaceview大小发生变化@Overridepublic void surfaceChanged(SurfaceHolder surfaceHolder, int i, int i1, int i2) {}//@Overridepublic void surfaceDestroyed(SurfaceHolder surfaceHolder) {}}
}

activity_main布局中使用控件

    <com.xx.customsurfaceview.CustomSurfaceViewandroid:layout_width="match_parent"android:layout_height="match_parent" />

先了解下执行流程：
surfaceCreated——>surfaceChanged
如果单击返回键执行：
surfaceDestroyed

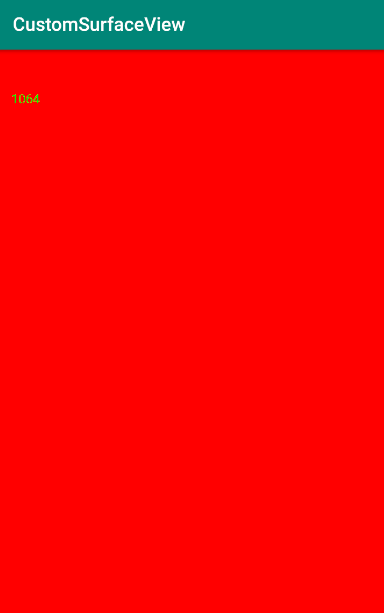

public class CustomSurfaceView extends SurfaceView {int viewWidth,viewHeight;//管理surfaceviewSurfaceHolder surfaceHolder;Thread thread;public CustomSurfaceView(Context context, AttributeSet attrs) {super(context, attrs);surfaceHolder = getHolder();MyCallback myCallback = new MyCallback();surfaceHolder.addCallback(myCallback);}class MyRunnable implements Runnable {@Overridepublic void run() {Canvas canvas = null;//view是把内容直接画到屏幕上//surfaceview先把内容画到内存try {canvas = surfaceHolder.lockCanvas();Paint paint = new Paint();paint.setColor(Color.RED);//画背景Rect rect = new Rect(0,0,viewWidth,viewHeight);canvas.drawRect(rect,paint);//画文字paint.setColor(Color.GREEN);paint.setTextSize(48);canvas.drawText("1064",50,200,paint);} catch (Exception e) {e.printStackTrace();} finally {//把内存画好的东西画到屏幕上surfaceHolder.unlockCanvasAndPost(canvas);}}}class MyCallback implements SurfaceHolder.Callback{//surfaceview创建完成@Overridepublic void surfaceCreated(SurfaceHolder surfaceHolder) {thread = new Thread(new MyRunnable());thread.start();}//surfaceview大小发生变化@Overridepublic void surfaceChanged(SurfaceHolder surfaceHolder, int i, int i1, int i2) {viewWidth = i1;viewHeight = i2;}//@Overridepublic void surfaceDestroyed(SurfaceHolder surfaceHolder) {}}
}

现在绘制以下效果

public class CustomSurfaceView extends SurfaceView {......Bitmap heart1,heart2;int imageX;int direction;final static int left = 1;final static int right = 2;boolean isRunning = true;public CustomSurfaceView(Context context, AttributeSet attrs) {super(context, attrs);......heart1 = BitmapFactory.decodeResource(getResources(),R.mipmap.heart1);heart2 = BitmapFactory.decodeResource(getResources(),R.mipmap.heart2);}class MyRunnable implements Runnable {@Overridepublic void run() {while(isRunning){Canvas canvas = null;//view是把内容直接画到屏幕上//surfaceview先把内容画到内存try {......//画图//direction是移动方向if(direction == right){imageX = imageX + 20;canvas.drawBitmap(heart1,imageX,100,paint);}else{imageX = imageX - 20;canvas.drawBitmap(heart2,imageX,100,paint);}//<0说明在最左边if(imageX < 0){direction = right;}//如果大于屏幕宽度，说明移到了最右边if(imageX > viewWidth){direction = left;}Thread.currentThread().sleep(100);} catch (Exception e) {e.printStackTrace();} finally {//把内存画好的东西画到屏幕上surfaceHolder.unlockCanvasAndPost(canvas);}}}}class MyCallback implements SurfaceHolder.Callback{//surfaceview创建完成@Overridepublic void surfaceCreated(SurfaceHolder surfaceHolder) {thread = new Thread(new MyRunnable());thread.start();}//surfaceview大小发生变化@Overridepublic void surfaceChanged(SurfaceHolder surfaceHolder, int i, int i1, int i2) {viewWidth = i1;viewHeight = i2;//开始图片在最右边imageX = i1 ;}//@Overridepublic void surfaceDestroyed(SurfaceHolder surfaceHolder) {isRunning = false;}}
}

其中heart1、heart2是两张png图片

现在实现文字移动效果

public class CustomSurfaceView extends SurfaceView {......String[] stringArray = {"Errol_King","代码狂欢到深夜"};int stringY;......class MyRunnable implements Runnable {@Overridepublic void run() {while(isRunning){Canvas canvas = null;//view是把内容直接画到屏幕上//surfaceview先把内容画到内存try {canvas = surfaceHolder.lockCanvas();Paint paint = new Paint();paint.setColor(Color.RED);//画背景Rect rect = new Rect(0,0,viewWidth,viewHeight);canvas.drawRect(rect,paint);//画文字......//画图......//画文字paint.setColor(Color.WHITE);paint.setTextSize(70);stringY = stringY - 20;for(int i=0;i<stringArray.length;i++){//假定每行高50int y = stringY + i*70;canvas.drawText(stringArray[i],50,y,paint);}Thread.currentThread().sleep(100);} catch (Exception e) {e.printStackTrace();} finally {//把内存画好的东西画到屏幕上surfaceHolder.unlockCanvasAndPost(canvas);}}}}......
}

Demo下载
