要求

用13台虚拟机搭建一个高可用负载均衡集群架构出来，并运行三个站点，具体需求如下。

设计你认为合理的架构，用visio把架构图画出来
搭建lnmp、tomcat+jdk环境
三个站点分别为：discuz论坛、dedecms企业网站以及zrlog博客
由于机器有限，尽可能地把三个站点放到同一台服务器上，然后做负载均衡集群，要求所有站点域名解析到一个ip上，也就是说只有一个出口ip
需要共享静态文件，比如discuz需要共享的目录是 data/attachment，dedecms需要共享upload（具体目录，你可以先上传一个图片，查看图片所在目录）
设计合理的目录、文件权限，比如discuz的data目录需要给php-fpm进程用户可写权限，其他目录不用写的就不要给写权限（目录755，文件644，属主属组root）
所有服务器要求只能普通用户登录，而且只能密钥登录，root只能普通用户sudo
给所有服务器做一个简单的命令审计功能
php-fpm服务要求设置慢执行日志，超时时间为2s，并做日志切割，日志保留一月
所有站点都需要配置访问日志，并做日志切割，要求静态文件日志不做记录，日志保留一月
制定合理的mysql数据备份方案，并写备份脚本，要求把备份数据传输到备份服务器
制定代码、静态文件的备份方案，并写备份脚本，要求把备份数据传输到备份服务器
编写数据恢复文档，能保证当数据丢失在2小时内恢复所有数据

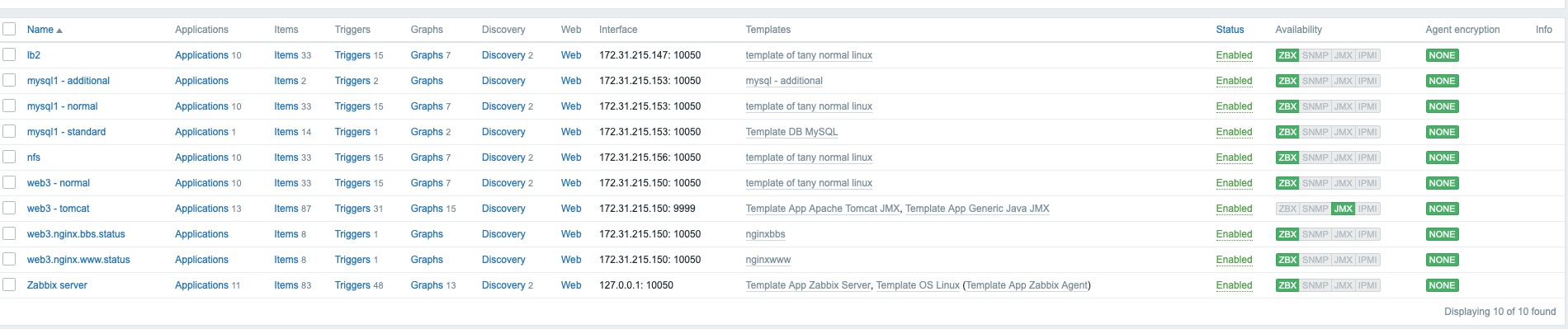

搭建zabbix监控告警系统，要求监控各个基础指标（cpu、内存、硬盘），网卡流量需要成图，还需要监控web站点的可用性，

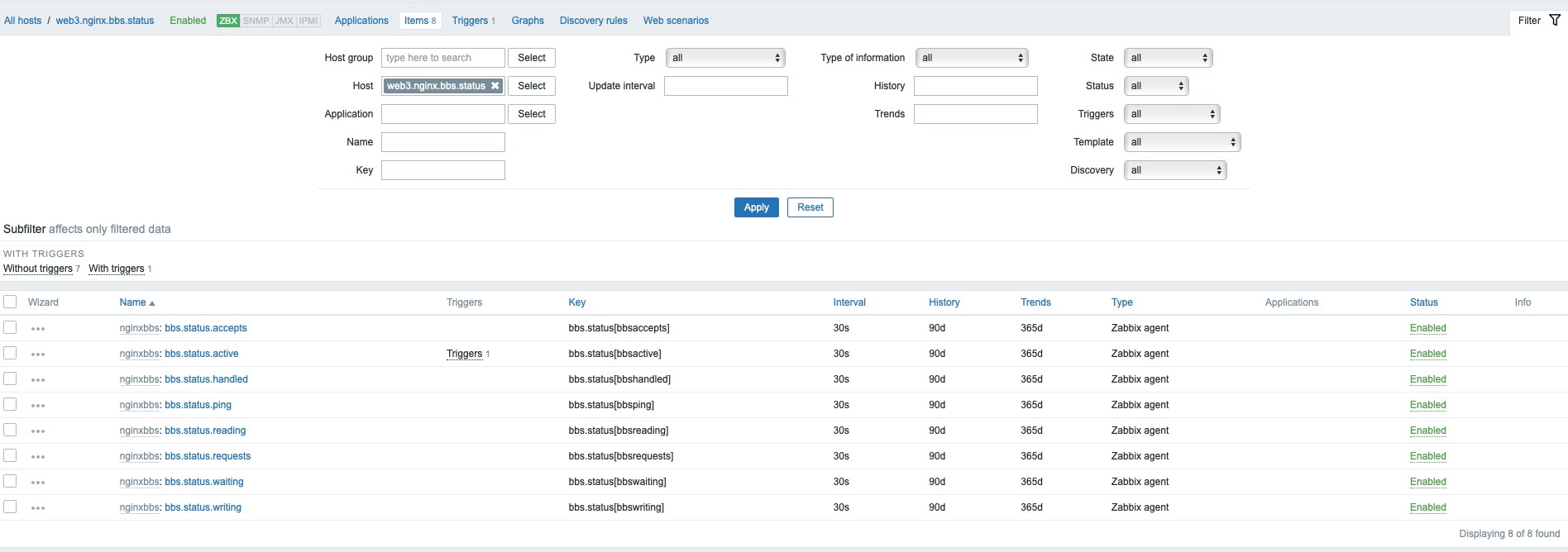

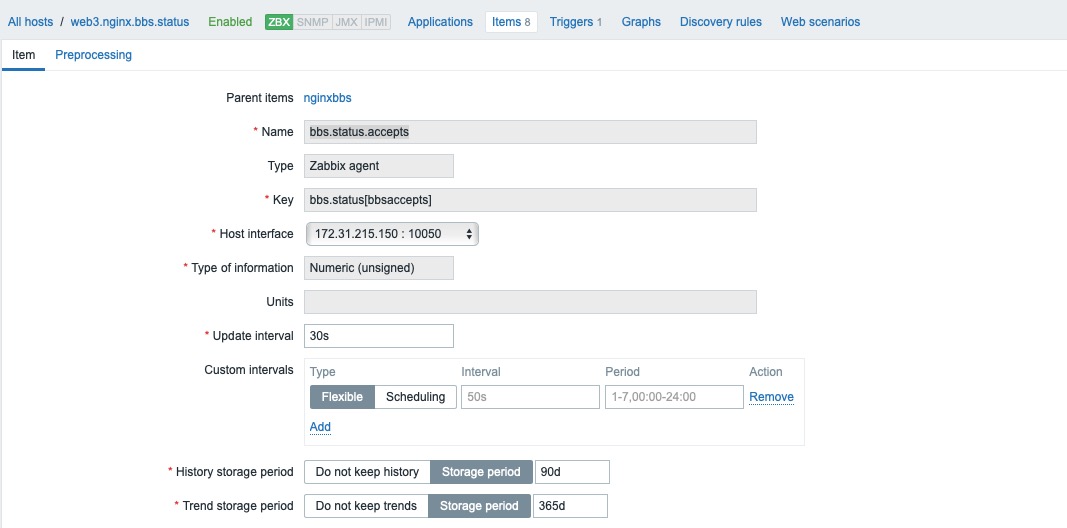

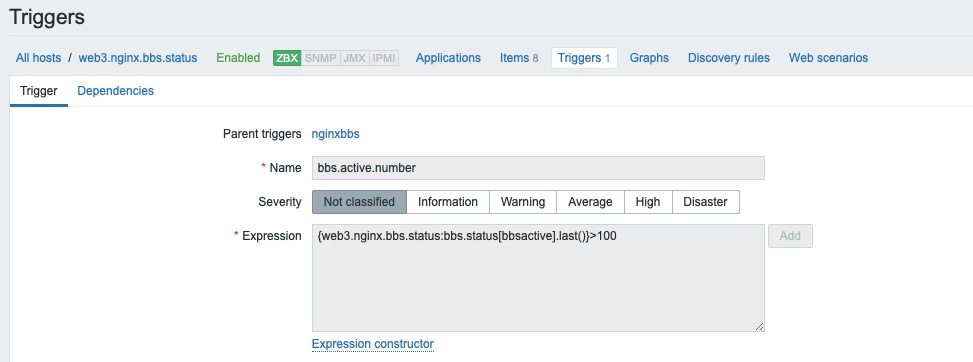

定制自定义监控脚本，监控web服务器的并发连接数，接入zabbix，成图，设置触发器，超过100告警

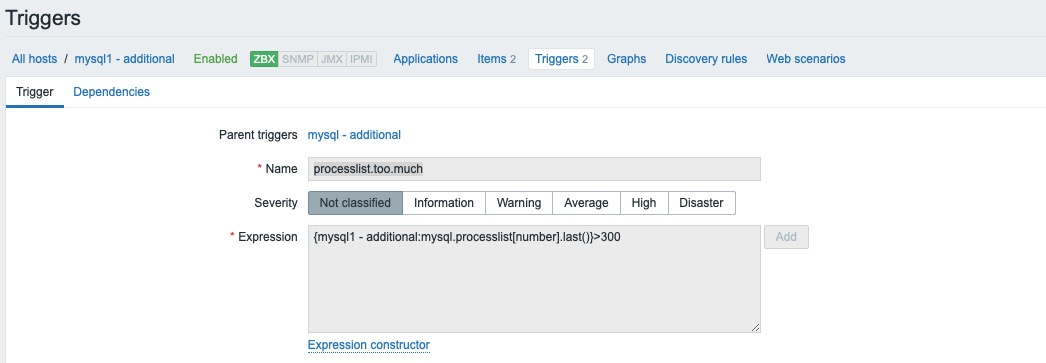

定制自定义监控脚本，监控mysql的队列，接入zabbix，成图，设置触发器，队列超过300告警

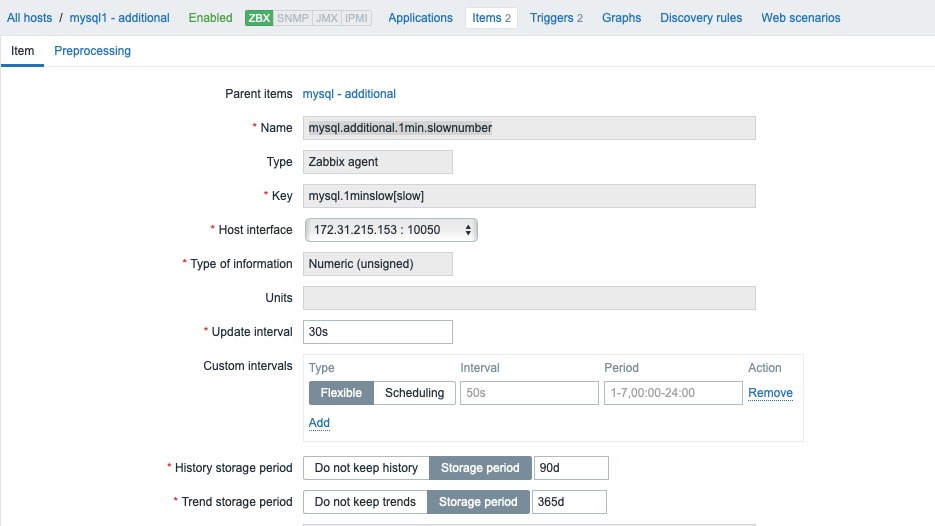

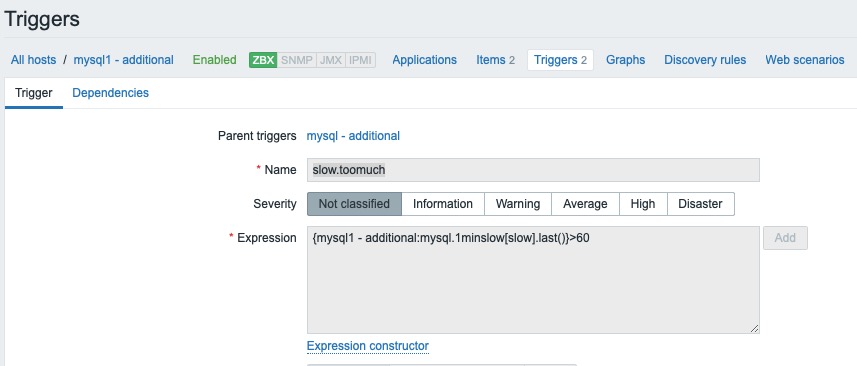

定制自定义监控脚本，监控mysql的慢查询日志，接入zabbix，成图，设置触发器，每分钟超过60条日志需要告警，需要仔细分析慢查询日志的规律，确定日志条数

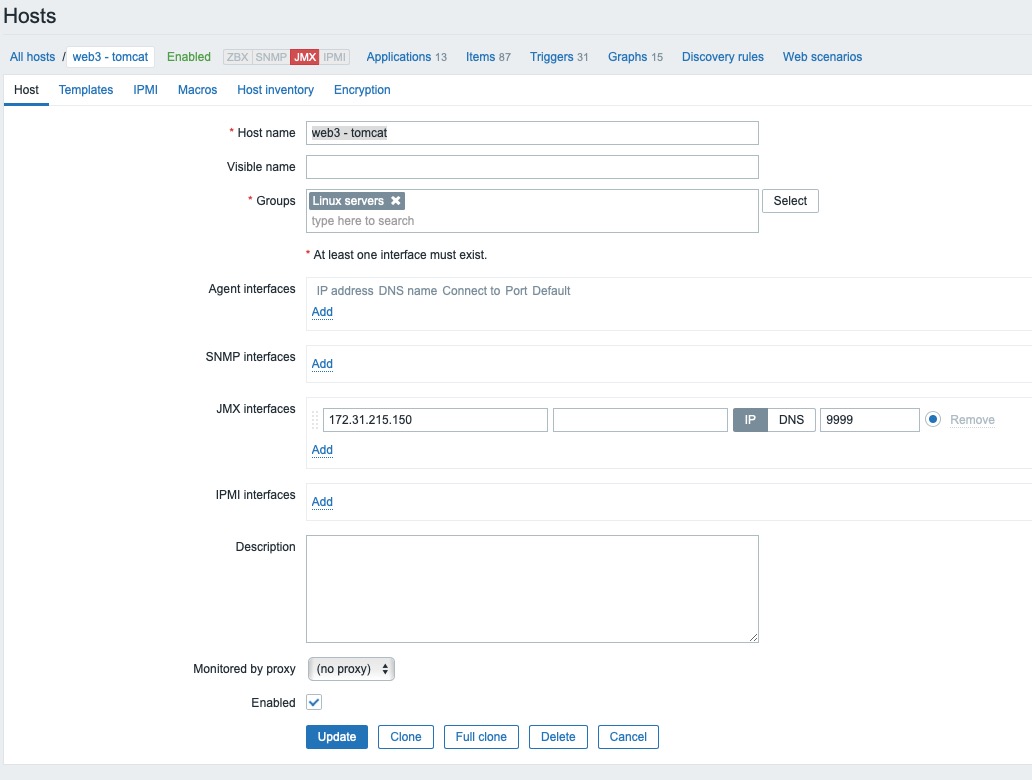

利用jmx，在zabbix上监控tomcat
给三个站点的后台访问做二次认证，增加安全性
用shell脚本实现文件、代码同步上线（参考分发系统）

IP实际分配

在这里插入图片描述

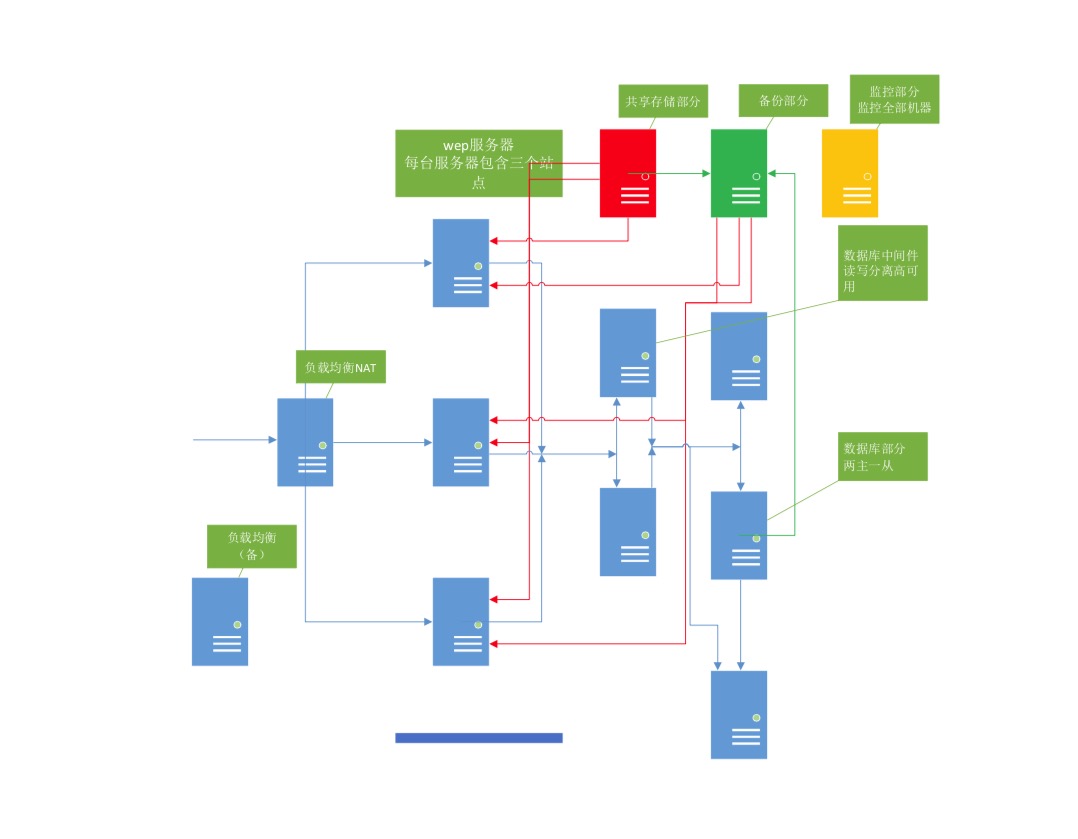

架构图

架构调整后没有使用数据库中间件，因为网站程序不能实现读写分离；
实验过程分别使用mycat和atlas实现了读写分离;
网站只对接一台主数据库服务器，但是这个服务还是跟另外一台服务器主主同步，另有一台从机与二主数据库同步；
由于阿里云不能使用VIP，所以都没有实现高可用；

设置记录

负载均衡

upstream yuankeedu_com{
#        ip_hash;server 172.31.215.150:80; #服务器IP与端口；server 172.31.215.148:80;server 172.31.215.149:80;}
upstream zrlog_com{
#        ip_hash;server 172.31.215.150:8080; #服务器IP与端口；server 172.31.215.148:8080; #服务器IP与端口；server 172.31.215.149:8080; #服务器IP与端口；}server {server_name  bbs.yuankeedu.com;listen       80 ;listen       [::]:80;location /{proxy_pass http://yuankeedu_com;   #upstreamproxy_set_header Host $host;proxy_set_header X-Real-IP $remote_addr;proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;}}
server {server_name blog.yuankeedu.com; listen       80 ;listen       [::]:80;
location /{proxy_pass http://zrlog_com;                    #upstreamproxy_set_header Host $host;proxy_set_header X-Real-IP $remote_addr;proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;}} server {server_name  www.yuankeedu.com;listen       80 ;listen       [::]:80;location /{proxy_pass http://yuankeedu_com;                    #upstreamproxy_set_header Host $host;proxy_set_header X-Real-IP $remote_addr;proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;}}

其中一台web的nginx配置，三台都一样

discuz论坛
server {server_name  bbs.yuankeedu.com;listen       80 ;listen       [::]:80;root         /data/wwwroot/bbs.yuankeedu.com;index  index.html index.htm index.php;# Load configuration files for the default server block.include /etc/nginx/default.d/*.conf;location ~ /admin.php\?$ {auth_basic "User Authentication";     auth_basic_user_file /data/wwwroot/bbs.yuankedu.com/data/attachment/user_pw;  fastcgi_pass   127.0.0.1:9000;fastcgi_index  index.php;fastcgi_param  SCRIPT_FILENAME  /data/wwwroot/bbs.yuankeedu.com$fastcgi_script_name;include        fastcgi_params;}location ~ \.php$ {root           /data/wwwroot/bbs.yuankeedu.com;fastcgi_pass   127.0.0.1:9000;fastcgi_index  index.php;fastcgi_param  SCRIPT_FILENAME  /data/wwwroot/bbs.yuankeedu.com$fastcgi_script_name;include        fastcgi_params;}location ~* \.(png|jpeg|gif|js|css|bmp|flv)$ {access_log off;
}    access_log  /data/logs/bbs.access.log  main;location /nginx_status
{stub_status on;		#主要语句；access_log   off;allow 127.0.0.1;deny all;}
}dedecms网站
server {server_name  www.yuankeedu.com;listen       80 ;listen       [::]:80;root         /data/wwwroot/www.yuankeedu.com;index           index.html index.htm index.php;# Load configuration files for the default server block.location ~ /dede/$ {auth_basic "User Authentication";auth_basic_user_file /data/wwwroot/www.yuankeedu.com/uploads/user_pw;fastcgi_pass   127.0.0.1:9000;fastcgi_index  index.php;fastcgi_param  SCRIPT_FILENAME  /data/wwwroot/www.yuankeedu.com$fastcgi_script_name;include        fastcgi_params;}location ~ \.php$ {root           /data/wwwroot/www.yuankeedu.com;fastcgi_pass   127.0.0.1:9000;fastcgi_index  index.php;fastcgi_param  SCRIPT_FILENAME  /data/wwwroot/www.yuankeedu.com$fastcgi_script_name;include        fastcgi_params;}location ~* \.(png|jpeg|gif|js|css|bmp|flv)$ {access_log off;
}access_log  /data/logs/www.access.log  main;    location /nginx_status
{stub_status on;		#主要语句；access_log   off;allow 127.0.0.1;deny all;}
}

其中一台服务器论坛设置的数据库信息：
只对接到主数据库上，三个库为discuz3, dedecms3, zrlog3

$_config['db']['1']['dbhost'] = '172.31.215.153';
$_config['db']['1']['dbuser'] = 'discuz3';
$_config['db']['1']['dbpw'] = 'discuz3';
$_config['db']['1']['dbcharset'] = 'utf8';
$_config['db']['1']['pconnect'] = '0';
$_config['db']['1']['dbname'] = 'discuz3';
$_config['db']['1']['tablepre'] = 'pre_';
$_config['db']['slave'] = '';
$_config['db']['common']['slave_except_table'] = '';

discuz需要写权限的目录和修改命令
chown -R php-fpm config data uc_server/data uc_client/data
dedecms需要写权限的目录和修改命令
chown -R php-fpm plus dede data a install special uploads

数据库授权命令

grant all on discuz3.* to 'discuz3'@'172.31.215.148' identified by 'discuz3';
grant all on discuz3.* to 'discuz3'@'172.31.215.149' identified by 'discuz3';
grant all on discuz3.* to 'discuz3'@'172.31.215.150' identified by 'discuz3';
grant all on dedecms3.* to 'dedecms3'@'172.31.215.148' identified by 'dedecms3';
grant all on dedecms3.* to 'dedecms3'@'172.31.215.149' identified by 'dedecms3';
grant all on dedecms3.* to 'dedecms3'@'172.31.215.150' identified by 'dedecms3';
grant all on zrlog3.* to 'zrlog3'@'172.31.215.148' identified by 'zrlog3';
grant all on zrlog3.* to 'zrlog3'@'172.31.215.149' identified by 'zrlog3';
grant all on zrlog3.* to 'zrlog3'@'172.31.215.150' identified by 'zrlog3';

环境测试

以两个php网站为例，zrlog使用java还不懂相关测试方法；
是否实现了三个web服务器的负载均衡
创建了一个test页面用于显示当前的web服务器IP，负载均衡使用轮询方式

bbs站点discuz
TanydeMacBook-Air:~ tanytan$ curl -x47.105.218.25:80 bbs.yuankeedu.com/test.php
Host: bbs.yuankeedu.com
Remote Address: 172.31.215.159
X-Forwarded-For: 219.137.190.111
X-Forwarded-Proto:
Server Address: 172.31.215.150
Server Port: 80TanydeMacBook-Air:~ tanytan$ curl -x47.105.218.25:80 bbs.yuankeedu.com/test.php
Host: bbs.yuankeedu.com
Remote Address: 172.31.215.159
X-Forwarded-For: 219.137.190.111
X-Forwarded-Proto:
Server Address: 172.31.215.148
Server Port: 80TanydeMacBook-Air:~ tanytan$ curl -x47.105.218.25:80 bbs.yuankeedu.com/test.php
Host: bbs.yuankeedu.com
Remote Address: 172.31.215.159
X-Forwarded-For: 219.137.190.111
X-Forwarded-Proto:
Server Address: 172.31.215.149
Server Port: 80www站点dedecms
TanydeMacBook-Air:~ tanytan$ curl -x47.105.218.25:80 www.yuankeedu.com/test.php
Host: www.yuankeedu.com
Remote Address: 172.31.215.159
X-Forwarded-For: 219.137.190.111
X-Forwarded-Proto:
Server Address: 172.31.215.150
Server Port: 80TanydeMacBook-Air:~ tanytan$ curl -x47.105.218.25:80 www.yuankeedu.com/test.php
Host: www.yuankeedu.com
Remote Address: 172.31.215.159
X-Forwarded-For: 219.137.190.111
X-Forwarded-Proto:
Server Address: 172.31.215.148
Server Port: 80TanydeMacBook-Air:~ tanytan$ curl -x47.105.218.25:80 www.yuankeedu.com/test.php
Host: www.yuankeedu.com
Remote Address: 172.31.215.159
X-Forwarded-For: 219.137.190.111
X-Forwarded-Proto:
Server Address: 172.31.215.149
Server Port: 80

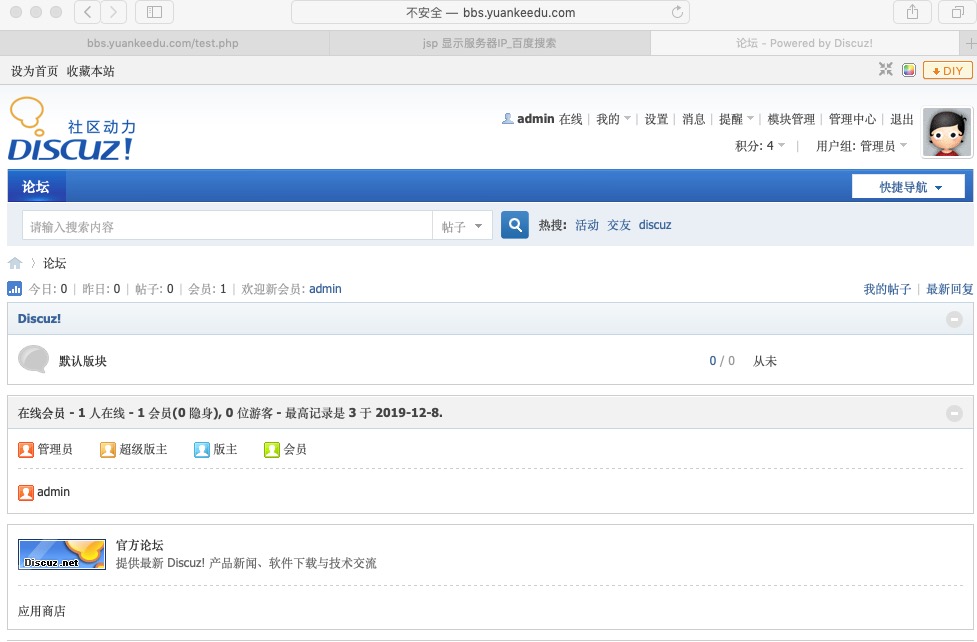

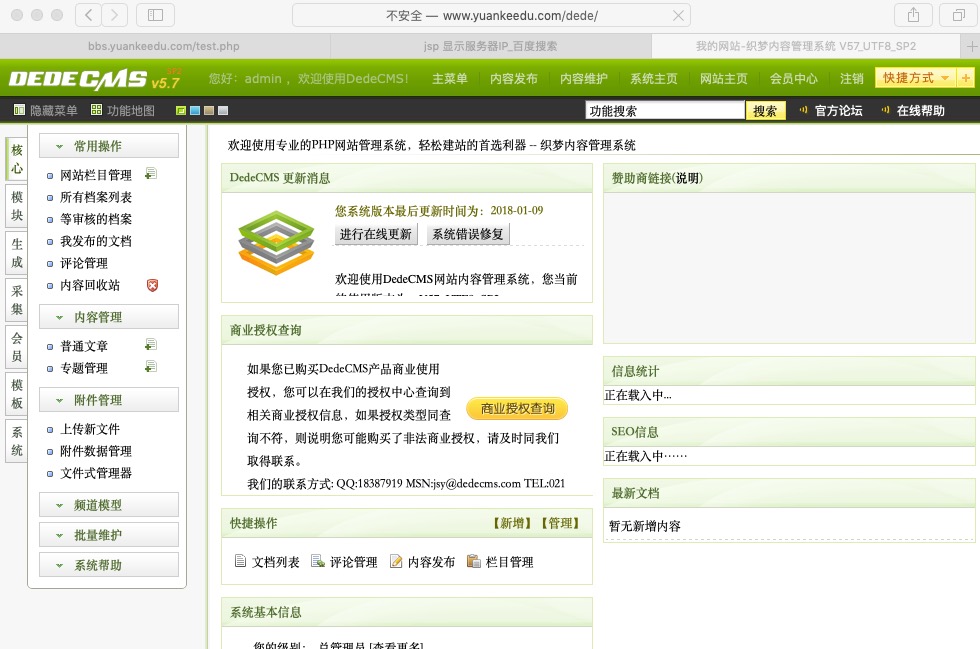

页面显示正常
在这里插入图片描述

在这里插入图片描述

数据库

主数据库
mysql> show master status;
+---------------+----------+-------------------------+------------------+-------------------+
| File          | Position | Binlog_Do_DB            | Binlog_Ignore_DB | Executed_Gtid_Set |
+---------------+----------+-------------------------+------------------+-------------------+
| master.000009 |    79485 | discuz3,dedecms3,zrlog3 |                  |                   |
+---------------+----------+-------------------------+------------------+-------------------+
1 row in set (0.00 sec)
主数据库是二主的从机
mysql> show slave status \G
*************************** 1. row ***************************Slave_IO_State: Waiting for master to send eventMaster_Host: 172.31.215.154Master_User: repliMaster_Port: 3306Connect_Retry: 60Master_Log_File: second.000012Read_Master_Log_Pos: 75038Relay_Log_File: ape-test3005-relay-bin.000010Relay_Log_Pos: 361Relay_Master_Log_File: second.000012Slave_IO_Running: YesSlave_SQL_Running: YesReplicate_Do_DB: Replicate_Ignore_DB: Replicate_Do_Table: Replicate_Ignore_Table: Replicate_Wild_Do_Table: Replicate_Wild_Ignore_Table: Last_Errno: 0Last_Error: Skip_Counter: 0Exec_Master_Log_Pos: 75038Relay_Log_Space: 738Until_Condition: NoneUntil_Log_File: Until_Log_Pos: 0Master_SSL_Allowed: NoMaster_SSL_CA_File: Master_SSL_CA_Path: Master_SSL_Cert: Master_SSL_Cipher: Master_SSL_Key: Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: NoLast_IO_Errno: 0Last_IO_Error: Last_SQL_Errno: 0Last_SQL_Error: Replicate_Ignore_Server_Ids: Master_Server_Id: 101Master_UUID: e825cd46-1675-11ea-9a82-00163e0a0167Master_Info_File: /data/mysql/master.infoSQL_Delay: 0SQL_Remaining_Delay: NULLSlave_SQL_Running_State: Slave has read all relay log; waiting for more updatesMaster_Retry_Count: 86400Master_Bind: Last_IO_Error_Timestamp: Last_SQL_Error_Timestamp: Master_SSL_Crl: Master_SSL_Crlpath: Retrieved_Gtid_Set: Executed_Gtid_Set: Auto_Position: 0Replicate_Rewrite_DB: Channel_Name: Master_TLS_Version:
1 row in set (0.00 sec)

二主是一主的主机
mysql> show master status;
+---------------+----------+-------------------------+------------------+-------------------+
| File          | Position | Binlog_Do_DB            | Binlog_Ignore_DB | Executed_Gtid_Set |
+---------------+----------+-------------------------+------------------+-------------------+
| second.000012 |    75038 | discuz3,dedecms3,zrlog3 |                  |                   |
+---------------+----------+-------------------------+------------------+-------------------+
1 row in set (0.00 sec)二主是一主的从机mysql> show slave status \G
*************************** 1. row ***************************Slave_IO_State: Waiting for master to send eventMaster_Host: 172.31.215.153Master_User: repliMaster_Port: 3306Connect_Retry: 60Master_Log_File: master.000009Read_Master_Log_Pos: 79485Relay_Log_File: ape-test3010-relay-bin.000012Relay_Log_Pos: 79692Relay_Master_Log_File: master.000009Slave_IO_Running: YesSlave_SQL_Running: YesReplicate_Do_DB: Replicate_Ignore_DB: Replicate_Do_Table: Replicate_Ignore_Table: Replicate_Wild_Do_Table: Replicate_Wild_Ignore_Table: Last_Errno: 0Last_Error: Skip_Counter: 0Exec_Master_Log_Pos: 79485Relay_Log_Space: 80069Until_Condition: NoneUntil_Log_File: Until_Log_Pos: 0Master_SSL_Allowed: NoMaster_SSL_CA_File: Master_SSL_CA_Path: Master_SSL_Cert: Master_SSL_Cipher: Master_SSL_Key: Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: NoLast_IO_Errno: 0Last_IO_Error: Last_SQL_Errno: 0Last_SQL_Error: Replicate_Ignore_Server_Ids: Master_Server_Id: 100Master_UUID: 19142ad4-1510-11ea-b1b6-00163e042516Master_Info_File: /data/mysql/master.infoSQL_Delay: 0SQL_Remaining_Delay: NULLSlave_SQL_Running_State: Slave has read all relay log; waiting for more updatesMaster_Retry_Count: 86400Master_Bind: Last_IO_Error_Timestamp: Last_SQL_Error_Timestamp: Master_SSL_Crl: Master_SSL_Crlpath: Retrieved_Gtid_Set: Executed_Gtid_Set: Auto_Position: 0Replicate_Rewrite_DB: Channel_Name: Master_TLS_Version:
1 row in set (0.00 sec)二主是从机的主机
mysql> show slave status \G
*************************** 1. row ***************************Slave_IO_State: Waiting for master to send eventMaster_Host: 172.31.215.154Master_User: repliMaster_Port: 3306Connect_Retry: 60Master_Log_File: second.000012Read_Master_Log_Pos: 75038Relay_Log_File: slaver.000007Relay_Log_Pos: 75245Relay_Master_Log_File: second.000012Slave_IO_Running: YesSlave_SQL_Running: YesReplicate_Do_DB: Replicate_Ignore_DB: Replicate_Do_Table: Replicate_Ignore_Table: Replicate_Wild_Do_Table: Replicate_Wild_Ignore_Table: Last_Errno: 0Last_Error: Skip_Counter: 0Exec_Master_Log_Pos: 75038Relay_Log_Space: 75606Until_Condition: NoneUntil_Log_File: Until_Log_Pos: 0Master_SSL_Allowed: NoMaster_SSL_CA_File: Master_SSL_CA_Path: Master_SSL_Cert: Master_SSL_Cipher: Master_SSL_Key: Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: NoLast_IO_Errno: 0Last_IO_Error: Last_SQL_Errno: 0Last_SQL_Error: Replicate_Ignore_Server_Ids: Master_Server_Id: 101Master_UUID: e825cd46-1675-11ea-9a82-00163e0a0167Master_Info_File: /data/mysql/master.infoSQL_Delay: 0SQL_Remaining_Delay: NULLSlave_SQL_Running_State: Slave has read all relay log; waiting for more updatesMaster_Retry_Count: 86400Master_Bind: Last_IO_Error_Timestamp: Last_SQL_Error_Timestamp: Master_SSL_Crl: Master_SSL_Crlpath: Retrieved_Gtid_Set: Executed_Gtid_Set: Auto_Position: 0Replicate_Rewrite_DB: Channel_Name: Master_TLS_Version:
1 row in set (0.00 sec)

数据库同步测试

在主机上创建库；
mysql> use discuz3;
mysql> create table zz(id int,name varchar(20));mysql> show tables;
三个库都显示如下库，证明写入可以同步到三台数据库上；
zz  使用单独mycat机器测试读写分离
discuz3逻辑库对应于三台数据库的discuz3库；从机数据库删除刚刚创建的库；
mysql> drop table zz;
登陆mycat;
mysql -uroot -ppassword -h127.0.0.1 -P8066
mysql> show tables;
结果依家出现有zz表，没有zz表两种结果，因为二主跟从机只支持读，而从机已经删掉了zz表；从机再新建zz表；必须要新建库，之后的删除命令不成功的话，会造成同步失败；
mysql> create table zz(id int,name varchar(20));在mycat里删除zz表；
mysql> drop table zz;
三台数据库单独再查看tables，table zz都没有了，证明写同步了；
mysql> show tables;  使用atlas测试读写分离，方法一样，以下是启动命令/usr/local/mysql-proxy/bin/mysql-proxyd test startmysql -uatlas -patlas -h127.0.0.1 -P3306默认的工作端口1234改成了3306atlas帐号可以连接到三台数据库的库中；

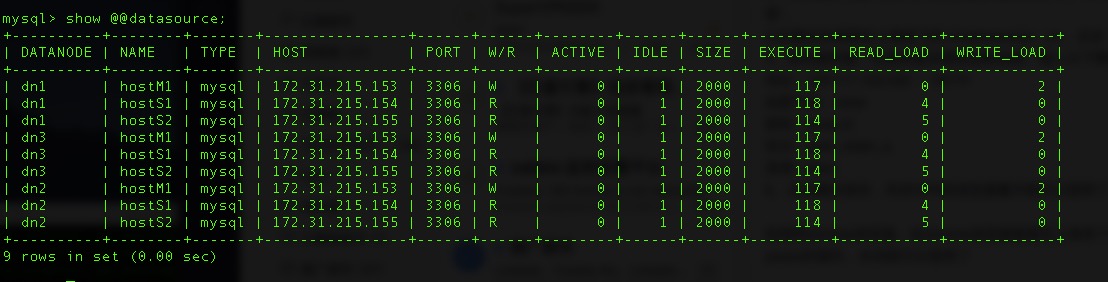

mycat管理界面看后台情况

在这里插入图片描述

Atlas配置文件记录

[mysql-proxy]
admin-username = user
admin-password = pwd
proxy-backend-addresses = 172.31.215.153:3306
proxy-read-only-backend-addresses = 172.31.215.154:3306@1, 172.31.215.155:3306@1
pwds = atlas:KsWNCR6qyNk=, test:A1YaJzZgEjM=
daemon = true
keepalive = true
event-threads = 8
log-level = message
log-path = /usr/local/mysql-proxy/log
proxy-address = 0.0.0.0:3306
admin-address = 0.0.0.0:2345

mycat 配置文件记录

vim /usr/local/mycat/conf/server.xml
...上面略<user name="root"><property name="password">password</property><property name="schemas">discuz3,dedecms3,zrlog3</property></user><user name="discuz3"><property name="password">discuz3</property><property name="schemas">discuz3</property></user><user name="dedecms3"><property name="password">dedecms3</property><property name="schemas">dedecms3</property></user><user name="zrlog3"><property name="password">zrlog3</property><property name="schemas">zrlog3</property></user><user name="user"><property name="password">user</property><property name="schemas">discuz3,dedecms3,zrlog3</property><property name="readOnly">true</property></user></mycat:server>cat /usr/local/mycat/conf/schema.xml<?xml version="1.0"?>
<!DOCTYPE mycat:schema SYSTEM "schema.dtd">
<mycat:schema xmlns:mycat="http://io.mycat/"><schema name="discuz3" checkSQLschema="false" sqlMaxLimit="1000" dataNode="dn1" /><schema name="dedecms3" checkSQLschema="false" sqlMaxLimit="1000" dataNode="dn2" /><schema name="zrlog3" checkSQLschema="false" sqlMaxLimit="1000" dataNode="dn3" /><dataNode name="dn1" dataHost="localhost1" database="discuz3" /><dataNode name="dn2" dataHost="localhost1" database="dedecms3" /><dataNode name="dn3" dataHost="localhost1" database="zrlog3" /><dataHost name="localhost1" maxCon="2000" minCon="1" balance="3"writeType="1" dbType="mysql" dbDriver="native" switchType="-1"  slaveThreshold="100"><heartbeat>select user()</heartbeat><writeHost host="hostM1" url="172.31.215.153:3306" user="root" password="password"><!-- can have multi read hosts --><readHost host="hostS1" url="172.31.215.154:3306" user="root" password="password" /><readHost host="hostS2" url="172.31.215.155:3306" user="root" password="password" /></writeHost></dataHost>
</mycat:schema>

静态文件共享

安装nfs-util
创建目录，修改权限
修改配置文件
创建nfs用户
直接查看配置文件

[root@ape-test3007 ~]# cat /etc/exports
/data/discuz 172.31.215.0/24(rw,sync,root_squash,anonuid=1000,anongid=1000)
/data/dedecms 172.31.215.0/24(rw,sync,root_squash,anonuid=1000,anongid=1000)
/data/zrlog 172.31.215.0/24(rw,sync,root_squash,anonuid=1000,anongid=1000)[root@ape-test3007 ~]# ls -ld /data/*
drwxrwxrwx  8 root root 4096 12月  8 10:58 /data/dedecms
drwxrwxrwx 11 root root 4096 12月  8 10:56 /data/discuz
drwxrwxrwx  2 root root 4096 12月  7 23:26 /data/zrlog[root@ape-test3007 ~]# ll /data/discuz/
总用量 40
drwxr-xr-x 2 nfs  nfs  4096 12月  7 20:22 album
drwxr-xr-x 2 nfs  nfs  4096 12月  7 20:21 category
drwxr-xr-x 2 nfs  nfs  4096 12月  7 20:21 common
drwxr-xr-x 2 nfs  nfs  4096 12月  7 20:22 forum
drwxr-xr-x 2 nfs  nfs  4096 12月  7 20:22 group
drwxr-xr-x 2 nfs  nfs  4096 12月  7 20:21 portal
drwxr-xr-x 2 nfs  nfs  4096 12月  7 20:21 profile
drwxr-xr-x 2 nfs  nfs  4096 12月  7 20:21 swfupload
drwxr-xr-x 2 nfs  nfs  4096 12月  7 20:21 temp
-rw-r--r-- 1 root root   88 12月  8 10:56 user_pw

三台web服务器需要安装nfs-util，使用静态文件的目录挂载nfs的共享目录，以让静态文件都通过nfs同步到三台服务器
其中一个台web服务器的自动挂载配置
zrlog的目录要新建，没有上传文件之前并不存在；
discuz要备份目录结构再挂载，挂载后把备份内容放回到nfs服务器里；

[root@ape-test3001 ~]# cat !$
cat /etc/fstab#
# /etc/fstab
# Created by anaconda on Tue Oct  8 09:13:42 2019
#
# Accessible filesystems, by reference, are maintained under '/dev/disk'
# See man pages fstab(5), findfs(8), mount(8) and/or blkid(8) for more info
#
UUID=87ba1103-a0d7-49ef-a8ae-6ce1d3fd2453 /                       ext4    defaults        1 1
172.31.215.156:/data/discuz /data/wwwroot/bbs.yuankeedu.com/data/attachment nfs  defaults 0  0
172.31.215.156:/data/dedecms /data/wwwroot/www.yuankeedu.com/uploads   nfs  defaults 0 0
172.31.215.156:/data/zrlog /usr/local/tomcat/webapps/ROOT/attached   nfs   defaults 0   0手动umount一个挂载后
mount -a会把配置文件里的设置都挂载上

只使用普通用户ssh登陆，再授权su -

以一台机器为例用户名tanytan
在公网机和内网机上分别创建用户tanytan

这是带公网的机器，所有登陆必须通过这台机器，公网机器跟内网机器都需要新增普通用户；[root@ape-test3000 ~]# useradd tanytan
[root@ape-test3000 ~]# passwd tanytan
更改用户 tanytan 的密码 。
新的 密码：
无效的密码： 密码未通过字典检查 - 它基于字典单词
重新输入新的 密码：
passwd：所有的身份验证令牌已经成功更新。[root@ape-test3008 ~]# useradd tanytan
[root@ape-test3008 ~]# passwd tanytan
更改用户 tanytan 的密码 。
新的 密码：
无效的密码： 密码未通过字典检查 - 它基于字典单词
重新输入新的 密码：
passwd：所有的身份验证令牌已经成功更新。把使用机器的密钥先上传到公网机器上TanydeMacBook-Air:~ tanytan$ ssh-copy-id 47.105.218.25
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/Users/tanytan/.ssh/id_rsa.pub"
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
tanytan@47.105.218.25's password:
Permission denied, please try again.
tanytan@47.105.218.25's password: Number of key(s) added:        1Now try logging into the machine, with:   "ssh '47.105.218.25'"
and check to make sure that only the key(s) you wanted were added.即可免密登陆公网机器TanydeMacBook-Air:~ tanytan$ ssh 47.105.218.25
Last failed login: Sun Dec  8 12:31:53 CST 2019 from 219.137.190.111 on ssh:notty
There was 1 failed login attempt since the last successful login.Welcome to Alibaba Cloud Elastic Compute Service ![tanytan@ape-test3000 ~]$在公网机上为当前用户新增密钥[tanytan@ape-test3000 ~]$ ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/home/tanytan/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /home/tanytan/.ssh/id_rsa.
Your public key has been saved in /home/tanytan/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:qZRnvYPe0ki14KTekZjv2CpGIKQkmhOkfCWsYEs3kW4 tanytan@ape-test3000
The key's randomart image is:
+---[RSA 2048]----+
|...oo.           |
|*= =o            |
|@+=..            |
|*ooE   .oo.      |
| o..  o*S+..     |
|    ..++=...     |
|   . ..+.+o      |
|    o .+=...     |
|   . .oo+..      |
+----[SHA256]-----+把密钥文件上传到要访问的内网机器上（已建立对应普通用户名）
[tanytan@ape-test3000 ~]$ ssh-copy-id 172.31.215.147
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/home/tanytan/.ssh/id_rsa.pub"
The authenticity of host '172.31.215.147 (172.31.215.147)' can't be established.
ECDSA key fingerprint is SHA256:DsbelDqGedZIZ5DsKFpynnbUF3GiDiysNz/FBtbAQ68.
ECDSA key fingerprint is MD5:e2:55:a9:8a:cb:e2:59:79:26:6a:75:27:d5:23:11:78.
Are you sure you want to continue connecting (yes/no)? yes
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
tanytan@172.31.215.147's password: Number of key(s) added: 1Now try logging into the machine, with:   "ssh '172.31.215.147'"
and check to make sure that only the key(s) you wanted were added.即可免密登陆到内网机器上
[tanytan@ape-test3000 ~]$ ssh 172.31.215.147Welcome to Alibaba Cloud Elastic Compute Service !
[tanytan@ape-test3008 ~]$ 设置此普通用户的sudo权限[root@ape-test3008 ~]# visudo
增加一句；
root    ALL=(ALL)       ALL
tanytan ALL=(ALL)       NOPASSWD: /usr/bin/su
[root@ape-test3008 ~]# su tanytan
[tanytan@ape-test3008 root]$ sudo su
可以无密码转到root帐号下；
[root@ape-test3008 ~]# 设置只能密钥登陆和root用户不能ssh登陆vi /etc/ssh/sshd_config
设置以下两个选项
PasswordAuthentication no
PermitRootLogin no   #root不能使用密钥和密码登陆；[root@ape-test3000 ~]# ssh 172.31.215.147
使用root密钥不能登陆
Permission denied (publickey,gssapi-keyex,gssapi-with-mic).[tanytan@ape-test3000 .ssh]$ mv id_rsa id_rsa.bak
没有私钥后，不能登陆机器；
[tanytan@ape-test3000 .ssh]$ ssh 172.31.215.147
Permission denied (publickey,gssapi-keyex,gssapi-with-mic).修改PasswordAuthentication yes后，可以使用密码登陆；

命令记录

vi /etc/profile #在最后加入以下内容；

由于加入到/etc/profile等于以root权限运行下面句子，普通用户加载这个句子是不能成功运行的，所以只是记录了以root权限使用机器的命令；

if [ ! -d  /usr/local/domob/records/${LOGNAME} ]thenmkdir -p /usr/local/domob/records/${LOGNAME}chmod 300 /usr/local/domob/records/${LOGNAME}fiexport HISTORY_FILE="/usr/local/domob/records/${LOGNAME}/bash_history"export PROMPT_COMMAND='{ date "+%Y-%m-%d %T ##### $(who am i |awk "{print \$1\" \"\$2\" \"\$5}") #### $(history 1 | { read x cmd; echo "$cmd"; })"; } >>$HISTORY_FILE'source /etc/profile

web nginx日志切割

/var/log/nginx/*.log /data/logs/bbs.access.log /data/logs/www.access.log  {dailydateextmissingokrotate 30compressdelaycompressnotifemptycreate 640 nginx admsharedscriptspostrotateif [ -f /var/run/nginx.pid ]; thenkill -USR1 `cat /var/run/nginx.pid`fiendscript
}/usr/local/tomcat/logs/catalina.out {  copytruncate  #创建复制文件，然后清空原文件；daily  dateext  nocompress  missingok
}

php慢查询日志

[root@ape-test3001 ~]# vim /usr/local/php-fpm/etc/php-fpm.d/www.conf
修改相应句子；
slowlog = /tmp/php.slow
request_slowlog_timeout = 2[root@ape-test3001 ~]# vim /tmp/php.slow
使用sleep()语句测试时，记录的结果；[04-Dec-2019 14:50:05]  [pool www] pid 21852
script_filename = /data/wwwroot/bbs.yuankeedu.com/test.php
[0x00007f343641f220] sleep() /data/wwwroot/bbs.yuankeedu.com/test.php:9[04-Dec-2019 14:50:17]  [pool www] pid 21853
script_filename = /data/wwwroot/bbs.yuankeedu.com/test.php
[0x00007f343641f220] sleep() /data/wwwroot/bbs.yuankeedu.com/test.php:9logrotate配置：
/tmp/php.slow {
daily
dateext
missingok
rotate 30
create 640 php-fpm php-fpm
sharedscripts
postrotateif [ -f /usr/local/php-fpm/var/run/php-fpm.pid ]; thenkill -USR1 `cat /usr/local/php-fpm/var/run/php-fpm.pid`   #发送重新加载的信号；fi
endscript
}

nginx站点访问日志

日志设置在前面有具体样板
日志记录情况如下：

172.31.215.159 - user1 [08/Dec/2019:11:49:51 +0800] "GET /uc_server/avatar.php?uid=1&size=small&ts=1 HTTP/1.0" 302 0 "http://bbs.yuankeedu.com/" "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_14_6) AppleWebKit/605.1.15 (KHTML, like Gecko) Version/12.1.2 Safari/605.1.15" "219.137.190.111"
172.31.215.159 - user1 [08/Dec/2019:11:49:51 +0800] "GET /home.php?mod=spacecp&ac=pm&op=checknewpm&rand=1575776990 HTTP/1.0" 200 0 "http://bbs.yuankeedu.com/" "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_14_6) AppleWebKit/605.1.15 (KHTML, like Gecko) Version/12.1.2 Safari/605.1.15" "219.137.190.111"

三个站点后台的二次认证

站点登陆后台成功后的地址为

http://bbs.yuankeedu.com/admin.php?
http://www.yuankeedu.com/dede/index.php

以这个链接做二次认证，具体如上面所示
二次认证可能记住了访问地址，成功登陆过以后就不再显示认证窗口
认证密码文件也共享在nfs服务器上
zrlog密码认证暂时忽略
测试例子

TanydeMacBook-Air:~ tanytan$ curl -x47.105.218.25:80 www.yuankeedu.com/dede/ -I
HTTP/1.1 401 Unauthorized
Server: nginx/1.16.1
Date: Sun, 08 Dec 2019 13:16:08 GMT
Content-Type: text/html
Content-Length: 179
Connection: keep-alive
WWW-Authenticate: Basic realm="User Authentication"TanydeMacBook-Air:~ tanytan$ curl -x47.105.218.25:80 www.yuankeedu.com/dede/ -uuser1:password -I
HTTP/1.1 302 Found
Server: nginx/1.16.1
Date: Sun, 08 Dec 2019 13:16:29 GMT
Content-Type: text/html; charset=utf-8
Connection: keep-alive
X-Powered-By: PHP/7.3.0
Set-Cookie: PHPSESSID=ebego126eg6a3vkcmspumh72ij; path=/
Expires: Thu, 19 Nov 1981 08:52:00 GMT
Pragma: no-cache
Cache-Control: private
Set-Cookie: _csrf_name_bda4f76f=ca5858325e89e4e48fbe19dd7f5318bd; expires=Sun, 08-Dec-2019 15:16:29 GMT; Max-Age=7200; path=/
Set-Cookie: _csrf_name_bda4f76f__ckMd5=dd1a785e4e07e248; expires=Sun, 08-Dec-2019 15:16:29 GMT; Max-Age=7200; path=/
location: login.php?gotopage=%2Fdede%2F

数据库备份方案

每天备份二主数据库，在任务计划里执行脚本，本地保存7天的备份
把备份文件同步一份到备份服务器，服务器保留一个月
每天把前天的文件压缩
每天把七天前的文件删除

二主数据库和备份服务器都要有一个普通的备份帐号
此帐号在二主数据库上需要实现无密码登陆备份服务器 生成本地备份目录
mkdir -p /data/backup
chown -R tanytan /data/backup备份服务器目录
mkdir -p /data/backup
chown -R tanytan /data/backup二主数据库，授权备份用户
grant all on discuz3.* to 'dumper'@'localhost' identified by 'password';
grant all on dedecms3.* to 'dumper'@'localhost' identified by 'password';
grant all on zrlog3.* to 'dumper'@'localhost' identified by 'password';#! /bin/bash
#daily backup part
dump=/usr/local/mysql/bin/mysqldump
user=dumper
pw=password
tip=172.31.215.157
la=`date +%Y-%m-%d`
sdate=`date +%d`
dir=/data/backup#local backup
for db in discuz3 dedecms3 zrlog3;      #使用了for 语句，确实简单很多；do$dump -u$user -p$pw $db > $dir/"$db"_$la.sqlsleep 2rsync -av $dir/"$db"_$la.sql $tip:$dir/"$db"_$sdate.sql   #rsync同步同时修改名字可以让远端保留30天的文件；done#compress
zdate=`date -d "-2day" +%Y-%m-%d`    #使用时间区分要压缩的文件；
gzip /data/backup/*$zdate.sql     #gzip可以将每个文件单独压缩；
#del
ddate=`date -d "-7day" +%Y-%m-%d`    #使用时间区分要删除的文件；
if [ ! -d "/data/backup/del" ]then mkdir /data/backup/del
fi
mv $dir/*$ddate* $dir/del/      #先移动到目录，后删除，更安全；
rm -rf $dir/del/*任务计划
使用tanytan帐号建立如下计划任务（命令最好不要加用户名）
crontab -e
# *  *  *  *  * user-name  command to be executed
01 03 * * *  /usr/bin/bash /home/tanytan/sqlbackup.sh脚本权限
[tanytan@ape-test3010 ~]$ ll /home/tanytan/
total 8
-rwxr-xr-x 1 tanytan root    907 Dec  8 15:27 sqlbackup.sh

静态文件备份

架构里静态文件保存在nfs服务器上，需要多一份备份放置在备份服务器里
也是用到rsync命令同步
需要普通用户备份，另外使用密钥认证
这个部分可参考上一个部分，并无新的内容
备份周期与数据库同步

数据恢复文档

nfs服务器下线，不能上线，即可使用备份服务器变成nfs服务器
备份服务器要做好nfs的配置
修改三台web服务器的挂载点
如果nfs与备份服务器使用keepalived实现高可用，即可马上恢复
nfs恢复后，需手动同步最新数据，然后可将nfs上线；
如果主数据库下线，不能上线，由于是双主结构，数据基本是同步的，可以手动切换到二主数据库上，或使用keepalived自动切换；
如想数据更同步，应考虑使用半同步模式，主机收到的命令返回成功前，会写上relay log，所以主与二主不同步将极少发生；
主数据库可上线后，待与二主数据同步后，可将主数据库重新上线；

zabbix监控

zabbix内网机器安装要顺利需要把所有依赖包都下载下来，再一次过安装；

 Package                 架构       版本                    源                                            大小
===============================================================================================================
正在安装:zabbix-agent            x86_64     4.0.15-1.el7            /zabbix-agent-4.0.15-1.el7.x86_64            1.6 Mzabbix-get              x86_64     4.0.15-1.el7            /zabbix-get-4.0.15-1.el7.x86_64              1.2 Mzabbix-server-mysql     x86_64     4.0.15-1.el7            /zabbix-server-mysql-4.0.15-1.el7.x86_64     5.0 Mzabbix-web              noarch     4.0.15-1.el7            /zabbix-web-4.0.15-1.el7.noarch               16 Mzabbix-web-mysql        noarch     4.0.15-1.el7            /zabbix-web-mysql-4.0.15-1.el7.noarch        0.0
为依赖而安装:OpenIPMI                x86_64     2.0.27-1.el7            base                                         243 kOpenIPMI-libs           x86_64     2.0.27-1.el7            base                                         523 kOpenIPMI-modalias       x86_64     2.0.27-1.el7            base                                          16 kOpenIPMI-perl           x86_64     2.0.27-1.el7            base                                         167 kapr                     x86_64     1.4.8-5.el7             base                                         103 kapr-util                x86_64     1.5.2-6.el7             base                                          92 kfping                   x86_64     3.10-4.el7              epel                                          46 kgnutls                  x86_64     3.3.29-9.el7_6          base                                         680 khttpd                   x86_64     2.4.6-90.el7.centos     base                                         2.7 Mhttpd-tools             x86_64     2.4.6-90.el7.centos     base                                          91 kiksemel                 x86_64     1.4-2.el7.centos        zabbix-non-supported                          49 klibevent                x86_64     2.0.21-4.el7            base                                         214 klibtool-ltdl            x86_64     2.4.2-22.el7_3          base                                          49 klibzip                  x86_64     0.10.1-8.el7            base                                          48 kmailcap                 noarch     2.1.41-2.el7            base                                          31 knet-snmp-libs           x86_64     1:5.7.2-43.el7          base                                         750 knettle                  x86_64     2.7.1-8.el7             base                                         327 kphp                     x86_64     5.4.16-46.1.el7_7       updates                                      1.4 Mphp-bcmath              x86_64     5.4.16-46.1.el7_7       updates                                       58 kphp-cli                 x86_64     5.4.16-46.1.el7_7       updates                                      2.7 Mphp-common              x86_64     5.4.16-46.1.el7_7       updates                                      565 kphp-gd                  x86_64     5.4.16-46.1.el7_7       updates                                      128 kphp-ldap                x86_64     5.4.16-46.1.el7_7       updates                                       53 kphp-mbstring            x86_64     5.4.16-46.1.el7_7       updates                                      505 kphp-mysql               x86_64     5.4.16-46.1.el7_7       updates                                      101 kphp-pdo                 x86_64     5.4.16-46.1.el7_7       updates                                       99 kphp-xml                 x86_64     5.4.16-46.1.el7_7       updates                                      126 kt1lib                   x86_64     5.1.2-14.el7            base                                         166 ktrousers                x86_64     0.3.14-2.el7            base                                         289 kunixODBC                x86_64     2.3.1-14.el7            base                                         413 k事务概要
===============================================================================================================
安装  5 软件包 (+30 依赖软件包)

yum localinstall OpenIPMI-2.0.27-1.el7.x86_64.rpm OpenIPMI-libs-2.0.27-1.el7.x86_64.rpm OpenIPMI-modalias-2.0.27-1.el7.x86_64.rpm OpenIPMI-perl-2.0.27-1.el7.x86_64.rpm apr-1.4.8-5.el7.x86_64.rpm apr-util-1.5.2-6.el7.x86_64.rpm fping-3.10-4.el7.x86_64.rpm gnutls-3.3.29-9.el7_6.x86_64.rpm httpd-2.4.6-90.el7.centos.x86_64.rpm httpd-tools-2.4.6-90.el7.centos.x86_64.rpm iksemel-1.4-2.el7.centos.x86_64.rpm libevent-2.0.21-4.el7.x86_64.rpm libtool-ltdl-2.4.2-22.el7_3.x86_64.rpm libzip-0.10.1-8.el7.x86_64.rpm  mailcap-2.1.41-2.el7.noarch.rpm net-snmp-libs-5.7.2-43.el7.x86_64.rpm nettle-2.7.1-8.el7.x86_64.rpm php-7.3.0.tar.bz2 php-bcmath-5.4.16-46.1.el7_7.x86_64.rpm php-cli-5.4.16-46.1.el7_7.x86_64.rpm php-common-5.4.16-46.1.el7_7.x86_64.rpm php-gd-5.4.16-46.1.el7_7.x86_64.rpm php-ldap-5.4.16-46.1.el7_7.x86_64.rpm php-mbstring-5.4.16-46.1.el7_7.x86_64.rpm php-mysql-5.4.16-46.1.el7_7.x86_64.rpm php-pdo-5.4.16-46.1.el7_7.x86_64.rpm php-xml-5.4.16-46.1.el7_7.x86_64.rpm t1lib-5.1.2-14.el7.x86_64.rpm trousers-0.3.14-2.el7.x86_64.rpm unixODBC-2.3.1-14.el7.x86_64.rpm zabbix-agent-4.0.15-1.el7.x86_64.rpm zabbix-server-mysql-4.0.15-1.el7.x86_64.rpm zabbix-web-4.0.15-1.el7.noarch.rpm zabbix-web-mysql-4.0.15-1.el7.noarch.rpm zabbix-get-4.0.15-1.el7.x86_64.rpm

监控tomcat, 安装zabbix-java-gateway，同理把所有包一次过安装；
zabbix-agent可直接yum;

 Package                              架构            版本                              源                大小
===============================================================================================================
正在安装:zabbix-java-gateway                  x86_64          4.0.15-1.el7                      zabbix           764 k
为依赖而安装:copy-jdk-configs                     noarch          3.3-10.el7_5                      base              21 kjava-1.8.0-openjdk-headless          x86_64          1:1.8.0.232.b09-0.el7_7           updates           32 Mjavapackages-tools                   noarch          3.4.1-11.el7                      base              73 klksctp-tools                         x86_64          1.0.17-2.el7                      base              88 kpcsc-lite-libs                       x86_64          1.8.8-8.el7                       base              34 kpython-javapackages                  noarch          3.4.1-11.el7                      base              31 kpython-lxml                          x86_64          3.2.1-4.el7                       base             758 ktzdata-java                          noarch          2019c-1.el7                       updates          187 k事务概要
===============================================================================================================
安装  1 软件包 (+8 依赖软件包)

实际监控实现

添加了基础监控，自定义linux监控模板；

流量监控

在这里插入图片描述

web服务器两个nginx虚拟主机分别实现监控
虚拟主机配置文件请参考上面；
监控脚本如下：

[root@ape-test3001 ~]# cat /usr/local/sbin/ngx_bbs_status.sh /usr/local/sbin/ngx_www_status.sh
#!/bin/bash
url="bbs.yuankeedu.com/nginx_status" 	#定义两个变量，放便使用；
curl="/usr/bin/curl -x127.0.0.1:80"# 检测nginx进程是否存在
function bbsping {/sbin/pidof nginx | wc -l
}
# 检测nginx性能
function bbsactive {$curl $url 2>/dev/null| grep 'Active' | awk '{print $NF}'
}
function bbsreading {$curl $url 2>/dev/null| grep 'Reading' | awk '{print $2}'
}
function bbswriting {$curl $url 2>/dev/null| grep 'Writing' | awk '{print $4}'
}
function bbswaiting {$curl $url 2>/dev/null| grep 'Waiting' | awk '{print $6}'
}
function bbsaccepts {$curl $url 2>/dev/null| awk NR==3 | awk '{print $1}'
}
function bbshandled {$curl $url 2>/dev/null| awk NR==3 | awk '{print $2}'
}
function bbsrequests {$curl $url 2>/dev/null| awk NR==3 | awk '{print $3}'
}
$1#!/bin/bash
url="bbs.yuankeedu.com/nginx_status" 	#定义两个变量，放便使用；
curl="/usr/bin/curl -x127.0.0.1:80"# 检测nginx进程是否存在
function wwwping {/sbin/pidof nginx | wc -l
}
# 检测nginx性能
function wwwactive {$curl $url 2>/dev/null| grep 'Active' | awk '{print $NF}'
}
function wwwreading {$curl $url 2>/dev/null| grep 'Reading' | awk '{print $2}'
}
function wwwwriting {$curl $url 2>/dev/null| grep 'Writing' | awk '{print $4}'
}
function wwwwaiting {$curl $url 2>/dev/null| grep 'Waiting' | awk '{print $6}'
}
function wwwaccepts {$curl $url 2>/dev/null| awk NR==3 | awk '{print $1}'
}
function wwwhandled {$curl $url 2>/dev/null| awk NR==3 | awk '{print $2}'
}
function wwwrequests {$curl $url 2>/dev/null| awk NR==3 | awk '{print $3}'
}
$1zabbix-agent配置文件增加语句，引用此配置文件
UserParameter=bbs.status[*],/usr/local/sbin/ngx_bbs_status.sh $1
UserParameter=www.status[*],/usr/local/sbin/ngx_www_status.sh $1

zabbix-web界面添加模板，模板新增item
在这里插入图片描述

在这里插入图片描述

新增trigger - 活动连接数大于100报警
在这里插入图片描述

mysql常规监控
zabbix-agent自带监控的脚本，需要调整环境变量或做软链接，让需要到的程序能够使用
定义监控数据库的帐户，将认证信息写在文档里；
即可在web界面添加agent和相应模板监控数据库；
自定义数据库慢查询数量脚本和队列脚本

[root@ape-test3005 ~]# cat /usr/local/sbin/processlist.sh /usr/local/sbin/slowsql.sh
#! /bin/bash
mysql=/usr/local/mysql/bin/mysql
log="-umo -ppassword -h172.31.215.153"
number () {$mysql $log -e "show processlist;" 2> /dev/null | wc -l
}
$1#! /bin/bash
f=`/usr/bin/date +%Y-%m-%d`T`date +%H`
min=`/usr/bin/date -d "1 minutes ago"  +%M`
slow () {
number=`cat /data/mysql/slow.log |grep $f:$min: |wc -l`  #通过日期，字母，小时与分钟，统计前一分钟日志的行数；
echo $number
}
$1慢查询日志格式
# Time: 2019-12-08T09:42:23.966295Z
# User@Host: root[root] @ localhost []  Id:   867
# Query_time: 3.000198  Lock_time: 0.000000 Rows_sent: 1  Rows_examined: 0
use discuz;
SET timestamp=1575798143;
select sleep (3);
# Time: 2019-12-08T09:42:57.953561Z
# User@Host: root[root] @ localhost []  Id:   873
# Query_time: 3.000204  Lock_time: 0.000000 Rows_sent: 1  Rows_examined: 0
SET timestamp=1575798177;
select sleep (3);zabbix-agent中引用脚本
UserParameter=mysql.processlist[*],/usr/local/sbin/processlist.sh $1
UserParameter=mysql.1minslow[*],/usr/local/sbin/slowsql.sh $1

zabbix-web界面调用脚本，监控与报警
在这里插入图片描述

在这里插入图片描述

慢查询大于60报警

队列大于300报警
在这里插入图片描述

JMX监控tomcat
tomcat新增JMX模块用于监控tomcat，会启动自定义端口，下图的9999端口；
zabbix-server端新增zabbix-java-gateway用于从JMX接口接收数据，会启动java-gateway服务，10052端口;
zabbix-java-gateway设置参数
zabbix-server设置gateway的相关参数
即可在zabbix-web上增加tomcat主机

在这里插入图片描述

代码上线脚本：

#! /bin/bash
# code syn to different server
#reminder
read -p "你是否已经更新了文件列表/root/synfile.list?确认请输入y或者Y，否则按其他任意键退出脚本。" c
if [ -z "$c" ]      #没有输入退出；thenexit 1
fi
if [ $c == "y" -o $c == "Y" ]     #输入Y or y继续执行，否则退出；thenecho "脚本将在2秒后，继续执行。"for i in 1 2       #延时功能；doecho -n "."sleep 1				doneechoelseexit 1
fi
#clean the /root/rsync.exp file      #主同步expect函数，只执行一次，完成后删除，以免错误执行;
[ -f /root/rsync.exp ] && rm -f /root/rsync.exp    #检查有没有同名称文件残留，删除；#create the rsync.exp
cat > /root/rsync.exp <<EOF				#新建一个脚本文件，EOF结束；#expect interact function      #开始输入；
# /usr/bin/expect
set passwd "password"
set host [lindex \$argv 0]     #参数1赋给expect函数；
set file [lindex \$argv 1]        #参数2赋给expect函数；
spawn rsync -av --files-from=\$file / root@\$host:/     #使用获取到的文件列表，和IP同步到指定服务器；
expect {
"yes/no" {send "yes\r"}
"password:" {send \$passwd\r}
}
expect eof
EOFchmod a+x /root/rsync.exp      #./rsync.exp这样运行时要做这个操作；#function to check whether a file exist
if_file_exist()
{
if [ ! -f $1 ]thenecho "文件$1不存在，请检查。"exit 1
fi
}if_file_exist /root/ip.list
if_file_exist /root/synfile.listfor ip in `cat /root/ip.list`     #读取ip.list把ip逐个实施；doexpect /root/rsync.exp $ip /root/synfile.list    donerm -f /root/rsync.exp      #删除expect函数；

[root@second ~]# ls -ld  /root/synt /tmp/syna /usr/local/synn /data/syny
drwxr-xr-x 2 root root 6 11月 22 12:36 /data/syny
-rw-r--r-- 1 root root 0 11月 22 12:34 /root/synt
drwxr-xr-x 2 root root 6 11月 22 12:35 /tmp/syna
-rw-r--r-- 1 root root 0 11月 22 12:36 /usr/local/synn
[root@second ~]# vi ./syn.txt   #文件内容如下；
/root/synt
/tmp/syna
/usr/local/synn
/data/syny

这篇关于汇总-13台虚拟机搭建一个高可用负载均衡集群架构验收的文章就介绍到这儿，希望我们推荐的文章对编程师们有所帮助！

汇总-13台虚拟机搭建一个高可用负载均衡集群架构验收

要求

IP实际分配

架构图

设置记录

环境测试

数据库

数据库同步测试

静态文件共享

只使用普通用户ssh登陆，再授权su -

命令记录

web nginx日志切割

php慢查询日志

nginx站点访问日志

三个站点后台的二次认证

数据库备份方案

静态文件备份

数据恢复文档

zabbix监控

实际监控实现

代码上线脚本：

相关文章

MySQL双主搭建+keepalived高可用的实现

Java异常架构Exception(异常)详解

SpringCloud之LoadBalancer负载均衡服务调用过程

SpringCloud负载均衡spring-cloud-starter-loadbalancer解读

Linux虚拟机不显示IP地址的解决方法(亲测有效)

使用DeepSeek搭建个人知识库(在笔记本电脑上)

Linux搭建Mysql主从同步的教程

国内环境搭建私有知识问答库踩坑记录(ollama+deepseek+ragflow)

JAVA虚拟机中 -D, -X, -XX ，-server参数使用

Spring Cloud LoadBalancer 负载均衡详解

汇总-13台虚拟机搭建一个高可用负载均衡集群架构 验收

要求

IP实际分配

架构图

设置记录

环境测试

数据库

数据库同步测试

静态文件共享

只使用普通用户ssh登陆，再授权su -

命令记录

web nginx日志切割

php慢查询日志

nginx站点访问日志

三个站点后台的二次认证

数据库备份方案

静态文件备份

数据恢复文档

zabbix监控

实际监控实现

代码上线脚本：

相关文章

汇总-13台虚拟机搭建一个高可用负载均衡集群架构验收
