AndroidUI系列 - 自定义View手绘小黄人

2024-02-29 07:32
文章标签 自定义 系列 view 手绘 黄人 androidui

本文主要是介绍AndroidUI系列 - 自定义View手绘小黄人，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

总是想尝试各种自定义控件，来熟悉谷歌提供的一些自定绘图的方法，那就画一个小黄人吧。我在git上找到一个小换人的源码。它是按照比例计算的，有一定的公式，我觉得太麻烦了。就用自己的理解画了一个写死大小的小黄人。先给大家看看效果。

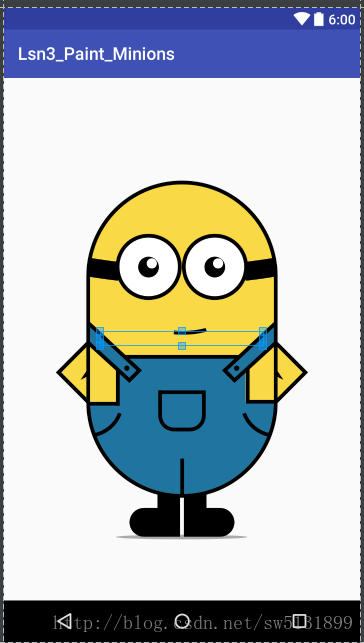

git上的小黄人是这样的。
这里写图片描述

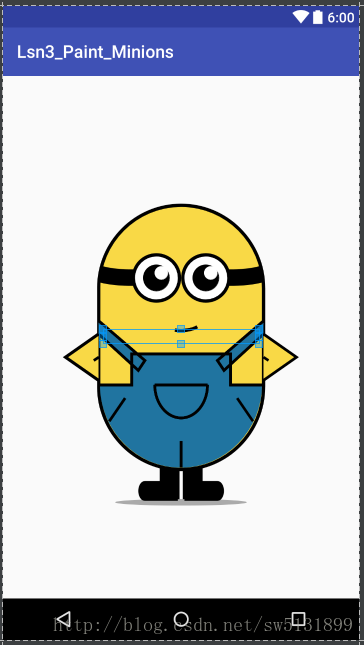

我用代码画出来的是这样的。
这里写图片描述

其实有很多地方是不一样的，我会把两套代码都贴出来，有兴趣的朋友可以自己去研究研究。画完之后对Path和canvas有了很多新的认识。以后自定义什么复杂控件，这些都是扎实的基础。

那么在来整理一下，思路。从哪开始画，需要使用一些什么方法来进行绘制。
这里写图片描述

具体方法都有注释，想要研究的就要自己去花时间看代码了。
git上的代码。

import android.annotation.TargetApi;
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.CornerPathEffect;
import android.graphics.Paint;
import android.graphics.Path;
import android.graphics.RectF;
import android.os.Build;
import android.util.AttributeSet;
import android.view.View;class MinionView extends View{private static final int DEFAULT_SIZE = 200; //View默认大小private int mWidthUnspecified;private int mHeightUnspecified;private Paint mPaint;private float mBodyWidth;private float mBodyHeight;private static final float BODY_SCALE = 0.6f;//身体主干占整个view的比重private static final float BODY_WIDTH_HEIGHT_SCALE = 0.6f; //        身体的比例设定为 w:h = 3:5private float mStrokeWidth = 4;//描边宽度private float mOffset;//计算时，部分需要 考虑找边偏移private float mRadius;//身体上下半圆的半径private int mColorClothes = Color.rgb(32, 116, 160);//衣服的颜色private int mColorBody = Color.rgb(249, 217, 70);//衣服的颜色private int mColorStroke = Color.BLACK;private RectF mBodyRect;private float mHandsHeight;//计算出吊带的高度时，可以用来做手的高度private float mFootHeight;//脚的高度，用来画脚部阴影时用public MinionView(Context context) {super(context);}public MinionView(Context context, AttributeSet attrs) {super(context, attrs);}public MinionView(Context context, AttributeSet attrs, int defStyleAttr) {super(context, attrs, defStyleAttr);}@TargetApi(Build.VERSION_CODES.LOLLIPOP)public MinionView(Context context, AttributeSet attrs, int defStyleAttr, int defStyleRes) {super(context, attrs, defStyleAttr, defStyleRes);}@Overrideprotected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {setMeasuredDimension(measure(widthMeasureSpec, true), measure(heightMeasureSpec, false));}/*** @param origin* @param isWidth 是否在测量宽* @return*/private int measure(int origin, boolean isWidth) {int result;int specMode = MeasureSpec.getMode(origin);int specSize = MeasureSpec.getSize(origin);switch (specMode) {case MeasureSpec.EXACTLY:case MeasureSpec.AT_MOST:result = specSize;if (isWidth) {mWidthUnspecified = result;} else {mHeightUnspecified = result;}break;case MeasureSpec.UNSPECIFIED:default:if (isWidth) {//宽或高未指定的情况下，可以由另一端推算出来 - -如果两边都没指定就用默认值result = (int) (mHeightUnspecified * BODY_WIDTH_HEIGHT_SCALE);} else {result = (int) (mWidthUnspecified / BODY_WIDTH_HEIGHT_SCALE);}if (result == 0) {result = DEFAULT_SIZE;}break;}return result;}@Overrideprotected void onDraw(Canvas canvas) {initParams();initPaint();drawFeetShadow(canvas);//脚下的阴影drawFeet(canvas);//脚drawHands(canvas);//手drawBody(canvas);//身体drawClothes(canvas);//衣服drawEyesMouth(canvas);//眼睛,嘴巴drawBodyStroke(canvas);//最后画身体的描边，可以摭住一些过渡的棱角}private void initParams() {mBodyWidth = Math.min(getWidth(), getHeight() * BODY_WIDTH_HEIGHT_SCALE) * BODY_SCALE;mBodyHeight = Math.min(getWidth(), getHeight() * BODY_WIDTH_HEIGHT_SCALE) / BODY_WIDTH_HEIGHT_SCALE * BODY_SCALE;mStrokeWidth = Math.max(mBodyWidth / 50, mStrokeWidth);mOffset = mStrokeWidth / 2;mBodyRect = new RectF();mBodyRect.left = (getWidth() - mBodyWidth) / 2;mBodyRect.top = (getHeight() - mBodyHeight) / 2;mBodyRect.right = mBodyRect.left + mBodyWidth;mBodyRect.bottom = mBodyRect.top + mBodyHeight;mRadius = mBodyWidth / 2;mFootHeight = mRadius * 0.4333f;mHandsHeight =  (getHeight() + mBodyHeight) / 2   + mOffset - mRadius * 1.65f ;}private void drawBody(Canvas canvas) {initPaint();mPaint.setColor(mColorBody);mPaint.setStyle(Paint.Style.FILL);canvas.drawRoundRect(mBodyRect, mRadius, mRadius, mPaint);}private void drawBodyStroke(Canvas canvas) {initPaint();mPaint.setColor(mColorStroke);mPaint.setStrokeWidth(mStrokeWidth);mPaint.setStyle(Paint.Style.STROKE);canvas.drawRoundRect(mBodyRect, mRadius, mRadius, mPaint);}private void drawClothes(Canvas canvas) {initPaint();RectF rect = new RectF();rect.left = (getWidth() - mBodyWidth) / 2 + mOffset;rect.top = (getHeight() + mBodyHeight) / 2 - mRadius * 2 + mOffset;rect.right = rect.left + mBodyWidth - mOffset * 2;rect.bottom = rect.top + mRadius * 2 - mOffset * 2;mPaint.setColor(mColorClothes);mPaint.setStyle(Paint.Style.FILL);mPaint.setStrokeWidth(mStrokeWidth);canvas.drawArc(rect, 0, 180, true, mPaint);int h = (int) (mRadius * 0.5);int w = (int) (mRadius * 0.3);rect.left += w;rect.top = rect.top + mRadius - h;rect.right -= w;rect.bottom = rect.top + h;canvas.drawRect(rect, mPaint);//画横线initPaint();mPaint.setColor(mColorStroke);mPaint.setStyle(Paint.Style.FILL);mPaint.setStrokeWidth(mStrokeWidth);float[] pts = new float[20];//5条线pts[0] = rect.left - w;pts[1] = rect.top + h;pts[2] = pts[0] + w;pts[3] = pts[1];pts[4] = pts[2];pts[5] = pts[3] + mOffset;pts[6] = pts[4];pts[7] = pts[3] - h;pts[8] = pts[6] - mOffset;pts[9] = pts[7];pts[10] = pts[8] + (mRadius - w) * 2;pts[11] = pts[9];pts[12] = pts[10];pts[13] = pts[11] - mOffset;pts[14] = pts[12];pts[15] = pts[13] + h;pts[16] = pts[14] - mOffset;pts[17] = pts[15];pts[18] = pts[16] + w;pts[19] = pts[17];canvas.drawLines(pts, mPaint);//画左吊带initPaint();mPaint.setColor(mColorClothes);mPaint.setStrokeWidth(mStrokeWidth);mPaint.setStyle(Paint.Style.FILL);Path path = new Path();path.moveTo(rect.left - w - mOffset, mHandsHeight);path.lineTo(rect.left + h / 4, rect.top + h / 2);final float smallW = w / 2 * (float) Math.sin(Math.PI / 4);path.lineTo(rect.left + h / 4 + smallW, rect.top + h / 2 - smallW);final float smallW2 = w / (float) Math.sin(Math.PI / 4) / 2;path.lineTo(rect.left - w - mOffset, mHandsHeight - smallW2);canvas.drawPath(path, mPaint);initPaint();mPaint.setColor(mColorStroke);mPaint.setStrokeWidth(mStrokeWidth);mPaint.setStyle(Paint.Style.STROKE);canvas.drawPath(path, mPaint);initPaint();mPaint.setStyle(Paint.Style.FILL_AND_STROKE);canvas.drawCircle(rect.left + h / 5, rect.top + h / 4, mStrokeWidth*0.7f, mPaint);//画右吊带initPaint();mPaint.setColor(mColorClothes);mPaint.setStrokeWidth(mStrokeWidth);mPaint.setStyle(Paint.Style.FILL);path.reset();path.moveTo(rect.left - w + 2 * mRadius - mOffset, mHandsHeight);path.lineTo(rect.right - h / 4, rect.top + h / 2);path.lineTo(rect.right - h / 4 - smallW, rect.top + h / 2 - smallW);path.lineTo(rect.left - w + 2 * mRadius - mOffset, mHandsHeight - smallW2);canvas.drawPath(path, mPaint);initPaint();mPaint.setColor(mColorStroke);mPaint.setStrokeWidth(mStrokeWidth);mPaint.setStyle(Paint.Style.STROKE);canvas.drawPath(path, mPaint);initPaint();mPaint.setStyle(Paint.Style.FILL_AND_STROKE);canvas.drawCircle(rect.right - h / 5, rect.top + h / 4, mStrokeWidth*0.7f, mPaint);//中间口袋initPaint();mPaint.setColor(mColorStroke);mPaint.setStrokeWidth(mStrokeWidth);mPaint.setStyle(Paint.Style.STROKE);path.reset();float radiusBigPokect = w / 2.0f;path.moveTo(rect.left + 1.5f * w, rect.bottom - h / 4);path.lineTo(rect.right - 1.5f * w, rect.bottom - h / 4);path.lineTo(rect.right - 1.5f * w, rect.bottom + h / 4);path.addArc(rect.right - 1.5f * w - radiusBigPokect * 2, rect.bottom + h / 4 - radiusBigPokect,rect.right - 1.5f * w, rect.bottom + h / 4 + radiusBigPokect, 0, 90);path.lineTo(rect.left + 1.5f * w + radiusBigPokect, rect.bottom + h / 4 + radiusBigPokect);path.addArc(rect.left + 1.5f * w, rect.bottom + h / 4 - radiusBigPokect,rect.left + 1.5f * w + 2 * radiusBigPokect, rect.bottom + h / 4 + radiusBigPokect, 90, 90);path.lineTo(rect.left + 1.5f * w, rect.bottom - h / 4 - mOffset);canvas.drawPath(path, mPaint);//        下边一竖，分开裤子canvas.drawLine(mBodyRect.left + mBodyWidth / 2, mBodyRect.bottom - h * 0.8f, mBodyRect.left + mBodyWidth / 2, mBodyRect.bottom, mPaint);
//      左边的小口袋float radiusSamllPokect = w * 1.2f;canvas.drawArc(mBodyRect.left - radiusSamllPokect, mBodyRect.bottom - mRadius - radiusSamllPokect,mBodyRect.left + radiusSamllPokect, mBodyRect.bottom - mRadius + radiusSamllPokect, 80, -60, false, mPaint);
//      右边小口袋canvas.drawArc(mBodyRect.right - radiusSamllPokect, mBodyRect.bottom - mRadius - radiusSamllPokect,mBodyRect.right + radiusSamllPokect, mBodyRect.bottom - mRadius + radiusSamllPokect, 100, 60, false, mPaint);
//        canvas.drawArc(left + w/5,);}private void drawEyesMouth(Canvas canvas) {float eyesOffset = mRadius * 0.1f;//眼睛中心处于上半圆直径 往上的高度偏移mPaint.setStrokeWidth(mStrokeWidth * 5);
//        计算眼镜带弧行的半径 分两段，以便眼睛中间有隔开的效果float radiusGlassesRibbon = (float) (mRadius / Math.sin(Math.PI / 20));RectF rect = new RectF();rect.left = mBodyRect.left + mRadius - radiusGlassesRibbon;rect.top = mBodyRect.top + mRadius - (float) (mRadius / Math.tan(Math.PI / 20)) - radiusGlassesRibbon - eyesOffset;rect.right = rect.left + radiusGlassesRibbon * 2;rect.bottom = rect.top + radiusGlassesRibbon * 2;canvas.drawArc(rect, 81, 3, false, mPaint);canvas.drawArc(rect, 99, -3, false, mPaint);//眼睛半径float radiusEyes = mRadius / 3;initPaint();mPaint.setColor(Color.WHITE);mPaint.setStrokeWidth(mStrokeWidth);mPaint.setStyle(Paint.Style.FILL);canvas.drawCircle(mBodyRect.left + mBodyWidth / 2 - radiusEyes - mOffset, mBodyRect.top + mRadius - eyesOffset, radiusEyes, mPaint);canvas.drawCircle(mBodyRect.left + mBodyWidth / 2 + radiusEyes + mOffset, mBodyRect.top + mRadius - eyesOffset, radiusEyes, mPaint);mPaint.setColor(mColorStroke);mPaint.setStyle(Paint.Style.STROKE);canvas.drawCircle(mBodyRect.left + mBodyWidth / 2 - radiusEyes - mOffset, mBodyRect.top + mRadius - eyesOffset, radiusEyes, mPaint);canvas.drawCircle(mBodyRect.left + mBodyWidth / 2 + radiusEyes + mOffset, mBodyRect.top + mRadius - eyesOffset, radiusEyes, mPaint);final float radiusEyeballBlack = radiusEyes / 3;mPaint.setStyle(Paint.Style.FILL);canvas.drawCircle(mBodyRect.left + mBodyWidth / 2 - radiusEyes - mOffset, mBodyRect.top + mRadius - eyesOffset, radiusEyeballBlack, mPaint);canvas.drawCircle(mBodyRect.left + mBodyWidth / 2 + radiusEyes + mOffset, mBodyRect.top + mRadius - eyesOffset, radiusEyeballBlack, mPaint);mPaint.setColor(Color.WHITE);final float radiusEyeballWhite = radiusEyeballBlack / 2;canvas.drawCircle(mBodyRect.left + mBodyWidth / 2 - radiusEyes + radiusEyeballWhite - mOffset * 2,mBodyRect.top + mRadius - radiusEyeballWhite + mOffset - eyesOffset,radiusEyeballWhite, mPaint);canvas.drawCircle(mBodyRect.left + mBodyWidth / 2 + radiusEyes + radiusEyeballWhite,mBodyRect.top + mRadius - radiusEyeballWhite + mOffset - eyesOffset,radiusEyeballWhite, mPaint);//        画嘴巴，因为位置和眼睛有相对关系，所以写在一块mPaint.setColor(mColorStroke);mPaint.setStyle(Paint.Style.STROKE);mPaint.setStrokeWidth(mStrokeWidth);float radiusMonth = mRadius;rect.left = mBodyRect.left;rect.top = mBodyRect.top - radiusMonth / 2.5f;rect.right = rect.left + radiusMonth * 2;rect.bottom = rect.top + radiusMonth * 2;canvas.drawArc(rect, 95, -20, false, mPaint);}private void drawFeet(Canvas canvas) {mPaint.setStrokeWidth(mStrokeWidth);mPaint.setColor(mColorStroke);mPaint.setStyle(Paint.Style.FILL_AND_STROKE);float radiusFoot = mRadius / 3 * 0.4f;float leftFootStartX = mBodyRect.left + mRadius - mOffset * 2;float leftFootStartY = mBodyRect.bottom - mOffset;float footWidthA = mRadius * 0.5f;//脚宽度大-到半圆结束float footWidthB = footWidthA / 3;//脚宽度-比较细的部分//      左脚Path path = new Path();path.moveTo(leftFootStartX, leftFootStartY);path.lineTo(leftFootStartX, leftFootStartY + mFootHeight);path.lineTo(leftFootStartX - footWidthA + radiusFoot, leftFootStartY + mFootHeight);RectF rectF = new RectF();rectF.left = leftFootStartX - footWidthA;rectF.top = leftFootStartY + mFootHeight - radiusFoot * 2;rectF.right = rectF.left + radiusFoot * 2;rectF.bottom = rectF.top + radiusFoot * 2;path.addArc(rectF, 90, 180);path.lineTo(rectF.left + radiusFoot + footWidthB, rectF.top);path.lineTo(rectF.left + radiusFoot + footWidthB, leftFootStartY);path.lineTo(leftFootStartX, leftFootStartY);canvas.drawPath(path, mPaint);//      右脚float rightFootStartX = mBodyRect.left + mRadius + mOffset * 2;float rightFootStartY = leftFootStartY;path.reset();path.moveTo(rightFootStartX, rightFootStartY);path.lineTo(rightFootStartX, rightFootStartY + mFootHeight);path.lineTo(rightFootStartX + footWidthA - radiusFoot, rightFootStartY + mFootHeight);rectF.left = rightFootStartX + footWidthA - radiusFoot * 2;rectF.top = rightFootStartY + mFootHeight - radiusFoot * 2;rectF.right = rectF.left + radiusFoot * 2;rectF.bottom = rectF.top + radiusFoot * 2;path.addArc(rectF, 90, -180);path.lineTo(rectF.right - radiusFoot - footWidthB, rectF.top);path.lineTo(rectF.right - radiusFoot - footWidthB, rightFootStartY);path.lineTo(rightFootStartX, rightFootStartY);canvas.drawPath(path, mPaint);}private void drawFeetShadow(Canvas canvas) {mPaint.setColor(getResources().getColor(android.R.color.darker_gray));canvas.drawOval(mBodyRect.left + mBodyWidth * 0.15f, mBodyRect.bottom - mOffset + mFootHeight,mBodyRect.right - mBodyWidth * 0.15f, mBodyRect.bottom - mOffset + mFootHeight + mStrokeWidth * 1.3f, mPaint);}private void drawHands(Canvas canvas) {mPaint.setStrokeWidth(mStrokeWidth);mPaint.setStyle(Paint.Style.FILL_AND_STROKE);mPaint.setColor(mColorBody);//        左手Path path = new Path();float hypotenuse = mBodyRect.bottom - mRadius - mHandsHeight;float radiusHand = hypotenuse / 6;mPaint.setPathEffect(new CornerPathEffect(radiusHand));path.moveTo(mBodyRect.left, mHandsHeight);path.lineTo(mBodyRect.left - hypotenuse / 2, mHandsHeight + hypotenuse / 2);path.lineTo(mBodyRect.left + mOffset, mBodyRect.bottom - mRadius + mOffset);path.lineTo(mBodyRect.left  , mHandsHeight);//增加兼容性,path没闭合在一起机子上会使手的下面的点没办法与裤子重合canvas.drawPath(path, mPaint);mPaint.setStrokeWidth(mStrokeWidth);mPaint.setStyle(Paint.Style.STROKE);mPaint.setColor(mColorStroke);canvas.drawPath(path, mPaint);//        右手path.reset();mPaint.setStyle(Paint.Style.FILL);mPaint.setColor(mColorBody);path.moveTo(mBodyRect.right, mHandsHeight);path.lineTo(mBodyRect.right + hypotenuse / 2, mHandsHeight + hypotenuse / 2);path.lineTo(mBodyRect.right  - mOffset, mBodyRect.bottom - mRadius + mOffset);path.lineTo(mBodyRect.right, mHandsHeight);canvas.drawPath(path, mPaint);mPaint.setStrokeWidth(mStrokeWidth);mPaint.setStyle(Paint.Style.STROKE);mPaint.setColor(mColorStroke);canvas.drawPath(path, mPaint);//        一个慢动作  - -||| 拐点内侧path.reset();mPaint.setStyle(Paint.Style.FILL);path.moveTo(mBodyRect.left, mHandsHeight + hypotenuse / 2 - mStrokeWidth);path.lineTo(mBodyRect.left - mStrokeWidth * 2, mHandsHeight + hypotenuse / 2 + mStrokeWidth * 2);path.lineTo(mBodyRect.left, mHandsHeight + hypotenuse / 2 + mStrokeWidth);path.lineTo(mBodyRect.left, mHandsHeight + hypotenuse / 2 - mStrokeWidth);canvas.drawPath(path, mPaint);path.reset();path.moveTo(mBodyRect.right, mHandsHeight + hypotenuse / 2 - mStrokeWidth);path.lineTo(mBodyRect.right + mStrokeWidth * 2, mHandsHeight + hypotenuse / 2 + mStrokeWidth * 2);path.lineTo(mBodyRect.right, mHandsHeight + hypotenuse / 2 + mStrokeWidth);path.lineTo(mBodyRect.right, mHandsHeight + hypotenuse / 2 - mStrokeWidth);canvas.drawPath(path, mPaint);}private void initPaint() {if (mPaint == null) {mPaint = new Paint();} else {mPaint.reset();}mPaint.setAntiAlias(true);//边缘无锯齿}/*public void randomBodyColor() {Random random = new Random();mColorBody = Color.rgb(random.nextInt(255), random.nextInt(255), random.nextInt(255));invalidate();}*/
}

那么在看看我的代码与他的代码的区别。

import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Path;
import android.graphics.Rect;
import android.graphics.RectF;
import android.util.AttributeSet;
import android.view.View;/*** Created by ShuWen on 2017/6/27.*/public class MinionViewNew extends View {private static final int DEFAULT_SIZE = 200; //View默认大小private int mWidthUnspecified;private int mHeightUnspecified;private Paint mPaint;private float mBodyWidth;private float mBodyHeight;private static final float BODY_SCALE = 0.6f;//身体主干占整个view的比重private static final float BODY_WIDTH_HEIGHT_SCALE = 0.6f; //        身体的比例设定为 w:h = 3:5private float mStrokeWidth = 10;//描边宽度private float mOffset;//计算时，部分需要 考虑找边偏移private float mRadius;//身体上下半圆的半径private int mColorClothes = Color.rgb(32, 116, 160);//衣服的颜色private int mColorBody = Color.rgb(249, 217, 70);//衣服的颜色private int mColorStroke = Color.BLACK;private RectF mBodyRect;private float mHandsHeight;//计算出吊带的高度时，可以用来做手的高度private float mFootHeight;//脚的高度，用来画脚部阴影时用public MinionViewNew(Context context, AttributeSet attrs, int defStyleAttr) {super(context, attrs, defStyleAttr);}public MinionViewNew(Context context, AttributeSet attrs) {super(context, attrs);}public MinionViewNew(Context context) {super(context);}@Overrideprotected void onDraw(Canvas canvas) {initParams();initPaint();drawFeetShadow(canvas);drawFeet(canvas);//脚drawBody(canvas);//身体drawEyesMouth(canvas);//眼睛,嘴巴drawHands(canvas);//手drawClothes(canvas);//衣服}private void drawClothes(Canvas canvas) {initPaint();//肚子颜色mPaint.setColor(mColorClothes);mPaint.setStyle(Paint.Style.FILL);mPaint.setStrokeWidth(mStrokeWidth);RectF rectF = new RectF();rectF.left = getWidth()/2 - 246;  //xrectF.top = getHeight()/2 - 110; //yrectF.right = rectF.left + 492;rectF.bottom = rectF.top + 505;canvas.drawArc(rectF,0,180,true,mPaint);Path path = new Path();path.moveTo(getWidth()/2-250,getHeight()/2+144);path.lineTo(getWidth()/2-150,getHeight()/2+144);path.lineTo(getWidth()/2-150,getHeight()/2+50);path.lineTo(getWidth()/2+150,getHeight()/2+50);path.lineTo(getWidth()/2+150,getHeight()/2+144);path.lineTo(getWidth()/2+250,getHeight()/2+144);mPaint.setColor(mColorClothes);mPaint.setStyle(Paint.Style.FILL);canvas.drawPath(path,mPaint);mPaint.setColor(Color.BLACK);mPaint.setStrokeWidth(8);mPaint.setStyle(Paint.Style.STROKE);canvas.drawPath(path,mPaint);//左吊带path.moveTo(getWidth()/2 - 250,getHeight()/2 - 50);path.lineTo(getWidth()/2 - 110,getHeight()/2 + 70);path.lineTo(getWidth()/2 - 130,getHeight()/2 + 100);path.lineTo(getWidth()/2 - 250,getHeight()/2 - 10);mPaint.setColor(mColorClothes);mPaint.setStyle(Paint.Style.FILL);canvas.drawPath(path,mPaint);mPaint.setColor(Color.BLACK);mPaint.setStyle(Paint.Style.STROKE);canvas.drawPath(path,mPaint);//右吊带path.moveTo(getWidth()/2 + 250,getHeight()/2 - 50);path.lineTo(getWidth()/2 + 110,getHeight()/2 + 70);path.lineTo(getWidth()/2 + 130,getHeight()/2 + 100);path.lineTo(getWidth()/2 + 250,getHeight()/2 - 10);mPaint.setColor(mColorClothes);mPaint.setStyle(Paint.Style.FILL);canvas.drawPath(path,mPaint);mPaint.setColor(Color.BLACK);mPaint.setStyle(Paint.Style.STROKE);canvas.drawPath(path,mPaint);//画衣服口袋path.moveTo(getWidth()/2-80,getHeight()/2+144);path.lineTo(getWidth()/2+80,getHeight()/2+144);rectF.left = getWidth()/2-80;rectF.top = getHeight()/2+44;rectF.right = rectF.left + 160;rectF.bottom = rectF.top + 200;path.addArc(rectF,0,180);canvas.drawPath(path,mPaint);//裤子线path.moveTo(getWidth()/2,getHeight()/2+314);path.lineTo(getWidth()/2,getHeight()/2+394);canvas.drawPath(path,mPaint);//裤子口袋path.moveTo(getWidth()/2-218,getHeight()/2+254);path.lineTo(getWidth()/2-170,getHeight()/2+184);canvas.drawPath(path,mPaint);path.moveTo(getWidth()/2+218,getHeight()/2+254);path.lineTo(getWidth()/2+170,getHeight()/2+184);canvas.drawPath(path,mPaint);}private void drawEyesMouth(Canvas canvas) {//眼眶initPaint();mPaint.setColor(Color.WHITE);mPaint.setStyle(Paint.Style.FILL_AND_STROKE);canvas.drawCircle(getWidth() / 2 - 75,getHeight() / 2 - 180,70,mPaint); //左眼眶canvas.drawCircle(getWidth() / 2 + 75,getHeight() / 2 - 180,70,mPaint); //右眼眶mPaint.setStrokeWidth(mStrokeWidth);mPaint.setStyle(Paint.Style.STROKE);mPaint.setColor(Color.BLACK);canvas.drawCircle(getWidth() / 2 - 75,getHeight() / 2 - 180,70,mPaint);canvas.drawCircle(getWidth() / 2 + 75,getHeight() / 2 - 180,70,mPaint);//眼珠子initPaint();mPaint.setColor(Color.BLACK);mPaint.setStyle(Paint.Style.FILL_AND_STROKE);canvas.drawCircle(getWidth() / 2 - 75,getHeight() / 2 - 180,40,mPaint);canvas.drawCircle(getWidth() / 2 + 75,getHeight() / 2 - 180,40,mPaint);//眼睛initPaint();mPaint.setColor(Color.WHITE);mPaint.setStyle(Paint.Style.FILL_AND_STROKE);canvas.drawCircle(getWidth() / 2 - 60,getHeight() / 2 - 195,20,mPaint);canvas.drawCircle(getWidth() / 2 + 90,getHeight() / 2 - 195,20,mPaint);//画嘴巴initPaint();mPaint.setColor(Color.BLACK);mPaint.setStyle(Paint.Style.FILL_AND_STROKE);mPaint.setStrokeWidth(mStrokeWidth);RectF rectF = new RectF();rectF.left = getWidth() / 2 - 70;rectF.top = getHeight() / 2 - 100;rectF.right = rectF.left + 140;rectF.bottom = rectF.top + 80;canvas.drawArc(rectF, 105, -60, false, mPaint);//画眼带initPaint();mPaint.setColor(Color.BLACK);mPaint.setStyle(Paint.Style.FILL_AND_STROKE);mPaint.setStrokeWidth(50);//左眼带rectF.left = getWidth() / 2 - 300;rectF.top = getHeight() / 2 - 280;rectF.right = rectF.left + 300;rectF.bottom = rectF.top + 100;canvas.drawArc(rectF, 88, 40, false, mPaint);//右眼带rectF.left = getWidth() / 2 ;rectF.top = getHeight() / 2 - 280;rectF.right = rectF.left + 300;rectF.bottom = rectF.top + 100;canvas.drawArc(rectF, 92, -42, false, mPaint);}private void drawBody(Canvas canvas) {initPaint();mPaint.setColor(mColorBody);mPaint.setStyle(Paint.Style.FILL);RectF rectF = new RectF();rectF.left = getWidth() / 2 - 250;  //xrectF.top = getHeight() / 2 - 400; //yrectF.right = rectF.left + 500;rectF.bottom = rectF.top + 800;mRadius = 250;canvas.drawRoundRect(rectF, mRadius, mRadius, mPaint);initPaint();mPaint.setColor(mColorStroke);mPaint.setStrokeWidth(mStrokeWidth);mPaint.setStyle(Paint.Style.STROKE);canvas.drawRoundRect(rectF, mRadius, mRadius, mPaint);}private void drawHands(Canvas canvas) {initPaint();//左手Path path = new Path();path.moveTo(getWidth()/2 - 250,getHeight()/2 - 10);path.lineTo(getWidth() / 2 - 350,getHeight() / 2 + 60);path.lineTo(getWidth()/2-250,getHeight()/2+130);mPaint.setColor(mColorBody);mPaint.setStyle(Paint.Style.FILL);canvas.drawPath(path,mPaint);mPaint.setColor(mColorStroke);mPaint.setStrokeWidth(10);mPaint.setStyle(Paint.Style.STROKE);canvas.drawPath(path,mPaint);path.moveTo(getWidth()/2 - 250,getHeight()/2 + 60);path.lineTo(getWidth() / 2 - 265,getHeight() / 2 + 70);canvas.drawPath(path,mPaint);//右手path.moveTo(getWidth()/2 + 250,getHeight()/2 - 10);path.lineTo(getWidth() / 2 + 350,getHeight() / 2 + 60);path.lineTo(getWidth()/2+250,getHeight()/2+130);mPaint.setColor(mColorBody);mPaint.setStyle(Paint.Style.FILL);canvas.drawPath(path,mPaint);mPaint.setColor(mColorStroke);mPaint.setStrokeWidth(8);mPaint.setStyle(Paint.Style.STROKE);canvas.drawPath(path,mPaint);path.moveTo(getWidth()/2 + 250,getHeight()/2 + 60);path.lineTo(getWidth() / 2 + 265,getHeight() / 2 + 70);canvas.drawPath(path,mPaint);}private void test(Canvas canvas){mPaint.setStrokeWidth(mStrokeWidth);mPaint.setColor(mColorStroke);mPaint.setStyle(Paint.Style.STROKE);RectF rectF = new RectF(200,200,600,400);canvas.drawArc(rectF,90,90,false,mPaint);}private void drawFeet(Canvas canvas) {mPaint.setStrokeWidth(mStrokeWidth);mPaint.setColor(mColorStroke);mPaint.setStyle(Paint.Style.FILL_AND_STROKE);//画左脚Path path = new Path();float leftFootStartX = getWidth() / 2 - 10;float leftFootstartY = mBodyRect.bottom -10;path.moveTo(leftFootStartX,leftFootstartY);path.lineTo(leftFootStartX - 100,leftFootstartY);RectF rectF = new RectF();rectF.left = leftFootStartX - 115;rectF.top = leftFootstartY - 50;rectF.right = rectF.left + 30;rectF.bottom = rectF.top + 50;path.addArc(rectF,90,180);path.lineTo(leftFootStartX - 50,leftFootstartY - 50);path.lineTo(leftFootStartX - 50,leftFootstartY - 100);path.lineTo(leftFootStartX ,leftFootstartY - 100);path.lineTo(leftFootStartX ,leftFootstartY);canvas.drawPath(path, mPaint);//画右脚path.reset();float rightFootStartX = getWidth() / 2 + 10;float rightFootstartY = mBodyRect.bottom -10;path.moveTo(rightFootStartX,rightFootstartY);path.lineTo(rightFootStartX + 100,rightFootstartY);RectF rectF1 = new RectF();rectF1.left = rightFootStartX + 85;rectF1.top = rightFootstartY - 50;rectF1.right = rectF1.left + 30;rectF1.bottom = rectF1.top + 50;path.addArc(rectF1,90,-180);path.lineTo(rightFootStartX + 50,rightFootstartY - 50);path.lineTo(rightFootStartX + 50,rightFootstartY - 100);path.lineTo(rightFootStartX ,rightFootstartY - 100);path.lineTo(rightFootStartX ,rightFootstartY);canvas.drawPath(path, mPaint);//        float radiusFoot = mRadius / 3 * 0.4f;
//        float leftFootStartX = mBodyRect.left + mRadius - mOffset * 2;
//        float leftFootStartY = mBodyRect.bottom - mOffset;
//        float footWidthA = mRadius * 0.5f;//脚宽度大-到半圆结束
//        float footWidthB = footWidthA / 3;//脚宽度-比较细的部分
//
//        //      左脚
//        Path path = new Path();
//        path.moveTo(leftFootStartX, leftFootStartY);
//        path.lineTo(leftFootStartX, leftFootStartY + mFootHeight);
//        path.lineTo(leftFootStartX - footWidthA + radiusFoot, leftFootStartY + mFootHeight);
//
//        RectF rectF = new RectF();
//        rectF.left = leftFootStartX - footWidthA;
//        rectF.top = leftFootStartY + mFootHeight - radiusFoot * 2;
//        rectF.right = rectF.left + radiusFoot * 2;
//        rectF.bottom = rectF.top + radiusFoot * 2;
//        path.addArc(rectF, 90, 180);
//        path.lineTo(rectF.left + radiusFoot + footWidthB, rectF.top);
//        path.lineTo(rectF.left + radiusFoot + footWidthB, leftFootStartY);
//        path.lineTo(leftFootStartX, leftFootStartY);
//        canvas.drawPath(path, mPaint);
//右脚
//        float rightFootStartX = mBodyRect.left + mRadius + mOffset * 2;
//        float rightFootStartY = leftFootStartY;
//        path.reset();
//        path.moveTo(rightFootStartX, rightFootStartY);
//        path.lineTo(rightFootStartX, rightFootStartY + mFootHeight);
//        path.lineTo(rightFootStartX + footWidthA - radiusFoot, rightFootStartY + mFootHeight);
//
//        rectF.left = rightFootStartX + footWidthA - radiusFoot * 2;
//        rectF.top = rightFootStartY + mFootHeight - radiusFoot * 2;
//        rectF.right = rectF.left + radiusFoot * 2;
//        rectF.bottom = rectF.top + radiusFoot * 2;
//        path.addArc(rectF, 90, -180);
//        path.lineTo(rectF.right - radiusFoot - footWidthB, rectF.top);
//        path.lineTo(rectF.right - radiusFoot - footWidthB, rightFootStartY);
//        path.lineTo(rightFootStartX, rightFootStartY);
//        canvas.drawPath(path, mPaint);}private void drawFeetShadow(Canvas canvas) {mPaint.setColor(getResources().getColor(android.R.color.darker_gray));canvas.drawOval(getWidth() / 2 - 200,mBodyRect.bottom - 10,getWidth() / 2 + 200,mBodyRect.bottom + 10,mPaint );}private void initParams() {
//        mBodyWidth = Math.min(getWidth(), getHeight() * BODY_WIDTH_HEIGHT_SCALE) * BODY_SCALE;
//        mBodyHeight = Math.min(getWidth(), getHeight() * BODY_WIDTH_HEIGHT_SCALE) / BODY_WIDTH_HEIGHT_SCALE * BODY_SCALE;
//
//        mStrokeWidth = Math.max(mBodyWidth / 50, mStrokeWidth);
//        mOffset = mStrokeWidth / 2;int widthCenter = getWidth() / 2;int heightCenter = getHeight() / 2;mBodyRect = new RectF();mBodyRect.left = widthCenter - 400;mBodyRect.top = heightCenter - 500;mBodyRect.right = mBodyRect.left + 800;mBodyRect.bottom = mBodyRect.top + 1000;//        mRadius = mBodyWidth / 2;
//        mFootHeight = mRadius * 0.4333f;//        mHandsHeight =  (getHeight() + mBodyHeight) / 2   + mOffset - mRadius * 1.65f ;}private void initPaint(){if (mPaint == null){mPaint = new Paint();}else {mPaint.reset();}mPaint.setAntiAlias(true);}
}

当然这会花很多时间，其实做完之后就会发现这些都是值得的。爱学习的爱技术的人都是值得尊重的。
