Unity 之 Pure版Entity Component System【ECS】案例【GalacticConquest】解析【上】

本文主要是介绍Unity 之 Pure版Entity Component System【ECS】案例【GalacticConquest】解析【上】，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

以往没有了解过Unity ECS的小伙伴建议先看看我写过的两篇ECS文章

Unity之浅析 Entity Component System (ECS)
Unity 之 Pure版Entity Component System (ECS) 官方Rotation示例解析

最近两月Unity官方一直在更新ECS的版本，有一些原来的工程在新的版本中是无法运行的，所以今天再写一篇示例解析，虽然ECS目前是测试版本，可能还会有很多的改变，正式版本上线的日期也没有明确说明，但还是希望能帮助喜欢新技术的小伙伴，互相帮助，互相学习~

有说的不准确和不正确的地方欢迎留言指正

大家的帮助是我写下去最有效的动力

点击下载工程

示例效果展示如下

这个示例的规则是这样的，启动时随机生成大小位置不同的球体，然后从球体周围发射小飞船去攻击其他的星球，飞船分为红绿两队，占领后星球变成指定队伍的颜色

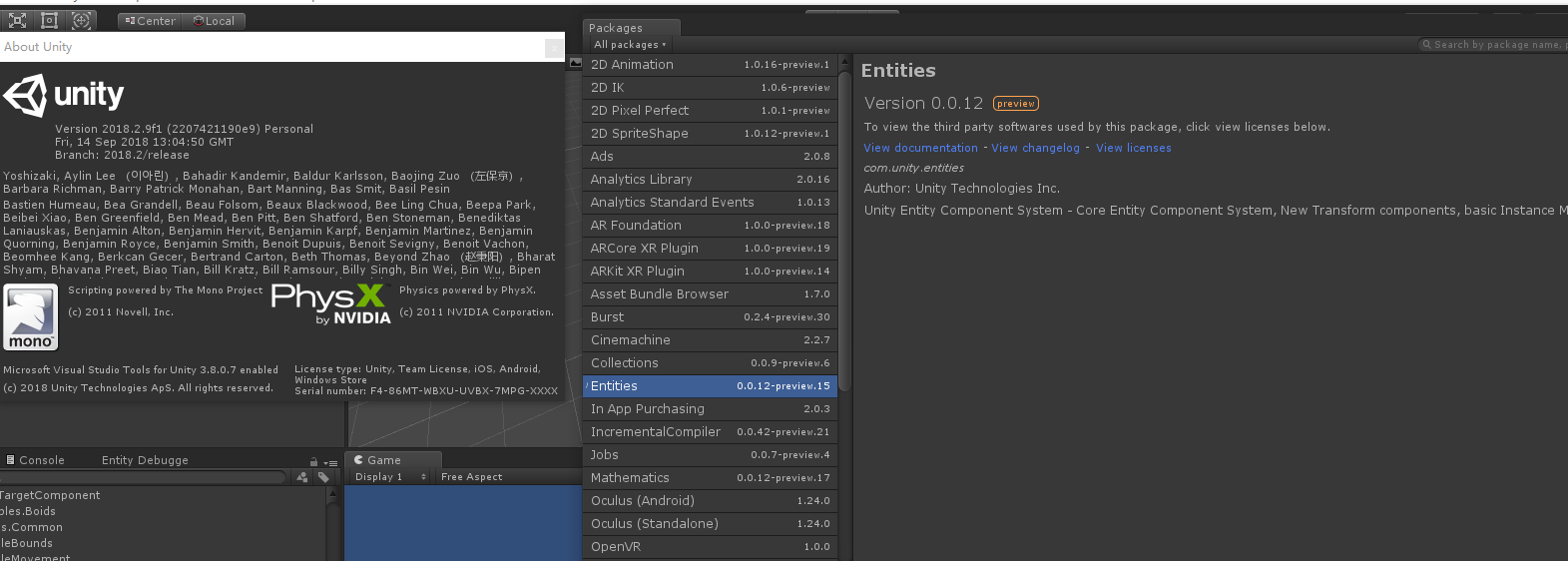

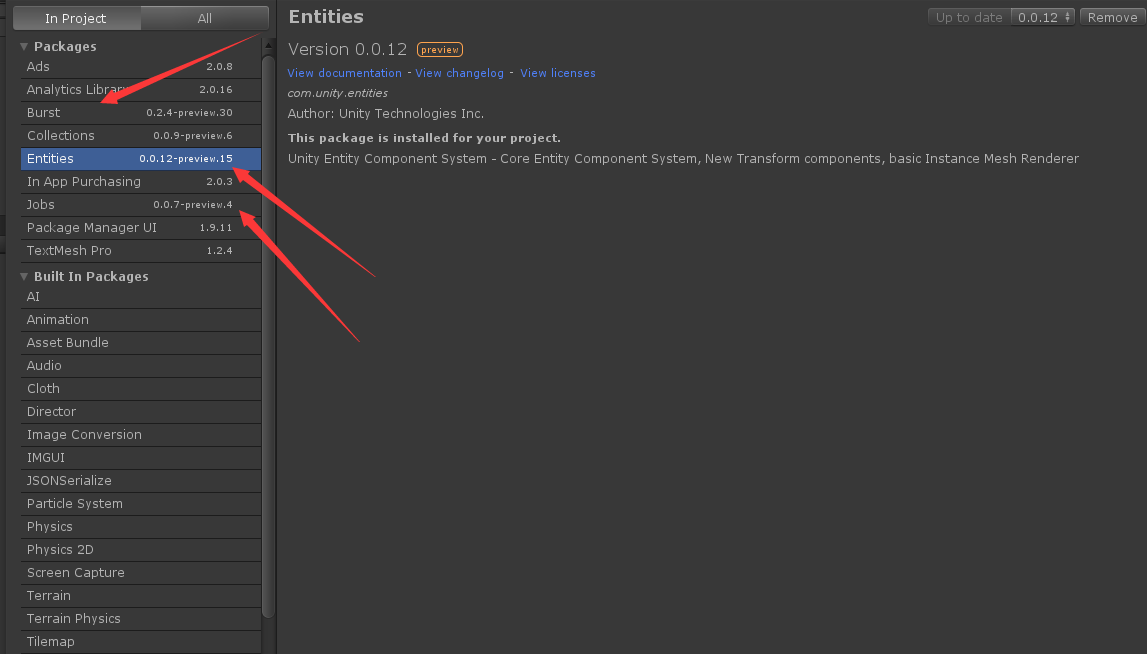

此次使用的Unity版本为 2018.2.9f1 Entities版本为0.0.12-preview.15。而且在启动Unity加载Entities的时候保持网路畅通，因为有朋友反映在内网无法使用Entities的情况。【最好能科学上网】

下面还是按照老规矩，分布逐渐创建工程

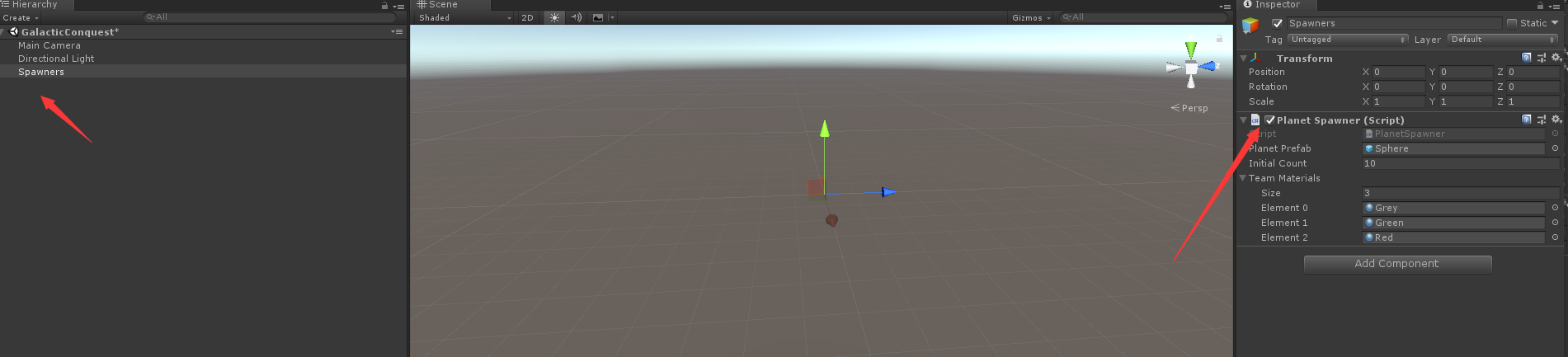

我们先创建一个PlanetSpawner脚本（产卵器）并添加到空物体Spawners上

作用如下：

创建指定的数量的星球
使星球位置随机分布
向这些星球上动态添加数据
- 星球旋转的数据
- 星球旋所在的队伍、飞船数量、位置、半径数据（用于后期生产飞船使用）
更改对应星球队伍的颜色

using System.Collections.Generic;
using System.Linq;
using Data;
using Unity.Entities;
using Unity.Mathematics;
using UnityEngine;public class PlanetSpawner : MonoBehaviour
{/// <summary>/// 星球预制体/// </summary>[SerializeField]GameObject _planetPrefab;/// <summary>/// 初始化星球的个数/// </summary>[SerializeField]int _initialCount = 20;/// <summary>/// 产生星球的随机半径/// </summary>[SerializeField] readonly float radius = 100.00f;/// <summary>/// 场景中所有的Entity的控制者、容器/// </summary>EntityManager _entityManager;/// <summary>/// 灰色 红色 绿色对应材质数组/// </summary>[SerializeField]public Material[] _teamMaterials;/// <summary>/// 飞船Entity对应的GameObject 的字典/// </summary>static Dictionary<Entity, GameObject> entities = new Dictionary<Entity, GameObject>();public static Material[] TeamMaterials;void Awake(){TeamMaterials = _teamMaterials;}void OnEnable(){_entityManager = World.Active.GetOrCreateManager<EntityManager>();//初始化Instantiate(_initialCount);}/// <summary>/// 初始化/// </summary>/// <param name="count">产生星球的数量</param>void Instantiate(int count){//产生飞船队伍列表 1绿色 2 红色var planetOwnership = new List<int>{1, 1,2, 2};for (var i = 0; i < count; ++i){//获取星球对应的半径var sphereRadius = UnityEngine.Random.Range(5.0f, 20.0f);var safe = false;float3 pos;int attempts = 0;do{if (++attempts >= 500){Debug.Log("新创建的行星找不到合适的位置");return;}//在半径为1的范围内返回一个随机点（只读）var randomValue = (Vector3)UnityEngine.Random.insideUnitSphere;randomValue.y = 0;//星球的实际位置pos = (randomValue * radius) + new Vector3(transform.position.x, transform.position.z);//检测星球是否有重合的物体var collisions = Physics.OverlapSphere(pos, sphereRadius);//如果没有重合的地方就是安全地if (!collisions.Any())safe = true;} while (!safe);//在半径为1的范围内返回一个随机点（只读）var randomRotation = UnityEngine.Random.insideUnitSphere;//实例化星球var go = GameObject.Instantiate(_planetPrefab, pos, quaternion.identity);go.name = "Sphere_" + i;//获取星球上对应的 GameObjectEntityvar planetEntity = go.GetComponent<GameObjectEntity>().Entity;//获取渲染星球的对应的子物体var meshGo = go.GetComponentsInChildren<Transform>().First(c => c.gameObject != go).gameObject;//获取碰撞体var collider = go.GetComponent<SphereCollider>();//获取渲染星球的对应的子物体的 GameObjectEntityvar meshEntity = meshGo.GetComponent<GameObjectEntity>().Entity;//把碰撞体的半径设置和圆球一直collider.radius = sphereRadius;//半径*2等于实际扩大的倍数meshGo.transform.localScale = new Vector3(sphereRadius * 2.0f, sphereRadius * 2.0f, sphereRadius * 2.0f);var planetData = new PlanetData{//星球所在的队伍TeamOwnership = 0,//星球的半径Radius = sphereRadius,//星球的位置Position = pos};var rotationData = new RotationData{RotationSpeed = randomRotation};//队伍列表是否有任何元素 没有元素的划分为灰色星球if (planetOwnership.Any()){//给星球分队 【红队或者绿色队伍】planetData.TeamOwnership = planetOwnership.First();//移除对应的队伍planetOwnership.Remove(planetData.TeamOwnership);}else{//设定飞船数量planetData.Occupants = UnityEngine.Random.Range(1, 100);}//设置字典对应的GameObjectentities[planetEntity] = go;//设置对于队伍的颜色 1绿色 2红色SetColor(planetEntity, planetData.TeamOwnership);//动态添加对应的数据 减少了拖拖拽拽_entityManager.AddComponentData(planetEntity, planetData);_entityManager.AddComponentData(meshEntity, rotationData);}}/// <summary>/// 设置对应星球的颜色/// </summary>/// <param name="entity">对应字典</param>/// <param name="team"></param>public static void SetColor(Entity entity, int team){var go = entities[entity];go.GetComponentsInChildren<MeshRenderer>().First(c => c.gameObject != go).material = TeamMaterials[team];}
}

解读一

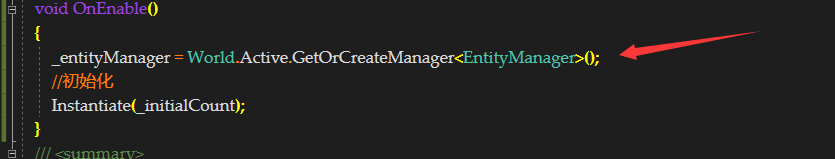

初始化获取场景中所有的Entity的控制者、容器

解读二

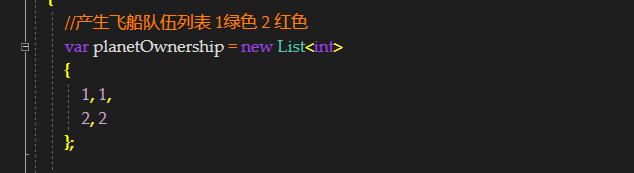

创建并初始化一个队伍列表，数组就是中的数字就是【_teamMaterials】中的索引，更改颜色会用到

解读三

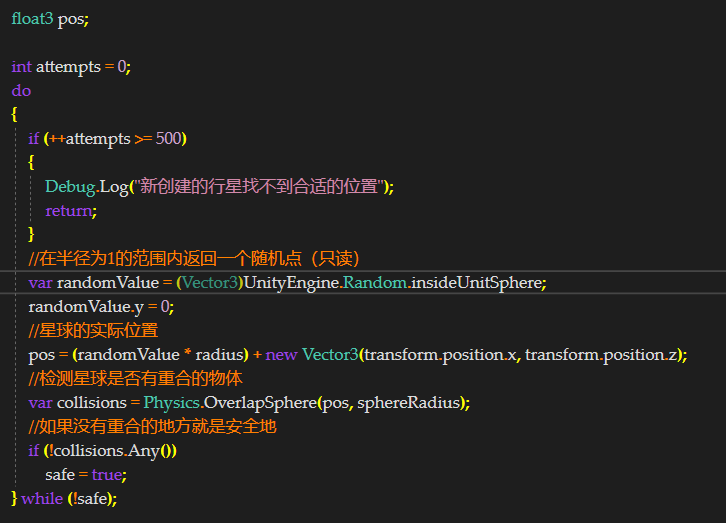

尝试为一个星球找到一个不与其他星球重叠的位置，最多尝试500，还找不到的化就会出现Log信息，其中一个与以往不同，也是ECS中大量使用的float3而不是原来常用的Vector3，这是因为float3更小巧，没有多余的信息数据占用内存。

解读四

常规实例化，不在熬述

解读五

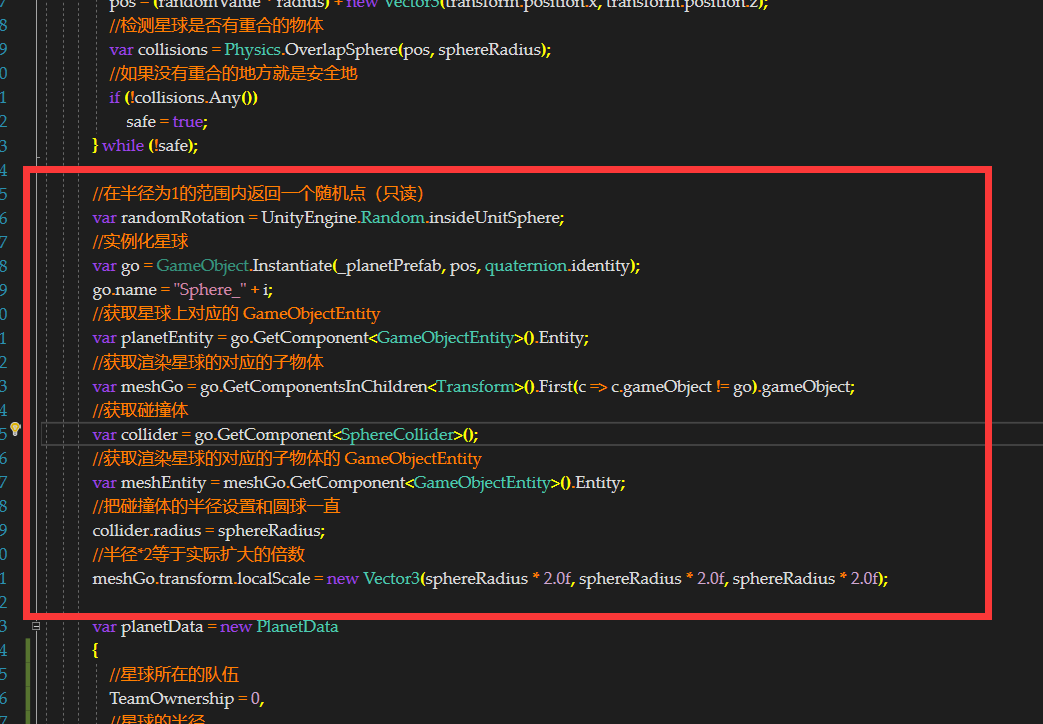

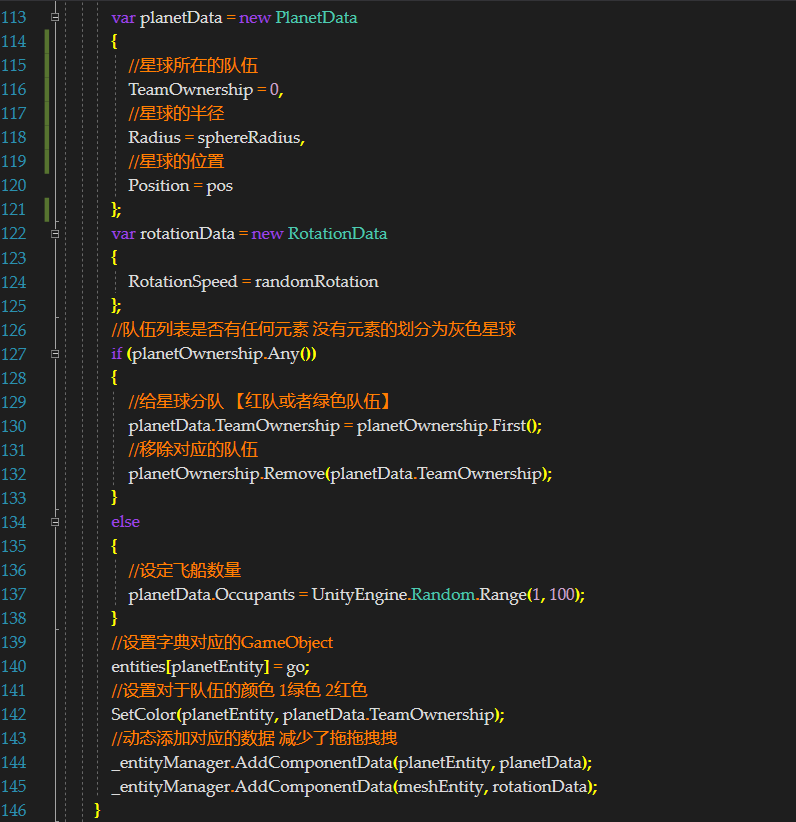

这不部分就是ECS这种套路对数据相关的操作，事先准备好初始化的数据，然后用_entityManager对相应的实体添加纯数据，有点原来AddComponent的意思，也避免了拖拖拽拽。这里的数据分别为【PlanetData】【RotationData】

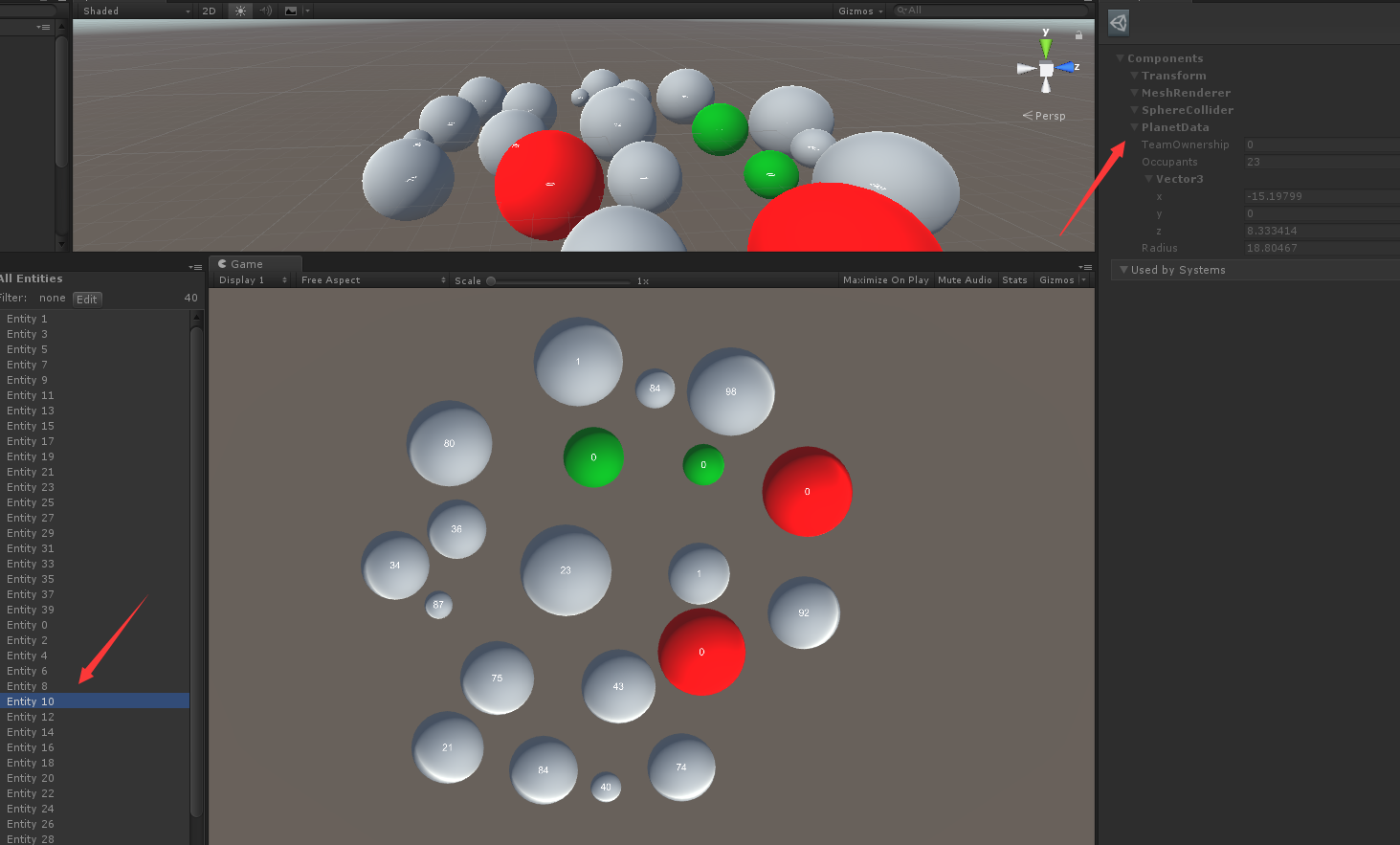

效果如下

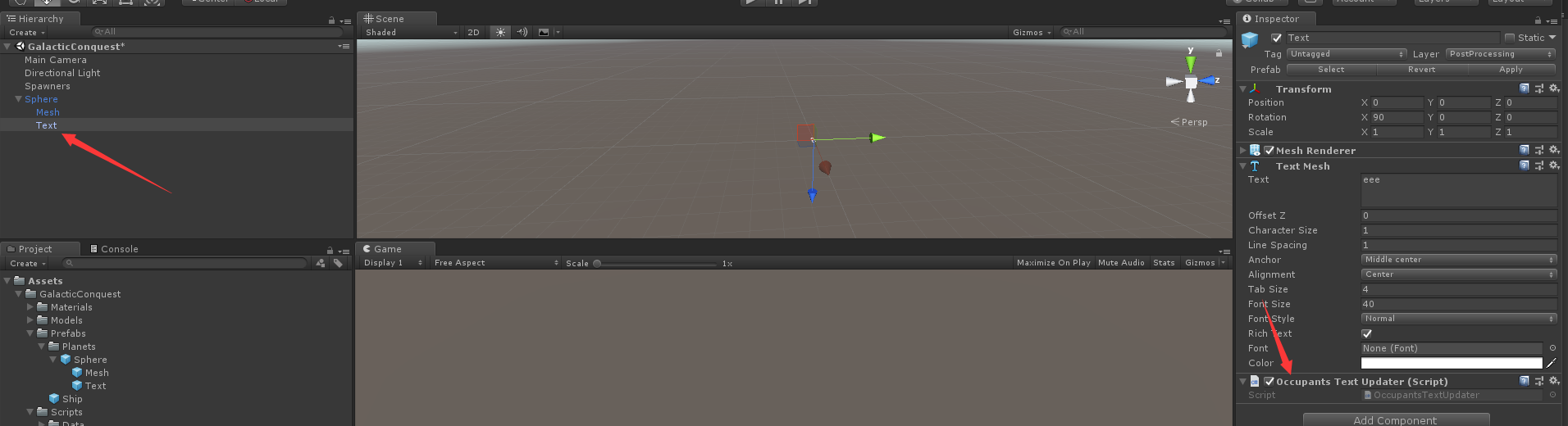

创建OccupantsTextUpdater脚本并添加到对应的Text上，他的作用是

更新所在星球上含有的飞船数量并显示

using Data;
using Unity.Entities;
using UnityEngine;namespace Other
{/// <summary>/// Just updates the text on the planets to represent the occupant count from the attached PlanetData/// 更新含有飞船的数量/// </summary>public class OccupantsTextUpdater : MonoBehaviour{Entity _planetEntity;TextMesh _text;int LastOccupantCount = -1;[SerializeField]EntityManager _entityManager;void Start(){_entityManager = World.Active.GetOrCreateManager<EntityManager>();_planetEntity = transform.parent.GetComponent<GameObjectEntity>().Entity;_text = GetComponent<TextMesh>();}void Update(){if(!_entityManager.Exists(_planetEntity))return;//获取所在星球上的PlanetData数据var data = _entityManager.GetComponentData<PlanetData>(_planetEntity);if (data.Occupants == LastOccupantCount)return;LastOccupantCount = data.Occupants;_text.text = LastOccupantCount.ToString();}}
}

创建一个旋转系统，作用

让每一个星球转动起来

using Data;
using Unity.Collections;
using Unity.Entities;
using Unity.Jobs;
using UnityEngine;
using UnityEngine.Jobs;namespace Systems
{/// <summary>/// 星球自转系统/// </summary>public class RotationSystem : JobComponentSystem{//筛选实体（符合星球规则的）struct Planets{public readonly int Length;public ComponentDataArray<RotationData> Data;public TransformAccessArray Transforms;}//继承为 IJobParallelForTransform 而非 IJobParallelFor 或  IJob 这是一个专门为transform操作的接口struct RotationJob : IJobParallelForTransform{public ComponentDataArray<RotationData> Rotations;public void Execute(int index, TransformAccess transform){//设定旋转transform.rotation = transform.rotation * Quaternion.Euler( Rotations[index].RotationSpeed);}}[Inject]Planets _planets;protected override JobHandle OnUpdate(JobHandle inputDeps){var job = new RotationJob{Rotations = _planets.Data};return job.Schedule(_planets.Transforms, inputDeps);}}
}

解析一

套路还是和以往IJobParallelFor类似,但是此次需要注意的是里面的继承是【IJobParallelForTransform】，一个专门实现transform并行执行的接口

创建一个增加飞船系统，作用

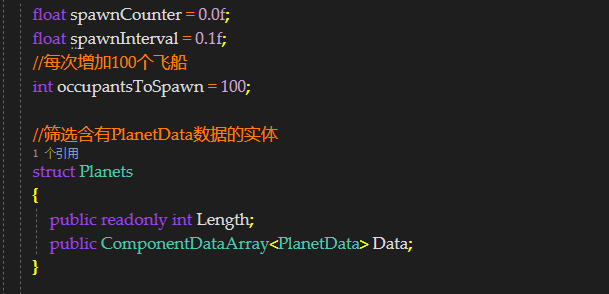

接下来我们需要往红色和绿色的星球上添加飞船，每0.1s增加一次【可指定】

using Data;
using Unity.Collections;
using UnityEngine;
using Unity.Entities;
using Unity.Jobs;namespace Systems
{/// <summary>/// 增加可以从行星上发送的船只的数量/// </summary>// [UpdateAfter(typeof(ShipSpawnSystem))]public class OccupantIncreaseSystem : JobComponentSystem{float spawnCounter = 0.0f;float spawnInterval = 0.1f;//每次增加100个飞船int occupantsToSpawn = 100;//筛选含有PlanetData数据的实体struct Planets{public readonly int Length;public ComponentDataArray<PlanetData> Data;}struct PlanetsOccupantsJob : IJobParallelFor{public ComponentDataArray<PlanetData> Data;[ReadOnly]public int OccupantsToSpawn;public void Execute(int index){//向除了中立星球意外的星球添加飞船 每次OccupantsToSpawn个var data = Data[index];if (data.TeamOwnership == 0)return;data.Occupants += OccupantsToSpawn;Data[index] = data;}}[Inject]Planets planets;protected override JobHandle OnUpdate(JobHandle inputDeps){//指定时间运行一次 Executevar deltaTime = Time.deltaTime;spawnCounter += deltaTime;if (spawnCounter < spawnInterval)return inputDeps;spawnCounter = 0.0f;var job = new PlanetsOccupantsJob{Data = planets.Data,OccupantsToSpawn = occupantsToSpawn};return job.Schedule(planets.Length, 32, inputDeps);}}
}

解析一

设置步接参数和筛选的实体

解析二

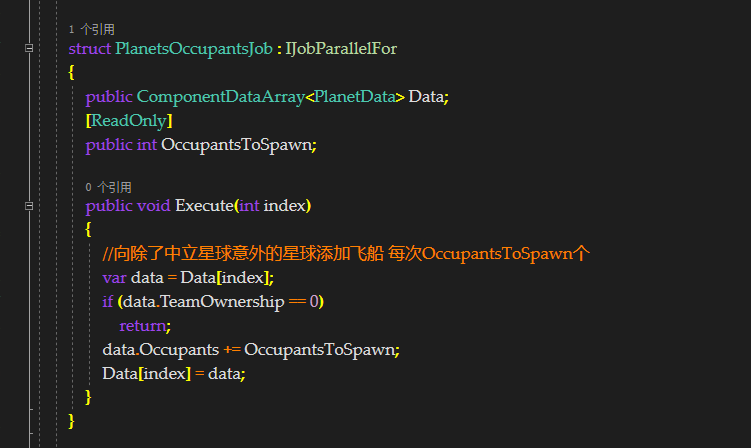

每次更改数据相关业务逻辑，根据获取的PlanetData每次增加OccupantsToSpawn数量的飞船

解析三

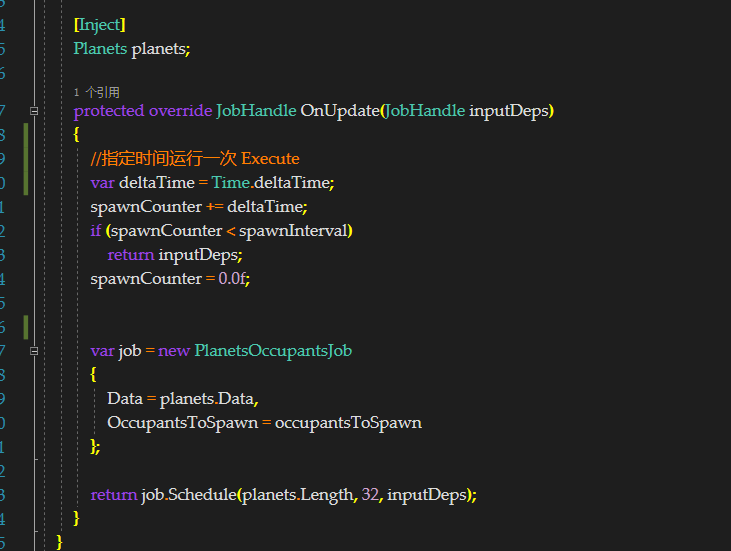

赋值Data并按照规定时间执行Execute内先关的逻辑

效果如下

下面就开始写飞船有关的业务逻辑了。在写之前我先说下示例的设计思想，星球本地的飞船数量数据在不断增加，然后通过脚本，每一帧把红色或者绿色的飞船数量数据提取出来，然后放在等待实例化的数据中，再为每个飞船添加出生点、目标等信息。

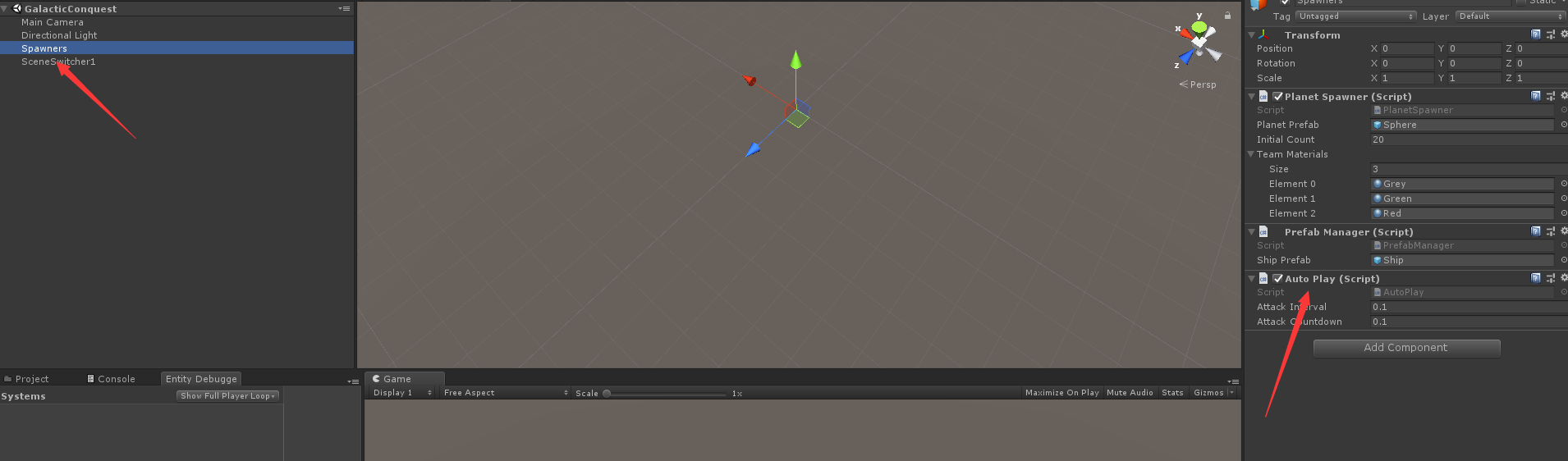

创建脚本 AutoPlay添加到任意物体上作用

红色或者绿色星球寻找除自己以外的攻击目标

using System.Collections.Generic;
using Data;
using Unity.Entities;
using UnityEngine;namespace Other
{public class AutoPlay : MonoBehaviour{/// <summary>/// 攻击间隔/// </summary>[SerializeField]float attackInterval = 0.1f;/// <summary>/// 攻击计时器/// </summary>[SerializeField]float attackCountdown = 0.1f;/// <summary>/// 所有星球物体/// </summary>GameObject[] planets;EntityManager entityManager { get; set; }public void Start(){//获取场景中所有的Planetplanets = GameObject.FindGameObjectsWithTag("Planet");entityManager = World.Active.GetOrCreateManager<EntityManager>();}public void Update(){//飞船攻击倒计时attackCountdown -= Time.deltaTime;if (attackCountdown > 0.0f)return;attackCountdown = attackInterval;if(planets.Length <= 1)Debug.LogError("没有发现任何星球！！！");//随机获取飞船索引var sourcePlanetIndex = Random.Range(0, planets.Length);var sourcePlanetEntity = planets[sourcePlanetIndex].GetComponent<GameObjectEntity>().Entity;if(!entityManager.Exists(sourcePlanetEntity)){//可以在场景卸载过程中发生enabled = false;return;}//获取对应星球的 PlanetData 数据var planetData = PlanetUtility.GetPlanetData(sourcePlanetEntity, entityManager);//防止找到的是【0队伍】的星球while (planetData.TeamOwnership == 0){//随机获取星球列表的索引sourcePlanetIndex = Random.Range(0, planets.Length);sourcePlanetEntity = planets[sourcePlanetIndex].GetComponent<GameObjectEntity>().Entity;if(!entityManager.Exists(sourcePlanetEntity)){// Can happen during scene unloadenabled = false;return;}planetData = PlanetUtility.GetPlanetData(sourcePlanetEntity, entityManager);}var targetPlanetIndex = Random.Range(0, planets.Length);//防止找到的攻击目标星球是自己while (targetPlanetIndex == sourcePlanetIndex){targetPlanetIndex = Random.Range(0, planets.Length);}PlanetUtility.AttackPlanet(planets[sourcePlanetIndex], planets[targetPlanetIndex], entityManager);}}
}

解析一

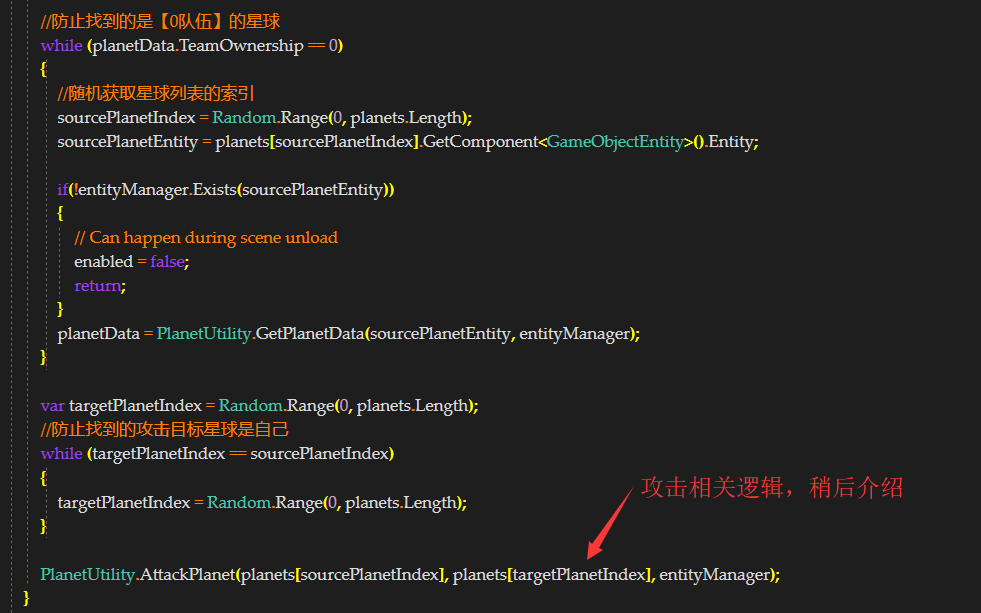

这部分逻辑主要有两部分循环遍历，第一部分是随机找到一个红色或者绿色要攻击别的人的星球
然后找到需要攻击的星球，第二部遍历的主要作用是防止攻击的目标是自己

然后创建PlanetUtility脚本作用

对准备发动攻击的飞船添加相关数据
** 获取星球对应的PlanetData数据**

using System.Linq;
using Data;
using Unity.Entities;
using UnityEngine;namespace Other
{/// <summary>/// Some shared functionality between AutoPlay and UserInputSystem/// 自动布局和用户输入系统之间的一些共享功能/// </summary>public static class PlanetUtility{/// <summary>/// 攻击设定/// </summary>/// <param name="fromPlanet">发射飞船的星球</param>/// <param name="toPlanet">需要攻击的星球</param>/// <param name="entityManager"></param>public static void AttackPlanet(GameObject fromPlanet, GameObject toPlanet, EntityManager entityManager){//获取发射星球的GameObjectEntityvar entity = fromPlanet.GetComponent<GameObjectEntity>().Entity;//获取渲染星球对应的GameObjectEntityvar meshComponent = fromPlanet.GetComponentsInChildren<GameObjectEntity>().First(c => c.gameObject != fromPlanet.gameObject);//获取 PlanetDatavar occupantData = entityManager.GetComponentData<PlanetData>(entity);//获取需要攻击星球的GameObjectEntityvar targetEntity = toPlanet.GetComponent<GameObjectEntity>().Entity;//飞船发射数据var launchData = new PlanetShipLaunchData{//目标星球TargetEntity = targetEntity,//设定队伍TeamOwnership = occupantData.TeamOwnership,//设定飞船数量NumberToSpawn = occupantData.Occupants,//设定产卵的位置SpawnLocation = fromPlanet.transform.position,//产卵半径(直径*0.5f)SpawnRadius = meshComponent.transform.lossyScale.x * 0.5f};//发射完飞船数量剩余0occupantData.Occupants = 0;//重新赋值entityManager.SetComponentData(entity, occupantData);//向发射星球的entity上设定 飞船发射数据 有就更改 没有则添加if (entityManager.HasComponent<PlanetShipLaunchData>(entity)){entityManager.SetComponentData(entity, launchData);return;}entityManager.AddComponentData(entity, launchData);}/// <summary>///  获取星球对应的PlanetData数据/// </summary>/// <param name="planet">对应星球</param>/// <param name="entityManager"></param>/// <returns></returns>public static PlanetData GetPlanetData (GameObject planet, EntityManager entityManager){var entity = planet.GetComponent<GameObjectEntity>().Entity;var data = GetPlanetData(entity, entityManager);return data;}/// <summary>/// 获取星球对应的PlanetData数据/// </summary>/// <param name="entity">星球对应的 entity</param>/// <param name="entityManager"></param>/// <returns></returns>public static PlanetData GetPlanetData(Entity entity, EntityManager entityManager){return entityManager.GetComponentData<PlanetData>(entity);}}
}

解析一

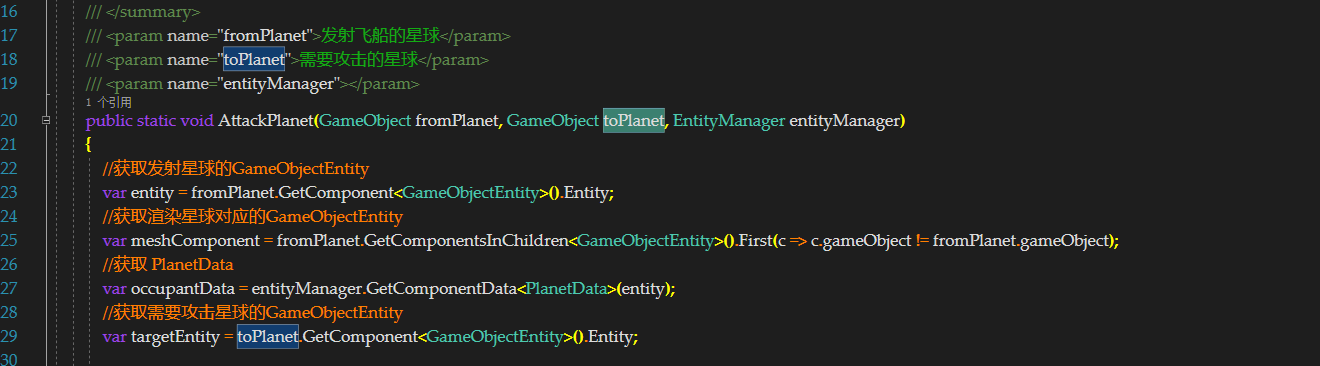

根据fromPlanet与toPlanet两个GameObject获取对应的Entity和他们身上含有的纯数据

解析二

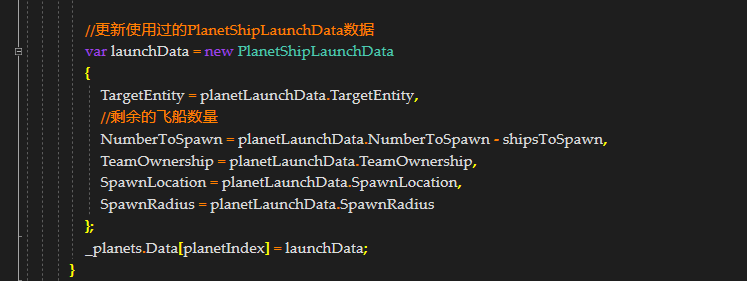

根据提取出来的数据为新建纯数据 PlanetShipLaunchData 赋值，他里面含有飞船从创建到攻击用到的一切数据，然后对初始化完的PlanetShipLaunchData数据添加到对应的星球（entity）上

效果如下

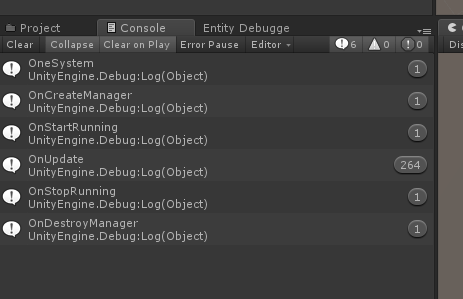

在这里要特别说名一下，如果一个系统脚本中的Inject注入属性没有完成，是不会执行OnStartRunning函数的执行顺序如下

using System;
using Data;
using Other;
using Unity.Collections;
using Unity.Entities;
using Unity.Transforms;
using Unity.Mathematics;
using Unity.Rendering;
using UnityEngine;
using Random = UnityEngine.Random;namespace Systems
{public class OneSystem : ComponentSystem{public OneSystem(){Debug.Log("OneSystem");}protected override void OnCreateManager(){Debug.Log("OnCreateManager");base.OnCreateManager();}protected override void OnStartRunning(){Debug.Log("OnStartRunning");base.OnStartRunning();}protected override void OnUpdate(){Debug.Log("OnUpdate");}protected override void OnStopRunning(){Debug.Log("OnStopRunning");base.OnStopRunning();}protected override void OnDestroyManager(){Debug.Log("OnDestroyManager");base.OnDestroyManager();}}
}

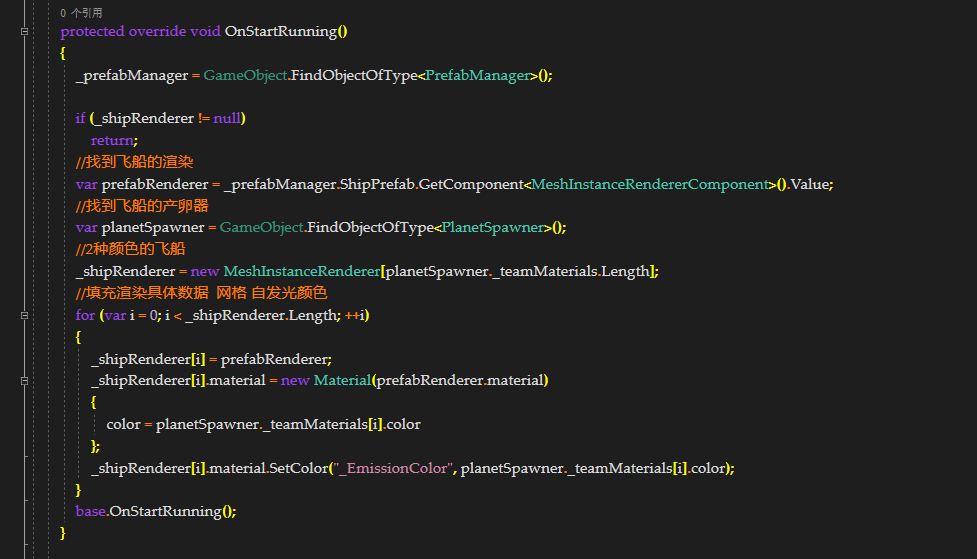

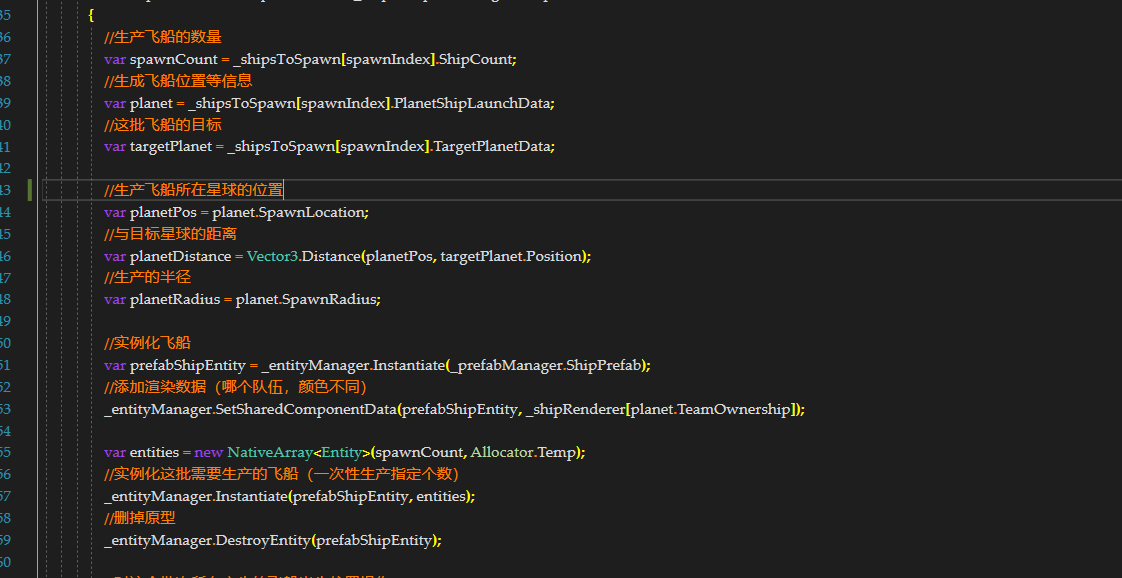

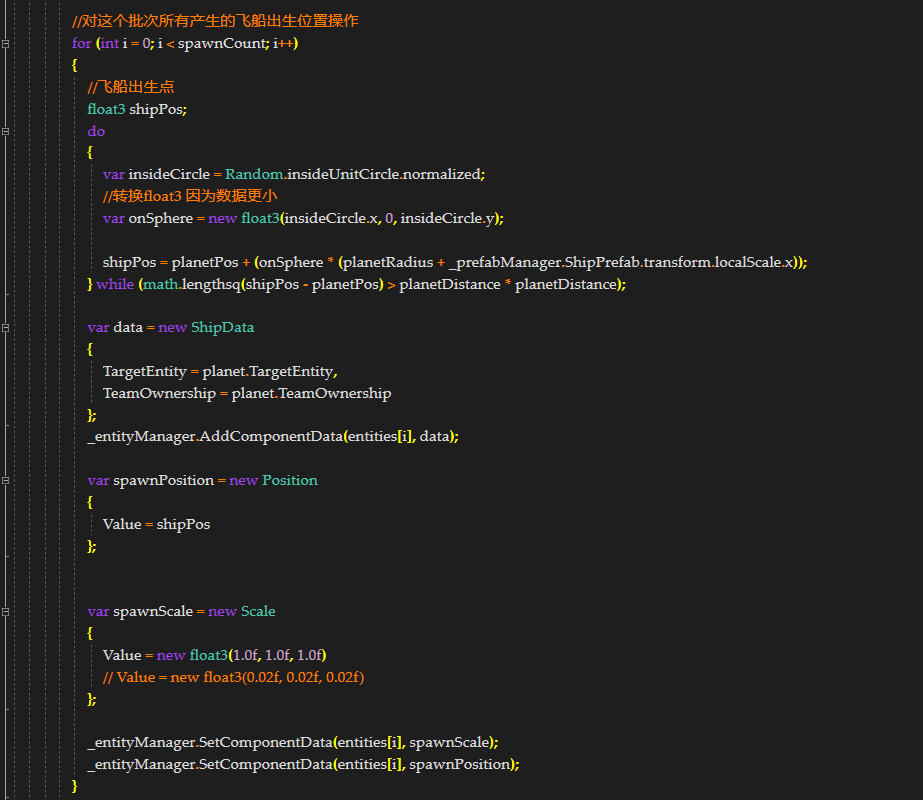

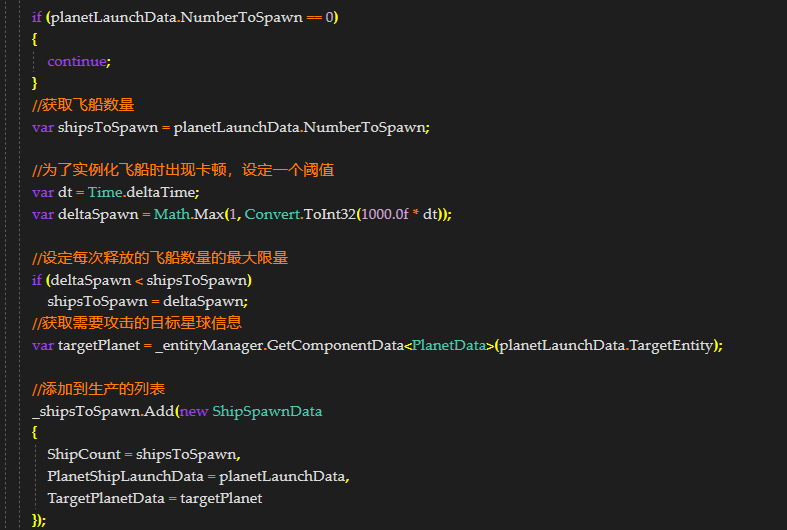

现在我们已经明确知道了出发地点和攻击目标，接下来我们就开始实例化飞船，创建ShipSpawnSystem脚本
