关于Keras里的Sequential（序列模型）转化为Model（函数模型）的问题

本文主要是介绍关于Keras里的Sequential（序列模型）转化为Model（函数模型）的问题，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

文章目录

前言
一、序列模型
二、改为函数模型
- 1.错误代码
总结

前言

想在keras模型上加上注意力机制，于是把keras的序列模型转化为函数模型，结果发现参数维度不一致的问题，结果也变差了。跟踪问题后续发现是转为函数模型后，网络共享层出现了问题。

一、序列模型

该部分采用的是add添加网络层，由于存在多次重复调用相同网络层的情况，因此封装成一个自定义函数：

  def create_base_network(input_dim):seq = Sequential()seq.add(Conv2D(64, 5, activation='relu', padding='same', name='conv1', input_shape=input_dim))seq.add(Conv2D(128, 4, activation='relu', padding='same', name='conv2'))seq.add(Conv2D(256, 4, activation='relu', padding='same', name='conv3'))seq.add(Conv2D(64, 1, activation='relu', padding='same', name='conv4'))seq.add(MaxPooling2D(2, 2, name='pool1'))seq.add(Flatten(name='fla1'))seq.add(Dense(512, activation='relu', name='dense1'))seq.add(Reshape((1, 512), name='reshape'))

整体代码，该模型存在多个输入（6个）：

	def create_base_network(input_dim):seq = Sequential()seq.add(Conv2D(64, 5, activation='relu', padding='same', name='conv1', input_shape=input_dim))seq.add(Conv2D(128, 4, activation='relu', padding='same', name='conv2'))seq.add(Conv2D(256, 4, activation='relu', padding='same', name='conv3'))seq.add(Conv2D(64, 1, activation='relu', padding='same', name='conv4'))seq.add(MaxPooling2D(2, 2, name='pool1'))seq.add(Flatten(name='fla1'))seq.add(Dense(512, activation='relu', name='dense1'))seq.add(Reshape((1, 512), name='reshape'))return seqbase_network = create_base_network(img_size)input_1 = Input(shape=img_size)input_2 = Input(shape=img_size)input_3 = Input(shape=img_size)input_4 = Input(shape=img_size)input_5 = Input(shape=img_size)input_6 = Input(shape=img_size)print('the shape of base1:', base_network(input_1).shape)   # (, 1, 512)out_all = Concatenate(axis=1)([base_network(input_1), base_network(input_2), base_network(input_3), base_network(input_4), base_network(input_5), base_network(input_6)])print('****', out_all.shape)   # (, 6, 512)lstm_layer = LSTM(128, name = 'lstm')(out_all)out_puts = Dense(3, activation = 'softmax', name = 'out')(lstm_layer)model = Model([input_1,input_2,input_3,input_4,input_5,input_6], out_puts)model.summary()

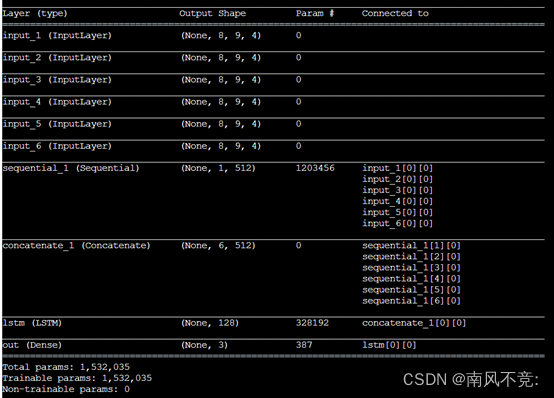

网络模型：
在这里插入图片描述

二、改为函数模型

1.错误代码

第一次更改网络模型后，虽然运行未报错，但参数变多，模型性能也下降了，如下：

   def create_base_network(input_dim):x = Conv2D(64, 5, activation='relu', padding='same')(input_dim)x = Conv2D(128, 4, activation='relu', padding='same')(x)x = Conv2D(256, 4, activation='relu', padding='same')(x)x = Conv2D(64, 1, activation='relu', padding='same')(x)x = MaxPooling2D(2, 2)(x)x = Flatten()(x)x = Dense(512, activation='relu')(x)x = Reshape((1, 512))(x)return xinput_1 = Input(shape=img_size)input_2 = Input(shape=img_size)input_3 = Input(shape=img_size)input_4 = Input(shape=img_size)input_5 = Input(shape=img_size)input_6 = Input(shape=img_size)base_network_1 = create_base_network(input_1)base_network_2 = create_base_network(input_2)base_network_3 = create_base_network(input_3)base_network_4 = create_base_network(input_4)base_network_5 = create_base_network(input_5)base_network_6 = create_base_network(input_6)# print('the shape of base1:', base_network(input_1).shape)   # (, 1, 512)out_all = Concatenate(axis = 1)(  # 维度不变, 维度拼接，第一维度变为原来的6倍[base_network_1, base_network_2, base_network_3, base_network_4, base_network_5, base_network_6])print('****', out_all.shape)   # (, 6, 512)lstm_layer = LSTM(128, name = 'lstm')(out_all)out_puts = Dense(3, activation = 'softmax', name = 'out')(lstm_layer)model = Model(inputs = [input_1, input_2, input_3, input_4, input_5, input_6], outputs = out_puts)  # 6个输入model.summary()

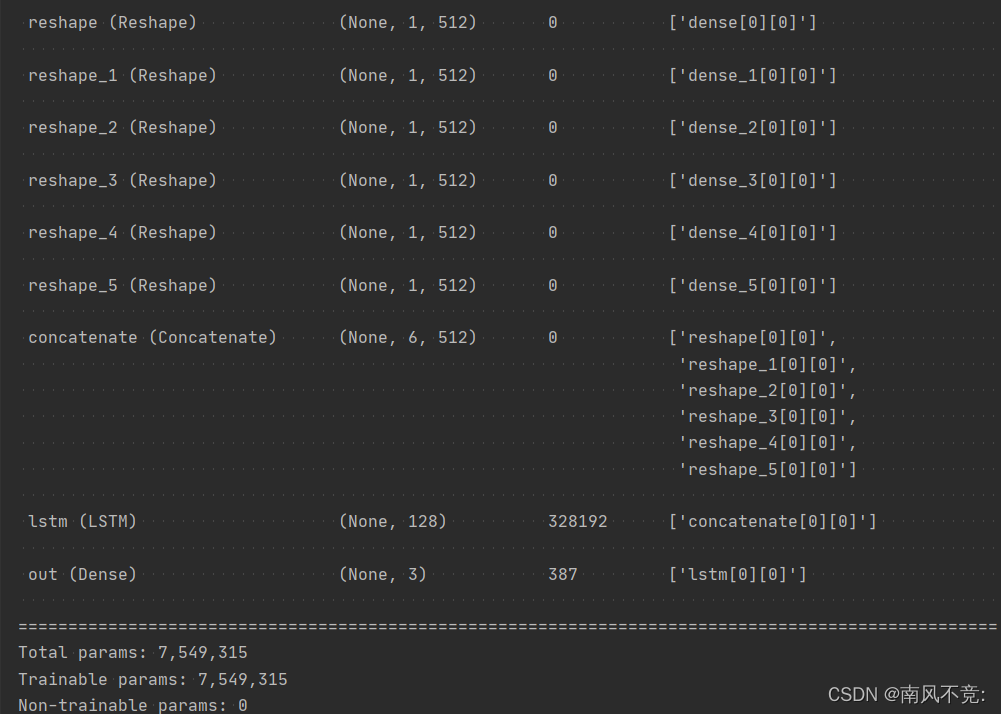

结果模型输出如下：
在这里插入图片描述
可以看到，模型的参数变为了原来的6倍多，改了很多次，后来发现，原来是因为序列模型中的base_network = create_base_network(img_size)相当于已将模型实例化成了一个model，后续调用时只传入参数，而不更改模型结构。

而改为Model API后：
base_network_1 = create_base_network(input_1)
...
base_network_6 = create_base_network(input_6)

前面定义的 def create_base_network（ inputs），并未进行实例化，后续相当于创建了6次相关网络层，应该先实例化，应当改为以下部分：

# 建立网络共享层
x1 = Conv2D(64, 5, activation = 'relu', padding = 'same', name= 'conv1')
x2 = Conv2D(128, 4, activation = 'relu', padding = 'same', name = 'conv2')
x3 = Conv2D(256, 4, activation = 'relu', padding = 'same', name = 'conv3')
x4 = Conv2D(64, 1, activation = 'relu', padding = 'same', name = 'conv4')
x5 = MaxPooling2D(2, 2)
x6 = Flatten()
x7 = Dense(512, activation = 'relu')
x8 = Reshape((1, 512))input_1 = Input(shape = img_size)   # 得到6个输入
input_2 = Input(shape = img_size)
input_3 = Input(shape = img_size)
input_4 = Input(shape = img_size)
input_5 = Input(shape = img_size)
input_6 = Input(shape = img_size)base_network_1 = x8(x7(x6(x5(x4(x3(x2(x1(input_1))))))))
base_network_2 = x8(x7(x6(x5(x4(x3(x2(x1(input_2))))))))
base_network_3 = x8(x7(x6(x5(x4(x3(x2(x1(input_3))))))))
base_network_4 = x8(x7(x6(x5(x4(x3(x2(x1(input_4))))))))
base_network_5 = x8(x7(x6(x5(x4(x3(x2(x1(input_5))))))))
base_network_6 = x8(x7(x6(x5(x4(x3(x2(x1(input_6))))))))# 输入连接
out_all = Concatenate(axis = 1)(                            # 维度不变, 维度拼接，第一维度变为原来的6倍[base_network_1, base_network_2, base_network_3, base_network_4, base_network_5, base_network_6])# lstm layer
lstm_layer = LSTM(128, name = 'lstm3')(out_all)
# dense layer
out_layer = Dense(3, activation = 'softmax', name = 'out')(lstm_layer)
model = Model(inputs = [input_1, input_2, input_3, input_4, input_5, input_6], outputs = out_layer)  # 6个输入
model.summary()
