kube-apiserver v1.11.2 源码分析

本文主要是介绍kube-apiserver v1.11.2 源码分析，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

本文分析的kubernetes版本

➜  kube-apiserver git:(v1.11.2-custom) ✗ kubectl version
Client Version: version.Info{Major:"1", Minor:"11", GitVersion:"v1.11.2", GitCommit:"bb9ffb1654d4a729bb4cec18ff088eacc153c239", GitTreeState:"clean", BuildDate:"2018-08-08T16:31:16Z", GoVersion:"go1.10.3", Compiler:"gc", Platform:"darwin/amd64"}
Server Version: version.Info{Major:"1", Minor:"11+", GitVersion:"v1.11.0-168+f47446a730ca03", GitCommit:"f47446a730ca037473fb3bf0c5abeea648c1ac12", GitTreeState:"clean", BuildDate:"2018-08-25T21:05:52Z", GoVersion:"go1.10.3", Compiler:"gc", Platform:"linux/amd64"}

分析思路

1.了解架构，用的是什么技术栈，为什么要选择该技术栈
2.理解如何注入各种对象访问的restful url
3.如何GET或者修改etcd数据

了解架构，用的是什么技术栈，为什么要选择该技术栈

技术栈
1.命令行工具包
github.com/spf13/pflag
github.com/spf13/cobra
该包如何使用直接查看github上的README或者查看测试文件

2.go restful框架

go restful是restful 的golang语言的框架，github代码为github.com/emicklei/go-restful

架构图
root

简单例子

package mainimport ("net/http""github.com/emicklei/go-restful""github.com/emicklei/go-restful-swagger12""google.golang.org/appengine""google.golang.org/appengine/memcache"
)// This example is functionally the same as ../restful-user-service.go
// but it`s supposed to run on Goole App Engine (GAE)
//
// contributed by ivanhawkestype User struct {Id, Name string
}type UserService struct {// normally one would use DAO (data access object)// but in this example we simple use memcache.
}func (u UserService) Register() {ws := new(restful.WebService) //新建一个webserverws.Path("/users").Consumes(restful.MIME_XML, restful.MIME_JSON).Produces(restful.MIME_JSON, restful.MIME_XML) // you can specify this per route as wellws.Route(ws.GET("/{user-id}").To(u.findUser).// docsDoc("get a user").Param(ws.PathParameter("user-id", "identifier of the user").DataType("string")).Writes(User{})) // on the responsews.Route(ws.PATCH("").To(u.updateUser).// docsDoc("update a user").Reads(User{})) // from the requestws.Route(ws.PUT("/{user-id}").To(u.createUser).// docsDoc("create a user").Param(ws.PathParameter("user-id", "identifier of the user").DataType("string")).Reads(User{})) // from the requestws.Route(ws.DELETE("/{user-id}").To(u.removeUser).// docsDoc("delete a user").Param(ws.PathParameter("user-id", "identifier of the user").DataType("string")))restful.Add(ws) // web server 加入container
}// GET http://localhost:8080/users/1
//
func (u UserService) findUser(request *restful.Request, response *restful.Response) {c := appengine.NewContext(request.Request)id := request.PathParameter("user-id")usr := new(User)_, err := memcache.Gob.Get(c, id, &usr)if err != nil || len(usr.Id) == 0 {response.WriteErrorString(http.StatusNotFound, "User could not be found.")} else {response.WriteEntity(usr)}
}// PATCH http://localhost:8080/users
// <User><Id>1</Id><Name>Melissa Raspberry</Name></User>
//
func (u *UserService) updateUser(request *restful.Request, response *restful.Response) {c := appengine.NewContext(request.Request)usr := new(User)err := request.ReadEntity(&usr)if err == nil {item := &memcache.Item{Key:    usr.Id,Object: &usr,}err = memcache.Gob.Set(c, item)if err != nil {response.WriteError(http.StatusInternalServerError, err)return}response.WriteEntity(usr)} else {response.WriteError(http.StatusInternalServerError, err)}
}// PUT http://localhost:8080/users/1
// <User><Id>1</Id><Name>Melissa</Name></User>
//
func (u *UserService) createUser(request *restful.Request, response *restful.Response) {c := appengine.NewContext(request.Request)usr := User{Id: request.PathParameter("user-id")}err := request.ReadEntity(&usr)if err == nil {item := &memcache.Item{Key:    usr.Id,Object: &usr,}err = memcache.Gob.Add(c, item)if err != nil {response.WriteError(http.StatusInternalServerError, err)return}response.WriteHeader(http.StatusCreated)response.WriteEntity(usr)} else {response.WriteError(http.StatusInternalServerError, err)}
}// DELETE http://localhost:8080/users/1
//
func (u *UserService) removeUser(request *restful.Request, response *restful.Response) {c := appengine.NewContext(request.Request)id := request.PathParameter("user-id")err := memcache.Delete(c, id)if err != nil {response.WriteError(http.StatusInternalServerError, err)}
}func getGaeURL() string {if appengine.IsDevAppServer() {return "http://localhost:8080"} else {/*** Include your URL on App Engine here.* I found no way to get AppID without appengine.Context and this always* based on a http.Request.*/return "http://<your_app_id>.appspot.com"}
}func init() {u := UserService{}u.Register()// Optionally, you can install the Swagger Service which provides a nice Web UI on your REST API// You need to download the Swagger HTML5 assets and change the FilePath location in the config below.// Open <your_app_id>.appspot.com/apidocs and enter http://<your_app_id>.appspot.com/apidocs.json in the api input field.config := swagger.Config{WebServices:    restful.RegisteredWebServices(), // you control what services are visibleWebServicesUrl: getGaeURL(),ApiPath:        "/apidocs.json",// Optionally, specify where the UI is locatedSwaggerPath: "/apidocs/",// GAE support static content which is configured in your app.yaml.// This example expect the swagger-ui in static/swagger so you should place it there :)SwaggerFilePath: "static/swagger"}swagger.InstallSwaggerService(config)
}

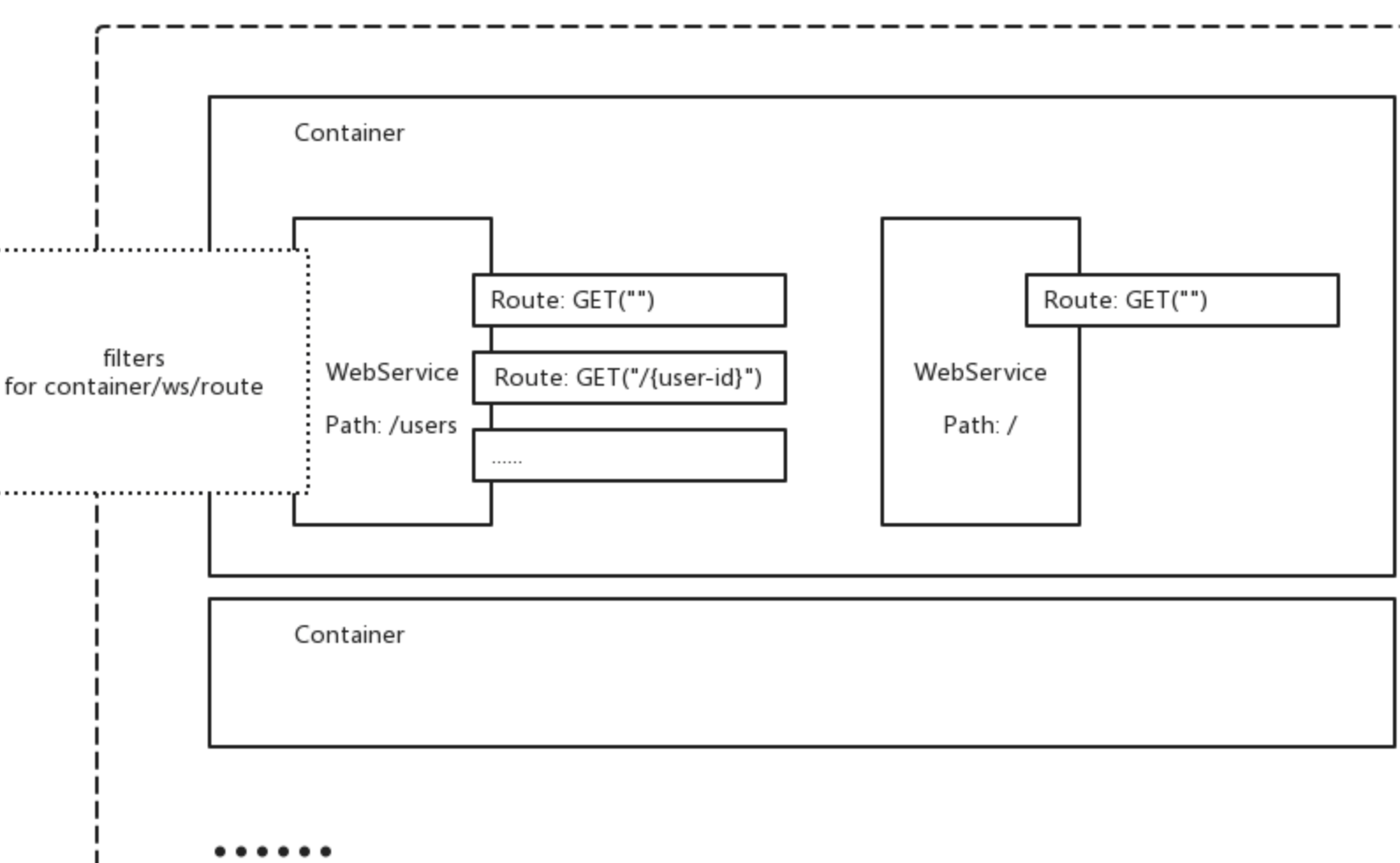

通过简单的例子，可以知道 go-restful就是由 container webserver route三个对象组成的

Route

路由包含两种，一种是RouterJSR311,一种是快速路由CurlyRouter。
CurlyRouter支持正则表达式和动态参数，相比RouterJSR11更加轻量级，k8s使用的是快速路由。
Route包含：http Method，URL Path,输入输出类型(JSON/YAML)以及回调函数restful.RouteFunction，响应内容类型(Accept)等。
官方描述

Configurable router:
(default) Fast routing algorithm that allows static elements, regular expressions and dynamic parameters in the URL path (e.g. /meetings/{id} or /static/{subpath:*}
Routing algorithm after JSR311 that is implemented using (but does not accept) regular expressions

webService

WebService逻辑上是Route的集合，功能上主要是为一组Route统一设置包括root path,请求响应的数据类型等一些通用的属性。WebService必须加入到Container中才能生效。

Container

Container逻辑上是WebService的集合，包括一组restful.WebService和一个http.ServeMux对象，使用RouteSelector进行请求派发。

另外注意一点 webservice必须要添加到container才能生效

3.用的日志包

github.com/golang/glog

4.数据持久化存储技术用的是etcd
https://github.com/etcd-io/etcd
kubernetes之所以要使用etcd作为后端存储技术，主要是因为etcd使用raft算法保证数据的一致性以及它拥有的watch机制

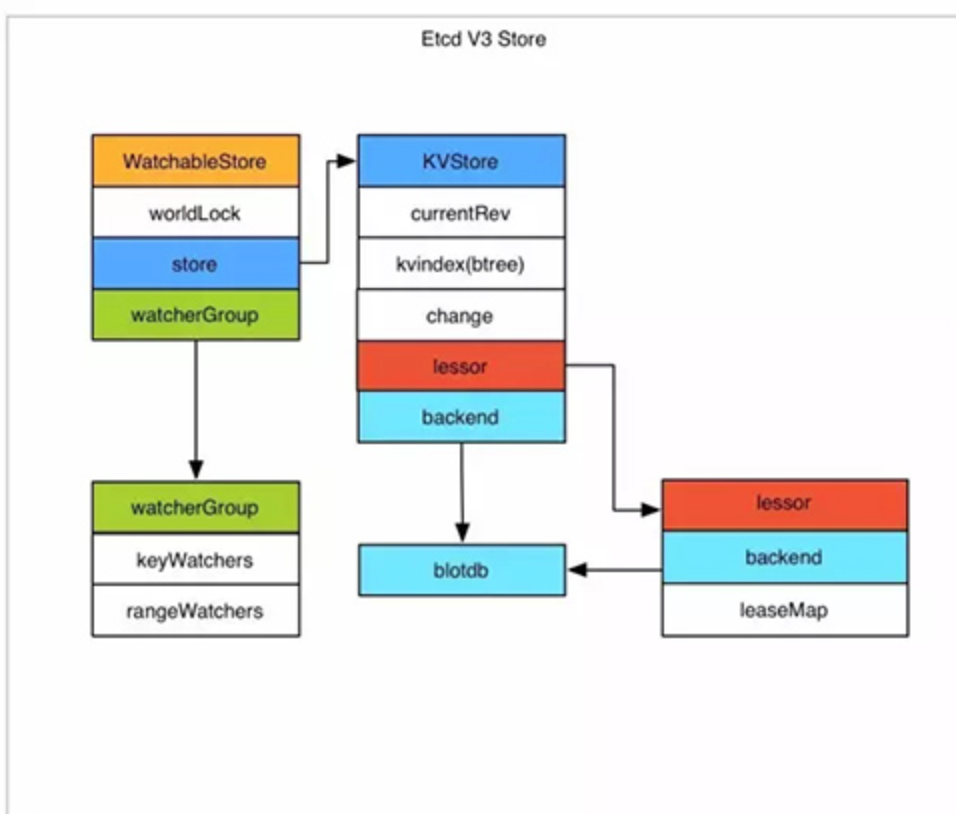

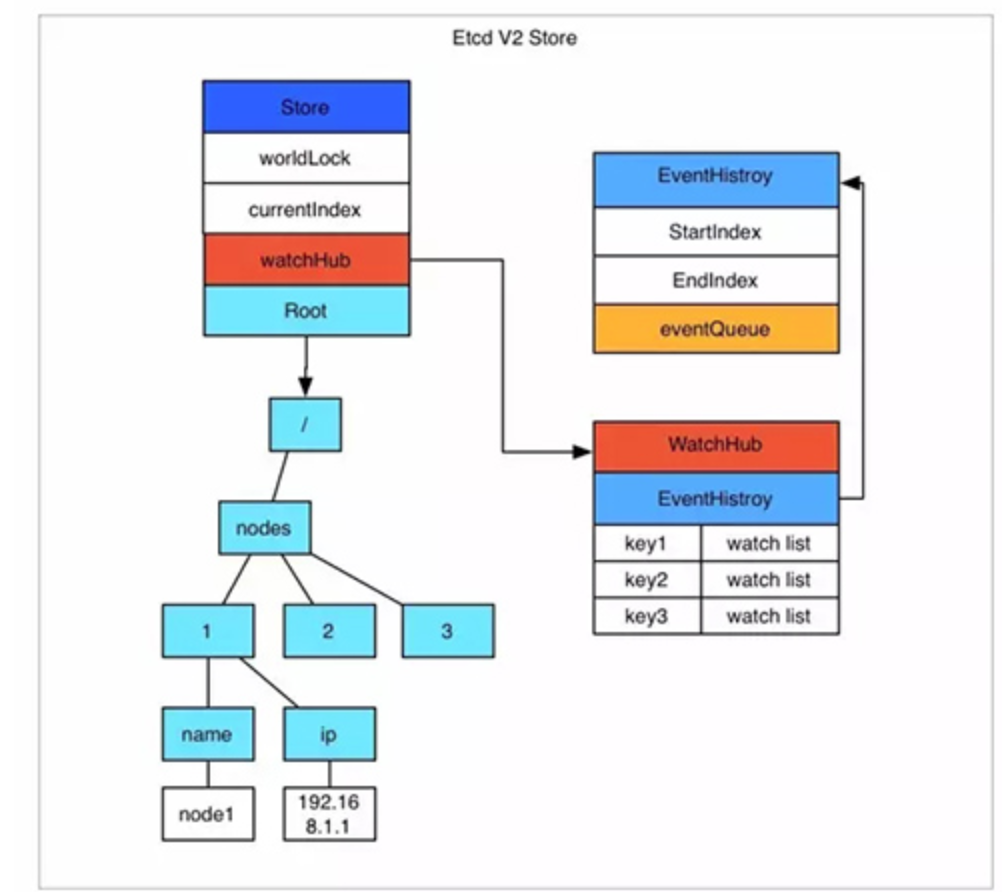

etcdv2版本以及etcdv3版本的Watch，以及过期机制如下两幅图
etcd-v2
etcd-v3

关于更多etcd的细节请参考官方文档etcd
kubernetes使用到的技术栈很多，上面主要是介绍我认为对分析源码起到重要作用的技术

为什么要用go-restful？
主要是该框架支持restful api,也便于kubernetes kube-apiserver支持多个版本的api

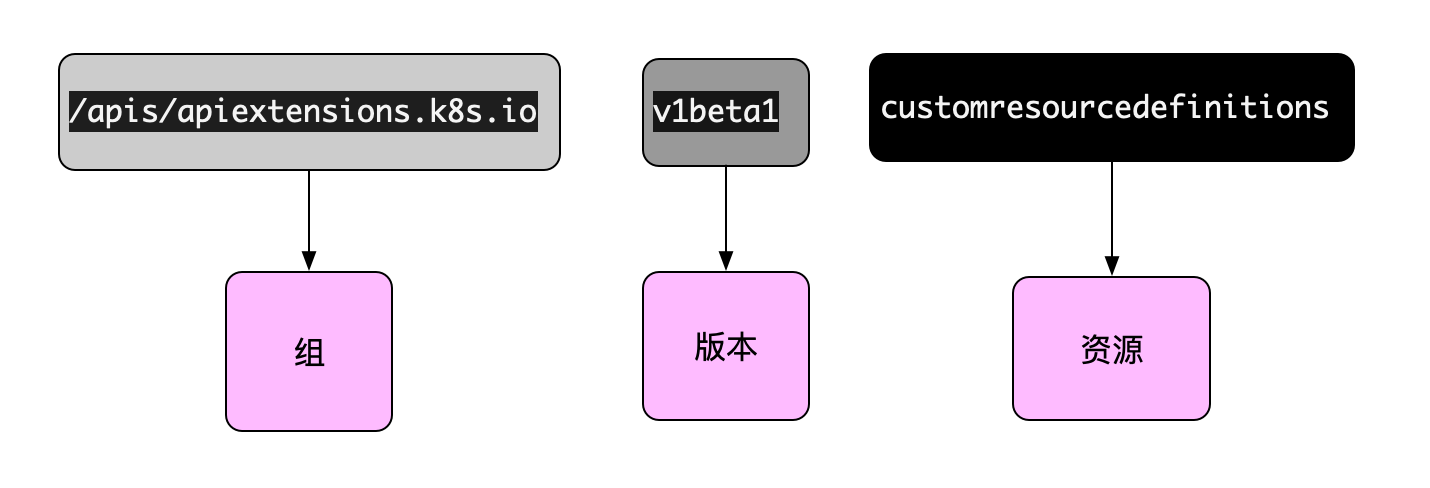

kubernetes 的api接口主要是由三部分构成
1.api组
2.api版本
3.api组下的某个版本的资源(pod deployment PVC daemonset statufulset storageclass,networkpolicy等等)

从代码k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/genericapiserver.go
api

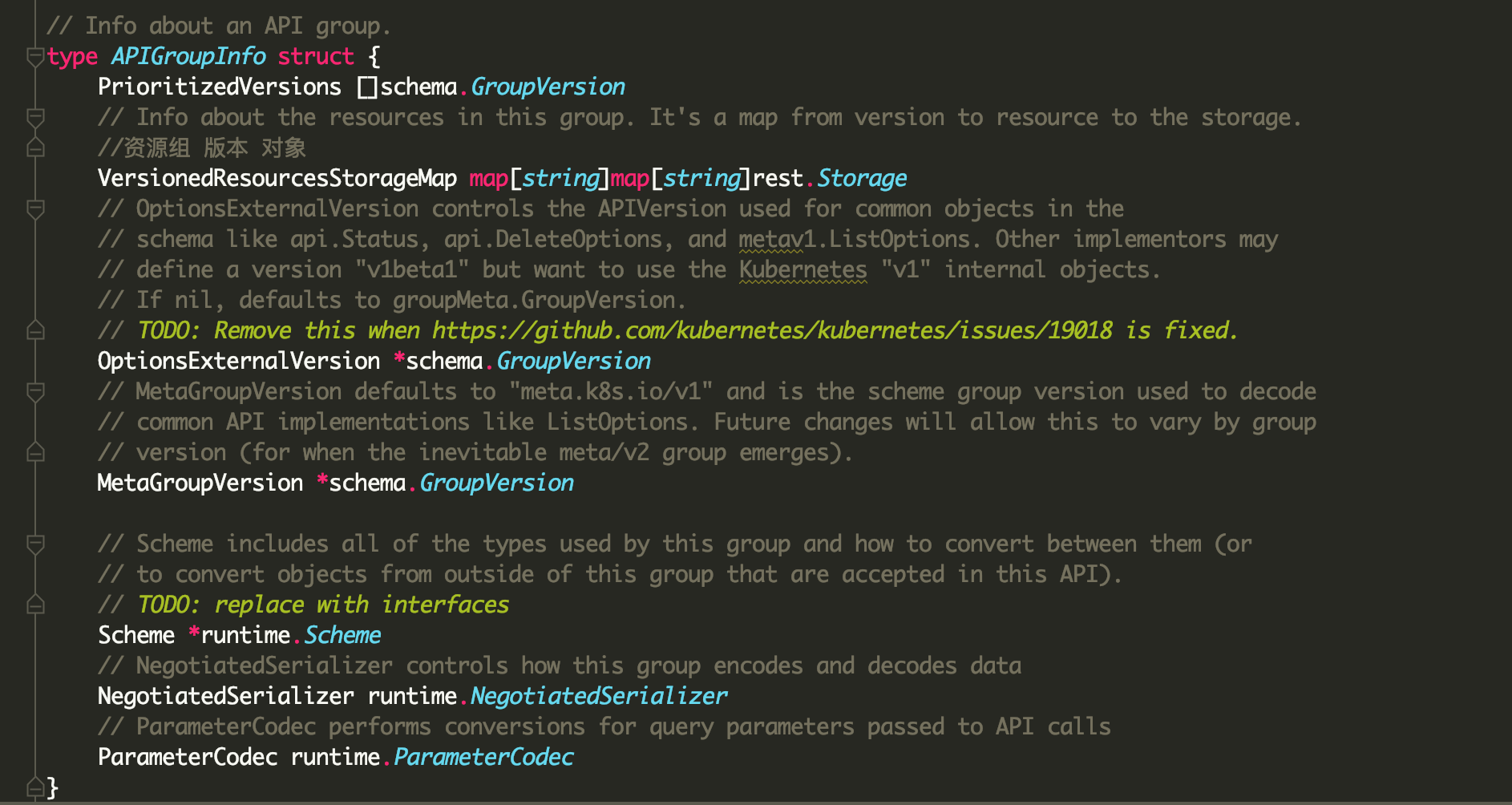

APIGroupInfo的结构体就可以看出kubernetes kube-apiserver都是根据以上三个元素构成api接口

讲完技术栈框架之后，下面就进入正题
首先先上一幅图

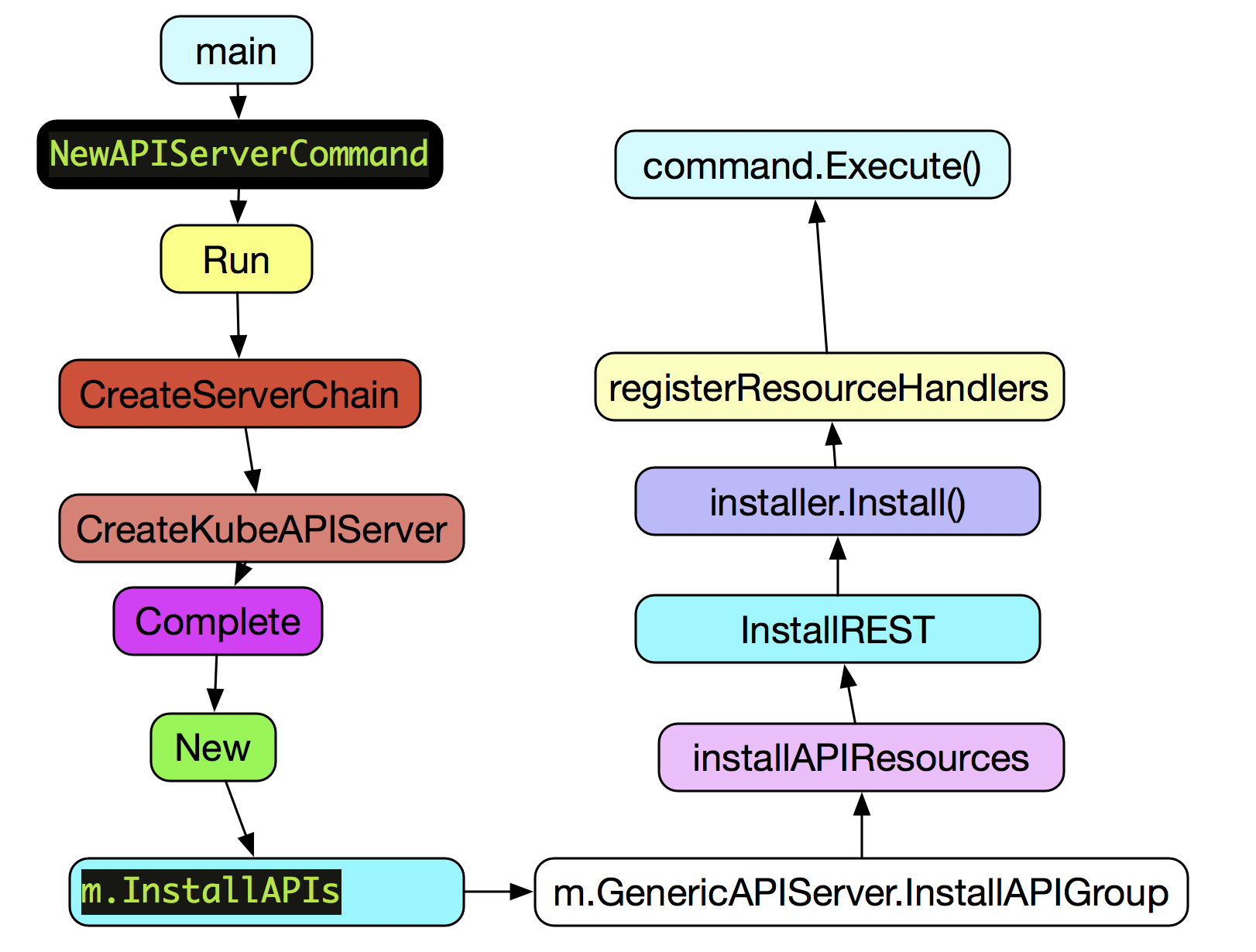

kuber
这幅图主要说明了kube-apiserver组件是如何使用go-restful框架注册路由，实现rest api的简单显示

下面我们详细地分析kube-apiserver的代码是如何实现的

理解如何注入各种对象访问的restful url

1.如何启动http监听端口
启动kube-apiserver,启动脚本如下

➜  kube-apiserver git:(v1.11.2-custom) ✗ cat run-kube-apiserver.sh
go run apiserver.go \
--enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,PersistentVolumeLabel,DefaultStorageClass,ResourceQuota \
--anonymous-auth=false \
--advertise-address=0.0.0.0 \
--allow-privileged=true  \
--audit-log-maxage=30 \
--audit-log-maxbackup=3 \
--audit-log-maxsize=100 \
--authorization-mode=Node,RBAC \
--bind-address=0.0.0.0 \
--secure-port=6443 \
--client-ca-file=/etc/kubernetes/ssl/ca.pem \
--kubelet-client-certificate=/etc/kubernetes/ssl/kubernetes.pem \
--kubelet-client-key=/etc/kubernetes/ssl/kubernetes-key.pem \
--enable-swagger-ui=true \
--etcd-cafile=/etc/kubernetes/ssl/ca.pem \
--etcd-certfile=/etc/kubernetes/ssl/etcd.pem \
--etcd-keyfile=/etc/kubernetes/ssl/etcd-key.pem --etcd-servers="https://etcd-ip:port" \
--kubelet-https=true \
--insecure-bind-address=0.0.0.0 \
--insecure-port=8080 \
--service-account-key-file=/etc/kubernetes/ssl/ca-key.pem \
--service-cluster-ip-range=10.254.0.0/18 \
--service-node-port-range=30000-32000 \
--tls-cert-file=/etc/kubernetes/ssl/kubernetes.pem \
--tls-private-key-file=/etc/kubernetes/ssl/kubernetes-key.pem \
--enable-bootstrap-token-auth \
--storage-media-type=application/json \
--log-dir=/var/log/kuernetes \
--v=2

执行脚本之前需要在目录$GOPATH/src/k8s.io/kubernetes执行make generated_files命令
详情请参考这边博客 https://blog.csdn.net/qq_21816375/article/details/84929541
然后cd $GOPATH/src/k8s.io/kubernetes/cmd/kube-apiserver 执行启动脚本就可以，当然脚本所需要的启动文件也是必须的，读者可以自行生成

启动http端口的流程图大概是这样子的

NewAPIServerCommand—>Run—>CreateServerChain—>BuildInsecureHandlerChain—>NonBlockingRun—>serveInsecurely—>RunServer
在函数RunServer下启动一个goroutine启动http端口

具体代码实现如下
CreateServerChain函数细节如下

// CreateServerChain creates the apiservers connected via delegation.
func CreateServerChain(completedOptions completedServerRunOptions, stopCh <-chan struct{}) (*genericapiserver.GenericAPIServer, error) {nodeTunneler, proxyTransport, err := CreateNodeDialer(completedOptions)if err != nil {return nil, err}kubeAPIServerConfig, sharedInformers, versionedInformers, insecureServingOptions, serviceResolver, pluginInitializer, admissionPostStartHook, err := CreateKubeAPIServerConfig(completedOptions, nodeTunneler, proxyTransport)if err != nil {return nil, err}// If additional API servers are added, they should be gated.apiExtensionsConfig, err := createAPIExtensionsConfig(*kubeAPIServerConfig.GenericConfig, versionedInformers, pluginInitializer, completedOptions.ServerRunOptions, completedOptions.MasterCount)if err != nil {return nil, err}apiExtensionsServer, err := createAPIExtensionsServer(apiExtensionsConfig, genericapiserver.NewEmptyDelegate())if err != nil {return nil, err}kubeAPIServer, err := CreateKubeAPIServer(kubeAPIServerConfig, apiExtensionsServer.GenericAPIServer, sharedInformers, versionedInformers, admissionPostStartHook)if err != nil {return nil, err}// otherwise go down the normal path of standing the aggregator up in front of the API server// this wires up openapikubeAPIServer.GenericAPIServer.PrepareRun()// This will wire up openapi for extension api serverapiExtensionsServer.GenericAPIServer.PrepareRun()// aggregator comes last in the chainaggregatorConfig, err := createAggregatorConfig(*kubeAPIServerConfig.GenericConfig, completedOptions.ServerRunOptions, versionedInformers, serviceResolver, proxyTransport, pluginInitializer)if err != nil {return nil, err}//生成聚合apiaggregatorServer, err := createAggregatorServer(aggregatorConfig, kubeAPIServer.GenericAPIServer, apiExtensionsServer.Informers)if err != nil {// we don't need special handling for innerStopCh because the aggregator server doesn't create any go routinesreturn nil, err}//启用 8080端口if insecureServingOptions != nil {insecureHandlerChain := kubeserver.BuildInsecureHandlerChain(aggregatorServer.GenericAPIServer.UnprotectedHandler(), kubeAPIServerConfig.GenericConfig)if err := kubeserver.NonBlockingRun(insecureServingOptions, insecureHandlerChain, kubeAPIServerConfig.GenericConfig.RequestTimeout, stopCh); err != nil {return nil, err}}return aggregatorServer.GenericAPIServer, nil
}

serveInsecurely函数

func serveInsecurely(insecureServingInfo *InsecureServingInfo, insecureHandler http.Handler, shutDownTimeout time.Duration, stopCh <-chan struct{}) error {insecureServer := &http.Server{Addr:           insecureServingInfo.BindAddress,Handler:        insecureHandler,MaxHeaderBytes: 1 << 20,}glog.Infof("Serving insecurely on %s", insecureServingInfo.BindAddress)ln, _, err := options.CreateListener(insecureServingInfo.BindNetwork, insecureServingInfo.BindAddress)if err != nil {return err}err = server.RunServer(insecureServer, ln, shutDownTimeout, stopCh)return err
}

RunServer函数

func RunServer(server *http.Server,ln net.Listener,shutDownTimeout time.Duration,stopCh <-chan struct{},
) error {if ln == nil {return fmt.Errorf("listener must not be nil")}// Shutdown server gracefully.go func() {<-stopChctx, cancel := context.WithTimeout(context.Background(), shutDownTimeout)server.Shutdown(ctx)cancel()}()go func() {defer utilruntime.HandleCrash()var listener net.Listenerlistener = tcpKeepAliveListener{ln.(*net.TCPListener)}if server.TLSConfig != nil {listener = tls.NewListener(listener, server.TLSConfig)}err := server.Serve(listener)msg := fmt.Sprintf("Stopped listening on %s", ln.Addr().String())select {case <-stopCh:glog.Info(msg)default:panic(fmt.Sprintf("%s due to error: %v", msg, err))}}()return nil
}

2.如何启动https监听端口
启动https端口的流程图大概是这样子的

NewAPIServerCommand—>Run—>server.PrepareRun().Run(stopCh)—>s.NonBlockingRun(stopCh)—>s.SecureServingInfo.Serve(s.Handler, s.ShutdownTimeout, internalStopCh)—>RunServer

NonBlockingRun函数

func (s preparedGenericAPIServer) NonBlockingRun(stopCh <-chan struct{}) error {// Use an stop channel to allow graceful shutdown without dropping audit events// after http server shutdown.auditStopCh := make(chan struct{})// Start the audit backend before any request comes in. This means we must call Backend.Run// before http server start serving. Otherwise the Backend.ProcessEvents call might block.if s.AuditBackend != nil {if err := s.AuditBackend.Run(auditStopCh); err != nil {return fmt.Errorf("failed to run the audit backend: %v", err)}}// Use an internal stop channel to allow cleanup of the listeners on error.internalStopCh := make(chan struct{})//启动https安全端口if s.SecureServingInfo != nil && s.Handler != nil {if err := s.SecureServingInfo.Serve(s.Handler, s.ShutdownTimeout, internalStopCh); err != nil {close(internalStopCh)return err}}// Now that listener have bound successfully, it is the// responsibility of the caller to close the provided channel to// ensure cleanup.go func() {<-stopChclose(internalStopCh)s.HandlerChainWaitGroup.Wait()close(auditStopCh)}()s.RunPostStartHooks(stopCh)if _, err := systemd.SdNotify(true, "READY=1\n"); err != nil {glog.Errorf("Unable to send systemd daemon successful start message: %v\n", err)}return nil
}

Serve函数

func (s *SecureServingInfo) Serve(handler http.Handler, shutdownTimeout time.Duration, stopCh <-chan struct{}) error {if s.Listener == nil {return fmt.Errorf("listener must not be nil")}secureServer := &http.Server{Addr:           s.Listener.Addr().String(),Handler:        handler,MaxHeaderBytes: 1 << 20,TLSConfig: &tls.Config{NameToCertificate: s.SNICerts,// Can't use SSLv3 because of POODLE and BEAST// Can't use TLSv1.0 because of POODLE and BEAST using CBC cipher// Can't use TLSv1.1 because of RC4 cipher usageMinVersion: tls.VersionTLS12,// enable HTTP2 for go's 1.7 HTTP ServerNextProtos: []string{"h2", "http/1.1"},},}if s.MinTLSVersion > 0 {secureServer.TLSConfig.MinVersion = s.MinTLSVersion}if len(s.CipherSuites) > 0 {secureServer.TLSConfig.CipherSuites = s.CipherSuites}if s.Cert != nil {secureServer.TLSConfig.Certificates = []tls.Certificate{*s.Cert}}// append all named certs. Otherwise, the go tls stack will think no SNI processing// is necessary because there is only one cert anyway.// Moreover, if ServerCert.CertFile/ServerCert.KeyFile are not set, the first SNI// cert will become the default cert. That's what we expect anyway.for _, c := range s.SNICerts {secureServer.TLSConfig.Certificates = append(secureServer.TLSConfig.Certificates, *c)}if s.ClientCA != nil {// Populate PeerCertificates in requests, but don't reject connections without certificates// This allows certificates to be validated by authenticators, while still allowing other auth typessecureServer.TLSConfig.ClientAuth = tls.RequestClientCert// Specify allowed CAs for client certificatessecureServer.TLSConfig.ClientCAs = s.ClientCA}if s.HTTP2MaxStreamsPerConnection > 0 {http2.ConfigureServer(secureServer, &http2.Server{MaxConcurrentStreams: uint32(s.HTTP2MaxStreamsPerConnection),})}glog.Infof("Serving securely on %s", secureServer.Addr)return RunServer(secureServer, s.Listener, shutdownTimeout, stopCh)
}

RunServer函数，和启动http端口是同一个函数

func RunServer(server *http.Server,ln net.Listener,shutDownTimeout time.Duration,stopCh <-chan struct{},
) error {if ln == nil {return fmt.Errorf("listener must not be nil")}// Shutdown server gracefully.go func() {<-stopChctx, cancel := context.WithTimeout(context.Background(), shutDownTimeout)server.Shutdown(ctx)cancel()}()go func() {defer utilruntime.HandleCrash()var listener net.Listenerlistener = tcpKeepAliveListener{ln.(*net.TCPListener)}if server.TLSConfig != nil {listener = tls.NewListener(listener, server.TLSConfig)}err := server.Serve(listener)msg := fmt.Sprintf("Stopped listening on %s", ln.Addr().String())select {case <-stopCh:glog.Info(msg)default:panic(fmt.Sprintf("%s due to error: %v", msg, err))}}()return nil
}

3.注入url分析
注入url的基本流程图
NewAPIServerCommand—>Run—>CreateServerChain—>CreateKubeAPIServer—>kubeAPIServerConfig.Complete(versionedInformers).New(delegateAPIServer)—>m.InstallAPIs—>m.GenericAPIServer.InstallAPIGroup(&apiGroupsInfo[i])–>s.installAPIResources(APIGroupPrefix, apiGroupInfo)—>apiGroupVersion.InstallREST(s.Handler.GoRestfulContainer)—>installer.Install()—>a.registerResourceHandlers(path, a.group.Storage[path], ws)

这样就会把每个api group 注入到go-restful里
举个例子
go-restful每注册一个路由就会生成指针类型的RouteBuilder结构体，该结构体的具体属性如下

// RouteBuilder is a helper to construct Routes.
type RouteBuilder struct {rootPath    stringcurrentPath stringproduces    []stringconsumes    []stringhttpMethod  string        // requiredfunction    RouteFunction // requiredfilters     []FilterFunctiontypeNameHandleFunc TypeNameHandleFunction // required// documentationdoc                     stringnotes                   stringoperation               stringreadSample, writeSample interface{}parameters              []*ParametererrorMap                map[int]ResponseErrormetadata                map[string]interface{}
}

我debug了一个pod

//DELETE POD
{/api/v1 namespaces/{namespace}/pods [application/json application/yaml application/vnd.kubernetes.protobuf] [] DELETE 0x1b6a170 [] <nil> delete collection of Pod  deletecollectionNamespacedPod <nil> {{ } {  }    <nil> 0} [0xc420bd0fe0 0xc420bd1038 0xc420bd1040 0xc420bd1050 0xc420bd1098 0xc420bd10a0 0xc420bd10b0 0xc420bd10f8 0xc420bd1100 0xc42034b980] map[200:{200 OK {{ } {  }    <nil> 0} false}] map[x-kubernetes-group-version-kind:{ v1 Pod}]} //watch POD
{/api/v1 watch/namespaces/{namespace}/pods [application/json application/yaml application/vnd.kubernetes.protobuf application/json;stream=watch application/vnd.kubernetes.protobuf;stream=watch] [] GET 0x1b6a170 [] <nil> watch individual changes to a list of Pod  watchNamespacedPodList <nil> { {[] <nil>}} [0xc420bd1128 0xc420bd1138 0xc420bd1140 0xc420bd1148 0xc420bd1150 0xc420bd1158 0xc420bd1160 0xc420bd1168 0xc420bd1170 0xc42034b980] map[200:{200 OK { {[] <nil>}} false}] map[x-kubernetes-group-version-kind:{ v1 Pod}]}//PUT POD namespace
{/api/v1 namespaces/{namespace}/pods/{name} [application/json application/yaml application/vnd.kubernetes.protobuf] [] PUT 0x1b6a170 [] <nil> replace the specified Pod  replaceNamespacedPod {{ } {      0 {{0 0 <nil>}} <nil> <nil> map[] map[] [] <nil> [] } {[] [] []  <nil> <nil>  map[]   <nil>  false false false <nil> <nil> []   <nil>  [] []  <nil> <nil> []} { []      <nil> [] [] }} {{ } {      0 {{0 0 <nil>}} <nil> <nil> map[] map[] [] <nil> [] } {[] [] []  <nil> <nil>  map[]   <nil>  false false false <nil> <nil> []   <nil>  [] []  <nil> <nil> []} { []      <nil> [] [] }} [0xc420bd11b8 0xc420bd11c8 0xc42034b980 0xc42034b930] map[200:{200 OK {{ } {      0 {{0 0 <nil>}} <nil> <nil> map[] map[] [] <nil> [] } {[] [] []  <nil> <nil>  map[]   <nil>  false false false <nil> <nil> []   <nil>  [] []  <nil> <nil> []} { []      <nil> [] [] }} false} 201:{201 Created {{ } {      0 {{0 0 <nil>}} <nil> <nil> map[] map[] [] <nil> [] } {[] [] []  <nil> <nil>  map[]   <nil>  false false false <nil> <nil> []   <nil>  [] []  <nil> <nil> []} { []      <nil> [] [] }} false}] map[x-kubernetes-group-version-kind:{ v1 Pod}]}

结合结构体RouteBuilder的属性，要访问某个资源的信息，需要用到 rootPath currentPath httpMethod 这三个属性组合而成url，
url=rootPath/currentPath
请求方法httpMethod
GET 协议://ip:port/api/v1/namespaces/{namespace}/pods/{name}
这样就组合成了url

➜  kube-apiserver git:(v1.11.2-custom) ✗ curl localhost:8080/api/v1/namespaces/default/pods/reviews-v3-dd846cc78-mx2v2
{"kind": "Pod","apiVersion": "v1","metadata": {"name": "reviews-v3-dd846cc78-mx2v2","generateName": "reviews-v3-dd846cc78-","namespace": "default","selfLink": "/api/v1/namespaces/default/pods/reviews-v3-dd846cc78-mx2v2","uid": "1f4e2545-d844-11e8-8b84-5254e98192ae","resourceVersion": "23157325","creationTimestamp": "2018-10-25T10:52:52Z","labels": {"app": "reviews","pod-template-hash": "884027734","version": "v3"},"ownerReferences": [{"apiVersion": "apps/v1","kind": "ReplicaSet","name": "reviews-v3-dd846cc78","uid": "1f47bf73-d844-11e8-8b84-5254e98192ae","controller": true,"blockOwnerDeletion": true}]},"spec": {"volumes": [{"name": "default-token-gwx4c","secret": {"secretName": "default-token-gwx4c","defaultMode": 420}}],"containers": [{"name": "reviews","image": "istio/examples-bookinfo-reviews-v3:1.8.0","ports": [{"containerPort": 9080,"protocol": "TCP"}],"resources": {},"volumeMounts": [{"name": "default-token-gwx4c","readOnly": true,"mountPath": "/var/run/secrets/kubernetes.io/serviceaccount"}],"terminationMessagePath": "/dev/termination-log","terminationMessagePolicy": "File","imagePullPolicy": "IfNotPresent"}],"restartPolicy": "Always","terminationGracePeriodSeconds": 30,"dnsPolicy": "ClusterFirst","serviceAccountName": "default","serviceAccount": "default","nodeName": "master-47-36","securityContext": {},"schedulerName": "default-scheduler","tolerations": [{"key": "node.kubernetes.io/not-ready","operator": "Exists","effect": "NoExecute","tolerationSeconds": 300},{"key": "node.kubernetes.io/unreachable","operator": "Exists","effect": "NoExecute","tolerationSeconds": 300}],"priority": 0},"status": {"phase": "Running","conditions": [{"type": "Initialized","status": "True","lastProbeTime": null,"lastTransitionTime": "2018-10-25T10:52:53Z"},{"type": "Ready","status": "False","lastProbeTime": null,"lastTransitionTime": "2018-12-04T02:54:54Z","reason": "ContainersNotReady","message": "containers with unready status: [reviews]"},{"type": "ContainersReady","status": "False","lastProbeTime": null,"lastTransitionTime": null,"reason": "ContainersNotReady","message": "containers with unready status: [reviews]"},{"type": "PodScheduled","status": "True","lastProbeTime": null,"lastTransitionTime": "2018-10-25T10:52:52Z"}],"hostIP": "10.39.47.36","podIP": "10.253.63.245","startTime": "2018-10-25T10:52:53Z","containerStatuses": [{"name": "reviews","state": {"waiting": {"reason": "CrashLoopBackOff","message": "Back-off 5m0s restarting failed container=reviews pod=reviews-v3-dd846cc78-mx2v2_default(1f4e2545-d844-11e8-8b84-5254e98192ae)"}},"lastState": {"terminated": {"exitCode": 128,"reason": "ContainerCannotRun","message": "mkdir /var/run/docker/libcontainerd/edfcef19e160304dc8fbfb5a3b3c5d393cb36206e32d4904a44e73bda4dea73f: no space left on device","startedAt": "2018-12-31T08:10:30Z","finishedAt": "2018-12-31T08:10:30Z","containerID": "docker://edfcef19e160304dc8fbfb5a3b3c5d393cb36206e32d4904a44e73bda4dea73f"}},"ready": false,"restartCount": 18808,"image": "docker.io/istio/examples-bookinfo-reviews-v3:1.8.0","imageID": "docker-pullable://docker.io/istio/examples-bookinfo-reviews-v3@sha256:8c0385f0ca799e655d8770b52cb4618ba54e8966a0734ab1aeb6e8b14e171a3b","containerID": "docker://edfcef19e160304dc8fbfb5a3b3c5d393cb36206e32d4904a44e73bda4dea73f"}],"qosClass": "BestEffort"}
}

下面是重要函数的具体实现

InstallAPI函数

func (m *Master) InstallAPIs(apiResourceConfigSource serverstorage.APIResourceConfigSource, restOptionsGetter generic.RESTOptionsGetter, restStorageProviders ...RESTStorageProvider) {apiGroupsInfo := []genericapiserver.APIGroupInfo{}for _, restStorageBuilder := range restStorageProviders {groupName := restStorageBuilder.GroupName()if !apiResourceConfigSource.AnyVersionForGroupEnabled(groupName) {glog.V(1).Infof("Skipping disabled API group %q.", groupName)continue}apiGroupInfo, enabled := restStorageBuilder.NewRESTStorage(apiResourceConfigSource, restOptionsGetter)if !enabled {glog.Warningf("Problem initializing API group %q, skipping.", groupName)continue}glog.V(1).Infof("Enabling API group %q.", groupName)if postHookProvider, ok := restStorageBuilder.(genericapiserver.PostStartHookProvider); ok {name, hook, err := postHookProvider.PostStartHook()if err != nil {glog.Fatalf("Error building PostStartHook: %v", err)}m.GenericAPIServer.AddPostStartHookOrDie(name, hook)}apiGroupsInfo = append(apiGroupsInfo, apiGroupInfo)}for i := range apiGroupsInfo {if err := m.GenericAPIServer.InstallAPIGroup(&apiGroupsInfo[i]); err != nil {glog.Fatalf("Error in registering group versions: %v", err)}}
}

GenericAPIServer 这个结构体非常充要,go-restful所有的WebService都是通过这个ADD到GoRestfulContainer的

$GOPATH/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/genericapiserver.go

type GenericAPIServer struct {...// "Outputs"// Handler holds the handlers being used by this API serverHandler *APIServerHandler
...
}

APIServerHandler函数

type APIServerHandler struct {// FullHandlerChain is the one that is eventually served with.  It should include the full filter// chain and then call the Director.FullHandlerChain http.Handler// The registered APIs.  InstallAPIs uses this.  Other servers probably shouldn't access this directly.GoRestfulContainer *restful.Container// NonGoRestfulMux is the final HTTP handler in the chain.// It comes after all filters and the API handling// This is where other servers can attach handler to various parts of the chain.NonGoRestfulMux *mux.PathRecorderMux// Director is here so that we can properly handle fall through and proxy cases.// This looks a bit bonkers, but here's what's happening.  We need to have /apis handling registered in gorestful in order to have// swagger generated for compatibility.  Doing that with `/apis` as a webservice, means that it forcibly 404s (no defaulting allowed)// all requests which are not /apis or /apis/.  We need those calls to fall through behind goresful for proper delegation.  Trying to// register for a pattern which includes everything behind it doesn't work because gorestful negotiates for verbs and content encoding// and all those things go crazy when gorestful really just needs to pass through.  In addition, openapi enforces unique verb constraints// which we don't fit into and it still muddies up swagger.  Trying to switch the webservices into a route doesn't work because the//  containing webservice faces all the same problems listed above.// This leads to the crazy thing done here.  Our mux does what we need, so we'll place it in front of gorestful.  It will introspect to// decide if the route is likely to be handled by goresful and route there if needed.  Otherwise, it goes to PostGoRestful mux in// order to handle "normal" paths and delegation. Hopefully no API consumers will ever have to deal with this level of detail.  I think// we should consider completely removing gorestful.// Other servers should only use this opaquely to delegate to an API server.Director http.Handler
}

installAPIResources

// installAPIResources is a private method for installing the REST storage backing each api groupversionresource
func (s *GenericAPIServer) installAPIResources(apiPrefix string, apiGroupInfo *APIGroupInfo) error {for _, groupVersion := range apiGroupInfo.PrioritizedVersions {if len(apiGroupInfo.VersionedResourcesStorageMap[groupVersion.Version]) == 0 {glog.Warningf("Skipping API %v because it has no resources.", groupVersion)continue}apiGroupVersion := s.getAPIGroupVersion(apiGroupInfo, groupVersion, apiPrefix)if apiGroupInfo.OptionsExternalVersion != nil {apiGroupVersion.OptionsExternalVersion = apiGroupInfo.OptionsExternalVersion}if err := apiGroupVersion.InstallREST(s.Handler.GoRestfulContainer); err != nil {return fmt.Errorf("unable to setup API %v: %v", apiGroupInfo, err)}}return nil
}

InstallREST

func (g *APIGroupVersion) InstallREST(container *restful.Container) error {prefix := path.Join(g.Root, g.GroupVersion.Group, g.GroupVersion.Version)installer := &APIInstaller{group:                        g,prefix:                       prefix,minRequestTimeout:            g.MinRequestTimeout,enableAPIResponseCompression: g.EnableAPIResponseCompression,}apiResources, ws, registrationErrors := installer.Install()versionDiscoveryHandler := discovery.NewAPIVersionHandler(g.Serializer, g.GroupVersion, staticLister{apiResources})versionDiscoveryHandler.AddToWebService(ws)container.Add(ws)return utilerrors.NewAggregate(registrationErrors)
}

installer.Install()

// Install handlers for API resources.
func (a *APIInstaller) Install() ([]metav1.APIResource, *restful.WebService, []error) {var apiResources []metav1.APIResourcevar errors []errorws := a.newWebService()glog.Infof("a.group.Storage===== : %s \n", a.group.Storage)// Register the paths in a deterministic (sorted) order to get a deterministic swagger spec.paths := make([]string, len(a.group.Storage))var i int = 0for path := range a.group.Storage {paths[i] = pathglog.Infof("a.group.Storage[%s]=%s \n", path,a.group.Storage[path])i++}sort.Strings(paths)for _, path := range paths {apiResource, err := a.registerResourceHandlers(path, a.group.Storage[path], ws)if err != nil {errors = append(errors, fmt.Errorf("error in registering resource: %s, %v", path, err))}if apiResource != nil {apiResources = append(apiResources, *apiResource)}}return apiResources, ws, errors
}

registerResourceHandlers 由于代码量太多，这里就不粘贴了，具体代码在$GOPATH/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/installer.go文件

4.如何GET或者修改etcd数据
先看操作etcd的源代码

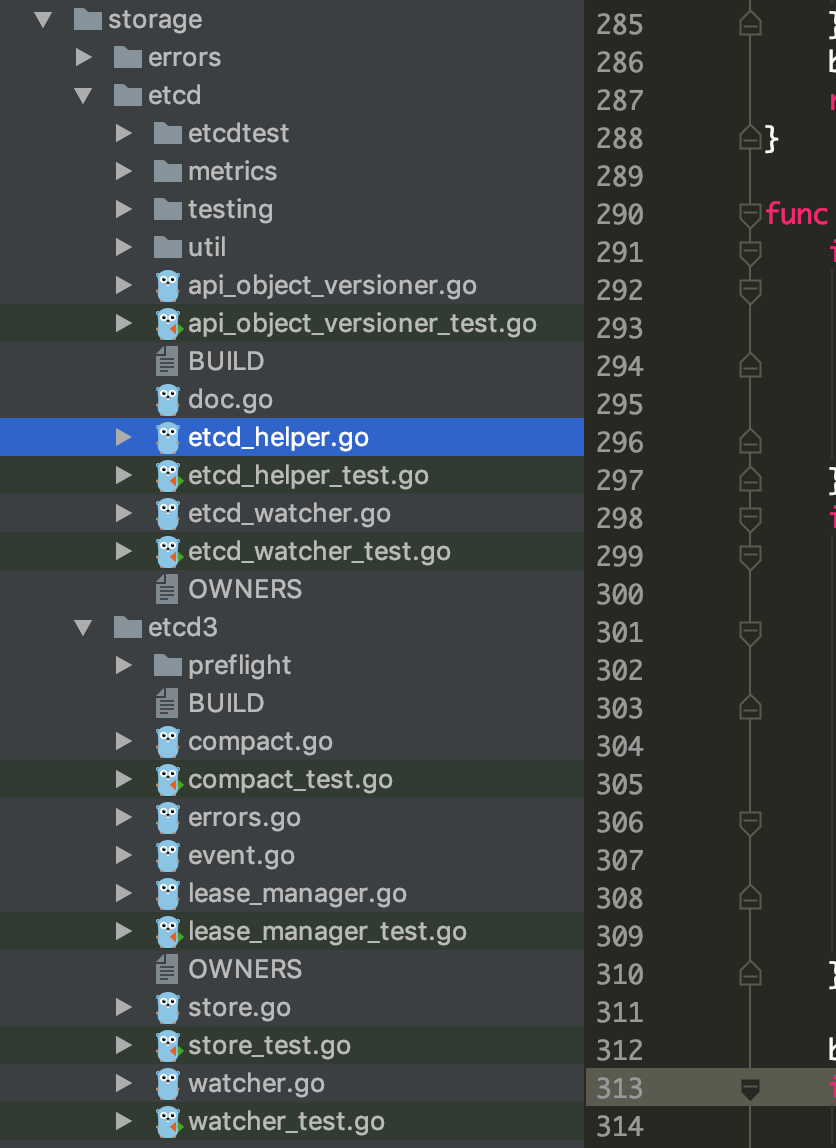

从文件 $GOPATH/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/storage/storagebackend/factory/factory.go
可以看出etcd实现了接口storage.Interface
实现文件如下
etcd

package factoryimport ("fmt""k8s.io/apiserver/pkg/storage""k8s.io/apiserver/pkg/storage/storagebackend"
)// DestroyFunc is to destroy any resources used by the storage returned in Create() together.
type DestroyFunc func()// Create creates a storage backend based on given config.
func Create(c storagebackend.Config) (storage.Interface, DestroyFunc, error) {switch c.Type {case storagebackend.StorageTypeETCD2:return newETCD2Storage(c)case storagebackend.StorageTypeUnset, storagebackend.StorageTypeETCD3:// TODO: We have the following features to implement:// - Support secure connection by using key, cert, and CA files.// - Honor "https" scheme to support secure connection in gRPC.// - Support non-quorum read.return newETCD3Storage(c)default:return nil, nil, fmt.Errorf("unknown storage type: %s", c.Type)}
}

k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/storage/interfaces.go

//etcd实现该接口 各个接口也要实现
// Interface offers a common interface for object marshaling/unmarshaling operations and
// hides all the storage-related operations behind it.
type Interface interface {// Returns Versioner associated with this interface.Versioner() Versioner// Create adds a new object at a key unless it already exists. 'ttl' is time-to-live// in seconds (0 means forever). If no error is returned and out is not nil, out will be// set to the read value from database.Create(ctx context.Context, key string, obj, out runtime.Object, ttl uint64) error// Delete removes the specified key and returns the value that existed at that spot.// If key didn't exist, it will return NotFound storage error.Delete(ctx context.Context, key string, out runtime.Object, preconditions *Preconditions) error// Watch begins watching the specified key. Events are decoded into API objects,// and any items selected by 'p' are sent down to returned watch.Interface.// resourceVersion may be used to specify what version to begin watching,// which should be the current resourceVersion, and no longer rv+1// (e.g. reconnecting without missing any updates).// If resource version is "0", this interface will get current object at given key// and send it in an "ADDED" event, before watch starts.Watch(ctx context.Context, key string, resourceVersion string, p SelectionPredicate) (watch.Interface, error)// WatchList begins watching the specified key's items. Items are decoded into API// objects and any item selected by 'p' are sent down to returned watch.Interface.// resourceVersion may be used to specify what version to begin watching,// which should be the current resourceVersion, and no longer rv+1// (e.g. reconnecting without missing any updates).// If resource version is "0", this interface will list current objects directory defined by key// and send them in "ADDED" events, before watch starts.WatchList(ctx context.Context, key string, resourceVersion string, p SelectionPredicate) (watch.Interface, error)// Get unmarshals json found at key into objPtr. On a not found error, will either// return a zero object of the requested type, or an error, depending on ignoreNotFound.// Treats empty responses and nil response nodes exactly like a not found error.// The returned contents may be delayed, but it is guaranteed that they will// be have at least 'resourceVersion'.Get(ctx context.Context, key string, resourceVersion string, objPtr runtime.Object, ignoreNotFound bool) error// GetToList unmarshals json found at key and opaque it into *List api object// (an object that satisfies the runtime.IsList definition).// The returned contents may be delayed, but it is guaranteed that they will// be have at least 'resourceVersion'.GetToList(ctx context.Context, key string, resourceVersion string, p SelectionPredicate, listObj runtime.Object) error// List unmarshalls jsons found at directory defined by key and opaque them// into *List api object (an object that satisfies runtime.IsList definition).// The returned contents may be delayed, but it is guaranteed that they will// be have at least 'resourceVersion'.List(ctx context.Context, key string, resourceVersion string, p SelectionPredicate, listObj runtime.Object) error// GuaranteedUpdate keeps calling 'tryUpdate()' to update key 'key' (of type 'ptrToType')// retrying the update until success if there is index conflict.// Note that object passed to tryUpdate may change across invocations of tryUpdate() if// other writers are simultaneously updating it, so tryUpdate() needs to take into account// the current contents of the object when deciding how the update object should look.// If the key doesn't exist, it will return NotFound storage error if ignoreNotFound=false// or zero value in 'ptrToType' parameter otherwise.// If the object to update has the same value as previous, it won't do any update// but will return the object in 'ptrToType' parameter.// If 'suggestion' can contain zero or one element - in such case this can be used as// a suggestion about the current version of the object to avoid read operation from// storage to get it.//// Example://// s := /* implementation of Interface */// err := s.GuaranteedUpdate(//     "myKey", &MyType{}, true,//     func(input runtime.Object, res ResponseMeta) (runtime.Object, *uint64, error) {//       // Before each incovation of the user defined function, "input" is reset to//       // current contents for "myKey" in database.//       curr := input.(*MyType)  // Guaranteed to succeed.////       // Make the modification//       curr.Counter++////       // Return the modified object - return an error to stop iterating. Return//       // a uint64 to alter the TTL on the object, or nil to keep it the same value.//       return cur, nil, nil//    }// })GuaranteedUpdate(ctx context.Context, key string, ptrToType runtime.Object, ignoreNotFound bool,precondtions *Preconditions, tryUpdate UpdateFunc, suggestion ...runtime.Object) error// Count returns number of different entries under the key (generally being path prefix).Count(key string) (int64, error)
}

接下来k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/registry/generic/registry/store.go中的Store结构体

type Store struct {// NewFunc returns a new instance of the type this registry returns for a// GET of a single object, e.g.://// curl GET /apis/group/version/namespaces/my-ns/myresource/name-of-objectNewFunc func() runtime.Object// NewListFunc returns a new list of the type this registry; it is the// type returned when the resource is listed, e.g.://// curl GET /apis/group/version/namespaces/my-ns/myresourceNewListFunc func() runtime.Object// DefaultQualifiedResource is the pluralized name of the resource.// This field is used if there is no request info present in the context.// See qualifiedResourceFromContext for details.DefaultQualifiedResource schema.GroupResource// KeyRootFunc returns the root etcd key for this resource; should not// include trailing "/".  This is used for operations that work on the// entire collection (listing and watching).//// KeyRootFunc and KeyFunc must be supplied together or not at all.KeyRootFunc func(ctx context.Context) string// KeyFunc returns the key for a specific object in the collection.// KeyFunc is called for Create/Update/Get/Delete. Note that 'namespace'// can be gotten from ctx.//// KeyFunc and KeyRootFunc must be supplied together or not at all.KeyFunc func(ctx context.Context, name string) (string, error)// ObjectNameFunc returns the name of an object or an error.ObjectNameFunc func(obj runtime.Object) (string, error)// TTLFunc returns the TTL (time to live) that objects should be persisted// with. The existing parameter is the current TTL or the default for this// operation. The update parameter indicates whether this is an operation// against an existing object.//// Objects that are persisted with a TTL are evicted once the TTL expires.TTLFunc func(obj runtime.Object, existing uint64, update bool) (uint64, error)// PredicateFunc returns a matcher corresponding to the provided labels// and fields. The SelectionPredicate returned should return true if the// object matches the given field and label selectors.PredicateFunc func(label labels.Selector, field fields.Selector) storage.SelectionPredicate// EnableGarbageCollection affects the handling of Update and Delete// requests. Enabling garbage collection allows finalizers to do work to// finalize this object before the store deletes it.//// If any store has garbage collection enabled, it must also be enabled in// the kube-controller-manager.EnableGarbageCollection bool// DeleteCollectionWorkers is the maximum number of workers in a single// DeleteCollection call. Delete requests for the items in a collection// are issued in parallel.DeleteCollectionWorkers int// Decorator is an optional exit hook on an object returned from the// underlying storage. The returned object could be an individual object// (e.g. Pod) or a list type (e.g. PodList). Decorator is intended for// integrations that are above storage and should only be used for// specific cases where storage of the value is not appropriate, since// they cannot be watched.Decorator ObjectFunc// CreateStrategy implements resource-specific behavior during creation.CreateStrategy rest.RESTCreateStrategy// AfterCreate implements a further operation to run after a resource is// created and before it is decorated, optional.AfterCreate ObjectFunc// UpdateStrategy implements resource-specific behavior during updates.UpdateStrategy rest.RESTUpdateStrategy// AfterUpdate implements a further operation to run after a resource is// updated and before it is decorated, optional.AfterUpdate ObjectFunc// DeleteStrategy implements resource-specific behavior during deletion.DeleteStrategy rest.RESTDeleteStrategy// AfterDelete implements a further operation to run after a resource is// deleted and before it is decorated, optional.AfterDelete ObjectFunc// ReturnDeletedObject determines whether the Store returns the object// that was deleted. Otherwise, return a generic success status response.ReturnDeletedObject bool// ExportStrategy implements resource-specific behavior during export,// optional. Exported objects are not decorated.ExportStrategy rest.RESTExportStrategy// TableConvertor is an optional interface for transforming items or lists// of items into tabular output. If unset, the default will be used.TableConvertor rest.TableConvertor// Storage is the interface for the underlying storage for the resource.Storage storage.Interface// Called to cleanup clients used by the underlying Storage; optional.DestroyFunc func()
}

实现了如下接口

var _ rest.StandardStorage = &Store{}
var _ rest.Exporter = &Store{}
var _ rest.TableConvertor = &Store{}
var _ GenericStore = &Store{}

从$GOPATH/src/k8s.io/kubernetes/pkg/registry这个包查看，各个kubernetes 资源对象都继承了*genericregistry.Store结构体所有的属性以及方法

总体来看从$GOPATH/src/k8s.io/kubernetes/pkg/registry这个kubernetes 资源包实现了 $GOPATH/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/registry/rest的接口，所以每个runtime.Object都有一下方法

// what verbs are supported by the storage, used to know what verbs we support per pathcreater, isCreater := storage.(rest.Creater)namedCreater, isNamedCreater := storage.(rest.NamedCreater)lister, isLister := storage.(rest.Lister)getter, isGetter := storage.(rest.Getter)getterWithOptions, isGetterWithOptions := storage.(rest.GetterWithOptions)gracefulDeleter, isGracefulDeleter := storage.(rest.GracefulDeleter)collectionDeleter, isCollectionDeleter := storage.(rest.CollectionDeleter)updater, isUpdater := storage.(rest.Updater)patcher, isPatcher := storage.(rest.Patcher)watcher, isWatcher := storage.(rest.Watcher)connecter, isConnecter := storage.(rest.Connecter)storageMeta, isMetadata := storage.(rest.StorageMetadata)if !isMetadata {storageMeta = defaultStorageMetadata{}}exporter, isExporter := storage.(rest.Exporter)if !isExporter {exporter = nil}

通过这个方法来操作存储在etcd里的对象

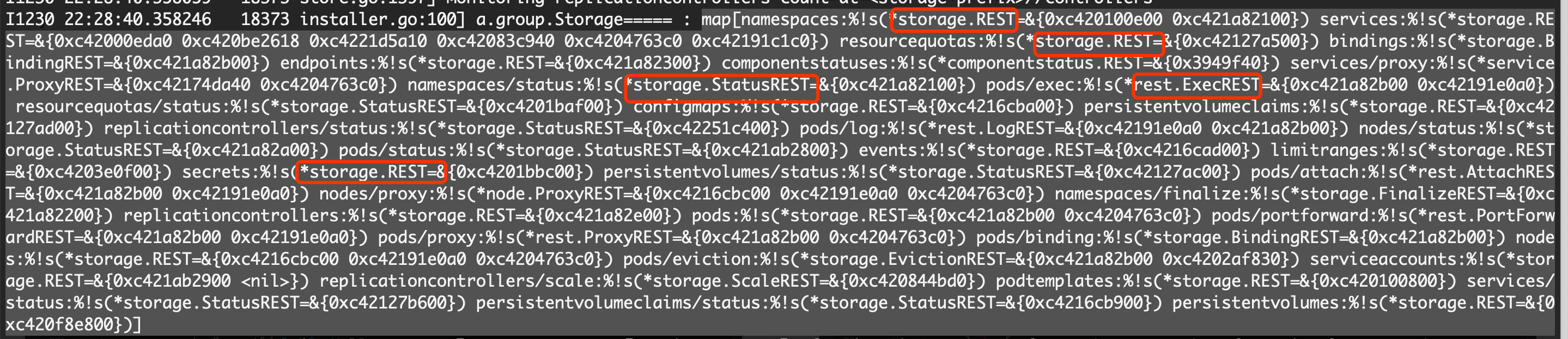

看Install() 函数的 debug 日志
debug
从日志可以看出，每个资源对象都继承了k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/registry/generic/registry/store.go中的Store结构体的属性以及方法

举个例子
GET PUT DELETE POST 等所有的操作都是从$GOPATH/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/installer.go文件进行

get

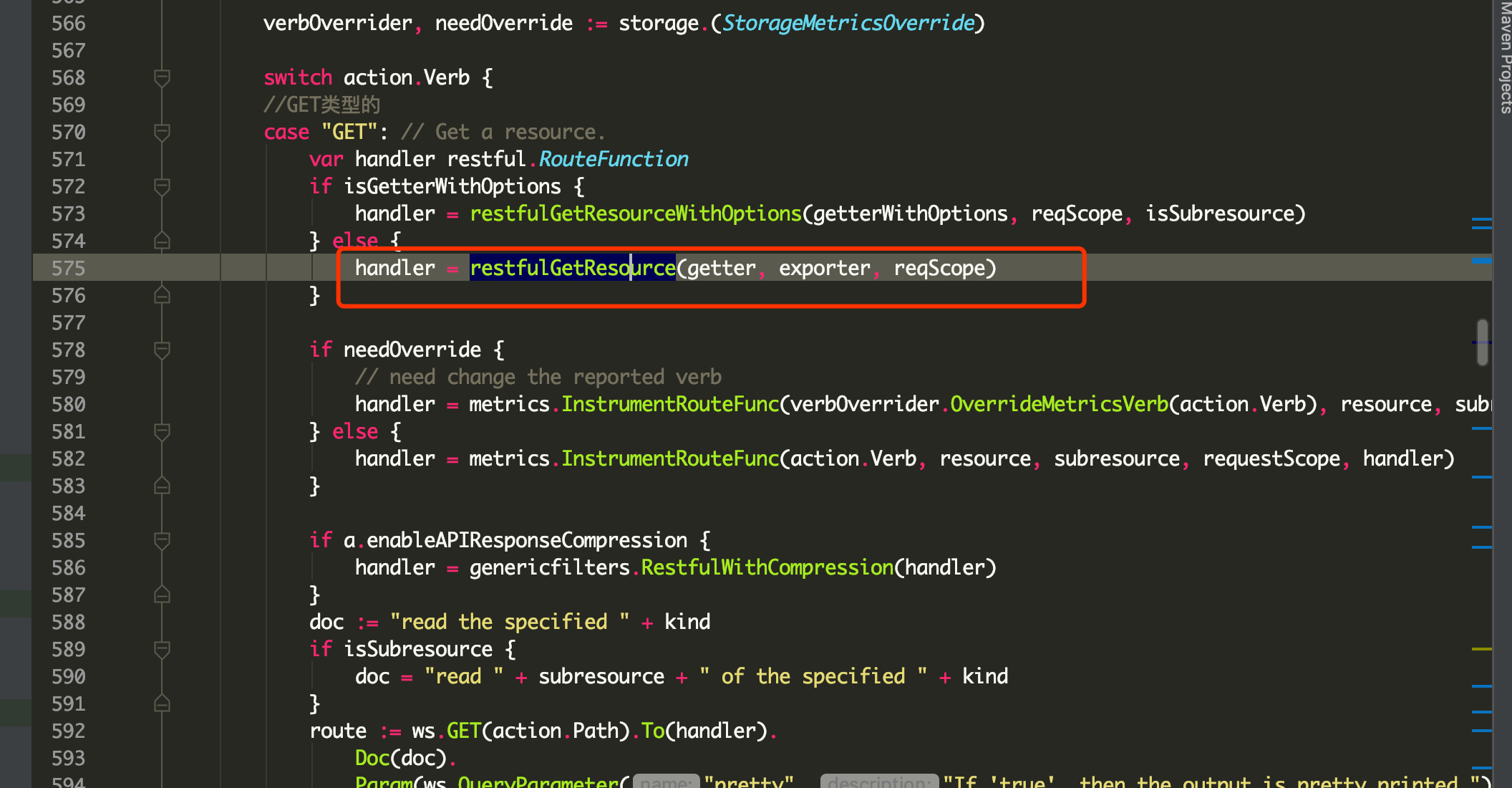

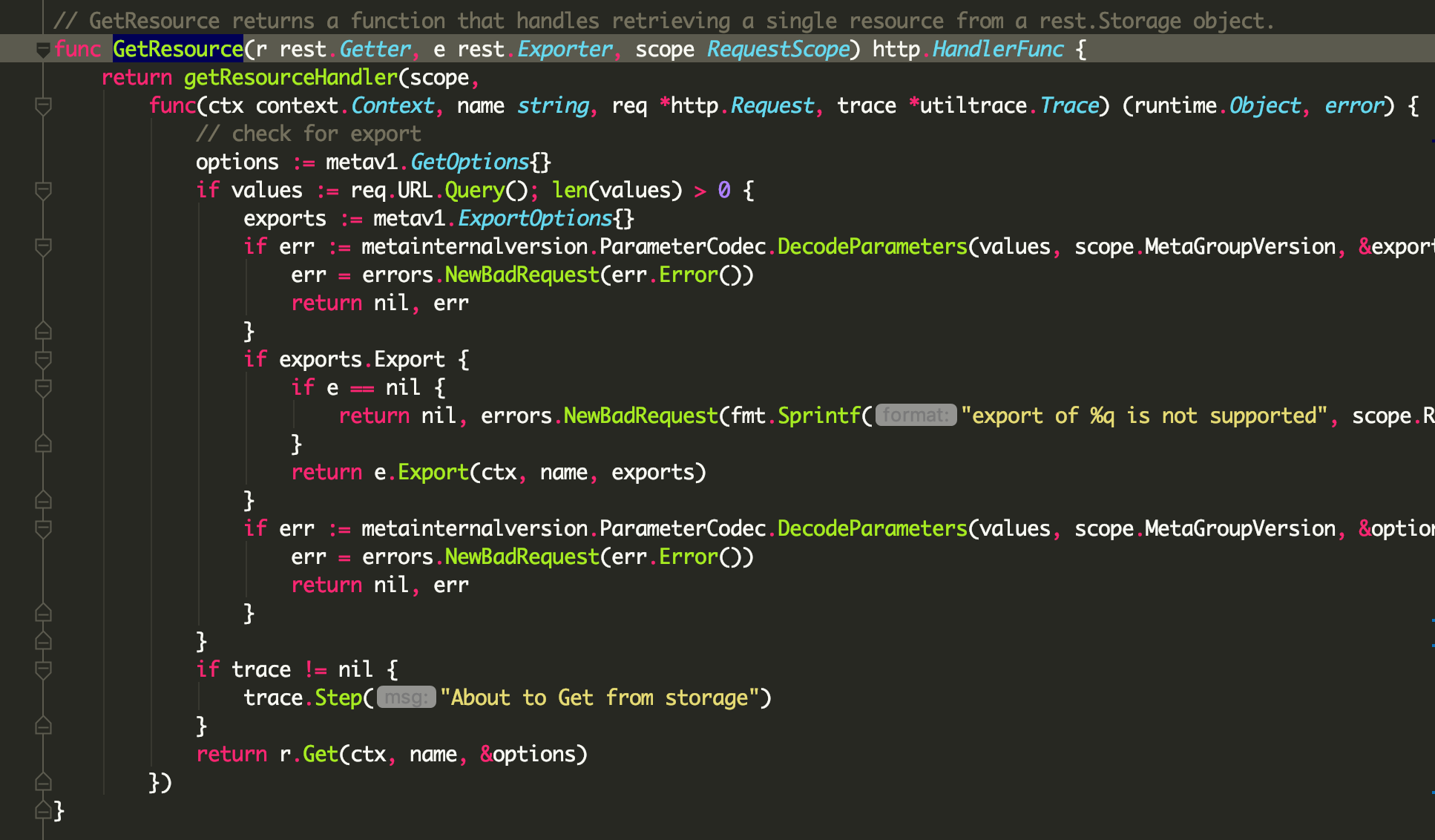

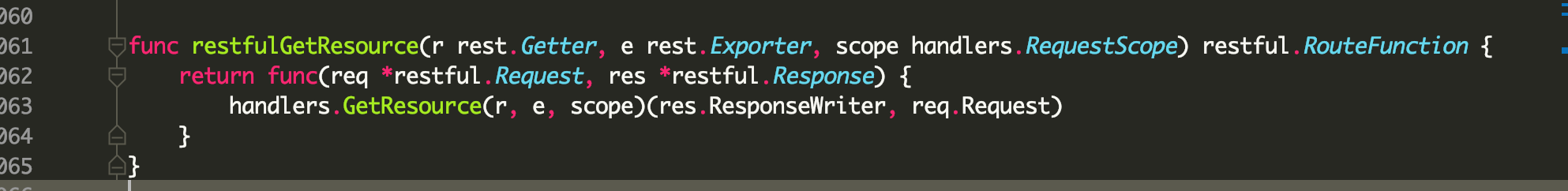

获取资源时是从header函数获取的，我们来分析handler = restfulGetResource(getter, exporter, reqScope)这个的具体流程

这里就是获取kubernetes 资源对象的代码，也就是调用对象的方法了

接下来再分析kube-apiserver如何连接etcd,大概流程图如下
Run—>CreateServerChain—>CreateKubeAPIServer—>Complete—>cfg.createEndpointReconciler()—>c.createLeaseReconciler()—>storagefactory.Create(*config)

storagefactory.Create(*config)的代码如下

// Create creates a storage backend based on given config.
func Create(c storagebackend.Config) (storage.Interface, DestroyFunc, error) {switch c.Type {case storagebackend.StorageTypeETCD2:return newETCD2Storage(c)case storagebackend.StorageTypeUnset, storagebackend.StorageTypeETCD3:// TODO: We have the following features to implement:// - Support secure connection by using key, cert, and CA files.// - Honor "https" scheme to support secure connection in gRPC.// - Support non-quorum read.return newETCD3Storage(c)default:return nil, nil, fmt.Errorf("unknown storage type: %s", c.Type)}
}

接下来每个kubernetes 资源对象都可以操作etcd的数据了

声明，由于本人的能力有限，还有很多具体的细节没有分析到，需要读者自己去看源码，才能更好地理解kube-apiserver的源码

简单分析

/apis/apps组

{"kind": "APIGroup","apiVersion": "v1","name": "apps","versions": [{"groupVersion": "apps/v1","version": "v1"},{"groupVersion": "apps/v1beta2","version": "v1beta2"},{"groupVersion": "apps/v1beta1","version": "v1beta1"}],"preferredVersion": {"groupVersion": "apps/v1","version": "v1"}
}

/apis/apps/v1版本有的资源对象以及能进行的操作

{"kind": "APIResourceList","apiVersion": "v1","groupVersion": "apps/v1","resources": [{"name": "controllerrevisions","singularName": "","namespaced": true,"kind": "ControllerRevision","verbs": ["create","delete","deletecollection","get","list","patch","update","watch"]},{"name": "daemonsets","singularName": "","namespaced": true,"kind": "DaemonSet","verbs": ["create","delete","deletecollection","get","list","patch","update","watch"],"shortNames": ["ds"],"categories": ["all"]},{"name": "daemonsets/status","singularName": "","namespaced": true,"kind": "DaemonSet","verbs": ["get","patch","update"]},{"name": "deployments","singularName": "","namespaced": true,"kind": "Deployment","verbs": ["create","delete","deletecollection","get","list","patch","update","watch"],"shortNames": ["deploy"],"categories": ["all"]},{"name": "deployments/scale","singularName": "","namespaced": true,"group": "autoscaling","version": "v1","kind": "Scale","verbs": ["get","patch","update"]},{"name": "deployments/status","singularName": "","namespaced": true,"kind": "Deployment","verbs": ["get","patch","update"]},{"name": "replicasets","singularName": "","namespaced": true,"kind": "ReplicaSet","verbs": ["create","delete","deletecollection","get","list","patch","update","watch"],"shortNames": ["rs"],"categories": ["all"]},{"name": "replicasets/scale","singularName": "","namespaced": true,"group": "autoscaling","version": "v1","kind": "Scale","verbs": ["get","patch","update"]},{"name": "replicasets/status","singularName": "","namespaced": true,"kind": "ReplicaSet","verbs": ["get","patch","update"]},{"name": "statefulsets","singularName": "","namespaced": true,"kind": "StatefulSet","verbs": ["create","delete","deletecollection","get","list","patch","update","watch"],"shortNames": ["sts"],"categories": ["all"]},{"name": "statefulsets/scale","singularName": "","namespaced": true,"group": "autoscaling","version": "v1","kind": "Scale","verbs": ["get","patch","update"]},{"name": "statefulsets/status","singularName": "","namespaced": true,"kind": "StatefulSet","verbs": ["get","patch","update"]}]
}
