H264解析SPS获取宽高等信息

本文主要是介绍H264解析SPS获取宽高等信息，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

#ifndef H264ParseSPS_h
#define H264ParseSPS_h
#ifdef __cplusplus
extern “C”
{
#endif
#include <stdio.h>

typedef struct
{
unsigned int profile_idc;
unsigned int level_idc;

<span class="hljs-keyword">unsigned</span> <span class="hljs-keyword">int</span> width;
<span class="hljs-keyword">unsigned</span> <span class="hljs-keyword">int</span> height;
<span class="hljs-keyword">unsigned</span> <span class="hljs-keyword">int</span> fps;       <span class="hljs-comment">//SPS中可能不包含FPS信息</span>

} sps_info_struct;

/**
解析SPS数据信息

@param data SPS数据内容，需要Nal类型为0x7数据的开始(比如：67 42 00 28 ab 40 22 01 e3 cb cd c0 80 80 a9 02)
@param dataSize SPS数据的长度
@param info SPS解析之后的信息数据结构体
@return success:1，fail:0

*/
int h264_parse_sps(const unsigned char *data, unsigned int dataSize, sps_info_struct *info);

#ifdef __cplusplus
}
#endif
#endif /* H264ParseSPS_h */

H264ParseSPS.c

//
//  H264ParseSPS.c
//
//  Created by lzj<lizhijian_21@163.com> on 2018/7/6.
//  Copyright © 2018年 LZJ. All rights reserved.
//
//  See https://www.itu.int/rec/T-REC-H.264-201610-S
//

#include “H264ParseSPS.h”
#include <string.h>
#include <stdlib.h>
#include <math.h>

typedef unsigned char BYTE;
typedef int INT;
typedef unsigned int UINT;

typedef struct
{
    const BYTE *data;   //sps数据
UINT size;          //sps数据大小
UINT index;         //当前计算位所在的位置标记
} sps_bit_stream;

/
 移除H264的NAL防竞争码(0x03)
 @param data sps数据
 @param dataSize sps数据大小
 */
static void del_emulation_prevention(BYTE *data, UINT *dataSize)
{
UINT dataSizeTemp = *dataSize;
    for (UINT i=0, j=0; i<(dataSizeTemp-2); i++) {
        int val = (data[i]^0x0) + (data[i+1]^0x0) + (data[i+2]^0x3);    //检测是否是竞争码
        if (val == 0) {
            for (j=i+2; j<dataSizeTemp-1; j++) {    //移除竞争码
data[j] = data[j+1];
}

(*dataSize)–;      //data size 减1
}
}
}

static void sps_bs_init(sps_bit_stream *bs, const BYTE *data, UINT size)
{
    if (bs) {
bs->data = data;
bs->size = size;
bs->index = 0;
}
}

/
 是否已经到数据流最后

 @param bs sps_bit_stream数据
 @return 1：yes，0：no
 */
static INT eof(sps_bit_stream *bs)
{
    return (bs->index >= bs->size * 8);    //位偏移已经超出数据
}

/
 读取从起始位开始的BitCount个位所表示的值

 @param bs sps_bit_stream数据
 @param bitCount bit位个数(从低到高)
 @return value
 */
static UINT u(sps_bit_stream *bs, BYTE bitCount)
{
UINT val = 0;
    for (BYTE i=0; i<bitCount; i++) {
val <<= 1;
        if (eof(bs)) {
val = 0;
            break;
} else if (bs->data[bs->index / 8] & (0x80 >> (bs->index % 8))) {     //计算index所在的位是否为1
val |= 1;
}
bs->index++;  //递增当前起始位(表示该位已经被计算，在后面的计算过程中不需要再次去计算所在的起始位索引，缺点：后面每个bit位都需要去位移)
}

    return val;
}

/
 读取无符号哥伦布编码值(UE)
 #2^LeadingZeroBits - 1 + (xxx)
 @param bs sps_bit_stream数据
 @return value
 */
static UINT ue(sps_bit_stream *bs)
{
UINT zeroNum = 0;
    while (u(bs, 1) == 0 && !eof(bs) && zeroNum < 32) {
zeroNum ++;
}

    return (UINT)((1 << zeroNum) - 1 + u(bs, zeroNum));
}

/
 读取有符号哥伦布编码值(SE)
 #(-1)^(k+1) * Ceil(k/2)

 @param bs sps_bit_stream数据
 @return value
 */
INT se(sps_bit_stream *bs)
{
INT ueVal = (INT)ue(bs);
    double k = ueVal;

INT seVal = (INT)ceil(k / 2);     //ceil:返回大于或者等于指定表达式的最小整数
    if (ueVal % 2 == 0) {       //偶数取反，即(-1)^(k+1)
seVal = -seVal;
}

    return seVal;
}

/
 视频可用性信息(Video usability information)解析
 @param bs sps_bit_stream数据
 @param info sps解析之后的信息数据及结构体

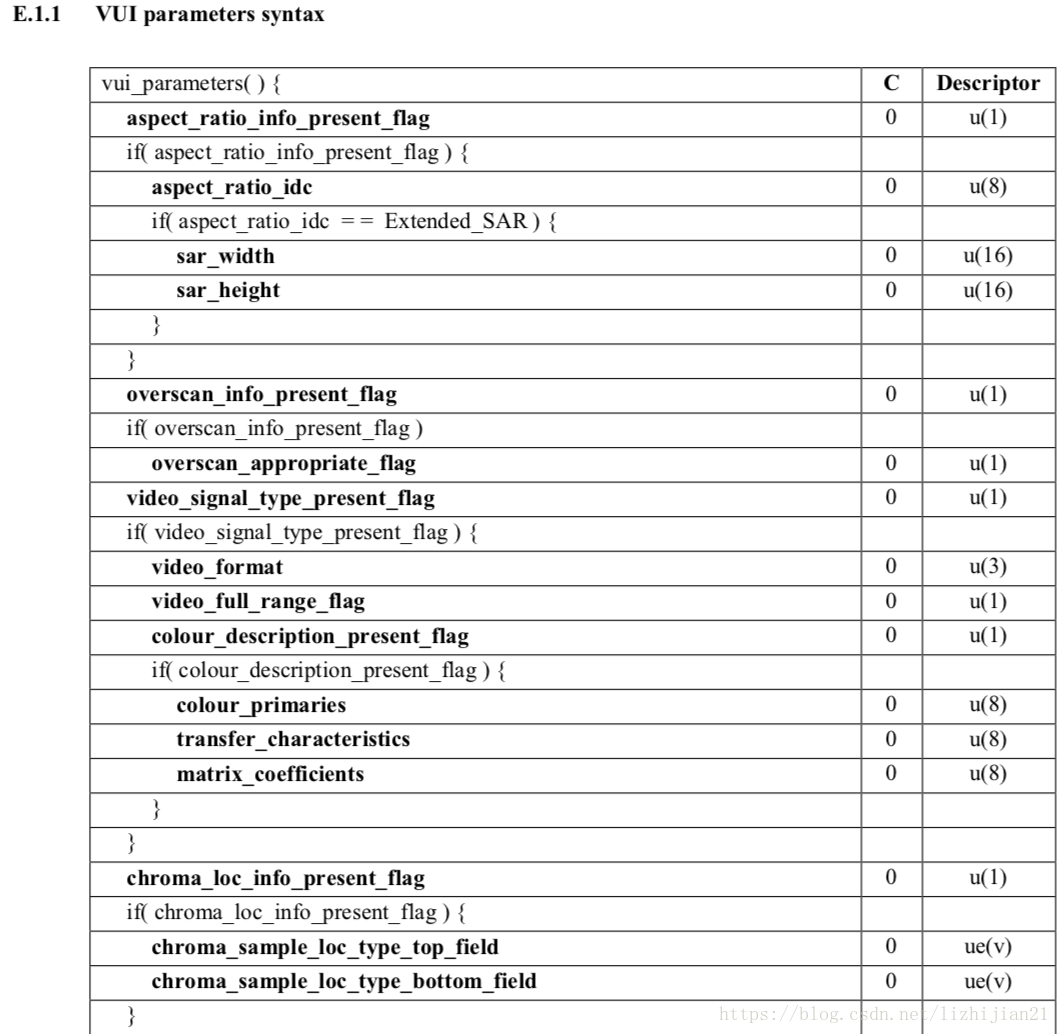

 @see E.1.1 VUI parameters syntax
 */
void vui_para_parse(sps_bit_stream *bs, sps_info_struct *info)
{
UINT aspect_ratio_info_present_flag = u(bs, 1);
    if (aspect_ratio_info_present_flag) {
UINT aspect_ratio_idc = u(bs, 8);
        if (aspect_ratio_idc == 255) {      //Extended_SAR
u(bs, 16);      //sar_width
u(bs, 16);      //sar_height
}
}

UINT overscan_info_present_flag = u(bs, 1);
    if (overscan_info_present_flag) {
u(bs, 1);       //overscan_appropriate_flag
}

UINT video_signal_type_present_flag = u(bs, 1);
    if (video_signal_type_present_flag) {
u(bs, 3);       //video_format
u(bs, 1);       //video_full_range_flag
UINT colour_description_present_flag = u(bs, 1);
        if (colour_description_present_flag) {
u(bs, 8);       //colour_primaries
u(bs, 8);       //transfer_characteristics
u(bs, 8);       //matrix_coefficients
}
}

UINT chroma_loc_info_present_flag = u(bs, 1);
    if (chroma_loc_info_present_flag) {
ue(bs);     //chroma_sample_loc_type_top_field
ue(bs);     //chroma_sample_loc_type_bottom_field
}

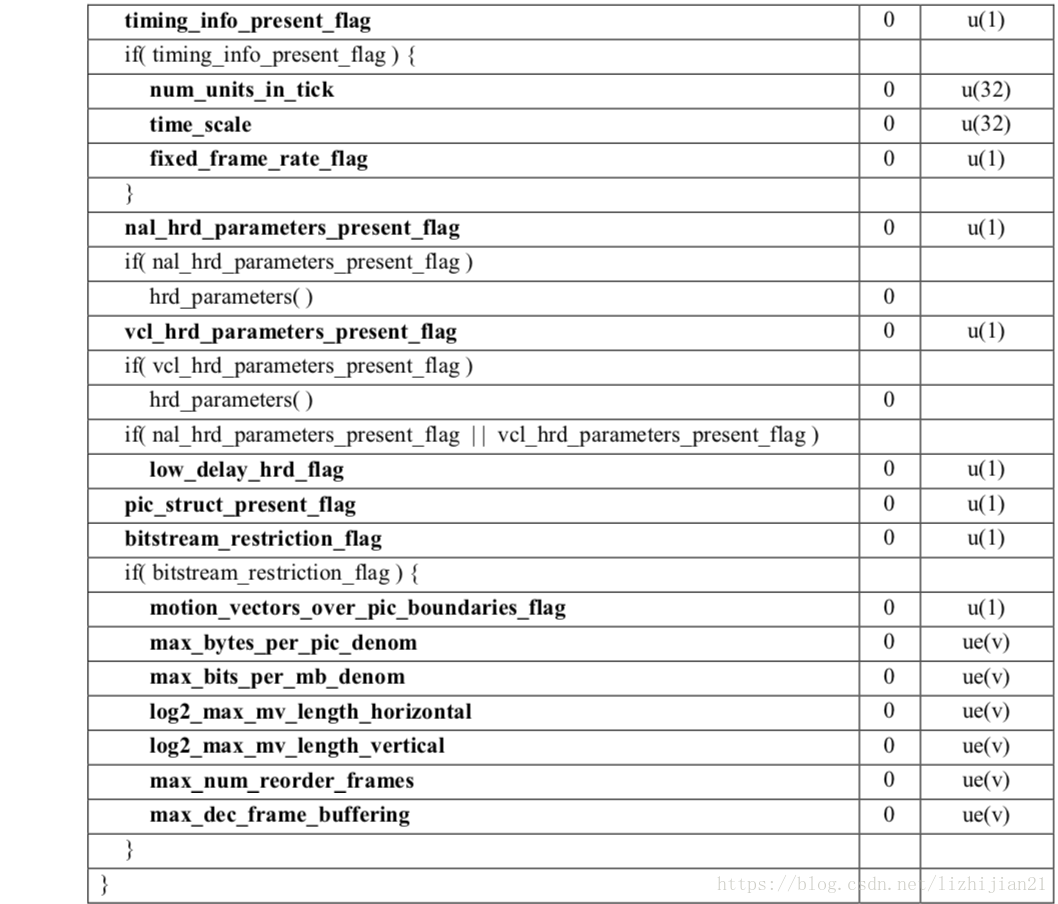

UINT timing_info_present_flag = u(bs, 1);
    if (timing_info_present_flag) {
UINT num_units_in_tick = u(bs, 32);
UINT time_scale = u(bs, 32);
UINT fixed_frame_rate_flag = u(bs, 1);

info->fps = (UINT)((float)time_scale / (float)num_units_in_tick);
        if (fixed_frame_rate_flag) {
info->fps = info->fps/2;
}
}

UINT nal_hrd_parameters_present_flag = u(bs, 1);
    if (nal_hrd_parameters_present_flag) {
        //hrd_parameters()  //see E.1.2 HRD parameters syntax
}

    //后面代码需要hrd_parameters()函数接口实现才有用
UINT vcl_hrd_parameters_present_flag = u(bs, 1);
    if (vcl_hrd_parameters_present_flag) {
        //hrd_parameters()
}
    if (nal_hrd_parameters_present_flag || vcl_hrd_parameters_present_flag) {
u(bs, 1);   //low_delay_hrd_flag
}

u(bs, 1);       //pic_struct_present_flag
UINT bitstream_restriction_flag = u(bs, 1);
    if (bitstream_restriction_flag) {
u(bs, 1);   //motion_vectors_over_pic_boundaries_flag
ue(bs);     //max_bytes_per_pic_denom
ue(bs);     //max_bits_per_mb_denom
ue(bs);     //log2_max_mv_length_horizontal
ue(bs);     //log2_max_mv_length_vertical
ue(bs);     //max_num_reorder_frames
ue(bs);     //max_dec_frame_buffering
}
}

//See 7.3.1 NAL unit syntax

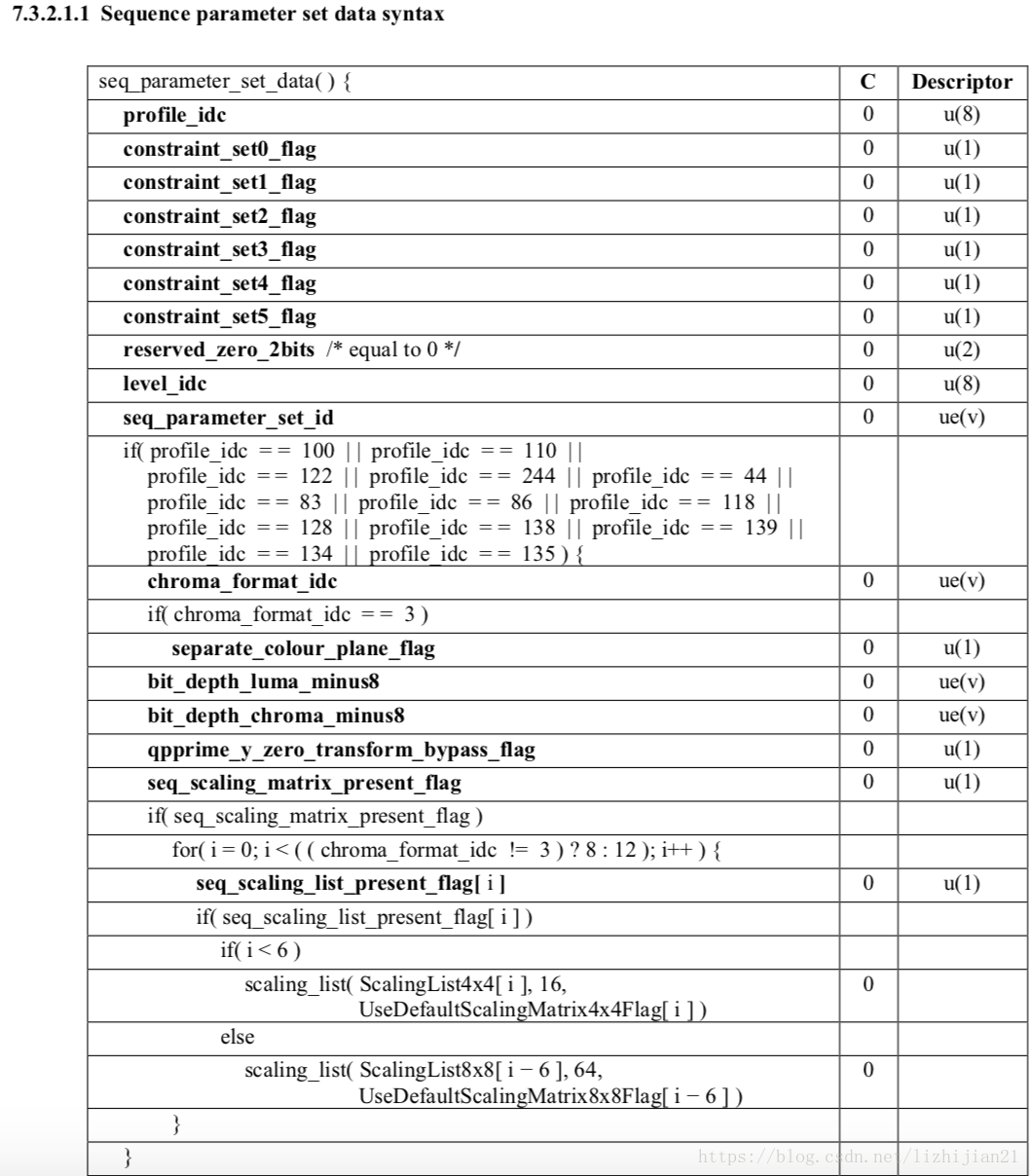

//See 7.3.2.1.1 Sequence parameter set data syntax
INT h264_parse_sps(const BYTE *data, UINT dataSize, sps_info_struct *info)
{
    if (!data || dataSize <= 0 || !info) return 0;
INT ret = 0;

BYTE *dataBuf = malloc(dataSize);
    memcpy(dataBuf, data, dataSize);        //重新拷贝一份数据，防止移除竞争码时对原数据造成影响
del_emulation_prevention(dataBuf, &dataSize);

sps_bit_stream bs = {0};
sps_bs_init(&bs, dataBuf, dataSize);   //初始化SPS数据流结构体

u(&bs, 1);      //forbidden_zero_bit
u(&bs, 2);      //nal_ref_idc
UINT nal_unit_type = u(&bs, 5);

    if (nal_unit_type == 0x7) {     //Nal SPS Flag
info->profile_idc = u(&bs, 8);
u(&bs, 1);      //constraint_set0_flag
u(&bs, 1);      //constraint_set1_flag
u(&bs, 1);      //constraint_set2_flag
u(&bs, 1);      //constraint_set3_flag
u(&bs, 1);      //constraint_set4_flag
u(&bs, 1);      //constraint_set4_flag
u(&bs, 2);      //reserved_zero_2bits
info->level_idc = u(&bs, 8);

ue(&bs);    //seq_parameter_set_id

UINT chroma_format_idc = 1;     //摄像机出图大部分格式是4:2:0
        if (info->profile_idc == 100 || info->profile_idc == 110 || info->profile_idc == 122 ||
info->profile_idc == 244 || info->profile_idc == 44 || info->profile_idc == 83 ||
info->profile_idc == 86 || info->profile_idc == 118 || info->profile_idc == 128 ||
info->profile_idc == 138 || info->profile_idc == 139 || info->profile_idc == 134 || info->profile_idc == 135) {
chroma_format_idc = ue(&bs);
            if (chroma_format_idc == 3) {
u(&bs, 1);      //separate_colour_plane_flag
}

ue(&bs);        //bit_depth_luma_minus8
ue(&bs);        //bit_depth_chroma_minus8
u(&bs, 1);      //qpprime_y_zero_transform_bypass_flag
UINT seq_scaling_matrix_present_flag = u(&bs, 1);
            if (seq_scaling_matrix_present_flag) {
UINT seq_scaling_list_present_flag[8] = {0};
                for (INT i=0; i<((chroma_format_idc != 3)?8:12); i++) {
seq_scaling_list_present_flag[i] = u(&bs, 1);
                    if (seq_scaling_list_present_flag[i]) {
                        if (i < 6) {    //scaling_list(ScalingList4x4[i], 16, UseDefaultScalingMatrix4x4Flag[i])
} else {    //scaling_list(ScalingList8x8[i − 6], 64, UseDefaultScalingMatrix8x8Flag[i − 6] )
}
}
}
}
}

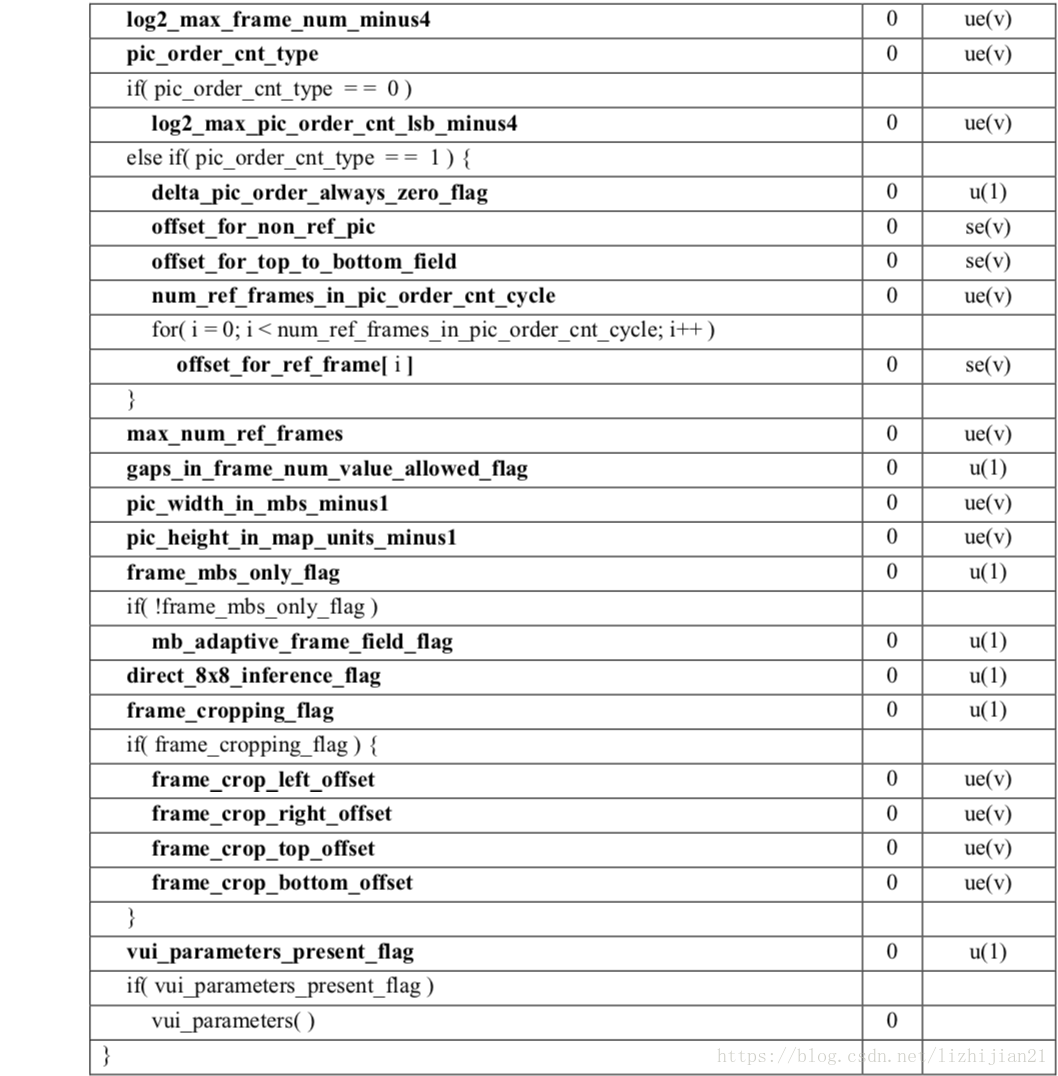

ue(&bs);        //log2_max_frame_num_minus4
UINT pic_order_cnt_type = ue(&bs);
        if (pic_order_cnt_type == 0) {
ue(&bs);        //log2_max_pic_order_cnt_lsb_minus4
} else if (pic_order_cnt_type == 1) {
u(&bs, 1);      //delta_pic_order_always_zero_flag
se(&bs);        //offset_for_non_ref_pic
se(&bs);        //offset_for_top_to_bottom_field

UINT num_ref_frames_in_pic_order_cnt_cycle = ue(&bs);
INT *offset_for_ref_frame = (INT )malloc((UINT)num_ref_frames_in_pic_order_cnt_cycle * sizeof(INT));
            for (INT i = 0; i<num_ref_frames_in_pic_order_cnt_cycle; i++) {
offset_for_ref_frame[i] = se(&bs);
}
            free(offset_for_ref_frame);
}

ue(&bs);      //max_num_ref_frames
u(&bs, 1);      //gaps_in_frame_num_value_allowed_flag

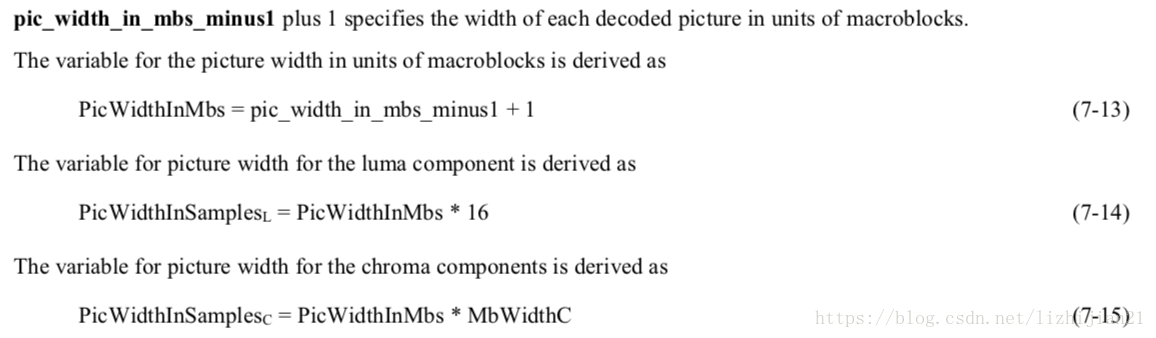

UINT pic_width_in_mbs_minus1 = ue(&bs);     //第36位开始

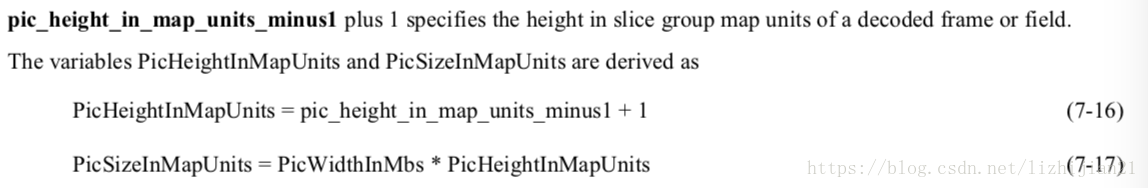

UINT pic_height_in_map_units_minus1 = ue(&bs);      //47

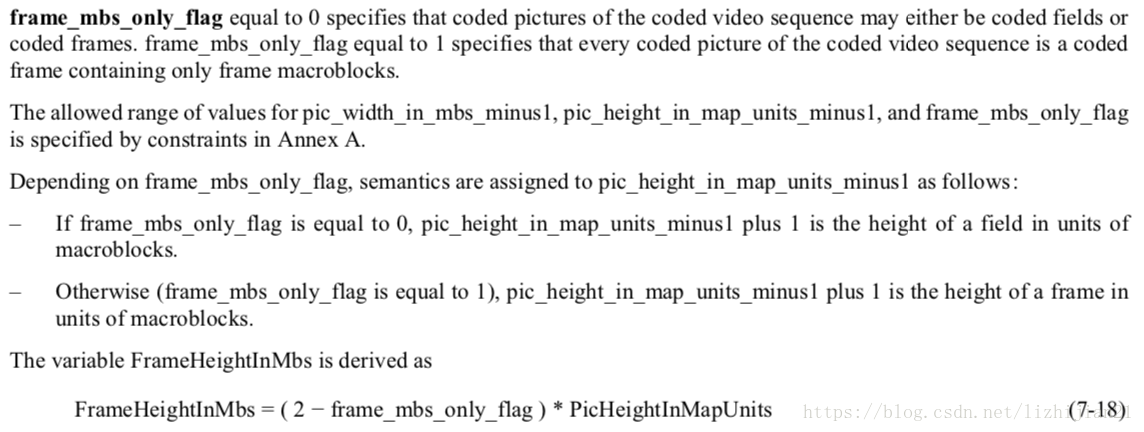

UINT frame_mbs_only_flag = u(&bs, 1);

info->width = (INT)(pic_width_in_mbs_minus1 + 1) * 16;
info->height = (INT)(2 - frame_mbs_only_flag) * (pic_height_in_map_units_minus1 + 1) * 16;

        if (!frame_mbs_only_flag) {
u(&bs, 1);      //mb_adaptive_frame_field_flag
}

u(&bs, 1);     //direct_8x8_inference_flag
UINT frame_cropping_flag = u(&bs, 1);
        if (frame_cropping_flag) {
UINT frame_crop_left_offset = ue(&bs);
UINT frame_crop_right_offset = ue(&bs);
UINT frame_crop_top_offset = ue(&bs);
UINT frame_crop_bottom_offset= ue(&bs);

            //See 6.2 Source, decoded, and output picture formats

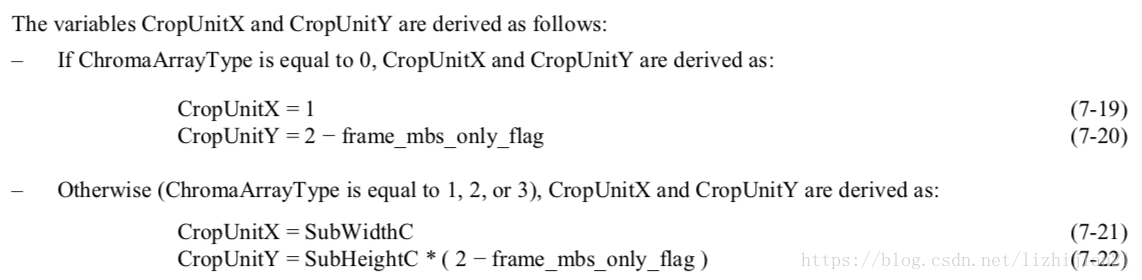

INT crop_unit_x = 1;
INT crop_unit_y = 2 - frame_mbs_only_flag;      //monochrome or 4:4:4
            if (chroma_format_idc == 1) {   //4:2:0
crop_unit_x = 2;
crop_unit_y = 2 * (2 - frame_mbs_only_flag);
} else if (chroma_format_idc == 2) {    //4:2:2
crop_unit_x = 2;
crop_unit_y = 2 - frame_mbs_only_flag;
}

info->width -= crop_unit_x * (frame_crop_left_offset + frame_crop_right_offset);
info->height -= crop_unit_y * (frame_crop_top_offset + frame_crop_bottom_offset);
}

UINT vui_parameters_present_flag = u(&bs, 1);
        if (vui_parameters_present_flag) {
vui_para_parse(&bs, info);
}

ret = 1;
}
    free(dataBuf);

    return ret;
}

代码中部分未用到的参数并没有获取并赋值，比如：u(&bs, 1);      //forbidden_zero_bit。如需获取相应在这里插入代码片的参数，只需将注释后面对应的变量值进行赋值即可，如：UINT forbidden_zero_bit = u(&bs, 1);

h264_parse_sps接口中sps数据需要第一个字节以Nal类型为0x7作为开始，比如：67 42 00 28 ab 40 22 01 e3 cb cd c0 80 80 a9 02，解析得到的宽高为10801920，fps为0。
