基于C#的眼部瞳孔追踪 与 双图片融合成像

2023-11-04 08:20

本文主要是介绍基于C#的眼部瞳孔追踪 与 双图片融合成像,希望对大家解决编程问题提供一定的参考价值,需要的开发者们随着小编来一起学习吧!

前期我们先用画饼充饥的方法来做研发与测试

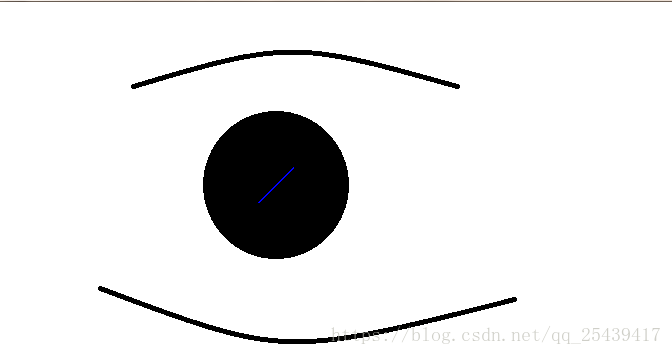

手动画人眼

测试算法

蓝线中心点为瞳孔中心,可以看到比较准。

具体代码如下:

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using System.Drawing.Imaging;
using System.Runtime.InteropServices;namespace WindowsFormsApplication8
{public partial class Form1 : Form{Point p = new Point();static Bitmap b;int h;int w;Bitmap b1;BitmapData bd;BitmapData bd1;public Form1(){InitializeComponent();this.Show();String s = "";b = null;OpenFileDialog ofd = new OpenFileDialog();if (ofd.ShowDialog() == DialogResult.OK){s = ofd.FileName;b = (Bitmap)Bitmap.FromFile(s, false);int[] point = getdivimg(b);try{//Bitmap bmp = new Bitmap(b.Width, b.Height, PixelFormat.Format32bppArgb);MessageBox.Show(point[0] + "---" + point[1]);p.X = point[1];p.Y = point[0];this.pictureBox1.Load(s);//g = Graphics.FromImage(bmp);//g.InterpolationMode = System.Drawing.Drawing2D.InterpolationMode.HighQualityBicubic;//g.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.HighQuality;//g.CompositingQuality = System.Drawing.Drawing2D.CompositingQuality.HighQuality;//Image img = Image.FromFile(s);//g.DrawImage(img, 0, 0);pictureBox1.Refresh();//g.FillEllipse(Brushes.Red, 0, 0, 100, 100);this.pictureBox1.Image = img;//g.Dispose();}catch (Exception e1){MessageBox.Show(e1.Message);}}}private void Form1_Load(object sender, EventArgs e){this.Show();}public void setgray(Bitmap b){ColorPalette cp = b.Palette;for (int i = 0; i < 256; i++){cp.Entries[i] = Color.FromArgb(i, i, i);}b.Palette = cp;}public int[] getdivimg(Bitmap b){h = b.Height;w = b.Width;Rectangle rect = new Rectangle(0, 0, w, h);bd = b.LockBits(rect, ImageLockMode.ReadWrite, PixelFormat.Format8bppIndexed);b1 = new Bitmap(b.Width, b.Height, PixelFormat.Format8bppIndexed);bd1 = b1.LockBits(rect, ImageLockMode.ReadWrite, PixelFormat.Format8bppIndexed);int len = bd.Stride * h;byte[] imgbyte = new byte[len];Marshal.Copy(bd.Scan0, imgbyte, 0, len);int i = 0;int j = 0;int[] hist = new int[256];int maxgray = 0;int maxpos = 0;int bogugray = 0;int bogupos = 0;try{for (i = 0; i < h; i++){for (j = 0; j < w; j++){int t = imgbyte[i * bd.Stride + j];hist[t]++;if (hist[t] > maxgray){maxgray = hist[t];maxpos = t;}}}bogugray = maxgray;for (int k = 9; k < maxpos; k++){if (hist[k] < bogugray){bogugray = hist[k];bogupos = k;}}int[] apoint = getcenterpoint(imgbyte, 0, h, 0, w, bogupos);MessageBox.Show(apoint[0] + "---" + apoint[1]);int[] point = getcenterpoint(imgbyte, apoint[0] - 100, apoint[0] + 100, apoint[1] - 100, apoint[1] + 100, bogupos);MessageBox.Show(point[0] + "---" + point[1]);return point;}catch (Exception e1){MessageBox.Show(e1.Message);return null;}}double r;public int[] getcenterpoint(byte[] imgbyte, int xstart = 0, int xend = 378, int ystart = 0, int yend = 681, int thresh=0){if(xstart < 0)xstart=0;if (xend > h)xend = h;if (ystart < 0)ystart = 0;if (yend > w)yend = w;bool firstpoint = false;int firstx = 0;int firsty = 0;int xpossum = 0, ypossum = 0, count = 0;for (int i = xstart; i < xend; i++){for (int j = ystart; j < yend; j++){//Console.WriteLine(i * bd.Stride + j);int t = imgbyte[i * bd.Stride + j];if (t <= thresh){if (!firstpoint) {firstx = i;firsty = j;firstpoint = true;}imgbyte[i * bd.Stride + j] = (byte)0;xpossum += i;ypossum += j;count++;}else{imgbyte[i * bd.Stride + j] = (byte)255;}}}//b.UnlockBits(bd);int[] point = new int[2];point[0] = xpossum / count;point[1] = ypossum / count;r = Math.Sqrt(Math.Abs(firstx - point[0]) * Math.Abs(firstx - point[0]) + Math.Abs(firsty - point[1]) * Math.Abs(firsty - point[1]));Console.WriteLine(r);return point;}private void pictureBox1_Paint(object sender, PaintEventArgs e){}private void pictureBox1_Paint_1(object sender, PaintEventArgs e){Pen pen=new Pen (Color .Blue,50);Point q = new Point(p.X + 1, p.Y + 1);e.Graphics.DrawLine(pen, p, q);}private void pictureBox1_Click(object sender, EventArgs e){}}
}

那么对真实人眼准不准呢

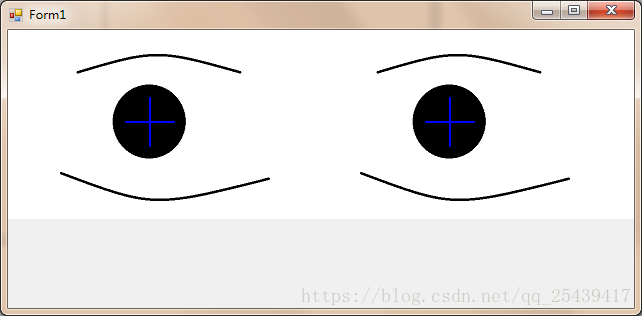

接下来是读入两副眼睛图片并做拼接融合

上面是先用picturebox做的伪融合,真正的融合需要在内存地址中融合,用到Marshal

伪融合代码:

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using System.Drawing.Imaging;
using System.Runtime.InteropServices;namespace WindowsFormsApplication8
{public partial class Form1 : Form{Point p = new Point();Point p2 = new Point();static Bitmap b;static Bitmap b2;int h;int w;Bitmap b1;BitmapData bd;BitmapData bd1;public Form1(){InitializeComponent();this.Show();String s = "";b = null;OpenFileDialog ofd = new OpenFileDialog();if (ofd.ShowDialog() == DialogResult.OK){s = ofd.FileName;b = (Bitmap)Bitmap.FromFile(s, false);int[] point = getdivimg(b);try{//Bitmap bmp = new Bitmap(b.Width, b.Height, PixelFormat.Format32bppArgb);MessageBox.Show(point[0] + "---" + point[1]);p.X = point[1];p.Y = point[0];this.pictureBox1.Load(s);//g = Graphics.FromImage(bmp);//g.InterpolationMode = System.Drawing.Drawing2D.InterpolationMode.HighQualityBicubic;//g.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.HighQuality;//g.CompositingQuality = System.Drawing.Drawing2D.CompositingQuality.HighQuality;//Image img = Image.FromFile(s);//g.DrawImage(img, 0, 0);pictureBox1.Refresh();//g.FillEllipse(Brushes.Red, 0, 0, 100, 100);this.pictureBox1.Image = img;//g.Dispose();}catch (Exception e1){MessageBox.Show(e1.Message);}}if (ofd.ShowDialog() == DialogResult.OK){s = ofd.FileName;b2 = (Bitmap)Bitmap.FromFile(s, false);int[] point = getdivimg(b2);try{//Bitmap bmp = new Bitmap(b.Width, b.Height, PixelFormat.Format32bppArgb);MessageBox.Show(point[0] + "---" + point[1]);p2.X = point[1];p2.Y = point[0];this.pictureBox2.Load(s);//g = Graphics.FromImage(bmp);//g.InterpolationMode = System.Drawing.Drawing2D.InterpolationMode.HighQualityBicubic;//g.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.HighQuality;//g.CompositingQuality = System.Drawing.Drawing2D.CompositingQuality.HighQuality;//Image img = Image.FromFile(s);//g.DrawImage(img, 0, 0);pictureBox2.Refresh();//g.FillEllipse(Brushes.Red, 0, 0, 100, 100);this.pictureBox1.Image = img;//g.Dispose();}catch (Exception e1){MessageBox.Show(e1.Message);}}}private void Form1_Load(object sender, EventArgs e){this.Show();}public void setgray(Bitmap b){ColorPalette cp = b.Palette;for (int i = 0; i < 256; i++){cp.Entries[i] = Color.FromArgb(i, i, i);}b.Palette = cp;}public int[] getdivimg(Bitmap b){h = b.Height;w = b.Width;Rectangle rect = new Rectangle(0, 0, w, h);bd = b.LockBits(rect, ImageLockMode.ReadWrite, PixelFormat.Format8bppIndexed);b1 = new Bitmap(b.Width, b.Height, PixelFormat.Format8bppIndexed);bd1 = b1.LockBits(rect, ImageLockMode.ReadWrite, PixelFormat.Format8bppIndexed);int len = bd.Stride * h;byte[] imgbyte = new byte[len];Marshal.Copy(bd.Scan0, imgbyte, 0, len);int i = 0;int j = 0;int[] hist = new int[256];int maxgray = 0;int maxpos = 0;int bogugray = 0;int bogupos = 0;try{for (i = 0; i < h; i++){for (j = 0; j < w; j++){int t = imgbyte[i * bd.Stride + j];hist[t]++;if (hist[t] > maxgray){maxgray = hist[t];maxpos = t;}}}bogugray = maxgray;for (int k = 9; k < maxpos; k++){if (hist[k] < bogugray){bogugray = hist[k];bogupos = k;}}int[] apoint = getcenterpoint(imgbyte, 0, h, 0, w, bogupos);MessageBox.Show(apoint[0] + "---" + apoint[1]);int[] point = getcenterpoint(imgbyte, apoint[0] - 100, apoint[0] + 100, apoint[1] - 100, apoint[1] + 100, bogupos);MessageBox.Show(point[0] + "---" + point[1]);return point;}catch (Exception e1){MessageBox.Show(e1.Message);return null;}}double r;public int[] getcenterpoint(byte[] imgbyte, int xstart = 0, int xend = 378, int ystart = 0, int yend = 681, int thresh=0){if(xstart < 0)xstart=0;if (xend > h)xend = h;if (ystart < 0)ystart = 0;if (yend > w)yend = w;bool firstpoint = false;int firstx = 0;int firsty = 0;int xpossum = 0, ypossum = 0, count = 0;for (int i = xstart; i < xend; i++){for (int j = ystart; j < yend; j++){//Console.WriteLine(i * bd.Stride + j);int t = imgbyte[i * bd.Stride + j];if (t <= thresh){if (!firstpoint) {firstx = i;firsty = j;firstpoint = true;}imgbyte[i * bd.Stride + j] = (byte)0;xpossum += i;ypossum += j;count++;}else{imgbyte[i * bd.Stride + j] = (byte)255;}}}//b.UnlockBits(bd);int[] point = new int[2];point[0] = xpossum / count;point[1] = ypossum / count;r = Math.Sqrt(Math.Abs(firstx - point[0]) * Math.Abs(firstx - point[0]) + Math.Abs(firsty - point[1]) * Math.Abs(firsty - point[1]));Console.WriteLine(r);return point;}private void pictureBox1_Paint(object sender, PaintEventArgs e){}private void pictureBox1_Paint_1(object sender, PaintEventArgs e){Pen pen = new Pen(Color.Blue, 50);Point q = new Point(p.X, p.Y + 1);e.Graphics.DrawLine(pen, p, q);Point q2 = new Point(p.X, p.Y - 1);e.Graphics.DrawLine(pen, p, q2);Point q3 = new Point(p.X+1, p.Y );e.Graphics.DrawLine(pen, p, q3);Point q4 = new Point(p.X-1, p.Y);e.Graphics.DrawLine(pen, p, q4);}private void pictureBox1_Click(object sender, EventArgs e){}private void pictureBox2_Paint(object sender, PaintEventArgs e){Pen pen = new Pen(Color.Blue, 50);Point q = new Point(p2.X, p2.Y + 1);e.Graphics.DrawLine(pen, p2, q);Point q2 = new Point(p2.X, p2.Y - 1);e.Graphics.DrawLine(pen, p2, q2);Point q3 = new Point(p2.X + 1, p2.Y);e.Graphics.DrawLine(pen, p2, q3);Point q4 = new Point(p2.X - 1, p2.Y);e.Graphics.DrawLine(pen, p2, q4);}}
}

真正融合代码:

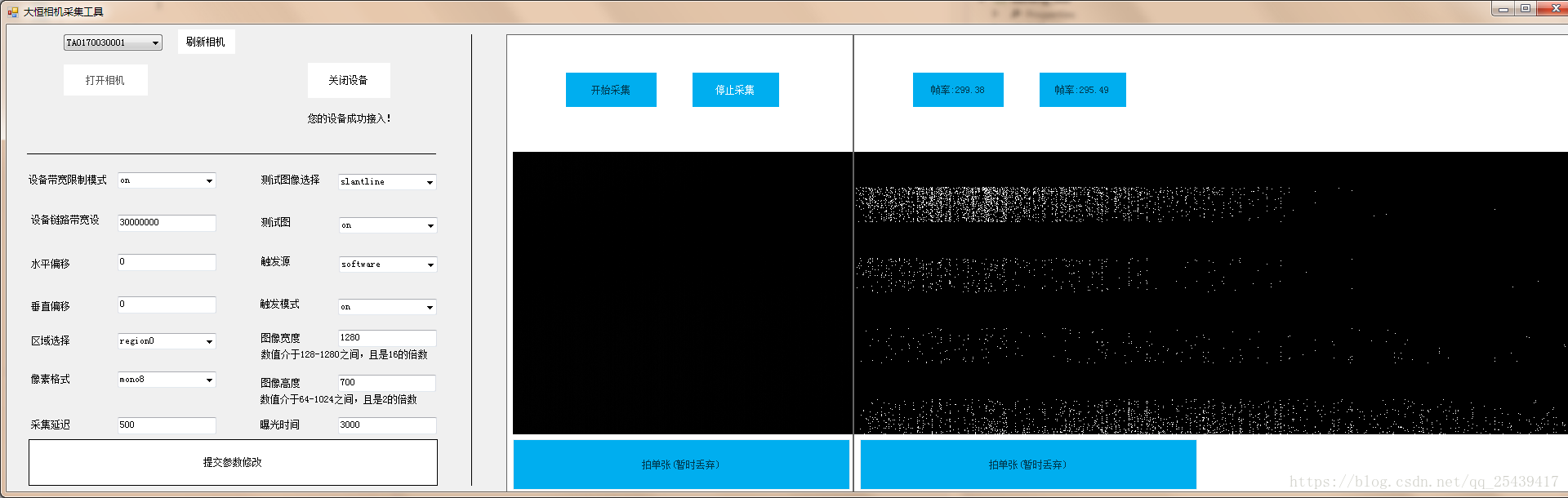

在自己开发的程序中,初次尝试byte上的融合

出现了这种情况

右边为融合之后的,出现了间隔栅格+噪声


做了一些调试以后,感觉问题应该是在于 变量没上锁,变量还没进入 就被读出,所以会产生噪声和黑色蒙版

尝试在变量上加锁

这篇关于基于C#的眼部瞳孔追踪 与 双图片融合成像的文章就介绍到这儿,希望我们推荐的文章对编程师们有所帮助!
