一直想找RecyclerView自定义LayoutManager相关资料，网上虽然有几篇，但是写的却不够详细，看的一知半解。Google了几篇国外的文章后研究了一下，今天决定静下心来好好去写一篇关于自定义LayoutManager，跟大家一起学习~。相信大家都会使用RecyclerView，本文重点介绍如何自定义RecyclerView中的LayoutManager。
1 RecyclerView机制
RecyclerView内部有个Recycler，它其实就是一个垃圾回收再利用的工具，我们定义LayoutManager时，我们需要将不用的View回收掉；在需要获取新的View时直接申请，即通过getViewForPosition()方法，返回的View可能是之前回收的垃圾View，也可能是new出来的新View，这些都是RecyclerView帮我们做的。那么RecyclerView内部的垃圾View缓存是什么样子的呢？我们接下来看看~
1.1RecyclerView的二级缓存
在RecyclerView中，有两个缓存：Scrap和Recycle。Scrap中文就是废料的意思，Recycle对应是回收的意思。这两个缓存有什么作用呢？首先Scrap缓存是指里面缓存的View是接下来需要用到的，即里面的绑定的数据无需更改，可以直接拿来用的，是一个轻量级的缓存集合；而Recycle的缓存的View为里面的数据需要重新绑定，即需要通过Adapter重新绑定数据。关于这两个缓存的使用场景，下一节详细介绍。
当我们去获取一个新的View时，RecyclerView首先去检查Scrap缓存是否有对应的position的View，如果有，则直接拿出来可以直接用，不用去重新绑定数据；如果没有，则从Recycle缓存中取，并且会回调Adapter的onBindViewHolder方法（当然了，如果Recycle缓存为空，还会调用onCreateViewHolder方法），最后再将绑定好新数据的View返回。
1.2 将View缓存的两种方式
前面我们了解到，RecyclerView中有二级缓存，我们可以自己选择将View缓存到哪里。我们有两种选择的方式：Detach和Remove。Detach的View放在Scrap缓存中，Remove掉的View放在Recycle缓存中；那我们应该如何去选择呢？
在什么样的场景中使用Detach呢？主要是在我们的代码执行结束之前，我们需要反复去将View移除并且马上又要添加进去时，选择Datach方式，比如：当我们对View进行重新排序的时候，可以选择Detach，因为屏幕上显示的就是这些position对应的View，我们并不需要重新去绑定数据，这明显可以提高效率。使用Detach方式可以通过函数detachAndScrapView()实现。
而使用Remove的方式，是当View不在屏幕中有任何显示的时候，你需要将它Remove掉，以备后面循环利用。可以通过函数removeAndRecycleView()实现。
2 开始自定义LayoutManager
首先，得将我们自定义的LayoutManager继承RecyclerView.LayoutManager，而RecyclerView.LayoutManager是一个抽象类，但是抽象方法只有一个generateDefaultLayoutParams也就是说，我们只需要重新这一个方法就可以自定义我们自己的LayoutManager啦~，让我们happy地去自定义吧~
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: "Source Code Pro", monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span>
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> RecyclerView.LayoutParams <span class="hljs-title" style="box-sizing: border-box;">generateDefaultLayoutParams</span>() {<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> RecyclerView.LayoutParams(RecyclerView.LayoutParams.WRAP_CONTENT,RecyclerView.LayoutParams.WRAP_CONTENT);
}</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li></ul>
然后在在MainActivity中默默的加了以下两行代码：
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: "Source Code Pro", monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"> MyLayoutManager layoutManager = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> MyLayoutManager();recyclerView.setLayoutManager(layoutManager);</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li></ul>
很兴奋的运行看效果~~~：哇擦！啥都没有~。哈哈，被耍的感觉有木有！其实，学过自定义ViewGroup都知道，我们需要对子View进行布局，不了解的可以参考我的另一篇博文《自定义View，有这一篇就够了 》，即需要重写onLayout()函数，并且在函数体里面需要对子View进行布局。我们自定义的LayoutManager主要工作就是对子View布局，那更需要我们重新类似onLayout的函数了。正如你所想的那样，LayoutManager有个函数onLayoutChildren()就是负责对子View布局的。
如果我们需要实现一个垂直方向的LinearLayout，我们可以这么写：
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: "Source Code Pro", monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span>
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">onLayoutChildren</span>(RecyclerView.Recycler recycler, RecyclerView.State state) {<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//在布局之前，将所有的子View先Detach掉，放入到Scrap缓存中</span>detachAndScrapAttachedViews(recycler);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//定义竖直方向的偏移量</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> offsetY = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>;<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">for</span> (<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> i = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>; i < getItemCount(); i++) {<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//这里就是从缓存里面取出</span>View view = recycler.getViewForPosition(i);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//将View加入到RecyclerView中</span>addView(view);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//对子View进行测量</span>measureChildWithMargins(view, <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>, <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//把宽高拿到，宽高都是包含ItemDecorate的尺寸</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> width = getDecoratedMeasuredWidth(view);<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> height = getDecoratedMeasuredHeight(view);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//最后，将View布局</span>layoutDecorated(view, <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>, offsetY, width, offsetY + height);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//将竖直方向偏移量增大height</span>offsetY += height;}}</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li></ul>

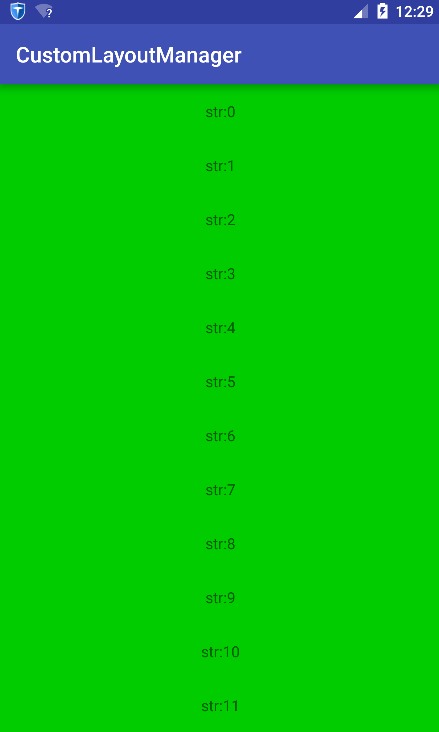

注意到，我们在最开始先执行了detachAndScrapAttachedViews(recycler)，即将所有的子View先Detach掉，放入到Scrap缓存中，为什么要这样做呢？主要是考虑到，屏幕上可能还有一些ItemView是继续要留在屏幕上的，我们不直接Remove，而是选择Detach。最后的效果很简单：
看一下MainActivity的完整代码吧~
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: "Source Code Pro", monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">package</span> com.hc.customlayoutmanager;<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.os.Bundle;
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.support.v7.app.AppCompatActivity;
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.support.v7.widget.RecyclerView;
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.view.LayoutInflater;
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.view.View;
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.view.ViewGroup;
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.widget.TextView;<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> java.util.ArrayList;<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-class" style="box-sizing: border-box;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">class</span> <span class="hljs-title" style="box-sizing: border-box; color: rgb(102, 0, 102);">MainActivity</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">extends</span> <span class="hljs-title" style="box-sizing: border-box; color: rgb(102, 0, 102);">AppCompatActivity</span> {</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> RecyclerView recyclerView;<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> ArrayList<MyEntity> myData;<span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">protected</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">onCreate</span>(Bundle savedInstanceState) {<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">super</span>.onCreate(savedInstanceState);setContentView(R.layout.activity_main);recyclerView = (RecyclerView) findViewById(R.id.recyclerView);initData();MyLayoutManager layoutManager = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> MyLayoutManager();MyAdapter adapter = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> MyAdapter(); recyclerView.setLayoutManager(layoutManager);recyclerView.setAdapter(adapter);}<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//初始化数据</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">initData</span>() {<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> size = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">30</span>;myData = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> ArrayList<>(size);<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">for</span> (<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> i = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>; i < size; i++) {MyEntity e = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> MyEntity();e.setStr(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"str:"</span> + i);myData.add(e);}}<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//自定义Adapter</span>class MyAdapter extends RecyclerView.Adapter<MyViewHolder> {<span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> MyViewHolder <span class="hljs-title" style="box-sizing: border-box;">onCreateViewHolder</span>(ViewGroup parent, <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> viewType) {View v = LayoutInflater.from(MainActivity.<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">this</span>).inflate(R.layout.recycler_view_item, parent, <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">false</span>);MyViewHolder viewHolder = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> MyViewHolder(v);<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> viewHolder;}<span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">onBindViewHolder</span>(MyViewHolder holder, <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> position) {MyEntity myEntity = myData.get(position);holder.setStr(myEntity.getStr());}<span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> <span class="hljs-title" style="box-sizing: border-box;">getItemCount</span>() {<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> myData.size();}}<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//自定义Holder</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">static</span> class MyViewHolder extends RecyclerView.ViewHolder {<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> TextView strTv;<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-title" style="box-sizing: border-box;">MyViewHolder</span>(View itemView) {<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">super</span>(itemView);strTv = (TextView) itemView.findViewById(R.id.str);}<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">setStr</span>(String str) {strTv.setText(str);}}
}
</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li><li style="box-sizing: border-box; padding: 0px 5px;">28</li><li style="box-sizing: border-box; padding: 0px 5px;">29</li><li style="box-sizing: border-box; padding: 0px 5px;">30</li><li style="box-sizing: border-box; padding: 0px 5px;">31</li><li style="box-sizing: border-box; padding: 0px 5px;">32</li><li style="box-sizing: border-box; padding: 0px 5px;">33</li><li style="box-sizing: border-box; padding: 0px 5px;">34</li><li style="box-sizing: border-box; padding: 0px 5px;">35</li><li style="box-sizing: border-box; padding: 0px 5px;">36</li><li style="box-sizing: border-box; padding: 0px 5px;">37</li><li style="box-sizing: border-box; padding: 0px 5px;">38</li><li style="box-sizing: border-box; padding: 0px 5px;">39</li><li style="box-sizing: border-box; padding: 0px 5px;">40</li><li style="box-sizing: border-box; padding: 0px 5px;">41</li><li style="box-sizing: border-box; padding: 0px 5px;">42</li><li style="box-sizing: border-box; padding: 0px 5px;">43</li><li style="box-sizing: border-box; padding: 0px 5px;">44</li><li style="box-sizing: border-box; padding: 0px 5px;">45</li><li style="box-sizing: border-box; padding: 0px 5px;">46</li><li style="box-sizing: border-box; padding: 0px 5px;">47</li><li style="box-sizing: border-box; padding: 0px 5px;">48</li><li style="box-sizing: border-box; padding: 0px 5px;">49</li><li style="box-sizing: border-box; padding: 0px 5px;">50</li><li style="box-sizing: border-box; padding: 0px 5px;">51</li><li style="box-sizing: border-box; padding: 0px 5px;">52</li><li style="box-sizing: border-box; padding: 0px 5px;">53</li><li style="box-sizing: border-box; padding: 0px 5px;">54</li><li style="box-sizing: border-box; padding: 0px 5px;">55</li><li style="box-sizing: border-box; padding: 0px 5px;">56</li><li style="box-sizing: border-box; padding: 0px 5px;">57</li><li style="box-sizing: border-box; padding: 0px 5px;">58</li><li style="box-sizing: border-box; padding: 0px 5px;">59</li><li style="box-sizing: border-box; padding: 0px 5px;">60</li><li style="box-sizing: border-box; padding: 0px 5px;">61</li><li style="box-sizing: border-box; padding: 0px 5px;">62</li><li style="box-sizing: border-box; padding: 0px 5px;">63</li><li style="box-sizing: border-box; padding: 0px 5px;">64</li><li style="box-sizing: border-box; padding: 0px 5px;">65</li><li style="box-sizing: border-box; padding: 0px 5px;">66</li><li style="box-sizing: border-box; padding: 0px 5px;">67</li><li style="box-sizing: border-box; padding: 0px 5px;">68</li><li style="box-sizing: border-box; padding: 0px 5px;">69</li><li style="box-sizing: border-box; padding: 0px 5px;">70</li><li style="box-sizing: border-box; padding: 0px 5px;">71</li><li style="box-sizing: border-box; padding: 0px 5px;">72</li><li style="box-sizing: border-box; padding: 0px 5px;">73</li><li style="box-sizing: border-box; padding: 0px 5px;">74</li><li style="box-sizing: border-box; padding: 0px 5px;">75</li><li style="box-sizing: border-box; padding: 0px 5px;">76</li><li style="box-sizing: border-box; padding: 0px 5px;">77</li><li style="box-sizing: border-box; padding: 0px 5px;">78</li><li style="box-sizing: border-box; padding: 0px 5px;">79</li><li style="box-sizing: border-box; padding: 0px 5px;">80</li><li style="box-sizing: border-box; padding: 0px 5px;">81</li><li style="box-sizing: border-box; padding: 0px 5px;">82</li><li style="box-sizing: border-box; padding: 0px 5px;">83</li><li style="box-sizing: border-box; padding: 0px 5px;">84</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li><li style="box-sizing: border-box; padding: 0px 5px;">28</li><li style="box-sizing: border-box; padding: 0px 5px;">29</li><li style="box-sizing: border-box; padding: 0px 5px;">30</li><li style="box-sizing: border-box; padding: 0px 5px;">31</li><li style="box-sizing: border-box; padding: 0px 5px;">32</li><li style="box-sizing: border-box; padding: 0px 5px;">33</li><li style="box-sizing: border-box; padding: 0px 5px;">34</li><li style="box-sizing: border-box; padding: 0px 5px;">35</li><li style="box-sizing: border-box; padding: 0px 5px;">36</li><li style="box-sizing: border-box; padding: 0px 5px;">37</li><li style="box-sizing: border-box; padding: 0px 5px;">38</li><li style="box-sizing: border-box; padding: 0px 5px;">39</li><li style="box-sizing: border-box; padding: 0px 5px;">40</li><li style="box-sizing: border-box; padding: 0px 5px;">41</li><li style="box-sizing: border-box; padding: 0px 5px;">42</li><li style="box-sizing: border-box; padding: 0px 5px;">43</li><li style="box-sizing: border-box; padding: 0px 5px;">44</li><li style="box-sizing: border-box; padding: 0px 5px;">45</li><li style="box-sizing: border-box; padding: 0px 5px;">46</li><li style="box-sizing: border-box; padding: 0px 5px;">47</li><li style="box-sizing: border-box; padding: 0px 5px;">48</li><li style="box-sizing: border-box; padding: 0px 5px;">49</li><li style="box-sizing: border-box; padding: 0px 5px;">50</li><li style="box-sizing: border-box; padding: 0px 5px;">51</li><li style="box-sizing: border-box; padding: 0px 5px;">52</li><li style="box-sizing: border-box; padding: 0px 5px;">53</li><li style="box-sizing: border-box; padding: 0px 5px;">54</li><li style="box-sizing: border-box; padding: 0px 5px;">55</li><li style="box-sizing: border-box; padding: 0px 5px;">56</li><li style="box-sizing: border-box; padding: 0px 5px;">57</li><li style="box-sizing: border-box; padding: 0px 5px;">58</li><li style="box-sizing: border-box; padding: 0px 5px;">59</li><li style="box-sizing: border-box; padding: 0px 5px;">60</li><li style="box-sizing: border-box; padding: 0px 5px;">61</li><li style="box-sizing: border-box; padding: 0px 5px;">62</li><li style="box-sizing: border-box; padding: 0px 5px;">63</li><li style="box-sizing: border-box; padding: 0px 5px;">64</li><li style="box-sizing: border-box; padding: 0px 5px;">65</li><li style="box-sizing: border-box; padding: 0px 5px;">66</li><li style="box-sizing: border-box; padding: 0px 5px;">67</li><li style="box-sizing: border-box; padding: 0px 5px;">68</li><li style="box-sizing: border-box; padding: 0px 5px;">69</li><li style="box-sizing: border-box; padding: 0px 5px;">70</li><li style="box-sizing: border-box; padding: 0px 5px;">71</li><li style="box-sizing: border-box; padding: 0px 5px;">72</li><li style="box-sizing: border-box; padding: 0px 5px;">73</li><li style="box-sizing: border-box; padding: 0px 5px;">74</li><li style="box-sizing: border-box; padding: 0px 5px;">75</li><li style="box-sizing: border-box; padding: 0px 5px;">76</li><li style="box-sizing: border-box; padding: 0px 5px;">77</li><li style="box-sizing: border-box; padding: 0px 5px;">78</li><li style="box-sizing: border-box; padding: 0px 5px;">79</li><li style="box-sizing: border-box; padding: 0px 5px;">80</li><li style="box-sizing: border-box; padding: 0px 5px;">81</li><li style="box-sizing: border-box; padding: 0px 5px;">82</li><li style="box-sizing: border-box; padding: 0px 5px;">83</li><li style="box-sizing: border-box; padding: 0px 5px;">84</li></ul>
其他非关键代码这里就不贴出来了，后面会附上源码~
3 添加滑动
现在我们实现了简单的layout，但是还不能像ListView那样滑动，那么如何设置滚动呢？首先，你得重写canScrollVertically()函数，并返回true。同理，如果实现水平方向的滑动，则重写canScrollHorizontally()并返回true。
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: "Source Code Pro", monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"> <span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span>
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">boolean</span> <span class="hljs-title" style="box-sizing: border-box;">canScrollVertically</span>() {<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">true</span>;
}</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li></ul>
然后重写scrollVerticallyBy()函数，用于实现垂直方向滑动，同理，如果你想要实现水平方向的滑动那么重写scrollHorizontallyBy()函数。
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: "Source Code Pro", monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span>
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> <span class="hljs-title" style="box-sizing: border-box;">scrollVerticallyBy</span>(<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> dy, RecyclerView.Recycler recycler, RecyclerView.State state) {<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//实际要滑动的距离</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> travel = dy;<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//如果滑动到最顶部</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (verticalScrollOffset + dy < <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>) {travel = -verticalScrollOffset;} <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">else</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (verticalScrollOffset + dy > totalHeight - getVerticalSpace()) {<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//如果滑动到最底部</span>travel = totalHeight - getVerticalSpace() - verticalScrollOffset;}<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//将竖直方向的偏移量+travel</span>verticalScrollOffset += travel;<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">// 平移容器内的item</span>offsetChildrenVertical(-travel);<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> travel;
}
</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li></ul>
其中getVerticalSpace()函数是用于获取RecyclerView在垂直方向上的可用空间，即去除了padding后的高度：
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: "Source Code Pro", monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> <span class="hljs-title" style="box-sizing: border-box;">getVerticalSpace</span>() {<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> getHeight() - getPaddingBottom() - getPaddingTop();}</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li></ul>
另外就是，我们要获取所有的ItemView的高度之和totalHeight，以及竖直方向的滑动偏移量verticalScrollOffset，verticalScrollOffset的起始值为0，而totalHeight可用通过遍历子View来获取，在scrollVerticallyBy()函数中可用获取这两个数据：
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: "Source Code Pro", monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> verticalScrollOffset = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>;
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> totalHeight = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>;<span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span>
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">onLayoutChildren</span>(RecyclerView.Recycler recycler, RecyclerView.State state) {<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//如果没有item，直接返回</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (getItemCount() <= <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>) <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span>;<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">// 跳过preLayout，preLayout主要用于支持动画</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (state.isPreLayout()) {<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span>;}<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//在布局之前，将所有的子View先Detach掉，放入到Scrap缓存中</span>detachAndScrapAttachedViews(recycler);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//定义竖直方向的偏移量</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> offsetY = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>;totalHeight = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>;<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">for</span> (<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> i = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>; i < getItemCount(); i++) {<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//这里就是从缓存里面取出</span>View view = recycler.getViewForPosition(i);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//将View加入到RecyclerView中</span>addView(view);measureChildWithMargins(view, <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>, <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>);<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> width = getDecoratedMeasuredWidth(view);<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> height = getDecoratedMeasuredHeight(view);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//最后，将View布局</span>layoutDecorated(view, <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>, offsetY, width, offsetY + height);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//将竖直方向偏移量增大height</span>offsetY += height;<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//</span>totalHeight += height;}<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//如果所有子View的高度和没有填满RecyclerView的高度，</span><span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">// 则将高度设置为RecyclerView的高度</span>totalHeight = Math.max(totalHeight, getVerticalSpace());
}
</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li><li style="box-sizing: border-box; padding: 0px 5px;">28</li><li style="box-sizing: border-box; padding: 0px 5px;">29</li><li style="box-sizing: border-box; padding: 0px 5px;">30</li><li style="box-sizing: border-box; padding: 0px 5px;">31</li><li style="box-sizing: border-box; padding: 0px 5px;">32</li><li style="box-sizing: border-box; padding: 0px 5px;">33</li><li style="box-sizing: border-box; padding: 0px 5px;">34</li><li style="box-sizing: border-box; padding: 0px 5px;">35</li><li style="box-sizing: border-box; padding: 0px 5px;">36</li><li style="box-sizing: border-box; padding: 0px 5px;">37</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li><li style="box-sizing: border-box; padding: 0px 5px;">28</li><li style="box-sizing: border-box; padding: 0px 5px;">29</li><li style="box-sizing: border-box; padding: 0px 5px;">30</li><li style="box-sizing: border-box; padding: 0px 5px;">31</li><li style="box-sizing: border-box; padding: 0px 5px;">32</li><li style="box-sizing: border-box; padding: 0px 5px;">33</li><li style="box-sizing: border-box; padding: 0px 5px;">34</li><li style="box-sizing: border-box; padding: 0px 5px;">35</li><li style="box-sizing: border-box; padding: 0px 5px;">36</li><li style="box-sizing: border-box; padding: 0px 5px;">37</li></ul>

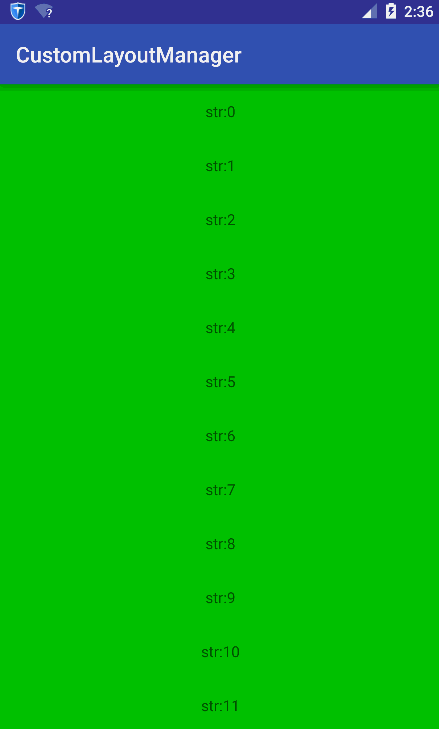

好了，看看效果吧~
4 回收子View
当你觉得一切都非常完美的时候，却忽略了一个很关键的点！那就是回收~。我们知道，RecyclerView强大就强大在View的循环回收利用上，而一个View是否需要回收，是由我们的LayoutManager来管理的~还记得我们前面说的Remove吗？也就是将View放到Recycle缓存中去~
我们前面自定义的LayoutManager并没有回收子View，接下来我们去看看如何循环利用子View吧~。首先，我们应该将所有的item的上下左右的偏移量记录下来，并且要记录哪些Item需要被回收：
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: "Source Code Pro", monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//保存所有的Item的上下左右的偏移量信息</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> SparseArray<Rect> allItemFrames = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> SparseArray<>(); <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//记录Item是否出现过屏幕且还没有回收。true表示出现过屏幕上，并且还没被回收</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> SparseBooleanArray hasAttachedItems = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> SparseBooleanArray();</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li></ul>
接下来就是初始化这两个变量，在onLayoutChildren()函数中对上面定义的两个变量进行初始化：
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: "Source Code Pro", monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">onLayoutChildren</span>(RecyclerView.Recycler recycler, RecyclerView.State state) {<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//如果没有item，直接返回</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (getItemCount() <= <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>) <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span>;<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">// 跳过preLayout，preLayout主要用于支持动画</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (state.isPreLayout()) {<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span>;}<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//在布局之前，将所有的子View先Detach掉，放入到Scrap缓存中</span>detachAndScrapAttachedViews(recycler);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//定义竖直方向的偏移量</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> offsetY = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>;totalHeight = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>;<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">for</span> (<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> i = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>; i < getItemCount(); i++) {<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//这里就是从缓存里面取出</span>View view = recycler.getViewForPosition(i);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//将View加入到RecyclerView中</span>addView(view);measureChildWithMargins(view, <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>, <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>);<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> width = getDecoratedMeasuredWidth(view);<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> height = getDecoratedMeasuredHeight(view);totalHeight += height;Rect frame = allItemFrames.get(i);<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (frame == <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">null</span>) {frame = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> Rect();}frame.set(<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>, offsetY, width, offsetY + height);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">// 将当前的Item的Rect边界数据保存</span>allItemFrames.put(i, frame);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">// 由于已经调用了detachAndScrapAttachedViews，因此需要将当前的Item设置为未出现过</span>hasAttachedItems.put(i, <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">false</span>);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//将竖直方向偏移量增大height</span>offsetY += height;}<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//如果所有子View的高度和没有填满RecyclerView的高度，</span><span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">// 则将高度设置为RecyclerView的高度</span>totalHeight = Math.max(totalHeight, getVerticalSpace()); recycleAndFillItems(recycler, state);}
</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li><li style="box-sizing: border-box; padding: 0px 5px;">28</li><li style="box-sizing: border-box; padding: 0px 5px;">29</li><li style="box-sizing: border-box; padding: 0px 5px;">30</li><li style="box-sizing: border-box; padding: 0px 5px;">31</li><li style="box-sizing: border-box; padding: 0px 5px;">32</li><li style="box-sizing: border-box; padding: 0px 5px;">33</li><li style="box-sizing: border-box; padding: 0px 5px;">34</li><li style="box-sizing: border-box; padding: 0px 5px;">35</li><li style="box-sizing: border-box; padding: 0px 5px;">36</li><li style="box-sizing: border-box; padding: 0px 5px;">37</li><li style="box-sizing: border-box; padding: 0px 5px;">38</li><li style="box-sizing: border-box; padding: 0px 5px;">39</li><li style="box-sizing: border-box; padding: 0px 5px;">40</li><li style="box-sizing: border-box; padding: 0px 5px;">41</li><li style="box-sizing: border-box; padding: 0px 5px;">42</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li><li style="box-sizing: border-box; padding: 0px 5px;">28</li><li style="box-sizing: border-box; padding: 0px 5px;">29</li><li style="box-sizing: border-box; padding: 0px 5px;">30</li><li style="box-sizing: border-box; padding: 0px 5px;">31</li><li style="box-sizing: border-box; padding: 0px 5px;">32</li><li style="box-sizing: border-box; padding: 0px 5px;">33</li><li style="box-sizing: border-box; padding: 0px 5px;">34</li><li style="box-sizing: border-box; padding: 0px 5px;">35</li><li style="box-sizing: border-box; padding: 0px 5px;">36</li><li style="box-sizing: border-box; padding: 0px 5px;">37</li><li style="box-sizing: border-box; padding: 0px 5px;">38</li><li style="box-sizing: border-box; padding: 0px 5px;">39</li><li style="box-sizing: border-box; padding: 0px 5px;">40</li><li style="box-sizing: border-box; padding: 0px 5px;">41</li><li style="box-sizing: border-box; padding: 0px 5px;">42</li></ul>
注意，上面的for循环里面并没有再调用layoutDecorated()函数，而是在最后调用了recycleAndFillItems()函数，这个函数是先将不需要的Item进行回收，然后在从缓存中取出需要的Item，代码如下：
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: "Source Code Pro", monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"> <span class="hljs-javadoc" style="color: rgb(136, 0, 0); box-sizing: border-box;">/*** 回收不需要的Item，并且将需要显示的Item从缓存中取出*/</span>
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">recycleAndFillItems</span>(RecyclerView.Recycler recycler, RecyclerView.State state) {<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (state.isPreLayout()) { <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">// 跳过preLayout，preLayout主要用于支持动画</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span>;}<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">// 当前scroll offset状态下的显示区域</span>Rect displayFrame = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> Rect(<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>, verticalScrollOffset, getHorizontalSpace(), verticalScrollOffset + getVerticalSpace());<span class="hljs-javadoc" style="color: rgb(136, 0, 0); box-sizing: border-box;">/*** 将滑出屏幕的Items回收到Recycle缓存中*/</span>Rect childFrame = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> Rect();<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">for</span> (<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> i = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>; i < getChildCount(); i++) {View child = getChildAt(i);childFrame.left = getDecoratedLeft(child);childFrame.top = getDecoratedTop(child);childFrame.right = getDecoratedRight(child);childFrame.bottom = getDecoratedBottom(child);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//如果Item没有在显示区域，就说明需要回收</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (!Rect.intersects(displayFrame, childFrame)) {<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//回收掉滑出屏幕的View</span>removeAndRecycleView(child, recycler);}}<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//重新显示需要出现在屏幕的子View</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">for</span> (<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> i = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>; i < getItemCount(); i++) {<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (Rect.intersects(displayFrame, allItemFrames.get(i))) {View scrap = recycler.getViewForPosition(i);measureChildWithMargins(scrap, <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>, <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>);addView(scrap);Rect frame = allItemFrames.get(i);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//将这个item布局出来</span>layoutDecorated(scrap,frame.left,frame.top - verticalScrollOffset,frame.right,frame.bottom - verticalScrollOffset);}}
}</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li><li style="box-sizing: border-box; padding: 0px 5px;">28</li><li style="box-sizing: border-box; padding: 0px 5px;">29</li><li style="box-sizing: border-box; padding: 0px 5px;">30</li><li style="box-sizing: border-box; padding: 0px 5px;">31</li><li style="box-sizing: border-box; padding: 0px 5px;">32</li><li style="box-sizing: border-box; padding: 0px 5px;">33</li><li style="box-sizing: border-box; padding: 0px 5px;">34</li><li style="box-sizing: border-box; padding: 0px 5px;">35</li><li style="box-sizing: border-box; padding: 0px 5px;">36</li><li style="box-sizing: border-box; padding: 0px 5px;">37</li><li style="box-sizing: border-box; padding: 0px 5px;">38</li><li style="box-sizing: border-box; padding: 0px 5px;">39</li><li style="box-sizing: border-box; padding: 0px 5px;">40</li><li style="box-sizing: border-box; padding: 0px 5px;">41</li><li style="box-sizing: border-box; padding: 0px 5px;">42</li><li style="box-sizing: border-box; padding: 0px 5px;">43</li><li style="box-sizing: border-box; padding: 0px 5px;">44</li><li style="box-sizing: border-box; padding: 0px 5px;">45</li><li style="box-sizing: border-box; padding: 0px 5px;">46</li><li style="box-sizing: border-box; padding: 0px 5px;">47</li><li style="box-sizing: border-box; padding: 0px 5px;">48</li><li style="box-sizing: border-box; padding: 0px 5px;">49</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li><li style="box-sizing: border-box; padding: 0px 5px;">28</li><li style="box-sizing: border-box; padding: 0px 5px;">29</li><li style="box-sizing: border-box; padding: 0px 5px;">30</li><li style="box-sizing: border-box; padding: 0px 5px;">31</li><li style="box-sizing: border-box; padding: 0px 5px;">32</li><li style="box-sizing: border-box; padding: 0px 5px;">33</li><li style="box-sizing: border-box; padding: 0px 5px;">34</li><li style="box-sizing: border-box; padding: 0px 5px;">35</li><li style="box-sizing: border-box; padding: 0px 5px;">36</li><li style="box-sizing: border-box; padding: 0px 5px;">37</li><li style="box-sizing: border-box; padding: 0px 5px;">38</li><li style="box-sizing: border-box; padding: 0px 5px;">39</li><li style="box-sizing: border-box; padding: 0px 5px;">40</li><li style="box-sizing: border-box; padding: 0px 5px;">41</li><li style="box-sizing: border-box; padding: 0px 5px;">42</li><li style="box-sizing: border-box; padding: 0px 5px;">43</li><li style="box-sizing: border-box; padding: 0px 5px;">44</li><li style="box-sizing: border-box; padding: 0px 5px;">45</li><li style="box-sizing: border-box; padding: 0px 5px;">46</li><li style="box-sizing: border-box; padding: 0px 5px;">47</li><li style="box-sizing: border-box; padding: 0px 5px;">48</li><li style="box-sizing: border-box; padding: 0px 5px;">49</li></ul>
最后不要忘了在scrollVerticallyBy中添加recycleAndFillItems(recycler, state);，因为在滑动过程中，需要重新对Item进行布局，即从缓存中取出Item进行数据绑定后放在新出现的Item的位置上。并且，还需要在scrollVerticallyBy最开始调用detachAndScrapAttachedViews(recycler);代码如下：
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: "Source Code Pro", monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span>
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> <span class="hljs-title" style="box-sizing: border-box;">scrollVerticallyBy</span>(<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> dy, RecyclerView.Recycler recycler, RecyclerView.State state) {<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//先detach掉所有的子View</span>detachAndScrapAttachedViews(recycler);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//实际要滑动的距离</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> travel = dy;<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//如果滑动到最顶部</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (verticalScrollOffset + dy < <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>) {travel = -verticalScrollOffset;} <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">else</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (verticalScrollOffset + dy > totalHeight - getVerticalSpace()) {<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//如果滑动到最底部</span>travel = totalHeight - getVerticalSpace() - verticalScrollOffset;}<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//将竖直方向的偏移量+travel</span>verticalScrollOffset += travel;<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">// 平移容器内的item</span>offsetChildrenVertical(-travel);recycleAndFillItems(recycler, state);Log.d(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"--->"</span>, <span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">" childView count:"</span> + getChildCount());<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> travel;
}
</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li></ul>
看看我们的效果，主要关注打印的日志信息里面的子View的数量，确保确实是循环利用了子View
好啦~现在为止我们基本上已经实现了我们想要的效果啦，至于重写onAdapterChanged()以及scrollToPosition()等等效果请参考http://wiresareobsolete.com/2014/09/building-a-recyclerview-layoutmanager-part-1/。
最后献上源码：http://download.csdn.net/detail/huachao1001/9542610
