CAFFE- faster rcnn修改demo.py保存网络中间结果

以demo.py中默认网络VGG16.

原本demo.py地址https://github.com/rbgirshick/py-faster-rcnn/blob/master/tools/demo.py

图有点多，贴一个图的本分结果出来：

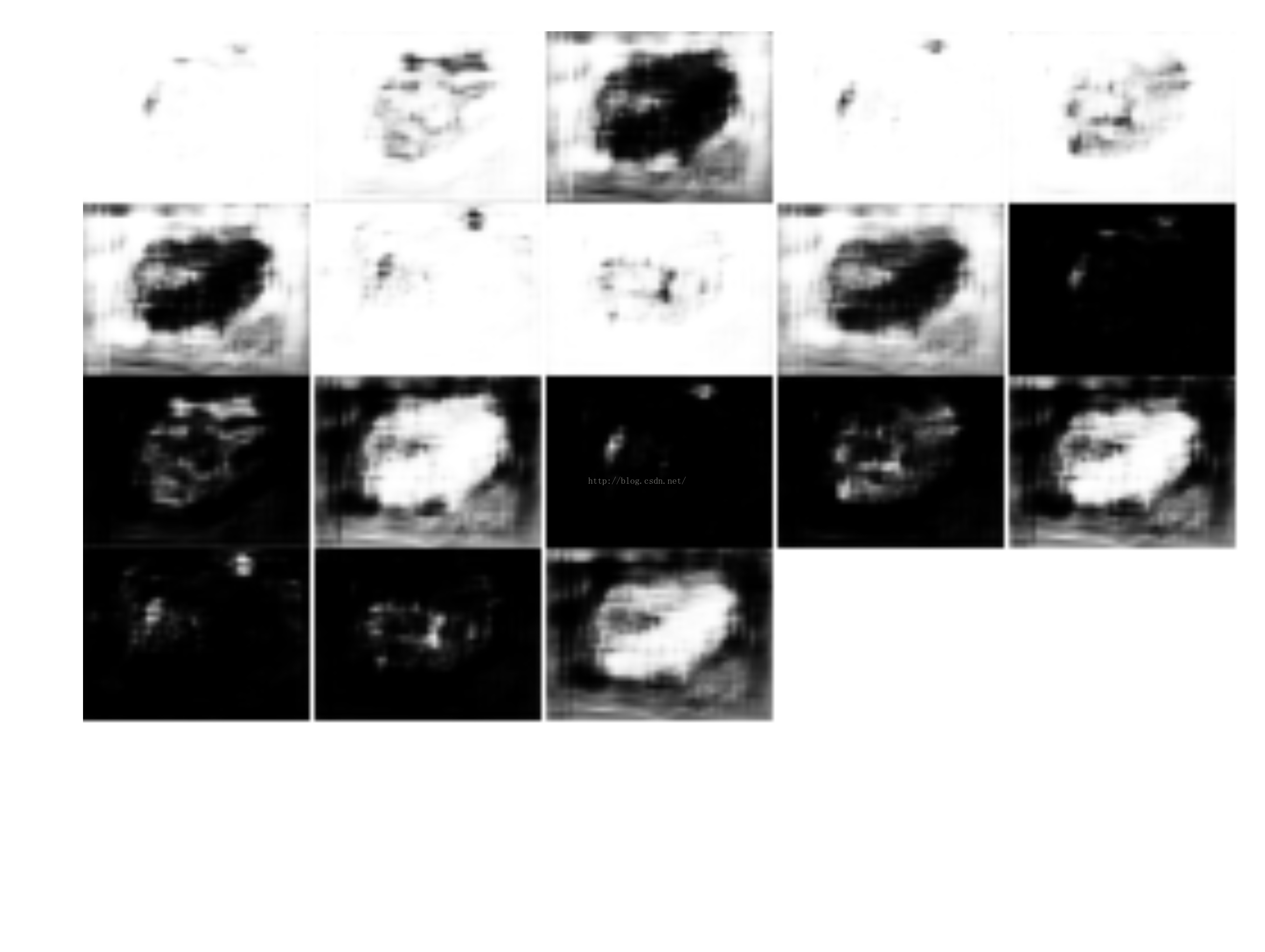

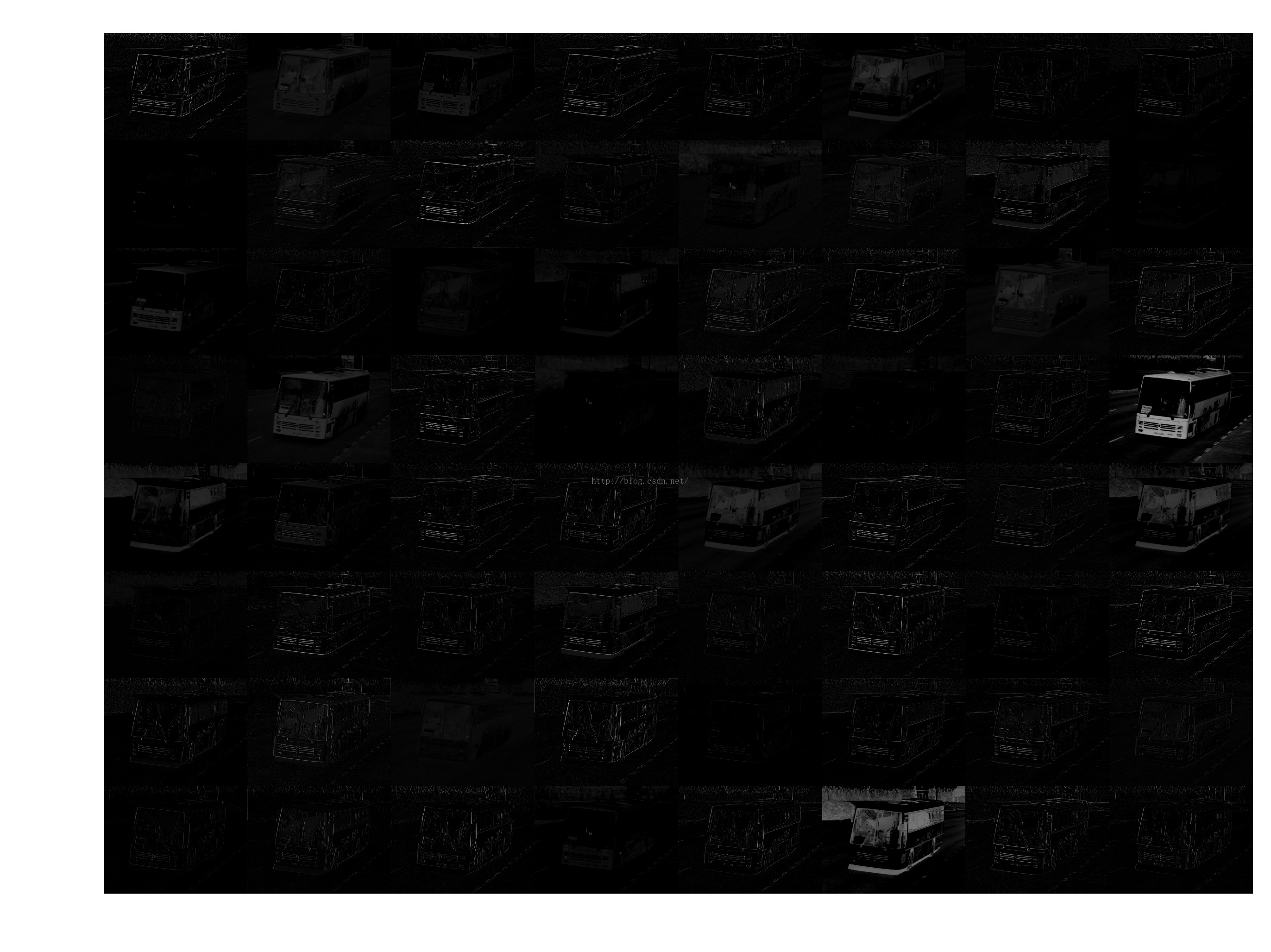

上图是原图，下面第一张是网络中命名为“conv1_1”的结果图；第二张是命名为“rpn_cls_prob_reshape”的结果图；第三张是“rpnoutput”的结果图

看一下我修改后的代码：

#!/usr/bin/env python# --------------------------------------------------------
# Faster R-CNN
# Copyright (c) 2015 Microsoft
# Licensed under The MIT License [see LICENSE for details]
# Written by Ross Girshick
# --------------------------------------------------------"""
Demo script showing detections in sample images.See README.md for installation instructions before running.
"""import _init_paths
from fast_rcnn.config import cfg
from fast_rcnn.test import im_detect
from fast_rcnn.nms_wrapper import nms
from utils.timer import Timer
import matplotlib.pyplot as plt
import numpy as np
import scipy.io as sio
import caffe, os, sys, cv2
import argparse
import mathCLASSES = ('__background__','aeroplane', 'bicycle', 'bird', 'boat','bottle', 'bus', 'car', 'cat', 'chair','cow', 'diningtable', 'dog', 'horse','motorbike', 'person', 'pottedplant','sheep', 'sofa', 'train', 'tvmonitor')NETS = {'vgg16': ('VGG16','VGG16_faster_rcnn_final.caffemodel'),'zf': ('ZF','ZF_faster_rcnn_final.caffemodel')}def vis_detections(im, class_name, dets, thresh=0.5):"""Draw detected bounding boxes."""inds = np.where(dets[:, -1] >= thresh)[0]if len(inds) == 0:returnim = im[:, :, (2, 1, 0)]fig, ax = plt.subplots(figsize=(12, 12))ax.imshow(im, aspect='equal')for i in inds:bbox = dets[i, :4]score = dets[i, -1]ax.add_patch(plt.Rectangle((bbox[0], bbox[1]),bbox[2] - bbox[0],bbox[3] - bbox[1], fill=False,edgecolor='red', linewidth=3.5))ax.text(bbox[0], bbox[1] - 2,'{:s} {:.3f}'.format(class_name, score),bbox=dict(facecolor='blue', alpha=0.5),fontsize=14, color='white')ax.set_title(('{} detections with ''p({} | box) >= {:.1f}').format(class_name, class_name,thresh),fontsize=14)plt.axis('off')plt.tight_layout()#plt.draw()
def save_feature_picture(data, name, image_name=None, padsize = 1, padval = 1):data = data[0]#print "data.shape1: ", data.shapen = int(np.ceil(np.sqrt(data.shape[0])))padding = ((0, n ** 2 - data.shape[0]), (0, 0), (0, padsize)) + ((0, 0),) * (data.ndim - 3)#print "padding: ", paddingdata = np.pad(data, padding, mode='constant', constant_values=(padval, padval))#print "data.shape2: ", data.shapedata = data.reshape((n, n) + data.shape[1:]).transpose((0, 2, 1, 3) + tuple(range(4, data.ndim + 1)))#print "data.shape3: ", data.shape, ndata = data.reshape((n * data.shape[1], n * data.shape[3]) + data.shape[4:])#print "data.shape4: ", data.shapeplt.figure()plt.imshow(data,cmap='gray')plt.axis('off')#plt.show()if image_name == None:img_path = './data/feature_picture/' else:img_path = './data/feature_picture/' + image_name + "/"check_file(img_path)plt.savefig(img_path + name + ".jpg", dpi = 400, bbox_inches = "tight")
def check_file(path):if not os.path.exists(path):os.mkdir(path)
def demo(net, image_name):"""Detect object classes in an image using pre-computed object proposals."""# Load the demo imageim_file = os.path.join(cfg.DATA_DIR, 'demo', image_name)im = cv2.imread(im_file)# Detect all object classes and regress object boundstimer = Timer()timer.tic()scores, boxes = im_detect(net, im)for k, v in net.blobs.items():if k.find("conv")>-1 or k.find("pool")>-1 or k.find("rpn")>-1:save_feature_picture(v.data, k.replace("/", ""), image_name)#net.blobs["conv1_1"].data, "conv1_1") timer.toc()print ('Detection took {:.3f}s for ''{:d} object proposals').format(timer.total_time, boxes.shape[0])# Visualize detections for each classCONF_THRESH = 0.8NMS_THRESH = 0.3for cls_ind, cls in enumerate(CLASSES[1:]):cls_ind += 1 # because we skipped backgroundcls_boxes = boxes[:, 4*cls_ind:4*(cls_ind + 1)]cls_scores = scores[:, cls_ind]dets = np.hstack((cls_boxes,cls_scores[:, np.newaxis])).astype(np.float32)keep = nms(dets, NMS_THRESH)dets = dets[keep, :]vis_detections(im, cls, dets, thresh=CONF_THRESH)def parse_args():"""Parse input arguments."""parser = argparse.ArgumentParser(description='Faster R-CNN demo')parser.add_argument('--gpu', dest='gpu_id', help='GPU device id to use [0]',default=0, type=int)parser.add_argument('--cpu', dest='cpu_mode',help='Use CPU mode (overrides --gpu)',action='store_true')parser.add_argument('--net', dest='demo_net', help='Network to use [vgg16]',choices=NETS.keys(), default='vgg16')args = parser.parse_args()return argsdef print_param(net):for k, v in net.blobs.items():print (k, v.data.shape)print ""for k, v in net.params.items():print (k, v[0].data.shape)  if __name__ == '__main__':cfg.TEST.HAS_RPN = True  # Use RPN for proposalsargs = parse_args()prototxt = os.path.join(cfg.MODELS_DIR, NETS[args.demo_net][0],'faster_rcnn_alt_opt', 'faster_rcnn_test.pt')#print "prototxt: ", prototxtcaffemodel = os.path.join(cfg.DATA_DIR, 'faster_rcnn_models',NETS[args.demo_net][1])if not os.path.isfile(caffemodel):raise IOError(('{:s} not found.\nDid you run ./data/script/''fetch_faster_rcnn_models.sh?').format(caffemodel))if args.cpu_mode:caffe.set_mode_cpu()else:caffe.set_mode_gpu()caffe.set_device(args.gpu_id)cfg.GPU_ID = args.gpu_idnet = caffe.Net(prototxt, caffemodel, caffe.TEST)#print_param(net)print '\n\nLoaded network {:s}'.format(caffemodel)# Warmup on a dummy imageim = 128 * np.ones((300, 500, 3), dtype=np.uint8)for i in xrange(2):_, _= im_detect(net, im)im_names = ['000456.jpg', '000542.jpg', '001150.jpg','001763.jpg', '004545.jpg']for im_name in im_names:print '~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~'print 'Demo for data/demo/{}'.format(im_name)demo(net, im_name)#plt.show()

2.上面代码主要添加方法是：save_feature_picture，它会对网络测试的某些阶段的数据处理然后保存。

3.某些阶段是因为：if k.find("conv")>-1 or k.find("pool")>-1 or k.find("rpn")>-1这行代码（110行），保证网络层name有这三个词的才会被保存，因为其他层无法用图片

保存，如全连接（参数已经是二维的了）等层。

4.放开174行print_param(net)的注释，就可以看到网络参数的输出。

5.执行的最终结果 是在data/feature_picture产生以图片名字为文件夹名字的文件夹，文件夹下有以网络每层name为名字的图片。

6.另外部分网络的层name中有非法字符不能作为图片名字，我在代码的111行只是把‘字符/’剔除掉了，所以建议网络名字不要又其他字符。

图片下载和代码下载方式：

git clone https://github.com/meihuakaile/faster-rcnn.git
