模仿搜狗浏览器加载小球

本文主要是介绍模仿搜狗浏览器加载小球，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

用过android 搜狗浏览器客户端的用户就知道，每次加载页面就会有个下落的加载小球，为了实现它，我上网查资料，在泡在网上的日子上面找到了相关资料，但是没有具体详细的教程，所以我就分享一下我的思路。

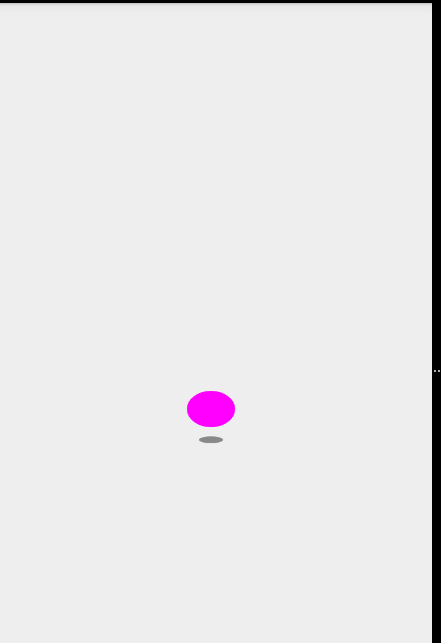

先上一张效果图（由于博主一直没有找到怎么在博客中播放gif，所以就来一张静态的吧，要想看具体效果，清下载源码编译）：
这里写图片描述

具体思路:

1、继承View自写控件，并获取控件长宽。
2、根据已经获取的长宽，设置小球下落的距离。
3、确定小球开始变形的临界点，小球下落至此就开始画椭圆和小球影子。
4、用ValueAnimator控制小球下落的速度和获取小球的下落位置，并且随时更新小球。

运动过程图形解说：

这里写图片描述

主要实现代码：

package com.tielizi.loaderanimation;import android.animation.ValueAnimator;
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.RectF;
import android.util.AttributeSet;
import android.util.Log;
import android.view.View;
import android.view.animation.AccelerateInterpolator;import java.util.Random;/*** Created by Administrator on 2015/10/12.*/
public class LoaderView extends View {private int radious;//半径private float ratio;//下降比例private Paint shadowPaint,circlePaint;//画下落的影子和小球的画笔private float endX,startY,endY,currentDropDistance,dropDistance,changedistance,currentY = 0;private RectF rectF;private boolean flag;//标记标记线程是否结束private String [] color = new String[]{"#9966FF","#FF6600","#FF00FF","#66FF33","#FF0000"};public LoaderView(Context context) {super(context);init();}public LoaderView(Context context, AttributeSet attrs) {super(context, attrs);init();}public LoaderView(Context context, AttributeSet attrs, int defStyleAttr) {super(context, attrs, defStyleAttr);init();}//    public LoaderView(Context context, AttributeSet attrs, int defStyleAttr, int defStyleRes) {
//        super(context, attrs, defStyleAttr, defStyleRes);
//        init();
//    }private void init(){flag = true;circlePaint = new Paint();circlePaint.setStyle(Paint.Style.FILL);circlePaint.setAntiAlias(true);shadowPaint = new Paint();shadowPaint.setColor(Color.GRAY);shadowPaint.setStyle(Paint.Style.FILL);shadowPaint.setAntiAlias(true);new Thread(new Runnable() {//线程改变画笔颜色@Overridepublic void run() {while(flag){circlePaint.setColor(Color.parseColor(color[(new Random()).nextInt(color.length)]));try {Thread.sleep(3000);} catch (InterruptedException e) {e.printStackTrace();}}}}).start();}@Overrideprotected void onDraw(Canvas canvas) {Log.i("px","Draw!");if(currentY == 0){executeValueAnimatior();}else{currentDropDistance = currentY-startY;changedistance = dropDistance*3/4;ratio = (currentDropDistance - changedistance)/(dropDistance/4)/2;drawDropCircle(canvas);}super.onDraw(canvas);}@Overrideprotected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {Log.i("px","Ready!");radious = getWidth()/20;endX = getWidth()/2;endY = getHeight()*2/3;startY = endY*2/3;dropDistance = endY/3;super.onMeasure(widthMeasureSpec, heightMeasureSpec);}private void drawDropCircle(Canvas canvas){//话下落的小球if(currentDropDistance<changedistance){canvas.drawCircle(endX,currentY,radious,circlePaint);}else{drawShadow(canvas);rectF = new RectF(endX-radious*(1+ratio),currentY-radious,endX+radious*(1+ratio),currentY+radious*(1-ratio));canvas.drawOval(rectF,circlePaint);}}private void drawShadow(Canvas canvas){//画影子rectF = new RectF(endX-radious*(1+ratio)/2,endY+radious/4,endX+radious*(1+ratio)/2,endY+radious/2+radious/10);canvas.drawOval(rectF,shadowPaint);
//        canvas.drawCircle(endX,endY+radious,radious*ratio,paint);}private void executeValueAnimatior(){//下落的小球位置的动画参数变化ValueAnimator valueAnimator = ValueAnimator.ofInt((int)startY,(int)endY);valueAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {@Overridepublic void onAnimationUpdate(ValueAnimator animation) {currentY = (Integer)animation.getAnimatedValue();invalidate();}});valueAnimator.setInterpolator(new AccelerateInterpolator(1.2f));valueAnimator.setRepeatCount(-1);valueAnimator.setRepeatMode(2);valueAnimator.setDuration(500);valueAnimator.start();}public void setFlag(boolean b){//设置为线程结束flag = b;Log.i("px","结束线程！");}
}
