一、简述

二、示例demo

  • 单个延迟队列
  • 多个延迟队列

一、简述

延时消息在日常随处可见：

1、订单创建10min之后不发起支付，自动取消。

2、30min定时推送一次邮件信息。

最常用到方式为定时任务轮训，数据量小的时候使用没什么问题 而当有千万甚至上亿的数据量时就会出现数据读取的瓶颈，此时全表扫面进行处理一定是下下策。但是也有比较讨巧的方式，分享公司内部订单拆分的例子：

由于线上每天订单量50万+的增长量，单表早已无法吃撑这个增长的速度。采取的方式为订单归档：线上热数据保留2-3天的数据，其余都归档进入历史订单表中，这样热数据在200万以内。
订单超过10min不支付即取消的功能，可以采取简单的扫表形式而不会出现数据读取性能的问题。

 这样的方式很简单，但需要跟业务进行沟通妥协，本文会讲另一种方式即RabbitMQ延迟队列。RabbitMQ实际并没有直接实现延时队列，但可利用RabbitMQ提供的属性来模拟延时队列，甚至已经有的配套的插件rabbitmq_delayed_message_exchange 下面先介绍使用到的RabbitMQ的属性。

1、消息的Time To Live (TTL)

x-message-ttl：消息过期时间，超过过期时间之后即变为死信（Dead-letter）不会再被消费者消费。

设置消息TTL有两种方式：

  • 创建队列时指定x-message-ttl，此时队列所有的消息具有统一过期时间。
  • 发送消息为每个消息设置 expiration，此时消息之间过期时间不同。

如果两者都设置，过期时间取两者最小。如果设置TTL为0即表示除非立马能发送到队列，否则直接丢弃该消息。利用TTL为0的特性再结合死信转发器可以替代RabbitMQ 3.0的immediate参数。

2、队列的TTL

x-expires: RabbitMQ会确保时间达到后将队列删除，但是并不保障这个动作有多及时。队列过期代表着处于未使用状态，即

  • 队列无任何消费者
  • 队列没有被重新声明
  • 队列在过期未调用Basic.Get命令获取消息

3、x-dead-letter-exchange（RabbitMQ文档）：死信转发器（转发器类型）当消息达到过期时间未被消费则会由该exchange按照配置的x-dead-letter-routing-key转发到指定队列，最后被消费者消费，如果未配置x-dead-letter-routing-key则会按照原队列的key进行转发。

4、队列的消息在以下几种情况会变成死信（Dead-letter）

  • 设置的x-message-ttl或者expiration到期，即消息过期
  • 消息被消费者拒绝(调用Basic.Reject / Basic.Nack)且 requeue参数设置为false
  • 队列达到最大长度



二、示例demo

  • 单个延迟队列

RabbitMQ延时队列逻辑：







1、exchange_delay_begin：缓冲队列exchange交换器，用于将消息转发至缓存消息队列 queue_delay_begin 。

2、exchange_delay_done：死信（dead-letter）队列exchange交换器，用于将队列 queue_delay_begin 转发到死信队列。

3、queue_delay_begin：缓冲消息队列，等待消息过期。

4、queue_delay_done：死信消息队列，消费者能够真正消费信息。

 spring-rabbitmq.xml ：

复制代码

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:tx="http://www.springframework.org/schema/tx"xmlns:util="http://www.springframework.org/schema/util" xmlns:context="http://www.springframework.org/schema/context"xmlns:rabbit="http://www.springframework.org/schema/rabbit"xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.1.xsdhttp://www.springframework.org/schema/contexthttp://www.springframework.org/schema/context/spring-context-3.1.xsdhttp://www.springframework.org/schema/txhttp://www.springframework.org/schema/tx/spring-tx.xsdhttp://www.springframework.org/schema/aophttp://www.springframework.org/schema/aop/spring-aop.xsdhttp://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-3.1.xsdhttp://www.springframework.org/schema/rabbit http://www.springframework.org/schema/rabbit/spring-rabbit-1.6.xsd"><!--配置connection-factory，指定连接rabbit server参数 --><rabbit:connection-factory id="connectionFactory"  username="guest" password="guest" host="127.0.0.1" port="5672" publisher-confirms="true"/><!-- 延时队列 --><rabbit:direct-exchange id="exchange_delay_begin" name="exchange_delay_begin"  durable="false" auto-delete="false" ><rabbit:bindings><rabbit:binding queue="queue_delay_begin" key="delay" /></rabbit:bindings></rabbit:direct-exchange><rabbit:queue name="queue_delay_begin" durable="false"><rabbit:queue-arguments><!--  队列过期时间 --><entry key="x-message-ttl" value="30000" value-type="java.lang.Long" /><entry key="x-dead-letter-exchange" value="exchange_delay_done" /><entry key="x-dead-letter-routing-key" value="delay" /></rabbit:queue-arguments></rabbit:queue><rabbit:direct-exchange id="exchange_delay_done" name="exchange_delay_done"  durable="false" auto-delete="false" ><rabbit:bindings><rabbit:binding queue="queue_delay_done" key="delay" /><!--  binding key 相同为 【delay】exchange转发消息到多个队列 --><!--<rabbit:binding queue="queue_delay_done_two" key="delay" />--></rabbit:bindings></rabbit:direct-exchange><rabbit:queue name="queue_delay_done" durable="false"/><rabbit:template id="delayMsgTwoTemplate" connection-factory="connectionFactory" /><bean id="messageConsumer" class="com.nancy.rabbitmq.demo.MessageConsumer"></bean><!-- 消息接收者 --><rabbit:listener-container connection-factory="connectionFactory" channel-transacted="false" ><rabbit:listener queues="queue_delay_done" ref="messageConsumer" /></rabbit:listener-container>
</beans>

复制代码

 DelayMessageProducer.java

复制代码

@Service
public class DelayMessageProducer {@Resource(name="delayMsgTwoTemplate")private AmqpTemplate delayMsgTwoTemplate;public void delayMsgTwo(String exchange, String routingKey, Object msg) {delayMsgTwoTemplate.convertAndSend(exchange, routingKey, msg, new MessagePostProcessor() {@Overridepublic Message postProcessMessage(Message message) throws AmqpException {message.getMessageProperties().setExpiration(String.valueOf(10000));return message;}});}
}

复制代码

 MessageConsumer.java

复制代码

public class MessageConsumer implements MessageListener {@Overridepublic void onMessage(Message message) {System.out.println("consumer receive message 22------->:{}"+ message);}
}

复制代码

 application.xml

复制代码

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.1.xsdhttp://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.1.xsd"><import resource="spring-rabbitmq.xml" /><!-- 扫描指定package注释的注册为Spring Beans --><context:component-scan base-package="com.nancy.rabbitmq" /><!-- 激活annotation功能 --><context:annotation-config /><!-- 激活annotation功能 --><context:spring-configured />
</beans>

复制代码

DelayQueueTest.java

复制代码

public class DelayQueueTest {private ApplicationContext context = null;@org.junit.Beforepublic void setUp() throws Exception {context = new ClassPathXmlApplicationContext("rabbitmq/application.xml");}@Testpublic void delayQueueTest() throws Exception {DelayMessageProducer messageProducer = context.getBean(DelayMessageProducer.class);int a = 10;while (a > 0) {System.out.println("send "+ a);messageProducer.delayMsgTwo("exchange_delay_begin","delay", "hello world delay2 :" + a--);try {Thread.sleep(10);} catch (InterruptedException e) {e.printStackTrace();}}System.out.println("sended ");Thread.sleep(1000*60);}
}

复制代码

 运行结果： 发送消息 10s之后， 消费监听到消息 消费。

复制代码

send 10
send 9
send 8
send 7
send 6
send 5
send 4
send 3
send 2
send 1
sended
consumer receive message 22------->:{}(Body:'hello world delay2 :10' MessageProperties [headers={x-first-death-exchange=exchange_delay_begin, x-death=[{reason=expired, original-expiration=10000, count=1, exchange=exchange_delay_begin, time=Sun Jul 01 18:33:19 CST 2018, routing-keys=[delay], queue=queue_delay_begin}], x-first-death-reason=expired, x-first-death-queue=queue_delay_begin}, timestamp=null, messageId=null, userId=null, receivedUserId=null, appId=null, clusterId=null, type=null, correlationId=null, correlationIdString=null, replyTo=null, contentType=text/plain, contentEncoding=UTF-8, contentLength=0, deliveryMode=null, receivedDeliveryMode=PERSISTENT, expiration=null, priority=0, redelivered=false, receivedExchange=exchange_delay_done, receivedRoutingKey=delay, receivedDelay=1000, deliveryTag=1, messageCount=0, consumerTag=amq.ctag-oOJzeYHEJYrLFL4HbHWZcA, consumerQueue=queue_delay_done])
consumer receive message 22------->:{}(Body:'hello world delay2 :9' MessageProperties [headers={x-first-death-exchange=exchange_delay_begin, x-death=[{reason=expired, original-expiration=10000, count=1, exchange=exchange_delay_begin, time=Sun Jul 01 18:33:19 CST 2018, routing-keys=[delay], queue=queue_delay_begin}], x-first-death-reason=expired, x-first-death-queue=queue_delay_begin}, timestamp=null, messageId=null, userId=null, receivedUserId=null, appId=null, clusterId=null, type=null, correlationId=null, correlationIdString=null, replyTo=null, contentType=text/plain, contentEncoding=UTF-8, contentLength=0, deliveryMode=null, receivedDeliveryMode=PERSISTENT, expiration=null, priority=0, redelivered=false, receivedExchange=exchange_delay_done, receivedRoutingKey=delay, receivedDelay=1000, deliveryTag=2, messageCount=0, consumerTag=amq.ctag-oOJzeYHEJYrLFL4HbHWZcA, consumerQueue=queue_delay_done])
consumer receive message 22------->:{}(Body:'hello world delay2 :8' MessageProperties [headers={x-first-death-exchange=exchange_delay_begin, x-death=[{reason=expired, original-expiration=10000, count=1, exchange=exchange_delay_begin, time=Sun Jul 01 18:33:19 CST 2018, routing-keys=[delay], queue=queue_delay_begin}], x-first-death-reason=expired, x-first-death-queue=queue_delay_begin}, timestamp=null, messageId=null, userId=null, receivedUserId=null, appId=null, clusterId=null, type=null, correlationId=null, correlationIdString=null, replyTo=null, contentType=text/plain, contentEncoding=UTF-8, contentLength=0, deliveryMode=null, receivedDeliveryMode=PERSISTENT, expiration=null, priority=0, redelivered=false, receivedExchange=exchange_delay_done, receivedRoutingKey=delay, receivedDelay=1000, deliveryTag=3, messageCount=0, consumerTag=amq.ctag-oOJzeYHEJYrLFL4HbHWZcA, consumerQueue=queue_delay_done])
consumer receive message 22------->:{}(Body:'hello world delay2 :7' MessageProperties [headers={x-first-death-exchange=exchange_delay_begin, x-death=[{reason=expired, original-expiration=10000, count=1, exchange=exchange_delay_begin, time=Sun Jul 01 18:33:19 CST 2018, routing-keys=[delay], queue=queue_delay_begin}], x-first-death-reason=expired, x-first-death-queue=queue_delay_begin}, timestamp=null, messageId=null, userId=null, receivedUserId=null, appId=null, clusterId=null, type=null, correlationId=null, correlationIdString=null, replyTo=null, contentType=text/plain, contentEncoding=UTF-8, contentLength=0, deliveryMode=null, receivedDeliveryMode=PERSISTENT, expiration=null, priority=0, redelivered=false, receivedExchange=exchange_delay_done, receivedRoutingKey=delay, receivedDelay=1000, deliveryTag=4, messageCount=0, consumerTag=amq.ctag-oOJzeYHEJYrLFL4HbHWZcA, consumerQueue=queue_delay_done])
consumer receive message 22------->:{}(Body:'hello world delay2 :6' MessageProperties [headers={x-first-death-exchange=exchange_delay_begin, x-death=[{reason=expired, original-expiration=10000, count=1, exchange=exchange_delay_begin, time=Sun Jul 01 18:33:19 CST 2018, routing-keys=[delay], queue=queue_delay_begin}], x-first-death-reason=expired, x-first-death-queue=queue_delay_begin}, timestamp=null, messageId=null, userId=null, receivedUserId=null, appId=null, clusterId=null, type=null, correlationId=null, correlationIdString=null, replyTo=null, contentType=text/plain, contentEncoding=UTF-8, contentLength=0, deliveryMode=null, receivedDeliveryMode=PERSISTENT, expiration=null, priority=0, redelivered=false, receivedExchange=exchange_delay_done, receivedRoutingKey=delay, receivedDelay=1000, deliveryTag=5, messageCount=0, consumerTag=amq.ctag-oOJzeYHEJYrLFL4HbHWZcA, consumerQueue=queue_delay_done])
consumer receive message 22------->:{}(Body:'hello world delay2 :5' MessageProperties [headers={x-first-death-exchange=exchange_delay_begin, x-death=[{reason=expired, original-expiration=10000, count=1, exchange=exchange_delay_begin, time=Sun Jul 01 18:33:19 CST 2018, routing-keys=[delay], queue=queue_delay_begin}], x-first-death-reason=expired, x-first-death-queue=queue_delay_begin}, timestamp=null, messageId=null, userId=null, receivedUserId=null, appId=null, clusterId=null, type=null, correlationId=null, correlationIdString=null, replyTo=null, contentType=text/plain, contentEncoding=UTF-8, contentLength=0, deliveryMode=null, receivedDeliveryMode=PERSISTENT, expiration=null, priority=0, redelivered=false, receivedExchange=exchange_delay_done, receivedRoutingKey=delay, receivedDelay=1000, deliveryTag=6, messageCount=0, consumerTag=amq.ctag-oOJzeYHEJYrLFL4HbHWZcA, consumerQueue=queue_delay_done])
consumer receive message 22------->:{}(Body:'hello world delay2 :4' MessageProperties [headers={x-first-death-exchange=exchange_delay_begin, x-death=[{reason=expired, original-expiration=10000, count=1, exchange=exchange_delay_begin, time=Sun Jul 01 18:33:19 CST 2018, routing-keys=[delay], queue=queue_delay_begin}], x-first-death-reason=expired, x-first-death-queue=queue_delay_begin}, timestamp=null, messageId=null, userId=null, receivedUserId=null, appId=null, clusterId=null, type=null, correlationId=null, correlationIdString=null, replyTo=null, contentType=text/plain, contentEncoding=UTF-8, contentLength=0, deliveryMode=null, receivedDeliveryMode=PERSISTENT, expiration=null, priority=0, redelivered=false, receivedExchange=exchange_delay_done, receivedRoutingKey=delay, receivedDelay=1000, deliveryTag=7, messageCount=0, consumerTag=amq.ctag-oOJzeYHEJYrLFL4HbHWZcA, consumerQueue=queue_delay_done])
consumer receive message 22------->:{}(Body:'hello world delay2 :3' MessageProperties [headers={x-first-death-exchange=exchange_delay_begin, x-death=[{reason=expired, original-expiration=10000, count=1, exchange=exchange_delay_begin, time=Sun Jul 01 18:33:19 CST 2018, routing-keys=[delay], queue=queue_delay_begin}], x-first-death-reason=expired, x-first-death-queue=queue_delay_begin}, timestamp=null, messageId=null, userId=null, receivedUserId=null, appId=null, clusterId=null, type=null, correlationId=null, correlationIdString=null, replyTo=null, contentType=text/plain, contentEncoding=UTF-8, contentLength=0, deliveryMode=null, receivedDeliveryMode=PERSISTENT, expiration=null, priority=0, redelivered=false, receivedExchange=exchange_delay_done, receivedRoutingKey=delay, receivedDelay=1000, deliveryTag=8, messageCount=0, consumerTag=amq.ctag-oOJzeYHEJYrLFL4HbHWZcA, consumerQueue=queue_delay_done])
consumer receive message 22------->:{}(Body:'hello world delay2 :2' MessageProperties [headers={x-first-death-exchange=exchange_delay_begin, x-death=[{reason=expired, original-expiration=10000, count=1, exchange=exchange_delay_begin, time=Sun Jul 01 18:33:19 CST 2018, routing-keys=[delay], queue=queue_delay_begin}], x-first-death-reason=expired, x-first-death-queue=queue_delay_begin}, timestamp=null, messageId=null, userId=null, receivedUserId=null, appId=null, clusterId=null, type=null, correlationId=null, correlationIdString=null, replyTo=null, contentType=text/plain, contentEncoding=UTF-8, contentLength=0, deliveryMode=null, receivedDeliveryMode=PERSISTENT, expiration=null, priority=0, redelivered=false, receivedExchange=exchange_delay_done, receivedRoutingKey=delay, receivedDelay=1000, deliveryTag=9, messageCount=0, consumerTag=amq.ctag-oOJzeYHEJYrLFL4HbHWZcA, consumerQueue=queue_delay_done])
consumer receive message 22------->:{}(Body:'hello world delay2 :1' MessageProperties [headers={x-first-death-exchange=exchange_delay_begin, x-death=[{reason=expired, original-expiration=10000, count=1, exchange=exchange_delay_begin, time=Sun Jul 01 18:33:19 CST 2018, routing-keys=[delay], queue=queue_delay_begin}], x-first-death-reason=expired, x-first-death-queue=queue_delay_begin}, timestamp=null, messageId=null, userId=null, receivedUserId=null, appId=null, clusterId=null, type=null, correlationId=null, correlationIdString=null, replyTo=null, contentType=text/plain, contentEncoding=UTF-8, contentLength=0, deliveryMode=null, receivedDeliveryMode=PERSISTENT, expiration=null, priority=0, redelivered=false, receivedExchange=exchange_delay_done, receivedRoutingKey=delay, receivedDelay=1000, deliveryTag=10, messageCount=0, consumerTag=amq.ctag-oOJzeYHEJYrLFL4HbHWZcA, consumerQueue=queue_delay_done])

复制代码



  • 多个延迟队列

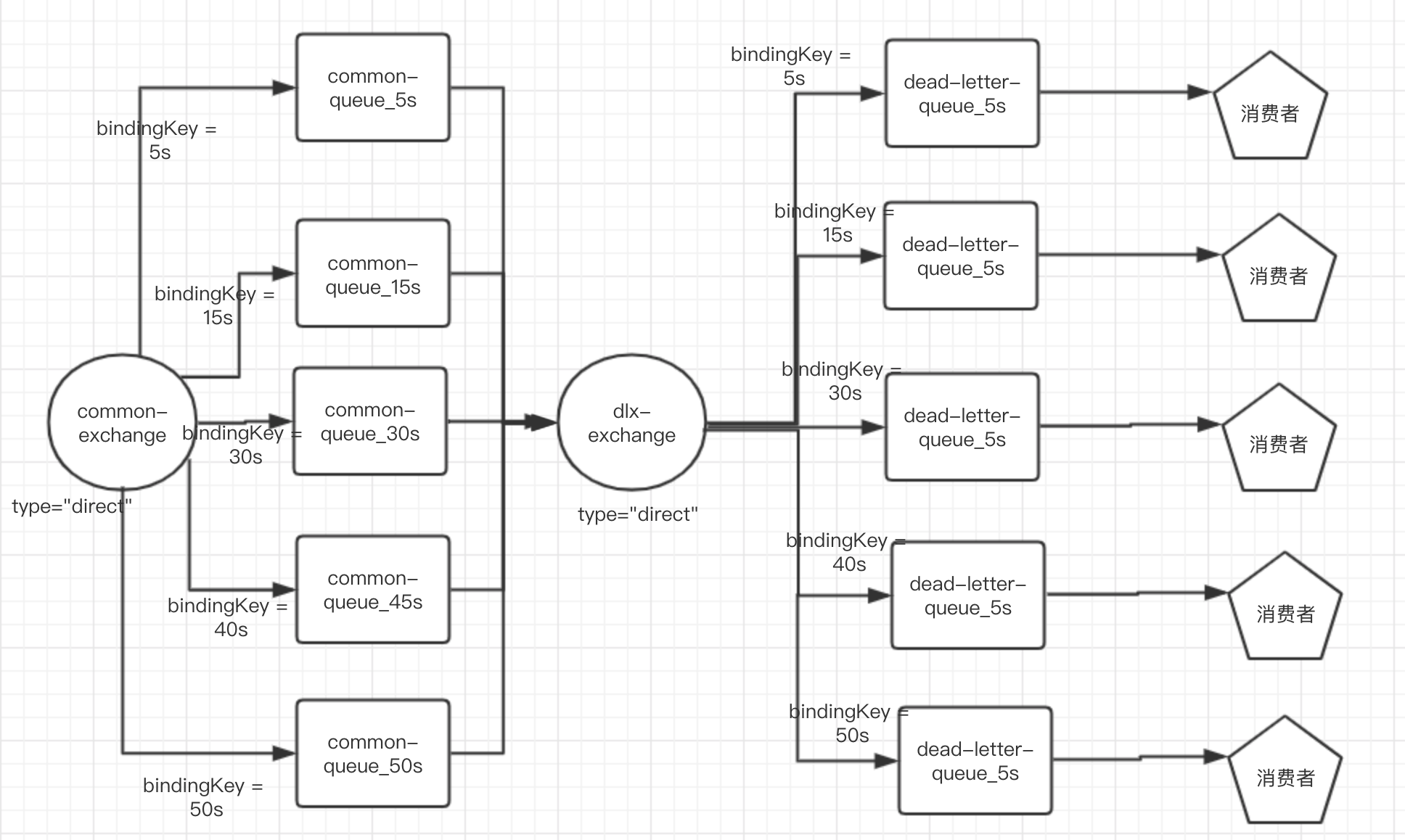

实际的业务需求中会出现不同的时间延迟，此时可设置多个队列以达到不同的延迟效果。例如5个队列 common-queue_5s、common-queue_15s、common-queue_30s、common-queue_45s、common-queue_50s达到不同的延迟效果，整体的结构如下：



 上述bindingKey的值有所简化，但对路由结构图无影响。这里使用一个死信转发器（转发器类型）通过绑定不同的key路由到不同的死信队列。也可以死信转发器和死信队列一对一绑定 即 成对出现(dlx_exchange_5s 和 dead-letter-queue_5s)

这里贴出部分xml部分配置：

复制代码

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:rabbit="http://www.springframework.org/schema/rabbit"xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsdhttp://www.springframework.org/schema/rabbithttp://www.springframework.org/schema/rabbit/spring-rabbit-1.4.xsd"><rabbit:connection-factoryid="connectionFactory"host="${rabbit.host}"port="${rabbit.port}"username="${rabbit.username}"password="${rabbit.password}"publisher-confirms="true"/><rabbit:admin connection-factory="connectionFactory" ignore-declaration-exceptions="true" /><!-- 正常队列 --><!-- 5s过期 --><rabbit:queue name="common-queue_5s"><rabbit:queue-arguments><entry key="x-message-ttl" value="5000" value-type="java.lang.Long" /><entry key="x-dead-letter-exchange" value="dlx-exchange" /><entry key="x-dead-letter-routing-key" value="dead-letter-queue_5s" /></rabbit:queue-arguments></rabbit:queue><!-- 15s过期 --><rabbit:queue name="common-queue_15s"><rabbit:queue-arguments><entry key="x-message-ttl" value="15000" value-type="java.lang.Long" /><entry key="x-dead-letter-exchange" value="dlx-exchange" /><entry key="x-dead-letter-routing-key" value="dead-letter-queue_15s" /></rabbit:queue-arguments></rabbit:queue><!-- 30s过期 --><rabbit:queue name="common-queue_30s"><rabbit:queue-arguments><entry key="x-message-ttl" value="30000" value-type="java.lang.Long" /><entry key="x-dead-letter-exchange" value="dlx-exchange" /><entry key="x-dead-letter-routing-key" value="dead-letter-queue_30s" /></rabbit:queue-arguments></rabbit:queue><!-- 45s过期 --><rabbit:queue name="common-queue_45s"><rabbit:queue-arguments><entry key="x-message-ttl" value="45000" value-type="java.lang.Long" /><entry key="x-dead-letter-exchange" value="dlx-exchange" /><entry key="x-dead-letter-routing-key" value="dead-letter-queue_45s" /></rabbit:queue-arguments></rabbit:queue><!-- 50s过期 --><rabbit:queue name="common-queue_50s"><rabbit:queue-arguments><entry key="x-message-ttl" value="50000" value-type="java.lang.Long" /><entry key="x-dead-letter-exchange" value="dlx-exchange" /><entry key="x-dead-letter-routing-key" value="dead-letter-queue_50s" /></rabbit:queue-arguments></rabbit:queue><!-- 正常路由 --><rabbit:direct-exchange name="common-exchange" durable="false" id="common-exchange"><rabbit:bindings><rabbit:binding queue="common-queue_5s" /><rabbit:binding queue="common-queue_15s" /><rabbit:binding queue="common-queue_30s" /><rabbit:binding queue="common-queue_45s" /><rabbit:binding queue="common-queue_50s" /></rabbit:bindings></rabbit:direct-exchange><!-- 死信队列 --><rabbit:queue name="dead-letter-queue_5s" /><rabbit:queue name="dead-letter-queue_15s" /><rabbit:queue name="dead-letter-queue_30s" /><rabbit:queue name="dead-letter-queue_45s" /><rabbit:queue name="dead-letter-queue_50s" /><rabbit:direct-exchange name="dlx-exchange" durable="false" id="dlx-exchange"><rabbit:bindings><rabbit:binding queue="dead-letter-queue_5s" /><rabbit:binding queue="dead-letter-queue_15s" /><rabbit:binding queue="dead-letter-queue_30s" /><rabbit:binding queue="dead-letter-queue_45s" /><rabbit:binding queue="dead-letter-queue_50s" /></rabbit:bindings></rabbit:direct-exchange><!-- 配置consumer, 监听的类和queue的对应关系 --><rabbit:listener-containerconnection-factory="connectionFactory" acknowledge="manual" ><rabbit:listener queues="dead-letter-queue_5s" ref="receiveConfirmTestListener" /><rabbit:listener queues="dead-letter-queue_15s" ref="receiveConfirmTestListener" /><rabbit:listener queues="dead-letter-queue_30s" ref="receiveConfirmTestListener" /><rabbit:listener queues="dead-letter-queue_45s" ref="receiveConfirmTestListener" /><rabbit:listener queues="dead-letter-queue_50s" ref="receiveConfirmTestListener" /></rabbit:listener-container></beans>

复制代码

 junit测试：

复制代码

@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = {"classpath:application-context.xml"})
public class TestDeadLetter {  @Autowired  private DeadLetterPublishService publishService;  @Testpublic void testALL() throws InterruptedException{String message = "currentTime:" + System.currentTimeMillis();System.out.println("test1---message: "+ message);publishService.send("common-exchange","common-queue_5s", message);publishService.send("common-exchange","common-queue_15s", message);publishService.send("common-exchange","common-queue_30s", message);publishService.send("common-exchange","common-queue_45s", message);publishService.send("common-exchange","common-queue_50s", message);Thread.sleep(100000);}}

复制代码

 最后运行结果：消息实际发送时间点 和 消息被延迟消费时间点无限接近 五个消息分别延迟大约 5s 15s 30s 45s 50s  但做不到精确一致。

复制代码

test1---message: currentTime:1566920053524
// 。。。。
1566920058551 - consumer--:MessageProperties [headers={spring_return_correlation=1ac8ee8e-6d61-4bbf-bac1-f21523a0d759, x-first-death-exchange=common-exchange, x-death=[{reason=expired, count=1, exchange=common-exchange, time=Tue Aug 27 23:34:18 CST 2019, routing-keys=[common-queue_5s], queue=common-queue_5s}], x-first-death-reason=expired, x-first-death-queue=common-queue_5s}, timestamp=null, messageId=null, userId=null, appId=null, clusterId=null, type=null, correlationId=null, replyTo=null, contentType=text/plain, contentEncoding=UTF-8, contentLength=0, deliveryMode=PERSISTENT, expiration=null, priority=0, redelivered=false, receivedExchange=dlx-exchange, receivedRoutingKey=dead-letter-queue_5s, deliveryTag=1, messageCount=0]:currentTime:1566920053524
1566920068578 - consumer--:MessageProperties [headers={spring_return_correlation=1ac8ee8e-6d61-4bbf-bac1-f21523a0d759, x-first-death-exchange=common-exchange, x-death=[{reason=expired, count=1, exchange=common-exchange, time=Tue Aug 27 23:34:28 CST 2019, routing-keys=[common-queue_15s], queue=common-queue_15s}], x-first-death-reason=expired, x-first-death-queue=common-queue_15s}, timestamp=null, messageId=null, userId=null, appId=null, clusterId=null, type=null, correlationId=null, replyTo=null, contentType=text/plain, contentEncoding=UTF-8, contentLength=0, deliveryMode=PERSISTENT, expiration=null, priority=0, redelivered=false, receivedExchange=dlx-exchange, receivedRoutingKey=dead-letter-queue_15s, deliveryTag=1, messageCount=0]:currentTime:1566920053524
1566920083550 - consumer--:MessageProperties [headers={spring_return_correlation=1ac8ee8e-6d61-4bbf-bac1-f21523a0d759, x-first-death-exchange=common-exchange, x-death=[{reason=expired, count=1, exchange=common-exchange, time=Tue Aug 27 23:34:43 CST 2019, routing-keys=[common-queue_30s], queue=common-queue_30s}], x-first-death-reason=expired, x-first-death-queue=common-queue_30s}, timestamp=null, messageId=null, userId=null, appId=null, clusterId=null, type=null, correlationId=null, replyTo=null, contentType=text/plain, contentEncoding=UTF-8, contentLength=0, deliveryMode=PERSISTENT, expiration=null, priority=0, redelivered=false, receivedExchange=dlx-exchange, receivedRoutingKey=dead-letter-queue_30s, deliveryTag=1, messageCount=0]:currentTime:1566920053524
1566920098549 - consumer--:MessageProperties [headers={spring_return_correlation=1ac8ee8e-6d61-4bbf-bac1-f21523a0d759, x-first-death-exchange=common-exchange, x-death=[{reason=expired, count=1, exchange=common-exchange, time=Tue Aug 27 23:34:58 CST 2019, routing-keys=[common-queue_45s], queue=common-queue_45s}], x-first-death-reason=expired, x-first-death-queue=common-queue_45s}, timestamp=null, messageId=null, userId=null, appId=null, clusterId=null, type=null, correlationId=null, replyTo=null, contentType=text/plain, contentEncoding=UTF-8, contentLength=0, deliveryMode=PERSISTENT, expiration=null, priority=0, redelivered=false, receivedExchange=dlx-exchange, receivedRoutingKey=dead-letter-queue_45s, deliveryTag=1, messageCount=0]:currentTime:1566920053524
1566920103551 - consumer--:MessageProperties [headers={spring_return_correlation=1ac8ee8e-6d61-4bbf-bac1-f21523a0d759, x-first-death-exchange=common-exchange, x-death=[{reason=expired, count=1, exchange=common-exchange, time=Tue Aug 27 23:35:03 CST 2019, routing-keys=[common-queue_50s], queue=common-queue_50s}], x-first-death-reason=expired, x-first-death-queue=common-queue_50s}, timestamp=null, messageId=null, userId=null, appId=null, clusterId=null, type=null, correlationId=null, replyTo=null, contentType=text/plain, contentEncoding=UTF-8, contentLength=0, deliveryMode=PERSISTENT, expiration=null, priority=0, redelivered=false, receivedExchange=dlx-exchange, receivedRoutingKey=dead-letter-queue_50s, deliveryTag=1, messageCount=0]:currentTime:1566920053524

复制代码







这篇关于RabbitMQ 延时消息队列的文章就介绍到这儿，希望我们推荐的文章对编程师们有所帮助！
