Hystrix-Dashboard-Turbine

本文主要是介绍Hystrix-Dashboard-Turbine，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

参考文章：https://blog.csdn.net/trisonlu123/article/details/80100031

一、体验Hystrix-Dashboard

在consumer基础上进行更改

1、增加依赖

        <dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-hystrix</artifactId></dependency><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-hystrix-dashboard</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-actuator</artifactId></dependency>

2、修改Main类

@SpringBootApplication
@EnableDiscoveryClient
@EnableFeignClients
@EnableHystrixDashboard
@EnableCircuitBreaker
public class ConsumerApplication {public static void main(String[] args) {SpringApplication.run(ConsumerApplication.class, args);}
}

3、案例

启动server，producer，consumer

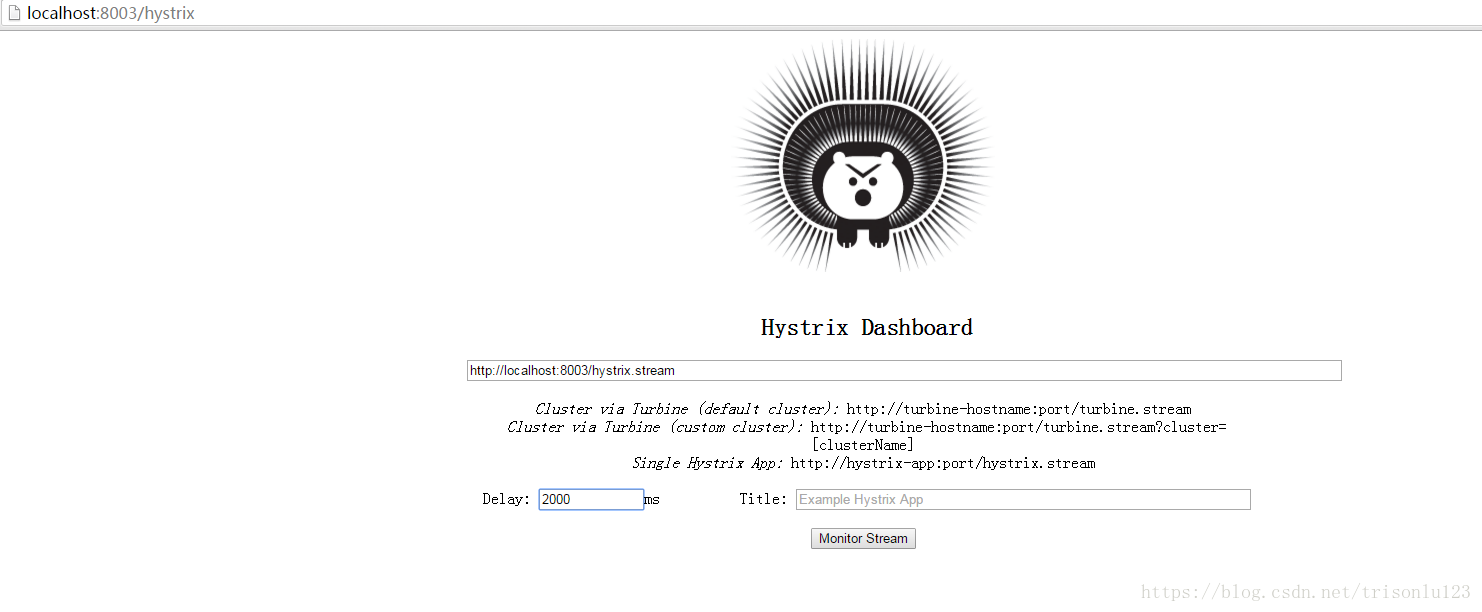

访问http://localhost:8003/hystrix

点击Monitor Stream

具体看效果可以访问下接口，看下监控效果，再停掉producer服务，再访问下接口，再看监控效果

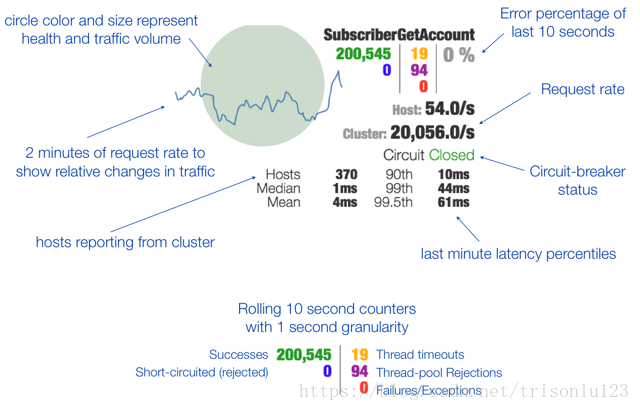

具体监控描述如下图

二、体验Turbine

1、Hystrix-dashboard-turbine

①依赖配置

<dependencyManagement><dependencies><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-dependencies</artifactId><version>1.5.3.RELEASE</version><type>pom</type><scope>import</scope></dependency><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-dependencies</artifactId><version>Dalston.RELEASE</version><type>pom</type><scope>import</scope></dependency></dependencies></dependencyManagement><dependencies><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-turbine</artifactId></dependency><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-netflix-turbine</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-actuator</artifactId></dependency><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-hystrix-dashboard</artifactId></dependency></dependencies>

②application.properties

spring.application.name=hystrix-dashboard-turbineserver.port=8003
turbine.appConfig=node01,node02
turbine.aggregator.clusterConfig= default
turbine.clusterNameExpression= new String("default")eureka.client.serviceUrl.defaultZone=http://localhost:8000/eureka/

③Main类

@SpringBootApplication
@EnableHystrixDashboard
@EnableTurbine
public class DashboardApplication {public static void main(String[] args) {SpringApplication.run(DashboardApplication.class, args);}
}

2、consumer-node1，由consumer修改而来

application.properties

spring.application.name=node01server.port=8001feign.hystrix.enabled=trueeureka.client.serviceUrl.defaultZone=http://localhost:8000/eureka/

3、consumer-node2，由consumer修改而来

①application.properties

spring.application.name=node02server.port=8002feign.hystrix.enabled=trueeureka.client.serviceUrl.defaultZone=http://localhost:8000/eureka/

②DemoRemote.java

@FeignClient(name = "spring-cloud-producer2", fallback = DemoRemoteHystrix.class)
public interface DemoRemote {@RequestMapping(value = "/demo")public String demo2(@RequestParam(value = "message") String message);
}

同时修改DemoRemoteHystrix.java和DemoController.java

4、案例

同时启动服务、consumer-node1、consumer-node2、hystrix-dashboard-turbine

①访问http://localhost:8000/，发现三个注册方

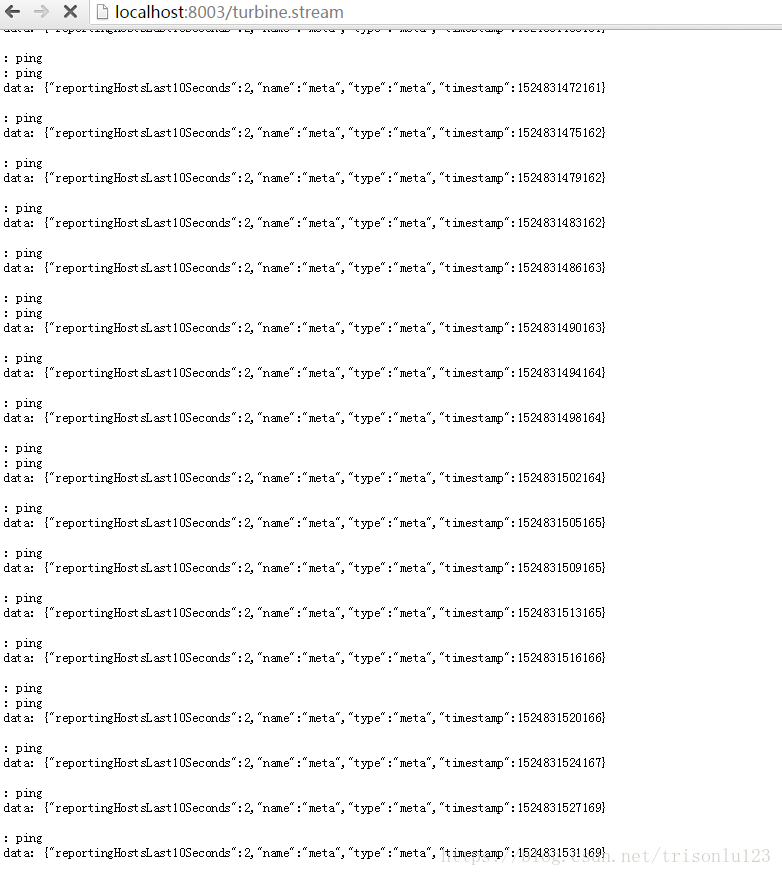

②访问http://localhost:8003/turbine.stream

发现监控一直存在，不断的调出：ping

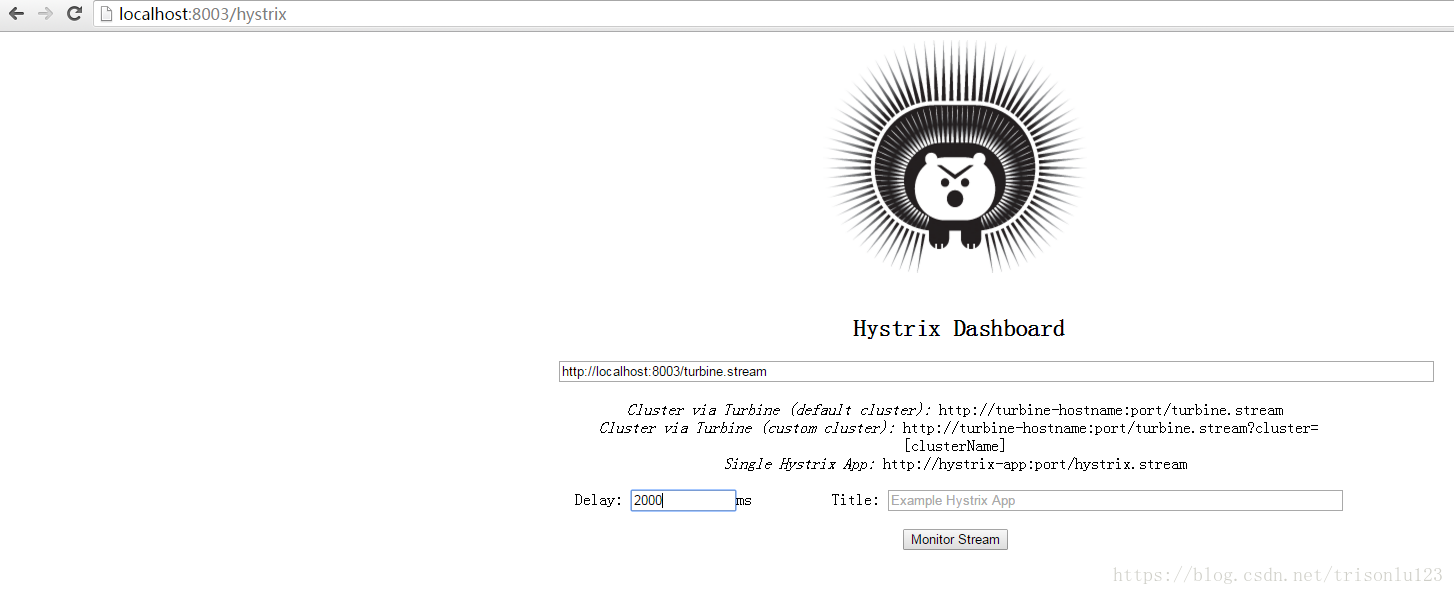

③访问http://localhost:8003/hystrix

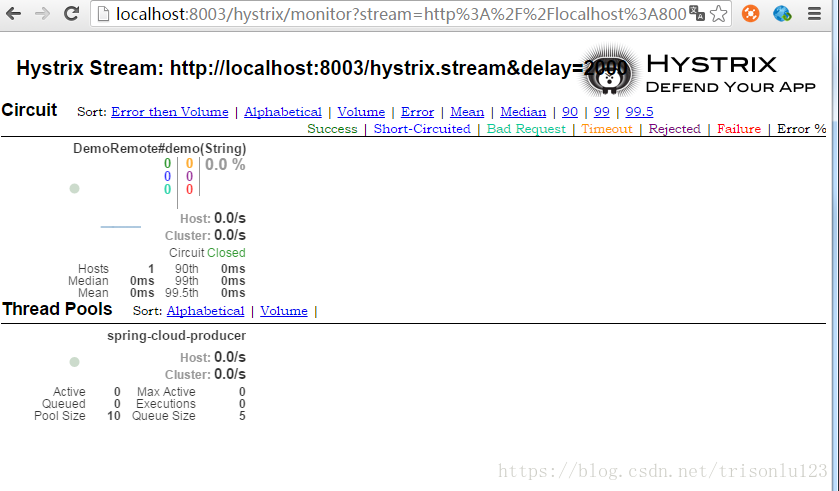

点击Monitor Stream

发现同时监控了两个consumer

这篇关于Hystrix-Dashboard-Turbine的文章就介绍到这儿，希望我们推荐的文章对编程师们有所帮助！

---
