解决ESP32 esp_image: Image length *** doesn't fit in partition length 1048576

本文主要是介绍解决ESP32 esp_image: Image length *** doesn't fit in partition length 1048576，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

背景：

ESP32下载的时候遇到esp_image: Image length *** doesn't fit in partition length 1048576错误

解决方法：

项目文件夹下创建partitions.csv文件，把ota_0和0ta_1的大小改为比固件更大的数值，比如0x180000内容如下：

# Name,   Type, SubType, Offset,   Size, Flags
# Note: if you change the phy_init or app partition offset, make sure to change the offset in Kconfig.projbuild
nvs,      data, nvs,     ,        0x4000,
otadata,  data, ota,     ,        0x2000,
phy_init, data, phy,     ,        0x1000,
ota_0,    app,  ota_0,   ,        0x180000,
ota_1,    app,  ota_1,   ,        0x180000,
fctry,    data, nvs,     ,        0x4000

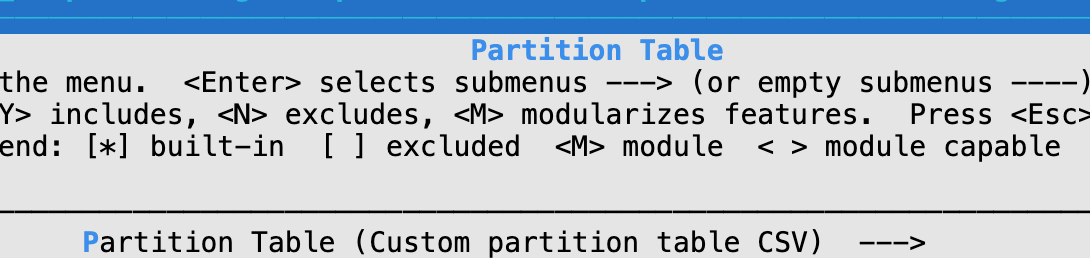

然后menuconfig里面partition table选择Custom partition table CSV

这篇关于解决ESP32 esp_image: Image length *** doesn't fit in partition length 1048576的文章就介绍到这儿，希望我们推荐的文章对编程师们有所帮助！

---
