累计分布函数匹配 (CDF matching) Python实现

本文主要是介绍累计分布函数匹配 (CDF matching) Python实现，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

import numpy as np
import scipy.io as io
import matplotlib.pyplot as plt
from scipy.interpolate import InterpolatedUnivariateSpline
from scipy.optimize import curve_fit
np.random.seed(0)# 原始数据
x = np.arange(0, 37)
data_or = np.sin(x) + np.random.normal(scale=0.3) + 1# 参考数据
y = np.arange(0, 40)
data_ref = np.sin(2*y) + np.random.normal(scale=0.3) + 1# pdf
pdf_or = (np.arange(len(x)) +  1) / (len(x))
pdf_ref = (np.arange(len(y)) +  1) / (len(y))# 插值data_or到pdf_ref
spl = InterpolatedUnivariateSpline(pdf_or, np.sort(data_or))
data_or_interp = spl(pdf_ref)# 拟合系数
def func(x, a, b, c, d):return a*x + b*x**2 + c*x**3 + dpopt = curve_fit(func, data_or_interp, np.sort(data_ref))[0]# 校正后数据
data_corrected = func(data_or, *popt)# 绘图

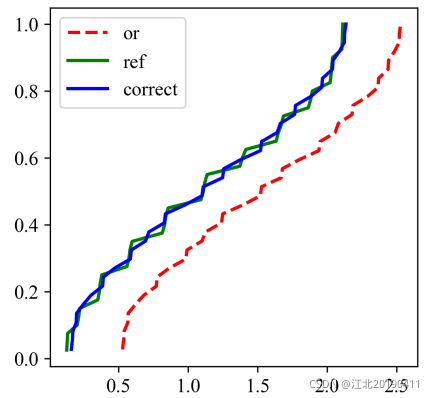

plt.rcParams['font.size'] = 12
plt.rcParams['font.family'] = 'Times New Roman'
fig, ax = plt.subplots(1, 1, dpi=300, figsize=(4, 4))
ax.plot(np.sort(data_or), pdf_or, label='or', linewidth=2, c='r', linestyle='--')
ax.plot(np.sort(data_ref), pdf_ref, label='ref', linewidth=2, c='g')ax.plot(np.sort(data_corrected), pdf_or, label='correct', linewidth=2, c='b')
ax.legend()
