Use the followingmethod printPrimes() for questions a–dbelow.

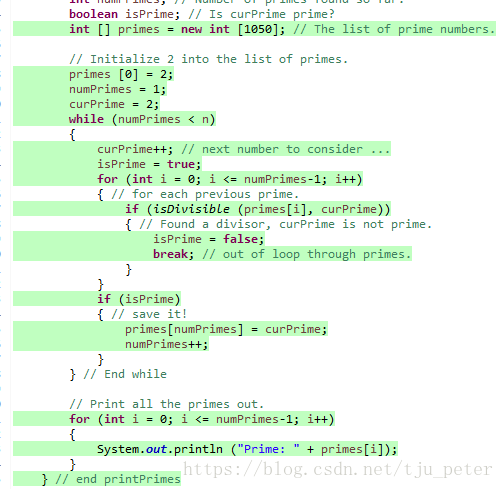

private static void printPrimes (int n)
{int curPrime; // Value currently considered for primenessint numPrimes; // Number of primes found so far.boolean isPrime; // Is curPrime prime?int [] primes = new int [MAXPRIMES]; // The list of prime numbers.// Initialize 2 into the list of primes.primes [0] = 2;numPrimes = 1;curPrime = 2;while (numPrimes < n){curPrime++; // next number to consider ...isPrime = true;for (int i = 0; i <= numPrimes-1; i++){ // for each previous prime.if (isDivisible (primes[i], curPrime)){ // Found a divisor, curPrime is not prime.isPrime = false;break; // out of loop through primes.}}if (isPrime){ // save it!primes[numPrimes] = curPrime;numPrimes++;}} // End while// Print all the primes out.for (int i = 0; i <= numPrimes-1; i++){System.out.println ("Prime: " + primes[i]);}
} // end printPrimes

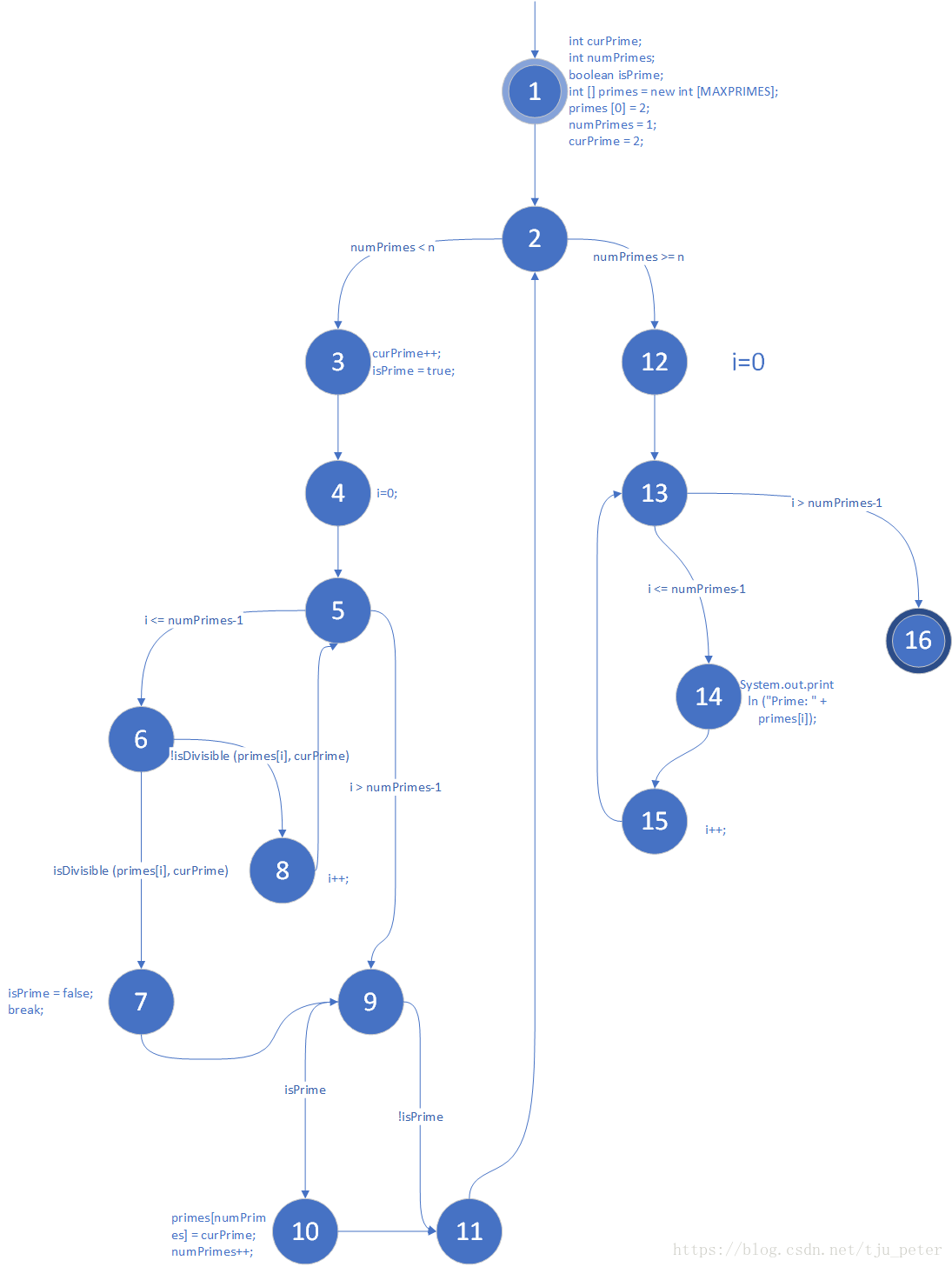

(a) Draw the control flow graph for the printPrimes() method.

(b) Consider test cases t1 = (n = 3) and t2 = (n = 5). Although these tour the

same prime paths in printPrimes(), they do not necessarily find the same

faults. Design a simple fault that t2 would be more likely to discover than

t1 would.

设MAXPRIMES=4，t2数组越界，t1不会有错误

(c) For printPrimes(), find a test case such that the corresponding test

path visits the edge that connects the beginning of the while statement

to the forstatement without going through thebody of the while

loop.

n=1时直接跳出循环

(d) Enumerate the test requirements for node coverage, edge coverage, and

prime path coveragefor the graph for printPrimes().

node coverage:

{1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16}



Edge coverage:

{(1,2),(2,3),(2,12),(3,4),(4,5),(5,6),(5,9),(6,8),(8,5),(6,7),(7,9),(9,10),(9,11),(10,11),(11,2),(12,13),(13,14),(13,16),(14,15),(15,13)}

Prime path coverage:

{[1,2,3,4,5,6,7,8,9,10,11],[1,2,3,4,5,6,7,9,11],[1,2,3,4,5,6,8],[1,2,3,4,5,9,10,11],[1,2,3,4,5,9,11],[2,3,4,5,6,7,9,10,11,2],[2,3,4,5,6,7,9,11,2],[2,3,4,5,6,8],[2,3,4,5,9,10,11,2],[2,3,4,5,9,11,2],[5,6,8,5],[6,8,5,6],[8,5,6,8],[9,10,11,9],[10,11,9,10],[11,9,10,11],[1,2,12,13,16],[1,2,12,13,14,15],[13,14,15,13],[14,15,13,14],[15,13,14,15],[3,4,5,9,11,2,3],[4,5,9,11,2,3,4],[5,9,11,2,3,4,5],[9,11,2,3,4,5,9],[11,2,3,4,5,9,11],[3,4,5,6,7,9,10,11,2,3],[4,5,6,7,9,10,11,2,3,4],[5,6,7,9,10,11,2,3,4,5],[6,7,9,10,11,2,3,4,5,6],[7,9,10,11,2,3,4,5,6,7],[9,10,11,2,3,4,5,6,7,9],[10,11,2,3,4,5,6,7,9,10],[11,2,3,4,5,6,7,9,10,11],[3,4,5,6,7,9,11,2,3],[4,5,6,7,9,11,2,3,4],[5,6,7,9,11,2,3,4,5],[6,7,9,11,2,3,4,5,6],[7,9,11,2,3,4,5,6,7],[9,11,2,3,4,5,6,7,9],[11,2,3,4,5,6,7,8,9,11],[3,4,5,9,10,11,2,3],[4,5,9,10,11,2,3,4],[5,9,10,11,2,3,4,5],[9,10,11,2,3,4,5,9],[10,11,2,3,4,5,9,10],[11,2,3,4,5,9,10,11]}

package primes;import org.junit.Assert.*;
import org.junit.Before;
import org.junit.Test;public class testprimes {private primes pri;@Beforepublic void setup(){pri=new primes();}@Testpublic void tests(){pri.printPrimes(15);}
}

private static boolean isDivisible(int a,int b){if(b%a==0)return true;return false;}
