Android服务启动之StartService源码分析

在编写Android应用程序时，我们一般将比较耗时的操作放在一个独立的进程来处理，这样主进程仍然可以流畅地响应界面事件，提高用户体验。Android系统为我们提供了一个Service类，我们可以实现一个以Service为基类的服务子类，在里面实现自己的计算型逻辑，然后在主进程通过startService函数来启动这个服务。在本文中，将详细分析应用程序进程是如何通过startService函数来启动自定义服务的。

请求启动Service

frameworks\base\core\java\android\content\Context.java

public abstract ComponentName startService(Intent service);

在Context类中定义了抽象方法startService，该函数由Context的子类ContextImpl实现。

frameworks\base\core\java\android\content\ContextWrapper.java

public ComponentName startService(Intent service) {
return mBase.startService(service);
}

mBase为ContextImpl类型对象

frameworks\base\core\java\android\app\ContextImpl.java

public ComponentName startService(Intent service) {
try {
service.setAllowFds(false);
//调用ActivityManagerService服务的Binder远程代理发送启动Service的参数
ComponentName cn = ActivityManagerNative.getDefault().startService(
mMainThread.getApplicationThread(), service,
service.resolveTypeIfNeeded(getContentResolver()));
if (cn != null && cn.getPackageName().equals("!")) {
throw new SecurityException(
"Not allowed to start service " + service
+ " without permission " + cn.getClassName());
}
return cn;
} catch (RemoteException e) {
return null;
}
}

ActivityManagerNative.getDefault()将得到ActivityManagerProxy对象，参数mMainThread.getApplicationThread()表示为当前启动服务进程的ApplicationThread对象，参数service.resolveTypeIfNeeded(getContentResolver())返回当前传输的Intent的MEMI号，关于Binder进程间RPC调用过程这里不在详细分析，有兴趣可以参考 Android服务函数远程调用源码分析。通过ActivityManagerNative.getDefault().startService()调用，将Service的启动交给SystemServer进程的ActivityManagerService服务来完成。

frameworks\base\services\java\com\android\server\am\ActivityManagerService.java

public ComponentName startService(IApplicationThread caller, Intent service,
String resolvedType) {
// Refuse possible leaked file descriptors
if (service != null && service.hasFileDescriptors() == true) {
throw new IllegalArgumentException("File descriptors passed in Intent");
}
synchronized(this) {
//读取启动服务的应用程序进程的PID和UID
final int callingPid = Binder.getCallingPid();
final int callingUid = Binder.getCallingUid();
final long origId = Binder.clearCallingIdentity();
ComponentName res = startServiceLocked(caller, service,
resolvedType, callingPid, callingUid);
Binder.restoreCallingIdentity(origId);
return res;
}
}

参数caller是启动服务的应用程序进程的ApplicationThread实例，比如说Launcher启动服务，那么这个caller就是Launcher进程的ApplicationThread实例，每一个Android应用程序进程都有且只有一个ActivityThread实例，每一个ActivityThread实例中又定义了一个ApplicationThread对象。接下来调用startServiceLocked函数来启动服务

frameworks/base/services/java/com/android/server/am/ActivityManagerService.java

ComponentName startServiceLocked(IApplicationThread caller,
Intent service, String resolvedType,
int callingPid, int callingUid) {
synchronized(this) {
if (DEBUG_SERVICE) Slog.v(TAG, "startService: " + service
+ " type=" + resolvedType + " args=" + service.getExtras());
if (caller != null) {
//通过ApplicationThread对象从ActivityManagerService的成员变量mLruProcesses列表中查找启动服务的进程在ActivityManagerService中的ProcessRecord对象，变量mLruProcesses的说明：
/**
* List of running applications, sorted by recent usage.
* The first entry in the list is the least recently used.
* It contains ApplicationRecord objects.  This list does NOT include
* any persistent application records (since we never want to exit them).
*/
final ProcessRecord callerApp = getRecordForAppLocked(caller);
if (callerApp == null) {
throw new SecurityException(
"Unable to find app for caller " + caller
+ " (pid=" + Binder.getCallingPid()
+ ") when starting service " + service);
}
}
//解析service这个Intent
/**
* private final class ServiceLookupResult {
*		final ServiceRecord record; ServiceRecord用于在服务端描述一个Service信息
*		final String permission;
*		ServiceLookupResult(ServiceRecord _record, String _permission) {
*			record = _record;
*			permission = _permission;
*		}
* };
*/
ServiceLookupResult res = retrieveServiceLocked(service, resolvedType,
callingPid, callingUid, UserId.getUserId(callingUid));
//系统中没有注册此Service
if (res == null) {
return null;
}
if (res.record == null) {
return new ComponentName("!", res.permission != null ? res.permission : "private to package");
}
//权限检查
ServiceRecord r = res.record;
NeededUriGrants neededGrants = checkGrantUriPermissionFromIntentLocked(
callingUid, r.packageName, service, service.getFlags(), null);
if (unscheduleServiceRestartLocked(r)) {
if (DEBUG_SERVICE) Slog.v(TAG, "START SERVICE WHILE RESTART PENDING: " + r);
}
//初始化服务端的ServiceRecord信息
r.startRequested = true;
r.callStart = false;
r.pendingStarts.add(new ServiceRecord.StartItem(r, false, r.makeNextStartId(),
service, neededGrants));
r.lastActivity = SystemClock.uptimeMillis();
synchronized (r.stats.getBatteryStats()) {
r.stats.startRunningLocked();
}
//进一步启动Service
if (!bringUpServiceLocked(r, service.getFlags(), false)) {
return new ComponentName("!", "Service process is bad");
}
return r.name;
}
}

ActivityManagerService在请求Zygote进程孵化新的应用程序进程时，在ActivityManagerService服务端为每一个应用程序进程创建了对应的ProcessRecord对象来描述新的应用程序进程信息，关于ActivityManagerService请求孵化新应用程序过程请参考 Android 应用进程启动过程的源码分析。函数首先根据应用程序进程中的IApplicationThread对象在最近启动的应用程序列表mLruProcesses中为服务启动进程查找对应的ProcessRecord对象，如果启动Service的应用程序进程还未启动，则抛出SecurityException异常。然后调用retrieveServiceLocked函数为当前启动的Service在ActivityManagerService服务端创建一个ServiceRecord对象来描述当前Service的信息。

frameworks/base/services/java/com/android/server/am/ActivityManagerService.java

private ServiceLookupResult retrieveServiceLocked(Intent service,
String resolvedType, int callingPid, int callingUid, int userId) {
ServiceRecord r = null;
if (DEBUG_SERVICE)
Slog.v(TAG, "retrieveServiceLocked: " + service + " type=" + resolvedType
+ " callingUid=" + callingUid);
//根据Service的包名从ActivityManagerService的成员变量mServiceMap中查找对应的ServiceRecord对象
if (service.getComponent() != null) {
r = mServiceMap.getServiceByName(service.getComponent(), userId);
}
//根据启动Service的Intent信息从成员变量mServiceMap中查找对应的ServiceRecord对象
if (r == null) {
Intent.FilterComparison filter = new Intent.FilterComparison(service);
r = mServiceMap.getServiceByIntent(filter, userId);
}
//如果mServiceMap中不存在当前启动的Service对应的ServiceRecord对象
if (r == null) {
try {
//从PackageManager服务中获取当前启动Service的相关信息，并构造ResolveInfo对象
ResolveInfo rInfo =AppGlobals.getPackageManager().resolveService(
service, resolvedType, STOCK_PM_FLAGS, userId);
//获取Service信息对象
ServiceInfo sInfo = rInfo != null ? rInfo.serviceInfo : null;
if (sInfo == null) {
Slog.w(TAG, "Unable to start service " + service +
": not found");
return null;
}
if (userId > 0) {
if (isSingleton(sInfo.processName, sInfo.applicationInfo)) {
userId = 0;
}
sInfo.applicationInfo = getAppInfoForUser(sInfo.applicationInfo, userId);
}
ComponentName name = new ComponentName(
sInfo.applicationInfo.packageName, sInfo.name);
//再次根据Service的包名从成员变量mServiceMap中查找对应的ServiceRecord对象
r = mServiceMap.getServiceByName(name, userId);
//依然查找不到
if (r == null) {
Intent.FilterComparison filter = new Intent.FilterComparison(
service.cloneFilter());
//为当前Service构造一个重启服务的Runnable对象
ServiceRestarter res = new ServiceRestarter();
BatteryStatsImpl.Uid.Pkg.Serv ss = null;
BatteryStatsImpl stats = mBatteryStatsService.getActiveStatistics();
synchronized (stats) {
ss = stats.getServiceStatsLocked(
sInfo.applicationInfo.uid, sInfo.packageName,
sInfo.name);
}
//为当前Service构造ServiceRecord对象
r = new ServiceRecord(this, ss, name, filter, sInfo, res);
//设置ServiceRestarter重启的服务为当前Service
res.setService(r);
//将当前Service的服务端描述符ServiceRecord保存到mServiceMap中
mServiceMap.putServiceByName(name, UserId.getUserId(r.appInfo.uid), r);
mServiceMap.putServiceByIntent(filter, UserId.getUserId(r.appInfo.uid), r);
//通过服务名称查找mPendingServices服务列表中是否存在当前Service
int N = mPendingServices.size();
for (int i=0; i<N; i++) {
ServiceRecord pr = mPendingServices.get(i);
if (pr.name.equals(name)) {
mPendingServices.remove(i);
i--;
N--;
}
}
}
} catch (RemoteException ex) {
// pm is in same process, this will never happen.
}
}
if (r != null) {
//检查服务权限
if (checkComponentPermission(r.permission,
callingPid, callingUid, r.appInfo.uid, r.exported)
!= PackageManager.PERMISSION_GRANTED) {
if (!r.exported) {
Slog.w(TAG, "Permission Denial: Accessing service " + r.name
+ " from pid=" + callingPid
+ ", uid=" + callingUid
+ " that is not exported from uid " + r.appInfo.uid);
return new ServiceLookupResult(null, "not exported from uid "
+ r.appInfo.uid);
}
Slog.w(TAG, "Permission Denial: Accessing service " + r.name
+ " from pid=" + callingPid
+ ", uid=" + callingUid
+ " requires " + r.permission);
return new ServiceLookupResult(null, r.permission);
}
//返回ServiceLookupResult对象
return new ServiceLookupResult(r, null);
}
return null;
}

该函数通过一系列处理后，为当前启动的Service构造了对应的ServiceRecord对象，并保存到ActivityManagerService的成员变量mServiceMap中，这样就相当于在ActivityManagerService服务端完成了服务登记工作，接下来将调用bringUpServiceLocked函数正式启动这个已经记录在案的Service。

frameworks/base/services/java/com/android/server/am/ActivityManagerService.java

private final boolean bringUpServiceLocked(ServiceRecord r,
int intentFlags, boolean whileRestarting) {
//如果该Service服务已经创建，再次调用startService时，只调用该Service的onStartCommand来运行该Service
if (r.app != null && r.app.thread != null) {
//启动Service
sendServiceArgsLocked(r, false);
return true;
}
if (!whileRestarting && r.restartDelay > 0) {
// If waiting for a restart, then do nothing.
return true;
}
if (DEBUG_SERVICE) Slog.v(TAG, "Bringing up " + r + " " + r.intent);
// 将当前启动的Service从服务重启列表mRestartingServices中移除
mRestartingServices.remove(r);
// Service is now being launched, its package can't be stopped.
try {
AppGlobals.getPackageManager().setPackageStoppedState(r.packageName, false, r.userId);
} catch (RemoteException e) {
} catch (IllegalArgumentException e) {
Slog.w(TAG, "Failed trying to unstop package "+ r.packageName + ": " + e);
}
//判断此Service是否在独立的进程中启动
final boolean isolated = (r.serviceInfo.flags&ServiceInfo.FLAG_ISOLATED_PROCESS) != 0;
//得到在XML中设置该Service运行的进程名称
final String appName = r.processName;
ProcessRecord app;
//当前Service运行在应用程序进程，并非独立进程
if (!isolated) {
//根据进程名称及UID从ActivityManagerService的成员变量mProcessNames中查找进程对应的描述符ProcessRecord
app = getProcessRecordLocked(appName, r.appInfo.uid);
if (DEBUG_MU)
Slog.v(TAG_MU, "bringUpServiceLocked: appInfo.uid=" + r.appInfo.uid + " app=" + app);
if (app != null && app.thread != null) {
try {
app.addPackage(r.appInfo.packageName);
//在现有的进程中启动Service
realStartServiceLocked(r, app);
return true;
} catch (RemoteException e) {
Slog.w(TAG, "Exception when starting service " + r.shortName, e);
}
}
} else {
// If this service runs in an isolated process, then each time
// we call startProcessLocked() we will get a new isolated
// process, starting another process if we are currently waiting
// for a previous process to come up.  To deal with this, we store
// in the service any current isolated process it is running in or
// waiting to have come up.
app = r.isolatedProc;
}
// Not running -- get it started, and enqueue this service record
// to be executed when the app comes up.
if (app == null) {
//启动应用程序进程
if ((app=startProcessLocked(appName, r.appInfo, true, intentFlags,
"service", r.name, false, isolated)) == null) {
Slog.w(TAG, "Unable to launch app "
+ r.appInfo.packageName + "/"
+ r.appInfo.uid + " for service "
+ r.intent.getIntent() + ": process is bad");
//强制退出Service
bringDownServiceLocked(r, true);
return false;
}
if (isolated) {
r.isolatedProc = app;
}
}
//当ActivityManagerService服务还为准备好时，mPendingServices用于保存客户进程请求启动的Servcie
//保存当前请求启动的Service
if (!mPendingServices.contains(r)) {
mPendingServices.add(r);
}
return true;
}

如果当前系统中已经存在运行该Service的进程，则调用函数realStartServiceLocked来进一步启动Service，realStartServiceLocked函数的第一个参数是当前启动的Service在ActivityManagerService服务中的描述符对象ServiceRecord，第二个参数则是运行该Service的进程在ActivityManagerService服务中的描述符对象ProcessRecord，有了启动的Service和运行该Service的进程，接下来就可以真正启动该Service了。

frameworks/base/services/java/com/android/server/am/ActivityManagerService.java

private final void realStartServiceLocked(ServiceRecord r,ProcessRecord app) throws  RemoteException {
if (app.thread == null) {
throw new RemoteException();
}
if (DEBUG_MU)
Slog.v(TAG_MU, "realStartServiceLocked, ServiceRecord.uid = " + r.appInfo.uid
+ ", ProcessRecord.uid = " + app.uid);
// LC_RAM_SUPPORT
if (LC_RAM_SUPPORT) {
r.appAdj = ProcessRecord.TMP_CUR_ADJ_DEFAULT;
r.hasFixAdj = (app.fixAdj != ProcessRecord.TMP_FIX_ADJ_DEFAULT);
}
r.app = app;
r.restartTime = r.lastActivity = SystemClock.uptimeMillis();
//在ActivityManagerService服务中记录当前进程中运行的所有Service
app.services.add(r);
bumpServiceExecutingLocked(r, "create");
//mLruProcesses保存系统最近运行的应用程序进程信息，更新当前ProcessRecord在mLruProcesses变量中的状态
updateLruProcessLocked(app, true, true);
boolean created = false;
try {
mStringBuilder.setLength(0);
r.intent.getIntent().toShortString(mStringBuilder, true, false, true, false);
EventLog.writeEvent(EventLogTags.AM_CREATE_SERVICE,
System.identityHashCode(r), r.shortName,
mStringBuilder.toString(), r.app.pid);
synchronized (r.stats.getBatteryStats()) {
r.stats.startLaunchedLocked();
}
//检查当前Service所在包是否经过Dex优化过
ensurePackageDexOpt(r.serviceInfo.packageName);

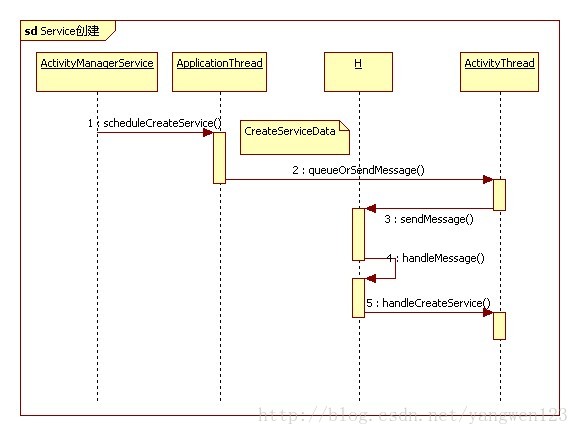

//创建Service服务
app.thread.scheduleCreateService(r, r.serviceInfo,compatibilityInfoForPackageLocked(r.serviceInfo.applicationInfo));
r.postNotification();
created = true;
} finally {
if (!created) {
app.services.remove(r);
scheduleServiceRestartLocked(r, false);
}
}

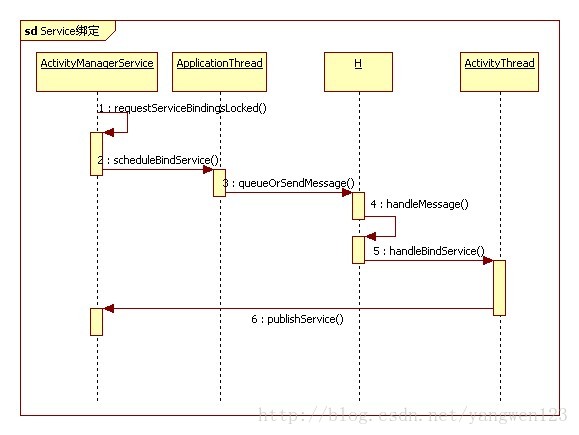

//绑定该Service服务
requestServiceBindingsLocked(r);
// If the service is in the started state, and there are no
// pending arguments, then fake up one so its onStartCommand() will
// be called.
if (r.startRequested && r.callStart && r.pendingStarts.size() == 0) {
r.pendingStarts.add(new ServiceRecord.StartItem(r, false, r.makeNextStartId(),
null, null));
}

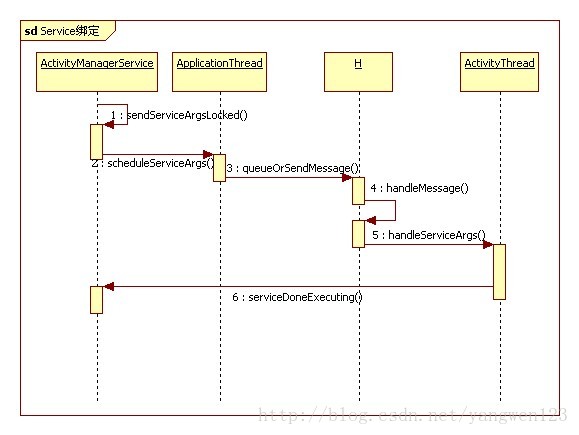

//启动该Service服务
sendServiceArgsLocked(r, true);
}

在该函数中完成了Service的创建，Service的绑定，Service的启动。无论是Service的创建，绑定还是启动过程，都是由ActivityManagerService服务调度应用程序进程来完成的，通过Binder跨进程调用来实现。在此之前Service启动的前期工作都是在ActivityManagerService中完成，主要是实现Service的备案：

Service创建过程

本文完整介绍了Service的创建启动过程，无论是Service的创建还是启动，Android应用程序进程自身都无法完成，必须通过ActivityManagerService服务调度实现，只有在ActivityManagerService服务端备案后，由ActivityManagerService服务通知应用程序进程来创建并启动Service。
