对于帧间预测而言,一定会涉及到参考图像的问题,但是搞清楚HM中参考图像是如何配置,对理解其编码结构尤为关键。顾名思义,参考图像应该是属于picture级别的,因此可以在compressGOP函数中找到相应的函数。主要包括以下三个函数:
1、arrangeLongtermPicturesInRPS(pcSlice, rcListPic);
2、pcSlice->setRefPicList ( rcListPic );
3、pcSlice->setRefPOCList();

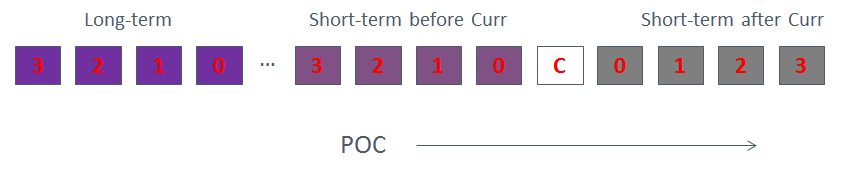

首先说第一个函数,主要是在RPS(Reference Picture Set)句法中设置LongTermPicture,那么什么是LT呢?参考图像主要有以下三种:long-term,short-term before curr和short-term after curr。第一个函数就是用来提供long-term 参考图像的,具体实现可以查看函数,这里不做重点叙述。
重点是第二个函数setRefPicList,上面我们了解到参考图像主要有三种,但是最后参考图像列表中的参考图像是通过下面的方式确定的。那些在参考列表中用到的参考图像,其标志为1,相反,则为0;故setRefPicList函数的实现过程是先通过标志位判断(if(m_pcRPS->getUsed(i)))确定三种参考图像的实际参考帧(如下面第一部分),然后再通过ref_pic_list_init过程,再组成list0和list1列表,实现过程详见程序。
- Void TComSlice::setRefPicList( TComList<TComPic*>& rcListPic )
- {
- if (m_eSliceType == I_SLICE)
- {//==对于I帧而言,直接返回==//
- ::memset( m_apcRefPicList, 0, sizeof (m_apcRefPicList));
- ::memset( m_aiNumRefIdx, 0, sizeof ( m_aiNumRefIdx ));
- return;
- }
- m_aiNumRefIdx[0] = getNumRefIdx(REF_PIC_LIST_0); //==list0参考图像数目==//
- m_aiNumRefIdx[1] = getNumRefIdx(REF_PIC_LIST_1); <span style="font-family: Arial, Helvetica, sans-serif;">//==list0参考图像数目==//
- </span>
- TComPic* pcRefPic= NULL;
- TComPic* RefPicSetStCurr0[16];
- TComPic* RefPicSetStCurr1[16];
- TComPic* RefPicSetLtCurr[16];
- UInt NumPocStCurr0 = 0;
- UInt NumPocStCurr1 = 0;
- UInt NumPocLtCurr = 0;
- Int i;
- for(i=0; i < m_pcRPS->getNumberOfNegativePictures(); i++)
- {// 设置short term negative(即前向参考图像)
- if(m_pcRPS->getUsed(i))
- {
- pcRefPic = xGetRefPic(rcListPic, getPOC()+m_pcRPS->getDeltaPOC(i));
- pcRefPic->setIsLongTerm(0);
- pcRefPic->setIsUsedAsLongTerm(0);
- pcRefPic->getPicYuvRec()->extendPicBorder();
- RefPicSetStCurr0[NumPocStCurr0 ] = pcRefPic;
- NumPocStCurr0++;
- pcRefPic->setCheckLTMSBPresent(false);
- }
- }
- for(; i < m_pcRPS->getNumberOfNegativePictures()+m_pcRPS->getNumberOfPositivePictures(); i++)
- {// 设置short term positive(即后向参考图像)
- if(m_pcRPS->getUsed(i))
- {
- pcRefPic = xGetRefPic(rcListPic, getPOC()+m_pcRPS->getDeltaPOC(i));
- pcRefPic->setIsLongTerm(0);
- pcRefPic->setIsUsedAsLongTerm(0);
- pcRefPic->getPicYuvRec()->extendPicBorder();
- RefPicSetStCurr1[NumPocStCurr1] = pcRefPic;
- NumPocStCurr1++;
- pcRefPic->setCheckLTMSBPresent(false);
- }
- }
- for(i = m_pcRPS->getNumberOfNegativePictures()+m_pcRPS->getNumberOfPositivePictures()+m_pcRPS->getNumberOfLongtermPictures()-1; i > m_pcRPS->getNumberOfNegativePictures()+m_pcRPS->getNumberOfPositivePictures()-1 ; i--)
- {//==设置long term参考图像==//
- if(m_pcRPS->getUsed(i))
- {
- pcRefPic = xGetLongTermRefPic(rcListPic, m_pcRPS->getPOC(i));
- pcRefPic->setIsLongTerm(1);
- pcRefPic->setIsUsedAsLongTerm(1);
- pcRefPic->getPicYuvRec()->extendPicBorder();
- RefPicSetLtCurr[NumPocLtCurr] = pcRefPic;
- NumPocLtCurr++;
- }
- if(pcRefPic==NULL)
- {
- pcRefPic = xGetLongTermRefPic(rcListPic, m_pcRPS->getPOC(i));
- }
- pcRefPic->setCheckLTMSBPresent(m_pcRPS->getCheckLTMSBPresent(i));
- }
- // ref_pic_list_init
- #if RPL_INIT_FIX
- TComPic* rpsCurrList0[MAX_NUM_REF+1];
- TComPic* rpsCurrList1[MAX_NUM_REF+1];
- Int numPocTotalCurr = NumPocStCurr0 + NumPocStCurr1 + NumPocLtCurr;
- {
- Int cIdx = 0;
- for ( i=0; i<NumPocStCurr0; i++, cIdx++)
- {//==(0<=cIdx<NumPocStCurr0)==//
- rpsCurrList0[cIdx] = RefPicSetStCurr0[i];
- }
- for ( i=0; i<NumPocStCurr1; i++, cIdx++)
- {//==(NumPocStCurr0<=cIdx<NumPocStCurr1+NumPocStCurr0)==//
- rpsCurrList0[cIdx] = RefPicSetStCurr1[i];
- }
- for ( i=0; i<NumPocLtCurr; i++, cIdx++)
- {//==(NumPocStCurr1<=cIdx<numPocTotalCurr)==//
- rpsCurrList0[cIdx] = RefPicSetLtCurr[i];
- }
- }
- if (m_eSliceType==B_SLICE)
- {
- Int cIdx = 0;
- for ( i=0; i<NumPocStCurr1; i++, cIdx++)
- {//==(0<=cIdx<NumPocStCurr0)==//
- rpsCurrList1[cIdx] = RefPicSetStCurr1[i];
- }
- for ( i=0; i<NumPocStCurr0; i++, cIdx++)
- {//==(NumPocStCurr0<=cIdx<NumPocStCurr1+NumPocStCurr0)==//
- rpsCurrList1[cIdx] = RefPicSetStCurr0[i];
- }
- for ( i=0; i<NumPocLtCurr; i++, cIdx++)
- {//==(NumPocStCurr1+NumPocStCurr0<=cIdx<numPocTotalCurr)==//
- rpsCurrList1[cIdx] = RefPicSetLtCurr[i];
- }
- }
- ///=====Unification of reference picture list modification processes(参考JCTVC-H0138)=====///
- for (Int rIdx = 0; rIdx <= (m_aiNumRefIdx[0]-1); rIdx ++)
- {//===修正list0列表===//
- m_apcRefPicList[0][rIdx] = m_RefPicListModification.getRefPicListModificationFlagL0() ? rpsCurrList0[ m_RefPicListModification.getRefPicSetIdxL0(rIdx) ] : rpsCurrList0[rIdx % numPocTotalCurr];
- }
- if ( m_eSliceType == P_SLICE )
- {//==若为P帧,则list1为零==/
- m_aiNumRefIdx[1] = 0;
- ::memset( m_apcRefPicList[1], 0, sizeof(m_apcRefPicList[1]));
- }
- else
- {//===修正list1列表===//
- for (Int rIdx = 0; rIdx <= (m_aiNumRefIdx[1]-1); rIdx ++)
- {
- m_apcRefPicList[1][rIdx] = m_RefPicListModification.getRefPicListModificationFlagL1() ? rpsCurrList1[ m_RefPicListModification.getRefPicSetIdxL1(rIdx) ] : rpsCurrList1[rIdx % numPocTotalCurr];
- }
- }
而最后一个函数setRefPOCList就是实现将参考图像转化成其相应的POC列表。
- Void TComSlice::setRefPOCList ()
- {//===将参考图像列表转化成相应的POC===//
- for (Int iDir = 0; iDir < 2; iDir++)
- {
- for (Int iNumRefIdx = 0; iNumRefIdx < m_aiNumRefIdx[iDir]; iNumRefIdx++)
- {
- m_aiRefPOCList[iDir][iNumRefIdx] = m_apcRefPicList[iDir][iNumRefIdx]->getPOC();
- }
- }
- }
另外在第二个函数中有涉及到ListModification(列表修正)的问题,由于篇幅有限,将和 List Combination(参考列表联合)一起留到后续再讨论!
