[联网源]googlequicksearchbox灭屏待机联网下载行为

本文主要是介绍[联网源]googlequicksearchbox灭屏待机联网下载行为，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

1. 现象

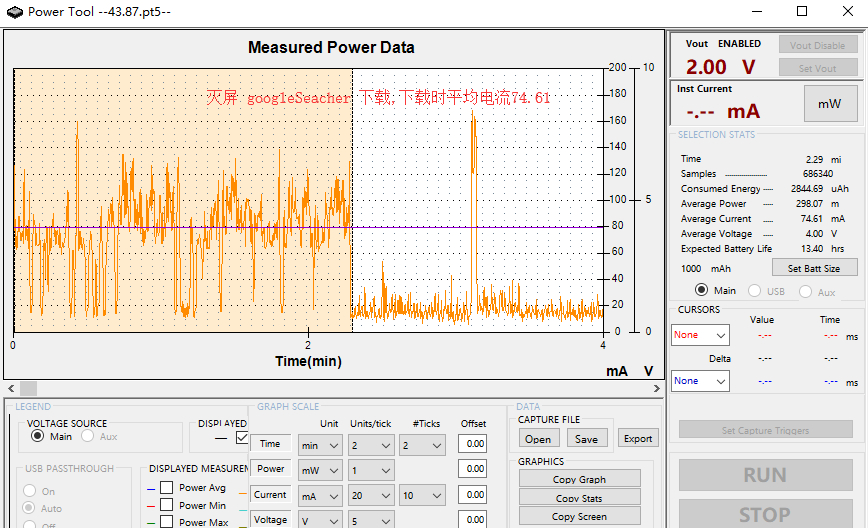

PowerMonitor灭屏发现持续长时间的大电流抬起，持续时间长达2分钟，导致灭屏待机电流高

2. BugReport分析

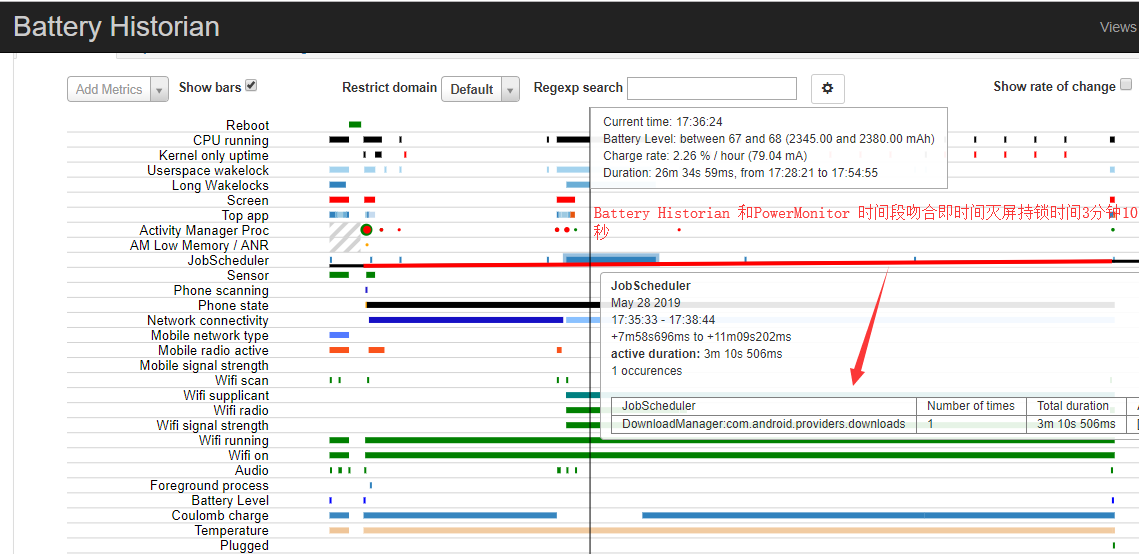

根据PowerMonitor的大电流抬起的的时间段，查看对应BatteryHistory的时间段发生了什么事件

JobScheduler
May 28 2019
17:35:33 - 17:38:44
+7m58s696ms to +11m09s202ms
active duration: 3m 10s 506ms
1 occurencesJobScheduler                                    | Number of times | Total duration | Actual event times
DownloadManager:com.android.providers.downloads | 1               | 3m 10s 506ms   | [17:35:33 - 17:38:44]

具体现象如下

上述中发现主要是downloads行为,故这里我们可以怀疑是不是在下载

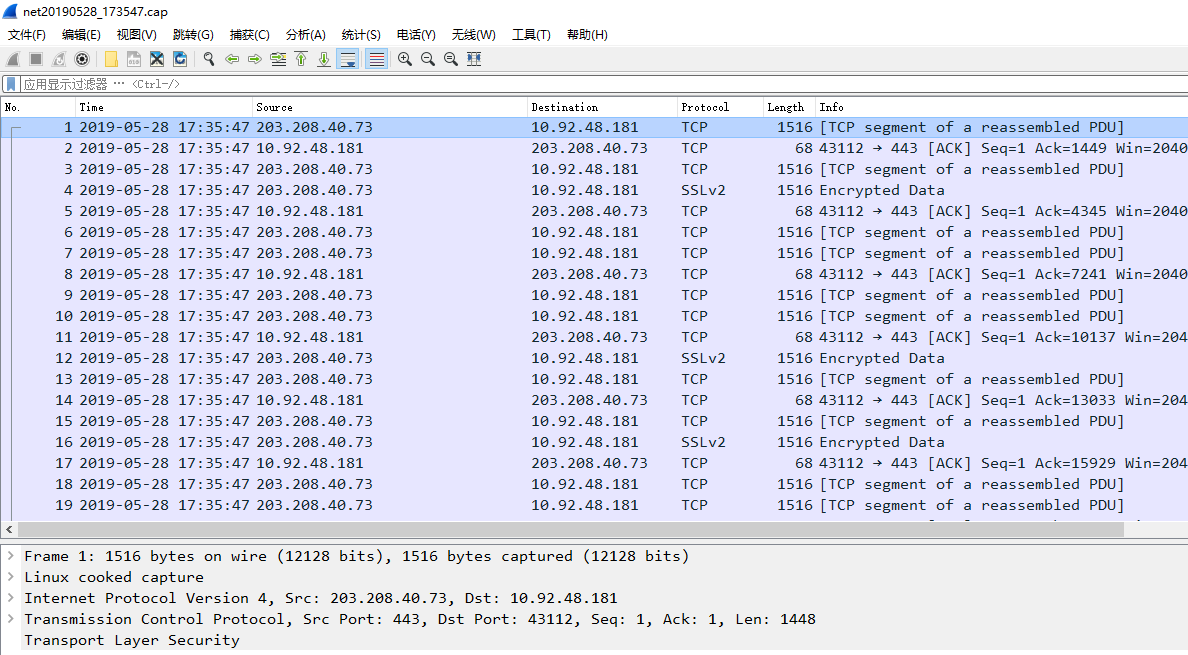

3.查看net日志，看是否存在联网下载

这里主要查看 17:35:33 - 17:38:44 的net log日志，由于net日志没有最开始的17:35:33,但是可以发现这个时间段内 203.208.40.73 大量给手机推送数据，即 com.android.providers.downloads 存在大量下载

4	2019-05-28 17:35:47	203.208.40.73	10.92.48.181	SSLv2	1516	Encrypted Data

4. 查看联网源

4.1 mainlog查看 方法一

查看main.log日志
ws/pid/uid=WorkSource{10062}/1154/1000，其中10062 com.google.android.googlequicksearchbox

16,856: 05-28 17:35:52.341  1000  1154  1404 D PowerManagerService: No.0: PARTIAL_WAKE_LOCK '*job*/DownloadManager:com.android.providers.downloads'activated(lock=58109101, flags=1, uid=1000, pid=1154, total=18399ms)
17,141: 05-28 17:38:44.437  1000  1154  2540 D PowerManagerService: releaseWakeLockInternal: lock=58109101 [*job*/DownloadManager:com.android.providers.downloads], flags=0x0, total_time=190494ms, ws/pid/uid=WorkSource{10062}/1154/1000, packageName=android  05-28 17:29:38.629  1154  3575 D PowerManagerService: acquireWakeLockInternal: lock=68251967, flags=0x1, tag="*dexopt*", ws=WorkSource{10062}, uid=1000, pid=1154, packageName=android
05-28 17:29:38.678  1154  3575 I PackageManager.DexOptimizer: PERF skip dexopt pkg:com.google.android.googlequicksearchbox for DexFile.NO_DEXOPT_NEEDED

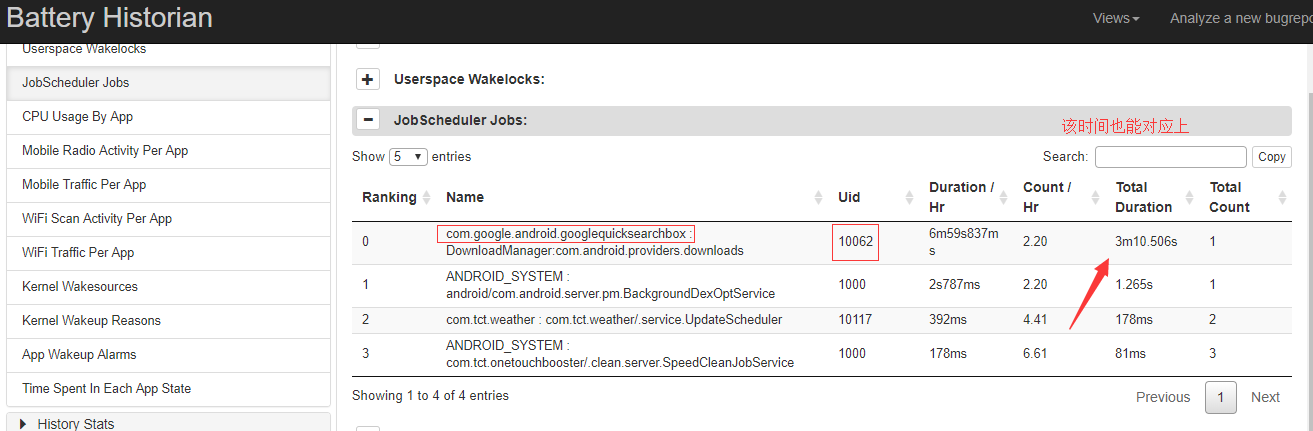

4.2 BugReport.txt 推荐

JobScheduler Jobs:
Ranking | Name                                                                                      | Uid   | Duration / Hr | Count / Hr | Total Duration | Total Count
0       | com.google.android.googlequicksearchbox : DownloadManager:com.android.providers.downloads | 10062 | 6m59s837ms    | 2.20       | 3m10.506s      | 1
1       | ANDROID_SYSTEM : android/com.android.server.pm.BackgroundDexOptService                    | 1000  | 2s787ms       | 2.20       | 1.265s         | 1
2       | com.tct.weather : com.tct.weather/.service.UpdateScheduler                                | 10117 | 392ms         | 4.41       | 178ms          | 2
3       | ANDROID_SYSTEM : com.tct.onetouchbooster/.clean.server.SpeedCleanJobService               | 1000  | 178ms         | 6.61       | 81ms           | 3

5.查看 com.google.android.googlequicksearchbox 下载详情

https://dl.google.com/dl/android/voice/en-us/v306/en-US-v306-f28.zip,我也下载了，大小差不多23.8MB.该大小也可以net日志对应

05-28 17:35:34.983 10041  2512  3753 I System.out: [socket] connection dl.google.com/203.208.40.73:443;LocalPort=-1(20000)PROVIDER ContentProviderRecord{e413949 u0 com.android.providers.downloads/.DownloadProvider} pid=2512Client:Downloads updated in last hour:Download #1:_id=1 uri=https://https://dl.google.com/dl/android/voice/en-us/v306/en-US-v306-f28.zip/dl/android/voice/en-us/v306/en-US-v306-f28.zip?extraforlog=av%3A8.55.6.21.arm%3Bf%3A0%3Btv%3A306%3Bpv%3A301%3Bs%3A2 method=0 entity=null no_integrity=null hint=file:///storage/emulated/0/Android/data/com.google.android.googlequicksearchbox/files/download_cache/en-US-v306-f28.zip otaupdate=null _data=/storage/emulated/0/Android/data/com.google.android.googlequicksearchbox/files/download_cache/en-US-v306-f28.zip mimetype=application/zip destination=4 no_system=null visibility=2 control=null status=200 numfailed=0 lastmod=1559036324305 notificationpackage=com.google.android.googlequicksearchbox notificationclass=null notificationextras=null useragent=null referer=null total_bytes=24999498 current_bytes=24999498 etag="1b7521" uid=10062 otheruid=null title=Downloading English (US) description=Offline speech recognition data scanned=1 is_public_api=1 allow_roaming=1 allowed_network_types=-1 is_visible_in_downloads_ui=0 bypass_recommended_size_limit=0 mediaprovider_uri=content://media/external/file/37 deleted=0 errorMsg=null allow_metered=0 allow_write=0 flags=0

上述的ip 203.208.40.73 对应域名dl.google.com

6. 总结

com.google.android.googlequicksearchbox 通过Job设定触发条件，通过系统的DownLoadProvider完成下载任务

7. 功耗优化建议

国内环境下，可以拦截掉该action,不然会影响国内功耗待机测试。或者第一次开机等久一些在进行测试用例的功耗测试。
