本篇是为了补充MIT-BIH ECG 心电数据的下载和读取图解这篇博客，为大家提供方便。

该篇比较“久远”，所以网站的内容稍微有些改变，参见：
https://www.physionet.org/cgi-bin/atm/ATM

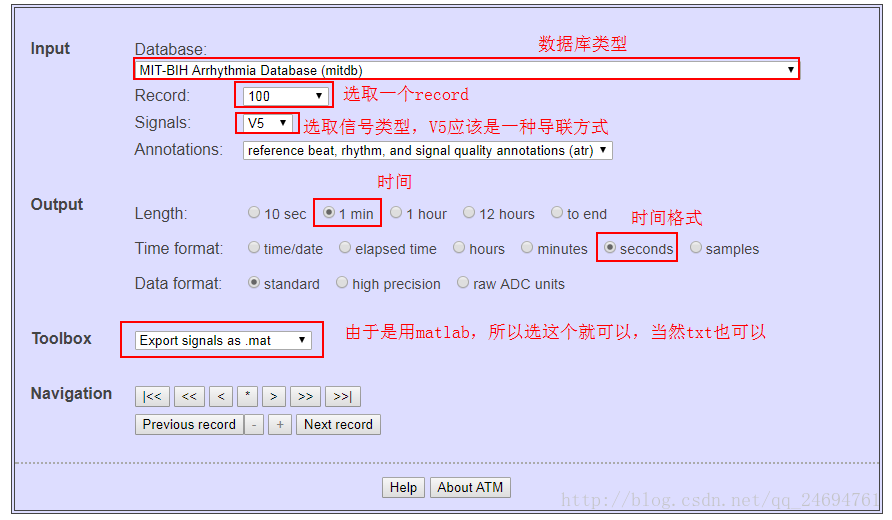

（1）新网站可以直接导出.mat文件，供matlab或Octave使用，以下图为例（当然你也可以尝试其他的内容）：
网页内容

（2）选中后下载相关文件即可：
下载内容
mat文件当然是数据；
infor里面有储存的信息，如果仅仅有mat文件显然是不行的，因为mat中的数据后面还要处理一下（除非你不想以mV为纵坐标的单位。。）

注释后的matlab代码：

%% usage: plotATM('RECORDm')
% This function reads a pair of files (RECORDm.mat and RECORDm.info) generated
% by 'wfdb2mat' from a PhysioBank record, baseline-corrects and scales the time
% series contained in the .mat file, and plots them.  The baseline-corrected
% and scaled time series are the rows of matrix 'val', and each
% column contains simultaneous samples of each time series.
%
% 'wfdb2mat' is part of the open-source WFDB Software Package available at
%    http://physionet.org/physiotools/wfdb.shtml
% If you have installed a working copy of 'wfdb2mat', run a shell command
% such as
%    wfdb2mat -r 100s -f 0 -t 10 >100sm.info
% to create a pair of files ('100sm.mat', '100sm.info') that can be read
% by this function.
%
% The files needed by this function can also be produced by the
% PhysioBank ATM, at
%    http://physionet.org/cgi-bin/ATM
%
function h = plotATM(Name)
if nargin == 0Name = '100m';
end%% 读取数据
infoName = strcat(Name, '.info');
matName = strcat(Name, '.mat');
Octave = exist('OCTAVE_VERSION');
load(matName);  % 采样值变量的名字为val
fid = fopen(infoName, 'rt');
fgetl(fid);   % 第一行
fgetl(fid);   % 第二行
fgetl(fid);   % 第三行
[freqint] = sscanf(fgetl(fid), 'Sampling frequency: %f Hz  Sampling interval: %f sec');  % 得到采样频率和采样间隔
interval = freqint(2);  % 取采样间隔
fgetl(fid);   % 第五行if(Octave)  % 一种软件：http://blog.csdn.net/Forlogen/article/details/54425766for i = 1:size(val, 1)R = strsplit(fgetl(fid), char(9));signal{i} = R{2};gain(i) = str2num(R{3});base(i) = str2num(R{4});units{i} = R{5};end
elsefor i = 1:size(val, 1)Infor = textscan(fgetl(fid),'%d%s%f%f%s','delimiter','\t');row = Infor{1};signal{i} = Infor{2};  % 导联名称gain(i) = Infor{3};    % 增益base(i) = Infor{4};    % baseunits{i} = Infor{5};   % 单位end
endfclose(fid);%% 数据处理并作图
val(val==-32768) = NaN;
for i = 1:size(val, 1)val(i, :) = (val(i, :) - base(i)) / gain(i);  % 转化为mV
end
x = (1:size(val, 2)) * interval; % 采样时间
plot(x', val');
for i = 1:length(signal)labels{i} = strcat(signal{i},'(', units{i},')');
end
if length(signal) == 1legend(labels{1});
elselegend(labels);
end
xlabel('Time (sec)');
xlim([min(x) max(x)]);  % 设置横坐标
end
