ARM汇编程序调试

一、keil环境搭建

参考下面这个链接：
keil环境搭建

二.stm32程序

1.新建工程

双击打开keil，点击菜单栏Project–>New μVision Project，新建项目，在弹窗中设置工程项目的名称和路径，在这里，我新建名为TEST的工程文件。

2.配置环境

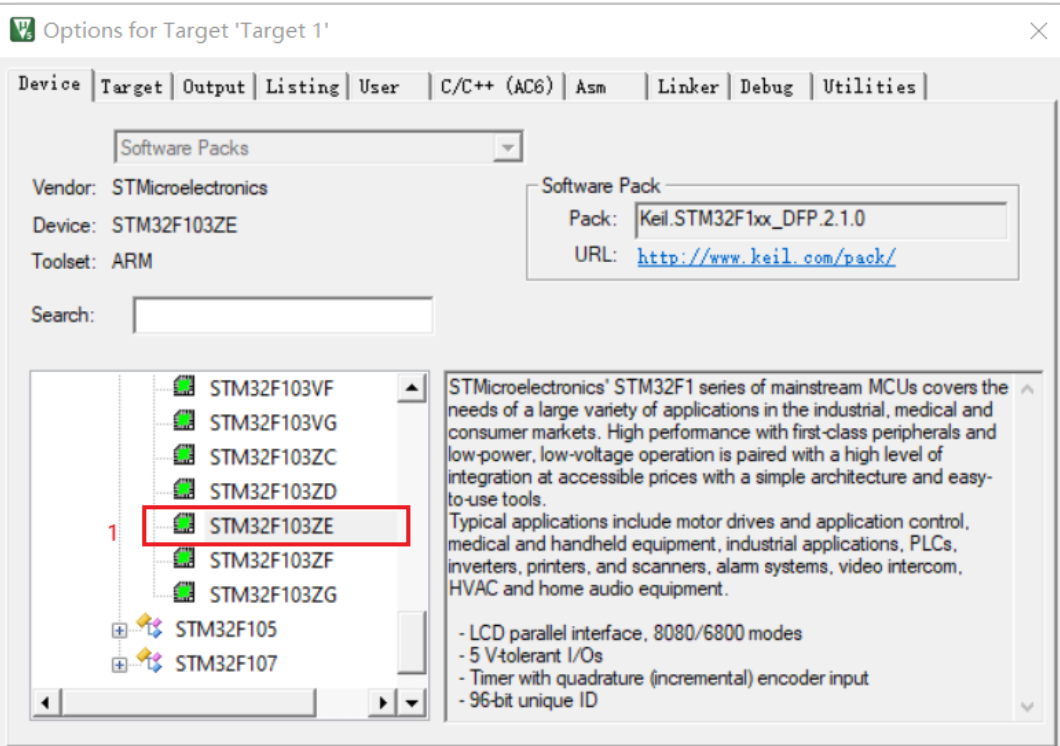

选择设备点击菜单中的Project，找到Options for Target ‘Target 1’并点击，在弹窗中选择相应的目标环境，此处我选的是STM32F103ZE

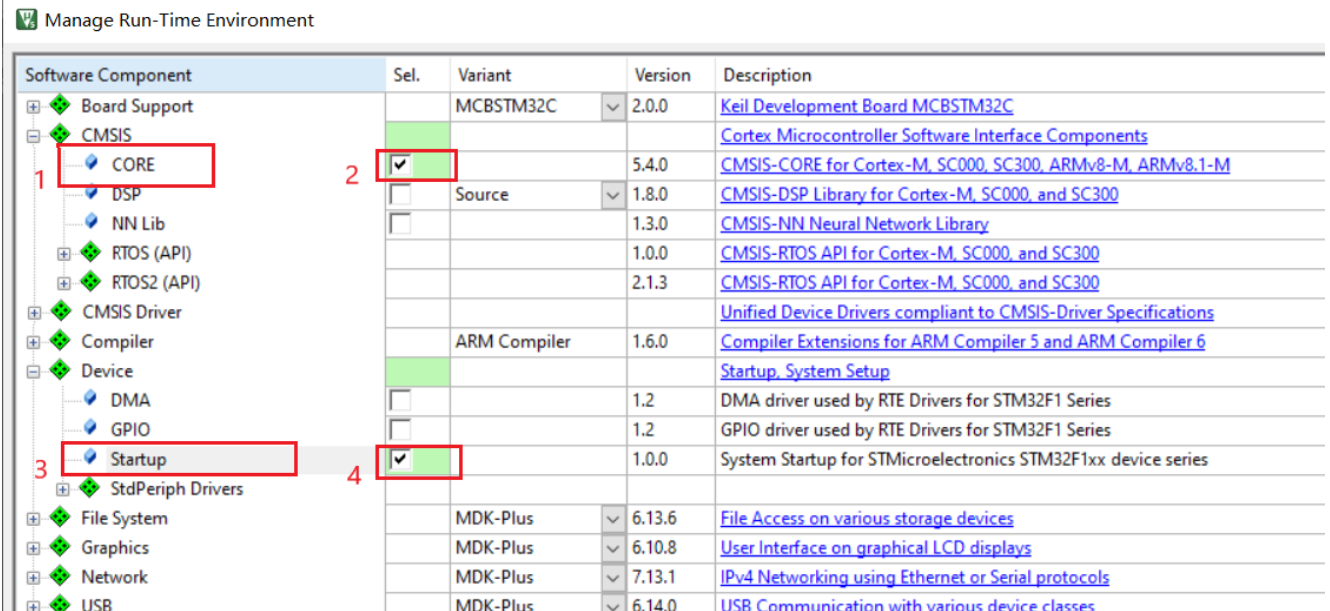

选择运行环境

添加源文件

右键单击Source Group 1，选择Add New Item to Group,添加Asm File (.s)文件，命名为TEST并保存。

为其添加如下代码

 AREA MYDATA, DATAAREA MYCODE, CODEENTRYEXPORT __main__mainMOV R0, #10MOV R1, #11MOV R2, #12MOV R3, #13;LDR R0, =func01BL	func01;LDR R1, =func02BL	func02BL 	func03LDR LR, =func01LDR PC, =func03B .func01MOV R5, #05BX LRfunc02MOV R6, #06BX LRfunc03MOV R7, #07MOV R8, #08	BX LR

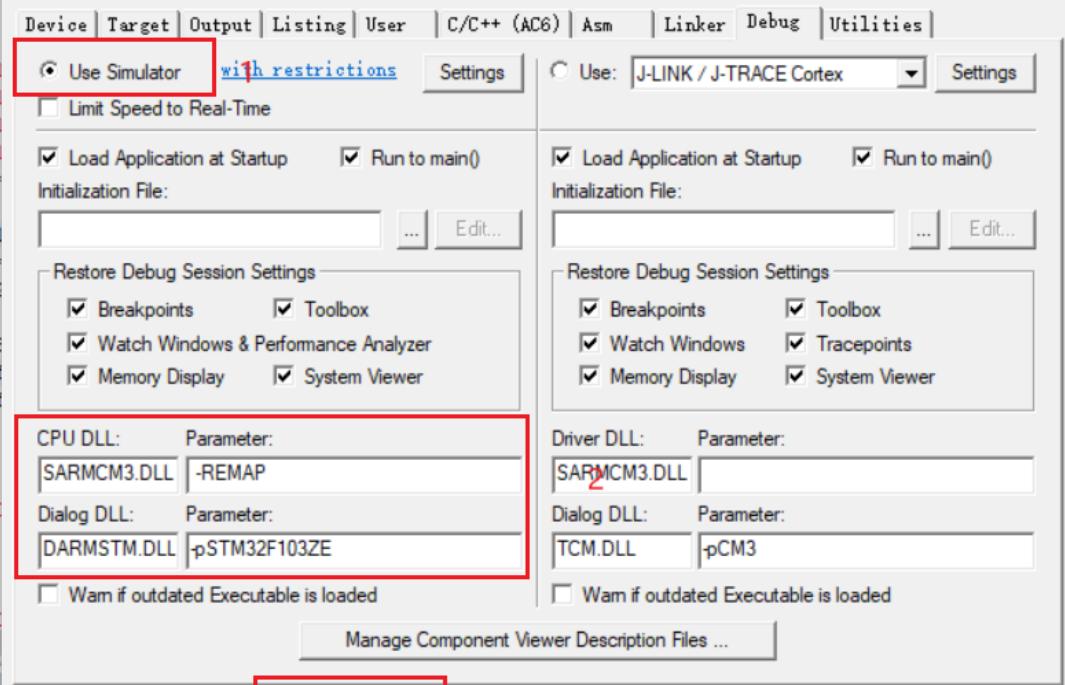

设置仿真器模式

点击菜单中的Project，找到Options for Target ‘Target 1’并点击，选择Debug–>Use Simulator,将Dialog DLL以及Parameter处修改为自己选择的设备，OK

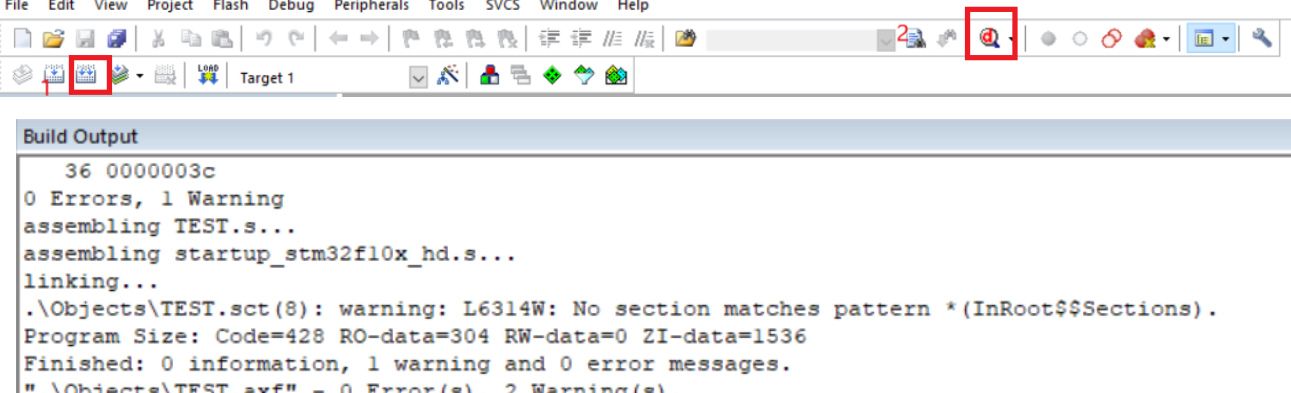

3.编译调试

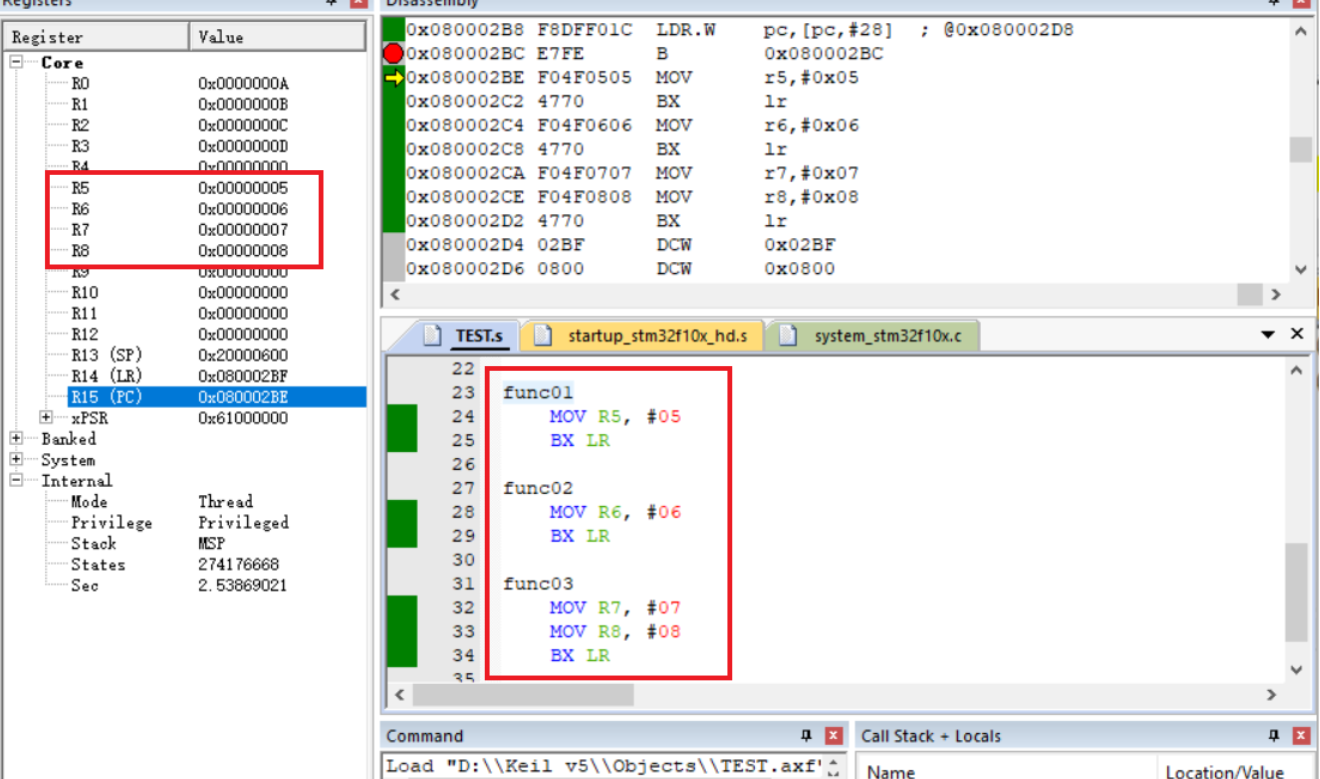

可以看见寄存器R5,R6,R7,R8的值和程序设置一样。

三.分析HEX文件

:020000040800F2
:100000000006002031010008390100083B0100080A
:100010003D0100083F010008410100080000000008
:100020000000000000000000000000004301000884
:1000300045010008000000004701000849010008D0
:100040004B0100084B0100084B0100084B01000860
:100050004B0100084B0100084B0100084B01000850
:100060004B0100084B0100084B0100084B01000840
:100070004B0100084B0100084B0100084B01000830
:100080004B0100084B0100084B0100084B01000820
:100090004B0100084B0100084B0100084B01000810
:1000A0004B0100084B0100084B0100084B01000800
:1000B0004B0100084B0100084B0100084B010008F0
:1000C0004B0100084B0100084B0100084B010008E0
:1000D0004B0100084B0100084B0100084B010008D0
:1000E0004B0100084B0100084B0100084B010008C0
:1000F0004B0100084B0100084B0100084B010008B0
:100100004B0100084B0100084B0100084B0100089F
:100110004B0100084B0100084B0100084B0100088F
:100120004B0100084B0100084B0100084B0100087F
:100130000948804709480047FEE7FEE7FEE7FEE77B
:10014000FEE7FEE7FEE7FEE7FEE7FEE704480549B7
:10015000054A064B7047000041020008990200085A
:100160000000002000060020000200200002002005
:10017000704770477047000080B500F001F880BDFF
:1001800082B041F204000021C4F20200019100910A
:1001900050F8041C41F4803140F8041C50F8041C51
:1001A00001F400310091019901310191009919B9CF
:1001B0000199B1F5A06FF1D150F8041C890354BF27
:1001C0000021012100910099012936D142F200015C
:1001D000C4F202010A6842F010020A600A6822F0C2
:1001E00003020A600A6842F002020A6001680160C4
:1001F00001680160016841F480610160016821F4D7
:100200007C110160016841F4E811016050F8041CA0
:1002100041F0807140F8041C50F8041C8901FBD5A2
:10022000016821F003010160016841F002010160F1
:10023000016801F00C010829FAD102B070470000F2
:1002400080B541F20000C4F202000168002241F0D2
:10025000010101604168CFF6FF0211404160016871
:100260004FF6FF72CFF6F66211400160016821F48B
:1002700080210160416821F4FE0141604FF41F01BB
:100280008160FFF779FF4EF60850CEF200004FF084
:100290000061016080BD00004FF00A004FF00B01CB
:1002A0004FF00C024FF00D0300F009F800F00AF8CF
:1002B00000F00BF8DFF81CE0DFF81CF0FEE74FF071
:1002C000050570474FF0060670474FF007074FF0DF
:0C02D00008087047BF020008CB020008BD[https://mooc1.chaoxing.com/ueditorupload/read?objectId=08cc265ab35740cf3626a64e76bb0d6a&fileOriName=%E6%B5%85%E8%B0%88STM32%E6%B1%87%E7%BC%96(Wizard).pdf](https://mooc1.chaoxing.com/ueditorupload/read?objectId=08cc265ab35740cf3626a64e76bb0d6a&fileOriName=%E6%B5%85%E8%B0%88STM32%E6%B1%87%E7%BC%96%28Wizard%29.pdf)
:040000050800029954
:00000001FF

该文件为16进制的一串字符。hex文件的第一排字符称之为扩展线性地址记录，也称为32位地址记录或HEX386记录。
在第一行数据020000040800F2中，其实际表达为0x02 0x00 0x00 0x04 0x08 0x00 0xf2。具体含义为

第一个字节 0x02表示本行数据的长度；

第二、三字节 0x00 0x00表示本行数据的起始地址；

第四字节 0x04表示数据类型，数据类型有：0x00、0x01、0x02、0x03、0x04、0x05

‘00’ Data Rrecord：用来记录数据，HEX文件的大部分记录都是数据记录
‘01’ End of File Record: 用来标识文件结束，放在文件的最后，标识HEX文件的结尾

‘02’ Extended Segment Address Record: 用来标识扩展段地址的记录

‘03’ Start Segment Address Record:开始段地址记录

‘04’ Extended Linear Address Record: 用来标识扩展线性地址的记录

‘05’ Start Linear Address Record:开始线性地址记录

然后是数据，0x08 0x00

最后一个字节 0xf2为校验和。

四、总结

通过这次实验知道了如何搭建并配置Keil嵌入式开发环境，完成一个基于STM32汇编程序的编写。了解了Hex文件格式及其前8个字节内容含义。
