前言：之前梳理了startService和bindService，现在接着梳理下Android O比较有特点的startForegroundService。

（六十四）Android O Service启动流程梳理——startService
（六十五）Android O StartService的 anr timeout 流程分析
（七十）Android O Service启动流程梳理——bindService

参考：https://blog.csdn.net/lylddinghffw/article/details/80366791

1.service启动简述

service启动分三种，比较简单的就是startService，Android O用于后台应用启动前台服务的startForegroundService和绑定服务的bindService。本篇继续梳理startForegroundService，startForegroundService使用需要注意的是Service启动后要在5s之内调用startForeground显示一个通知，不然就会anr。

2.startForegroundService流程梳理

2.1 ContextImpl

    @Overridepublic ComponentName startForegroundService(Intent service) {warnIfCallingFromSystemProcess();return startServiceCommon(service, true, mUser);}

    private ComponentName startServiceCommon(Intent service, boolean requireForeground,UserHandle user) {try {validateServiceIntent(service);service.prepareToLeaveProcess(this);ComponentName cn = ActivityManager.getService().startService(mMainThread.getApplicationThread(), service, service.resolveTypeIfNeeded(getContentResolver()), requireForeground,getOpPackageName(), user.getIdentifier());if (cn != null) {if (cn.getPackageName().equals("!")) {throw new SecurityException("Not allowed to start service " + service+ " without permission " + cn.getClassName());} else if (cn.getPackageName().equals("!!")) {throw new SecurityException("Unable to start service " + service+ ": " + cn.getClassName());} else if (cn.getPackageName().equals("?")) {throw new IllegalStateException("Not allowed to start service " + service + ": " + cn.getClassName());}}return cn;} catch (RemoteException e) {throw e.rethrowFromSystemServer();}}

对照下之前梳理的startService，发现只是requireForeground参数由false改为true表明需要置为前台Service，其他流程是一样的。注意关注下这个参数带来的变化。

    @Overridepublic ComponentName startService(Intent service) {warnIfCallingFromSystemProcess();return startServiceCommon(service, false, mUser);}

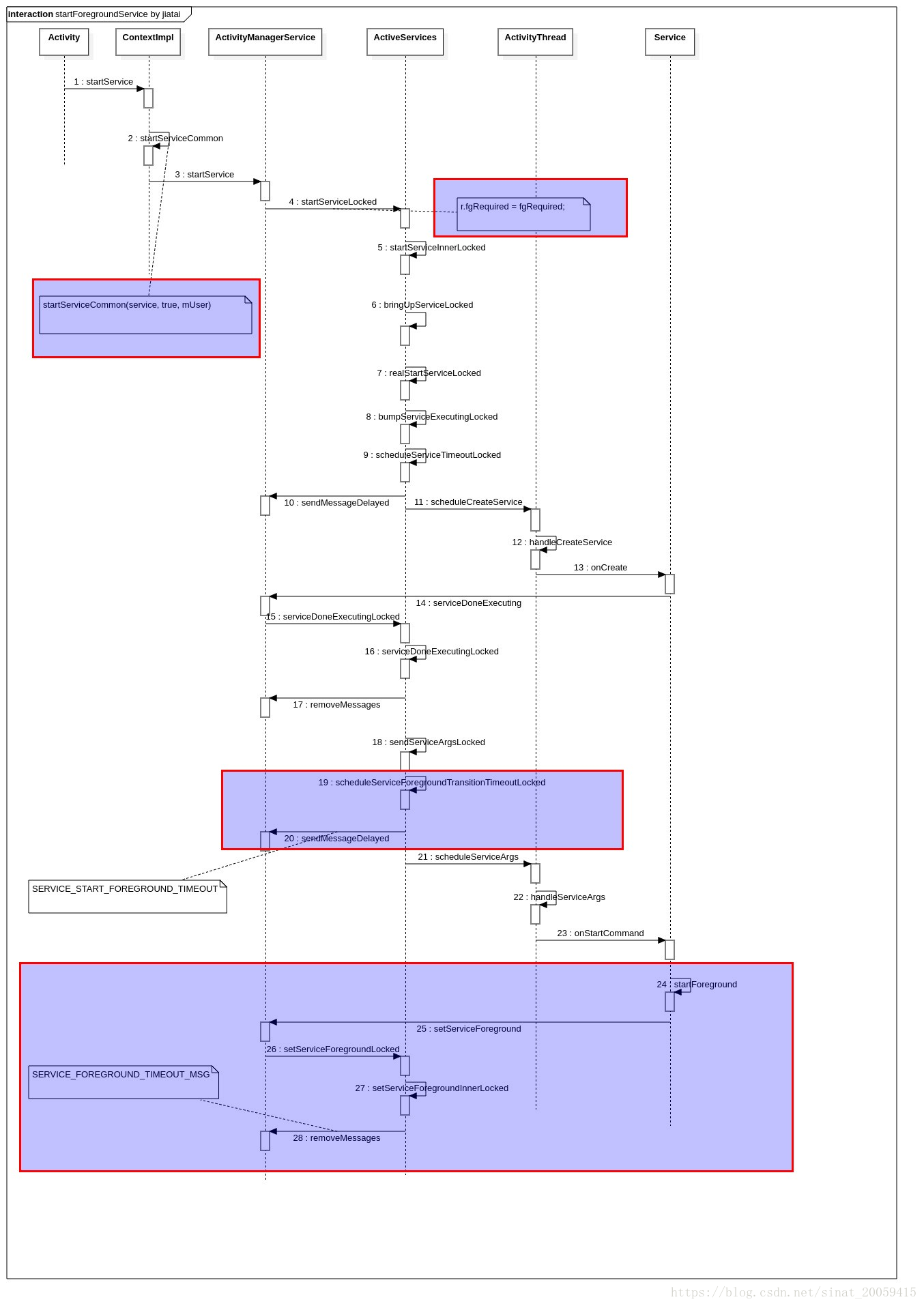

那这里附一下startService的时序图，一样的流程就略过不赘述了。

2.2 AMS

    @Overridepublic ComponentName startService(IApplicationThread caller, Intent service,String resolvedType, boolean requireForeground, String callingPackage, int userId)throws TransactionTooLargeException {enforceNotIsolatedCaller("startService");// Refuse possible leaked file descriptorsif (service != null && service.hasFileDescriptors() == true) {throw new IllegalArgumentException("File descriptors passed in Intent");}if (callingPackage == null) {throw new IllegalArgumentException("callingPackage cannot be null");}if (DEBUG_SERVICE) Slog.v(TAG_SERVICE,"*** startService: " + service + " type=" + resolvedType + " fg=" + requireForeground);synchronized(this) {final int callingPid = Binder.getCallingPid();final int callingUid = Binder.getCallingUid();final long origId = Binder.clearCallingIdentity();ComponentName res;try {res = mServices.startServiceLocked(caller, service,resolvedType, callingPid, callingUid,requireForeground, callingPackage, userId);} finally {Binder.restoreCallingIdentity(origId);}return res;}}

可以看到AMS并没有对requireForeground进行特殊处理，只是接着往下传。

2.3 ActiveServices

    ComponentName startServiceLocked(IApplicationThread caller, Intent service, String resolvedType,int callingPid, int callingUid, boolean fgRequired, String callingPackage, final int userId)throws TransactionTooLargeException {if (DEBUG_DELAYED_STARTS) Slog.v(TAG_SERVICE, "startService: " + service+ " type=" + resolvedType + " args=" + service.getExtras());final boolean callerFg;if (caller != null) {final ProcessRecord callerApp = mAm.getRecordForAppLocked(caller);if (callerApp == null) {throw new SecurityException("Unable to find app for caller " + caller+ " (pid=" + callingPid+ ") when starting service " + service);}callerFg = callerApp.setSchedGroup != ProcessList.SCHED_GROUP_BACKGROUND;} else {callerFg = true;}ServiceLookupResult res =retrieveServiceLocked(service, resolvedType, callingPackage,callingPid, callingUid, userId, true, callerFg, false);if (res == null) {return null;}if (res.record == null) {return new ComponentName("!", res.permission != null? res.permission : "private to package");}ServiceRecord r = res.record;if (!mAm.mUserController.exists(r.userId)) {Slog.w(TAG, "Trying to start service with non-existent user! " + r.userId);return null;}// If this isn't a direct-to-foreground start, check our ability to kick off an// arbitrary serviceif (!r.startRequested && !fgRequired) {// Before going further -- if this app is not allowed to start services in the// background, then at this point we aren't going to let it period.final int allowed = mAm.getAppStartModeLocked(r.appInfo.uid, r.packageName,r.appInfo.targetSdkVersion, callingPid, false, false);if (allowed != ActivityManager.APP_START_MODE_NORMAL) {Slog.w(TAG, "Background start not allowed: service "+ service + " to " + r.name.flattenToShortString()+ " from pid=" + callingPid + " uid=" + callingUid+ " pkg=" + callingPackage);if (allowed == ActivityManager.APP_START_MODE_DELAYED) {// In this case we are silently disabling the app, to disrupt as// little as possible existing apps.return null;}// This app knows it is in the new model where this operation is not// allowed, so tell it what has happened.UidRecord uidRec = mAm.mActiveUids.get(r.appInfo.uid);return new ComponentName("?", "app is in background uid " + uidRec);}}NeededUriGrants neededGrants = mAm.checkGrantUriPermissionFromIntentLocked(callingUid, r.packageName, service, service.getFlags(), null, r.userId);// If permissions need a review before any of the app components can run,// we do not start the service and launch a review activity if the calling app// is in the foreground passing it a pending intent to start the service when// review is completed.if (mAm.mPermissionReviewRequired) {if (!requestStartTargetPermissionsReviewIfNeededLocked(r, callingPackage,callingUid, service, callerFg, userId)) {return null;}}if (unscheduleServiceRestartLocked(r, callingUid, false)) {if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "START SERVICE WHILE RESTART PENDING: " + r);}r.lastActivity = SystemClock.uptimeMillis();r.startRequested = true;r.delayedStop = false;r.fgRequired = fgRequired;r.pendingStarts.add(new ServiceRecord.StartItem(r, false, r.makeNextStartId(),service, neededGrants, callingUid));final ServiceMap smap = getServiceMapLocked(r.userId);boolean addToStarting = false;if (!callerFg && !fgRequired && r.app == null&& mAm.mUserController.hasStartedUserState(r.userId)) {ProcessRecord proc = mAm.getProcessRecordLocked(r.processName, r.appInfo.uid, false);if (proc == null || proc.curProcState > ActivityManager.PROCESS_STATE_RECEIVER) {// If this is not coming from a foreground caller, then we may want// to delay the start if there are already other background services// that are starting.  This is to avoid process start spam when lots// of applications are all handling things like connectivity broadcasts.// We only do this for cached processes, because otherwise an application// can have assumptions about calling startService() for a service to run// in its own process, and for that process to not be killed before the// service is started.  This is especially the case for receivers, which// may start a service in onReceive() to do some additional work and have// initialized some global state as part of that.if (DEBUG_DELAYED_SERVICE) Slog.v(TAG_SERVICE, "Potential start delay of "+ r + " in " + proc);if (r.delayed) {// This service is already scheduled for a delayed start; just leave// it still waiting.if (DEBUG_DELAYED_STARTS) Slog.v(TAG_SERVICE, "Continuing to delay: " + r);return r.name;}if (smap.mStartingBackground.size() >= mMaxStartingBackground) {// Something else is starting, delay!Slog.i(TAG_SERVICE, "Delaying start of: " + r);smap.mDelayedStartList.add(r);r.delayed = true;return r.name;}if (DEBUG_DELAYED_STARTS) Slog.v(TAG_SERVICE, "Not delaying: " + r);addToStarting = true;} else if (proc.curProcState >= ActivityManager.PROCESS_STATE_SERVICE) {// We slightly loosen when we will enqueue this new service as a background// starting service we are waiting for, to also include processes that are// currently running other services or receivers.addToStarting = true;if (DEBUG_DELAYED_STARTS) Slog.v(TAG_SERVICE,"Not delaying, but counting as bg: " + r);} else if (DEBUG_DELAYED_STARTS) {StringBuilder sb = new StringBuilder(128);sb.append("Not potential delay (state=").append(proc.curProcState).append(' ').append(proc.adjType);String reason = proc.makeAdjReason();if (reason != null) {sb.append(' ');sb.append(reason);}sb.append("): ");sb.append(r.toString());Slog.v(TAG_SERVICE, sb.toString());}} else if (DEBUG_DELAYED_STARTS) {if (callerFg || fgRequired) {Slog.v(TAG_SERVICE, "Not potential delay (callerFg=" + callerFg + " uid="+ callingUid + " pid=" + callingPid + " fgRequired=" + fgRequired + "): " + r);} else if (r.app != null) {Slog.v(TAG_SERVICE, "Not potential delay (cur app=" + r.app + "): " + r);} else {Slog.v(TAG_SERVICE,"Not potential delay (user " + r.userId + " not started): " + r);}}ComponentName cmp = startServiceInnerLocked(smap, service, r, callerFg, addToStarting);return cmp;}

这里对于fgRequired为true的情况其实也只是赋值了一下

r.fgRequired = fgRequired;

后面流程和startService的onCreate一样的，没啥好重复说的，直到流程到了onStartCommand有点不一样了。

onStartCommand的开始是

   private final void sendServiceArgsLocked(ServiceRecord r, boolean execInFg,boolean oomAdjusted) throws TransactionTooLargeException {final int N = r.pendingStarts.size();if (N == 0) {return;}ArrayList<ServiceStartArgs> args = new ArrayList<>();while (r.pendingStarts.size() > 0) {ServiceRecord.StartItem si = r.pendingStarts.remove(0);if (DEBUG_SERVICE) {Slog.v(TAG_SERVICE, "Sending arguments to: "+ r + " " + r.intent + " args=" + si.intent);}if (si.intent == null && N > 1) {// If somehow we got a dummy null intent in the middle,// then skip it.  DO NOT skip a null intent when it is// the only one in the list -- this is to support the// onStartCommand(null) case.continue;}si.deliveredTime = SystemClock.uptimeMillis();r.deliveredStarts.add(si);si.deliveryCount++;if (si.neededGrants != null) {mAm.grantUriPermissionUncheckedFromIntentLocked(si.neededGrants,si.getUriPermissionsLocked());}mAm.grantEphemeralAccessLocked(r.userId, si.intent,r.appInfo.uid, UserHandle.getAppId(si.callingId));bumpServiceExecutingLocked(r, execInFg, "start");if (!oomAdjusted) {oomAdjusted = true;mAm.updateOomAdjLocked(r.app, true);}if (r.fgRequired && !r.fgWaiting) {if (!r.isForeground) {if (DEBUG_BACKGROUND_CHECK) {Slog.i(TAG, "Launched service must call startForeground() within timeout: " + r);}scheduleServiceForegroundTransitionTimeoutLocked(r);} else {if (DEBUG_BACKGROUND_CHECK) {Slog.i(TAG, "Service already foreground; no new timeout: " + r);}r.fgRequired = false;}}int flags = 0;if (si.deliveryCount > 1) {flags |= Service.START_FLAG_RETRY;}if (si.doneExecutingCount > 0) {flags |= Service.START_FLAG_REDELIVERY;}args.add(new ServiceStartArgs(si.taskRemoved, si.id, flags, si.intent));}ParceledListSlice<ServiceStartArgs> slice = new ParceledListSlice<>(args);slice.setInlineCountLimit(4);Exception caughtException = null;try {r.app.thread.scheduleServiceArgs(r, slice);} catch (TransactionTooLargeException e) {if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "Transaction too large for " + args.size()+ " args, first: " + args.get(0).args);Slog.w(TAG, "Failed delivering service starts", e);caughtException = e;} catch (RemoteException e) {// Remote process gone...  we'll let the normal cleanup take care of this.if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "Crashed while sending args: " + r);Slog.w(TAG, "Failed delivering service starts", e);caughtException = e;} catch (Exception e) {Slog.w(TAG, "Unexpected exception", e);caughtException = e;}if (caughtException != null) {// Keep nesting count correctfinal boolean inDestroying = mDestroyingServices.contains(r);for (int i = 0; i < args.size(); i++) {serviceDoneExecutingLocked(r, inDestroying, inDestroying);}if (caughtException instanceof TransactionTooLargeException) {throw (TransactionTooLargeException)caughtException;}}}

这里面有下面一句比较关键

            if (r.fgRequired && !r.fgWaiting) {if (!r.isForeground) {if (DEBUG_BACKGROUND_CHECK) {Slog.i(TAG, "Launched service must call startForeground() within timeout: " + r);}scheduleServiceForegroundTransitionTimeoutLocked(r);} else {if (DEBUG_BACKGROUND_CHECK) {Slog.i(TAG, "Service already foreground; no new timeout: " + r);}r.fgRequired = false;}}

    void scheduleServiceForegroundTransitionTimeoutLocked(ServiceRecord r) {if (r.app.executingServices.size() == 0 || r.app.thread == null) {return;}Message msg = mAm.mHandler.obtainMessage(ActivityManagerService.SERVICE_FOREGROUND_TIMEOUT_MSG);msg.obj = r;r.fgWaiting = true;mAm.mHandler.sendMessageDelayed(msg, SERVICE_START_FOREGROUND_TIMEOUT);}

这里表示在onStartCommand的流程开始时会设置一个5s的anr timeout，超过5s就会anr并且停止Service。

    // How long the startForegroundService() grace period is to get around to// calling startForeground() before we ANR + stop it.static final int SERVICE_START_FOREGROUND_TIMEOUT = 5*1000;

也附带看下AMS是怎么处理这个消息的：

    final class MainHandler extends Handler {public MainHandler(Looper looper) {super(looper, null, true);}@Overridepublic void handleMessage(Message msg) {switch (msg.what) {case UPDATE_CONFIGURATION_MSG: {final ContentResolver resolver = mContext.getContentResolver();Settings.System.putConfigurationForUser(resolver, (Configuration) msg.obj,msg.arg1);} break;case GC_BACKGROUND_PROCESSES_MSG: {synchronized (ActivityManagerService.this) {performAppGcsIfAppropriateLocked();}} break;case SERVICE_TIMEOUT_MSG: {mServices.serviceTimeout((ProcessRecord)msg.obj);} break;case SERVICE_FOREGROUND_TIMEOUT_MSG: {mServices.serviceForegroundTimeout((ServiceRecord)msg.obj);} break;

还是扔回来调用ActiveServices来处理。

    void serviceForegroundTimeout(ServiceRecord r) {ProcessRecord app;synchronized (mAm) {if (!r.fgRequired || r.destroying) {return;}if (DEBUG_BACKGROUND_CHECK) {Slog.i(TAG, "Service foreground-required timeout for " + r);}app = r.app;r.fgWaiting = false;stopServiceLocked(r);}if (app != null) {mAm.mAppErrors.appNotResponding(app, null, null, false,"Context.startForegroundService() did not then call Service.startForeground()");}}

直接停止Service并且通过AMS使应用 anr，提示“Context.startForegroundService() did not then call Service.startForeground()”。

3. startForeground流程梳理

3.1 Service

    /*** If your service is started (running through {@link Context#startService(Intent)}), then* also make this service run in the foreground, supplying the ongoing* notification to be shown to the user while in this state.* By default started services are background, meaning that their process won't be given* foreground CPU scheduling (unless something else in that process is foreground) and,* if the system needs to kill them to reclaim more memory (such as to display a large page in a* web browser), they can be killed without too much harm.  You use* {@link #startForeground} if killing your service would be disruptive to the user, such as* if your service is performing background music playback, so the user* would notice if their music stopped playing.** <p>Note that calling this method does <em>not</em> put the service in the started state* itself, even though the name sounds like it.  You must always call* {@link #startService(Intent)} first to tell the system it should keep the service running,* and then use this method to tell it to keep it running harder.</p>** @param id The identifier for this notification as per* {@link NotificationManager#notify(int, Notification)* NotificationManager.notify(int, Notification)}; must not be 0.* @param notification The Notification to be displayed.* * @see #stopForeground(boolean)*/public final void startForeground(int id, Notification notification) {try {mActivityManager.setServiceForeground(new ComponentName(this, mClassName), mToken, id,notification, 0);} catch (RemoteException ex) {}}

3.2 AMS

    @Overridepublic void setServiceForeground(ComponentName className, IBinder token,int id, Notification notification, int flags) {synchronized(this) {mServices.setServiceForegroundLocked(className, token, id, notification, flags);}}

3.3 ActiveServices

    public void setServiceForegroundLocked(ComponentName className, IBinder token,int id, Notification notification, int flags) {final int userId = UserHandle.getCallingUserId();final long origId = Binder.clearCallingIdentity();try {ServiceRecord r = findServiceLocked(className, token, userId);if (r != null) {setServiceForegroundInnerLocked(r, id, notification, flags);}} finally {Binder.restoreCallingIdentity(origId);}}

   private void setServiceForegroundInnerLocked(ServiceRecord r, int id,Notification notification, int flags) {if (id != 0) {if (notification == null) {throw new IllegalArgumentException("null notification");}// Instant apps need permission to create foreground services.if (r.appInfo.isInstantApp()) {final int mode = mAm.mAppOpsService.checkOperation(AppOpsManager.OP_INSTANT_APP_START_FOREGROUND,r.appInfo.uid,r.appInfo.packageName);switch (mode) {case AppOpsManager.MODE_ALLOWED:break;case AppOpsManager.MODE_IGNORED:Slog.w(TAG, "Instant app " + r.appInfo.packageName+ " does not have permission to create foreground services"+ ", ignoring.");return;case AppOpsManager.MODE_ERRORED:throw new SecurityException("Instant app " + r.appInfo.packageName+ " does not have permission to create foreground services");default:try {if (AppGlobals.getPackageManager().checkPermission(android.Manifest.permission.INSTANT_APP_FOREGROUND_SERVICE,r.appInfo.packageName, UserHandle.getUserId(r.appInfo.uid))!= PackageManager.PERMISSION_GRANTED) {throw new SecurityException("Instant app " + r.appInfo.packageName+ " does not have permission to create foreground"+ "services");}} catch (RemoteException e) {throw new SecurityException("Failed to check instant app permission." ,e);}}}if (r.fgRequired) {if (DEBUG_SERVICE || DEBUG_BACKGROUND_CHECK) {Slog.i(TAG, "Service called startForeground() as required: " + r);}r.fgRequired = false;r.fgWaiting = false;mAm.mHandler.removeMessages(ActivityManagerService.SERVICE_FOREGROUND_TIMEOUT_MSG, r);}if (r.foregroundId != id) {cancelForegroundNotificationLocked(r);r.foregroundId = id;}notification.flags |= Notification.FLAG_FOREGROUND_SERVICE;r.foregroundNoti = notification;if (!r.isForeground) {final ServiceMap smap = getServiceMapLocked(r.userId);if (smap != null) {ActiveForegroundApp active = smap.mActiveForegroundApps.get(r.packageName);if (active == null) {active = new ActiveForegroundApp();active.mPackageName = r.packageName;active.mUid = r.appInfo.uid;active.mShownWhileScreenOn = mScreenOn;if (r.app != null) {active.mAppOnTop = active.mShownWhileTop =r.app.uidRecord.curProcState<= ActivityManager.PROCESS_STATE_TOP;}active.mStartTime = active.mStartVisibleTime= SystemClock.elapsedRealtime();smap.mActiveForegroundApps.put(r.packageName, active);requestUpdateActiveForegroundAppsLocked(smap, 0);}active.mNumActive++;}r.isForeground = true;}r.postNotification();if (r.app != null) {updateServiceForegroundLocked(r.app, true);}getServiceMapLocked(r.userId).ensureNotStartingBackgroundLocked(r);mAm.notifyPackageUse(r.serviceInfo.packageName,PackageManager.NOTIFY_PACKAGE_USE_FOREGROUND_SERVICE);} else {if (r.isForeground) {final ServiceMap smap = getServiceMapLocked(r.userId);if (smap != null) {decActiveForegroundAppLocked(smap, r);}r.isForeground = false;if (r.app != null) {mAm.updateLruProcessLocked(r.app, false, null);updateServiceForegroundLocked(r.app, true);}}if ((flags & Service.STOP_FOREGROUND_REMOVE) != 0) {cancelForegroundNotificationLocked(r);r.foregroundId = 0;r.foregroundNoti = null;} else if (r.appInfo.targetSdkVersion >= Build.VERSION_CODES.LOLLIPOP) {r.stripForegroundServiceFlagFromNotification();if ((flags & Service.STOP_FOREGROUND_DETACH) != 0) {r.foregroundId = 0;r.foregroundNoti = null;}}}}

setServiceForegroundInnerLocked这个方法很关键，关键代码分如下几部分梳理：

1）首先Service创建的notification id不能是0并且notification不能是null，并且Android O 如果创建通知的话还要设置channel的。

        if (id != 0) {if (notification == null) {throw new IllegalArgumentException("null notification");}

2）设置r.fgRequired为false，表明已经设置Service为foreground了，不需要了。并且移除了之前发给AMS的SERVICE_FOREGROUND_TIMEOUT_MSG，这样就不会anr了。但是这句话要在发出消息的5s之内调用到，否则还是会anr。

由于消息是在onStartCommand流程开始时发出的，如果我们的Service在onCreate就开始调用startForeground，时限也许会长于5s。但由于一个是AMS的流程，一个是APP的流程，是异步的，长也长不了多少，不是等onCreate执行完再发的。

            if (r.fgRequired) {if (DEBUG_SERVICE || DEBUG_BACKGROUND_CHECK) {Slog.i(TAG, "Service called startForeground() as required: " + r);}r.fgRequired = false;r.fgWaiting = false;mAm.mHandler.removeMessages(ActivityManagerService.SERVICE_FOREGROUND_TIMEOUT_MSG, r);}

3）取消通知，但会检查应用的其他前台Service是否有相同的notification id，如果一样，则不取消。

            if (r.foregroundId != id) {cancelForegroundNotificationLocked(r);r.foregroundId = id;}

    private void cancelForegroundNotificationLocked(ServiceRecord r) {if (r.foregroundId != 0) {// First check to see if this app has any other active foreground services// with the same notification ID.  If so, we shouldn't actually cancel it,// because that would wipe away the notification that still needs to be shown// due the other service.ServiceMap sm = getServiceMapLocked(r.userId);if (sm != null) {for (int i = sm.mServicesByName.size()-1; i >= 0; i--) {ServiceRecord other = sm.mServicesByName.valueAt(i);if (other != r && other.foregroundId == r.foregroundId&& other.packageName.equals(r.packageName)) {// Found one!  Abort the cancel.return;}}}r.cancelNotification();}}

4）将Service设为前台Service

            notification.flags |= Notification.FLAG_FOREGROUND_SERVICE;r.foregroundNoti = notification;if (!r.isForeground) {final ServiceMap smap = getServiceMapLocked(r.userId);if (smap != null) {ActiveForegroundApp active = smap.mActiveForegroundApps.get(r.packageName);if (active == null) {active = new ActiveForegroundApp();active.mPackageName = r.packageName;active.mUid = r.appInfo.uid;active.mShownWhileScreenOn = mScreenOn;if (r.app != null) {active.mAppOnTop = active.mShownWhileTop =r.app.uidRecord.curProcState<= ActivityManager.PROCESS_STATE_TOP;}active.mStartTime = active.mStartVisibleTime= SystemClock.elapsedRealtime();smap.mActiveForegroundApps.put(r.packageName, active);requestUpdateActiveForegroundAppsLocked(smap, 0);}active.mNumActive++;}r.isForeground = true;}

4. Service “Context.startForegroundService() did not then call Service.startForeground()” anr原因

结合之前2和3对startForegroundService和startForeground的分析，可以很清楚的判断出Service anr原因：

Service没有在AMS SERVICE_FOREGROUND_TIMEOUT_MSG发出5s内将其移除，简单地对应于应用描述就是调用startForegroundService后5s内没有及时在Service内调用startForeground。（5s在这的描述是不精确的，但差不了多少，startForeground建议在Service onCreate一开始就调用，也许能争取点时间）

5. Service “Context.startForegroundService() did not then call Service.startForeground()” crash原因

之前都梳理的anr，其实Android O这边还埋了个crash的坑。如果5s之内没有及时调用startForeground，然后Service destroy了，比如stopService，那Android O很人性化地不让Service anr了，让Service crash。

    private final void bringDownServiceLocked(ServiceRecord r) {//Slog.i(TAG, "Bring down service:");//r.dump("  ");// Report to all of the connections that the service is no longer// available.for (int conni=r.connections.size()-1; conni>=0; conni--) {ArrayList<ConnectionRecord> c = r.connections.valueAt(conni);for (int i=0; i<c.size(); i++) {ConnectionRecord cr = c.get(i);// There is still a connection to the service that is// being brought down.  Mark it as dead.cr.serviceDead = true;try {cr.conn.connected(r.name, null, true);} catch (Exception e) {Slog.w(TAG, "Failure disconnecting service " + r.name +" to connection " + c.get(i).conn.asBinder() +" (in " + c.get(i).binding.client.processName + ")", e);}}}// Tell the service that it has been unbound.if (r.app != null && r.app.thread != null) {for (int i=r.bindings.size()-1; i>=0; i--) {IntentBindRecord ibr = r.bindings.valueAt(i);if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "Bringing down binding " + ibr+ ": hasBound=" + ibr.hasBound);if (ibr.hasBound) {try {bumpServiceExecutingLocked(r, false, "bring down unbind");mAm.updateOomAdjLocked(r.app, true);ibr.hasBound = false;ibr.requested = false;r.app.thread.scheduleUnbindService(r,ibr.intent.getIntent());} catch (Exception e) {Slog.w(TAG, "Exception when unbinding service "+ r.shortName, e);serviceProcessGoneLocked(r);}}}}// Check to see if the service had been started as foreground, but being// brought down before actually showing a notification.  That is not allowed.if (r.fgRequired) {Slog.w(TAG_SERVICE, "Bringing down service while still waiting for start foreground: "+ r);r.fgRequired = false;r.fgWaiting = false;mAm.mHandler.removeMessages(ActivityManagerService.SERVICE_FOREGROUND_TIMEOUT_MSG, r);if (r.app != null) {Message msg = mAm.mHandler.obtainMessage(ActivityManagerService.SERVICE_FOREGROUND_CRASH_MSG);msg.obj = r.app;mAm.mHandler.sendMessage(msg);}}if (DEBUG_SERVICE) {RuntimeException here = new RuntimeException();here.fillInStackTrace();Slog.v(TAG_SERVICE, "Bringing down " + r + " " + r.intent, here);}r.destroyTime = SystemClock.uptimeMillis();if (LOG_SERVICE_START_STOP) {EventLogTags.writeAmDestroyService(r.userId, System.identityHashCode(r), (r.app != null) ? r.app.pid : -1);}final ServiceMap smap = getServiceMapLocked(r.userId);ServiceRecord found = smap.mServicesByName.remove(r.name);// Note when this method is called by bringUpServiceLocked(), the service is not found// in mServicesByName and found will be null.if (found != null && found != r) {// This is not actually the service we think is running...  this should not happen,// but if it does, fail hard.smap.mServicesByName.put(r.name, found);throw new IllegalStateException("Bringing down " + r + " but actually running "+ found);}smap.mServicesByIntent.remove(r.intent);r.totalRestartCount = 0;unscheduleServiceRestartLocked(r, 0, true);// Also make sure it is not on the pending list.for (int i=mPendingServices.size()-1; i>=0; i--) {if (mPendingServices.get(i) == r) {mPendingServices.remove(i);if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "Removed pending: " + r);}}cancelForegroundNotificationLocked(r);if (r.isForeground) {decActiveForegroundAppLocked(smap, r);}r.isForeground = false;r.foregroundId = 0;r.foregroundNoti = null;// Clear start entries.r.clearDeliveredStartsLocked();r.pendingStarts.clear();if (r.app != null) {synchronized (r.stats.getBatteryStats()) {r.stats.stopLaunchedLocked();}r.app.services.remove(r);if (r.whitelistManager) {updateWhitelistManagerLocked(r.app);}if (r.app.thread != null) {updateServiceForegroundLocked(r.app, false);try {bumpServiceExecutingLocked(r, false, "destroy");mDestroyingServices.add(r);r.destroying = true;mAm.updateOomAdjLocked(r.app, true);r.app.thread.scheduleStopService(r);} catch (Exception e) {Slog.w(TAG, "Exception when destroying service "+ r.shortName, e);serviceProcessGoneLocked(r);}} else {if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "Removed service that has no process: " + r);}} else {if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "Removed service that is not running: " + r);}if (r.bindings.size() > 0) {r.bindings.clear();}if (r.restarter instanceof ServiceRestarter) {((ServiceRestarter)r.restarter).setService(null);}int memFactor = mAm.mProcessStats.getMemFactorLocked();long now = SystemClock.uptimeMillis();if (r.tracker != null) {r.tracker.setStarted(false, memFactor, now);r.tracker.setBound(false, memFactor, now);if (r.executeNesting == 0) {r.tracker.clearCurrentOwner(r, false);r.tracker = null;}}smap.ensureNotStartingBackgroundLocked(r);}

上面代码中让Service用crash代替anr的代码如下：

        // Check to see if the service had been started as foreground, but being// brought down before actually showing a notification.  That is not allowed.if (r.fgRequired) {Slog.w(TAG_SERVICE, "Bringing down service while still waiting for start foreground: "+ r);r.fgRequired = false;r.fgWaiting = false;mAm.mHandler.removeMessages(ActivityManagerService.SERVICE_FOREGROUND_TIMEOUT_MSG, r);if (r.app != null) {Message msg = mAm.mHandler.obtainMessage(ActivityManagerService.SERVICE_FOREGROUND_CRASH_MSG);msg.obj = r.app;mAm.mHandler.sendMessage(msg);}}
