本文主要是介绍【opencv函数】阈值处理函数threshold()详解,希望对大家解决编程问题提供一定的参考价值,需要的开发者们随着小编来一起学习吧!
数字图像处理中,阈值操作占有非常重要的地位,例如图像的二值化可以使图像中数据量大为减少,从而能凸显出目标的轮廓。opencv中提供了函数cv::threshold()用于图像的阈值操作。
函数原型
double cv::threshold(InputArray src, OutputArray dst, double thres, double maxval, int type)
参数说明
src:源图像,可以为8位的灰度图,也可以为32位的彩色图像;
dst:输出图像;
thresh:阈值;
maxval:二值图像中灰度最大值;
type:阈值操作类型,具体的阈值操作实现如下图所示:
测试代码
//全局二值化int th = 100;cv::Mat threshold1, threshold2, threshold3, threshold4, threshold5, threshold6, threshold7, threshold8;cv::threshold(gray, threshold1, th, 255, cv::THRESH_BINARY);cv::threshold(gray, threshold2, th, 255, cv::THRESH_BINARY_INV);cv::threshold(gray, threshold3, th, 255, cv::THRESH_TRUNC);cv::threshold(gray, threshold4, th, 255, cv::THRESH_TOZERO);cv::threshold(gray, threshold5, th, 255, cv::THRESH_TOZERO_INV);cv::threshold(gray, threshold7, th, 255, cv::THRESH_OTSU);cv::threshold(gray, threshold8, th, 255, cv::THRESH_TRIANGLE);cv::imshow("gray", gray);cv::imshow("THRESH_BINARY", threshold1);cv::imshow("THRESH_BINARY_INV", threshold2);cv::imshow("THRESH_TRUNC", threshold3);cv::imshow("THRESH_TOZERO", threshold4);cv::imshow("THRESH_TOZERO_INV", threshold5);cv::imshow("THRESH_OTSU", threshold7);cv::imshow("THRESH_TRIANGLE", threshold8);
测试结果对比

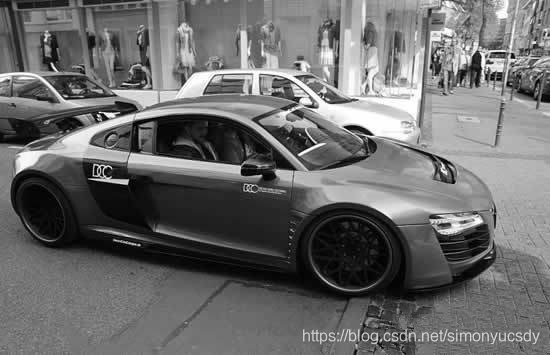

原灰度图 | |

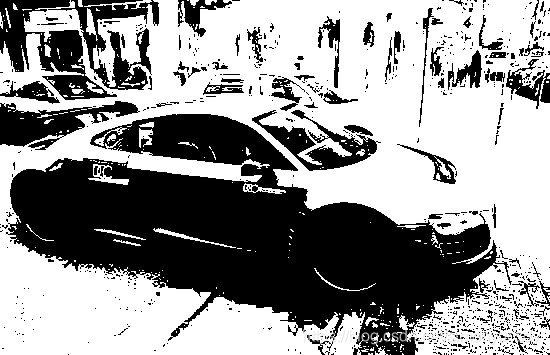

THRESH_BINARY | |

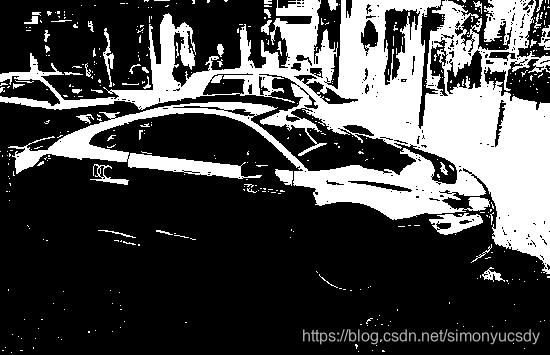

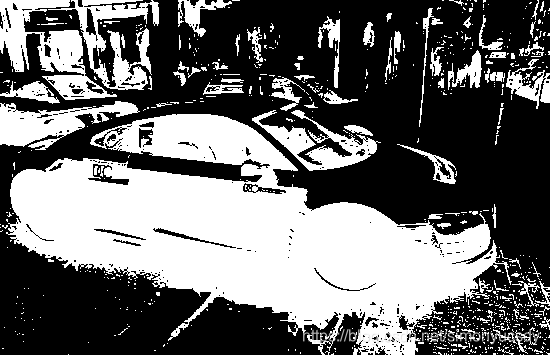

THRESH_BINARY_INV | |

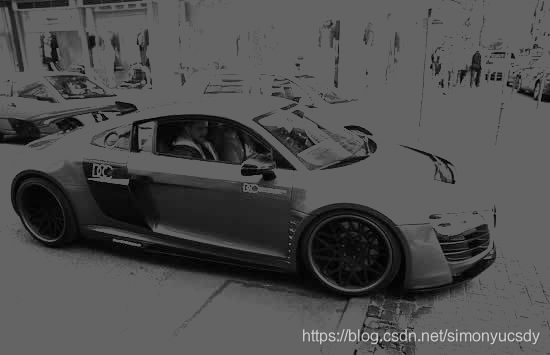

THRESH_TRUNC | |

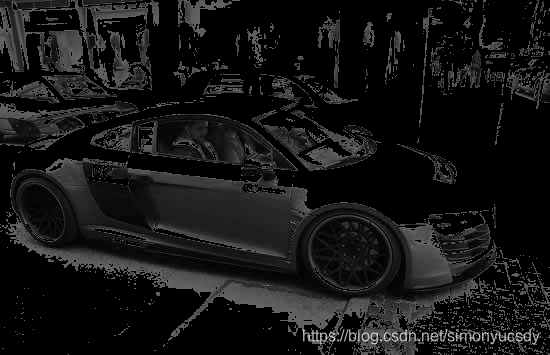

THRESH_TOZERO | |
THRESH_TOZERO_INV | |

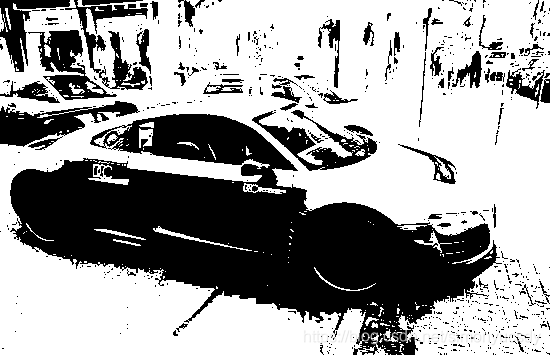

THRESH_OTSU | |

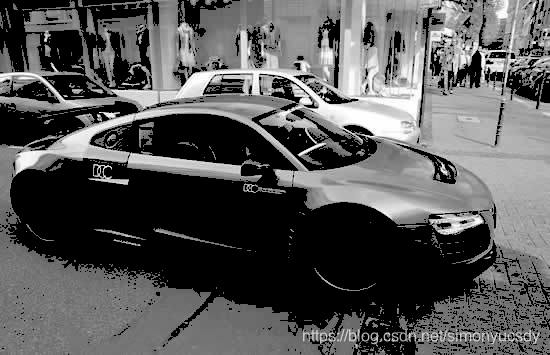

THRESH_TRIANGLE |
参考:
OpenCV threshold函数详解_Leenux0810的博客-CSDN博客_opencv threshold
这篇关于【opencv函数】阈值处理函数threshold()详解的文章就介绍到这儿,希望我们推荐的文章对编程师们有所帮助!
