华为--IA复习静态路由实验

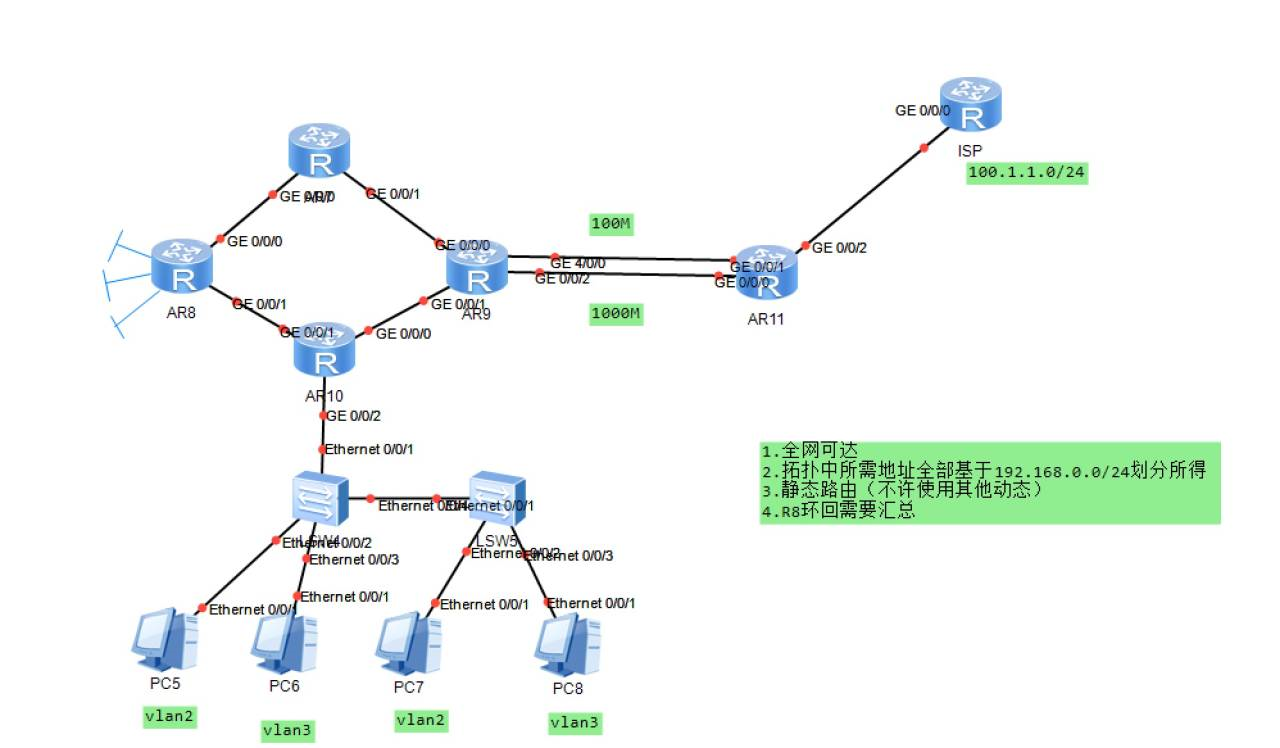

1、实验拓扑

2、实验要求

1. 全网可达
2. 拓扑中所需地址全部基于192.168.0.0/24划分所得
3. 静态路由（不许使用其他动态）
4. R8环回需要汇总

3、实验分析及拓扑处理

需要一个骨干链路、一个环回汇总和一个虚拟局域网汇总。所以需要划分三个网段，借两位。

一个骨干链路需要六个网段，需要借四位。

三个环回，需要借两位。

两个虚拟局域网借一位。

4、各设备配置

R1

The device is running!

<Huawei>

  Please check whether system data has been changed, and save data in time

  Configuration console time out, please press any key to log on

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]interface g0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 192.168.0.1 30
Nov 22 2020 16:16:20-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol
 IP on the interface GigabitEthernet0/0/0 has entered the UP state.
[Huawei-GigabitEthernet0/0/0]q
[Huawei]interface g0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 192.168.0.22 30
Nov 22 2020 16:46:25-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol
 IP on the interface GigabitEthernet0/0/1 has entered the UP state.
[Huawei-GigabitEthernet0/0/1]q
[Huawei]interface LoopBack 0
[Huawei-LoopBack0]ip address 192.168.0.65 28
[Huawei-LoopBack0]q
[Huawei]interface LoopBack 1
[Huawei-LoopBack1]ip add 192.168.0.81 28
[Huawei-LoopBack1]q
[Huawei]interface LoopBack 2
[Huawei-LoopBack2]ip address 192.168.0.97 28
[Huawei-LoopBack2]q
[Huawei]
[Huawei]ip route-static 192.168.0.4 30 192.168.0.2
[Huawei]ip route-static 192.168.0.8 30 192.168.0.2
[Huawei]ip route-static 192.168.0.12 30 192.168.0.2
[Huawei]ip route-static 192.168.0.16 30 192.168.0.2
[Huawei]ip route-static 192.168.0.128 26 192.168.0.2
[Huawei]ip route-static 192.168.0.128 26 192.168.0.21
[Huawei]ip route-static 192.168.0.16 30 192.168.0.21
[Huawei]ip route-static 192.168.0.12 30 192.168.0.21
[Huawei]ip route-static 192.168.0.8 30 192.168.0.21
[Huawei]ip route-static 192.168.0.4 30 192.168.0.21
[Huawei]
[Huawei]ip route-static 192.168.0.64 26 NULL 0
[Huawei]
[Huawei]ip route-static 0.0.0.0 0 192.168.0.2
[Huawei]ip route-static 0.0.0.0 0 192.168.0.21
[Huawei]

  Please check whether system data has been changed, and save data in time

  Configuration console time out, please press any key to log on

<Huawei>
<Huawei>save
  The current configuration will be written to the device.
  Are you sure to continue? (y/n)[n]:y
  It will take several minutes to save configuration file, please wait.......
  Configuration file had been saved successfully
  Note: The configuration file will take effect after being activated
<Huawei>

R2

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]interface g0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 192.168.0.2 30
Nov 22 2020 16:31:34-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol
 IP on the interface GigabitEthernet0/0/0 has entered the UP state.
[Huawei-GigabitEthernet0/0/0]q
[Huawei]interface g0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 192.168.0.5 30
Nov 22 2020 16:32:22-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[1]:The line protocol
 IP on the interface GigabitEthernet0/0/1 has entered the UP state.
[Huawei-Gigab
