大数据项目之通话记录统计

本文主要是介绍大数据项目之通话记录统计，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

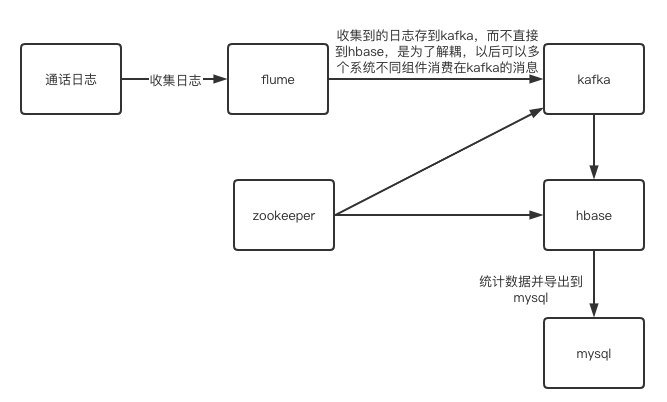

架构图：
在这里插入图片描述

第一步：模拟生产数据

    public void produce() {try {// 读取通讯录数据List<Contact> contacts = in.read(Contact.class);while ( flg ) {// 从通讯录中随机查找2个电话号码（主叫，被叫）int call1Index = new Random().nextInt(contacts.size());int call2Index;while ( true ) {call2Index = new Random().nextInt(contacts.size());if ( call1Index != call2Index ) {break;}}Contact call1 = contacts.get(call1Index);Contact call2 = contacts.get(call2Index);// 生成随机的通话时间String startDate = "20180101000000";String endDate = "20190101000000";long startTime = DateUtil.parse(startDate, "yyyyMMddHHmmss").getTime();long endTime = DateUtil.parse(endDate, "yyyyMMddHHmmss").getTime();// 通话时间long calltime = startTime + (long)((endTime - startTime) * Math.random());// 通话时间字符串String callTimeString = DateUtil.format(new Date(calltime), "yyyyMMddHHmmss");// 生成随机的通话时长String duration = NumberUtil.format(new Random().nextInt(3000), 4);// 生成通话记录Calllog log = new Calllog(call1.getTel(), call2.getTel(), callTimeString, duration);System.out.println(log);// 将通话记录刷写到数据文件中out.write(log);}} catch ( Exception e ) {e.printStackTrace();}}

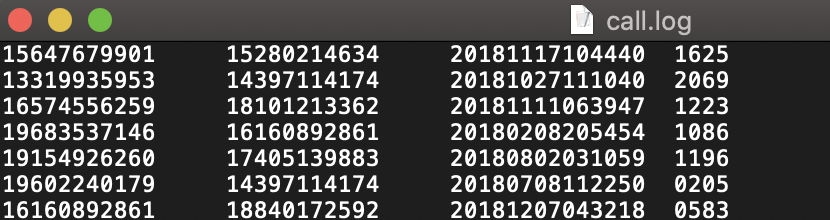

数据格式如下
在这里插入图片描述
第一列是主叫电话号码，第二列是被叫电话号码，第三列是通话开始时间，第四列是通话时长，单位秒。生成的数据放到一个文件中去。

第二步：flume收集日志并存放至kafka

启动flume来收集日志并发送到kafka(根据自己的安装目录自行修改)
flume-ng agent -c conf/ -n a1 -f conf/flume-2-kafka.conf

flume-2-kafka.conf文件内容如下

a1.sources = r1
a1.channels = c1
a1.sinks = k1a1.sources.r1.type = exec
a1.sources.r1.command = tail -F -c +0 /Users/liangjiepeng/Documents/tmpfile/bigdata/call.loga1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.channels.c1.transactionCapacity = 100
a1.channels.c1.byteCapacityBufferPercentage = 20
a1.channels.c1.byteCapacity = 800000a1.sinks.k1.type = org.apache.flume.sink.kafka.KafkaSink
a1.sinks.k1.kafka.topic = ct
a1.sinks.k1.kafka.bootstrap.servers = localhost:9092
a1.sinks.k1.kafka.flumeBatchSize = 20
a1.sinks.k1.kafka.producer.acks = 1a1.sources.r1.channels = c1
a1.sinks.k1.channel = c1

启动kafka(启动参数根据自己配置文件位置自行修改)
kafka-server-start /usr/local/etc/kafka/server.properties

第三步：导入数据到hbase中去

启动hbase
从kafka中导出数据到hbase中去
hbase的表结构如下
在这里插入图片描述

    public void consume() {try {// 创建配置对象Properties prop = new Properties();prop.load(Thread.currentThread().getContextClassLoader().getResourceAsStream("consumer.properties"));// 获取flume采集的数据KafkaConsumer<String, String> consumer = new KafkaConsumer<String, String>(prop);// 关注主题consumer.subscribe(Arrays.asList(Names.TOPIC.getValue()));// Hbase数据访问对象HBaseDao dao = new HBaseDao();// 初始化dao.init();int i = 0;// 消费数据while ( true ) {ConsumerRecords<String, String> consumerRecords = consumer.poll(10);for (ConsumerRecord<String, String> consumerRecord : consumerRecords) {System.out.println(consumerRecord.value());// 插入数据dao.insertData(consumerRecord.value());//Calllog log = new Calllog(consumerRecord.value());//dao.insertData(log);System.out.println(i++);}}} catch ( Exception e ) {e.printStackTrace();}}

为了更快地统计数据，创建了两个列族，分别代表call1是主叫还是被叫。上方produce方法中产生的数据都是放到caller族，而callee族的数据由hbase的协处理器根据放到caller族中的数据生成。

协处理器的postPut方法

public void postPut(ObserverContext<RegionCoprocessorEnvironment> e, Put put, WALEdit edit, Durability durability) throws IOException {// 获取表Table table = e.getEnvironment().getTable(TableName.valueOf(Names.TABLE.getValue()));// 主叫用户的rowkeyString rowkey = Bytes.toString(put.getRow());// 1_133_2019_144_1010_1String[] values = rowkey.split("_");CoprocessorDao dao = new CoprocessorDao();String call1 = values[1];String call2 = values[3];String calltime = values[2];String duration = values[4];String flg = values[5];if ( "1".equals(flg) ) {// 只有主叫用户保存后才需要触发被叫用户的保存String calleeRowkey = dao.getRegionNum(call2, calltime) + "_" + call2 + "_" + calltime + "_" + call1 + "_" + duration + "_0";// 保存数据Put calleePut = new Put(Bytes.toBytes(calleeRowkey));byte[] calleeFamily = Bytes.toBytes(Names.CF_CALLEE.getValue());calleePut.addColumn(calleeFamily, Bytes.toBytes("call1"), Bytes.toBytes(call2));calleePut.addColumn(calleeFamily, Bytes.toBytes("call2"), Bytes.toBytes(call1));calleePut.addColumn(calleeFamily, Bytes.toBytes("calltime"), Bytes.toBytes(calltime));calleePut.addColumn(calleeFamily, Bytes.toBytes("duration"), Bytes.toBytes(duration));calleePut.addColumn(calleeFamily, Bytes.toBytes("flg"), Bytes.toBytes("0"));table.put( calleePut );// 关闭表table.close();}}
