centos7.6使用kubeadm安装kubenetes 1.16.0

2023-12-05 16:40
文章标签 安装 使用 kubeadm centos7.6 1.16 kubenetes

本文主要是介绍centos7.6使用kubeadm安装kubenetes 1.16.0，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

参考：

https://blog.csdn.net/fenglailea/article/details/88745642

https://www.kubernetes.org.cn/5551.html

kubenetes v1.16.0

centos 7.6

docker-ce 19.03.2



一、服务器相关设置

系统环境
系统：centos 7.6
内核： 5.2.11-1.el7.elrepo.x86_64
1、Linux查看版本当前操作系统内核信息

uname -a

输出

Linux iZwz9d75c59ll4waz4y8ctZ 3.10.0-693.2.2.el7.x86_64 #1 SMP Tue Sep 12 22:26:13 UTC 2017 x86_64 x86_64 x86_64 GNU/Linux


2、Linux查看当前操作系统版本信息

cat /proc/version

输出

Linux version 3.10.0-693.2.2.el7.x86_64 (builder@kbuilder.dev.centos.org) (gcc version 4.8.5 20150623 (Red Hat 4.8.5-16) (GCC) ) #1 SMP Tue Sep 12 22:26:13 UTC 2017


Linux查看版本当前操作系统发行版信息

cat /etc/redhat-release

输出

CentOS Linux release 7.4.1708 (Core)


升级内核

# 升级yum，升级系统内核，系统内核最好能是4.10以上，可以使用overlay2存储驱动
# 本人在自己虚拟机使用centos7.6，升级内核后，可以用到overlay2存储驱动
# 在服务器上由于某些原因没办法升级内核，在3.10版本也能部署成功，只是存储驱动使用overlay
yum update -y# 安装工具
yum install -y wget curl vim

系统配置
设置主机名

hostnamectl set-hostname master


必须设置域名解析（master、node都要设置）

cat <<EOF >>/etc/hosts192.168.43.88 k8s-master
192.168.43.39 k8s-node1EOF


关闭防火墙 、selinux和swap

systemctl disable firewalld --nowsetenforce 0sed -i "s/^SELINUX=enforcing/SELINUX=disabled/g" /etc/selinux/configswapoff -a
echo "vm.swappiness = 0">> /etc/sysctl.confsed -i 's/.*swap.*/#&/' /etc/fstabsysctl -p


配置内核参数，将桥接的IPv4流量传递到iptables的链


cat > /etc/sysctl.d/k8s.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
EOFsysctl --system

二、配置软件源

1、配置yum源base repo为阿里云的yum源

cd /etc/yum.repos.d
mv CentOS-Base.repo CentOS-Base.repo.bak
mv epel.repo  epel.repo.bak
curl https://mirrors.aliyun.com/repo/Centos-7.repo -o CentOS-Base.repo
sed -i 's/gpgcheck=1/gpgcheck=0/g' /etc/yum.repos.d/CentOS-Base.repo
curl https://mirrors.aliyun.com/repo/epel-7.repo -o epel.repo

gpkcheck=0 表示对从这个源下载的rpm包不进行校验

2、配置docker repo

wget https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo -O/etc/yum.repos.d/docker-ce.repo

3、配置kubernetes源为阿里的yum源

cat > /etc/yum.repos.d/kubernetes.repo << EOF
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64   Kubernetes源设为阿里

gpgcheck=0：表示对从这个源下载的rpm包不进行校验

repo_gpgcheck=0：某些安全性配置文件会在 /etc/yum.conf 内全面启用 repo_gpgcheck，以便能检验软件库的中继数据的加密签署

如果gpgcheck设为1，会进行校验，就会报错如下，所以这里设为0

repomd.xml signature could not be verified for kubernetes

4、update cache 更新缓存

yum clean all && yum makecache && yum repolist

三、安装docker

查看可安装的版本

yum list docker-ce --showduplicates | sort -r

安装

yum install -y docker-ce

或者指定版本安装

yum install -y docker-ce-19.03.5-3.el7

启动docker

systemctl enable docker && systemctl start docker

查看docker版本

docker version

设置docker的镜像源，这里我设置为国内的docker源https://www.docker-cn.com

vim /etc/docker/daemon.json
{"exec-opts": ["native.cgroupdriver=systemd"],"log-driver": "json-file","log-opts": {"max-file": "3","max-size": "100m"},"storage-driver": "overlay2","storage-opts": ["overlay2.override_kernel_check=true"],"registry-mirrors": ["https://www.docker-cn.com"]
}
注意：native.cgroupdriver=systemd 官方推荐此配置，地址 https://kubernetes.io/docs/setup/cri/

重新加载daemon，重启docker

systemctl daemon-reload && systemctl restart docker
如果docker重启失败提示start request repeated too quickly for docker.service应该是centos的内核太低内核是3.x，不支持overlay2的文件系统，移除下面的配置"storage-driver": "overlay2","storage-opts": ["overlay2.override_kernel_check=true"]

四、安装kubeadm、kubelet和kubectl

kubeadm不管kubelet和kubectl，所以我们安装kubeadm，还要安装kubelet和kubectl

查看kubelet版本

yum list kubelet --showduplicates | sort -r

安装kubelet kubeadm kubectl

yum install -y kubelet kubeadm kubectl --disableexcludes=kubernetes

Kubelet负责与其他节点集群通信，并进行本节点Pod和容器生命周期的管理。

Kubeadm是Kubernetes的自动化部署工具，降低了部署难度，提高效率。

Kubectl是Kubernetes集群管理工具。

最后启动kubelet：

systemctl enable kubelet --now

五、部署kubernetes master

开始初始化集群之前可以使用kubeadm config images list查看一下初始化需要哪些镜像

kubeadm config images list

以下是初始化所需docker镜像

k8s.gcr.io/kube-apiserver:v1.16.0
k8s.gcr.io/kube-controller-manager:v1.16.0
k8s.gcr.io/kube-scheduler:v1.16.0
k8s.gcr.io/kube-proxy:v1.16.0
k8s.gcr.io/pause:3.1
k8s.gcr.io/etcd:3.3.15-0
k8s.gcr.io/coredns:1.6.2

可以先通过kubeadm config images pull手动在各个节点上拉取所k8s需要的docker镜像，master节点初始化或者node节点加入集群时，会用到这些镜像

如果不先执行kubeadm config images pull拉取镜像，其实在master节点执行kubeadm init 或者node节点执行 kubeadm join命令时，也会先拉取镜像

本人没有提前拉取镜像，都是在master节点kubeadm init 和node节点 kubeadm join时，自动拉的镜像

kubeadm config images pull

1、初始化kubeadm

kubeadm init \
--apiserver-advertise-address=master机器的ip \
--image-repository registry.aliyuncs.com/google_containers \
--kubernetes-version v1.16.0 \
--service-cidr=10.1.0.0/16 \
--pod-network-cidr=10.244.0.0/16

上面指定的参数都不能缺

–kubernetes-version: 用于指定k8s版本；
–apiserver-advertise-address：用于指定kube-apiserver监听的ip地址,就是 master本机IP地址。
–pod-network-cidr：用于指定Pod的网络范围； 10.244.0.0/16
–service-cidr：用于指定SVC的网络范围；
–image-repository: 指定阿里云镜像仓库地址

这一步很关键，由于kubeadm 默认从官网k8s.grc.io下载所需镜像，国内无法访问，因此需要通过–image-repository指定阿里云镜像仓库地址

注意：初始化时，留意输出的英文提示，可以及时知道初始化失败的原因，如下warning就是说主机名不对，找不到这个主机

[preflight] Running pre-flight checks[WARNING SystemVerification]: this Docker version is not on the list of validated versions: 19.03.2. Latest validated version: 18.09[WARNING Hostname]: hostname "bogon" could not be reached[WARNING Hostname]: hostname "bogon": lookup bogon on 192.168.2.1:53: no such host[WARNING Service-Kubelet]: kubelet service is not enabled, please run 'systemctl enable kubelet.service'
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'

初始化时间比较长一些，大概1分钟左右，当出现以下结果，标识初始化完成（初始化完成，不代表集群运行正常）

Your Kubernetes control-plane has initialized successfully!To start using your cluster, you need to run the following as a regular user:mkdir -p $HOME/.kubesudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/configsudo chown $(id -u):$(id -g) $HOME/.kube/configYou should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:https://kubernetes.io/docs/concepts/cluster-administration/addons/Then you can join any number of worker nodes by running the following on each as root:kubeadm join 192.168.43.88:6443 --token m16ado.6ne248sk47nln0jj \--discovery-token-ca-cert-hash sha256:09cda974fb18e716219bf08ef9d7a4eaa76bfe59ec91d0930b4ccfbd111276de

2、按提示执行命令

  mkdir -p $HOME/.kubesudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/configsudo chown $(id -u):$(id -g) $HOME/.kube/config

3、将pod网络部署到集群

下载kube-flannel.yml文件

curl -O https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml

下载后的文件

---
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:name: psp.flannel.unprivilegedannotations:seccomp.security.alpha.kubernetes.io/allowedProfileNames: docker/defaultseccomp.security.alpha.kubernetes.io/defaultProfileName: docker/defaultapparmor.security.beta.kubernetes.io/allowedProfileNames: runtime/defaultapparmor.security.beta.kubernetes.io/defaultProfileName: runtime/default
spec:privileged: falsevolumes:- configMap- secret- emptyDir- hostPathallowedHostPaths:- pathPrefix: "/etc/cni/net.d"- pathPrefix: "/etc/kube-flannel"- pathPrefix: "/run/flannel"readOnlyRootFilesystem: false# Users and groupsrunAsUser:rule: RunAsAnysupplementalGroups:rule: RunAsAnyfsGroup:rule: RunAsAny# Privilege EscalationallowPrivilegeEscalation: falsedefaultAllowPrivilegeEscalation: false# CapabilitiesallowedCapabilities: ['NET_ADMIN']defaultAddCapabilities: []requiredDropCapabilities: []# Host namespaceshostPID: falsehostIPC: falsehostNetwork: truehostPorts:- min: 0max: 65535# SELinuxseLinux:# SELinux is unsed in CaaSPrule: 'RunAsAny'
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:name: flannel
rules:- apiGroups: ['extensions']resources: ['podsecuritypolicies']verbs: ['use']resourceNames: ['psp.flannel.unprivileged']- apiGroups:- ""resources:- podsverbs:- get- apiGroups:- ""resources:- nodesverbs:- list- watch- apiGroups:- ""resources:- nodes/statusverbs:- patch
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:name: flannel
roleRef:apiGroup: rbac.authorization.k8s.iokind: ClusterRolename: flannel
subjects:
- kind: ServiceAccountname: flannelnamespace: kube-system
---
apiVersion: v1
kind: ServiceAccount
metadata:name: flannelnamespace: kube-system
---
kind: ConfigMap
apiVersion: v1
metadata:name: kube-flannel-cfgnamespace: kube-systemlabels:tier: nodeapp: flannel
data:cni-conf.json: |{"cniVersion": "0.2.0","name": "cbr0","plugins": [{"type": "flannel","delegate": {"hairpinMode": true,"isDefaultGateway": true}},{"type": "portmap","capabilities": {"portMappings": true}}]}net-conf.json: |{"Network": "10.244.0.0/16","Backend": {"Type": "vxlan"}}
---
apiVersion: apps/v1
kind: DaemonSet
metadata:name: kube-flannel-ds-amd64namespace: kube-systemlabels:tier: nodeapp: flannel
spec:selector:matchLabels:app: flanneltemplate:metadata:labels:tier: nodeapp: flannelspec:affinity:nodeAffinity:requiredDuringSchedulingIgnoredDuringExecution:nodeSelectorTerms:- matchExpressions:- key: beta.kubernetes.io/osoperator: Invalues:- linux- key: beta.kubernetes.io/archoperator: Invalues:- amd64hostNetwork: truetolerations:- operator: Existseffect: NoScheduleserviceAccountName: flannelinitContainers:- name: install-cniimage: quay.io/coreos/flannel:v0.11.0-amd64command:- cpargs:- -f- /etc/kube-flannel/cni-conf.json- /etc/cni/net.d/10-flannel.conflistvolumeMounts:- name: cnimountPath: /etc/cni/net.d- name: flannel-cfgmountPath: /etc/kube-flannel/containers:- name: kube-flannelimage: quay.io/coreos/flannel:v0.11.0-amd64command:- /opt/bin/flanneldargs:- --ip-masq- --kube-subnet-mgr- --iface=eth0resources:requests:cpu: "100m"memory: "50Mi"limits:cpu: "100m"memory: "50Mi"securityContext:privileged: falsecapabilities:add: ["NET_ADMIN"]env:- name: POD_NAMEvalueFrom:fieldRef:fieldPath: metadata.name- name: POD_NAMESPACEvalueFrom:fieldRef:fieldPath: metadata.namespacevolumeMounts:- name: runmountPath: /run/flannel- name: flannel-cfgmountPath: /etc/kube-flannel/volumes:- name: runhostPath:path: /run/flannel- name: cnihostPath:path: /etc/cni/net.d- name: flannel-cfgconfigMap:name: kube-flannel-cfg
---
apiVersion: apps/v1
kind: DaemonSet
metadata:name: kube-flannel-ds-arm64namespace: kube-systemlabels:tier: nodeapp: flannel
spec:selector:matchLabels:app: flanneltemplate:metadata:labels:tier: nodeapp: flannelspec:affinity:nodeAffinity:requiredDuringSchedulingIgnoredDuringExecution:nodeSelectorTerms:- matchExpressions:- key: beta.kubernetes.io/osoperator: Invalues:- linux- key: beta.kubernetes.io/archoperator: Invalues:- arm64hostNetwork: truetolerations:- operator: Existseffect: NoScheduleserviceAccountName: flannelinitContainers:- name: install-cniimage: quay.io/coreos/flannel:v0.11.0-arm64command:- cpargs:- -f- /etc/kube-flannel/cni-conf.json- /etc/cni/net.d/10-flannel.conflistvolumeMounts:- name: cnimountPath: /etc/cni/net.d- name: flannel-cfgmountPath: /etc/kube-flannel/containers:- name: kube-flannelimage: quay.io/coreos/flannel:v0.11.0-arm64command:- /opt/bin/flanneldargs:- --ip-masq- --kube-subnet-mgrresources:requests:cpu: "100m"memory: "50Mi"limits:cpu: "100m"memory: "50Mi"securityContext:privileged: falsecapabilities:add: ["NET_ADMIN"]env:- name: POD_NAMEvalueFrom:fieldRef:fieldPath: metadata.name- name: POD_NAMESPACEvalueFrom:fieldRef:fieldPath: metadata.namespacevolumeMounts:- name: runmountPath: /run/flannel- name: flannel-cfgmountPath: /etc/kube-flannel/volumes:- name: runhostPath:path: /run/flannel- name: cnihostPath:path: /etc/cni/net.d- name: flannel-cfgconfigMap:name: kube-flannel-cfg
---
apiVersion: apps/v1
kind: DaemonSet
metadata:name: kube-flannel-ds-armnamespace: kube-systemlabels:tier: nodeapp: flannel
spec:selector:matchLabels:app: flanneltemplate:metadata:labels:tier: nodeapp: flannelspec:affinity:nodeAffinity:requiredDuringSchedulingIgnoredDuringExecution:nodeSelectorTerms:- matchExpressions:- key: beta.kubernetes.io/osoperator: Invalues:- linux- key: beta.kubernetes.io/archoperator: Invalues:- armhostNetwork: truetolerations:- operator: Existseffect: NoScheduleserviceAccountName: flannelinitContainers:- name: install-cniimage: quay.io/coreos/flannel:v0.11.0-armcommand:- cpargs:- -f- /etc/kube-flannel/cni-conf.json- /etc/cni/net.d/10-flannel.conflistvolumeMounts:- name: cnimountPath: /etc/cni/net.d- name: flannel-cfgmountPath: /etc/kube-flannel/containers:- name: kube-flannelimage: quay.io/coreos/flannel:v0.11.0-armcommand:- /opt/bin/flanneldargs:- --ip-masq- --kube-subnet-mgrresources:requests:cpu: "100m"memory: "50Mi"limits:cpu: "100m"memory: "50Mi"securityContext:privileged: falsecapabilities:add: ["NET_ADMIN"]env:- name: POD_NAMEvalueFrom:fieldRef:fieldPath: metadata.name- name: POD_NAMESPACEvalueFrom:fieldRef:fieldPath: metadata.namespacevolumeMounts:- name: runmountPath: /run/flannel- name: flannel-cfgmountPath: /etc/kube-flannel/volumes:- name: runhostPath:path: /run/flannel- name: cnihostPath:path: /etc/cni/net.d- name: flannel-cfgconfigMap:name: kube-flannel-cfg
---
apiVersion: apps/v1
kind: DaemonSet
metadata:name: kube-flannel-ds-ppc64lenamespace: kube-systemlabels:tier: nodeapp: flannel
spec:selector:matchLabels:app: flanneltemplate:metadata:labels:tier: nodeapp: flannelspec:affinity:nodeAffinity:requiredDuringSchedulingIgnoredDuringExecution:nodeSelectorTerms:- matchExpressions:- key: beta.kubernetes.io/osoperator: Invalues:- linux- key: beta.kubernetes.io/archoperator: Invalues:- ppc64lehostNetwork: truetolerations:- operator: Existseffect: NoScheduleserviceAccountName: flannelinitContainers:- name: install-cniimage: quay.io/coreos/flannel:v0.11.0-ppc64lecommand:- cpargs:- -f- /etc/kube-flannel/cni-conf.json- /etc/cni/net.d/10-flannel.conflistvolumeMounts:- name: cnimountPath: /etc/cni/net.d- name: flannel-cfgmountPath: /etc/kube-flannel/containers:- name: kube-flannelimage: quay.io/coreos/flannel:v0.11.0-ppc64lecommand:- /opt/bin/flanneldargs:- --ip-masq- --kube-subnet-mgrresources:requests:cpu: "100m"memory: "50Mi"limits:cpu: "100m"memory: "50Mi"securityContext:privileged: falsecapabilities:add: ["NET_ADMIN"]env:- name: POD_NAMEvalueFrom:fieldRef:fieldPath: metadata.name- name: POD_NAMESPACEvalueFrom:fieldRef:fieldPath: metadata.namespacevolumeMounts:- name: runmountPath: /run/flannel- name: flannel-cfgmountPath: /etc/kube-flannel/volumes:- name: runhostPath:path: /run/flannel- name: cnihostPath:path: /etc/cni/net.d- name: flannel-cfgconfigMap:name: kube-flannel-cfg
---
apiVersion: apps/v1
kind: DaemonSet
metadata:name: kube-flannel-ds-s390xnamespace: kube-systemlabels:tier: nodeapp: flannel
spec:selector:matchLabels:app: flanneltemplate:metadata:labels:tier: nodeapp: flannelspec:affinity:nodeAffinity:requiredDuringSchedulingIgnoredDuringExecution:nodeSelectorTerms:- matchExpressions:- key: beta.kubernetes.io/osoperator: Invalues:- linux- key: beta.kubernetes.io/archoperator: Invalues:- s390xhostNetwork: truetolerations:- operator: Existseffect: NoScheduleserviceAccountName: flannelinitContainers:- name: install-cniimage: quay.io/coreos/flannel:v0.11.0-s390xcommand:- cpargs:- -f- /etc/kube-flannel/cni-conf.json- /etc/cni/net.d/10-flannel.conflistvolumeMounts:- name: cnimountPath: /etc/cni/net.d- name: flannel-cfgmountPath: /etc/kube-flannel/containers:- name: kube-flannelimage: quay.io/coreos/flannel:v0.11.0-s390xcommand:- /opt/bin/flanneldargs:- --ip-masq- --kube-subnet-mgrresources:requests:cpu: "100m"memory: "50Mi"limits:cpu: "100m"memory: "50Mi"securityContext:privileged: falsecapabilities:add: ["NET_ADMIN"]env:- name: POD_NAMEvalueFrom:fieldRef:fieldPath: metadata.name- name: POD_NAMESPACEvalueFrom:fieldRef:fieldPath: metadata.namespacevolumeMounts:- name: runmountPath: /run/flannel- name: flannel-cfgmountPath: /etc/kube-flannel/volumes:- name: runhostPath:path: /run/flannel- name: cnihostPath:path: /etc/cni/net.d- name: flannel-cfgconfigMap:name: kube-flannel-cfg

安装flannel network add-on

kubectl apply -f ./kube-flannel.yml
这里注意kube-flannel.yml这个文件里的flannel的镜像是0.11.0，quay.io/coreos/flannel:v0.11.0-amd64

执行后，显示如下，表示flannel部署成功

podsecuritypolicy.policy/psp.flannel.unprivileged created
clusterrole.rbac.authorization.k8s.io/flannel created
clusterrolebinding.rbac.authorization.k8s.io/flannel created
serviceaccount/flannel created
configmap/kube-flannel-cfg created
daemonset.apps/kube-flannel-ds-amd64 created
daemonset.apps/kube-flannel-ds-arm64 created
daemonset.apps/kube-flannel-ds-arm created
daemonset.apps/kube-flannel-ds-ppc64le created
daemonset.apps/kube-flannel-ds-s390x created

如果flannel创建失败的，则可能是服务器存在多个网卡，目前需要在kube-flannel.yml中使用–iface参数指定集群主机内网网卡的名称，否则可能会出现dns无法解析。需要将kube-flannel.yml下载到本地，flanneld启动参数加上–iface=<iface-name>

注意：kube-flannel.yml文件里面有多个containers，要在quay.io/coreos/flannel:v0.11.0-amd64这个containers的启动参数里面设

containers:- name: kube-flannelimage: quay.io/coreos/flannel:v0.11.0-amd64command:- /opt/bin/flanneldargs:- --ip-masq- --kube-subnet-mgr- --iface=eth0

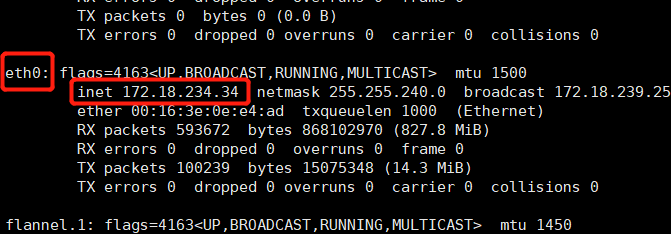

containers下的args指定参数iface=eth0，前提先ifconfig查看一下本地ip使用的网卡名称：eth0

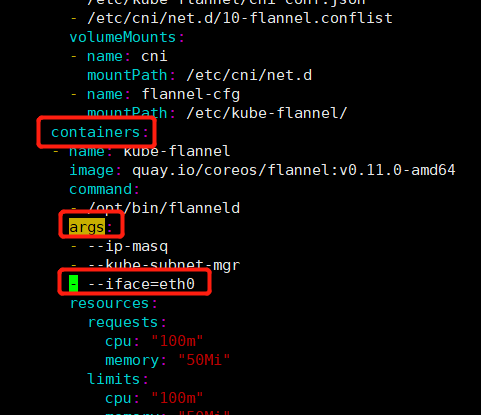

修改之前下载的kube-flannel.yml，修改containers下的args启动参数，指定网卡名称

修改完kube-flannel.yml后，先删除之前部署的网络

kubectl delete -f ./kube-flannel.yml

再重新创建

kubectl apply -f ./kube-flannel.yml



执行完后，查看node状态、pod状态

kubectl get nodes
NAME                      STATUS   ROLES    AGE   VERSION
izwz9d75c59ll4waz4y8ctz   Ready    master   71m   v1.16.0

kubectl get pod -n kube-system
NAME                                              READY   STATUS    RESTARTS   AGE
coredns-58cc8c89f4-2d6q9                          1/1     Running   0          72m
coredns-58cc8c89f4-rxs6n                          1/1     Running   0          72m
etcd-izwz9d75c59ll4waz4y8ctz                      1/1     Running   0          71m
kube-apiserver-izwz9d75c59ll4waz4y8ctz            1/1     Running   0          71m
kube-controller-manager-izwz9d75c59ll4waz4y8ctz   1/1     Running   0          71m
kube-flannel-ds-amd64-55fzx                       1/1     Running   0          71m
kube-proxy-5x9wv                                  1/1     Running   0          72m
kube-scheduler-izwz9d75c59ll4waz4y8ctz            1/1     Running   0          71m

一般node状态为NotReady状态，kubectl get pod -n kube-system看一下pod状态，

一般可以发现问题，flannel镜像下载失败ImagePullBackOff，coredns状态一直是pending，

这时查看一下docker image ls里面有没有quay.io/coreos/flannel:v0.11.0-amd64镜像，如果没有，尝试

docker pull quay.io/coreos/flannel:v0.11.0-amd64

必须把flannel镜像拉取下，kube-flannel-ds-amd64的状态才正常running

本人虚拟机里面死活没办法拉取quay.io/coreos/flannel:v0.11.0-amd64镜像，只好从其他地方拉取后save导出，再load到虚拟机的docker里面

注意：master节点和node节点，都必须有这个镜像quay.io/coreos/flannel:v0.11.0-amd64



六、部署Node节点加入集群

1、首先确保node节点是否存在flannel的docker镜像：quay.io/coreos/flannel:v0.11.0-amd64

2、执行kubeadm join命令加入集群

kubeadm join 192.168.43.88:6443 --token ep9bne.6at6gds2o05dgutd \--discovery-token-ca-cert-hash sha256:b2f75a6e5a49e66e467392d7d237548664ba8a28aafe98bdb18a7dd63ecc4aa8

到master节点查看node状态，都显示ready

[root@k8s-master ~]# kubectl get node
NAME         STATUS   ROLES    AGE     VERSION
k8s-master   Ready    master   3h31m   v1.16.0
k8s-node1    Ready    <none>   57m     v1.16.0

七、其他

1、创建pod验证集群是否正常

kubectl create deployment nginx --image=nginxkubectl expose deployment nginx --port=80 --type=NodePortkubectl get pod,svc

查看pod和svc，nginx正常ready

NAME                         READY   STATUS    RESTARTS   AGE
pod/nginx-86c57db685-kgfn2   1/1     Running   0          67sNAME                 TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)        AGE
service/kubernetes   ClusterIP   10.1.0.1       <none>        443/TCP        3h49m
service/nginx        NodePort    10.1.143.205   <none>        80:32597/TCP   12s

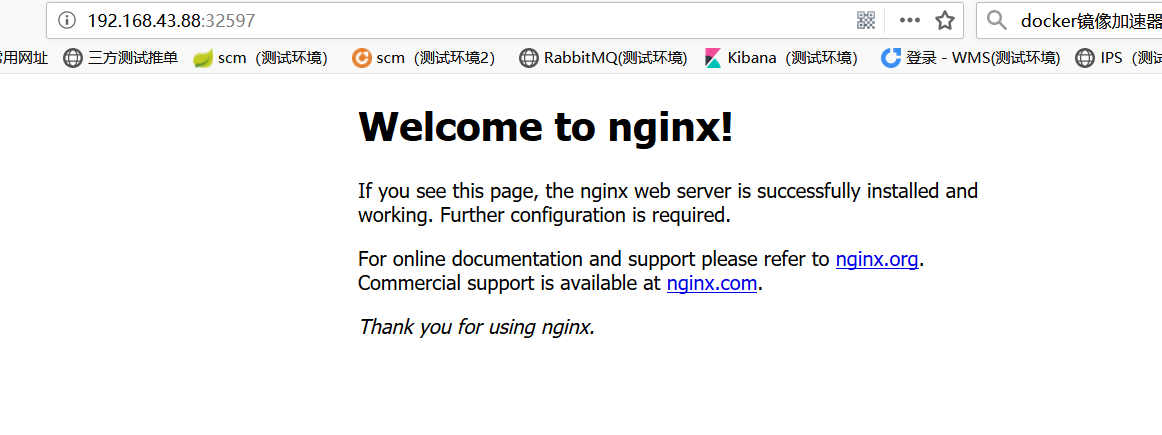

浏览器访问master主机ip+NodePort端口32597，能正常显示nginx首页

2、移除Node节点

在node节点执行

kubeadm reset

撤销kubeadm join，再手动rm掉提示的配置文件夹

在master节点执行（kubectl get node可以查看节点名）   kubectl delete node 节点名称

kubectl delete node k8s-node1

3、设置docker私库

另外一个文章：https://blog.csdn.net/fuck487/article/details/102147110

这篇关于centos7.6使用kubeadm安装kubenetes 1.16.0的文章就介绍到这儿，希望我们推荐的文章对编程师们有所帮助！


http://www.chinasem.cn/article/458326。

相关文章

Zookeeper安装和配置说明

Zookeeper安装和配置说明

一、Zookeeper的搭建方式 Zookeeper安装方式有三种，单机模式和集群模式以及伪集群模式。 ■ 单机模式：Zookeeper只运行在一台服务器上，适合测试环境； ■ 伪集群模式：就是在一台物理机上运行多个Zookeeper 实例； ■ 集群模式：Zookeeper运行于一个集群上，适合生产环境，这个计算机集群被称为一个“集合体”（ensemble） Zookeeper通过复制来实现
阅读更多...
CentOS7安装配置mysql5.7 tar免安装版

CentOS7安装配置mysql5.7 tar免安装版

一、CentOS7.4系统自带mariadb # 查看系统自带的Mariadb[root@localhost~]# rpm -qa|grep mariadbmariadb-libs-5.5.44-2.el7.centos.x86_64# 卸载系统自带的Mariadb[root@localhost ~]# rpm -e --nodeps mariadb-libs-5.5.44-2.el7
阅读更多...
Centos7安装Mongodb4

Centos7安装Mongodb4

1、下载源码包 curl -O https://fastdl.mongodb.org/linux/mongodb-linux-x86_64-rhel70-4.2.1.tgz 2、解压 放到 /usr/local/ 目录下 tar -zxvf mongodb-linux-x86_64-rhel70-4.2.1.tgzmv mongodb-linux-x86_64-rhel70-4.2.1/
阅读更多...
中文分词jieba库的使用与实景应用（一）

中文分词jieba库的使用与实景应用（一）

知识星球：https://articles.zsxq.com/id_fxvgc803qmr2.html 目录 一.定义： 精确模式（默认模式）： 全模式： 搜索引擎模式： paddle 模式（基于深度学习的分词模式）： 二 自定义词典 三.文本解析   调整词出现的频率 四. 关键词提取 A. 基于TF-IDF算法的关键词提取 B. 基于TextRank算法的关键词提取
阅读更多...
使用SecondaryNameNode恢复NameNode的数据

使用SecondaryNameNode恢复NameNode的数据

1）需求： NameNode进程挂了并且存储的数据也丢失了，如何恢复NameNode 此种方式恢复的数据可能存在小部分数据的丢失。 2）故障模拟 （1）kill -9 NameNode进程 [lytfly@hadoop102 current]$ kill -9 19886 （2）删除NameNode存储的数据（/opt/module/hadoop-3.1.4/data/tmp/dfs/na
阅读更多...
Hadoop数据压缩使用介绍

Hadoop数据压缩使用介绍

一、压缩原则 （1）运算密集型的Job，少用压缩 （2）IO密集型的Job，多用压缩 二、压缩算法比较 三、压缩位置选择 四、压缩参数配置 1）为了支持多种压缩/解压缩算法，Hadoop引入了编码/解码器 2）要在Hadoop中启用压缩，可以配置如下参数
阅读更多...
Makefile简明使用教程

Makefile简明使用教程

文章目录 规则makefile文件的基本语法：加在命令前的特殊符号：.PHONY伪目标: Makefilev1 直观写法v2 加上中间过程v3 伪目标v4 变量 make 选项-f-n-C Make 是一种流行的构建工具，常用于将源代码转换成可执行文件或者其他形式的输出文件(如库文件、文档等)。Make 可以自动化地执行编译、链接等一系列操作。 规则 makefile文件
阅读更多...
使用opencv优化图片（画面变清晰）

使用opencv优化图片（画面变清晰）

文章目录 需求影响照片清晰度的因素 实现降噪测试代码 锐化空间锐化Unsharp Masking频率域锐化对比测试 对比度增强常用算法对比测试 需求 对图像进行优化，使其看起来更清晰，同时保持尺寸不变，通常涉及到图像处理技术如锐化、降噪、对比度增强等 影响照片清晰度的因素 影响照片清晰度的因素有很多，主要可以从以下几个方面来分析 1. 拍摄设备 相机传感器：相机传
阅读更多...
Centos7安装JDK1.8保姆版

Centos7安装JDK1.8保姆版

工欲善其事，必先利其器。这句话同样适用于学习Java编程。在开始Java的学习旅程之前，我们必须首先配置好适合的开发环境。 通过事先准备好这些工具和配置，我们可以避免在学习过程中遇到因环境问题导致的代码异常或错误。一个稳定、高效的开发环境能够让我们更加专注于代码的学习和编写，提升学习效率，减少不必要的困扰和挫折感。因此，在学习Java之初，投入一些时间和精力来配置好开发环境是非常值得的。这将为我
阅读更多...
pdfmake生成pdf的使用

pdfmake生成pdf的使用

实际项目中有时会有根据填写的表单数据或者其他格式的数据，将数据自动填充到pdf文件中根据固定模板生成pdf文件的需求 文章目录 利用pdfmake生成pdf文件1.下载安装pdfmake第三方包2.封装生成pdf文件的共用配置3.生成pdf文件的文件模板内容4.调用方法生成pdf 利用pdfmake生成pdf文件 1.下载安装pdfmake第三方包 npm i pdfma
阅读更多...

Copyright China编程 23002807@qq.com

沪ICP备2023033072号-2
