写在前面的话：

本篇是AXI DMA在linux下使用的例子。

包括PL端设计，基于vivado 2015.4，petalinux 2016.1，基于linux 4.4内核。

我在git hub 上托管了代码，https://github.com/shichaog/zynq-dma，如果想加入github上这个项目，给我邮箱发信息shichaog@126.com，方便为你配权限。

1.PL端设计：

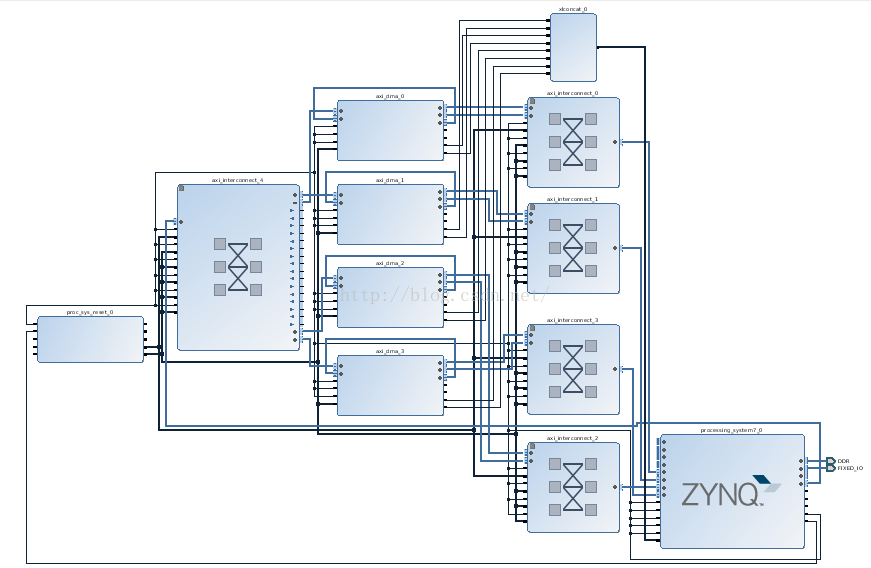

PL端设计包括四个AXI DMA IP，它们分别和zynq处理IP的HP口相连接。

这个设计是基于Avnet-Digilent-ZedBoard-v2016.1-final.bsp，由于其它的ip都是xilinx开发环境开发环境就有，所以这里就不详细每一步设计过程了。

这些IP包括AXI interconnect， system reset，axi dma，concat。

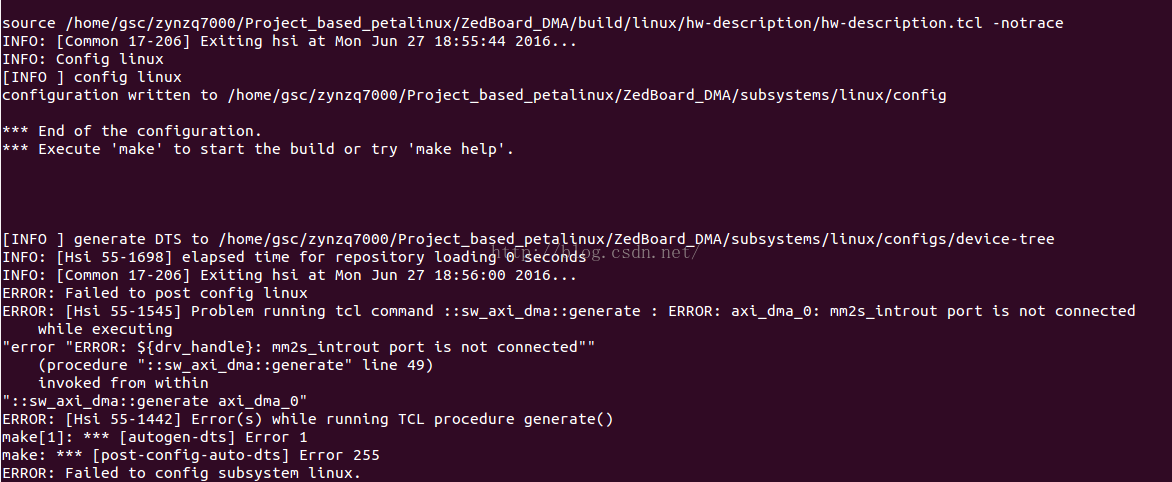

注意concat是用来将AXI DMA的中断传递给zynq之用的，这是必须有的，否则在hdf导入时，会出现如下错误：

2 接下来是创建module和app了

这两个命令执行后，会分配在components/apps和components/modules目录下生成dmaBench和ds_axidma两个文件夹，该文件下的两个文件内容使用如下的文件替换。

《dmaBench.c》
#include <stdio.h>
#include <fcntl.h>
#include <string.h>
#include <stdlib.h>
#include <sys/time.h>unsigned long tStart, tEnd;
unsigned long data;unsigned long getTime(){struct timeval temp;gettimeofday(&temp, NULL);return temp.tv_sec * 1000 * 1000 + temp.tv_usec;
}void report(char *msg, unsigned long data, unsigned long time, unsigned long dmaUsed){printf("%s\t%ld\t%ld\t%f\t%d\n", msg, data, time, data * 1.0 / time, dmaUsed);FILE *f = fopen("report.dat", "a");fprintf(f, "%s\t%ld\t%ld\t%f\t%d\n", msg, data, time, data * 1.0 / time, dmaUsed);fclose(f);
}#define REPORT(f, timeStart, timeEnd, dataPtr, msg, dmaUsed) *timeStart = getTime(); *dataPtr = f; *timeEnd = getTime(); report(msg, *dataPtr, *timeEnd - *timeStart, dmaUsed);void checkData(char *bufferIn, char *bufferOut, unsigned int elems){int i;if(!memcmp(bufferIn, bufferOut, elems*sizeof(char))){printf("DMA Ok!\n");}else{for(i=0;i<elems;i++)printf("%d\t%d\t%d\t%d\n", i, bufferIn[i], bufferOut[i], (i==0 ? 0 : bufferOut[i] - bufferOut[i-1]));}
}unsigned long memCpy_ARM(char *bufferIn, char *bufferOut, unsigned long elems, size_t size){int i;for(i=0; i<elems; i++)bufferOut[i] = bufferIn[i];return elems * size;
}unsigned long memCpy_DMA(char *bufferIn, char *bufferOut, unsigned long elems, size_t size, int dmaToUse){#define FIFO_LEN 4000
#define DMA_NUM 4int fd[DMA_NUM];fd[0] = open("/dev/axi_dma_0", O_RDWR);fd[1] = open("/dev/axi_dma_1", O_RDWR);fd[2] = open("/dev/axi_dma_2", O_RDWR);fd[3] = open("/dev/axi_dma_3", O_RDWR);unsigned long byteMoved = 0;unsigned long byteToMove = 0;int i;while(byteMoved!=size * elems){byteToMove = size * elems - byteMoved > FIFO_LEN ? FIFO_LEN : size * elems - byteMoved;for(i=0; i<dmaToUse; i++){write(fd[i], &bufferIn[byteMoved], byteToMove);}for(i=0; i<dmaToUse; i++)read(fd[i], &bufferOut[byteMoved], byteToMove);byteMoved += byteToMove;}close(fd[0]);close(fd[1]);close(fd[2]);close(fd[3]);return elems * size * dmaToUse;
}int main(int argc, char **argv)
{char *bufferIn, *bufferOut_ARM, *bufferOut_DMA;if(argc!=3){printf("Usage: ./dmaBench DATA DMA_TO_USE\n");exit(0);}unsigned long DATA = atoi(argv[1]);unsigned int DMA_TO_USE = atoi(argv[2]);bufferIn = (char *) malloc(sizeof(char) * DATA);bufferOut_ARM = (char *) malloc(sizeof(char) * DATA);bufferOut_DMA = (char *) malloc(sizeof(char) * DATA);int i;for(i=0; i<DATA; i++){bufferIn[i] = i;}memset(bufferOut_ARM, 0, sizeof(char) * DATA);memset(bufferOut_DMA, 0, sizeof(char) * DATA);REPORT(memCpy_ARM(bufferIn, bufferOut_ARM, DATA, sizeof(char)), &tStart, &tEnd, &data, "ARM", 0);for(i=0; i<DMA_TO_USE; i++){REPORT(memCpy_DMA(bufferIn, bufferOut_DMA, DATA/(i+1), sizeof(char), (i+1)), &tStart, &tEnd, &data, "DMA", (i+1));}checkData(bufferIn, bufferOut_ARM, DATA);checkData(bufferIn, bufferOut_DMA, DATA);return 0;
}

和<ds_axidma>

/** Xilinx AXI DMA Driver** Authors: *    Fabrizio Spada - fabrizio.spada@mail.polimi.it*    Gianluca Durelli - durelli@elet.polimi.it*    Politecnico di Milano** This is free software; you can redistribute it and/or modify* it under the terms of the GNU General Public License as published by* the Free Software Foundation; either version 2 of the License, or* (at your option) any later version.*/#include <linux/module.h>
#include <linux/version.h>
#include <linux/kernel.h>
#include <linux/types.h>
#include <linux/kdev_t.h>
#include <linux/fs.h>
#include <linux/list.h>
#include <linux/device.h>
#include <linux/cdev.h>
#include <linux/dma-mapping.h>
#include <linux/pm_runtime.h>
#include <linux/slab.h>
#include <linux/of.h>
#include <linux/of_platform.h>
#include <linux/of_address.h>
#include <linux/mm.h>
#include <asm/io.h>#define MM2S_DMACR	0x00
#define MM2S_DMASR	0x04
#define MM2S_SA	0x18
#define MM2S_LENGTH	0x28#define S2MM_DMACR	0x30
#define S2MM_DMASR	0x34
#define S2MM_DA	0x48
#define S2MM_LENGTH	0x58#define DRIVER_NAME "ds_axidma_pdrv"
#define MODULE_NAME "ds_axidma"#define DMA_LENGTH	(32*1024)static struct class *cl;	// Global variable for the device class struct ds_axidma_device
{phys_addr_t bus_addr;unsigned long bus_size;char *virt_bus_addr;dev_t dev_num;const char *dev_name;struct cdev c_dev;char *ds_axidma_addr;dma_addr_t ds_axidma_handle;struct list_head dev_list;
};
LIST_HEAD( full_dev_list );static struct ds_axidma_device *get_elem_from_list_by_inode(struct inode *i)
{struct list_head *pos;struct ds_axidma_device *obj_dev = NULL;list_for_each( pos, &full_dev_list ) {struct ds_axidma_device *tmp;tmp = list_entry( pos, struct ds_axidma_device, dev_list );if (tmp->dev_num == i->i_rdev){obj_dev = tmp;break;}}return obj_dev;
}
// static void dmaHalt(void){
// 	unsigned long mm2s_halt = ioread32(virt_bus_addr + MM2S_DMASR) & 0x1;
// 	unsigned long s2mm_halt = ioread32(virt_bus_addr + S2MM_DMASR) & 0x1;
// 	int count = 0;
// 	printk(KERN_INFO "Halting...\n");
// 	iowrite32(0, virt_bus_addr + S2MM_DMACR);
// 	iowrite32(0, virt_bus_addr + MM2S_DMACR);
// 	while( !mm2s_halt || !s2mm_halt){
// 		// mm2s_halt = ioread32(virt_bus_addr + MM2S_DMASR) & 0x1;
// 		mm2s_halt = virt_bus_addr[MM2S_DMASR] & 0x1;
// 		//s2mm_halt = ioread32(virt_bus_addr + S2MM_DMASR) & 0x1;
// 		s2mm_halt = virt_bus_addr[S2MM_DMASR] & 0x1;
// 		count++;
// 		if (count>100 )
// 		{
// 			break;
// 		}
// 	}// 	printk(KERN_INFO "DMA Halted!\n");
// }static int my_strcmp(const char *str1, const char *str2)
{int i;i = 0;while (str1[i] || str2[i]){if (str1[i] != str2[i])return (str1[i] - str2[i]);i++;}return (0);
}static int dmaSynchMM2S(struct ds_axidma_device *obj_dev){//	sleep(6);//	return;unsigned int mm2s_status = ioread32(obj_dev->virt_bus_addr + MM2S_DMASR);while(!(mm2s_status & 1<<12) || !(mm2s_status & 1<<1) ){mm2s_status = ioread32(obj_dev->virt_bus_addr + MM2S_DMASR);}return 0;
}static int dmaSynchS2MM(struct ds_axidma_device *obj_dev){unsigned int s2mm_status = ioread32(obj_dev->virt_bus_addr + S2MM_DMASR);while(!(s2mm_status & 1<<12) || !(s2mm_status & 1<<1)){s2mm_status = ioread32(obj_dev->virt_bus_addr + S2MM_DMASR);}return 0;
}static int ds_axidma_open(struct inode *i, struct file *f)
{/* printk(KERN_INFO "<%s> file: open()\n", MODULE_NAME); */struct ds_axidma_device *obj_dev = get_elem_from_list_by_inode(i);if (!request_mem_region(obj_dev->bus_addr, obj_dev->bus_size, MODULE_NAME)){return -1;}	obj_dev->virt_bus_addr = (char *) ioremap_nocache(obj_dev->bus_addr, obj_dev->bus_size);return 0;
}static int ds_axidma_close(struct inode *i, struct file *f)
{/* printk(KERN_INFO "<%s> file: close()\n", MODULE_NAME); */struct ds_axidma_device *obj_dev = get_elem_from_list_by_inode(i);iounmap(obj_dev->virt_bus_addr);release_mem_region(obj_dev->bus_addr, obj_dev->bus_size);return 0;
}static ssize_t ds_axidma_read(struct file *f, char __user * buf, size_tlen, loff_t * off)
{/* printk(KERN_INFO "<%s> file: read()\n", MODULE_NAME); */struct ds_axidma_device *obj_dev;if (len >= DMA_LENGTH){return 0;}obj_dev = get_elem_from_list_by_inode(f->f_inode);iowrite32(1, obj_dev->virt_bus_addr + S2MM_DMACR);iowrite32(obj_dev->ds_axidma_handle, obj_dev->virt_bus_addr + S2MM_DA);iowrite32(len, obj_dev->virt_bus_addr + S2MM_LENGTH);dmaSynchS2MM(obj_dev);memcpy(buf, obj_dev->ds_axidma_addr, len);return len;
}static ssize_t ds_axidma_write(struct file *f, const char __user * buf,size_t len, loff_t * off)
{/* printk(KERN_INFO "<%s> file: write()\n", MODULE_NAME); */struct ds_axidma_device *obj_dev;if (len >= DMA_LENGTH){return 0;}obj_dev = get_elem_from_list_by_inode(f->f_inode);memcpy(obj_dev->ds_axidma_addr, buf, len);// printk(KERN_INFO "%X\n", ioread32(virt_bus_addr + MM2S_DMASR));// printk(KERN_INFO "%X\n", ioread32(virt_bus_addr + MM2S_DMACR));// printk(KERN_INFO "%X\n", ioread32(virt_bus_addr + S2MM_DMASR));// printk(KERN_INFO "%X\n", ioread32(virt_bus_addr + S2MM_DMACR));iowrite32(1, obj_dev->virt_bus_addr + MM2S_DMACR);iowrite32(obj_dev->ds_axidma_handle, obj_dev->virt_bus_addr + MM2S_SA);iowrite32(len, obj_dev->virt_bus_addr + MM2S_LENGTH);// dmaSynchMM2S(obj_dev);// printk(KERN_INFO "%X\n", ioread32(virt_bus_addr + MM2S_DMASR));// printk(KERN_INFO "%X\n", ioread32(virt_bus_addr + MM2S_DMACR));// printk(KERN_INFO "%X\n", ioread32(virt_bus_addr + S2MM_DMASR));// printk(KERN_INFO "%X\n", ioread32(virt_bus_addr + S2MM_DMACR));	// printk(KERN_INFO "%X\n", bus_addr);// printk(KERN_INFO "%lu\n", bus_size);return len;
}static struct file_operations fops = {.owner = THIS_MODULE,.open = ds_axidma_open,.release = ds_axidma_close,.read = ds_axidma_read,.write = ds_axidma_write,/* .mmap = ds_axidma_mmap, *//* .unlocked_ioctl = ds_axidma_ioctl, */
};static int ds_axidma_pdrv_probe(struct platform_device *pdev)
{/* device constructor */struct ds_axidma_device *obj_dev = (struct ds_axidma_device *)kmalloc( sizeof(struct ds_axidma_device), GFP_KERNEL );obj_dev->bus_addr = pdev->resource[0].start;obj_dev->bus_size = pdev->resource[0].end - pdev->resource[0].start + 1;obj_dev->dev_name = pdev->name + 9;printk(KERN_INFO "<%s> init: registered\n", obj_dev->dev_name);if (alloc_chrdev_region(&(obj_dev->dev_num), 0, 1, obj_dev->dev_name) < 0) {return -1;}if (cl == NULL && (cl = class_create(THIS_MODULE, "chardrv")) == NULL) {unregister_chrdev_region(obj_dev->dev_num, 1);return -1;}if (device_create(cl, NULL, obj_dev->dev_num, NULL, obj_dev->dev_name) == NULL) {class_destroy(cl);unregister_chrdev_region(obj_dev->dev_num, 1);return -1;}cdev_init(&(obj_dev->c_dev), &fops);if (cdev_add(&(obj_dev->c_dev), obj_dev->dev_num, 1) == -1) {device_destroy(cl, obj_dev->dev_num);class_destroy(cl);unregister_chrdev_region(obj_dev->dev_num, 1);return -1;}printk(KERN_INFO "DMA_LENGTH = %u \n", DMA_LENGTH);/* allocate mmap area */obj_dev->ds_axidma_addr =dma_zalloc_coherent(NULL, DMA_LENGTH, &(obj_dev->ds_axidma_handle), GFP_KERNEL);list_add( &obj_dev->dev_list, &full_dev_list );return 0;
}static int ds_axidma_pdrv_remove(struct platform_device *pdev)
{/* device destructor */struct list_head *pos, *q;list_for_each_safe( pos, q, &full_dev_list ) {struct ds_axidma_device *obj_dev;obj_dev = list_entry( pos, struct ds_axidma_device, dev_list );if (!my_strcmp(obj_dev->dev_name, pdev->name + 9)){list_del( pos );cdev_del(&(obj_dev->c_dev));device_destroy(cl, obj_dev->dev_num);unregister_chrdev_region(obj_dev->dev_num, 1);/* free mmap area */if (obj_dev->ds_axidma_addr) {dma_free_coherent(NULL, DMA_LENGTH, obj_dev->ds_axidma_addr, obj_dev->ds_axidma_handle);}kfree(obj_dev);break;}}if (list_empty(&full_dev_list)){class_destroy(cl);}printk(KERN_INFO "<%s> exit: unregistered\n", MODULE_NAME);return 0;
}static int ds_axidma_pdrv_runtime_nop(struct device *dev)
{/* Runtime PM callback shared between ->runtime_suspend()* and ->runtime_resume(). Simply returns success.** In this driver pm_runtime_get_sync() and pm_runtime_put_sync()* are used at open() and release() time. This allows the* Runtime PM code to turn off power to the device while the* device is unused, ie before open() and after release().** This Runtime PM callback does not need to save or restore* any registers since user space is responsbile for hardware* register reinitialization after open().*/return 0;
}static const struct dev_pm_ops ds_axidma_pdrv_dev_pm_ops = {.runtime_suspend = ds_axidma_pdrv_runtime_nop,.runtime_resume = ds_axidma_pdrv_runtime_nop,
};static struct of_device_id ds_axidma_of_match[] = {{ .compatible = "ds_axidma", },{ /* This is filled with module_parm */ },{ /* Sentinel */ },
};
MODULE_DEVICE_TABLE(of, ds_axidma_of_match);
module_param_string(of_id, ds_axidma_of_match[1].compatible, 128, 0);
MODULE_PARM_DESC(of_id, "Openfirmware id of the device to be handled by uio");static struct platform_driver ds_axidma_pdrv = {.probe = ds_axidma_pdrv_probe,.remove = ds_axidma_pdrv_remove,.driver = {.name = DRIVER_NAME,.owner = THIS_MODULE,.pm = &ds_axidma_pdrv_dev_pm_ops,.of_match_table = of_match_ptr(ds_axidma_of_match),},
};module_platform_driver(ds_axidma_pdrv);MODULE_AUTHOR("Fabrizio Spada, Gianluca Durelli");
MODULE_DESCRIPTION("AXI DMA driver");
MODULE_LICENSE("GPL v2");
