加上广告之后百度就不让上了,客服说让我在线配置隐藏广告在上架,我可不是那种藏着掖着的人,哈哈,所以只能在云盘下载了
- 下载地址:
https://yunpan.cn/cqt5xp3QAJsSM (提取码:ffaa)
第一大步肯定是需求分析,那么
·这个背单词的软件需要具备的功能:
- 查词
- 每日一句
- 卡片单词,单词本,等级测试,美文欣赏(具体形式后面实现时候再介绍)
- 设置(包括:个人设置,词库下载,缓存清理等)
大概就分这四个模块,所以样式就定成很大众的四个tab页实现
·数据来源及方式,数据库设计,
1.我选择了ICIBA 金山词霸API,因为相对有道等其他api接口,金山提供了单词,词音,每日一句及发音等 很全面.非常符合我们的需求.
2.数据库方面,主要就是记录查询过的单词,和单词测试里学习过的单词,字段都很相似
- 单词,英音标,美音标,英发音,美发音,释义,例句,查询次数,和答错次数.
根据需求删减某系字段即可.

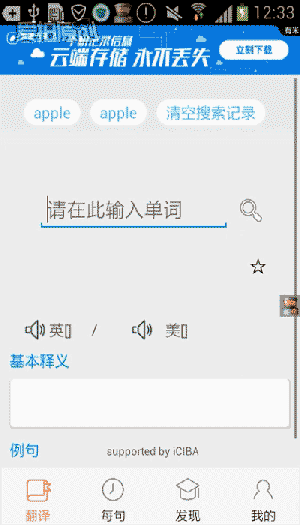

今天主要说明一下ViewPger+Fragment实现主界面Tab的切换效果,先看效果:
基本原理就是ViewPager里面放了四个Fragment,就是这么简单,稍微复杂点就是底下图标的渐变效果.
首先如何在ViewPager里面放了四个Fragment
- xml里声明这个控件等价于一个TextView;
- 出镜成员:ViewPager Fragment List FragmentPagerAdapter
private ViewPager mViewPager; // 主界面fragment容器private List<Fragment> mTabs = new ArrayList<Fragment>(); // fragment集合private FragmentPagerAdapter mAdapter; // 适配器private List<TabIcon> mTabIndicators = new ArrayList<TabIcon>(); // 渐变图标集合
- 将Fragment放入List中,
//添加四个tab的fragment mTabs = new ArrayList<Fragment>(); 自己建的Fragment fragment1 = new 自己建的Fragment();mTabs.add(fragment1);自己建的Fragment fragment2 = new 自己建的Fragment();mTabs.add(fragment2);自己建的Fragment fragment3 = new 自己建的Fragment();mTabs.add(fragment3);自己建的Fragment fragment4 = new 自己建的Fragment();mTabs.add(fragment4);
- 将List放入FragmentPagerAdapter,
mAdapter = new FragmentPagerAdapter(getSupportFragmentManager()) {@Overridepublic int getCount() {return mTabs.size();}@Overridepublic Fragment getItem(int arg0) {return mTabs.get(arg0);}};
- 最后将FragmentPagerAdapter绑定在ViewPager上 ,
mViewPager.setAdapter(mAdapter);mViewPager.setOffscreenPageLimit(10);//这句话的意思就是再每一个fragment左右各保存5个fragment页面,此参数默认为2,为2时当你滑动到第三个fragment的时候第一个已经被销毁当你滑动回来需要重新加载,数据就没了,所以设置为10,也就是当滑动到第四个依然能保存第一个.
主界面代码:
public class MainActivity extends FragmentActivityimplements OnClickListener, OnPageChangeListener, IAtSettingFragment {private ViewPager mViewPager; // 主界面fragment容器private List<Fragment> mTabs = new ArrayList<Fragment>(); // fragment集合private FragmentPagerAdapter mAdapter; // 适配器private List<TabIcon> mTabIndicators = new ArrayList<TabIcon>(); // 渐变图标集合@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);initView();initDatas();mViewPager.setAdapter(mAdapter);mViewPager.setOffscreenPageLimit(10);initEvent();}/*** 初始化事件和服务*/@SuppressWarnings("deprecation")private void initEvent() {mViewPager.setOnPageChangeListener(this);Intent intent = new Intent(this, NotifyReviewService.class);startService(intent);}InterpretFragment interpretFragment;DailyFragment tabFragment;ReciteFragment reciteFragment;MeFragment meFragment;/*** 初始化数据(界面 词库)*/private void initDatas() {// 导入词库new WriteToSD(this);//添加四个tab的fragmentinterpretFragment = new InterpretFragment();mTabs.add(interpretFragment);tabFragment = new DailyFragment();mTabs.add(tabFragment);reciteFragment = new ReciteFragment();mTabs.add(reciteFragment);meFragment = new MeFragment();mTabs.add(meFragment);mAdapter = new FragmentPagerAdapter(getSupportFragmentManager()) {@Overridepublic int getCount() {return mTabs.size();}@Overridepublic Fragment getItem(int arg0) {return mTabs.get(arg0);}};}/*** 找控件和绑定监听器*/private void initView() {mViewPager = (ViewPager) findViewById(R.id.viewPager);TabIcon one = (TabIcon) findViewById(R.id.tab_one);mTabIndicators.add(one);TabIcon two = (TabIcon) findViewById(R.id.tab_two);mTabIndicators.add(two);TabIcon three = (TabIcon) findViewById(R.id.tab_three);mTabIndicators.add(three);TabIcon four = (TabIcon) findViewById(R.id.tab_four);mTabIndicators.add(four);one.setOnClickListener(this);two.setOnClickListener(this);three.setOnClickListener(this);four.setOnClickListener(this);one.setIconAlpha(1.0f);//初始化图标透明度}@Overridepublic void onClick(View v) {resetOtherTabs();switch (v.getId()) {case R.id.tab_one:mTabIndicators.get(0).setIconAlpha(1.0f);mViewPager.setCurrentItem(0, false);break;case R.id.tab_two:mTabIndicators.get(1).setIconAlpha(1.0f);mViewPager.setCurrentItem(1, false);break;case R.id.tab_three:mTabIndicators.get(2).setIconAlpha(1.0f);mViewPager.setCurrentItem(2, false);break;case R.id.tab_four:mTabIndicators.get(3).setIconAlpha(1.0f);mViewPager.setCurrentItem(3, false);break;}}/*** 重制其他Tab的颜色*/private void resetOtherTabs() {for (int i = 0; i < mTabIndicators.size(); i++) {mTabIndicators.get(i).setIconAlpha(0);}}@Overridepublic void onPageScrollStateChanged(int arg0) {}@Overridepublic void onPageScrolled(int arg0, float arg1, int arg2) {if (arg1 > 0) {TabIcon left = mTabIndicators.get(arg0);TabIcon right = mTabIndicators.get(arg0 + 1);left.setIconAlpha(1 - arg1);right.setIconAlpha(arg1);}}@Overridepublic void onPageSelected(int arg0) {switch (arg0) {case 1:interpretFragment.setSearchedPosition();break;case 3:meFragment.setTvCardCount();break;}}// 实现查询单词数的更新@Overridepublic void onQuery(String szContent) {meFragment.setTvQueryCount();}}
主界面XML代码
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"xmlns:tools="http://schemas.android.com/tools"xmlns:qit="http://schemas.android.com/apk/res/com.qit.iword"android:layout_width="match_parent"android:layout_height="match_parent"android:orientation="vertical" ><android.support.v4.view.ViewPagerandroid:id="@+id/viewPager"android:layout_width="match_parent"android:layout_height="0dp"android:layout_weight="1" ></android.support.v4.view.ViewPager><LinearLayoutandroid:layout_width="match_parent"android:layout_height="60dp"android:background="@drawable/tab_background"android:orientation="horizontal" ><com.qit.iword.TabIconandroid:id="@+id/tab_one"android:layout_width="0dp"android:layout_height="match_parent"android:layout_weight="1"android:padding="5dp"qit:tab_color="#FD805B"qit:tab_icon="@drawable/tab_intercept"qit:tab_text="翻译"qit:tab_text_size="12sp" /><com.qit.iword.TabIconandroid:id="@+id/tab_two"android:layout_width="0dp"android:layout_height="match_parent"android:layout_weight="1"android:padding="5dp"qit:tab_color="#FD805B"qit:tab_icon="@drawable/tab_daily"qit:tab_text="每句"qit:tab_text_size="12sp" /><com.qit.iword.TabIconandroid:id="@+id/tab_three"android:layout_width="0dp"android:layout_height="match_parent"android:layout_weight="1"android:padding="5dp"qit:tab_color="#FD805B"qit:tab_icon="@drawable/tab_recite"qit:tab_text="发现"qit:tab_text_size="12sp" /><com.qit.iword.TabIconandroid:id="@+id/tab_four"android:layout_width="0dp"android:layout_height="match_parent"android:layout_weight="1"android:padding="5dp"qit:tab_color="#FD805B"qit:tab_icon="@drawable/tab_me"qit:tab_text="我的"qit:tab_text_size="12sp" /></LinearLayout></LinearLayout>
tab_bg样式(新建drawable>tab_bg.xml)
<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android" ><stroke
android:width="1.5dp"android:color="#eee" /><solid android:color="#f7f7f7" /></shape>
命名空间(values>attr.xml)
<attr name="tab_icon" format="reference"></attr><attr name="tab_color" format="color"></attr><attr name="tab_text" format="string"></attr><attr name="tab_text_size" format="dimension"></attr><declare-styleable name="TabIcon"><attr name="tab_icon"></attr><attr name="tab_color"></attr><attr name="tab_text"></attr><attr name="tab_text_size"></attr></declare-styleable>
图标渐变效果参考Hyman老师的文章
http://blog.csdn.net/lmj623565791/article/details/41087219

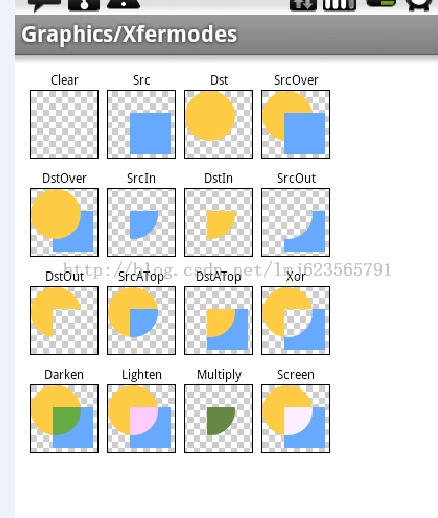

其实底部效果无非就是这张图
讲解一下:如同上图,现在我们假设有两张图片Src和Dst,当我们把两张图拼在一起的时候会有后面13种情况,拿我们要用到的DstIn举例,”重合部分显示Dst”就会出现那个样式,同理可得其他.
那么就很好理解了 我底下放一个有颜色的控件,上面放一张透明背景的图标,当样式为DstIn时,两方重合部分显示颜色,就得到前面此效果了,至于渐变无非就是透明度随移动而变化.
书写TabIcon类来自定义这种View
public class TabIcon extends View {private int mColor = 0xff45c01a;private Bitmap mIconBitmap;private String mText = "iWord";private int mTextSize = (int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_SP, 12,getResources().getDisplayMetrics());private Canvas mCanvas;private Bitmap mBitmap;private Paint mPaint;private float mAlpha;private Rect mIconRect;private Rect mTextBound;private Paint mTextPaint;public TabIcon(Context context) {this(context, null);}public TabIcon(Context context, AttributeSet attrs) {this(context, attrs, 0);}/*** 获取自定义属性的值* * @param context* @param attrs* @param defStyleAttr*/public TabIcon(Context context, AttributeSet attrs, int defStyleAttr) {super(context, attrs, defStyleAttr);TypedArray a = context.obtainStyledAttributes(attrs, R.styleable.TabIcon);int n = a.getIndexCount();for (int i = 0; i < n; i++) {int attr = a.getIndex(i);switch (attr) {case R.styleable.TabIcon_tab_icon:BitmapDrawable drawable = (BitmapDrawable) a.getDrawable(attr);mIconBitmap = drawable.getBitmap();break;case R.styleable.TabIcon_tab_color:mColor = a.getColor(attr, mColor);break;case R.styleable.TabIcon_tab_text:mText = a.getString(attr);break;case R.styleable.TabIcon_tab_text_size:mTextSize = (int) a.getDimension(attr, (int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_SP, 12,getResources().getDisplayMetrics()));break;}}a.recycle();mTextBound = new Rect();mTextPaint = new Paint();mTextPaint.setTextSize(mTextSize);mTextPaint.setColor(0xff555555);mTextPaint.getTextBounds(mText, 0, mText.length(), mTextBound);}@Overrideprotected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {super.onMeasure(widthMeasureSpec, heightMeasureSpec);int iconWidth = Math.min(getMeasuredWidth() - getPaddingLeft() - getPaddingRight(),getMeasuredHeight() - getPaddingTop() - getPaddingBottom() - mTextBound.height());int left = getMeasuredWidth() / 2 - iconWidth / 2;int top = getMeasuredHeight() / 2 - (mTextBound.height() + iconWidth) / 2;mIconRect = new Rect(left, top, left + iconWidth, top + iconWidth);}@Overrideprotected void onDraw(Canvas canvas) {canvas.drawBitmap(mIconBitmap, null, mIconRect, null);int alpha = (int) Math.ceil(255 * mAlpha);setupTargetBitmap(alpha);drawSourceText(canvas, alpha);drawTargetText(canvas, alpha);canvas.drawBitmap(mBitmap, 0, 0, null);}/*** 绘制变色文本* * @param canvas* @param alpha*/private void drawTargetText(Canvas canvas, int alpha) {mTextPaint.setColor(mColor);mTextPaint.setAlpha(alpha);int x = getMeasuredWidth() / 2 - mTextBound.width() / 2;int y = mIconRect.bottom + mTextBound.height();canvas.drawText(mText, x, y, mTextPaint);}/*** 绘制文本* * @param canvas* @param alpha*/private void drawSourceText(Canvas canvas, int alpha) {mTextPaint.setColor(0xff333333);mTextPaint.setAlpha(255 - alpha);int x = getMeasuredWidth() / 2 - mTextBound.width() / 2;int y = mIconRect.bottom + mTextBound.height();canvas.drawText(mText, x, y, mTextPaint);}/*** 绘制可变色Icon* * @param alpha*/private void setupTargetBitmap(int alpha) {mBitmap = Bitmap.createBitmap(getMeasuredWidth(), getMeasuredHeight(), Config.ARGB_8888);mCanvas = new Canvas(mBitmap);mPaint = new Paint();mPaint.setColor(mColor);mPaint.setAntiAlias(true);mPaint.setDither(true);mPaint.setAlpha(alpha);mCanvas.drawRect(mIconRect, mPaint);mPaint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.DST_IN));mPaint.setAlpha(255);mCanvas.drawBitmap(mIconBitmap, null, mIconRect, mPaint);}public void setIconAlpha(float alpha) {this.mAlpha = alpha;invalidateView();}/*** 重绘*/private void invalidateView() {if (Looper.getMainLooper() == Looper.myLooper()) {invalidate();} else {postInvalidate();}}private static final String INSTANCE_STATUS = "instance_status";private static final String STATUS_ALPHA = "status_alpha";@Overrideprotected Parcelable onSaveInstanceState() {Bundle bundle = new Bundle();bundle.putParcelable(INSTANCE_STATUS, super.onSaveInstanceState());bundle.putFloat(STATUS_ALPHA, mAlpha);return bundle;}@Overrideprotected void onRestoreInstanceState(Parcelable state) {if(state instanceof Bundle){Bundle bundle = (Bundle) state;mAlpha = bundle.getFloat(STATUS_ALPHA);super.onRestoreInstanceState(bundle.getParcelable(INSTANCE_STATUS));return;}super.onRestoreInstanceState(state);}}
再说一遍,颜色渐变代码属于完全抄袭完全,呵呵哒…
好主界面tab的UI就完成了,下一篇实现第一个fragment查词.
