android中图片色调识别探究

本文主要是介绍android中图片色调识别探究，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

项目背景

最近项目组要做这样的一件事，通过访问网站拿到网站的favicon来根据favicon匹配它的颜色，色调然后调用我们自己的绘图板去绘制符合当前网站的图标，当时也在github上面找了下，看看有没有现成能借鉴的，但是失败了，但是无意间发现了android的v7下的palette包，貌似可以实现我想要的效果，但是项目里面不可能引入其他的依赖包，因为v7引用到了v4，一想到我的apk又要增加几十k果断的不干了，所以我就把v7的里面的源码拿出来改了改，然后v4里面的需要的也单独的剥离出来，这样即达到了我需要的效果，也没有给我的apk增加太多的大小。

效果

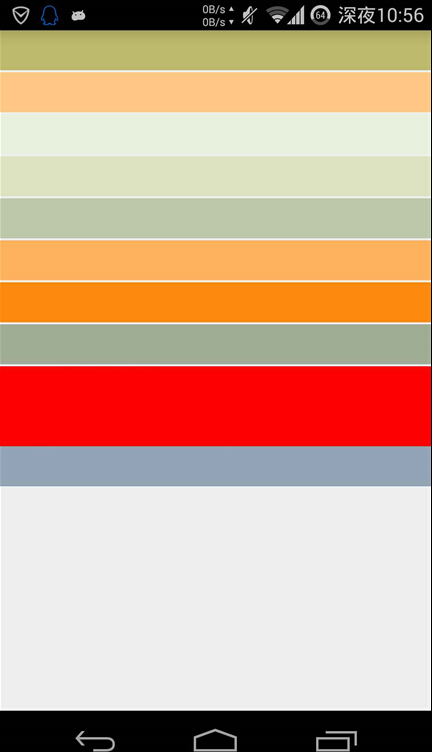

我们这里先看看我要实现的效果，这里写图片描述我们要提取这两个icon里面的主色调，然后看看我们提取的效果,
fuck，你在逗我？怎么会有红色呢？不急不急，听我慢慢道来。

实现

首先我们要做的就是移植v7这个包下面的pattern包，看看我的工程目录，需要移植的就是这几个类。这里写图片描述
我这里也不墨迹了，直接上代码吧，google的注释都是很到位的，也很nice我也不说了，我做的工作就是把这几个类整合提取出来，然后屏蔽一些兼容的问题。这里我先给出这几个类的代码。

package com.bobo.picdis.utils;/** Copyright 2014 The Android Open Source Project** Licensed under the Apache License, Version 2.0 (the "License");* you may not use this file except in compliance with the License.* You may obtain a copy of the License at**       http://www.apache.org/licenses/LICENSE-2.0** Unless required by applicable law or agreed to in writing, software* distributed under the License is distributed on an "AS IS" BASIS,* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.* See the License for the specific language governing permissions and* limitations under the License.*/import android.graphics.Bitmap;
import android.graphics.Color;
import android.util.SparseIntArray;import com.bobo.picdis.utils.Palette.Swatch;import java.util.ArrayList;
import java.util.Arrays;
import java.util.Collection;
import java.util.Comparator;
import java.util.List;
import java.util.PriorityQueue;/*** An color quantizer based on the Median-cut algorithm, but optimized for picking out distinct* colors rather than representation colors.** The color space is represented as a 3-dimensional cube with each dimension being an RGB* component. The cube is then repeatedly divided until we have reduced the color space to the* requested number of colors. An average color is then generated from each cube.** What makes this different to median-cut is that median-cut divided cubes so that all of the cubes* have roughly the same population, where this quantizer divides boxes based on their color volume.* This means that the color space is divided into distinct colors, rather than representative* colors.*/
final class ColorCutQuantizer {private static final String LOG_TAG = ColorCutQuantizer.class.getSimpleName();private final float[] mTempHsl = new float[3];private static final float BLACK_MAX_LIGHTNESS = 0.05f;private static final float WHITE_MIN_LIGHTNESS = 0.95f;private static final int COMPONENT_RED = -3;private static final int COMPONENT_GREEN = -2;private static final int COMPONENT_BLUE = -1;private final int[] mColors;private final SparseIntArray mColorPopulations;private final List<Swatch> mQuantizedColors;/*** Factory-method to generate a {@link ColorCutQuantizer} from a {@link Bitmap} object.** @param bitmap Bitmap to extract the pixel data from* @param maxColors The maximum number of colors that should be in the result palette.*/static ColorCutQuantizer fromBitmap(Bitmap bitmap, int maxColors) {final int width = bitmap.getWidth();final int height = bitmap.getHeight();final int[] pixels = new int[width * height];bitmap.getPixels(pixels, 0, width, 0, 0, width, height);return new ColorCutQuantizer(new ColorHistogram(pixels), maxColors);}/*** Private constructor.** @param colorHistogram histogram representing an image's pixel data* @param maxColors The maximum number of colors that should be in the result palette.*/private ColorCutQuantizer(ColorHistogram colorHistogram, int maxColors) {final int rawColorCount = colorHistogram.getNumberOfColors();final int[] rawColors = colorHistogram.getColors();final int[] rawColorCounts = colorHistogram.getColorCounts();// First, lets pack the populations into a SparseIntArray so that they can be easily// retrieved without knowing a color's indexmColorPopulations = new SparseIntArray(rawColorCount);for (int i = 0; i < rawColors.length; i++) {mColorPopulations.append(rawColors[i], rawColorCounts[i]);}// Now go through all of the colors and keep those which we do not want to ignoremColors = new int[rawColorCount];int validColorCount = 0;for (int color : rawColors) {if (!shouldIgnoreColor(color)) {mColors[validColorCount++] = color;}}if (validColorCount <= maxColors) {// The image has fewer colors than the maximum requested, so just return the colorsmQuantizedColors = new ArrayList<Swatch>();for (final int color : mColors) {mQuantizedColors.add(new Swatch(color, mColorPopulations.get(color)));}} else {// We need use quantization to reduce the number of colorsmQuantizedColors = quantizePixels(validColorCount - 1, maxColors);}}/*** @return the list of quantized colors*/List<Swatch> getQuantizedColors() {return mQuantizedColors;}private List<Swatch> quantizePixels(int maxColorIndex, int maxColors) {// Create the priority queue which is sorted by volume descending. This means we always// split the largest box in the queuefinal PriorityQueue<Vbox> pq = new PriorityQueue<Vbox>(maxColors, VBOX_COMPARATOR_VOLUME);// To start, offer a box which contains all of the colorspq.offer(new Vbox(0, maxColorIndex));// Now go through the boxes, splitting them until we have reached maxColors or there are no// more boxes to splitsplitBoxes(pq, maxColors);// Finally, return the average colors of the color boxesreturn generateAverageColors(pq);}/*** Iterate through the {@link java.util.Queue}, popping* {@link ColorCutQuantizer.Vbox} objects from the queue* and splitting them. Once split, the new box and the remaining box are offered back to the* queue.** @param queue {@link java.util.PriorityQueue} to poll for boxes* @param maxSize Maximum amount of boxes to split*/private void splitBoxes(final PriorityQueue<Vbox> queue, final int maxSize) {while (queue.size() < maxSize) {final Vbox vbox = queue.poll();if (vbox != null && vbox.canSplit()) {// First split the box, and offer the resultqueue.offer(vbox.splitBox());// Then offer the box backqueue.offer(vbox);} else {// If we get here then there are no more boxes to split, so returnreturn;}}}private List<Swatch> generateAverageColors(Collection<Vbox> vboxes) {ArrayList<Swatch> colors = new ArrayList<Swatch>(vboxes.size());for (Vbox vbox : vboxes) {Swatch color = vbox.getAverageColor();if (!shouldIgnoreColor(color)) {// As we're averaging a color box, we can still get colors which we do not want, so// we check again herecolors.add(color);}}return colors;}/*** Represents a tightly fitting box around a color space.*/private class Vbox {// lower and upper index are inclusiveprivate int mLowerIndex;private int mUpperIndex;private int mMinRed, mMaxRed;private int mMinGreen, mMaxGreen;private int mMinBlue, mMaxBlue;Vbox(int lowerIndex, int upperIndex) {mLowerIndex = lowerIndex;mUpperIndex = upperIndex;fitBox();}int getVolume() {return (mMaxRed - mMinRed + 1) * (mMaxGreen - mMinGreen + 1) *(mMaxBlue - mMinBlue + 1);}boolean canSplit() {return getColorCount() > 1;}int getColorCount() {return mUpperIndex - mLowerIndex + 1;}/*** Recomputes the boundaries of this box to tightly fit the colors within the box.*/void fitBox() {// Reset the min and max to opposite valuesmMinRed = mMinGreen = mMinBlue = 0xFF;mMaxRed = mMaxGreen = mMaxBlue = 0x0;for (int i = mLowerIndex; i <= mUpperIndex; i++) {final int color = mColors[i];final int r = Color.red(color);final int g = Color.green(color);final int b = Color.blue(color);if (r > mMaxRed) {mMaxRed = r;}if (r < mMinRed) {mMinRed = r;}if (g > mMaxGreen) {mMaxGreen = g;}if (g < mMinGreen) {mMinGreen = g;}if (b > mMaxBlue) {mMaxBlue = b;}if (b < mMinBlue) {mMinBlue = b;}}}/*** Split this color box at the mid-point along it's longest dimension** @return the new ColorBox*/Vbox splitBox() {if (!canSplit()) {throw new IllegalStateException("Can not split a box with only 1 color");}// find median along the longest dimensionfinal int splitPoint = findSplitPoint();Vbox newBox = new Vbox(splitPoint + 1, mUpperIndex);// Now change this box's upperIndex and recompute the color boundariesmUpperIndex = splitPoint;fitBox();return newBox;}/*** @return the dimension which this box is largest in*/int getLongestColorDimension() {final int redLength = mMaxRed - mMinRed;final int greenLength = mMaxGreen - mMinGreen;final int blueLength = mMaxBlue - mMinBlue;if (redLength >= greenLength && redLength >= blueLength) {return COMPONENT_RED;} else if (greenLength >= redLength && greenLength >= blueLength) {return COMPONENT_GREEN;} else {return COMPONENT_BLUE;}}/*** Finds the point within this box's lowerIndex and upperIndex index of where to split.** This is calculated by finding the longest color dimension, and then sorting the* sub-array based on that dimension value in each color. The colors are then iterated over* until a color is found with at least the midpoint of the whole box's dimension midpoint.** @return the index of the colors array to split from*/int findSplitPoint() {final int longestDimension = getLongestColorDimension();// We need to sort the colors in this box based on the longest color dimension.// As we can't use a Comparator to define the sort logic, we modify each color so that// it's most significant is the desired dimensionmodifySignificantOctet(longestDimension, mLowerIndex, mUpperIndex);// Now sort... Arrays.sort uses a exclusive toIndex so we need to add 1Arrays.sort(mColors, mLowerIndex, mUpperIndex + 1);// Now revert all of the colors so that they are packed as RGB againmodifySignificantOctet(longestDimension, mLowerIndex, mUpperIndex);final int dimensionMidPoint = midPoint(longestDimension);for (int i = mLowerIndex; i <= mUpperIndex; i++)  {final int color = mColors[i];switch (longestDimension) {case COMPONENT_RED:if (Color.red(color) >= dimensionMidPoint) {return i;}break;case COMPONENT_GREEN:if (Color.green(color) >= dimensionMidPoint) {return i;}break;case COMPONENT_BLUE:if (Color.blue(color) > dimensionMidPoint) {return i;}break;}}return mLowerIndex;}/*** @return the average color of this box.*/Swatch getAverageColor() {int redSum = 0;int greenSum = 0;int blueSum = 0;int totalPopulation = 0;for (int i = mLowerIndex; i <= mUpperIndex; i++) {final int color = mColors[i];final int colorPopulation = mColorPopulations.get(color);totalPopulation += colorPopulation;redSum += colorPopulation * Color.red(color);greenSum += colorPopulation * Color.green(color);blueSum += colorPopulation * Color.blue(color);}final int redAverage = Math.round(redSum / (float) totalPopulation);final int greenAverage = Math.round(greenSum / (float) totalPopulation);final int blueAverage = Math.round(blueSum / (float) totalPopulation);return new Swatch(redAverage, greenAverage, blueAverage, totalPopulation);}/*** @return the midpoint of this box in the given {@code dimension}*/int midPoint(int dimension) {switch (dimension) {case COMPONENT_RED:default:return (mMinRed + mMaxRed) / 2;case COMPONENT_GREEN:return (mMinGreen + mMaxGreen) / 2;case COMPONENT_BLUE:return (mMinBlue + mMaxBlue) / 2;}}}/*** Modify the significant octet in a packed color int. Allows sorting based on the value of a* single color component.** @see Vbox#findSplitPoint()*/private void modifySignificantOctet(final int dimension, int lowerIndex, int upperIndex) {switch (dimension) {case COMPONENT_RED:// Already in RGB, no need to do anythingbreak;case COMPONENT_GREEN:// We need to do a RGB to GRB swap, or vice-versafor (int i = lowerIndex; i <= upperIndex; i++) {final int color = mColors[i];mColors[i] = Color.rgb((color >> 8) & 0xFF, (color >> 16) & 0xFF, color & 0xFF);}break;case COMPONENT_BLUE:// We need to do a RGB to BGR swap, or vice-versafor (int i = lowerIndex; i <= upperIndex; i++) {final int color = mColors[i];mColors[i] = Color.rgb(color & 0xFF, (color >> 8) & 0xFF, (color >> 16) & 0xFF);}break;}}private boolean shouldIgnoreColor(int color) {ColorUtils.RGBtoHSL(Color.red(color), Color.green(color), Color.blue(color), mTempHsl);return shouldIgnoreColor(mTempHsl);}private static boolean shouldIgnoreColor(Swatch color) {return shouldIgnoreColor(color.getHsl());}private static boolean shouldIgnoreColor(float[] hslColor) {return isWhite(hslColor) || isBlack(hslColor) || isNearRedILine(hslColor);}/*** @return true if the color represents a color which is close to black.*/private static boolean isBlack(float[] hslColor) {return hslColor[2] <= BLACK_MAX_LIGHTNESS;}/*** @return true if the color represents a color which is close to white.*/private static boolean isWhite(float[] hslColor) {return hslColor[2] >= WHITE_MIN_LIGHTNESS;}/*** @return true if the color lies close to the red side of the I line.*/private static boolean isNearRedILine(float[] hslColor) {return hslColor[0] >= 10f && hslColor[0] <= 37f && hslColor[1] <= 0.82f;}/*** Comparator which sorts {@link Vbox} instances based on their volume, in descending order*/private static final Comparator<Vbox> VBOX_COMPARATOR_VOLUME = new Comparator<Vbox>() {@Overridepublic int compare(Vbox lhs, Vbox rhs) {return rhs.getVolume() - lhs.getVolume();}};}

然后是ColorHistogram这个类

package com.bobo.picdis.utils;
/** Copyright 2014 The Android Open Source Project** Licensed under the Apache License, Version 2.0 (the "License");* you may not use this file except in compliance with the License.* You may obtain a copy of the License at**       http://www.apache.org/licenses/LICENSE-2.0** Unless required by applicable law or agreed to in writing, software* distributed under the License is distributed on an "AS IS" BASIS,* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.* See the License for the specific language governing permissions and* limitations under the License.*/import java.util.Arrays;/*** Class which provides a histogram for RGB values.*/
final class ColorHistogram {private final int[] mColors;private final int[] mColorCounts;private final int mNumberColors;/*** A new {@link ColorHistogram} instance.** @param pixels array of image contents*/ColorHistogram(final int[] pixels) {// Sort the pixels to enable counting belowArrays.sort(pixels);// Count number of distinct colorsmNumberColors = countDistinctColors(pixels);// Create arraysmColors = new int[mNumberColors];mColorCounts = new int[mNumberColors];// Finally count the frequency of each colorcountFrequencies(pixels);}/*** @return number of distinct colors in the image.*/int getNumberOfColors() {return mNumberColors;}/*** @return an array containing all of the distinct colors in the image.*/int[] getColors() {return mColors;}/*** @return an array containing the frequency of a distinct colors within the image.*/int[] getColorCounts() {return mColorCounts;}private static int countDistinctColors(final int[] pixels) {if (pixels.length < 2) {// If we have less than 2 pixels we can stop herereturn pixels.length;}// If we have at least 2 pixels, we have a minimum of 1 color...int colorCount = 1;int currentColor = pixels[0];// Now iterate from the second pixel to the end, counting distinct colorsfor (int i = 1; i < pixels.length; i++) {// If we encounter a new color, increase the populationif (pixels[i] != currentColor) {currentColor = pixels[i];colorCount++;}}return colorCount;}private void countFrequencies(final int[] pixels) {if (pixels.length == 0) {return;}int currentColorIndex = 0;int currentColor = pixels[0];mColors[currentColorIndex] = currentColor;mColorCounts[currentColorIndex] = 1;if (pixels.length == 1) {// If we only have one pixel, we can stop herereturn;}// Now iterate from the second pixel to the end, population distinct colorsfor (int i = 1; i < pixels.length; i++) {if (pixels[i] == currentColor) {// We've hit the same color as before, increase populationmColorCounts[currentColorIndex]++;} else {// We've hit a new color, increase indexcurrentColor = pixels[i];currentColorIndex++;mColors[currentColorIndex] = currentColor;mColorCounts[currentColorIndex] = 1;}}}}

过后是ColorUtils这个类，这个类有些事在v4里面的包里面，需要自己去修改和剔除来。

package com.bobo.picdis.utils;/** Copyright 2014 The Android Open Source Project** Licensed under the Apache License, Version 2.0 (the "License");* you may not use this file except in compliance with the License.* You may obtain a copy of the License at**       http://www.apache.org/licenses/LICENSE-2.0** Unless required by applicable law or agreed to in writing, software* distributed under the License is distributed on an "AS IS" BASIS,* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.* See the License for the specific language governing permissions and* limitations under the License.*/import android.graphics.Color;final class ColorUtils {private static final int MIN_ALPHA_SEARCH_MAX_ITERATIONS = 10;private static final int MIN_ALPHA_SEARCH_PRECISION = 10;private ColorUtils() {}/*** Composite two potentially translucent colors over each other and returns the result.*/private static int compositeColors(int fg, int bg) {final float alpha1 = Color.alpha(fg) / 255f;final float alpha2 = Color.alpha(bg) / 255f;float a = (alpha1 + alpha2) * (1f - alpha1);float r = (Color.red(fg) * alpha1) + (Color.red(bg) * alpha2 * (1f - alpha1));float g = (Color.green(fg) * alpha1) + (Color.green(bg) * alpha2 * (1f - alpha1));float b = (Color.blue(fg) * alpha1) + (Color.blue(bg) * alpha2 * (1f - alpha1));return Color.argb((int) a, (int) r, (int) g, (int) b);}/*** Returns the luminance of a color.** Formula defined here: http://www.w3.org/TR/2008/REC-WCAG20-20081211/#relativeluminancedef*/private static double calculateLuminance(int color) {double red = Color.red(color) / 255d;red = red < 0.03928 ? red / 12.92 : Math.pow((red + 0.055) / 1.055, 2.4);double green = Color.green(color) / 255d;green = green < 0.03928 ? green / 12.92 : Math.pow((green + 0.055) / 1.055, 2.4);double blue = Color.blue(color) / 255d;blue = blue < 0.03928 ? blue / 12.92 : Math.pow((blue + 0.055) / 1.055, 2.4);return (0.2126 * red) + (0.7152 * green) + (0.0722 * blue);}/*** Returns the contrast ratio between two colors.** Formula defined here: http://www.w3.org/TR/2008/REC-WCAG20-20081211/#contrast-ratiodef*/private static double calculateContrast(int foreground, int background) {if (Color.alpha(background) != 255) {throw new IllegalArgumentException("background can not be translucent");}if (Color.alpha(foreground) < 255) {// If the foreground is translucent, composite the foreground over the backgroundforeground = compositeColors(foreground, background);}final double luminance1 = calculateLuminance(foreground) + 0.05;final double luminance2 = calculateLuminance(background) + 0.05;// Now return the lighter luminance divided by the darker luminancereturn Math.max(luminance1, luminance2) / Math.min(luminance1, luminance2);}/*** Finds the minimum alpha value which can be applied to {@code foreground} so that is has a* contrast value of at least {@code minContrastRatio} when compared to background.** @return the alpha value in the range 0-255.*/private static int findMinimumAlpha(int foreground, int background, double minContrastRatio) {if (Color.alpha(background) != 255) {throw new IllegalArgumentException("background can not be translucent");}// First lets check that a fully opaque foreground has sufficient contrastint testForeground = modifyAlpha(foreground, 255);double testRatio = calculateContrast(testForeground, background);if (testRatio < minContrastRatio) {// Fully opaque foreground does not have sufficient contrast, return errorreturn -1;}// Binary search to find a value with the minimum value which provides sufficient contrastint numIterations = 0;int minAlpha = 0;int maxAlpha = 255;while (numIterations <= MIN_ALPHA_SEARCH_MAX_ITERATIONS &&(maxAlpha - minAlpha) > MIN_ALPHA_SEARCH_PRECISION) {final int testAlpha = (minAlpha + maxAlpha) / 2;testForeground = modifyAlpha(foreground, testAlpha);testRatio = calculateContrast(testForeground, background);if (testRatio < minContrastRatio) {minAlpha = testAlpha;} else {maxAlpha = testAlpha;}numIterations++;}// Conservatively return the max of the range of possible alphas, which is known to pass.return maxAlpha;}static int getTextColorForBackground(int backgroundColor, float minContrastRatio) {// First we will check white as most colors will be darkfinal int whiteMinAlpha = ColorUtils.findMinimumAlpha(Color.WHITE, backgroundColor, minContrastRatio);if (whiteMinAlpha >= 0) {return ColorUtils.modifyAlpha(Color.WHITE, whiteMinAlpha);}// If we hit here then there is not an translucent white which provides enough contrast,// so check blackfinal int blackMinAlpha = ColorUtils.findMinimumAlpha(Color.BLACK, backgroundColor, minContrastRatio);if (blackMinAlpha >= 0) {return ColorUtils.modifyAlpha(Color.BLACK, blackMinAlpha);}// This should not happen!return -1;}static void RGBtoHSL(int r, int g, int b, float[] hsl) {final float rf = r / 255f;final float gf = g / 255f;final float bf = b / 255f;final float max = Math.max(rf, Math.max(gf, bf));final float min = Math.min(rf, Math.min(gf, bf));final float deltaMaxMin = max - min;float h, s;float l = (max + min) / 2f;if (max == min) {// Monochromatich = s = 0f;} else {if (max == rf) {h = ((gf - bf) / deltaMaxMin) % 6f;} else if (max == gf) {h = ((bf - rf) / deltaMaxMin) + 2f;} else {h = ((rf - gf) / deltaMaxMin) + 4f;}s =  deltaMaxMin / (1f - Math.abs(2f * l - 1f));}hsl[0] = (h * 60f) % 360f;hsl[1] = s;hsl[2] = l;}static int HSLtoRGB (float[] hsl) {final float h = hsl[0];final float s = hsl[1];final float l = hsl[2];final float c = (1f - Math.abs(2 * l - 1f)) * s;final float m = l - 0.5f * c;final float x = c * (1f - Math.abs((h / 60f % 2f) - 1f));final int hueSegment = (int) h / 60;int r = 0, g = 0, b = 0;switch (hueSegment) {case 0:r = Math.round(255 * (c + m));g = Math.round(255 * (x + m));b = Math.round(255 * m);break;case 1:r = Math.round(255 * (x + m));g = Math.round(255 * (c + m));b = Math.round(255 * m);break;case 2:r = Math.round(255 * m);g = Math.round(255 * (c + m));b = Math.round(255 * (x + m));break;case 3:r = Math.round(255 * m);g = Math.round(255 * (x + m));b = Math.round(255 * (c + m));break;case 4:r = Math.round(255 * (x + m));g = Math.round(255 * m);b = Math.round(255 * (c + m));break;case 5:case 6:r = Math.round(255 * (c + m));g = Math.round(255 * m);b = Math.round(255 * (x + m));break;}r = Math.max(0, Math.min(255, r));g = Math.max(0, Math.min(255, g));b = Math.max(0, Math.min(255, b));return Color.rgb(r, g, b);}/*** Set the alpha component of {@code color} to be {@code alpha}.*/static int modifyAlpha(int color, int alpha) {return (color & 0x00ffffff) | (alpha << 24);}}

最后就是我们的重要部分了，对外接口的类Palette

package com.bobo.picdis.utils;/** Copyright 2014 The Android Open Source Project** Licensed under the Apache License, Version 2.0 (the "License");* you may not use this file except in compliance with the License.* You may obtain a copy of the License at**       http://www.apache.org/licenses/LICENSE-2.0** Unless required by applicable law or agreed to in writing, software* distributed under the License is distributed on an "AS IS" BASIS,* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.* See the License for the specific language governing permissions and* limitations under the License.*/import android.graphics.Bitmap;
import android.graphics.Color;
import android.os.AsyncTask;import java.util.Arrays;
import java.util.Collections;
import java.util.List;/*** A helper class to extract prominent colors from an image.* <p>* A number of colors with different profiles are extracted from the image:* <ul>*     <li>Vibrant</li>*     <li>Vibrant Dark</li>*     <li>Vibrant Light</li>*     <li>Muted</li>*     <li>Muted Dark</li>*     <li>Muted Light</li>* </ul>* These can be retrieved from the appropriate getter method.** <p>* Instances can be created with the synchronous factory methods {@link #generate(Bitmap)} and* {@link #generate(Bitmap, int)}.* <p>* These should be called on a background thread, ideally the one in* which you load your images on. Sometimes that is not possible, so asynchronous factory methods* have also been provided: {@link #generateAsync(Bitmap, PaletteAsyncListener)} and* {@link #generateAsync(Bitmap, int, PaletteAsyncListener)}. These can be used as so:** <pre>* Palette.generateAsync(bitmap, new Palette.PaletteAsyncListener() {*     public void onGenerated(Palette palette) {*         // Do something with colors...*     }* });* </pre>*/
public final class Palette {/*** Listener to be used with {@link #generateAsync(Bitmap, PaletteAsyncListener)} or* {@link #generateAsync(Bitmap, int, PaletteAsyncListener)}*/public interface PaletteAsyncListener {/*** Called when the {@link Palette} has been generated.*/void onGenerated(Palette palette);}private static final int CALCULATE_BITMAP_MIN_DIMENSION = 100;private static final int DEFAULT_CALCULATE_NUMBER_COLORS = 16;private static final float TARGET_DARK_LUMA = 0.26f;private static final float MAX_DARK_LUMA = 0.45f;private static final float MIN_LIGHT_LUMA = 0.55f;private static final float TARGET_LIGHT_LUMA = 0.74f;private static final float MIN_NORMAL_LUMA = 0.3f;private static final float TARGET_NORMAL_LUMA = 0.5f;private static final float MAX_NORMAL_LUMA = 0.7f;private static final float TARGET_MUTED_SATURATION = 0.3f;private static final float MAX_MUTED_SATURATION = 0.4f;private static final float TARGET_VIBRANT_SATURATION = 1f;private static final float MIN_VIBRANT_SATURATION = 0.35f;private static final float WEIGHT_SATURATION = 3f;private static final float WEIGHT_LUMA = 6f;private static final float WEIGHT_POPULATION = 1f;private static final float MIN_CONTRAST_TITLE_TEXT = 3.0f;private static final float MIN_CONTRAST_BODY_TEXT = 4.5f;private final List<Swatch> mSwatches;private final int mHighestPopulation;private Swatch mVibrantSwatch;private Swatch mMutedSwatch;private Swatch mDarkVibrantSwatch;private Swatch mDarkMutedSwatch;private Swatch mLightVibrantSwatch;private Swatch mLightMutedColor;/*** Generate a {@link Palette} from a {@link Bitmap} using the default number of colors.*/public static Palette generate(Bitmap bitmap) {return generate(bitmap, DEFAULT_CALCULATE_NUMBER_COLORS);}/*** Generate a {@link Palette} from a {@link Bitmap} using the specified {@code numColors}.* Good values for {@code numColors} depend on the source image type.* For landscapes, a good values are in the range 12-16. For images which are largely made up* of people's faces then this value should be increased to 24-32.** @param numColors The maximum number of colors in the generated palette. Increasing this*                  number will increase the time needed to compute the values.*/public static Palette generate(Bitmap bitmap, int numColors) {checkBitmapParam(bitmap);checkNumberColorsParam(numColors);// First we'll scale down the bitmap so it's shortest dimension is 100pxfinal Bitmap scaledBitmap = scaleBitmapDown(bitmap);// Now generate a quantizer from the BitmapColorCutQuantizer quantizer = ColorCutQuantizer.fromBitmap(scaledBitmap, numColors);// If created a new bitmap, recycle itif (scaledBitmap != bitmap) {scaledBitmap.recycle();}// Now return a ColorExtractor instancereturn new Palette(quantizer.getQuantizedColors());}/*** Generate a {@link Palette} asynchronously. {@link PaletteAsyncListener#onGenerated(Palette)}* will be called with the created instance. The resulting {@link Palette} is the same as* what would be created by calling {@link #generate(Bitmap)}.** @param listener Listener to be invoked when the {@link Palette} has been generated.** @return the {@link android.os.AsyncTask} used to asynchronously generate the instance.*/public static AsyncTask<Bitmap, Void, Palette> generateAsync(Bitmap bitmap, PaletteAsyncListener listener) {return generateAsync(bitmap, DEFAULT_CALCULATE_NUMBER_COLORS, listener);}/*** Generate a {@link Palette} asynchronously. {@link PaletteAsyncListener#onGenerated(Palette)}* will be called with the created instance. The resulting {@link Palette} is the same as what* would be created by calling {@link #generate(Bitmap, int)}.** @param listener Listener to be invoked when the {@link Palette} has been generated.** @return the {@link android.os.AsyncTask} used to asynchronously generate the instance.*/public static AsyncTask<Bitmap, Void, Palette> generateAsync(final Bitmap bitmap, final int numColors, final PaletteAsyncListener listener) {checkBitmapParam(bitmap);checkNumberColorsParam(numColors);checkAsyncListenerParam(listener);AsyncTask<Bitmap, Void, Palette> task  = new AsyncTask<Bitmap, Void, Palette>() {@Overrideprotected Palette doInBackground(Bitmap... params) {return generate(params[0], numColors);}@Overrideprotected void onPostExecute(Palette colorExtractor) {super.onPostExecute(colorExtractor);listener.onGenerated(colorExtractor);}};task.executeOnExecutor(AsyncTask.THREAD_POOL_EXECUTOR, bitmap);
//        return AsyncTaskCompat.executeParallel(
//                new AsyncTask<Bitmap, Void, Palette>() {
//                    @Override
//                    protected Palette doInBackground(Bitmap... params) {
//                        return generate(params[0], numColors);
//                    }
//
//                    @Override
//                    protected void onPostExecute(Palette colorExtractor) {
//                        listener.onGenerated(colorExtractor);
//                    }
//                }, bitmap);return task;}private Palette(List<Swatch> swatches) {mSwatches = swatches;mHighestPopulation = findMaxPopulation();mVibrantSwatch = findColor(TARGET_NORMAL_LUMA, MIN_NORMAL_LUMA, MAX_NORMAL_LUMA,TARGET_VIBRANT_SATURATION, MIN_VIBRANT_SATURATION, 1f);mLightVibrantSwatch = findColor(TARGET_LIGHT_LUMA, MIN_LIGHT_LUMA, 1f,TARGET_VIBRANT_SATURATION, MIN_VIBRANT_SATURATION, 1f);mDarkVibrantSwatch = findColor(TARGET_DARK_LUMA, 0f, MAX_DARK_LUMA,TARGET_VIBRANT_SATURATION, MIN_VIBRANT_SATURATION, 1f);mMutedSwatch = findColor(TARGET_NORMAL_LUMA, MIN_NORMAL_LUMA, MAX_NORMAL_LUMA,TARGET_MUTED_SATURATION, 0f, MAX_MUTED_SATURATION);mLightMutedColor = findColor(TARGET_LIGHT_LUMA, MIN_LIGHT_LUMA, 1f,TARGET_MUTED_SATURATION, 0f, MAX_MUTED_SATURATION);mDarkMutedSwatch = findColor(TARGET_DARK_LUMA, 0f, MAX_DARK_LUMA,TARGET_MUTED_SATURATION, 0f, MAX_MUTED_SATURATION);// Now try and generate any missing colorsgenerateEmptySwatches();}/*** Returns all of the swatches which make up the palette.*/public List<Swatch> getSwatches() {return Collections.unmodifiableList(mSwatches);}/*** Returns the most vibrant swatch in the palette. Might be null.*/public Swatch getVibrantSwatch() {return mVibrantSwatch;}/*** Returns a light and vibrant swatch from the palette. Might be null.*/public Swatch getLightVibrantSwatch() {return mLightVibrantSwatch;}/*** Returns a dark and vibrant swatch from the palette. Might be null.*/public Swatch getDarkVibrantSwatch() {return mDarkVibrantSwatch;}/*** Returns a muted swatch from the palette. Might be null.*/public Swatch getMutedSwatch() {return mMutedSwatch;}/*** Returns a muted and light swatch from the palette. Might be null.*/public Swatch getLightMutedSwatch() {return mLightMutedColor;}/*** Returns a muted and dark swatch from the palette. Might be null.*/public Swatch getDarkMutedSwatch() {return mDarkMutedSwatch;}/*** Returns the most vibrant color in the palette as an RGB packed int.** @param defaultColor value to return if the swatch isn't available*/public int getVibrantColor(int defaultColor) {return mVibrantSwatch != null ? mVibrantSwatch.getRgb() : defaultColor;}/*** Returns a light and vibrant color from the palette as an RGB packed int.** @param defaultColor value to return if the swatch isn't available*/public int getLightVibrantColor(int defaultColor) {return mLightVibrantSwatch != null ? mLightVibrantSwatch.getRgb() : defaultColor;}/*** Returns a dark and vibrant color from the palette as an RGB packed int.** @param defaultColor value to return if the swatch isn't available*/public int getDarkVibrantColor(int defaultColor) {return mDarkVibrantSwatch != null ? mDarkVibrantSwatch.getRgb() : defaultColor;}/*** Returns a muted color from the palette as an RGB packed int.** @param defaultColor value to return if the swatch isn't available*/public int getMutedColor(int defaultColor) {return mMutedSwatch != null ? mMutedSwatch.getRgb() : defaultColor;}/*** Returns a muted and light color from the palette as an RGB packed int.** @param defaultColor value to return if the swatch isn't available*/public int getLightMutedColor(int defaultColor) {return mLightMutedColor != null ? mLightMutedColor.getRgb() : defaultColor;}/*** Returns a muted and dark color from the palette as an RGB packed int.** @param defaultColor value to return if the swatch isn't available*/public int getDarkMutedColor(int defaultColor) {return mDarkMutedSwatch != null ? mDarkMutedSwatch.getRgb() : defaultColor;}/*** @return true if we have already selected {@code swatch}*/private boolean isAlreadySelected(Swatch swatch) {return mVibrantSwatch == swatch || mDarkVibrantSwatch == swatch ||mLightVibrantSwatch == swatch || mMutedSwatch == swatch ||mDarkMutedSwatch == swatch || mLightMutedColor == swatch;}private Swatch findColor(float targetLuma, float minLuma, float maxLuma,float targetSaturation, float minSaturation, float maxSaturation) {Swatch max = null;float maxValue = 0f;for (Swatch swatch : mSwatches) {final float sat = swatch.getHsl()[1];final float luma = swatch.getHsl()[2];if (sat >= minSaturation && sat <= maxSaturation &&luma >= minLuma && luma <= maxLuma &&!isAlreadySelected(swatch)) {float thisValue = createComparisonValue(sat, targetSaturation, luma, targetLuma,swatch.getPopulation(), mHighestPopulation);if (max == null || thisValue > maxValue) {max = swatch;maxValue = thisValue;}}}return max;}/*** Try and generate any missing swatches from the swatches we did find.*/private void generateEmptySwatches() {if (mVibrantSwatch == null) {// If we do not have a vibrant color...if (mDarkVibrantSwatch != null) {// ...but we do have a dark vibrant, generate the value by modifying the lumafinal float[] newHsl = copyHslValues(mDarkVibrantSwatch);newHsl[2] = TARGET_NORMAL_LUMA;mVibrantSwatch = new Swatch(ColorUtils.HSLtoRGB(newHsl), 0);}}if (mDarkVibrantSwatch == null) {// If we do not have a dark vibrant color...if (mVibrantSwatch != null) {// ...but we do have a vibrant, generate the value by modifying the lumafinal float[] newHsl = copyHslValues(mVibrantSwatch);newHsl[2] = TARGET_DARK_LUMA;mDarkVibrantSwatch = new Swatch(ColorUtils.HSLtoRGB(newHsl), 0);}}}/*** Find the {@link Swatch} with the highest population value and return the population.*/private int findMaxPopulation() {int population = 0;for (Swatch swatch : mSwatches) {population = Math.max(population, swatch.getPopulation());}return population;}@Overridepublic boolean equals(Object o) {if (this == o) {return true;}if (o == null || getClass() != o.getClass()) {return false;}Palette palette = (Palette) o;if (mSwatches != null ? !mSwatches.equals(palette.mSwatches) : palette.mSwatches != null) {return false;}if (mDarkMutedSwatch != null ? !mDarkMutedSwatch.equals(palette.mDarkMutedSwatch): palette.mDarkMutedSwatch != null) {return false;}if (mDarkVibrantSwatch != null ? !mDarkVibrantSwatch.equals(palette.mDarkVibrantSwatch): palette.mDarkVibrantSwatch != null) {return false;}if (mLightMutedColor != null ? !mLightMutedColor.equals(palette.mLightMutedColor): palette.mLightMutedColor != null) {return false;}if (mLightVibrantSwatch != null ? !mLightVibrantSwatch.equals(palette.mLightVibrantSwatch): palette.mLightVibrantSwatch != null) {return false;}if (mMutedSwatch != null ? !mMutedSwatch.equals(palette.mMutedSwatch): palette.mMutedSwatch != null) {return false;}if (mVibrantSwatch != null ? !mVibrantSwatch.equals(palette.mVibrantSwatch): palette.mVibrantSwatch != null) {return false;}return true;}@Overridepublic int hashCode() {int result = mSwatches != null ? mSwatches.hashCode() : 0;result = 31 * result + (mVibrantSwatch != null ? mVibrantSwatch.hashCode() : 0);result = 31 * result + (mMutedSwatch != null ? mMutedSwatch.hashCode() : 0);result = 31 * result + (mDarkVibrantSwatch != null ? mDarkVibrantSwatch.hashCode() : 0);result = 31 * result + (mDarkMutedSwatch != null ? mDarkMutedSwatch.hashCode() : 0);result = 31 * result + (mLightVibrantSwatch != null ? mLightVibrantSwatch.hashCode() : 0);result = 31 * result + (mLightMutedColor != null ? mLightMutedColor.hashCode() : 0);return result;}/*** Scale the bitmap down so that it's smallest dimension is* {@value #CALCULATE_BITMAP_MIN_DIMENSION}px. If {@code bitmap} is smaller than this, than it* is returned.*/private static Bitmap scaleBitmapDown(Bitmap bitmap) {final int minDimension = Math.min(bitmap.getWidth(), bitmap.getHeight());if (minDimension <= CALCULATE_BITMAP_MIN_DIMENSION) {// If the bitmap is small enough already, just return itreturn bitmap;}final float scaleRatio = CALCULATE_BITMAP_MIN_DIMENSION / (float) minDimension;return Bitmap.createScaledBitmap(bitmap,Math.round(bitmap.getWidth() * scaleRatio),Math.round(bitmap.getHeight() * scaleRatio),false);}private static float createComparisonValue(float saturation, float targetSaturation,float luma, float targetLuma,int population, int highestPopulation) {return weightedMean(invertDiff(saturation, targetSaturation), WEIGHT_SATURATION,invertDiff(luma, targetLuma), WEIGHT_LUMA,population / (float) highestPopulation, WEIGHT_POPULATION);}/*** Copy a {@link Swatch}'s HSL values into a new float[].*/private static float[] copyHslValues(Swatch color) {final float[] newHsl = new float[3];System.arraycopy(color.getHsl(), 0, newHsl, 0, 3);return newHsl;}/*** Returns a value in the range 0-1. 1 is returned when {@code value} equals the* {@code targetValue} and then decreases as the absolute difference between {@code value} and* {@code targetValue} increases.** @param value the item's value* @param targetValue the value which we desire*/private static float invertDiff(float value, float targetValue) {return 1f - Math.abs(value - targetValue);}private static float weightedMean(float... values) {float sum = 0f;float sumWeight = 0f;for (int i = 0; i < values.length; i += 2) {float value = values[i];float weight = values[i + 1];sum += (value * weight);sumWeight += weight;}return sum / sumWeight;}private static void checkBitmapParam(Bitmap bitmap) {if (bitmap == null) {throw new IllegalArgumentException("bitmap can not be null");}if (bitmap.isRecycled()) {throw new IllegalArgumentException("bitmap can not be recycled");}}private static void checkNumberColorsParam(int numColors) {if (numColors < 1) {throw new IllegalArgumentException("numColors must be 1 of greater");}}private static void checkAsyncListenerParam(PaletteAsyncListener listener) {if (listener == null) {throw new IllegalArgumentException("listener can not be null");}}/*** Represents a color swatch generated from an image's palette. The RGB color can be retrieved* by calling {@link #getRgb()}.*/public static final class Swatch {private final int mRed, mGreen, mBlue;private final int mRgb;private final int mPopulation;private boolean mGeneratedTextColors;private int mTitleTextColor;private int mBodyTextColor;private float[] mHsl;Swatch(int rgbColor, int population) {mRed = Color.red(rgbColor);mGreen = Color.green(rgbColor);mBlue = Color.blue(rgbColor);mRgb = rgbColor;mPopulation = population;}Swatch(int red, int green, int blue, int population) {mRed = red;mGreen = green;mBlue = blue;mRgb = Color.rgb(red, green, blue);mPopulation = population;}/*** @return this swatch's RGB color value*/public int getRgb() {return mRgb;}/*** Return this swatch's HSL values.*     hsv[0] is Hue [0 .. 360)*     hsv[1] is Saturation [0...1]*     hsv[2] is Lightness [0...1]*/public float[] getHsl() {if (mHsl == null) {// Lazily generate HSL values from RGBmHsl = new float[3];ColorUtils.RGBtoHSL(mRed, mGreen, mBlue, mHsl);}return mHsl;}/*** @return the number of pixels represented by this swatch*/public int getPopulation() {return mPopulation;}/*** Returns an appropriate color to use for any 'title' text which is displayed over this* {@link Swatch}'s color. This color is guaranteed to have sufficient contrast.*/public int getTitleTextColor() {ensureTextColorsGenerated();return mTitleTextColor;}/*** Returns an appropriate color to use for any 'body' text which is displayed over this* {@link Swatch}'s color. This color is guaranteed to have sufficient contrast.*/public int getBodyTextColor() {ensureTextColorsGenerated();return mBodyTextColor;}private void ensureTextColorsGenerated() {if (!mGeneratedTextColors) {mTitleTextColor = ColorUtils.getTextColorForBackground(mRgb,MIN_CONTRAST_TITLE_TEXT);mBodyTextColor = ColorUtils.getTextColorForBackground(mRgb,MIN_CONTRAST_BODY_TEXT);mGeneratedTextColors = true;}}@Overridepublic String toString() {return new StringBuilder(getClass().getSimpleName()).append(" [RGB: #").append(Integer.toHexString(getRgb())).append(']').append(" [HSL: ").append(Arrays.toString(getHsl())).append(']').append(" [Population: ").append(mPopulation).append(']').append(" [Title Text: #").append(Integer.toHexString(mTitleTextColor)).append(']').append(" [Body Text: #").append(Integer.toHexString(mBodyTextColor)).append(']').toString();}@Overridepublic boolean equals(Object o) {if (this == o) {return true;}if (o == null || getClass() != o.getClass()) {return false;}Swatch swatch = (Swatch) o;return mPopulation == swatch.mPopulation && mRgb == swatch.mRgb;}@Overridepublic int hashCode() {return 31 * mRgb + mPopulation;}}}

讲解

需要注意的我修改的一个比较重要的地方，Palette里面的generateAsync方法，它返回的这一段代码
return AsyncTaskCompat.executeParallel( // new AsyncTask<Bitmap, Void, Palette>() { // @Override // protected Palette doInBackground(Bitmap... params) { // return generate(params[0], numColors); // } // // @Override // protected void onPostExecute(Palette colorExtractor) { // listener.onGenerated(colorExtractor); // } // }, bitmap);
被我修改成了

  AsyncTask<Bitmap, Void, Palette> task  = new AsyncTask<Bitmap, Void, Palette>() {@Overrideprotected Palette doInBackground(Bitmap... params) {return generate(params[0], numColors);}@Overrideprotected void onPostExecute(Palette colorExtractor) {super.onPostExecute(colorExtractor);listener.onGenerated(colorExtractor);}};task.executeOnExecutor(AsyncTask.THREAD_POOL_EXECUTOR, bitmap);

这个貌似不兼容api11以下，11以下可以直接调用task.execute方法，然后传入参数就可以了，我也是看了源码修改的，因为我的需求里面不需要兼容11的api，下面就看看使用的效果吧。上我们的Activity的代码。

ublic class MainActivity extends Activity implements Palette.PaletteAsyncListener {LinearLayout mRoot;@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);mRoot = new LinearLayout(this);mRoot.setOrientation(LinearLayout.VERTICAL);setContentView(mRoot);
//导入一个图片Bitmap bitmap = BitmapFactory.decodeResource(getResources(), R.drawable.examlist_naeti);Palette palette = Palette.generate(bitmap);//获取色调DarkMuted颜色 没有获取到这个模式下的颜色默认给一个red的红色
//        int darkMultedColor = palette.getDarkMutedColor(Color.RED);
//        View view = new View(this);LinearLayout.LayoutParams params = new LinearLayout.LayoutParams(LinearLayout.LayoutParams.MATCH_PARENT, 100);params.bottomMargin = 5;
//        view.setBackgroundColor(darkMultedColor);
//        mRoot.addView(view, params);
// 获取色调DarkMuted颜色
//        int darkcolorExtractor = palette.getDarkVibrantColor(Color.RED);
//        view = new View(this);
//        view.setLayoutParams(params);
//        view.setBackgroundColor(darkcolorExtractor);
//        mRoot.addView(view, params);
//
//获取色调DarkMuted颜色
//        int lightMuteColor = palette.getLightMutedColor(Color.RED);
//        view = new View(this);
//        view.setLayoutParams(params);
//        view.setBackgroundColor(lightMuteColor);
//        mRoot.addView(view, params);//获取所有的图片分析结果List<Palette.Swatch> lists = palette.getSwatches();for (Palette.Swatch swatch : lists) {int color = swatch.getRgb();View view = new View(this);view.setLayoutParams(params);view.setBackgroundColor(color);mRoot.addView(view, params);}//导入第二张图片异步去分析它Bitmap bitmap1 = BitmapFactory.decodeResource(getResources(), R.drawable.examlist_cmep);//需要注意的是颜色的个数必须要大于1而且lisenler也不能为空。AsyncTask<Bitmap, Void, Palette> palette1 = Palette.generateAsync(bitmap1, 3, this);}@Overridepublic void onGenerated(Palette palette) {int darkMultedColor = palette.getDarkMutedColor(Color.RED);View view = new View(this);LinearLayout.LayoutParams params = new LinearLayout.LayoutParams(LinearLayout.LayoutParams.MATCH_PARENT, 100);view.setBackgroundColor(darkMultedColor);mRoot.addView(view, params);int darkcolorExtractor = palette.getDarkVibrantColor(Color.RED);view = new View(this);view.setLayoutParams(params);view.setBackgroundColor(darkcolorExtractor);mRoot.addView(view, params);int lightMuteColor = palette.getLightMutedColor(Color.RED);view = new View(this);view.setLayoutParams(params);view.setBackgroundColor(lightMuteColor);mRoot.addView(view, params);}
}
