本文主要是介绍Troubleshooting 12C node2 CRS start fail with ORA-12547 and ORA-15077 in Flex ASM 案例，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

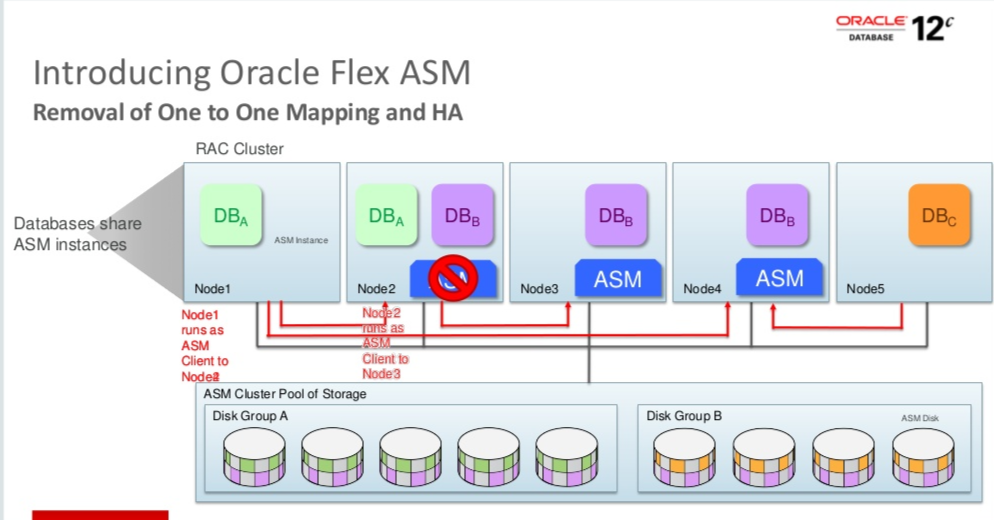

Flex ASM

在12c以前的版本数据库实例使用操作系统认证连接ASM实例，因为ASM CLIENT(DB INSTANCE)和ASM Server总是在同一个主机上， 从12c版本开始引入的FLEX ASM架构允许数据库实例可以和ASM运行在不同的主机中， 使用FLEX ASM user password文件认证， ASM 密码文件存储在ASM DISKGROUP中， 同时在创建Flex ASM时会默认创建ASM USER。Flex ASM 也支持oracle 12c前版本的rdbms, 同样也是建议使用的ASM架构

ASM Network

在Flex ASM Oracle 12c引入了一种新类型network, 叫做ASM network.  这种network用于ASM和ASM CLIENT及所有节点间通信。集群中的所有ASM client可以访问所有ASM network,    也可以只配置一个network共用于支持private network和asm network。

ASM Listeners

ASM listener用来支持Flex ASM 访问， 为每个ASM network配置一组ASM listener, 每个ASM client数据库实例中最多将三个ASM listener地址注册为remote listeners,所有客户端连接都在整个ASM实例集中进行负载平衡. 默认名为ASMNET1LSNR_ASM

案例

有了上面的基础认识，开始分析最近遇到的一个FLEX ASM相关的案例， 这是一套12c R2 2-nodes RAC  DG 环境 ， 在检查DG standby side时，发现Standby node2 instance未启动，是在standby node1 上接收并应用。  尝试启动实例2时发现了问题。

root@anbobstb02:~$crsctl start crs
CRS-4123: Oracle High Availability Services has been started.root@anbobstb02:~$crsctl check crs
CRS-4638: Oracle High Availability Services is online
CRS-4535: Cannot communicate with Cluster Ready Services
CRS-4529: Cluster Synchronization Services is online
CRS-4534: Cannot communicate with Event Managergrid@anbobstb02$ crsctl stat res -t -init
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.asm1        ONLINE  ONLINE       anbobstb02                  STABLE
ora.cluster_interconnect.haip1        ONLINE  ONLINE       anbobstb02                  STABLE
ora.crf1        ONLINE  ONLINE       anbobstb02                  STABLE
ora.crsd1        ONLINE  OFFLINE                               STABLE
ora.cssd1        ONLINE  ONLINE       anbobstb02                  STABLE
ora.cssdmonitor1        ONLINE  ONLINE       anbobstb02                  STABLE
ora.ctssd1        ONLINE  ONLINE       anbobstb02                  OBSERVER,STABLE
ora.diskmon1        OFFLINE OFFLINE                               STABLE
ora.drivers.acfs1        ONLINE  ONLINE       anbobstb02                  STABLE
ora.evmd1        ONLINE  INTERMEDIATE anbobstb02                  STABLE
ora.gipcd1        ONLINE  ONLINE       anbobstb02                  STABLE
ora.gpnpd1        ONLINE  ONLINE       anbobstb02                  STABLE
ora.mdnsd1        ONLINE  ONLINE       anbobstb02                  STABLE
ora.storage1        ONLINE  ONLINE       anbobstb02                  STABLE
--------------------------------------------------------------------------------grid@anbobstb02:~$crsctl get cluster mode status
Cluster is running in "flex" mode

Note:
Flex ASM环境， 在启动NODE2 CRS时失败。

CRS alert log

2019-02-12 10:50:05.229 [OCSSD(51008)]CRS-1713: CSSD daemon is started in hub mode
2019-02-12 10:50:06.670000 +08:00
2019-02-12 10:50:06.670 [OCSSD(51008)]CRS-1707: Lease acquisition for node anbobstb02 number 2 completed
2019-02-12 10:50:07.756000 +08:00
2019-02-12 10:50:07.756 [OCSSD(51008)]CRS-1605: CSSD voting file is online: /dev/asm-disk55; details in /oracle/app/grid/diag/crs/anbobstb02/crs/trace/ocssd.trc.
2019-02-12 10:50:07.759 [OCSSD(51008)]CRS-1605: CSSD voting file is online: /dev/asm-disk52; details in /oracle/app/grid/diag/crs/anbobstb02/crs/trace/ocssd.trc.
2019-02-12 10:50:07.763 [OCSSD(51008)]CRS-1605: CSSD voting file is online: /dev/asm-disk51; details in /oracle/app/grid/diag/crs/anbobstb02/crs/trace/ocssd.trc.
2019-02-12 10:50:14.376000 +08:00
2019-02-12 10:50:14.376 [OCSSD(51008)]CRS-1601: CSSD Reconfiguration complete. Active nodes are anbobstb01 anbobstb02 .
2019-02-12 10:50:17.177000 +08:00
2019-02-12 10:50:17.176 [OCTSSD(55374)]CRS-8500: Oracle Clusterware OCTSSD process is starting with operating system process ID 55374
2019-02-12 10:50:17.193 [OCSSD(51008)]CRS-1720: Cluster Synchronization Services daemon (CSSD) is ready for operation.
2019-02-12 10:50:18.157 [OCTSSD(55374)]CRS-2403: The Cluster Time Synchronization Service on host anbobstb02 is in observer mode.
2019-02-12 10:50:19.266000 +08:00
2019-02-12 10:50:19.266 [OCTSSD(55374)]CRS-2407: The new Cluster Time Synchronization Service reference node is host anbobstb01.
2019-02-12 10:50:19.266 [OCTSSD(55374)]CRS-2401: The Cluster Time Synchronization Service started on host anbobstb02.
2019-02-12 10:50:35.725000 +08:00
2019-02-12 10:50:35.725 [ORAROOTAGENT(50588)]CRS-5019: All OCR locations are on ASM disk groups [OCRDG],
and none of these disk groups are mounted. Details are at "(:CLSN00140:)" in "/oracle/app/grid/diag/crs/anbobstb02/crs/trace/ohasd_orarootagent_root.trc".

Trace ohasd_orarootagent_root.trc
adrci> show trace /oracle/app/grid/diag/crs/anbobstb02/crs/trace/ohasd_orarootagent_root.trc

2019-02-12 10:50:25.765 : AGFW:2530133760: {0:5:3} Agent sending reply for: RESOURCE_START[ora.cluster_interconnect.haip 1 1] ID 4098:403
2019-02-12 10:50:25.765 : USRTHRD:2519627520: {0:5:3} Check: 0-1
2019-02-12 10:50:25.766 : AGFW:2530133760: {0:5:3} ora.cluster_interconnect.haip 1 1 state changed from: STARTING to: ONLINE
2019-02-12 10:50:25.766 : AGFW:2530133760: {0:5:3} RECYCLE_AGENT attribute not found
2019-02-12 10:50:25.766 : AGFW:2530133760: {0:5:3} Started implicit monitor for [ora.cluster_interconnect.haip 1 1] interval=30000 delay=3000
0
2019-02-12 10:50:25.766 : AGFW:2530133760: {0:5:3} Agent sending last reply for: RESOURCE_START[ora.cluster_interconnect.haip 1 1] ID 4098:40
3
2019-02-12 10:50:25.768 : USRTHRD:2512111360: {0:5:3} got pubgrpdata, 1-8-2-2-2
2019-02-12 10:50:25.770 : USRTHRD:2512111360: {0:5:3} Completed 1 HAIP assignment, start complete
2019-02-12 10:50:25.770 : USRTHRD:2512111360: {0:5:3} to verify inf event
2019-02-12 10:50:25.813 : AGFW:2530133760: {0:5:3} Agent received the message: RESOURCE_START[ora.storage 1 1] ID 4098:438
2019-02-12 10:50:25.813 : AGFW:2530133760: {0:5:3} Preparing START command for: ora.storage 1 1
2019-02-12 10:50:25.813 : AGFW:2530133760: {0:5:3} ora.storage 1 1 state changed from: OFFLINE to: STARTING
2019-02-12 10:50:25.813 : AGFW:2530133760: {0:5:3} RECYCLE_AGENT attribute not found
2019-02-12 10:50:25.813 :CLSDYNAM:2519627520: [ora.storage]{0:5:3} [start] (:CLSN00107:) clsn_agent::start {
2019-02-12 10:50:25.814 :CLSDYNAM:2519627520: [ora.storage]{0:5:3} [start] StorageAgent::init NodeRole = 1
2019-02-12 10:50:25.814 :CLSDYNAM:2519627520: [ora.storage]{0:5:3} [start] StorageAgent::check NODEROLE_HUB getOCRdetails
2019-02-12 10:50:25.832 : default:2519627520: clsvactversion:4: Retrieving Active Version from local storage.
2019-02-12 10:50:25.840 :GIPCXCPT:2519627520: gipcInternalSetAttribute: failed during gipcInternalSetAttribute, ret gipcretInvalidAttribute (5)
2019-02-12 10:50:25.840 :GIPCXCPT:2519627520: gipcSetAttributeNativeF [clscrsconGipcConnect : clscrscon.c : 655]: EXCEPTION[ ret gipcretInvalid
Attribute (5) ] failure for obj 0x7f8664436460 [0000000000000955] { gipcEndpoint : localAddr ”, remoteAddr ”, numPend 0, numReady 0, numDone
0, numDead 0, numTransfer 0, objFlags 0x0, pidPeer 0, readyRef (nil), ready 0, wobj (nil), sendp (nil) status 13flags 0x20000000, flags-2 0x0, u
srFlags 0x0 }, name ‘traceLevel’, val 0x7f86962cf004, len 4, flags 0x0
2019-02-12 10:50:25.855 : CLSNS:2519627520: clsns_SetTraceLevel:trace level set to 1.
2019-02-12 10:50:25.859 : default:2519627520: Inited LSF context: 0x7f866453c5d0
2019-02-12 10:50:25.863 : CLSCRED:2519627520: clsCredCommonInit: Inited singleton credctx.
2019-02-12 10:50:25.863 : CLSCRED:2519627520: (:CLSCRED0101:)clsCredDomInitRootDom: Using user given storage context for repository access.
2019-02-12 10:50:25.886 : USRTHRD:2519627520: {0:5:3} 8154 Error 4 querying length of attr ASM_DISCOVERY_ADDRESS
2019-02-12 10:50:25.889 : USRTHRD:2519627520: {0:5:3} 8154 Error 4 querying length of attr ASM_STATIC_DISCOVERY_ADDRESS
2019-02-12 10:50:25.924 : CLSCRED:2519627520: (:CLSCRED1079:)clsCredOcrKeyExists: Obj dom : SYSTEM.credentials.domains.root.ASM.Self.bb15e951dcbc4fc2ff3aec3bfe1f0424.root not found
2019-02-12 10:50:25.924 : USRTHRD:2519627520: {0:5:3} 7872 Error 4 opening dom root in 0x7f866441d590
2019-02-12 10:50:25.929 :GIPCXCPT:2519627520: gipcInternalSetAttribute: failed during gipcInternalSetAttribute, ret gipcretInvalidAttribute (5)
2019-02-12 10:50:25.929 :GIPCXCPT:2519627520: gipcSetAttributeNativeF [clscrsconGipcConnect : clscrscon.c : 655]: EXCEPTION[ ret gipcretInvalid Attribute (5) ] failure for obj 0x7f86647145d0 [0000000000000fc1] { gipcEndpoint : localAddr ”, remoteAddr ”, numPend 0, numReady 0, numDone 0, numDead 0, numTransfer 0, objFlags 0x0, pidPeer 0, readyRef (nil), ready 0, wobj (nil), sendp (nil) status 13flags 0x20000000, flags-2 0x0, usrFlags 0x0 }, name ‘traceLevel’, val 0x7f86962cf004, len 4, flags 0x0
2019-02-12 10:50:26.014 : AGFW:2743070784: Recvd request to shed the threads
2019-02-12 10:50:26.014 :CLSFRAME:2743070784: TM [MultiThread] is changing desired thread # to 8. Current # is 9
2019-02-12 10:50:26.014 :CLSFRAME:2532235008: {0:1:5} Worker thread is exiting in TM [MultiThread] to meet the desired count of 8. New count is 8
…
…
…
2019-02-12 10:50:29.219 : USRTHRD:2519627520: {0:5:3} 7872 Error 4 opening dom root in 0x7f866465b680
2019-02-12 10:50:29.222 :GIPCXCPT:2519627520: gipcInternalSetAttribute: failed during gipcInternalSetAttribute, ret gipcretInvalidAttribute (5)
2019-02-12 10:50:29.222 :GIPCXCPT:2519627520: gipcSetAttributeNativeF [clscrsconGipcConnect : clscrscon.c : 655]: EXCEPTION[ ret gipcretInvalid
Attribute (5) ] failure for obj 0x7f8664546cd0 [0000000000002068] { gipcEndpoint : localAddr ”, remoteAddr ”, numPend 0, numReady 0, numDone
0, numDead 0, numTransfer 0, objFlags 0x0, pidPeer 0, readyRef (nil), ready 0, wobj (nil), sendp (nil) status 13flags 0x20000000, flags-2 0x0, usrFlags 0x0 }, name ‘traceLevel’, val 0x7f86962cf004, len 4, flags 0x0
…
2019-02-12 10:50:34.664 : USRTHRD:2519627520: {0:5:3} 7872 Error 4 opening dom root in 0x7f86645abf50
2019-02-12 10:50:34.668 :GIPCXCPT:2519627520: gipcInternalSetAttribute: failed during gipcInternalSetAttribute, ret gipcretInvalidAttribute (5)
2019-02-12 10:50:34.668 :GIPCXCPT:2519627520: gipcSetAttributeNativeF [clscrsconGipcConnect : clscrscon.c : 655]: EXCEPTION[ ret gipcretInvalid Attribute (5) ] failure for obj 0x7f8664707b20 [000000000000392d] { gipcEndpoint : localAddr ”, remoteAddr ”, numPend 0, numReady 0, numDone 0, numDead 0, numTransfer 0, objFlags 0x0, pidPeer 0, readyRef (nil), ready 0, wobj (nil), sendp (nil) status 13flags 0x20000000, flags-2 0x0, usrFlags 0x0 }, name ‘traceLevel’, val 0x7f86962cf004, len 4, flags 0x0
2019-02-12 10:50:35.715 : USRTHRD:2509133568: HAIP: event GIPCD_METRIC_UPDATE
2019-02-12 10:50:35.715 : USRTHRD:2512111360: {0:5:3} to verify inf event
2019-02-12 10:50:35.724 : default:2519627520: clsCredDomClose: Credctx deleted 0x7f866443f840
2019-02-12 10:50:35.724 : USRTHRD:2519627520: {0:5:3} — trace dump on error exit —
2019-02-12 10:50:35.724 : USRTHRD:2519627520: {0:5:3} Error [kgfoAl06] in [kgfokge] at kgfo.c:3115
2019-02-12 10:50:35.724 : USRTHRD:2519627520: {0:5:3} ORA-12547: TNS:lost contact
ORA-12547: TNS:lost contact
ORA-15077: could not locate ASM instance serving a required diskgroup

2019-02-12 10:50:35.724 : USRTHRD:2519627520: {0:5:3} Category: 7
2019-02-12 10:50:35.724 : USRTHRD:2519627520: {0:5:3} DepInfo: 12547
2019-02-12 10:50:35.724 : USRTHRD:2519627520: {0:5:3} — trace dump end —
2019-02-12 10:50:35.724 :CLSDYNAM:2519627520: [ora.storage]{0:5:3} [start] StorageAgent::parsekgforetcodes retcode = 7, kgfoCheckMount(OCRDG), flag 2
2019-02-12 10:50:35.724 :CLSDYNAM:2519627520: [ora.storage]{0:5:3} [start] (null) category: 7, operation: kgfoAl06, loc: kgfokge, OS error: 1254
7, other: ORA-12547: TNS:lost contact
ORA-12547: TNS:lost contact
ORA-15077: could not locate ASM instance serving a required diskgroup
2019-02-12 10:50:35.724 :CLSDYNAM:2519627520: [ora.storage]{0:5:3} [start] StorageAgent::check kgfo returncode 1
2019-02-12 10:50:35.724 :CLSDYNAM:2519627520: [ora.storage]{0:5:3} [start] (:CLSN00140:)StorageAgent::parsekgforretcodes OCR dgName OCRDG state 1

Note:
从日志看应该是在CRS启动时没有发现ASM DISKGROUP,  asm 启动时在取asm 认证证数时出错，提示是ora-12547和ora-15055， Flex ASM中ASM server启动时要连接所有asm network.  下一步检查NODE1 的ASM listener.

grid@anbobstb01:/home/grid> crsctl stat res -t
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Local Resources
--------------------------------------------------------------------------------
ora.ARCHDG.dgONLINE  ONLINE       anbobstb01                  STABLE
ora.ASMNET1LSNR_ASM.lsnrONLINE  ONLINE       anbobstb01                  STABLE
ora.DATADG.dgONLINE  ONLINE       anbobstb01                  STABLE
ora.LISTENER.lsnrONLINE  ONLINE       anbobstb01                  STABLE
ora.MGMT.dgONLINE  ONLINE       anbobstb01                  STABLE
ora.OCRDG.dgONLINE  ONLINE       anbobstb01                  STABLE
ora.chadONLINE  ONLINE       anbobstb01                  STABLE
ora.net1.networkONLINE  ONLINE       anbobstb01                  STABLE
ora.onsONLINE  ONLINE       anbobstb01                  STABLE
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.LISTENER_SCAN1.lsnr1        ONLINE  ONLINE       anbobstb01                  STABLE
ora.MGMTLSNR1        ONLINE  ONLINE       anbobstb01                  169.254.143.82 192.168.43.33,STABLE
ora.asm1        ONLINE  ONLINE       anbobstb01                  Started,STABLE2        ONLINE  OFFLINE                               STABLE3        OFFLINE OFFLINE                               STABLE
ora.cvu1        ONLINE  ONLINE       anbobstb01                  STABLE
ora.mgmtdb1        ONLINE  ONLINE       anbobstb01                  Open,STABLE
ora.anbobstb01.vip1        ONLINE  ONLINE       anbobstb01                  STABLE
ora.anbobstb02.vip1        ONLINE  INTERMEDIATE anbobstb01                  FAILED OVER,STABLE
ora.qosmserver1        ONLINE  ONLINE       anbobstb01                  STABLE
ora.rptstby.db1        OFFLINE OFFLINE                               Instance Shutdown,STABLE2        ONLINE  ONLINE       anbobstb01                  Open,Readonly,HOME=/oracle/app/oracle/product/12.2.0/db_1,STABLE
ora.scan1.vip1        ONLINE  ONLINE       anbobstb01                  STABLE
--------------------------------------------------------------------------------
grid@anbobstb01:/home/grid> crsctl stat res -t -init
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.asm1        ONLINE  ONLINE       anbobstb01                  Started,STABLE
ora.cluster_interconnect.haip1        ONLINE  ONLINE       anbobstb01                  STABLE
ora.crf1        ONLINE  ONLINE       anbobstb01                  STABLE
ora.crsd1        ONLINE  ONLINE       anbobstb01                  STABLE
ora.cssd1        ONLINE  ONLINE       anbobstb01                  STABLE
ora.cssdmonitor1        ONLINE  ONLINE       anbobstb01                  STABLE
ora.ctssd1        ONLINE  ONLINE       anbobstb01                  OBSERVER,STABLE
ora.diskmon1        OFFLINE OFFLINE                               STABLE
ora.drivers.acfs1        ONLINE  ONLINE       anbobstb01                  STABLE
ora.evmd1        ONLINE  ONLINE       anbobstb01                  STABLE
ora.gipcd1        ONLINE  ONLINE       anbobstb01                  STABLE
ora.gpnpd1        ONLINE  ONLINE       anbobstb01                  STABLE
ora.mdnsd1        ONLINE  ONLINE       anbobstb01                  STABLE
ora.storage1        ONLINE  ONLINE       anbobstb01                  STABLE
--------------------------------------------------------------------------------grid@anbobstb01:/home/grid> ocrdump /tmp/ocr.dmp
PROT-310: Not all keys were dumped due to permissions.
grid@anbobstb01:/home/grid> vi /tmp/ocr.dmp[SYSTEM.ASM.CREDENTIALS.USERS.CRSUSER__ASM_001]
ORATEXT : bb15e951dcbc4fc2ff3aec3bfe1f0424:grid   --credentials is exist
SECURITY : {USER_PERMISSION : PROCR_ALL_ACCESS, GROUP_PERMISSION : PROCR_READ, OTHER_PERMISSION : PROCR_NONE, USER_NAME : grid, GROUP_NAME : oinstall}grid@anbobstb01:~$oifcfg getif
bond0  133.96.43.0  global  public
bond1  192.168.43.0  global  cluster_interconnect,asmgrid@anbobstb01:/oracle/app/12.2.0/grid/bin> ps -ef|grep lsnr
grid      1411     1  0  2018 ?        00:01:53 /oracle/app/12.2.0/grid/bin/tnslsnr LISTENER_SCAN1 -no_crs_notify -inherit
grid      6585     1  0  2018 ?        00:00:21 /oracle/app/12.2.0/grid/bin/tnslsnr listener_dg -inherit
grid     25826 19172  0 10:57 pts/3    00:00:00 grep --color=auto lsnr
grid     72783     1  0  2018 ?        00:02:01 /oracle/app/12.2.0/grid/bin/tnslsnr MGMTLSNR -no_crs_notify -inherit
grid     78242     1  0 Feb12 ?        00:00:05 /oracle/app/12.2.0/grid/bin/tnslsnr LISTENER -no_crs_notify -inherit
grid     80521     1  0 Feb12 ?        00:00:35 /oracle/app/12.2.0/grid/bin/tnslsnr ASMNET1LSNR_ASM -no_crs_notify -inheritgrid@anbobstb01:/oracle/app/12.2.0/grid/bin> lsnrctl status ASMNET1LSNR_ASM
LSNRCTL for Linux: Version 12.2.0.1.0 - Production on 13-FEB-2019 10:57:43
Copyright (c) 1991, 2016, Oracle.  All rights reserved.
Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=IPC)(KEY=ASMNET1LSNR_ASM)))
STATUS of the LISTENER
------------------------
Alias                     ASMNET1LSNR_ASM
Version                   TNSLSNR for Linux: Version 12.2.0.1.0 - Production
Start Date                12-FEB-2019 18:21:02
Uptime                    0 days 16 hr. 36 min. 40 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /oracle/app/12.2.0/grid/network/admin/listener.ora
Listener Log File         /oracle/app/grid/diag/tnslsnr/anbobstb01/asmnet1lsnr_asm/alert/log.xml
Listening Endpoints Summary...(DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=ASMNET1LSNR_ASM)))(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=192.168.43.33)(PORT=1526)))
The listener supports no services
The command completed successfullygrid@anbobstb01:/oracle/app/grid/diag/tnslsnr/anbobstb01/asmnet1lsnr_asm/trace> vi asmnet1lsnr_asm.log2019-02-13T10:57:16.203184+08:00
Incoming connection from 192.168.43.34 rejected
13-FEB-2019 10:57:16 * 12546
TNS-12546: TNS:permission deniedTNS-12560: TNS:protocol adapter errorTNS-00516: Permission deniedgrid@anbobstb01:/oracle/app/grid/diag/tnslsnr/anbobstb01/asmnet1lsnr_asm/trace> telnet 192.168.43.33 1526
Trying 192.168.43.33...
Connected to 192.168.43.33.
Escape character is '^]'.
Connection closed by foreign host.

Note:
实例1上看当前使用是没问题的， 但是上面运行的ASM listener没有服务， 使用telnet 发现很快会被拒绝， 检查iptables 没有限制，使用tcpdump 发现是监听进程发出的reset package. 如果当前的ASM Listener没有服务，那么Flex ASM 集群间就没有办法通信。跟监听连接相关的限制可能是sqlnet.ora.

grid@anbobstb01:/oracle/app/12.2.0/grid/network/admin> vi sqlnet.ora
NAMES.DIRECTORY_PATH= (TNSNAMES,EZCONNECT)ADR_BASE = /oracle/app/grid
TCP.VALIDNODE_CHECKING=yes
TCP.INVITED_NODES=(...)

Note:
发现果然有sqlnet.ora中配置白名单，但是sqlnet.ora文件是从primary database复制过来的， 而primary和standby的Private network(ASM network) 不是一个子网段，所以standby side的白名单中并没有ASM network， 而没有服务。

解决方法

解决起来就简单了，在sqlnet.ora中增加ASM network的网段值。 这里提醒下，以后增长监听白名单，记的除了前端应用IP，还要加PUBLIC NETWORK, PRIVATE NETWORK, SCAN IP, ASM NETWORK..

这篇关于Troubleshooting 12C node2 CRS start fail with ORA-12547 and ORA-15077 in Flex ASM 案例的文章就介绍到这儿，希望我们推荐的文章对编程师们有所帮助！


http://www.chinasem.cn/article/190524。

相关文章

Hadoop企业开发案例调优场景

Hadoop企业开发案例调优场景

需求 （1）需求：从1G数据中，统计每个单词出现次数。服务器3台，每台配置4G内存，4核CPU，4线程。 （2）需求分析： 1G / 128m = 8个MapTask；1个ReduceTask；1个mrAppMaster 平均每个节点运行10个 / 3台 ≈ 3个任务（4    3    3） HDFS参数调优 （1）修改：hadoop-env.sh export HDFS_NAMENOD
阅读更多...
性能分析之MySQL索引实战案例

性能分析之MySQL索引实战案例

文章目录 一、前言二、准备三、MySQL索引优化四、MySQL 索引知识回顾五、总结 一、前言 在上一讲性能工具之 JProfiler 简单登录案例分析实战中已经发现SQL没有建立索引问题，本文将一起从代码层去分析为什么没有建立索引？ 开源ERP项目地址：https://gitee.com/jishenghua/JSH_ERP 二、准备 打开IDEA找到登录请求资源路径位置
阅读更多...
深入探索协同过滤：从原理到推荐模块案例

深入探索协同过滤：从原理到推荐模块案例

文章目录 前言一、协同过滤1. 基于用户的协同过滤（UserCF）2. 基于物品的协同过滤（ItemCF）3. 相似度计算方法 二、相似度计算方法1. 欧氏距离2. 皮尔逊相关系数3. 杰卡德相似系数4. 余弦相似度 三、推荐模块案例1.基于文章的协同过滤推荐功能2.基于用户的协同过滤推荐功能 前言     在信息过载的时代，推荐系统成为连接用户与内容的桥梁。本文聚焦于
阅读更多...
【区块链 + 人才服务】可信教育区块链治理系统 | FISCO BCOS应用案例

【区块链 + 人才服务】可信教育区块链治理系统 | FISCO BCOS应用案例

伴随着区块链技术的不断完善，其在教育信息化中的应用也在持续发展。利用区块链数据共识、不可篡改的特性， 将与教育相关的数据要素在区块链上进行存证确权，在确保数据可信的前提下，促进教育的公平、透明、开放，为教育教学质量提升赋能，实现教育数据的安全共享、高等教育体系的智慧治理。 可信教育区块链治理系统的顶层治理架构由教育部、高校、企业、学生等多方角色共同参与建设、维护，支撑教育资源共享、教学质量评估、
阅读更多...
客户案例：安全海外中继助力知名家电企业化解海外通邮困境

客户案例：安全海外中继助力知名家电企业化解海外通邮困境

1、客户背景 广东格兰仕集团有限公司（以下简称“格兰仕”），成立于1978年，是中国家电行业的领军企业之一。作为全球最大的微波炉生产基地，格兰仕拥有多项国际领先的家电制造技术，连续多年位列中国家电出口前列。格兰仕不仅注重业务的全球拓展，更重视业务流程的高效与顺畅，以确保在国际舞台上的竞争力。 2、需求痛点 随着格兰仕全球化战略的深入实施，其海外业务快速增长，电子邮件成为了关键的沟通工具。
阅读更多...
【区块链 + 人才服务】区块链集成开发平台 | FISCO BCOS应用案例

【区块链 + 人才服务】区块链集成开发平台 | FISCO BCOS应用案例

随着区块链技术的快速发展，越来越多的企业开始将其应用于实际业务中。然而，区块链技术的专业性使得其集成开发成为一项挑战。针对此，广东中创智慧科技有限公司基于国产开源联盟链 FISCO BCOS 推出了区块链集成开发平台。该平台基于区块链技术，提供一套全面的区块链开发工具和开发环境，支持开发者快速开发和部署区块链应用。此外，该平台还可以提供一套全面的区块链开发教程和文档，帮助开发者快速上手区块链开发。
阅读更多...
GNSS CTS GNSS Start and Location Flow of Android15

GNSS CTS GNSS Start and Location Flow of Android15

目录 1. 本文概述2.CTS 测试3.Gnss Flow3.1 Gnss Start Flow3.2 Gnss Location Output Flow 1. 本文概述 本来是为了做Android 14 Gnss CTS 的相关环境的搭建和测试，然后在测试中遇到了一些问题，去寻找CTS源码(/cts/tests/tests/location/src/android/locat
阅读更多...
Oracle Start With关键字

Oracle Start With关键字

Oracle Start With关键字 前言 旨在记录一些Oracle使用中遇到的各种各样的问题. 同时希望能帮到和我遇到同样问题的人. Start With (树查询) 问题描述: 在数据库中, 有一种比较常见得 设计模式, 层级结构 设计模式, 具体到 Oracle table中, 字段特点如下: ID, DSC, PID; 三个字段, 分别表示 当前标识的 ID(主键), DSC 当
阅读更多...
STL经典案例（四）——实验室预约综合管理系统（项目涉及知识点很全面，内容有点多，耐心看完会有收获的！）

STL经典案例（四）——实验室预约综合管理系统（项目涉及知识点很全面，内容有点多，耐心看完会有收获的！）

项目干货满满，内容有点过多，看起来可能会有点卡。系统提示读完超过俩小时，建议分多篇发布，我觉得分篇就不完整了，失去了这个项目的灵魂 一、需求分析 高校实验室预约管理系统包括三种不同身份：管理员、实验室教师、学生 管理员：给学生和实验室教师创建账号并分发 实验室教师：审核学生的预约申请 学生：申请使用实验室 高校实验室包括：超景深实验室（可容纳10人）、大数据实验室（可容纳20人）、物联网实验
阅读更多...
笔记整理—内核！启动！—kernel部分（2）从汇编阶段到start_kernel

笔记整理—内核！启动！—kernel部分（2）从汇编阶段到start_kernel

kernel起始与ENTRY(stext)，和uboot一样，都是从汇编阶段开始的，因为对于kernel而言，还没进行栈的维护，所以无法使用c语言。_HEAD定义了后面代码属于段名为.head .text的段。         内核起始部分代码被解压代码调用，前面关于uboot的文章中有提到过（eg:zImage）。uboot启动是无条件的，只要代码的位置对，上电就工作，kern
阅读更多...

Copyright China编程 23002807@qq.com

沪ICP备2023033072号-2
