Android 简单IjkVideoView播放视频

ijkplayer是Bilibili基于ffmpeg开发并开源的轻量级视频播放器，支持播放本地网络视频，也支持流媒体播放。支持Android&iOS。

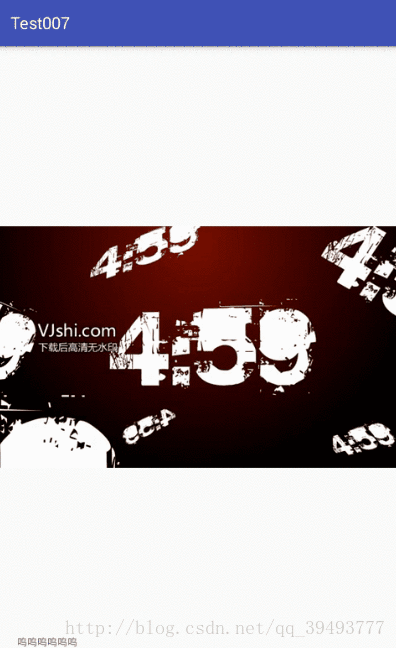

效果展示

导包

ijkplayer导包源码下载https://github.com/lmx-fashion/IjikPlayer
我们需要的只有widget.media和libs

然后进行配置就好了

修改APP下的build.gradle, 主要设置.so及.aar的位置:

    apply plugin: 'com.android.application'  android {  compileSdkVersion 24  buildToolsVersion "25.0.0"  defaultConfig {  applicationId "com.hx.ijkplayer_demo"  minSdkVersion 14  targetSdkVersion 24  versionCode 1  versionName "1.0"  testInstrumentationRunner "android.support.test.runner.AndroidJUnitRunner"  }  buildTypes {  release {  minifyEnabled false  proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'  }  }  sourceSets {  main {  jniLibs.srcDirs = ['libs']  /**在libs文件夹下找so文件*/  }  }  }  repositories {  mavenCentral()  flatDir {  dirs 'libs' /**在libs文件夹下找aar文件*/  }  }  dependencies {  compile fileTree(dir: 'libs', include: ['*.jar'])  androidTestCompile('com.android.support.test.espresso:espresso-core:2.2.2', {  exclude group: 'com.android.support', module: 'support-annotations'  })  compile 'com.android.support:appcompat-v7:24.2.1'  testCompile 'junit:junit:4.12'  compile(name: 'ijkplayer-java-release', ext: 'aar') /**编译ijkplayer-java-release.aar文件*/  }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

第二步就是清单文件

    <uses-permission android:name="android.permission.INTERNET"/>  <application  android:configChanges="orientation|keyboardHidden"     《》------ //手机二次退出  android:allowBackup="true"  android:icon="@mipmap/ic_launcher"  android:label="@string/app_name"  android:supportsRtl="true"  android:theme="@style/AppTheme">  <activity android:name=".MainActivity"  android:screenOrientation="sensorLandscape"            《-------------这两行配置  android:configChanges="orientation|keyboardHidden">  <intent-filter>  <action android:name="android.intent.action.MAIN" />  <category android:name="android.intent.category.LAUNCHER" />  </intent-filter>  </activity>  </application>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

Xml代码，其中的IjkVideoView的路径需要自己根据自己studio的提示配置，

    <?xml version="1.0" encoding="utf-8"?>  <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"  xmlns:tools="http://schemas.android.com/tools"  android:id="@+id/activity_main"  android:layout_width="match_parent"  android:layout_height="match_parent"  android:paddingBottom="@dimen/activity_vertical_margin"  android:paddingLeft="@dimen/activity_horizontal_margin"  android:paddingRight="@dimen/activity_horizontal_margin"  android:paddingTop="@dimen/activity_vertical_margin"  tools:context="com.eightgroup.ijkplayer.MainActivity">  <com.eightgroup.ijkplayer.widget.media.IjkVideoView  android:id="@+id/video_view"  android:layout_width="match_parent"  android:layout_height="match_parent"/>  </RelativeLayout>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

MainActivity

    public class MainActivity extends AppCompatActivity {  private IjkVideoView videoView;  @Override  protected void onCreate(Bundle savedInstanceState) {  super.onCreate(savedInstanceState);  setContentView(R.layout.activity_main);  videoView = (IjkVideoView) findViewById(R.id.video_view);  videoView.setAspectRatio(IRenderView.AR_ASPECT_FIT_PARENT);  videoView.setVideoURI(Uri.parse("http://mp4.vjshi.com/2013-05-28/2013052815051372.mp4"));  videoView.start();  }  }
1
2
3
4
5
6
7
8
9
10
11
12

导入工具类widget.media

导入lib包
