问题来源
项目需要echarts进行地图响应，大致是点击区域就将该区域放大，实现交互，经过对Echarts2的例子研究，使用geoselectedchanged事件应该能达到效果。
数据
所用数据均可从Echarts下载。
guangxi.js——包含广西及下属区域的geojson
nanning.js——只有南宁边界的geojson，由于select选择返回的name属性是汉字，所以最好注册时换成一样的名称(registerMap(xx,...))。
源码
最大的特点就是利用切换图的options来实现下钻，所以要对Echarts的属性要有所了解。
var myChart = echarts.init(document.getElementById('mychart'));/*** 获取图表属性* @param name select的名称*/function getChartOptions(name){return {geo: { //地图写在geo组件上map: name, //更换的名称roam: true,selectedMode: 'single',label: {normal: {show: true,textStyle: {color: 'rgba(0,0,0,0.4)'}}},itemStyle: {normal:{borderColor: 'rgba(0, 0, 0, 0.2)'},emphasis:{areaColor: null,shadowOffsetX: 0,shadowOffsetY: 0,shadowBlur: 20,borderWidth: 0,shadowColor: 'rgba(0, 0, 0, 0.5)'}}}, series: [{type: 'scatter', //散点图-可以添加动态点coordinateSystem: 'geo',data: [{name:'测试',value:[111.277824,23.488651]}],symbolSize: 20,symbol: 'path://M1705.06,1318.313v-89.254l-319.9-221.799l0.073-208.063c0.521-84.662-26.629-121.796-63.961-121.491c-37.332-0.305-64.482,36.829-63.961,121.491l0.073,208.063l-319.9,221.799v89.254l330.343-157.288l12.238,241.308l-134.449,92.931l0.531,42.034l175.125-42.917l175.125,42.917l0.531-42.034l-134.449-92.931l12.238-241.308L1705.06,1318.313z',symbolRotate: 35,label: {normal: {formatter: '{b}',position: 'right',show: false},emphasis: {show: true}},itemStyle: {normal: {color: '#F06C00'}} }]};}//最初的属性myChart.setOption({geo: {map: 'guangxi', //全广西roam: true,selectedMode: 'single',label: {normal: {show: true,textStyle: {color: 'rgba(0,0,0,0.4)'}}},regions: [{ //单例样式name: '南宁市',itemStyle: {normal: {areaColor: '#666',color: '#666'}}}],itemStyle: {normal:{borderColor: 'rgba(0, 0, 0, 0.2)'},emphasis:{areaColor: null,shadowOffsetX: 0,shadowOffsetY: 0,shadowBlur: 20,borderWidth: 0,shadowColor: 'rgba(0, 0, 0, 0.5)'}}}, series: [{type: 'scatter',coordinateSystem: 'geo',data: [{name:'测试',value:[111.277824,23.488651]}],symbolSize: 20,symbol: 'path://M1705.06,1318.313v-89.254l-319.9-221.799l0.073-208.063c0.521-84.662-26.629-121.796-63.961-121.491c-37.332-0.305-64.482,36.829-63.961,121.491l0.073,208.063l-319.9,221.799v89.254l330.343-157.288l12.238,241.308l-134.449,92.931l0.531,42.034l175.125-42.917l175.125,42.917l0.531-42.034l-134.449-92.931l12.238-241.308L1705.06,1318.313z',symbolRotate: 35,label: {normal: {formatter: '{b}',position: 'right',show: false},emphasis: {show: true}},itemStyle: {normal: {color: '#F06C00'}} }]});//通过该事件进行底图的变换myChart.on('geoselectchanged', function (params) {myChart.setOption(getChartOptions(params.name));});效果

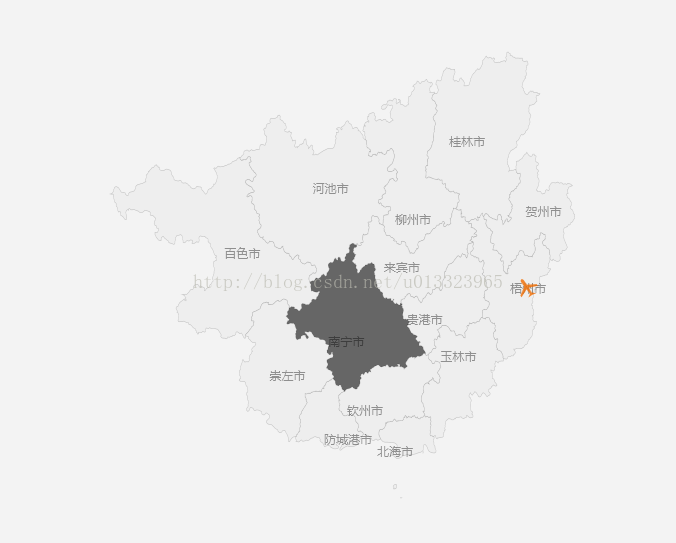

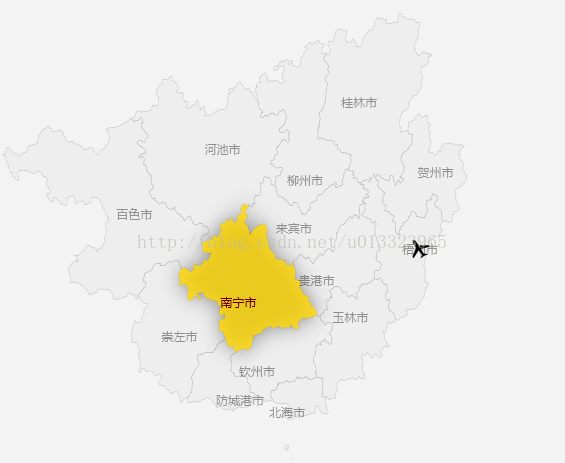

通过点击南宁市可以下钻放大到南宁区域，实现效果，而且可以添加自定义的坐标点。
