uboot1.1.6移植

2024-09-02 08:08
文章标签 移植 uboot1.1

本文主要是介绍uboot1.1.6移植,希望对大家解决编程问题提供一定的参考价值,需要的开发者们随着小编来一起学习吧!



TX2440_config    :    unconfig

    @$(MKCONFIG) $(@:_config=) armarm920tTX2440NULL s3c24x0


arm:CPU的构架(ARCH)

arm920t:CPU类型,对应于cpu/arm920t子目录

TX2440开发板的型号(BOARD),对应于 board/TX2440 目录

NULL:开发者/经销商(vender)。

s3c24x0:片上系统(SOC)。


指定交叉编译器(128行),也可以写绝对路径


ifeq ($(ARCH),arm)
CROSS_COMPILE = arm-linux-




如果出现这个就表明已经配置成功。

---------------------------------------------------------------------------------------------------------初始化内存---------------------------------------------------------------------------------------------------------------

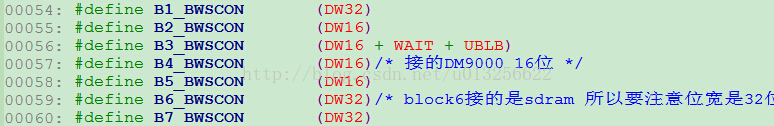

修改SDRAM(存储控制器)配置,调用了这个 文件来初始化内存


-------------------------------------------------------------------------------------------------------------设置时钟----------------------------------------------------------------------------------------------------------

设置TX2440的时钟


/*
 * (C) Copyright 2002
 * Sysgo Real-Time Solutions, GmbH <www.elinos.com>
 * Marius Groeger <mgroeger@sysgo.de>
 *
 * (C) Copyright 2002
 * David Mueller, ELSOFT AG, <d.mueller@elsoft.ch>
 *
 * See file CREDITS for list of people who contributed to this
 * project.
 *
 * This program is free software; you can redistribute it and/or
 * modify it under the terms of the GNU General Public License as
 * published by the Free Software Foundation; either version 2 of
 * the License, or (at your option) any later version.
 *
 * This program is distributed in the hope that it will be useful,
 * but WITHOUT ANY WARRANTY; without even the implied warranty of
 * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
 * GNU General Public License for more details.
 *
 * You should have received a copy of the GNU General Public License
 * along with this program; if not, write to the Free Software
 * Foundation, Inc., 59 Temple Place, Suite 330, Boston,
 * MA 02111-1307 USA
 */

#include <common.h>
#include <s3c2410.h>

DECLARE_GLOBAL_DATA_PTR;

#define FCLK_SPEED 1

#if FCLK_SPEED==0       /* Fout = 203MHz, Fin = 12MHz for Audio */
#define M_MDIV  0xC3
#define M_PDIV  0x4
#define M_SDIV  0x1
#elif FCLK_SPEED==1     /* Fout = 202.8MHz */
#define M_MDIV  0xA1
#define M_PDIV  0x3
#define M_SDIV  0x1
#endif

#define USB_CLOCK 1

#if USB_CLOCK==0
#define U_M_MDIV    0xA1
#define U_M_PDIV    0x3
#define U_M_SDIV    0x1
#elif USB_CLOCK==1
#define U_M_MDIV    0x48
#define U_M_PDIV    0x3
#define U_M_SDIV    0x2
#endif

static inline void delay (unsigned long loops)
{
    __asm__ volatile ("1:\n"
      "subs %0, %1, #1\n"
      "bne 1b":"=r" (loops):"0" (loops));
}

/*
 * Miscellaneous platform dependent initialisations
 */


/* S3C2440: Mpll,Upll = (2*m * Fin) / (p * 2^s)
* m = M (the value for divider M)+ 8, p = P (the value for divider P) + 2
*/
#define S3C2440_MPLL_400MHZ ((0x7f<<12)|(0x02<<4)|(0x01))
#define S3C2440_UPLL_48MHZ ((0x38<<12)|(0x02<<4)|(0x02))
#define S3C2440_CLKDIV 0x05 /* FCLK:HCLK:PCLK = 1:4:8 */
/* S3C2410: Mpll,Upll = (m * Fin) / (p * 2^s)
* m = M (the value for divider M)+ 8, p = P (the value for divider P) + 2
*/
#define S3C2410_MPLL_200MHZ ((0x5c<<12)|(0x04<<4)|(0x00))
#define S3C2410_UPLL_48MHZ ((0x28<<12)|(0x01<<4)|(0x02))
#define S3C2410_CLKDIV 0x03 /* FCLK:HCLK:PCLK = 1:2:4 */
int board_init (void)
{

    S3C24X0_CLOCK_POWER * const clk_power = S3C24X0_GetBase_CLOCK_POWER();
    S3C24X0_GPIO * const gpio = S3C24X0_GetBase_GPIO();
    /* set up the I/O ports */
    gpio->GPACON = 0x007FFFFF;
    gpio->GPBCON = 0x00044555;
    gpio->GPBUP = 0x000007FF;
    gpio->GPCCON = 0xAAAAAAAA;
    gpio->GPCUP = 0x0000FFFF;
    gpio->GPDCON = 0xAAAAAAAA;
    gpio->GPDUP = 0x0000FFFF;
    gpio->GPECON = 0xAAAAAAAA;
    gpio->GPEUP = 0x0000FFFF;
    gpio->GPFCON = 0x000055AA;
    gpio->GPFUP = 0x000000FF;
    gpio->GPGCON = 0xFF95FFBA;
    gpio->GPGUP = 0x0000FFFF;
    gpio->GPHCON = 0x002AFAAA;
    gpio->GPHUP = 0x000007FF;

    /*support both of S3C2410 and S3C2440*/
    if ((gpio->GSTATUS1 == 0x32410000) || (gpio->GSTATUS1 == 0x32410002))
    {
        /*FCLK:HCLK:PCLK = 1:2:4*/
        clk_power->CLKDIVN = S3C2410_CLKDIV;

        /* change to asynchronous bus mod */
        __asm__( "mrc p15, 0, r1, c1, c0, 0\n" /* read ctrl register */
                "orr r1, r1, #0xc0000000\n" /* Asynchronous */
                "mcr p15, 0, r1, c1, c0, 0\n" /* write ctrl register */
                :::"r1"
                );

        /* to reduce PLL lock time, adjust the LOCKTIME register */
        clk_power->LOCKTIME = 0xFFFFFF;

        /* configure MPLL */
        clk_power->MPLLCON = S3C2410_MPLL_200MHZ;

        /* some delay between MPLL and UPLL */
        delay (4000);

        /* configure UPLL */
        clk_power->UPLLCON = S3C2410_UPLL_48MHZ;
        /* some delay between MPLL and UPLL */
        delay (8000);

        /* arch number of SMDK2410-Board */
        gd->bd->bi_arch_number = MACH_TYPE_SMDK2410;
    }
    else
    {
        /* FCLK:HCLK:PCLK = 1:4:8 */
        clk_power->CLKDIVN = S3C2440_CLKDIV;

        /* change to asynchronous bus mod */
        __asm__( "mrc p15, 0, r1, c1, c0, 0\n" /* read ctrl register */
                "orr r1, r1, #0xc0000000\n" /* Asynchronous */
                "mcr p15, 0, r1, c1, c0, 0\n" /* write ctrl register */
                :::"r1"
                );

        /* to reduce PLL lock time, adjust the LOCKTIME register */
        clk_power->LOCKTIME = 0xFFFFFF;

        /* configure MPLL */
        clk_power->MPLLCON = S3C2440_MPLL_400MHZ;

        /* some delay between MPLL and UPLL */
        delay (4000);

        /* configure UPLL */
        clk_power->UPLLCON = S3C2440_UPLL_48MHZ;

        /* some delay between MPLL and UPLL */
        delay (8000);

        /* arch number of SMDK2440-Board */
        gd->bd->bi_arch_number = MACH_TYPE_S3C2440;
    }

    /* adress of boot parameters */
    gd->bd->bi_boot_params = 0x30000100;
    icache_enable();
    dcache_enable();
    return 0;
}



int dram_init (void)
{
    gd->bd->bi_dram[0].start = PHYS_SDRAM_1;
    gd->bd->bi_dram[0].size = PHYS_SDRAM_1_SIZE;

    return 0;
}


在程序的开头增加这一行

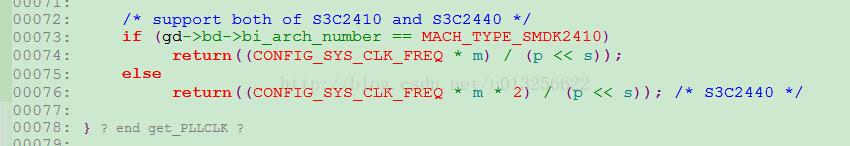

在    static ulong get_PLLCLK(int pllreg)后面增加这几句

    if (gd->bd->bi_arch_number == MACH_TYPE_SMDK2410)
         return((CONFIG_SYS_CLK_FREQ * m) / (p << s));
    else
         return((CONFIG_SYS_CLK_FREQ * m * 2) / (p << s)); /* S3C2440 */




修改get_HCLK 和 get_PCLK

/*
 * (C) Copyright 2001-2004
 * Wolfgang Denk, DENX Software Engineering, wd@denx.de.
 *
 * (C) Copyright 2002
 * David Mueller, ELSOFT AG, d.mueller@elsoft.ch
 *
 * See file CREDITS for list of people who contributed to this
 * project.
 *
 * This program is free software; you can redistribute it and/or
 * modify it under the terms of the GNU General Public License as
 * published by the Free Software Foundation; either version 2 of
 * the License, or (at your option) any later version.
 *
 * This program is distributed in the hope that it will be useful,
 * but WITHOUT ANY WARRANTY; without even the implied warranty of
 * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
 * GNU General Public License for more details.
 *
 * You should have received a copy of the GNU General Public License
 * along with this program; if not, write to the Free Software
 * Foundation, Inc., 59 Temple Place, Suite 330, Boston,
 * MA 02111-1307 USA
 */

/* This code should work for both the S3C2400 and the S3C2410
 * as they seem to have the same PLL and clock machinery inside.
 * The different address mapping is handled by the s3c24xx.h files below.
 */

#include <common.h>
#if defined(CONFIG_S3C2400) || defined (CONFIG_S3C2410) || defined (CONFIG_TRAB)

#if defined(CONFIG_S3C2400)
#include <s3c2400.h>
#elif defined(CONFIG_S3C2410)
#include <s3c2410.h>
#endif

#define MPLL 0
#define UPLL 1
DECLARE_GLOBAL_DATA_PTR;
/* ------------------------------------------------------------------------- */
/* NOTE: This describes the proper use of this file.
 *
 * CONFIG_SYS_CLK_FREQ should be defined as the input frequency of the PLL.
 *
 * get_FCLK(), get_HCLK(), get_PCLK() and get_UCLK() return the clock of
 * the specified bus in HZ.
 */
/* ------------------------------------------------------------------------- */

static ulong get_PLLCLK(int pllreg)
{
    S3C24X0_CLOCK_POWER * const clk_power = S3C24X0_GetBase_CLOCK_POWER();
    ulong r, m, p, s;

    if (pllreg == MPLL)
        r = clk_power->MPLLCON;

    else if (pllreg == UPLL)
        r = clk_power->UPLLCON;

    else
      hang();

    m = ((r & 0xFF000) >> 12) + 8;
    p = ((r & 0x003F0) >> 4) + 2;
    s = r & 0x3;

    /* support both of S3C2410 and S3C2440 */
    if (gd->bd->bi_arch_number == MACH_TYPE_SMDK2410)
         return((CONFIG_SYS_CLK_FREQ * m) / (p << s));
    else
         return((CONFIG_SYS_CLK_FREQ * m * 2) / (p << s)); /* S3C2440 */


}

/* return FCLK frequency */
ulong get_FCLK(void)
{
    return(get_PLLCLK(MPLL));
}

/* return HCLK frequency */

/* for s3c2440 */
#define S3C2440_CLKDIVN_PDIVN (1<<0)
#define S3C2440_CLKDIVN_HDIVN_MASK (3<<1)
#define S3C2440_CLKDIVN_HDIVN_1 (0<<1)
#define S3C2440_CLKDIVN_HDIVN_2 (1<<1)
#define S3C2440_CLKDIVN_HDIVN_4_8 (2<<1)
#define S3C2440_CLKDIVN_HDIVN_3_6 (3<<1)
#define S3C2440_CLKDIVN_UCLK (1<<3)
#define S3C2440_CAMDIVN_CAMCLK_MASK (0xf<<0)
#define S3C2440_CAMDIVN_CAMCLK_SEL (1<<4)
#define S3C2440_CAMDIVN_HCLK3_HALF (1<<8)
#define S3C2440_CAMDIVN_HCLK4_HALF (1<<9)
#define S3C2440_CAMDIVN_DVSEN (1<<12)

/* return HCLK frequency */
ulong get_HCLK(void)
{
        S3C24X0_CLOCK_POWER * const clk_power = S3C24X0_GetBase_CLOCK_POWER();
        unsigned long clkdiv;
        unsigned long camdiv;

        int hdiv = 1;

        /* support both of S3C2410 and S3C2440 */
        if (gd->bd->bi_arch_number == MACH_TYPE_SMDK2410)
               return((clk_power->CLKDIVN & 0x2) ? get_FCLK()/2 : get_FCLK());
        else
        {
            clkdiv = clk_power->CLKDIVN;
            camdiv = clk_power->CAMDIVN;

            /* work out clock scalings */
            switch (clkdiv & S3C2440_CLKDIVN_HDIVN_MASK)
            {
                    case S3C2440_CLKDIVN_HDIVN_1:
                    hdiv = 1;
                    break;

                    case S3C2440_CLKDIVN_HDIVN_2:
                    hdiv = 2;
                    break;

                    case S3C2440_CLKDIVN_HDIVN_4_8:
                    hdiv = (camdiv & S3C2440_CAMDIVN_HCLK4_HALF) ? 8 : 4;
                    break;

                    case S3C2440_CLKDIVN_HDIVN_3_6:
                    hdiv = (camdiv & S3C2440_CAMDIVN_HCLK3_HALF) ? 6 : 3;
                    break;

            }

                return get_FCLK() / hdiv;
        }

}

/* return PCLK frequency */
ulong get_PCLK(void)
{
        S3C24X0_CLOCK_POWER * const clk_power = S3C24X0_GetBase_CLOCK_POWER();
        unsigned long clkdiv;
        unsigned long camdiv;
        int hdiv = 1;

        /* support both of S3C2410 and S3C2440 */
        if (gd->bd->bi_arch_number == MACH_TYPE_SMDK2410)
                return((clk_power->CLKDIVN & 0x1) ? get_HCLK()/2 : get_HCLK());
        else
        {
                clkdiv = clk_power->CLKDIVN;
                camdiv = clk_power->CAMDIVN;
                /* work out clock scalings */
                switch (clkdiv & S3C2440_CLKDIVN_HDIVN_MASK)
                {
                        case S3C2440_CLKDIVN_HDIVN_1:
                        hdiv = 1;
                        break;

                        case S3C2440_CLKDIVN_HDIVN_2:
                        hdiv = 2;
                        break;

                        case S3C2440_CLKDIVN_HDIVN_4_8:
                        hdiv = (camdiv & S3C2440_CAMDIVN_HCLK4_HALF) ? 8 : 4;
                        break;

                        case S3C2440_CLKDIVN_HDIVN_3_6:
                        hdiv = (camdiv & S3C2440_CAMDIVN_HCLK3_HALF) ? 6 : 3;
                        break;

                }

                return get_FCLK() / hdiv / ((clkdiv & S3C2440_CLKDIVN_PDIVN)? 2:1);

        }

}


/* return UCLK frequency */
ulong get_UCLK(void)
{
    return(get_PLLCLK(UPLL));
}

#endif /* defined(CONFIG_S3C2400) || defined (CONFIG_S3C2410) || defined (CONFIG_TRAB) */



中加上这句 否则会出现

错误没有定义CAMDIVN


时钟配置完了,回到顶层目录u-boot-1.1.6# mke TX2440_config

                                                    u-boot-1.1.6# mke all

生成了.bin文件。








这篇关于uboot1.1.6移植的文章就介绍到这儿,希望我们推荐的文章对编程师们有所帮助!



http://www.chinasem.cn/article/1129439

相关文章

FreeRTOS-基本介绍和移植STM32

FreeRTOS-基本介绍和STM32移植 一、裸机开发和操作系统开发介绍二、任务调度和任务状态介绍2.1 任务调度2.1.1 抢占式调度2.1.2 时间片调度 2.2 任务状态 三、FreeRTOS源码和移植STM323.1 FreeRTOS源码3.2 FreeRTOS移植STM323.2.1 代码移植3.2.2 时钟中断配置 一、裸机开发和操作系统开发介绍 裸机:前后台系

RT-Thread(Nano版本)的快速移植(基于NUCLEO-F446RE)

目录 概述 1 RT-Thread 1.1 RT-Thread的版本  1.2 认识Nano版本 2 STM32F446U上移植RT-Thread  2.1 STM32Cube创建工程 2.2 移植RT-Thread 2.2.1 安装RT-Thread Packet  2.2.2 加载RT-Thread 2.2.3 匹配相关接口 2.2.3.1 初次编译代码  2.2.3.

libmad音频解码库-Linux交叉编译移植

下载并解压libmad-0.15.1b.tar.gz 下载链接:https://downloads.sourceforge.net/mad/libmad-0.15.1b.tar.gz $tar -xvf libmad-0.15.1b.tar.gz$cd libmad-0.15.1b 1、先执行下面的命令:这条命令是为了适配高版本的gcc,因为高版本的gcc已经将-fforce-mem去除了:

arm linux lua移植

lua: lua home 1.下载lua源码 lua下载 lua-5.3.4.tar.gz 2.解压: tar xvf lua-5.3.4.tar.gz 3.修改makefile and luaconf.h $修改 lua-5.3.4/Makefile #INSTALL_TOP= /usr/local INSTALL_TOP= $(shell pwd)/out #修改安装目录(当前目录/o

s3c2440---PWM使用之蜂鸣器驱动移植

一、蜂鸣器驱动介绍 1.1.什么是蜂鸣器               蜂鸣器是一种简单的声响发生器,常用于电子产品中作为警示或提醒作用。其基本原理是通过交替改变直流电的电压方向来产生声音,一般使用交替电流产生声音会比较稳定。 1.2.蜂鸣器的类别 1.有源蜂鸣器 1)结构原理 有源蜂鸣器内部自带振荡源,只需接通电源即可发声。内部电路会自动产生一定频率的振荡信号,从而驱动蜂鸣器发声。

【GD32】---- 移植工程模板及点灯测试

1 新建模板文件夹 新建一个名叫03_GD32TemplateProject的文件夹,用于建造工程模板 2 移植官方库文件 在模板文件夹里新建5个文件夹,分别存放官方库文件和系统驱动文件 01_main 存放main函数 02_Startup 存放系统启动文件 03_System 存放官方的系统文件 04_Firmware_PeripheralDriver 存放官方

[rk3588 ubuntu20.04]移植ROS2

目录 1 使用命令行安装ROS2 1.1设置语言 1.2添加源 1.3安装ROS2 1.4设置环境变量 2 在编译源码阶段安装ROS2 2.1调整roofts.img大小 2.2 安装ROS2 3 ROS2功能测试 1 使用命令行安装ROS2 1.1设置语言         设置语言为UTF-8。 sudo apt update && sudo apt insta

让linux下无线网卡变身随身wifi----hostapd移植-Nazgul

有了前面的检测,确定了我们的网卡是能够拥有热点共享功能的,但是如何让它共享出来呢? 于是有了这篇文章的诞生,hostapd移植 hostapd    可以让我们的网线网卡变成热点 1、下载     git clone git://w1.fi/srv/git/hostap.git   得到hostap目录,但是里面wpa_supplicant and hostapd的结合在

让linux下无线网卡变身随身wifi----前言--iw移植-Nazgul

最痛苦的事莫过于--上班 最最痛苦的事莫过于--上班有网不能上 最最最痛苦的事莫过于--上班有网能上却没有wifi 最最最最痛苦的事莫过于--你有无线网卡却没有U口可插 最最最最最痛苦的事莫过于--有U口插却发现U口只在开发板上 最最最最最最痛苦的事莫过于--开发板上有u口但是跑的是linux 最最最最最最最痛苦的事莫过于--linux能驱动网卡,但是如何共享出wifi来啊 于是,,,

游戏图片移植问题!DDS转PVR

折腾了两天,PS转PNG脚本无法批处理执行,Texturepacker PNG转PVR保存文件无效果。 最后还是用了神器PVRTexTool+BAT解决 首先下载:http://ishare.iask.sina.com.cn/f/18008068.html?from=like 配置好环境变量,右键点击我的电脑>属性>高级>环境变量,双击Path变量在最后的位置添加字段:F:\PVRTexTo
