本文主要是介绍手势密码（三），希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！


源码地址下载

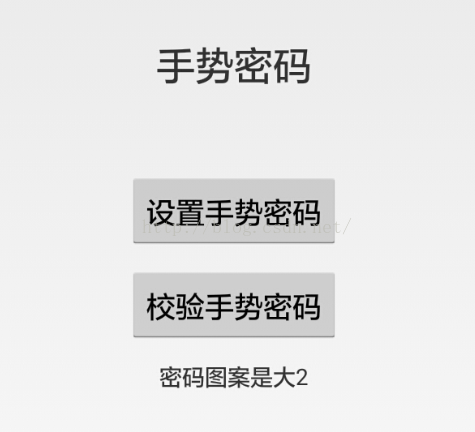

先看第一张图片的布局文件

activity_main.xml

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"xmlns:tools="http://schemas.android.com/tools"android:layout_width="match_parent"android:layout_height="match_parent"android:orientation="vertical"android:gravity="center_horizontal" ><TextViewandroid:layout_width="wrap_content"android:layout_height="wrap_content"android:layout_marginTop="40dip"android:textSize="24sp"android:text="手势密码" /><Buttonandroid:id="@+id/btn_set_lockpattern"android:layout_width="wrap_content"android:layout_height="wrap_content"android:layout_marginTop="50dip"android:text="设置手势密码" /><Buttonandroid:id="@+id/btn_verify_lockpattern"android:layout_width="wrap_content"android:layout_height="wrap_content"android:layout_marginTop="10dip"android:text="校验手势密码" /><TextView android:layout_width="wrap_content"android:layout_height="wrap_content"android:layout_marginTop="10dip"android:text="密码图案是大2"/></LinearLayout>
再看上面布局的java代码

MainActivity

package com.wujay.fund;import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;public class MainActivity extends Activity implements OnClickListener {private Button mBtnSetLock;private Button mBtnVerifyLock;@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);setUpView();setUpListener();}private void setUpView() {mBtnSetLock = (Button) findViewById(R.id.btn_set_lockpattern);mBtnVerifyLock = (Button) findViewById(R.id.btn_verify_lockpattern);}private void setUpListener() {mBtnSetLock.setOnClickListener(this);mBtnVerifyLock.setOnClickListener(this);}@Overridepublic void onClick(View v) {switch (v.getId()) {case R.id.btn_set_lockpattern:startSetLockPattern();break;case R.id.btn_verify_lockpattern:startVerifyLockPattern();break;default:break;}}private void startSetLockPattern() {Intent intent = new Intent(MainActivity.this, GestureEditActivity.class);startActivity(intent);}private void startVerifyLockPattern() {Intent intent = new Intent(MainActivity.this, GestureVerifyActivity.class);startActivity(intent);}
}

另外看下工具类和bean类

AppUtil

package com.wujay.fund.common;import android.content.Context;
import android.view.WindowManager;public class AppUtil {public static int[] getScreenDispaly(Context context) {WindowManager windowManager = (WindowManager) context.getSystemService(Context.WINDOW_SERVICE);int width = windowManager.getDefaultDisplay().getWidth();// 手机屏幕的宽度int height = windowManager.getDefaultDisplay().getHeight();// 手机屏幕的高度int result[] = { width, height };return result;}
}

再看9宫格的单位bean类

GesturePoint

package com.wujay.fund.entity;import com.wujay.fund.R;
import com.wujay.fund.common.Constants;import android.widget.ImageView;public class GesturePoint {/*** 状态值*/private int pointState;/** 代表这个Point对象代表的数字，从1开始(直接感觉从1开始)*/private int num;private int leftX;private int rightX;private int topY;private int bottomY;private ImageView image;private int centerX;private int centerY;public GesturePoint(int leftX, int rightX, int topY, int bottomY,ImageView image, int num) {super();this.leftX = leftX;this.rightX = rightX;this.topY = topY;this.bottomY = bottomY;this.image = image;this.centerX = (leftX + rightX) / 2;this.centerY = (topY + bottomY) / 2;this.num = num;}public int getLeftX() {return leftX;}public void setLeftX(int leftX) {this.leftX = leftX;}public int getRightX() {return rightX;}public void setRightX(int rightX) {this.rightX = rightX;}public int getTopY() {return topY;}public void setTopY(int topY) {this.topY = topY;}public int getBottomY() {return bottomY;}public void setBottomY(int bottomY) {this.bottomY = bottomY;}public ImageView getImage() {return image;}public void setImage(ImageView image) {this.image = image;}public int getCenterX() {return centerX;}public void setCenterX(int centerX) {this.centerX = centerX;}public int getCenterY() {return centerY;}public void setCenterY(int centerY) {this.centerY = centerY;}public int getPointState() {return pointState;}public void setPointState(int state) {pointState = state;switch (state) {case Constants.POINT_STATE_NORMAL:this.image.setBackgroundResource(R.drawable.gesture_node_normal);break;case Constants.POINT_STATE_SELECTED:this.image.setBackgroundResource(R.drawable.gesture_node_pressed);break;case Constants.POINT_STATE_WRONG:this.image.setBackgroundResource(R.drawable.gesture_node_wrong);break;default:break;}}public int getNum() {return num;}public void setNum(int num) {this.num = num;}@Overridepublic int hashCode() {final int prime = 31;int result = 1;result = prime * result + bottomY;result = prime * result + ((image == null) ? 0 : image.hashCode());result = prime * result + leftX;result = prime * result + rightX;result = prime * result + topY;return result;}@Overridepublic boolean equals(Object obj) {if (this == obj)return true;if (obj == null)return false;if (getClass() != obj.getClass())return false;GesturePoint other = (GesturePoint) obj;if (bottomY != other.bottomY)return false;if (image == null) {if (other.image != null)return false;} else if (!image.equals(other.image))return false;if (leftX != other.leftX)return false;if (rightX != other.rightX)return false;if (topY != other.topY)return false;return true;}@Overridepublic String toString() {return "Point [leftX=" + leftX + ", rightX=" + rightX + ", topY="+ topY + ", bottomY=" + bottomY + "]";}
}

再看每个点位的3种状态

Constants

package com.wujay.fund.common;public class Constants {public static final int POINT_STATE_NORMAL = 0; // 正常状态public static final int POINT_STATE_SELECTED = 1; // 按下状态public static final int POINT_STATE_WRONG = 2; // 错误状态}

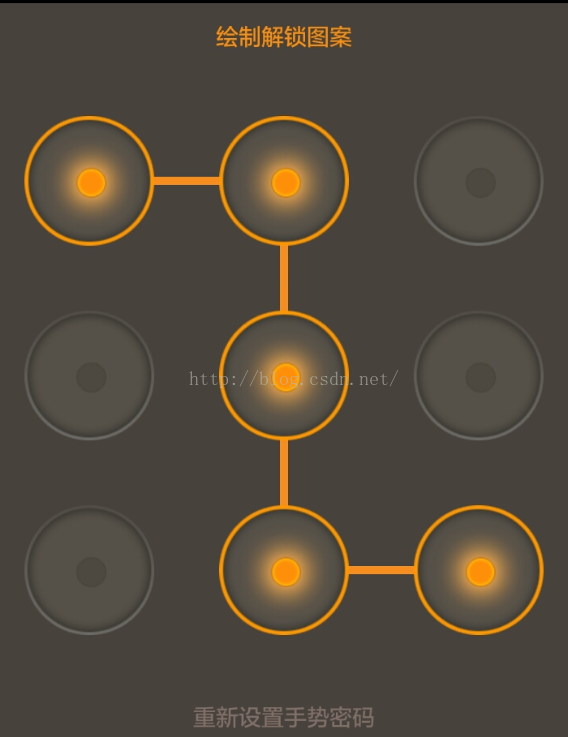

再看来绘制密码的界面

activity_gesture_edit.xml

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"android:layout_width="match_parent"android:layout_height="match_parent"android:background="#48423D" ><RelativeLayoutandroid:id="@+id/top_layout"android:layout_width="match_parent"android:layout_height="46dip"android:background="#000000"android:paddingLeft="20dip"android:paddingRight="20dip"android:layout_alignParentTop="true" ><TextViewandroid:id="@+id/text_title"android:layout_width="wrap_content"android:layout_height="wrap_content"android:layout_centerInParent="true"android:gravity="center"android:text="@string/setup_gesture_code"android:textSize="20sp"android:textColor="#ffffff" /></RelativeLayout><LinearLayoutandroid:id="@+id/gesture_tip_layout"android:layout_width="fill_parent"android:layout_height="wrap_content"android:layout_below="@id/top_layout"android:gravity="center"android:orientation="vertical" ><TextViewandroid:id="@+id/text_tip"android:layout_width="fill_parent"android:layout_height="wrap_content"android:gravity="center_horizontal"android:text="@string/set_gesture_pattern"android:textColor="#F98F12"android:layout_marginTop="10dip" /></LinearLayout><FrameLayoutandroid:id="@+id/gesture_container"android:layout_width="wrap_content"android:layout_height="wrap_content"android:layout_below="@id/gesture_tip_layout"android:layout_gravity="center_horizontal"android:layout_marginTop="20dip" ></FrameLayout><TextViewandroid:id="@+id/text_reset"android:layout_width="fill_parent"android:layout_height="wrap_content"android:gravity="center_horizontal"android:layout_below="@id/gesture_container"android:layout_marginTop="20dip"android:text="@string/set_gesture_pattern_reason"android:textColor="#816E6A" /></RelativeLayout>


再看来绘制密码的类

GestureEditActivity

package com.wujay.fund;import com.wujay.fund.R;
import android.app.Activity;
import android.os.Bundle;
import android.text.Html;
import android.text.TextUtils;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.animation.Animation;
import android.view.animation.AnimationUtils;
import android.widget.FrameLayout;
import android.widget.TextView;
import android.widget.Toast;
import com.wujay.fund.widget.GestureContentView;
import com.wujay.fund.widget.GestureDrawline.GestureCallBack;/*** 手势密码设置界面*/
public class GestureEditActivity extends Activity implements OnClickListener {// 2次绘制手势密码不正确的提示语private TextView mTextTip;// 手势密码绘制区域private FrameLayout mGestureContainer;private GestureContentView mGestureContentView;// 重新设置手势密码private TextView mTextReset;// 是否是第一次绘制密码锁private boolean mIsFirstInput = true;// 初次绘制完毕密码锁，生成的密码private String mFirstPassword = null;@Overridepublic void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_gesture_edit);setUpViews();setUpListeners();}/*** 判断初次绘制完毕生成的密码判断 判断是不是为空 判断密码数量是不是小于4*/private boolean isInputPassValidate(String inputPassword) {if (TextUtils.isEmpty(inputPassword) || inputPassword.length() < 4) {return false;}return true;}private void setUpViews() {// 重新设置手势密码mTextReset = (TextView) findViewById(R.id.text_reset);// 默认不可点击mTextReset.setClickable(false);// 2次绘制手势密码不正确的提示语mTextTip = (TextView) findViewById(R.id.text_tip);// 手势密码绘制区域mGestureContainer = (FrameLayout) findViewById(R.id.gesture_container);/*** 初始化一个显示各个点的viewGroup GestureContentView(Context context, boolean* isVerify, String passWord, GestureCallBack callBack)*/mGestureContentView = new GestureContentView(this, false, "",new GestureCallBack() {@Overridepublic void onGestureCodeInput(String inputCode) {// 验证输入的图案密码--如果密码为null。或者密码个数少于4个if (!isInputPassValidate(inputCode)) {mTextTip.setText(Html.fromHtml("<font color='#c70c1e'>最少链接4个点, 请重新输入</font>"));// 立刻清楚画的线段mGestureContentView.clearDrawlineState(0L);return;}if (mIsFirstInput) {// 第一次输入密码--保存第一次输入的密码，在进行跟第二次判断mFirstPassword = inputCode;// 第一次输入完毕后，立刻清楚画的线段mGestureContentView.clearDrawlineState(0L);// 设置可以重新设置密码锁的状态按钮mTextReset.setClickable(true);mTextReset.setText(getString(R.string.reset_gesture_code));} else {if (inputCode.equals(mFirstPassword)) {Toast.makeText(GestureEditActivity.this,"设置成功", Toast.LENGTH_SHORT).show();mGestureContentView.clearDrawlineState(0L);GestureEditActivity.this.finish();} else {mTextTip.setText(Html.fromHtml("<font color='#c70c1e'>与上一次绘制不一致，请重新绘制</font>"));// 左右移动动画Animation shakeAnimation = AnimationUtils.loadAnimation(GestureEditActivity.this,R.anim.shake);mTextTip.startAnimation(shakeAnimation);// 保持绘制的线，1.5秒后清除mGestureContentView.clearDrawlineState(1300L);}}mIsFirstInput = false;}@Overridepublic void checkedSuccess() {}@Overridepublic void checkedFail() {}});// 设置手势解锁显示到哪个布局里面mGestureContentView.setParentView(mGestureContainer);}/*****************************************************/private void setUpListeners() {mTextReset.setOnClickListener(this);}@Overridepublic void onClick(View v) {switch (v.getId()) {case R.id.text_reset:mIsFirstInput = true;mTextTip.setText(getString(R.string.set_gesture_pattern));break;default:break;}}}

GestureContentView

package com.wujay.fund.widget;import java.util.ArrayList;
import java.util.List;
import android.content.Context;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ImageView;
import com.wujay.fund.R;
import com.wujay.fund.common.AppUtil;
import com.wujay.fund.entity.GesturePoint;
import com.wujay.fund.widget.GestureDrawline.GestureCallBack;/*** 手势密码容器类*/
public class GestureContentView extends ViewGroup {private GestureDrawline gestureDrawline;/************************************************************************* 包含9个ImageView的容器，初始化* * @param context* @param isVerify*            是否为校验手势密码* @param passWord*            用户传入密码* @param callBack*            手势绘制完毕的回调*/private int[] screenDispaly;// 将屏幕宽度分成3份private int blockWidth;// 9个点位的集合private List<GesturePoint> list;// 环境private Context context;// 是否需要校验密码private boolean isVerify;public GestureContentView(Context context, boolean isVerify,String passWord, GestureCallBack callBack) {super(context);// 获取屏幕宽度screenDispaly = AppUtil.getScreenDispaly(context);// 获取屏幕宽度的1/3blockWidth = screenDispaly[0] / 3;this.list = new ArrayList<GesturePoint>();this.context = context;this.isVerify = isVerify;// 添加9个图标addChild();// 初始化一个可以画线的viewgestureDrawline = new GestureDrawline(context, list, isVerify,passWord, callBack);}/*** 添加9个圆点的图标*/// 用来计算2个圆心之间的一半距离大小private int baseNum = 6;private void addChild() {for (int i = 0; i < 9; i++) {ImageView image = new ImageView(context);image.setBackgroundResource(R.drawable.gesture_node_normal);this.addView(image);invalidate();// 第几行---012 0 ，345 1， 678 2--int row = i / 3;// 第几列---012 012 ， 345 012 ， 678 012int col = i % 3;// 定义点的每个属性int leftX = col * blockWidth + blockWidth / baseNum;int topY = row * blockWidth + blockWidth / baseNum;int rightX = col * blockWidth + blockWidth - blockWidth / baseNum;int bottomY = row * blockWidth + blockWidth - blockWidth / baseNum;// 构建圆点对象GesturePoint p = new GesturePoint(leftX, rightX, topY, bottomY,image, i + 1);// 添加9个圆点图标this.list.add(p);}}/*** 设置手势解锁显示到哪个布局里面*/public void setParentView(ViewGroup parent) {// 得到屏幕的宽度int width = screenDispaly[0];// 设置手势锁的宽度高度--以屏幕的宽为基准LayoutParams layoutParams = new LayoutParams(width, width);// 设置手势锁的宽度高度--以屏幕的宽为基准this.setLayoutParams(layoutParams);// 将线路绘制也做同样的操作gestureDrawline.setLayoutParams(layoutParams);parent.addView(gestureDrawline);parent.addView(this);}/************************************** 绘制圆点位操作 ****************************************/@Overrideprotected void onLayout(boolean changed, int l, int t, int r, int b) {// 循环获取里面的每一个圆点位for (int i = 0; i < getChildCount(); i++) {// 第几行int row = i / 3;// 第几列int col = i % 3;// 获取对应的圆点位View v = getChildAt(i);// 进行圆点位的绘制操作v.layout(col * blockWidth + blockWidth / baseNum, row * blockWidth+ blockWidth / baseNum, col * blockWidth + blockWidth- blockWidth / baseNum, row * blockWidth + blockWidth- blockWidth / baseNum);}}@Overrideprotected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {super.onMeasure(widthMeasureSpec, heightMeasureSpec);// 遍历设置每个子view的大小for (int i = 0; i < getChildCount(); i++) {View v = getChildAt(i);v.measure(widthMeasureSpec, heightMeasureSpec);}}/*** 对外暴露一个方法---用于清楚密码锁上的线段 保留路径delayTime时间长* * @param delayTime*/public void clearDrawlineState(long delayTime) {gestureDrawline.clearDrawlineState(delayTime);}}

GestureDrawline

package com.wujay.fund.widget;import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import com.wujay.fund.common.AppUtil;
import com.wujay.fund.common.Constants;
import com.wujay.fund.entity.GesturePoint;
import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Paint.Style;
import android.graphics.PorterDuff;
import android.os.Handler;
import android.util.Log;
import android.util.Pair;
import android.view.MotionEvent;
import android.view.View;
import android.widget.Toast;/*** 手势密码路径绘制* */
public class GestureDrawline extends View {private int mov_x;// 声明起点坐标private int mov_y;private Map<String, GesturePoint> autoCheckPointMap;// 自动选中的情况点private boolean isDrawEnable = true; // 是否允许绘制/*********************************************************************** 构造函数*/private int[] screenDispaly;private Paint paint;// 声明画笔private Canvas canvas;// 画布private Bitmap bitmap;// 位图private List<GesturePoint> list;// 装有各个view坐标的集合private List<Pair<GesturePoint, GesturePoint>> lineList;// 记录画过的线private StringBuilder passWordSb;private boolean isVerify;private String passWord;private GestureCallBack callBack;public GestureDrawline(Context context, List<GesturePoint> list,boolean isVerify, String passWord, GestureCallBack callBack) {super(context);screenDispaly = AppUtil.getScreenDispaly(context);paint = new Paint(Paint.DITHER_FLAG);// 创建一个画笔bitmap = Bitmap.createBitmap(screenDispaly[0], screenDispaly[0],Bitmap.Config.ARGB_8888); // 设置位图的宽高canvas = new Canvas();canvas.setBitmap(bitmap);// 用声明的画笔在位图上画点位paint.setStyle(Style.STROKE);// 设置非填充paint.setStrokeWidth(10);// 笔宽5像素paint.setColor(Color.rgb(245, 142, 33));// 设置默认连线颜色paint.setAntiAlias(true);// 不显示锯齿this.list = list;this.lineList = new ArrayList<Pair<GesturePoint, GesturePoint>>();initAutoCheckPointMap();this.callBack = callBack;// 初始化密码缓存this.isVerify = isVerify;this.passWordSb = new StringBuilder();this.passWord = passWord;}private void initAutoCheckPointMap() {autoCheckPointMap = new HashMap<String, GesturePoint>();autoCheckPointMap.put("1,3", getGesturePointByNum(2));autoCheckPointMap.put("1,7", getGesturePointByNum(4));autoCheckPointMap.put("1,9", getGesturePointByNum(5));autoCheckPointMap.put("2,8", getGesturePointByNum(5));autoCheckPointMap.put("3,7", getGesturePointByNum(5));autoCheckPointMap.put("3,9", getGesturePointByNum(6));autoCheckPointMap.put("4,6", getGesturePointByNum(5));autoCheckPointMap.put("7,9", getGesturePointByNum(8));}private GesturePoint getGesturePointByNum(int num) {for (GesturePoint point : list) {if (point.getNum() == num) {return point;}}return null;}/*********************************************************** 画位图*/@Overrideprotected void onDraw(Canvas canvas) {canvas.drawBitmap(bitmap, 0, 0, paint);}/*** 通过点的位置去集合里面查找这个点是包含在哪个Point里面的* * @return 如果没有找到，则返回null，代表用户当前移动的地方属于点与点之间*/private GesturePoint getPointAt(int x, int y) {for (GesturePoint point : list) {// 先判断xint leftX = point.getLeftX();int rightX = point.getRightX();if (!(x >= leftX && x < rightX)) {// 如果为假，则跳到下一个对比continue;}int topY = point.getTopY();int bottomY = point.getBottomY();if (!(y >= topY && y < bottomY)) {// 如果为假，则跳到下一个对比continue;}// 如果执行到这，那么说明当前点击的点的位置在遍历到点的位置这个地方return point;}return null;}/*** 清掉屏幕上所有的线，然后画出集合里面的线*/private void clearScreenAndDrawList() {canvas.drawColor(Color.TRANSPARENT, PorterDuff.Mode.CLEAR);for (Pair<GesturePoint, GesturePoint> pair : lineList) {// drawLine(float startX, float startY, float stopX, float stopY,// Paint paint)canvas.drawLine(pair.first.getCenterX(), pair.first.getCenterY(),pair.second.getCenterX(), pair.second.getCenterY(), paint);// 画线}}/*** 判断是否中间点需要选中* * @param pointStart* @param pointEnd* @return*/private GesturePoint getBetweenCheckPoint(GesturePoint pointStart,GesturePoint pointEnd) {int startNum = pointStart.getNum();int endNum = pointEnd.getNum();String key = null;if (startNum < endNum) {key = startNum + "," + endNum;} else {key = endNum + "," + startNum;}return autoCheckPointMap.get(key);}/*** 触摸事件*/private GesturePoint currentPoint;@Overridepublic boolean onTouchEvent(MotionEvent event) {if (isDrawEnable == false) {// 如果圆点图片呈现红色的底片--也就是二次绘制错误，在没有清楚绘制的线段的情况下，不再允许绘制线条return true;}paint.setColor(Color.rgb(245, 142, 33));// 设置默认连线颜色switch (event.getAction()) {case MotionEvent.ACTION_DOWN:// 鼠标按下后，获取手指点位的xy坐标mov_x = (int) event.getX();mov_y = (int) event.getY();// 判断当前点击的位置是处于哪个点之内currentPoint = getPointAt(mov_x, mov_y);if (currentPoint != null) {currentPoint.setPointState(Constants.POINT_STATE_SELECTED);passWordSb.append(currentPoint.getNum());}invalidate();break;case MotionEvent.ACTION_MOVE:// 清掉屏幕上所有的线，然后画出集合里面的线--不然的话不是一条线clearScreenAndDrawList();// 得到当前移动位置是处于哪个点内GesturePoint pointAt = getPointAt((int) event.getX(),(int) event.getY());// 代表当前用户手指处于点与点之前if (currentPoint == null && pointAt == null) {return true;} else {// 代表用户的手指从点与点之间移动到了点上if (currentPoint == null) {// 先判断当前的point是不是为null// 如果为空，那么把手指移动到的点赋值给currentPointcurrentPoint = pointAt;// 把currentPoint这个点设置选中为true;currentPoint.setPointState(Constants.POINT_STATE_SELECTED);passWordSb.append(currentPoint.getNum());}}if (pointAt == null || currentPoint.equals(pointAt)) {// 点击移动区域不在圆的区域，或者当前点击的点与当前移动到的点的位置相同// 那么以当前的点中心为起点，以手指移动位置为终点画线canvas.drawLine(currentPoint.getCenterX(),currentPoint.getCenterY(), event.getX(), event.getY(),paint);// 画线} else {// 如果当前点击的点与当前移动到的点的位置不同// 那么以前前点的中心为起点，以手移动到的点的位置画线canvas.drawLine(currentPoint.getCenterX(),currentPoint.getCenterY(), pointAt.getCenterX(),pointAt.getCenterY(), paint);// 画线pointAt.setPointState(Constants.POINT_STATE_SELECTED);// 判断是否中间点需要选中GesturePoint betweenPoint = getBetweenCheckPoint(currentPoint,pointAt);if (betweenPoint != null&& Constants.POINT_STATE_SELECTED != betweenPoint.getPointState()) {// 存在中间点并且没有被选中Pair<GesturePoint, GesturePoint> pair1 = new Pair<GesturePoint, GesturePoint>(currentPoint, betweenPoint);lineList.add(pair1);passWordSb.append(betweenPoint.getNum());Pair<GesturePoint, GesturePoint> pair2 = new Pair<GesturePoint, GesturePoint>(betweenPoint, pointAt);lineList.add(pair2);passWordSb.append(pointAt.getNum());// 设置中间点选中betweenPoint.setPointState(Constants.POINT_STATE_SELECTED);// 赋值当前的point;currentPoint = pointAt;} else {Pair<GesturePoint, GesturePoint> pair = new Pair<GesturePoint, GesturePoint>(currentPoint, pointAt);lineList.add(pair);passWordSb.append(pointAt.getNum());// 赋值当前的point;currentPoint = pointAt;}}invalidate();break;case MotionEvent.ACTION_UP:// 当手指抬起的时候if (isVerify) {// 手势密码校验// 清掉屏幕上所有的线，只画上集合里面保存的线if (passWord.equals(passWordSb.toString())) {// 代表用户绘制的密码手势与传入的密码相同callBack.checkedSuccess();} else {// 用户绘制的密码与传入的密码不同。callBack.checkedFail();}} else {callBack.onGestureCodeInput(passWordSb.toString());}break;default:break;}return true;}/************************************* 校验错误/两次绘制不一致提示*/private void drawErrorPathTip() {canvas.drawColor(Color.TRANSPARENT, PorterDuff.Mode.CLEAR);paint.setColor(Color.rgb(154, 7, 21));// 设置默认线路颜色for (Pair<GesturePoint, GesturePoint> pair : lineList) {pair.first.setPointState(Constants.POINT_STATE_WRONG);pair.second.setPointState(Constants.POINT_STATE_WRONG);canvas.drawLine(pair.first.getCenterX(), pair.first.getCenterY(),pair.second.getCenterX(), pair.second.getCenterY(), paint);// 画线}invalidate();}/*** 指定时间去清除绘制的状态* * @param delayTime*            延迟执行时间*/public void clearDrawlineState(long delayTime) {if (delayTime > 0) {// 绘制红色提示路线isDrawEnable = false;drawErrorPathTip();}new Handler().postDelayed(new clearStateRunnable(), delayTime);}/************************************************** 清除绘制状态的线程*/final class clearStateRunnable implements Runnable {public void run() {// 重置passWordSbpassWordSb = new StringBuilder();// 清空保存点的集合lineList.clear();// 重新绘制界面clearScreenAndDrawList();for (GesturePoint p : list) {p.setPointState(Constants.POINT_STATE_NORMAL);}invalidate();isDrawEnable = true;}}public interface GestureCallBack {/*** 用户设置/输入了手势密码*/public abstract void onGestureCodeInput(String inputCode);/*** 代表用户绘制的密码与传入的密码相同*/public abstract void checkedSuccess();/*** 代表用户绘制的密码与传入的密码不相同*/public abstract void checkedFail();}}

接下来看验证密码锁的布局

activity_gesture_verify.xml

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"xmlns:tools="http://schemas.android.com/tools"android:layout_width="match_parent"android:layout_height="match_parent"android:background="#48443c" ><LinearLayoutandroid:id="@+id/gesture_tip_layout"android:layout_width="fill_parent"android:layout_height="wrap_content"android:layout_below="@id/top_layout"android:orientation="vertical"android:paddingTop="20dip" ><TextViewandroid:id="@+id/text_tip"android:layout_width="fill_parent"android:layout_height="wrap_content"android:layout_marginTop="10dip"android:gravity="center_horizontal"android:textColor="#000000"android:visibility="invisible" /></LinearLayout><FrameLayoutandroid:id="@+id/gesture_container"android:layout_width="wrap_content"android:layout_height="wrap_content"android:layout_below="@id/gesture_tip_layout" ></FrameLayout></RelativeLayout>

验证密码的代码实现类

GestureVerifyActivity

package com.wujay.fund;import com.wujay.fund.R;
import com.wujay.fund.widget.GestureContentView;
import com.wujay.fund.widget.GestureDrawline.GestureCallBack;
import android.app.Activity;
import android.app.Dialog;
import android.content.DialogInterface;
import android.content.DialogInterface.OnClickListener;
import android.content.Intent;
import android.os.Bundle;
import android.text.Html;
import android.text.TextUtils;
import android.view.KeyEvent;
import android.view.View;
import android.view.animation.Animation;
import android.view.animation.AnimationUtils;
import android.widget.FrameLayout;
import android.widget.ImageView;
import android.widget.RelativeLayout;
import android.widget.TextView;
import android.widget.Toast;/*** 手势绘制/校验界面*/
public class GestureVerifyActivity extends Activity{private TextView mTextTip;private FrameLayout mGestureContainer;private GestureContentView mGestureContentView;@Overridepublic void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_gesture_verify);setUpViews();}private void setUpViews() {//验证失败的错误提示mTextTip = (TextView) findViewById(R.id.text_tip);mGestureContainer = (FrameLayout) findViewById(R.id.gesture_container);// 初始化一个显示各个点的viewGroupmGestureContentView = new GestureContentView(this, true, "12589",new GestureCallBack() {@Overridepublic void onGestureCodeInput(String inputCode) {}@Overridepublic void checkedSuccess() {mGestureContentView.clearDrawlineState(0L);Toast.makeText(GestureVerifyActivity.this, "密码正确", 1000).show();GestureVerifyActivity.this.finish();}@Overridepublic void checkedFail() {mGestureContentView.clearDrawlineState(1300L);mTextTip.setVisibility(View.VISIBLE);mTextTip.setText(Html.fromHtml("<font color='#c70c1e'>密码错误</font>"));// 左右移动动画Animation shakeAnimation = AnimationUtils.loadAnimation(GestureVerifyActivity.this, R.anim.shake);mTextTip.startAnimation(shakeAnimation);}});// 设置手势解锁显示到哪个布局里面mGestureContentView.setParentView(mGestureContainer);}}

shake.xml

<?xml version="1.0" encoding="utf-8"?>
<translate xmlns:android="http://schemas.android.com/apk/res/android"
android:fromXDelta="0"
android:toXDelta="10"
android:duration="120"
android:interpolator="@android:anim/cycle_interpolator"
android:repeatMode="restart"
android:repeatCount="2"/>


这篇关于手势密码（三）的文章就介绍到这儿，希望我们推荐的文章对编程师们有所帮助！
