Support Library最新8个组件（Material Design设计风格：design support library）

2024-08-30 16:18
文章标签 设计 组件 design 风格 最新 library material support

本文主要是介绍Support Library最新8个组件（Material Design设计风格：design support library），希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

这里写图片描述

在前不久的谷歌2015 I/O大会上，发布了Android新版本M，貌似从这个版本开始Android不在以数字命名版本了。

在这次的I/O大会上谷歌对Android并没有很大的改变，主要是修改完善之前Android L版本。不过在谷歌推出

Material Design设计风格之后，还是做了很多风格上的兼容，比如v7包的 RecyclerView，CardView，Palette等

这次的I/O大会上也继续完善了MD设计支持库，这次谷歌推出了Android Design Support Library 库，全面支持

MD设计风格的UI效果。Design Support Library库吸收了8 个新的 material design 组件！最低支持 Android

2.1，其实很多组件都是Github上比较火的，只是谷歌把它官方化了，便于开发者使用。今天我们来学习

FloatingActionButton，TextInputLayout，Snackbar，TabLayout 四种控件。

前提

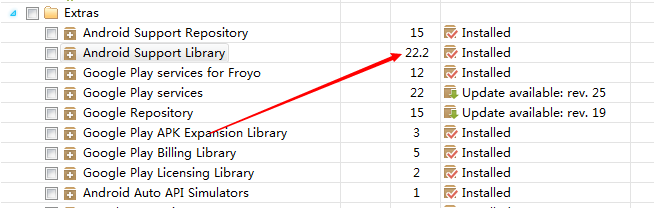

为了能使用 这些 material design 组件，你需要去更新最新的SDK中的Extras支持库，如下图：

这里写图片描述

ps：在天朝上国，这种更新是需要翻墙的或者使用代理的，大家自行想办法。

更新完之后，在build.gralde文件下引入如下包：

<code class="hljs bash has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;">compile <span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">'com.android.support:design:22.2.0'</span></code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li></ul>

现在，我们可以开始使用Material Design组件啦！来看看新组件有什么特别的地方吧！

FloatingActionButton

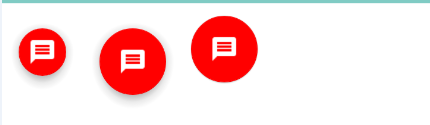

顾名思义：这是一个浮动按钮。先上效果图啦！ps：没有效果图的UI博客很蛋疼的。

这里写图片描述

以上是三种不同效果的FloatingActionButton。XML布局代码如下：

<code class="hljs avrasm has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;">  <android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.FloatingActionButton</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>android:src=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@drawable/ic_discuss"</span>/></code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li></ul>

由于FloatingActionButton是重写ImageView的，所有FloatingActionButton拥有ImageView的一切属性。为了

控制FloatingActionButton的大小，背景颜色，阴影的深度等，我们可以通过如下属性来控制这些效果：

  1. app:fabSize ：FloatingActionButton的大小，有两种赋值分别是 “mini” 和 “normal”，默认是“normal”.
  2. app:backgroundTint：FloatingActionButton的背景颜色，默认的背景颜色是Theme主题中的
<code class="hljs applescript has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;"><<span class="hljs-property" style="box-sizing: border-box;">item</span> <span class="hljs-property" style="box-sizing: border-box;">name</span>=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"colorAccent"</span>><span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">#ff0000</item></span></code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li></ul>

颜色，不了解的童鞋们可以参考Android5.x新特性之 Toolbar和Theme的使用：http://blog.csdn.net/feiduclear_up/article/details/46457433。
3. app:elevation ：FloatingActionButton阴影的深度，默认是有阴影的，如果觉得默认阴影深度有点大，可以改变这个属性来修改阴影深度。

上面三个效果图的XML布局代码如下：

<code class="hljs avrasm has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;">  <LinearLayoutandroid:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>android:orientation=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"horizontal"</span>><android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.FloatingActionButton</span>android:id=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@+id/btn"</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>android:src=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@drawable/ic_discuss"</span>app:fabSize=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"mini"</span> /><android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.FloatingActionButton</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>android:src=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@drawable/ic_discuss"</span>/><android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.FloatingActionButton</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>android:src=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@drawable/ic_discuss"</span>app:backgroundTint=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"#000af4"</span>app:fabSize=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"normal"</span>app:elevation=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"1dp"</span>/></LinearLayout></code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li><li style="box-sizing: border-box; padding: 0px 5px;">28</li></ul>

注意点

  1. 不能通过 android:background 属性来改变 FloatingActionButton的背景颜色，只能通过app:backgroundTint属性改变，因为FloatingActionButton是继承自ImageView的。

TextInputLayout

该控件是用于EditView输入框的，主要解决之前EditView在获得焦点编辑时hint属性提示语消失，这一点在一个页

面有多个EditView输入框的时候不是很好，因为很有可能用户在输入多个EditView之后，不知道当前EditView需

要输入什么内容。为了解决这一问题，TextInputLayout就此诞生了。TextInputLayout是继承自LinearLayout容

器布局，因此我们需要将EditView包含在TextInputLayout之内才可以使用，言外之意：TextInputLayout不能单

独使用。废话不多说，先上效果图啊：

这里写图片描述

XML布局代码如下：

<code class="hljs avrasm has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;"> <android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.TextInputLayout</span>android:id=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@+id/textInput"</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>><EditTextandroid:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>android:textColor=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@android:color/black"</span>/></android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.TextInputLayout</span>></code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li></ul>

代码也可以看出TextInputLayout包裹着EditView。

为了达到以上效果，我们还需添加如下代码：

<code class="hljs java has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">final</span> TextInputLayout  inputLayout = findView(R.id.textInput);inputLayout.setHint(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"请输入姓名:"</span>);EditText editText = inputLayout.getEditText();editText.addTextChangedListener(<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> TextWatcher() {<span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">beforeTextChanged</span>(CharSequence s, <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> start, <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> count, <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> after) {}<span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">onTextChanged</span>(CharSequence s, <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> start, <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> before, <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> count) {<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (s.length()><span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">4</span>){inputLayout.setErrorEnabled(<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">true</span>);inputLayout.setError(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"姓名长度不能超过4个"</span>);}<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">else</span>{inputLayout.setErrorEnabled(<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">false</span>);}}<span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">afterTextChanged</span>(Editable s) {}});</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li></ul>

TextInputLayout 不仅能让EditView的提示语上弹显示在EditView之上，而且还能把错误信息显示在EditView之下。

TextInputLayout常用的方法有如下：

  1. setHint()：设置提示语。
  2. getEditText()：得到TextInputLayout中的EditView控件。
  3. setErrorEnabled():设置是否可以显示错误信息。
  4. setError()：设置当用户输入错误时弹出的错误信息。

注意点

  1. TextInputLayout不能单独使用，需要包裹EditView组件。

【转载请注明出处：http://blog.csdn.net/feiduclear_up/article/details/46500865 CSDN 废墟的树】

Snackbar的使用

Snackbar提供了一个介于Toast和AlertDialog之间轻量级控件，它可以很方便的提供消息的提示和动作反馈。

废话不少说，妹子，上图：
这里写图片描述

Snackbar的使用和Toast很类似，调用代码如下：

<code class="hljs java has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">final</span> Snackbar snackbar = Snackbar.make(inputLayout,<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"测试弹出提示"</span>,Snackbar.LENGTH_LONG);snackbar.show();snackbar.setAction(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"取消"</span>,<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> View.OnClickListener() {<span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">onClick</span>(View v) {snackbar.dismiss();}});</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li></ul>

第一个参数View 可以是当前父布局中的任何一个view对象都可以。之后的参数和Toast参数一样。Snackbar可以

设置Action行为事件，使用的方法是public Snackbar setAction (CharSequence text, View.OnClickListener listener); Action的字体颜色默认使用系统主题中的如下颜色

<code class="hljs applescript has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;"><<span class="hljs-property" style="box-sizing: border-box;">item</span> <span class="hljs-property" style="box-sizing: border-box;">name</span>=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"colorAccent"</span>><span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">#ff0000</item></span></code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li></ul>

当然你可以通过代码去改变Action的字体颜色：Snackbar setActionTextColor (int color)；

注意

  1. Snackbar是从整个界面的底部弹出。

TabLayout

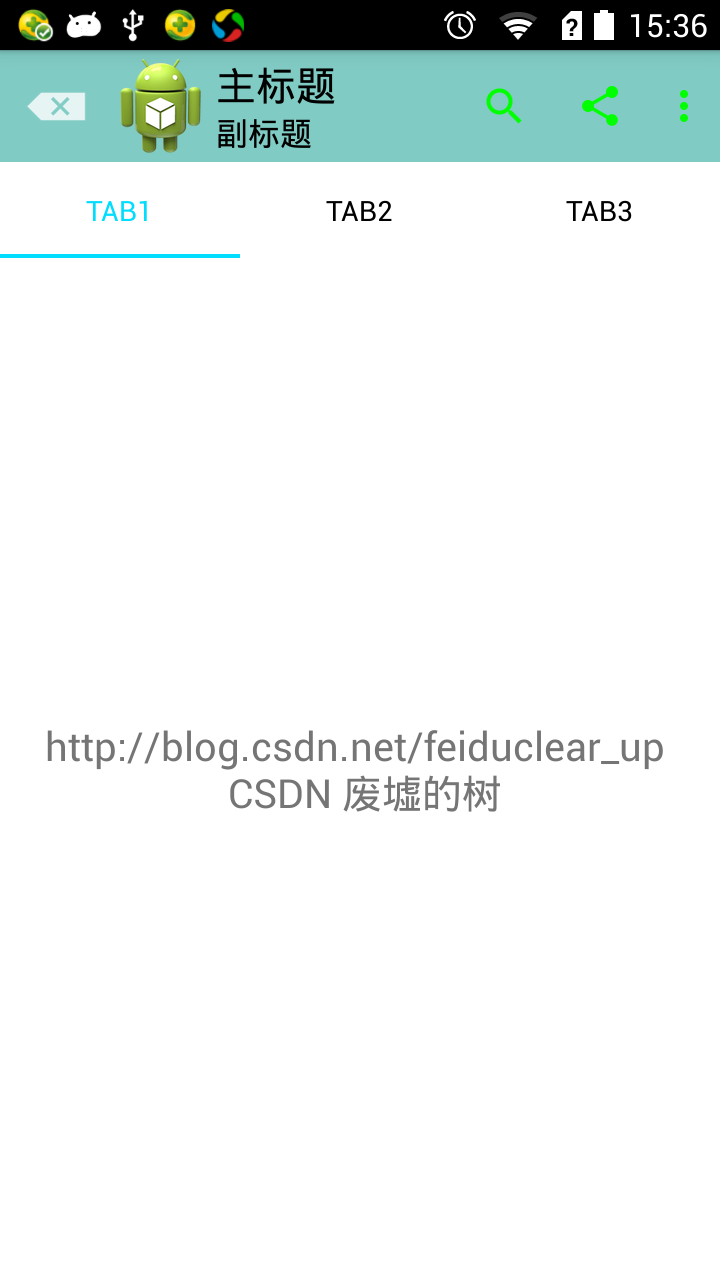

Tabs选项卡，效果类似网易新闻客户端的Tab。其实实现Tabs选项卡的效果有很多中方法，Github上也有很多好

用的开源控件，只是这次谷歌把它官方化了，使得开发者无需引用第三方库，就能方便的使用。效果图：

这里写图片描述

XML布局如下：

<code class="hljs handlebars has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;"><span class="xml" style="box-sizing: border-box;"> <span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">android.support.design.widget.TabLayout
</span>        <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:id</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@+id/tabs"</span><!<span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">--Tab</span>被选中字体的颜色<span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">--</span>></span>app:tabSelectedTextColor="@android:color/holo_blue_bright"<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;"><!--Tab未被选中字体的颜色--></span>app:tabTextColor="@android:color/black"<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;"><!--Tab指示器下标的颜色--></span>app:tabIndicatorColor="@android:color/holo_blue_bright"android:layout_width="match_parent"android:layout_height="wrap_content" /></span></code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li></ul>

常用的属性有三个：

  1. app:tabSelectedTextColor：Tab被选中字体的颜色
  2. app:tabTextColor：Tab未被选中字体的颜色
  3. app:tabIndicatorColor：Tab指示器下标的颜色

TabLayout常用的方法如下：
- addTab(TabLayout.Tab tab, int position, boolean setSelected) 增加选项卡到 layout 中
- addTab(TabLayout.Tab tab, boolean setSelected) 同上
- addTab(TabLayout.Tab tab) 同上
- getTabAt(int index) 得到选项卡
- getTabCount() 得到选项卡的总个数
- getTabGravity() 得到 tab 的 Gravity
- getTabMode() 得到 tab 的模式
- getTabTextColors() 得到 tab 中文本的颜色
- newTab() 新建个 tab
- removeAllTabs() 移除所有的 tab
- removeTab(TabLayout.Tab tab) 移除指定的 tab
- removeTabAt(int position) 移除指定位置的 tab
- setOnTabSelectedListener(TabLayout.OnTabSelectedListener onTabSelectedListener) 为每个 tab 增加选择监听器
- setScrollPosition(int position, float positionOffset, boolean updateSelectedText) 设置滚动位置
- setTabGravity(int gravity) 设置 Gravity
- setTabMode(int mode) 设置 Mode,有两种值：TabLayout.MODE_SCROLLABLE和TabLayout.MODE_FIXED分别表示当tab的内容超过屏幕宽度是否支持横向水平滑动，第一种支持滑动，第二种不支持，默认不支持水平滑动。
- setTabTextColors(ColorStateList textColor) 设置 tab 中文本的颜色
- setTabTextColors(int normalColor, int selectedColor) 设置 tab 中文本的颜色 默认 选中
- setTabsFromPagerAdapter(PagerAdapter adapter) 设置 PagerAdapter
- setupWithViewPager(ViewPager viewPager) 和 ViewPager 联动

一般TabLayout都是和ViewPager共同使用才发挥它的优势，现在我们通过代码来看看以上方法的使用。

<code class="hljs avrasm has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;">viewPager = findView(R<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.id</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.viewPager</span>)<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;</span>tabLayout = findView(R<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.id</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.tabs</span>)<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;</span>List<String> tabList = new ArrayList<>()<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;</span>tabList<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.add</span>(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"Tab1"</span>)<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;</span>tabList<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.add</span>(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"Tab2"</span>)<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;</span>tabList<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.add</span>(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"Tab3"</span>)<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;</span>tabLayout<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.setTabMode</span>(TabLayout<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.MODE</span>_FIXED)<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;//设置tab模式，当前为系统默认模式</span>tabLayout<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.addTab</span>(tabLayout<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.newTab</span>()<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.setText</span>(tabList<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.get</span>(<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>)))<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;//添加tab选项卡</span>tabLayout<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.addTab</span>(tabLayout<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.newTab</span>()<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.setText</span>(tabList<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.get</span>(<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">1</span>)))<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;</span>tabLayout<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.addTab</span>(tabLayout<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.newTab</span>()<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.setText</span>(tabList<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.get</span>(<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">2</span>)))<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;</span>List<Fragment> fragmentList = new ArrayList<>()<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;</span>for (int i = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span><span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">; i < tabList.size(); i++) {</span>Fragment f1 = new TabFragment()<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;</span>Bundle bundle = new Bundle()<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;</span>bundle<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.putString</span>(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"content"</span>, <span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"http://blog.csdn.net/feiduclear_up \n CSDN 废墟的树"</span>)<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;</span>f1<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.setArguments</span>(bundle)<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;</span>fragmentList<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.add</span>(f1)<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;</span>}TabFragmentAdapter fragmentAdapter = new TabFragmentAdapter(getSupportFragmentManager(), fragmentList, tabList)<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;</span>viewPager<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.setAdapter</span>(fragmentAdapter)<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;//给ViewPager设置适配器</span>tabLayout<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.setupWithViewPager</span>(viewPager)<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;//将TabLayout和ViewPager关联起来。</span>tabLayout<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.setTabsFromPagerAdapter</span>(fragmentAdapter)<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;//给Tabs设置适配器</span>
</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li></ul>

就不解释了，都有注释，来看看以上代码的TabFragmentAdapter和TabFragment实现如下：

TabFragmentAdapter

<code class="hljs java has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-class" style="box-sizing: border-box;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">class</span> <span class="hljs-title" style="box-sizing: border-box; color: rgb(102, 0, 102);">TabFragmentAdapter</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">extends</span> <span class="hljs-title" style="box-sizing: border-box; color: rgb(102, 0, 102);">FragmentStatePagerAdapter</span> {</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> List<Fragment> mFragments;<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> List<String> mTitles;<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-title" style="box-sizing: border-box;">TabFragmentAdapter</span>(FragmentManager fm, List<Fragment> fragments, List<String> titles) {<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">super</span>(fm);mFragments = fragments;mTitles = titles;}<span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> Fragment <span class="hljs-title" style="box-sizing: border-box;">getItem</span>(<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> position) {<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> mFragments.get(position);}<span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> <span class="hljs-title" style="box-sizing: border-box;">getCount</span>() {<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> mFragments.size();}<span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> CharSequence <span class="hljs-title" style="box-sizing: border-box;">getPageTitle</span>(<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> position) {<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> mTitles.get(position);}
}</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li></ul>

TabFragment

<code class="hljs java has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-class" style="box-sizing: border-box;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">class</span> <span class="hljs-title" style="box-sizing: border-box; color: rgb(102, 0, 102);">TabFragment</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">extends</span> <span class="hljs-title" style="box-sizing: border-box; color: rgb(102, 0, 102);">Fragment</span> {</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> String content;<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> View view;<span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> View <span class="hljs-title" style="box-sizing: border-box;">onCreateView</span>(LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState) {view = inflater.inflate(R.layout.item, container,<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">false</span>);<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> view;}<span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">onActivityCreated</span>(@Nullable Bundle savedInstanceState) {<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">super</span>.onActivityCreated(savedInstanceState);content = getArguments().getString(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"content"</span>);TextView tvContent = (TextView) view.findViewById(R.id.tv_tab_content);tvContent.setText(content + <span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">""</span>);}
}</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li></ul>

注意 ：有这么一种情况，当Tabs中的内容超过了手机屏幕的宽度时，Tabs选项卡中的tab为什么不支持水平滑动？其实TabLayout是支持水平滑动的，只需要你在代码中添加如下一行即可：

<code class="hljs avrasm has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;">tabLayout<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.setTabMode</span>(TabLayout<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.MODE</span>_SCROLLABLE)<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">;//设置tab模式</span></code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li></ul>

限于篇幅有点长，接下来的CoordinatorLayout , CollapsingToolbarLayout 和 AppBarLayout，NavigationView将

在下一篇博客学习。以上代码，如有疑问，欢迎共同讨论。

这里写图片描述

上一篇博客我们学习了Android Design Support Library库中的 是个简单的组件，不了解的童鞋可以参考之前的博客
Android M新控件之FloatingActionButton，TextInputLayout，Snackbar，TabLayout的使用。

这篇博客我们继续学习Design库中的其他四个组件，分别是AppBarLayout，NavigationView，CoordinatorLayout，CollapsingToolbarLayout。

同样，你需要在你的工程中引入

<code class="hljs bash has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;">compile <span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">'com.android.support:design:22.2.0'</span></code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li></ul>

AppBarLayout

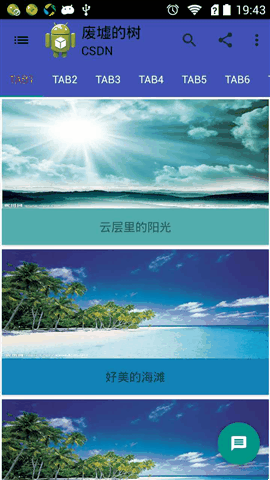

效果图是这样的

这里写图片描述

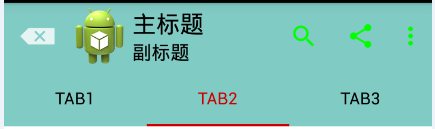

AppBarLayout 是继承LinerLayout实现的一个ViewGroup容器组件，它是为了Material Design设计的App Bar，支持手势滑动操作。

默认的AppBarLayout是垂直方向的，它的作用是把AppBarLayout包裹的内容都作为AppBar。类似上面图片贴出来的效果，代码布局如下：

<code class="hljs avrasm has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;"><android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.AppBarLayout</span>android:id=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@+id/appbar"</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>><android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.v</span>7<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.Toolbar</span>android:id=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@+id/toolbar"</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"?attr/actionBarSize"</span>android:background=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"?attr/colorPrimary"</span>android:minHeight=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"?attr/actionBarSize"</span>></android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.v</span>7<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.Toolbar</span>><android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.TabLayout</span>android:id=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@+id/tabs"</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>app:layout_scrollFlags=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"scroll"</span>app:tabIndicatorColor=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@android:color/holo_red_dark"</span>app:tabSelectedTextColor=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@android:color/holo_red_dark"</span>app:tabTextColor=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@android:color/black"</span> /></android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.AppBarLayout</span>></code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li></ul>

此处将Toolbar 和Tablayout的组合部分共同构成 AppBar的效果。

注意： AppBarLayout必须作为Toolbar的父布局容器

AppBarLayout是支持手势滑动效果的，不过的跟CoordinatorLayout配合使用，接下来学习一下CoordinatorLayout组件怎么使用？

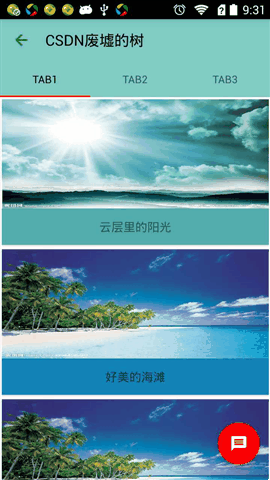

CoordinatorLayout

这里写图片描述

从开发文档中可以了解到，CoordinatorLayout是一个增强型的FrameLayout。它的作用有两个

  1. 作为一个布局的根布局
  2. 最为一个为子视图之间相互协调手势效果的一个协调布局

例如一下布局代码：

<code class="hljs avrasm has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;"> <?xml version=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"1.0"</span> encoding=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"utf-8"</span>?>
<android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.CoordinatorLayout</span> xmlns:android=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"http://schemas.android.com/apk/res/android"</span>xmlns:app=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"http://schemas.android.com/apk/res-auto"</span>android:id=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@+id/main_content"</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>><android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.AppBarLayout</span>android:id=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@+id/appbar"</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>><android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.v</span>7<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.Toolbar</span>android:id=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@+id/toolbar"</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"?attr/actionBarSize"</span>android:background=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"?attr/colorPrimary"</span>app:layout_scrollFlags=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"scroll|enterAlways"</span> /><android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.TabLayout</span>android:id=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@+id/tabs"</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>app:tabGravity=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"fill"</span> /></android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.AppBarLayout</span>><!--可滑动的布局内容--><android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.v</span>7<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.RecyclerView</span>android:id=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@+id/recyclerView"</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>app:layout_behavior=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@string/appbar_scrolling_view_behavior"</span> /><android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.FloatingActionButton</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>android:src=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@drawable/ic_discuss"</span>android:layout_gravity=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"bottom|end"</span>/></android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.CoordinatorLayout</span>></code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li><li style="box-sizing: border-box; padding: 0px 5px;">28</li><li style="box-sizing: border-box; padding: 0px 5px;">29</li><li style="box-sizing: border-box; padding: 0px 5px;">30</li><li style="box-sizing: border-box; padding: 0px 5px;">31</li><li style="box-sizing: border-box; padding: 0px 5px;">32</li><li style="box-sizing: border-box; padding: 0px 5px;">33</li><li style="box-sizing: border-box; padding: 0px 5px;">34</li><li style="box-sizing: border-box; padding: 0px 5px;">35</li><li style="box-sizing: border-box; padding: 0px 5px;">36</li><li style="box-sizing: border-box; padding: 0px 5px;">37</li><li style="box-sizing: border-box; padding: 0px 5px;">38</li><li style="box-sizing: border-box; padding: 0px 5px;">39</li><li style="box-sizing: border-box; padding: 0px 5px;">40</li><li style="box-sizing: border-box; padding: 0px 5px;">41</li><li style="box-sizing: border-box; padding: 0px 5px;">42</li><li style="box-sizing: border-box; padding: 0px 5px;">43</li><li style="box-sizing: border-box; padding: 0px 5px;">44</li></ul>

从上面布局看到，CoordinatorLayout协调布局中包裹了两个布局，一个是NestedScrollView，一个是AppBarLayout，以及FAB按钮。

我们来看看CoordinatorLayout是怎么来协调这两个子视图手势操作的。

1.由于CoordinatorLayout是FrameLayout布局，我们可以通过

<code class="hljs avrasm has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;"><span class="hljs-label" style="box-sizing: border-box;">android:</span>layout_gravity=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"bottom|end"</span></code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li></ul>

属性来控制组件在整个布局中的位置，比如上面效果中的FAB就是通过android:layout_gravity=”bottom|end”来确定 FAB的位置在底端的最右边的位置。

2.为了达到上面效果图的手势动画效果，我们必须做如下设置，通过app:layout_scrollFlags=”scroll|enterAlways” 属性来确定哪个组件是可滑动的

设置的layout_scrollFlags有如下几种选项：

  • scroll: 所有想滚动出屏幕的view都需要设置这个flag- 没有设置这个flag的view将被固定在屏幕顶部。
  • enterAlways: 这个flag让任意向下的滚动都会导致该view变为可见，启用快速“返回模式”。
  • enterAlwaysCollapsed: 当你的视图已经设置minHeight属性又使用此标志时，你的视图只能已最小高度进入，只有当滚动视图到达顶部时才扩大到完整高度。
  • exitUntilCollapsed: 滚动退出屏幕，最后折叠在顶端。

我们上面的布局中 给Toolbar设置了app:layout_scrollFlags属性，因此，Toolbar是可以滚动出屏幕，且向下滚动有可以出现。

3.为了使得Toolbar可以滑动，我们必须还得有个条件，就是CoordinatorLayout布局下包裹一个可以滑动的布局，比如 RecyclerView，NestedScrollView(经过测试，ListView，ScrollView不支持)具有滑动效果的组件。并且给这些组件设置如下属性来告诉CoordinatorLayout，该组件是带有滑动行为的组件，然后CoordinatorLayout在接受到滑动时会通知AppBarLayout 中可滑动的Toolbar可以滑出屏幕了。

<code class="hljs perl has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;">app:layout_behavior=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"<span class="hljs-variable" style="color: rgb(102, 0, 102); box-sizing: border-box;">@string</span>/appbar_scrolling_view_behavior"</span></code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li></ul>

总结： 为了使得Toolbar有滑动效果，必须做到如下三点：

  1. CoordinatorLayout必须作为整个布局的父布局容器。
  2. 给需要滑动的组件设置 app:layout_scrollFlags=”scroll|enterAlways” 属性。
  3. 给你的可滑动的组件，也就是RecyclerView 或者 NestedScrollView 设置如下属性：
<code class="hljs perl has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;"> app:layout_behavior=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"<span class="hljs-variable" style="color: rgb(102, 0, 102); box-sizing: border-box;">@string</span>/appbar_scrolling_view_behavior"</span></code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li></ul>

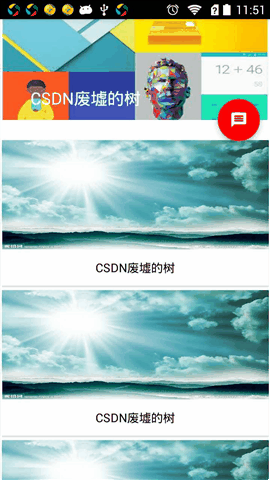

CollapsingToolbarLayout

这里写图片描述

CollapsingToolbarLayout包裹 Toolbar 的时候提供一个可折叠的 Toolbar，一般作为AppbarLayout的子视图使用。

CollapsingToolbarLayout 提供以下属性和方法是用：

  1. Collapsing title：ToolBar的标题，当CollapsingToolbarLayout全屏没有折叠时，title显示的是大字体，在折叠的过程中，title不断变小到一定大小的效果。你可以调用setTitle(CharSequence)方法设置title。
  2. Content scrim：ToolBar被折叠到顶部固定时候的背景，你可以调用setContentScrim(Drawable)方法改变背景或者 在属性中使用 app:contentScrim=”?attr/colorPrimary”来改变背景。
  3. Status bar scrim：状态栏的背景，调用方法setStatusBarScrim(Drawable)。还没研究明白，不过这个只能在Android5.0以上系统有效果。
  4. Parallax scrolling children：CollapsingToolbarLayout滑动时，子视图的视觉差，可以通过属性app:layout_collapseParallaxMultiplier=”0.6”改变。
  5. CollapseMode ：子视图的折叠模式，有两种“pin”：固定模式，在折叠的时候最后固定在顶端；“parallax”：视差模式，在折叠的时候会有个视差折叠的效果。我们可以在布局中使用属性app:layout_collapseMode=”parallax”来改变。

布局代码如下：

<code class="hljs avrasm has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;"><?xml version=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"1.0"</span> encoding=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"utf-8"</span>?>
<android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.CoordinatorLayout</span> xmlns:android=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"http://schemas.android.com/apk/res/android"</span>xmlns:app=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"http://schemas.android.com/apk/res-auto"</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>><android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.AppBarLayout</span>android:id=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@+id/appbar"</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"160dp"</span>><android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.CollapsingToolbarLayout</span>android:id=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@+id/collapsing_toolbar"</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>app:expandedTitleMarginEnd=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"64dp"</span>app:contentScrim=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"?attr/colorPrimary"</span>app:expandedTitleMarginStart=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"48dp"</span>app:statusBarScrim=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"?attr/colorPrimary"</span>app:layout_scrollFlags=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"scroll|exitUntilCollapsed"</span>><ImageViewandroid:id=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@+id/image"</span>app:layout_collapseParallaxMultiplier=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"0.6"</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>android:scaleType=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"fitXY"</span>android:src=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@drawable/image"</span>app:layout_collapseMode=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"parallax"</span> /><android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.v</span>7<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.Toolbar</span>android:id=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@+id/toolbar"</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"?attr/actionBarSize"</span>app:layout_collapseMode=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"pin"</span>app:popupTheme=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@style/ThemeOverlay.AppCompat.Light"</span>></android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.v</span>7<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.Toolbar</span>></android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.CollapsingToolbarLayout</span>></android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.AppBarLayout</span>><--your scroll content-->可滑动的内容<android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.v</span>4<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.NestedScrollView</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"match_parent"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>app:layout_behavior=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@string/appbar_scrolling_view_behavior"</span>></android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.v</span>4<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.NestedScrollView</span>><android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.FloatingActionButton</span>android:layout_width=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>android:layout_height=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"wrap_content"</span>android:src=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@drawable/ic_discuss"</span>app:backgroundTintMode=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"multiply"</span>app:layout_anchor=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"@id/appbar"</span>app:layout_anchorGravity=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"bottom|end|right"</span>></android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.FloatingActionButton</span>></android<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.support</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.design</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.widget</span><span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">.CoordinatorLayout</span>></code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li><li style="box-sizing: border-box; padding: 0px 5px;">28</li><li style="box-sizing: border-box; padding: 0px 5px;">29</li><li style="box-sizing: border-box; padding: 0px 5px;">30</li><li style="box-sizing: border-box; padding: 0px 5px;">31</li><li style="box-sizing: border-box; padding: 0px 5px;">32</li><li style="box-sizing: border-box; padding: 0px 5px;">33</li><li style="box-sizing: border-box; padding: 0px 5px;">34</li><li style="box-sizing: border-box; padding: 0px 5px;">35</li><li style="box-sizing: border-box; padding: 0px 5px;">36</li><li style="box-sizing: border-box; padding: 0px 5px;">37</li><li style="box-sizing: border-box; padding: 0px 5px;">38</li><li style="box-sizing: border-box; padding: 0px 5px;">39</li><li style="box-sizing: border-box; padding: 0px 5px;">40</li><li style="box-sizing: border-box; padding: 0px 5px;">41</li><li style="box-sizing: border-box; padding: 0px 5px;">42</li><li style="box-sizing: border-box; padding: 0px 5px;">43</li><li style="box-sizing: border-box; padding: 0px 5px;">44</li><li style="box-sizing: border-box; padding: 0px 5px;">45</li><li style="box-sizing: border-box; padding: 0px 5px;">46</li><li style="box-sizing: border-box; padding: 0px 5px;">47</li><li style="box-sizing: border-box; padding: 0px 5px;">48</li><li style="box-sizing: border-box; padding: 0px 5px;">49</li><li style="box-sizing: border-box; padding: 0px 5px;">50</li><li style="box-sizing: border-box; padding: 0px 5px;">51</li><li style="box-sizing: border-box; padding: 0px 5px;">52</li><li style="box-sizing: border-box; padding: 0px 5px;">53</li><li style="box-sizing: border-box; padding: 0px 5px;">54</li><li style="box-sizing: border-box; padding: 0px 5px;">55</li><li style="box-sizing: border-box; padding: 0px 5px;">56</li><li style="box-sizing: border-box; padding: 0px 5px;">57</li><li style="box-sizing: border-box; padding: 0px 5px;">58</li><li style="box-sizing: border-box; padding: 0px 5px;">59</li><li style="box-sizing: border-box; padding: 0px 5px;">60</li></ul>

总结： CollapsingToolbarLayout主要是提供一个可折叠的Toolbar容器，对容器中的不同视图设置layout_collapseMode折叠模式，来达到不同的折叠效果。

1.Toolbar 的高度layout_height必须固定，不能 “wrap_content”，否则Toolbar不会滑动，也没有折叠效果。
2.为了能让FloatingActionButton也能折叠且消失出现，我们必须给FAB设置锚点属性

<code class="hljs perl has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;">app:layout_anchor=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"<span class="hljs-variable" style="color: rgb(102, 0, 102); box-sizing: border-box;">@id</span>/appbar"</span></code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li></ul>

意思是FAB浮动按钮显示在哪个布局区域。
且设置当前锚点的位置

app:layout_anchorGravity=”bottom|end|right”

意思FAB浮动按钮在这个布局区域的具体位置。
两个属性共同作用才是的FAB 浮动按钮也能折叠消失，出现。

3.给需要有折叠效果的组件设置 layout_collapseMode属性。

【转载请注明出处：http://blog.csdn.net/feiduclear_up/article/details/46514791 CSDN 废墟的树】

这里写图片描述

用于侧滑菜单中的menu布局。之前Google在V4包中推出自己的 DrawerLayout作为抽屉侧滑菜单，标准使用方法可以参考 google 原生态 抽屉式侧滑菜单 Android DrawerLayout 布局的使用介绍。
当时的官方布局是这样的：

<code class="hljs xml has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;"><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">android.support.v4.widget.DrawerLayout</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">xmlns:android</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"http://schemas.android.com/apk/res/android"</span>  <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:id</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@+id/drawer_layout"</span>  <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_width</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"match_parent"</span>  <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_height</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"match_parent"</span> ></span>  <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;"><!-- the main content view --></span>  <span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">FrameLayout</span>  <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:id</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@+id/frame_content"</span>  <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_width</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"match_parent"</span>  <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_height</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"match_parent"</span> ></span>  <span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"></<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">FrameLayout</span>></span>  <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;"><!-- the navigetion view --></span>  <span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">ListView</span>  <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:id</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@+id/drawer_list"</span>  <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_width</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"240dp"</span>  <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_height</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"match_parent"</span>  <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_gravity</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"start"</span>  <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:background</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"#9999cc"</span>  <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:choiceMode</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"singleChoice"</span>  <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:divider</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@android:color/transparent"</span>  <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:dividerHeight</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"0dp"</span> ></span>  <span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"></<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">ListView</span>></span>  <span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"></<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">android.support.v4.widget.DrawerLayout</span>></span>  </code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li></ul>

其实这次谷歌只是将上面的ListView布局替换成NavigationView了。简化了之前ListView写适配器的繁琐。

先如今布局改成如下：

<code class="hljs xml has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;"><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">android.support.v4.widget.DrawerLayout</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">xmlns:android</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"http://schemas.android.com/apk/res/android"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">xmlns:app</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"http://schemas.android.com/apk/res-auto"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:id</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@+id/drawer_layout"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_width</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"match_parent"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_height</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"match_parent"</span>></span><span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;"><!-- the main content view --></span><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">include</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">layout</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@layout/layout_content"</span> /></span><span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;"><!-- the navigetion view --></span><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">android.support.design.widget.NavigationView
</span>        <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:id</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@+id/navigationView"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_width</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"wrap_content"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_height</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"match_parent"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_gravity</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"left"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:fitsSystemWindows</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"true"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">app:headerLayout</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@layout/layout_header"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">app:menu</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@layout/layout_menu"</span>></span><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"></<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">android.support.design.widget.NavigationView</span>></span><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"></<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">android.support.v4.widget.DrawerLayout</span>></span> </code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li></ul>

其中NavigationView 中的 android:layout_gravity=”start” 属性来控制抽屉菜单从哪边滑出，一般“start ”从左边滑出，“end”从右边滑出。

这里最主要的两个属性分别是：
1.app:headerLayout: 给NavigationView添加头部布局
2.app：menu：给NavigationView添加menu菜单布局

app:headerLayout布局如下：

<code class="hljs xml has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;"><span class="hljs-pi" style="color: rgb(0, 102, 102); box-sizing: border-box;"><?xml version="1.0" encoding="utf-8"?></span>
<span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">LinearLayout</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">xmlns:android</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"http://schemas.android.com/apk/res/android"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_width</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"match_parent"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_height</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"200dp"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:background</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@drawable/img1"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:gravity</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"center"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:orientation</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"vertical"</span>></span><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">ImageView
</span>        <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_width</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"125dp"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_height</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"125dp"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:scaleType</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"centerCrop"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:src</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@drawable/image"</span> /></span><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">TextView
</span>        <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_marginTop</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"15dp"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_width</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"wrap_content"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_height</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"wrap_content"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:text</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"CSDN废墟的树博客"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:textColor</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@android:color/white"</span> /></span><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"></<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">LinearLayout</span>></span></code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li></ul>

app：menu 布局如下：

<code class="hljs xml has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;"><span class="hljs-pi" style="color: rgb(0, 102, 102); box-sizing: border-box;"><?xml version="1.0" encoding="utf-8"?></span>
<span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">menu</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">xmlns:android</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"http://schemas.android.com/apk/res/android"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_width</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"match_parent"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_height</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"match_parent"</span>></span><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">group
</span>        <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:checkableBehavior</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"single"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:title</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"Home items"</span>></span><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">item
</span>            <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:id</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@+id/nav_blog"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:icon</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@drawable/ic_account_balance_black_24dp"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:title</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"博客地址"</span> /></span><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">item
</span>            <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:id</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@+id/nav_ver"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:icon</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@drawable/ic_error_outline_black_36dp"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:title</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"版本信息"</span> /></span><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">item
</span>            <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:id</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@+id/nav_about"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:icon</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@drawable/ic_error_outline_black_36dp"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:title</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"关于我"</span> /></span><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"></<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">group</span>></span><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">item</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:title</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"Sub items"</span>></span><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">menu</span>></span><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">item
</span>                <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:id</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@+id/sub_exit"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:icon</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@drawable/ic_power_settings_new_black_36dp"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:title</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"退出应用"</span> /></span><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">item
</span>                <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:id</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@+id/sub_switch"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:icon</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@drawable/ic_settings_applications_black_36dp"</span><span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:title</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"切换主题"</span> /></span><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"></<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">menu</span>></span><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"></<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">item</span>></span><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"></<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">menu</span>></span></code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li><li style="box-sizing: border-box; padding: 0px 5px;">28</li><li style="box-sizing: border-box; padding: 0px 5px;">29</li><li style="box-sizing: border-box; padding: 0px 5px;">30</li><li style="box-sizing: border-box; padding: 0px 5px;">31</li><li style="box-sizing: border-box; padding: 0px 5px;">32</li><li style="box-sizing: border-box; padding: 0px 5px;">33</li><li style="box-sizing: border-box; padding: 0px 5px;">34</li><li style="box-sizing: border-box; padding: 0px 5px;">35</li><li style="box-sizing: border-box; padding: 0px 5px;">36</li><li style="box-sizing: border-box; padding: 0px 5px;">37</li><li style="box-sizing: border-box; padding: 0px 5px;">38</li><li style="box-sizing: border-box; padding: 0px 5px;">39</li><li style="box-sizing: border-box; padding: 0px 5px;">40</li><li style="box-sizing: border-box; padding: 0px 5px;">41</li><li style="box-sizing: border-box; padding: 0px 5px;">42</li><li style="box-sizing: border-box; padding: 0px 5px;">43</li></ul>

代码中控制NavigationView

<code class="hljs java has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">initNavigationView</span>(){navigationView = (NavigationView) findViewById(R.id.navigationView);drawerLayout = (DrawerLayout) findViewById(R.id.drawer_layout);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//设置侧滑菜单选择监听事件</span>navigationView.setNavigationItemSelectedListener(<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> NavigationView.OnNavigationItemSelectedListener() {<span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">boolean</span> <span class="hljs-title" style="box-sizing: border-box;">onNavigationItemSelected</span>(MenuItem menuItem) {menuItem.setChecked(<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">true</span>);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//关闭抽屉侧滑菜单</span>drawerLayout.closeDrawers();<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">true</span>;}});}<span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">boolean</span> <span class="hljs-title" style="box-sizing: border-box;">onOptionsItemSelected</span>(MenuItem item) {<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (item.getItemId() == android.R.id.home){<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//打开抽屉侧滑菜单</span>drawerLayout.openDrawer(GravityCompat.START);}<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">super</span>.onOptionsItemSelected(item);}</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li></ul>

关于NavigationView中item的字体颜色和icon选中状态颜色是去当前主题theme中的

<code class="hljs ruby has-numbering" style="display: block; padding: 0px; background-color: transparent; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background-position: initial initial; background-repeat: initial initial;"><--正常状态下字体颜色和icon颜色-->
<item name=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"android:textColorPrimary"</span>><span class="hljs-variable" style="color: rgb(102, 0, 102); box-sizing: border-box;">@android</span><span class="hljs-symbol" style="color: rgb(0, 102, 102); box-sizing: border-box;">:color/darker_gray</item></span>
<--选中状态icon的颜色和字体颜色--><item name=<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"colorPrimary"</span>><span class="hljs-variable" style="color: rgb(102, 0, 102); box-sizing: border-box;">@color</span>/accent_material_light<<span class="hljs-regexp" style="color: rgb(0, 136, 0); box-sizing: border-box;">/item></span></code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; background-color: rgb(238, 238, 238); top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right;"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li></ul>

当然你可以通过如下方法或者属性来改变这一状态：

  1. setItemBackgroundResource(int)：给menu设置背景资源，对应的属性app:itemBackground
  2. setItemIconTintList(ColorStateList)：给menu的icon设置颜色，对应的属性app:itemIconTint
  3. setItemTextColor(ColorStateList)：给menu的item设置字体颜色，对应的属性app:itemTextColor

至此，Android Support Design Library库的使用基本学习完。

源码地址 https://github.com/xujinping/AndroidDesignLibrary/tree/master

源码地址 https://github.com/xujinping/AndroidDesignLibrary/tree/master

【转载请注明出处：http://blog.csdn.net/feiduclear_up/article/details/46500865 CSDN 废墟的树】

【转载请注明出处：http://blog.csdn.net/feiduclear_up/article/details/46514791 CSDN 废墟的树】

这篇关于Support Library最新8个组件（Material Design设计风格：design support library）的文章就介绍到这儿，希望我们推荐的文章对编程师们有所帮助！


http://www.chinasem.cn/article/1121311。

相关文章

JS常用组件收集

JS常用组件收集

收集了一些平时遇到的前端比较优秀的组件，方便以后开发的时候查找！！！ 函数工具： Lodash 页面固定： stickUp、jQuery.Pin 轮播： unslider、swiper 开关: switch 复选框： icheck 气泡： grumble 隐藏元素： Headroom
阅读更多...
不懂推荐算法也能设计推荐系统

不懂推荐算法也能设计推荐系统

本文以商业化应用推荐为例，告诉我们不懂推荐算法的产品，也能从产品侧出发， 设计出一款不错的推荐系统。 相信很多新手产品，看到算法二字，多是懵圈的。 什么排序算法、最短路径等都是相对传统的算法（注：传统是指科班出身的产品都会接触过）。但对于推荐算法，多数产品对着网上搜到的资源，都会无从下手。特别当某些推荐算法 和 “AI”扯上关系后，更是加大了理解的难度。 但，不了解推荐算法，就无法做推荐系
阅读更多...
Andrej Karpathy最新采访：认知核心模型10亿参数就够了，AI会打破教育不公的僵局

Andrej Karpathy最新采访：认知核心模型10亿参数就够了，AI会打破教育不公的僵局

夕小瑶科技说 原创  作者 | 海野 AI圈子的红人，AI大神Andrej Karpathy，曾是OpenAI联合创始人之一，特斯拉AI总监。上一次的动态是官宣创办一家名为 Eureka Labs 的人工智能+教育公司 ，宣布将长期致力于AI原生教育。 近日，Andrej Karpathy接受了No Priors（投资博客）的采访，与硅谷知名投资人 Sara Guo 和 Elad G
阅读更多...
如何在页面调用utility bar并传递参数至lwc组件

如何在页面调用utility bar并传递参数至lwc组件

1.在app的utility item中添加lwc组件： 2.调用utility bar api的方式有两种： 方法一，通过lwc调用： import {LightningElement,api ,wire } from 'lwc';import { publish, MessageContext } from 'lightning/messageService';import Ca
阅读更多...
秋招最新大模型算法面试，熬夜都要肝完它

秋招最新大模型算法面试，熬夜都要肝完它

💥大家在面试大模型LLM这个板块的时候，不知道面试完会不会复盘、总结，做笔记的习惯，这份大模型算法岗面试八股笔记也帮助不少人拿到过offer ✨对于面试大模型算法工程师会有一定的帮助，都附有完整答案，熬夜也要看完，祝大家一臂之力 这份《大模型算法工程师面试题》已经上传CSDN，还有完整版的大模型 AI 学习资料，朋友们如果需要可以微信扫描下方CSDN官方认证二维码免费领取【保证100%免费
阅读更多...
怎么让1台电脑共享给7人同时流畅设计

怎么让1台电脑共享给7人同时流畅设计

在当今的创意设计与数字内容生产领域，图形工作站以其强大的计算能力、专业的图形处理能力和稳定的系统性能，成为了众多设计师、动画师、视频编辑师等创意工作者的必备工具。 设计团队面临资源有限，比如只有一台高性能电脑时，如何高效地让七人同时流畅地进行设计工作，便成为了一个亟待解决的问题。 一、硬件升级与配置 1.高性能处理器（CPU）：选择多核、高线程的处理器，例如Intel的至强系列或AMD的Ry
阅读更多...
AI Toolkit + H100 GPU，一小时内微调最新热门文生图模型 FLUX

AI Toolkit + H100 GPU，一小时内微调最新热门文生图模型 FLUX

上个月，FLUX 席卷了互联网，这并非没有原因。他们声称优于 DALLE 3、Ideogram 和 Stable Diffusion 3 等模型，而这一点已被证明是有依据的。随着越来越多的流行图像生成工具（如 Stable Diffusion Web UI Forge 和 ComyUI）开始支持这些模型，FLUX 在 Stable Diffusion 领域的扩展将会持续下去。 自 FLU
阅读更多...
基于51单片机的自动转向修复系统的设计与实现

基于51单片机的自动转向修复系统的设计与实现

文章目录 前言资料获取设计介绍功能介绍设计清单具体实现截图参考文献设计获取 前言 💗博主介绍：✌全网粉丝10W+,CSDN特邀作者、博客专家、CSDN新星计划导师，一名热衷于单片机技术探索与分享的博主、专注于 精通51/STM32/MSP430/AVR等单片机设计 主要对象是咱们电子相关专业的大学生，希望您们都共创辉煌！✌💗 👇🏻 精彩专栏 推荐订阅👇🏻 单片机
阅读更多...
vue2 组件通信

vue2 组件通信

props + emits props:用于接收父组件传递给子组件的数据。可以定义期望从父组件接收的数据结构和类型。‘子组件不可更改该数据’emits:用于定义组件可以向父组件发出的事件。这允许父组件监听子组件的事件并作出响应。(比如数据更新) props检查属性 属性名类型描述默认值typeFunction指定 prop 应该是什么类型，如 String, Number, Boolean,
阅读更多...
SprinBoot+Vue网络商城海鲜市场的设计与实现

SprinBoot+Vue网络商城海鲜市场的设计与实现

目录 1 项目介绍2 项目截图3 核心代码3.1 Controller3.2 Service3.3 Dao3.4 application.yml3.5 SpringbootApplication3.5 Vue 4 数据库表设计5 文档参考6 计算机毕设选题推荐7 源码获取 1 项目介绍 博主个人介绍：CSDN认证博客专家，CSDN平台Java领域优质创作者，全网30w+
阅读更多...

Copyright China编程 23002807@qq.com

沪ICP备2023033072号-2
