Java并发之ReentrantLock详解

2024-08-27 11:38

本文主要是介绍Java并发之ReentrantLock详解,希望对大家解决编程问题提供一定的参考价值,需要的开发者们随着小编来一起学习吧!

原文:

http://blog.csdn.net/lipeng_bigdata/article/details/52154637

     一、入题

        ReentrantLock是Java并发包中互斥锁,它有公平锁和非公平锁两种实现方式,以lock()为例,其使用方式为:

[java] view plain copy
  1. ReentrantLock takeLock = new ReentrantLock();
  2.
  3. // 获取锁
  4. takeLock.lock();
  5.
  6. try {
  7.
  8.   // 业务逻辑
  9.
  10. finally {
  11.   // 释放锁
  12.   takeLock.unlock();
  13. }
         那么,ReentrantLock内部是如何实现锁的呢?接下来我们就以JDK1.7中的ReentrantLock的lock()为例详细研究下。


        二、ReentrantLock类的结构

        ReentrantLock类实现了Lock和java.io.Serializable接口,其内部有一个实现锁功能的关键成员变量Sync类型的sync,定义如下:

[java] view plain copy
  1. /** Synchronizer providing all implementation mechanics */
  2. private final Sync sync;
        而这个Sync是继承了AbstractQueuedSynchronizer的内部抽象类,主要由它负责实现锁的功能。关于AbstractQueuedSynchronizer我们会在以后详细介绍,你只要知道它内部存在一个获取锁的等待队列及其互斥锁状态下的int状态位(0当前没有线程持有该锁、n存在某线程重入锁n次)即可,该状态位也可用于其它诸如共享锁、信号量等功能。
        Sync在ReentrantLock中有两种实现类:NonfairSync、FairSync,正好对应了ReentrantLock的非公平锁、公平锁两大类型。



        三、获取锁主体流程

        ReentrantLock的锁功能主要是通过继承了AbstractQueuedSynchronizer的内部类Sync来实现的,其lock()获取锁的主要流程如下:



        首先,ReentrantLock的lock()方法会调用其内部成员变量sync的lock()方法;

        其次,sync的非公平锁NonfairSync或公平锁FairSync实现了父类AbstractQueuedSynchronizer的lock()方法,其会调用acquire()方法;

        然后,acquire()方法则在sync父类AbstractQueuedSynchronizer中实现,它只有一段代码:

[java] view plain copy
  1. public final void acquire(int arg) {
  2.     if (!tryAcquire(arg) &&
  3.         acquireQueued(addWaiter(Node.EXCLUSIVE), arg))
  4.         selfInterrupt();
  5. }
      通过tryAcquire()方法试图获取锁,获取到直接返回结果,否则通过嵌套调用acquireQueued()、addWaiter()方法将请求获取锁的线程加入等待队列,如果成功的话,将当前请求线程阻塞,and,over!

         队列如何实现及如何添加到队列中以后再做详细分析!这里只关注ReentrantLock的实现逻辑。

        上述就是公平锁、非公平锁实现获取锁的主要流程,而针对每种锁来说,其实现方式有很大差别,主要就体现在各自实现类的lock()和tryAcquire()方法中。在sync的抽象类Sync及其抽象父类AbstractQueuedSynchronizer中,lock()方法和tryAcquire()方法被定义为抽象方法或者未实现,而是由具体子类去实现:

[java] view plain copy
  1. /**
  2.  * Performs {@link Lock#lock}. The main reason for subclassing
  3.  * is to allow fast path for nonfair version.
  4.  */
  5. abstract void lock();
[java] view plain copy
  1.     /**
  2.      * Attempts to acquire in exclusive mode. This method should query
  3.      * if the state of the object permits it to be acquired in the
  4.      * exclusive mode, and if so to acquire it.
  5.      *
  6.      * <p>This method is always invoked by the thread performing
  7.      * acquire.  If this method reports failure, the acquire method
  8.      * may queue the thread, if it is not already queued, until it is
  9.      * signalled by a release from some other thread. This can be used
  10.      * to implement method {@link Lock#tryLock()}.
  11.      *
  12.      * <p>The default
  13.      * implementation throws {@link UnsupportedOperationException}.
  14.      *
  15.      * @param arg the acquire argument. This value is always the one
  16.      *        passed to an acquire method, or is the value saved on entry
  17.      *        to a condition wait.  The value is otherwise uninterpreted
  18.      *        and can represent anything you like.
  19.      * @return {@code true} if successful. Upon success, this object has
  20.      *         been acquired.
  21.      * @throws IllegalMonitorStateException if acquiring would place this
  22.      *         synchronizer in an illegal state. This exception must be
  23.      *         thrown in a consistent fashion for synchronization to work
  24.      *         correctly.
  25.      * @throws UnsupportedOperationException if exclusive mode is not supported
  26.      */
  27.     protected boolean tryAcquire(int arg) {
  28.         throw new UnsupportedOperationException();
  29.     }
        下面,我们分别研究下非公平锁和公平锁的实现。


        四、非公平锁NonfairSync

        1、lock()方法

[java] view plain copy
  1. /**
  2.  * Performs lock.  Try immediate barge, backing up to normal
  3.  * acquire on failure.
  4.  */
  5. final void lock() {
  6.     if (compareAndSetState(01))
  7.         setExclusiveOwnerThread(Thread.currentThread());
  8.     else
  9.         acquire(1);
  10. }
        通过代码可以看到,非公平锁上来就无视等待队列的存在而抢占锁,通过基于CAS操作的compareAndSetState(0, 1)方法,试图修改当前锁的状态,这个0表示AbstractQueuedSynchronizer内部的一种状态,针对互斥锁则是尚未有线程持有该锁,而>=1则表示存在线程持有该锁,并重入对应次数,这个上来就CAS的操作也是非公共锁的一种体现,CAS操作成功的话,则将当前线程设置为该锁的唯一拥有者。

        抢占不成功的话,则调用父类的acquire()方法,按照上面讲的,继而会调用tryAcquire()方法,这个方法也是由最终实现类NonfairSync实现的,如下:

[java] view plain copy
  1. protected final boolean tryAcquire(int acquires) {
  2.     return nonfairTryAcquire(acquires);
  3. }
        2、tryAcquire()

        而这个nonfairTryAcquire()方法实现如下:

[java] view plain copy
  1. /**
  2.  * Performs non-fair tryLock.  tryAcquire is
  3.  * implemented in subclasses, but both need nonfair
  4.  * try for trylock method.
  5.  */
  6. final boolean nonfairTryAcquire(int acquires) {
  7.     final Thread current = Thread.currentThread();
  8.     int c = getState();
  9.     if (c == 0) {
  10.         if (compareAndSetState(0, acquires)) {
  11.             setExclusiveOwnerThread(current);
  12.             return true;
  13.         }
  14.     }
  15.     else if (current == getExclusiveOwnerThread()) {
  16.         int nextc = c + acquires;
  17.         if (nextc < 0// overflow
  18.             throw new Error("Maximum lock count exceeded");
  19.         setState(nextc);
  20.         return true;
  21.     }
  22.     return false;
  23. }

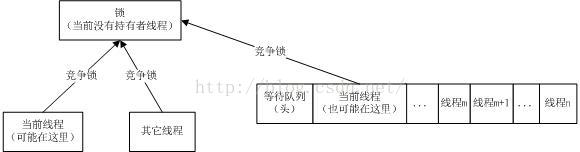

        还是上来先判断锁的状态,通过CAS来抢占,抢占成功,直接返回true,如果锁的持有者线程为当前线程的话,则通过累加状态标识重入次数。抢占不成功,或者锁的本身持有者不是当前线程,则返回false,继而后续通过进入等待队列的方式排队获取锁。可以通过以下简单的图来理解:




        五、公平锁FairSync

        1、lock()

        公平锁的lock()方法就比较简单了,直接调用acquire()方法,如下:

[java] view plain copy
  1. final void lock() {
  2.     acquire(1);
  3. }

        2、tryAcquire()

        公平锁的tryAcquire()方法也相对较简单,如下:

[java] view plain copy
  1. /**
  2.  * Fair version of tryAcquire.  Don't grant access unless
  3.  * recursive call or no waiters or is first.
  4.  */
  5. protected final boolean tryAcquire(int acquires) {
  6.     final Thread current = Thread.currentThread();
  7.     int c = getState();
  8.     if (c == 0) {
  9.         if (!hasQueuedPredecessors() &&
  10.             compareAndSetState(0, acquires)) {
  11.             setExclusiveOwnerThread(current);
  12.             return true;
  13.         }
  14.     }
  15.     else if (current == getExclusiveOwnerThread()) {
  16.         int nextc = c + acquires;
  17.         if (nextc < 0)
  18.             throw new Error("Maximum lock count exceeded");
  19.         setState(nextc);
  20.         return true;
  21.     }
  22.     return false;
  23. }
        当前线程会在得到当前锁状态为0,即没有线程持有该锁,并且通过!hasQueuedPredecessors()判断当前等待队列没有前继线程(也就是说,没有比我优先级更高的线程在请求锁了)获取锁的情况下,通过CAS抢占锁,并设置自己为锁的当前拥有者,当然,如果是重入的话,和非公平锁处理一样,通过累加状态位标记重入次数。

        而一旦等待队列中有等待者,或当前线程抢占锁失败,则它会乖乖的进入等待队列排队等待。公平锁的实现大致如下:




        六、默认实现

        ReentrantLock的默认实现为非公平锁,如下:

[java] view plain copy
  1. /**
  2.  * Creates an instance of {@code ReentrantLock}.
  3.  * This is equivalent to using {@code ReentrantLock(false)}.
  4.  */
  5. public ReentrantLock() {
  6.     sync = new NonfairSync();
  7. }
        当然,你也可以通过另外一个构造方法指定锁的实现方式,如下:

[java] view plain copy
  1. /**
  2.  * Creates an instance of {@code ReentrantLock} with the
  3.  * given fairness policy.
  4.  *
  5.  * @param fair {@code true} if this lock should use a fair ordering policy
  6.  */
  7. public ReentrantLock(boolean fair) {
  8.     sync = fair ? new FairSync() : new NonfairSync();
  9. }


        七、其它
        即便是公平锁,如果通过不带超时时间限制的tryLock()的方式获取锁的话,它也是不公平的,因为其内部调用的是sync.nonfairTryAcquire()方法,无论抢到与否,都会同步返回。如下:

[java] view plain copy
  1. public boolean tryLock() {
  2.     return sync.nonfairTryAcquire(1);
  3. }

        但是带有超时时间限制的tryLock(long timeout, TimeUnit unit)方法则不一样,还是会遵循公平或非公平的原则的,如下:

[java] view plain copy
  1. public boolean tryLock(long timeout, TimeUnit unit)
  2.         throws InterruptedException {
  3.     return sync.tryAcquireNanos(1, unit.toNanos(timeout));
  4. }
        其它流程都比较简单,读者可自行翻阅Java源码查看!

这篇关于Java并发之ReentrantLock详解的文章就介绍到这儿,希望我们推荐的文章对编程师们有所帮助!
