Hook ActivityManagerService
在解释VirtualAPK是如何对Activity进行管理之前,有必要说一下ActivityManagerService,Android的四大组件都需要与它打交道,它主要为四大组件做了这些事情:
1.startActivity最终调用了AMS的startActivity方法,实现了Activity的启动;Activity的生命周期回调,也在AMS中完成;
//ActivityManagerService.java@Overridepublic final int startActivity(IApplicationThread caller, String callingPackage,Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode,int startFlags, ProfilerInfo profilerInfo, Bundle options) {return startActivityAsUser(caller, callingPackage, intent, resolvedType, resultTo,resultWho, requestCode, startFlags, profilerInfo, options,UserHandle.getCallingUserId());}
2.startService,bindService最终调用到AMS的startService和bindService方法;
//ActivityManagerService.javapublic int bindService(IApplicationThread caller, IBinder token,Intent service, String resolvedType,IServiceConnection connection, int flags, int userId) {enforceNotIsolatedCaller("bindService");// Refuse possible leaked file descriptorsif (service != null && service.hasFileDescriptors() == true) {throw new IllegalArgumentException("File descriptors passed in Intent");}synchronized(this) {return mServices.bindServiceLocked(caller, token, service, resolvedType,connection, flags, userId);}}
3.动态广播的注册和接收在AMS中完成(静态广播在PMS中完成)
public Intent registerReceiver(IApplicationThread caller, String callerPackage,IIntentReceiver receiver, IntentFilter filter, String permission, int userId) {enforceNotIsolatedCaller("registerReceiver");int callingUid;int callingPid;synchronized(this) {ProcessRecord callerApp = null;if (caller != null) {callerApp = getRecordForAppLocked(caller);if (callerApp == null) {throw new SecurityException("Unable to find app for caller " + caller+ " (pid=" + Binder.getCallingPid()+ ") when registering receiver " + receiver);}if (callerApp.info.uid != Process.SYSTEM_UID &&!callerApp.pkgList.containsKey(callerPackage) &&!"android".equals(callerPackage)) {throw new SecurityException("Given caller package " + callerPackage+ " is not running in process " + callerApp);}callingUid = callerApp.info.uid;callingPid = callerApp.pid;} else {callerPackage = null;callingUid = Binder.getCallingUid();callingPid = Binder.getCallingPid();}userId = this.handleIncomingUser(callingPid, callingUid, userId,true, ALLOW_FULL_ONLY, "registerReceiver", callerPackage);List allSticky = null;// Look for any matching sticky broadcasts...Iterator actions = filter.actionsIterator();if (actions != null) {while (actions.hasNext()) {String action = (String)actions.next();allSticky = getStickiesLocked(action, filter, allSticky,UserHandle.USER_ALL);allSticky = getStickiesLocked(action, filter, allSticky,UserHandle.getUserId(callingUid));}} else {allSticky = getStickiesLocked(null, filter, allSticky,UserHandle.USER_ALL);allSticky = getStickiesLocked(null, filter, allSticky,UserHandle.getUserId(callingUid));}// The first sticky in the list is returned directly back to// the client.Intent sticky = allSticky != null ? (Intent)allSticky.get(0) : null;if (DEBUG_BROADCAST) Slog.v(TAG, "Register receiver " + filter+ ": " + sticky);if (receiver == null) {return sticky;}ReceiverList rl= (ReceiverList)mRegisteredReceivers.get(receiver.asBinder());
...........
4.getContentResolver最终从AMS的getContentProvider获取到ContentProvider
@Overridepublic final ContentProviderHolder getContentProvider(IApplicationThread caller, String name, int userId, boolean stable) {enforceNotIsolatedCaller("getContentProvider");if (caller == null) {String msg = "null IApplicationThread when getting content provider "+ name;Slog.w(TAG, msg);throw new SecurityException(msg);}// The incoming user check is now handled in checkContentProviderPermissionLocked() to deal// with cross-user grant.return getContentProviderImpl(caller, name, null, stable, userId);}
AMS以Binder方式提供给应用程序使用的系统服务,所以我们要处理插件中的四大组件,必须要Hook掉AMS进行相应的处理。
startActivity与AMS的关系
前面我们说过Activity的启动最终会调用到了AMS的方法进行启动,接下来我们就先分析这一个过程。
在开发中,我们使用startActivity有两种形式:
1.直接使用Context类的startActivity方法;这种方式启动的Activity没有Activity栈,因此不能以standard方式启动,必须加上FLAG_ACTIVITY_NEW_TASK这个Flag。
2.调用被Activity类重载过的startActivity方法,通常在我们的Activity中直接调用这个方法就是这种形式;
context的startActivity
先来分析第一种情况,context的startActivity是一个抽象方法
public abstract void startActivity(Intent intent);
Activity,Service等并没有直接继承Context,而是继承了ContextWrapper,所以我们需要看ContextWrapper里面的startActivity方法
@Overridepublic void startActivity(Intent intent) {mBase.startActivity(intent);}
我们可以得知,startActivity方法最终会通过mBase来完成,它的真正实现是ContextImpl类
@Overridepublic void startActivity(Intent intent) {warnIfCallingFromSystemProcess();startActivity(intent, null);}
在继续往下追寻,会看到如下代码:
@Overridepublic void startActivity(Intent intent, Bundle options) {warnIfCallingFromSystemProcess();if ((intent.getFlags()&Intent.FLAG_ACTIVITY_NEW_TASK) == 0) {throw new AndroidRuntimeException("Calling startActivity() from outside of an Activity "+ " context requires the FLAG_ACTIVITY_NEW_TASK flag."+ " Is this really what you want?");}mMainThread.getInstrumentation().execStartActivity(getOuterContext(), mMainThread.getApplicationThread(), null,(Activity)null, intent, -1, options);}
看到这里,你是不是突然恍然大悟,为什么平常在使用非Activity的Context来startActivity的时候会需要添加FLAG_ACTIVITY_NEW_TASK;
我们还可以得出结论,真正的startActivity使用了Instrumentation类的execStartActivity方法;
public ActivityResult execStartActivity(Context who, IBinder contextThread, IBinder token, Activity target,Intent intent, int requestCode, Bundle options) {// ... 省略无关代码try {intent.migrateExtraStreamToClipData();intent.prepareToLeaveProcess();int result = ActivityManagerNative.getDefault().startActivity(whoThread, who.getBasePackageName(), intent,intent.resolveTypeIfNeeded(who.getContentResolver()),token, target != null ? target.mEmbeddedID : null,requestCode, 0, null, null, options);checkStartActivityResult(result, intent);} catch (RemoteException e) {}return null;
}
到这里我们发现真正调用的是ActivityManagerNative的startActivity方法,至于ActivityManagerNative是啥,请自行查资料
Activity的startActivity
Activity类的startActivity方法相比Context而言直观了很多;这个startActivity通过若干次调用辗转到达startActivityForResult这个方法,在这个方法内部有如下代码:
Instrumentation.ActivityResult ar =mInstrumentation.execStartActivity(this, mMainThread.getApplicationThread(), mToken, this,intent, requestCode, options);if (ar != null) {mMainThread.sendActivityResult(mToken, mEmbeddedID, requestCode, ar.getResultCode(),ar.getResultData());}
可以得知,通过Activity和ContextImpl类启动Activity是一样的,他们都通过Instrumentation这个辅助类调用到了ActivityManagerNative的方法。
Hook AMS
前面说过,startActivity最终通过ActivityManagerNative这个方法远程调用了AMS的startActivity方法,ActivityManagerNative实际上就是ActivityManagerService这个远程对象的Binder代理对象;每次需要与AMS打交道的时候,需要借助这个代理对象通过驱动进而完成IPC调用。
ActivityManagerNative中有一个getDefault()方法
/*** Retrieve the system's default/global activity manager.*/static public IActivityManager getDefault() {return gDefault.get();}
gDefault这个静态变量的定义如下:
private static final Singleton<IActivityManager> gDefault = new Singleton<IActivityManager>() {protected IActivityManager create() {IBinder b = ServiceManager.getService("activity");if (false) {Log.v("ActivityManager", "default service binder = " + b);}IActivityManager am = asInterface(b);if (false) {Log.v("ActivityManager", "default service = " + am);}return am;}};
framework使用了一个单例把这个AMS的代理对象保存了起来;这样只要需要与AMS进行IPC调用,获取这个单例即可,所以我们需要Hook掉这个单例,就可以达到Hook AMS的效果,在Virtualapk中我们就可以看到如下一段代码:
//PluginManager.java
/*** hookSystemServices, but need to compatible with Android O in future.*/private void hookSystemServices() {try {Singleton<IActivityManager> defaultSingleton = (Singleton<IActivityManager>) ReflectUtil.getField(ActivityManagerNative.class, null, "gDefault");IActivityManager activityManagerProxy = ActivityManagerProxy.newInstance(this, defaultSingleton.get());// Hook IActivityManager from ActivityManagerNativeReflectUtil.setField(defaultSingleton.getClass().getSuperclass(), defaultSingleton, "mInstance", activityManagerProxy);if (defaultSingleton.get() == activityManagerProxy) {this.mActivityManager = activityManagerProxy;}} catch (Exception e) {e.printStackTrace();}}
可以看到在VirtualAPK中PluginManager类里,就是替换掉了ActivityManagerNative为VirtualAPK中自己的ActivityManagerProxy,而这个ActivityManagerProxy其实是一个动态代理,所有ActivityManagerNative中的方法都会经过这个代理
public static IActivityManager newInstance(PluginManager pluginManager, IActivityManager activityManager) {return (IActivityManager) Proxy.newProxyInstance(activityManager.getClass().getClassLoader(), new Class[] { IActivityManager.class }, new ActivityManagerProxy(pluginManager, activityManager));}
我们可以看到在ActivityManagerProxy的invoke方法,针对一些方法进行了处理
@Overridepublic Object invoke(Object proxy, Method method, Object[] args) throws Throwable {if ("startService".equals(method.getName())) {try {return startService(proxy, method, args);} catch (Throwable e) {Log.e(TAG, "Start service error", e);}} else if ("stopService".equals(method.getName())) {try {return stopService(proxy, method, args);} catch (Throwable e) {Log.e(TAG, "Stop Service error", e);}} else if ("stopServiceToken".equals(method.getName())) {try {return stopServiceToken(proxy, method, args);} catch (Throwable e) {Log.e(TAG, "Stop service token error", e);}} else if ("bindService".equals(method.getName())) {try {return bindService(proxy, method, args);} catch (Throwable e) {e.printStackTrace();}} else if ("unbindService".equals(method.getName())) {try {return unbindService(proxy, method, args);} catch (Throwable e) {e.printStackTrace();}} else if ("getIntentSender".equals(method.getName())) {try {getIntentSender(method, args);} catch (Exception e) {e.printStackTrace();}} else if ("overridePendingTransition".equals(method.getName())){try {overridePendingTransition(method, args);} catch (Exception e){e.printStackTrace();}}try {// sometimes system binder has problems.return method.invoke(this.mActivityManager, args);} catch (Throwable th) {Throwable c = th.getCause();if (c != null && c instanceof DeadObjectException) {// retry connect to system binderIBinder ams = ServiceManager.getService(Context.ACTIVITY_SERVICE);if (ams != null) {IActivityManager am = ActivityManagerNative.asInterface(ams);mActivityManager = am;}}Throwable cause = th;do {if (cause instanceof RemoteException) {throw cause;}} while ((cause = cause.getCause()) != null);throw c != null ? c : th;}}
上述关于startService等方法的处理,我们在后面说道service时再详细说明,这里我们只要知道VirtualAPK中是如何Hook AMS的
启动插件Activity会遇到什么限制?
在Android中启动Activity有一个限制:必须在AndroidManifest.xml中显示声明使用的Activity;否则会遇到下面这种异常:
Process: com.example.dldemo, PID: 3600java.lang.RuntimeException: Unable to start activity ComponentInfo{com.example.dldemo/com.example.dldemo.MainActivity}: android.content.ActivityNotFoundException: Unable to find explicit activity class {com.example.dldemo/com.example.dldemo.TestActivity1}; have you declared this activity in your AndroidManifest.xml?at android.app.ActivityThread.performLaunchActivity(ActivityThread.java:2416)at android.app.ActivityThread.handleLaunchActivity(ActivityThread.java:2476)at android.app.ActivityThread.-wrap11(ActivityThread.java)at android.app.ActivityThread$H.handleMessage(ActivityThread.java:1344)at android.os.Handler.dispatchMessage(Handler.java:102)at android.os.Looper.loop(Looper.java:148)at android.app.ActivityThread.main(ActivityThread.java:5417)at java.lang.reflect.Method.invoke(Native Method)at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:726)at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:616)
必须在AndroidManifest.xml中显示声明使用的Activity,这个硬性要求很大程度上限制了插件系统的发挥:因为插件的Activity必定不会在宿主程序中进行声明
如何绕过这个限制呢?既然AndroidManifest文件中必须声明,那么我就声明一个(或者有限个)替身Activity好了,当需要启动插件的某个Activity的时候,先让系统以为启动的是AndroidManifest中声明的那个替身,暂时骗过系统;然后到合适的时候又替换回我们需要启动的真正的Activity;我们打开Virtualapk的Library,查看清单文件中,声明了各种启动模式的Activity
<!-- Stub Activities --><activity android:name=".A$1" android:launchMode="standard"/><activity android:name=".A$2" android:launchMode="standard"android:theme="@android:style/Theme.Translucent" /><!-- Stub Activities --><activity android:name=".B$1" android:launchMode="singleTop"/><activity android:name=".B$2" android:launchMode="singleTop"/><activity android:name=".B$3" android:launchMode="singleTop"/><activity android:name=".B$4" android:launchMode="singleTop"/><activity android:name=".B$5" android:launchMode="singleTop"/><activity android:name=".B$6" android:launchMode="singleTop"/><activity android:name=".B$7" android:launchMode="singleTop"/><activity android:name=".B$8" android:launchMode="singleTop"/><!-- Stub Activities --><activity android:name=".C$1" android:launchMode="singleTask"/><activity android:name=".C$2" android:launchMode="singleTask"/><activity android:name=".C$3" android:launchMode="singleTask"/><activity android:name=".C$4" android:launchMode="singleTask"/><activity android:name=".C$5" android:launchMode="singleTask"/><activity android:name=".C$6" android:launchMode="singleTask"/><activity android:name=".C$7" android:launchMode="singleTask"/><activity android:name=".C$8" android:launchMode="singleTask"/><!-- Stub Activities --><activity android:name=".D$1" android:launchMode="singleInstance"/><activity android:name=".D$2" android:launchMode="singleInstance"/><activity android:name=".D$3" android:launchMode="singleInstance"/><activity android:name=".D$4" android:launchMode="singleInstance"/><activity android:name=".D$5" android:launchMode="singleInstance"/><activity android:name=".D$6" android:launchMode="singleInstance"/><activity android:name=".D$7" android:launchMode="singleInstance"/><activity android:name=".D$8" android:launchMode="singleInstance"/>
可以发现,Virtualapk采用的正是我上面说的暂坑的模式,那我们到底要如何进行偷梁换柱呢,这就必须从Activity启动过程来进行分析
Activity启动过程
这里简单描述一下Activity的启动过程,想了解详细启动过程,后面我会用一篇博客进行讲解
在前面分析AMS的时候,我们知道Activity的startActivity最终会来到ActivityManagerNative类的startActivity方法,接下来会通过Binder IPC到AMS所在进程调用AMS的startActivity方法;Android系统的组件生命周期管理就是在AMS里面完成的
ActivityManagerService的startActivity方法如下:
@Overridepublic final int startActivity(IApplicationThread caller, String callingPackage,Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode,int startFlags, ProfilerInfo profilerInfo, Bundle options) {return startActivityAsUser(caller, callingPackage, intent, resolvedType, resultTo,resultWho, requestCode, startFlags, profilerInfo, options,UserHandle.getCallingUserId());}
直接调用了startActivityAsUser这个方法;接着是ActivityStackSupervisor类的startActivityMayWait方法。
startActivityMayWait这个方法前面对参数进行了一系列处理,在这个方法内部对传进来的Intent进行了解析,并尝试从中取出关于启动Activity的信息。
然后这个方法调用了startActivityLocked方法;在startActivityLocked方法内部进行了一系列重要的检查:比如权限检查,Activity的exported属性检查等等;前面所述的,启动没有在Manifestfest中显示声明的Activity抛异常也是这里发生的:
if (err == ActivityManager.START_SUCCESS && intent.getComponent() == null) {// We couldn't find a class that can handle the given Intent.// That's the end of that!err = ActivityManager.START_INTENT_NOT_RESOLVED;}
这里返回ActivityManager.START_CLASS_NOT_FOUND之后,在Instrument的execStartActivity返回之后会检查这个值,然后抛出异常:
case ActivityManager.START_CLASS_NOT_FOUND:if (intent instanceof Intent && ((Intent)intent).getComponent() != null)throw new ActivityNotFoundException("Unable to find explicit activity class "+ ((Intent)intent).getComponent().toShortString()+ "; have you declared this activity in your AndroidManifest.xml?");throw new ActivityNotFoundException("No Activity found to handle " + intent);
从这里,我们明白了必须在AndroidManifest.xml中显示声明使用的Activity的原因;然而这个校检过程发生在AMS所在的进程system_server,我们是不能更改system_server进程的东西的。
startActivityLocked之后处理的都是Activity任务栈相关内容

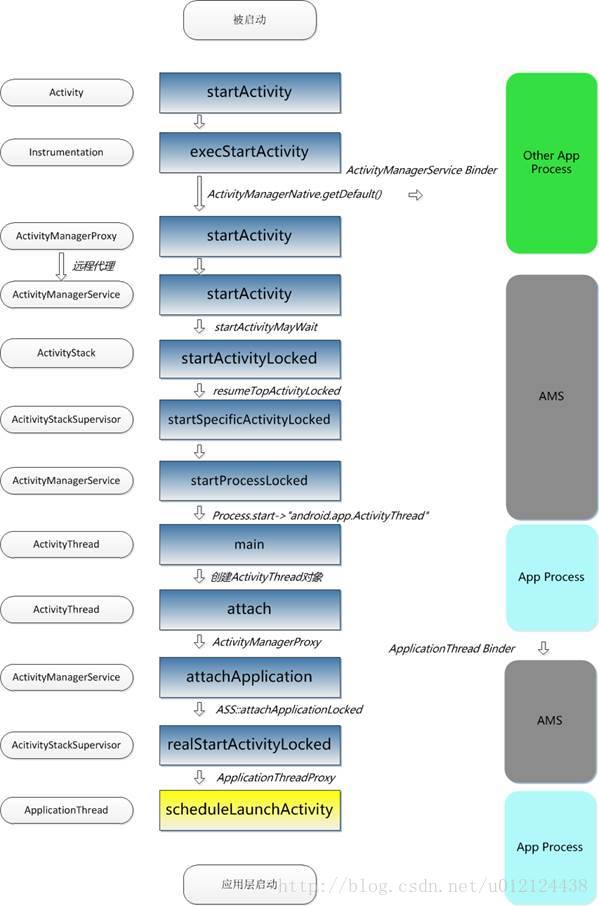

声明:图片来源于网络
这一系列调用最终到达了ActivityStackSupervisor的realStartActivityLocked方法;这个方法开始了真正的“启动Activity”:它调用了ApplicationThread的scheduleLaunchActivity方法,开始了真正的Activity对象创建以及启动过程。
ApplicationThread实际上是一个Binder对象,是App所在的进程与AMS所在进程system_server通信的桥梁:
1.App进程会委托AMS进程完成Activity生命周期的管理以及任务栈的管理;这个通信过程AMS是Server端,App进程通过持有AMS的client代理ActivityManagerNative完成通信过程;
2.AMS进程完成生命周期管理以及任务栈管理后,会把控制权交给App进程,让App进程完成Activity类对象的创建,以及生命周期回调;这个通信过程也是通过Binder完成的,App所在server端的Binder对象存在于ActivityThread的内部类ApplicationThread;AMS所在client通过持有IApplicationThread的代理对象完成对于App进程的通信。
App进程内部的ApplicationThread与App主线程并不在同一个线程内,他们通过Handler完成通信,这个Handler存在于ActivityThread类,它的名字很简单就叫H
ApplicationThread的scheduleLaunchActivity方法,正式包装了参数最终使用Handler发了一个消息。然后在ActivityThread中对消息进行处理
case LAUNCH_ACTIVITY: {Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityStart");final ActivityClientRecord r = (ActivityClientRecord) msg.obj;r.packageInfo = getPackageInfoNoCheck(r.activityInfo.applicationInfo, r.compatInfo);handleLaunchActivity(r, null);Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
直接调用了ActivityThread的handleLaunchActivity方法
private void handleLaunchActivity(ActivityClientRecord r, Intent customIntent) {//.....省略代码// Initialize before creating the activityWindowManagerGlobal.initialize();Activity a = performLaunchActivity(r, customIntent);
performLaunchActivity方法中主要做了两件事情
1.使用ClassLoader加载并通过反射创建Activity对象
try {java.lang.ClassLoader cl = r.packageInfo.getClassLoader();activity = mInstrumentation.newActivity(cl, component.getClassName(), r.intent);StrictMode.incrementExpectedActivityCount(activity.getClass());r.intent.setExtrasClassLoader(cl);r.intent.prepareToEnterProcess();if (r.state != null) {r.state.setClassLoader(cl);}} catch (Exception e) {if (!mInstrumentation.onException(activity, e)) {throw new RuntimeException("Unable to instantiate activity " + component+ ": " + e.toString(), e);}}
2.如果Application还没有创建,那么创建Application对象并回调相应的生命周期方法;
Application app = r.packageInfo.makeApplication(false, mInstrumentation);
整个系统的Activity堆栈,Activity生命周期回调都是由AMS所在的系统进程system_server帮开发者完成的;Android的Framework层帮忙完成了诸如生命周期管理等繁琐复杂的过程,简化了应用层的开发。
启动插件中声明的Activity
通过上面的描述,相信你已经大致了解了Activity的启动过程,之前我们说过,启动插件中的Activity会遇到的问题是必须在清单文件中进行声明,我们也说了解决的思路是在AndroidManifest.xml里面声明一个替身Activity,然后在合适的时候把这个假的替换成我们真正需要启动的Activity
我们可以先启动一个已经在AndroidManifest.xml里面声明过的替身Activity,让这个Activity进入AMS进程接受检验;最后在换成我们真正需要启动的Activity;这样就成功欺骗了AMS进程
使用StubActivity绕过AMS
启动Activity的控制权转移到AMS进程之前,我们需要想办法临时把TargetActivity替换成替身StubActivity,我们来看一下Virtualapk里面是如何做的
1.代理系统Instrumentation
前面分析Activity的启动流程的时候,我们知道无论是通过Context还是Activity的startActivity方法最终都会经过Instrumentation
我们在Virtualapk中看到如下代码:
private void hookInstrumentationAndHandler() {try {Instrumentation baseInstrumentation = ReflectUtil.getInstrumentation(this.mContext);if (baseInstrumentation.getClass().getName().contains("lbe")) {// reject executing in paralell space, for example, lbe.System.exit(0);}final VAInstrumentation instrumentation = new VAInstrumentation(this, baseInstrumentation);Object activityThread = ReflectUtil.getActivityThread(this.mContext);ReflectUtil.setInstrumentation(activityThread, instrumentation);ReflectUtil.setHandlerCallback(this.mContext, instrumentation);this.mInstrumentation = instrumentation;} catch (Exception e) {e.printStackTrace();}}
首先通过反射获取了ActivityThread中的instrumentation,并通过
VAInstrumentation 类对系统的instrumentation进行了封装,我们来看一看VAInstrumentation 类里面到底做了什么,其实VAInstrumentation 就是系统instrumentation的一个代理,然后将这个VAInstrumentation 替换掉原来系统ActivityThread中的instrumentation,VAInstrumentation 里面重写了execStartActivity,realExecStartActivity等方法,为什么要重写这些方法?没关系,我们一个个来进行分析
首先是execStartActivity方法的分析
public ActivityResult execStartActivity(Context who, IBinder contextThread, IBinder token, Activity target,Intent intent, int requestCode, Bundle options) {mPluginManager.getComponentsHandler().transformIntentToExplicitAsNeeded(intent);// null component is an implicitly intentif (intent.getComponent() != null) {Log.i(TAG, String.format("execStartActivity[%s : %s]", intent.getComponent().getPackageName(),intent.getComponent().getClassName()));// resolve intent with Stub Activity if neededthis.mPluginManager.getComponentsHandler().markIntentIfNeeded(intent);}ActivityResult result = realExecStartActivity(who, contextThread, token, target,intent, requestCode, options);return result;}
execStartActivity方法主要做了以下这些事情:
1.将隐试启动插件里activity的意图转化为显示启动,因为在宿主通过隐式启动插件activity,是无法启动的,原因很简单,插件的activity并不在宿主apk中
mPluginManager.getComponentsHandler().transformIntentToExplicitAsNeeded(intent);
ComponentsHandler的transformIntentToExplicitAsNeeded做的就是这个事情,里面会通过mPluginManager.resolveActivity方法查找插件里面第一个符合隐式条件的第一个ResolveInfo,然后new component 设置进intent,大家可以追着代码进去看,这里不再贴出
public Intent transformIntentToExplicitAsNeeded(Intent intent) {ComponentName component = intent.getComponent();if (component == null) {ResolveInfo info = mPluginManager.resolveActivity(intent);if (info != null && info.activityInfo != null) {component = new ComponentName(info.activityInfo.packageName, info.activityInfo.name);intent.setComponent(component);}}return intent;}
2.临时把TargetActivity替换成替身StubActivity
我们前面说过,要进行偷梁换柱,而这个地方就是在execStartActivity的以下的代码中
if (intent.getComponent() != null) {Log.i(TAG, String.format("execStartActivity[%s : %s]", intent.getComponent().getPackageName(),intent.getComponent().getClassName()));// resolve intent with Stub Activity if neededthis.mPluginManager.getComponentsHandler().markIntentIfNeeded(intent);}
可以发现,关键代码在markIntentIfNeeded方法中
//ComponentsHandler.java
public void markIntentIfNeeded(Intent intent) {if (intent.getComponent() == null) {return;}String targetPackageName = intent.getComponent().getPackageName();String targetClassName = intent.getComponent().getClassName();// search map and return specific launchmode stub activityif (!targetPackageName.equals(mContext.getPackageName()) && mPluginManager.getLoadedPlugin(targetPackageName) != null) {intent.putExtra(Constants.KEY_IS_PLUGIN, true);intent.putExtra(Constants.KEY_TARGET_PACKAGE, targetPackageName);intent.putExtra(Constants.KEY_TARGET_ACTIVITY, targetClassName);dispatchStubActivity(intent);}}
我们可以发现,会判断启动的Activity是不是插件里的,如果是,则将目标Activity的包名和TargetActivity的名字存储到intent中,接着通过dispatchStubActivity方法,根据要启动的TargetActivity是什么启动模式的来启动相应的代理StubActivity
private void dispatchStubActivity(Intent intent) {ComponentName component = intent.getComponent();String targetClassName = intent.getComponent().getClassName();LoadedPlugin loadedPlugin = mPluginManager.getLoadedPlugin(intent);ActivityInfo info = loadedPlugin.getActivityInfo(component);if (info == null) {throw new RuntimeException("can not find " + component);}int launchMode = info.launchMode;Resources.Theme themeObj = loadedPlugin.getResources().newTheme();themeObj.applyStyle(info.theme, true);String stubActivity = mStubActivityInfo.getStubActivity(targetClassName, launchMode, themeObj);Log.i(TAG, String.format("dispatchStubActivity,[%s -> %s]", targetClassName, stubActivity));intent.setClassName(mContext, stubActivity);}
dispatchStubActivity方法里面会通过TargetActivity是什么启动模式的来获取相应的代理StubActivity的类名并设置进intent中,这里就完成了偷梁换柱的过程。
3.调用系统Instrumentation的execStartActivity方法,进入正常启动Activity的流程
ActivityResult result = realExecStartActivity(who, contextThread, token, target,intent, requestCode, options);
private ActivityResult realExecStartActivity(Context who, IBinder contextThread, IBinder token, Activity target,Intent intent, int requestCode, Bundle options) {ActivityResult result = null;try {Class[] parameterTypes = {Context.class, IBinder.class, IBinder.class, Activity.class, Intent.class,int.class, Bundle.class};result = (ActivityResult)ReflectUtil.invoke(Instrumentation.class, mBase,"execStartActivity", parameterTypes,who, contextThread, token, target, intent, requestCode, options);} catch (Exception e) {e.printStackTrace();}return result;}
这里是通过反射调用系统Instrumentation的execStartActivity方法
通过这个替换过程,在ActivityManagerNative的startActivity调用之后,system_server端收到Binder驱动的消息,开始执行ActivityManagerService里面真正的startActivity方法;这时候AMS看到的intent参数里面的组件已经是StubActivity了,因此可以成功绕过检查
将StubActivity替换回TargetActivity
好了,接下来就是进行跨进程通信,system_server管理Activity的生命周期,之前我们用替身StubActivity临时换了TargetActivity,肯定需要在合适的时候替换回来,Virtualapk替换的回来的地方是哪里呢?
在AMS进程里面我们是没有办法换回来的,因此我们要等AMS把控制权交给App所在进程,还记得前面我们说ApplicationThread所在的Binder线程池通过Handler与ActivityThread进行通信么?
于是乎,我们是不是可以有一种思路,在这个Handler的handleMessage时做处理呢?我们简单看一下Handler的代码
public void dispatchMessage(Message msg) {if (msg.callback != null) {handleCallback(msg);} else {if (mCallback != null) {if (mCallback.handleMessage(msg)) {return;}}handleMessage(msg);}
}
Handler类消息分发的过程:
1.如果传递的Message本身就有callback,那么直接使用Message对象的callback方法;
2.如果Handler类的成员变量mCallback存在,那么首先执行这个mCallback回调;
3.如果mCallback的回调返回true,那么表示消息已经成功处理;直接结束。
4.如果mCallback的回调返回false,那么表示消息没有处理完毕,会继续使用Handler类的handleMessage方法处理消息。
ActivityThread中的Handler类H重载了handleMessage方法:
public void handleMessage(Message msg) {if (DEBUG_MESSAGES) Slog.v(TAG, ">>> handling: " + codeToString(msg.what));switch (msg.what) {case LAUNCH_ACTIVITY: {Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityStart");ActivityClientRecord r = (ActivityClientRecord)msg.obj;r.packageInfo = getPackageInfoNoCheck(r.activityInfo.applicationInfo, r.compatInfo);handleLaunchActivity(r, null);Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);} break;case RELAUNCH_ACTIVITY: {Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityRestart");ActivityClientRecord r = (ActivityClientRecord)msg.obj;handleRelaunchActivity(r);Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);// 省略一万行代码。。。。}
}
从dispathMessage方法中,我们可以得出思路:我们可以拦截这一过程:把这个H类的mCallback替换为我们的自定义实现,这样dispathMessage就会首先使用这个自定义的mCallback,然后看情况使用H重载的handleMessage。
这个Handler.Callback是一个接口,我们可以使用动态代理或者普通代理完成Hook,在Virtualapk中使用普通的静态代理方式,还记得前面的VAInstrumentation类么?它不仅继承了系统的Instrumentation,同时还实现了 Handler.Callback 接口
再次贴出前面PluginManager初始化的时候hookInstrumentationAndHandler的代码
private void hookInstrumentationAndHandler() {try {Instrumentation baseInstrumentation = ReflectUtil.getInstrumentation(this.mContext);if (baseInstrumentation.getClass().getName().contains("lbe")) {// reject executing in paralell space, for example, lbe.System.exit(0);}final VAInstrumentation instrumentation = new VAInstrumentation(this, baseInstrumentation);Object activityThread = ReflectUtil.getActivityThread(this.mContext);ReflectUtil.setInstrumentation(activityThread, instrumentation);ReflectUtil.setHandlerCallback(this.mContext, instrumentation);this.mInstrumentation = instrumentation;} catch (Exception e) {e.printStackTrace();}}
可以很明显的发现setHandlerCallback方法中对Callback进行了处理
public static void setHandlerCallback(Context base, Handler.Callback callback) {try {Object activityThread = getActivityThread(base);Handler mainHandler = (Handler) ReflectUtil.invoke(activityThread.getClass(), activityThread, "getHandler", (Object[])null);ReflectUtil.setField(Handler.class, mainHandler, "mCallback", callback);} catch (Exception e) {e.printStackTrace();}}
果不其然,替换了ActivityThread中的Handler的mCallback为VAInstrumentation ,所以当ActivityThread的H进行dispathMessage的时候,必定会走到VAInstrumentation 的handleMessage方法
//VAInstrumentation.java@Overridepublic boolean handleMessage(Message msg) {if (msg.what == LAUNCH_ACTIVITY) {// ActivityClientRecord rObject r = msg.obj;try {Intent intent = (Intent) ReflectUtil.getField(r.getClass(), r, "intent");intent.setExtrasClassLoader(VAInstrumentation.class.getClassLoader());ActivityInfo activityInfo = (ActivityInfo) ReflectUtil.getField(r.getClass(), r, "activityInfo");if (PluginUtil.isIntentFromPlugin(intent)) {int theme = PluginUtil.getTheme(mPluginManager.getHostContext(), intent);if (theme != 0) {Log.i(TAG, "resolve theme, current theme:" + activityInfo.theme + " after :0x" + Integer.toHexString(theme));activityInfo.theme = theme;}}} catch (Exception e) {e.printStackTrace();}}return false;}
可以看到在VAInstrumentation 的handleMessage方法只是拦截了LAUNCH_ACTIVITY的处理,在里面将intent中的activityInfo.theme替换为插件的theme,并给intent设置了ClassLoader,这里为什么要设置一个ClassLoader?我想是因为在ActivityThread的performLaunchActivity方法会将其取出,然后设置进mInstrumentation.newActivity方法中
//ActivityThread.javaActivity activity = null;try {java.lang.ClassLoader cl = r.packageInfo.getClassLoader();activity = mInstrumentation.newActivity(cl, component.getClassName(), r.intent);StrictMode.incrementExpectedActivityCount(activity.getClass());r.intent.setExtrasClassLoader(cl);r.intent.prepareToEnterProcess();if (r.state != null) {r.state.setClassLoader(cl);}}
经过上面的调用,又会进入到VAInstrumentation 的newActivity
@Overridepublic Activity newActivity(ClassLoader cl, String className, Intent intent) throws InstantiationException, IllegalAccessException, ClassNotFoundException {try {cl.loadClass(className);} catch (ClassNotFoundException e) {LoadedPlugin plugin = this.mPluginManager.getLoadedPlugin(intent);String targetClassName = PluginUtil.getTargetActivity(intent);Log.i(TAG, String.format("newActivity[%s : %s]", className, targetClassName));if (targetClassName != null) {Activity activity = mBase.newActivity(plugin.getClassLoader(), targetClassName, intent);activity.setIntent(intent);try {// for 4.1+ReflectUtil.setField(ContextThemeWrapper.class, activity, "mResources", plugin.getResources());} catch (Exception ignored) {// ignored.}return activity;}}return mBase.newActivity(cl, className, intent);}

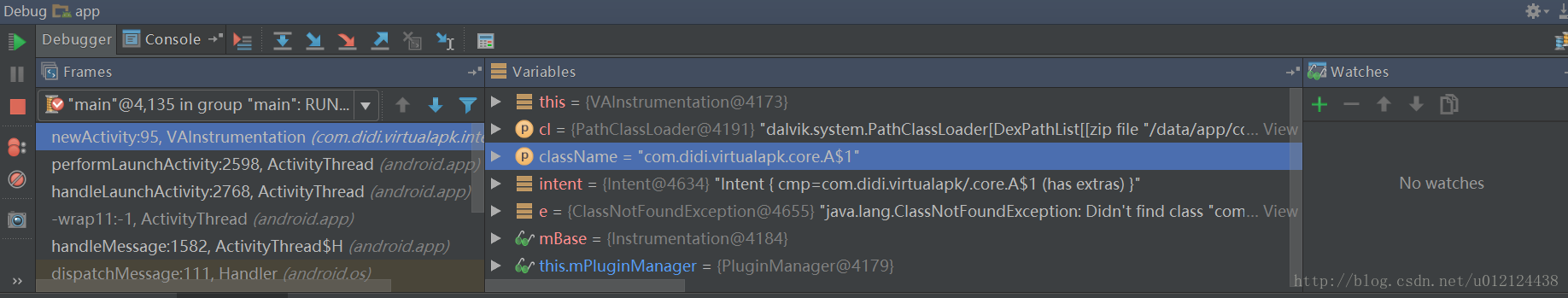

首先是cl.loadClass(className),注意,我使用的demo,这里的className为com.didi.virtualapk.core.A$1,还有可能是其他的,但都会是在清单文件声明的stubActivity的名字
调用cl.loadClass(className)去加载这些类,肯定是会爆出ClassNotFoundException异常的,因为这些类并不存在,他们只是在清单文件中起到占坑的作用,用来欺骗系统的,这里的设计确实非常巧妙,接下来自然走到catch里,catch里自然是去构建真正需要加载的TargetActivity
Activity activity = mBase.newActivity(plugin.getClassLoader(), targetClassName, intent);activity.setIntent(intent);
传入newActivity方法的是LoadedPlugin中的ClassLoader,这个ClassLoader已经是修改过的,可以加载插件和宿主里的类,关羽ClassLoader不懂的,可以看《Android插件化学习之路(二)之ClassLoader完全解析》
然后将intent设置进插件Activity 中,注意,这里的intent里的className还是com.didi.virtualapk.core.A$1
接下来会调用到ActivityThread中的performLaunchActivity 中的如下代码
if (r.isPersistable()) {mInstrumentation.callActivityOnCreate(activity, r.state, r.persistentState);} else {mInstrumentation.callActivityOnCreate(activity, r.state);}
然后又进入到VAInstrumentation 的callActivityOnCreate方法中
public void callActivityOnCreate(Activity activity, Bundle icicle) {final Intent intent = activity.getIntent();if (PluginUtil.isIntentFromPlugin(intent)) {Context base = activity.getBaseContext();try {LoadedPlugin plugin = this.mPluginManager.getLoadedPlugin(intent);ReflectUtil.setField(base.getClass(), base, "mResources", plugin.getResources());ReflectUtil.setField(ContextWrapper.class, activity, "mBase", plugin.getPluginContext());ReflectUtil.setField(Activity.class, activity, "mApplication", plugin.getApplication());ReflectUtil.setFieldNoException(ContextThemeWrapper.class, activity, "mBase", plugin.getPluginContext());// set screenOrientationActivityInfo activityInfo = plugin.getActivityInfo(PluginUtil.getComponent(intent));if (activityInfo.screenOrientation != ActivityInfo.SCREEN_ORIENTATION_UNSPECIFIED) {activity.setRequestedOrientation(activityInfo.screenOrientation);}} catch (Exception e) {e.printStackTrace();}}mBase.callActivityOnCreate(activity, icicle);}
最后这里就是进行一些替换的工作了,替换掉TargetActivity里的mResources,mBase,mApplication为LoadedPlugin中生成的可以用于加载插件资源的相应Resources和Context,为什么要进行这些替换工作?后续文章会进行详细讲解,最后就是调用系统Instrumentation的callActivityOnCreate其启动这个插件TargetActivity了,我们可以发现,到最后intent里的className还是com.didi.virtualapk.core.A$1,这是因为这个intent只是用来欺骗系统的作用
public void callActivityOnCreate(Activity activity, Bundle icicle,PersistableBundle persistentState) {prePerformCreate(activity);activity.performCreate(icicle, persistentState);postPerformCreate(activity);}
可以看见,接下来就是调用插件Activity的onCreate方法了,就完了加载插件Activity的过程
你可能会问通过上面的方式启动的插件TargetActivity就具有生命周期了吗?答案是肯定的,大家可以通过demo去验证这一点,我们以onDestroy为例分析一下这个过程:
Activity的finish方法最终会通过ActivityManagerNative到AMS然后接着通过ApplicationThread到ActivityThread,然后通过H转发消息到ActivityThread的handleDestroyActivity,接着这个方法把任务交给performDestroyActivity完成。
performDestroyActivity,关键代码如下:
ActivityClientRecord r = mActivities.get(token);// ......mInstrumentation.callActivityOnDestroy(r.activity);
通过mActivities拿到了一个ActivityClientRecord,然后直接把这个record里面的Activity交给Instrument类完成了onDestroy的调用。
这里的r.activity是StubActivity为什么它能正确完成对TargetActivity生命周期的回调呢?
答案是token。AMS与ActivityThread之间对于Activity的生命周期的交互,并没有直接使用Activity对象进行交互,而是使用一个token来标识,这个token是binder对象,因此可以方便地跨进程传递。Activity里面有一个成员变量mToken代表的就是它,token可以唯一地标识一个Activity对象,它在Activity的attach方法里面初始化;
在AMS处理Activity的任务栈的时候,使用这个token标记Activity,因此在demo里面,AMS进程里面的token对应的是StubActivity,但是在App进程里面,token对应的却是TargetActivity!因此,在ActivityThread执行回调的时候,能正确地回调到TargetActivity相应的方法。
为什么App进程里面,token对应的是TargetActivity呢?
ActivityClientRecord是在mActivities里面取出来的,确实是根据token取;那么这个token是什么时候添加进去的呢?我们看performLaunchActivity就完成明白了:它通过classloader加载了TargetActivity,然后完成一切操作之后把这个activity添加进了mActivities!另外,在这个方法里面我们还能看到对Ativity.attach方法的调用,它传递给了新创建的Activity一个token对象,而这个token是在ActivityClientRecord构造函数里面初始化的。
至此,整个Virtualapk框架对于插件Activity的管理就到此结束了,接下来还会继续分析其他组件的原理,最后,如果小弟有分析偏差的地方,欢迎矫正。
