#PS:要转载请注明出处,本人版权所有
#PS:这个只是 《 我自己 》理解,如果和你的
#原则相冲突,请谅解,勿喷
测试环境:
Linux 4.10.0-33-generic #37~16.04.1-Ubuntu SMP Fri Aug 11 14:07:24 UTC 2017 x86_64 x86_64 x86_64 GNU/Linux
1 关于linux socket通信,要详细了解清楚,不知道要说多少天。所以网上大部分教程也是只介绍了基本的api调用流程。一些其他的问题还没有提及,当然本文作者由于水平有限,估计也只能介绍个流程,并且解决一些简单的未涉及的问题。

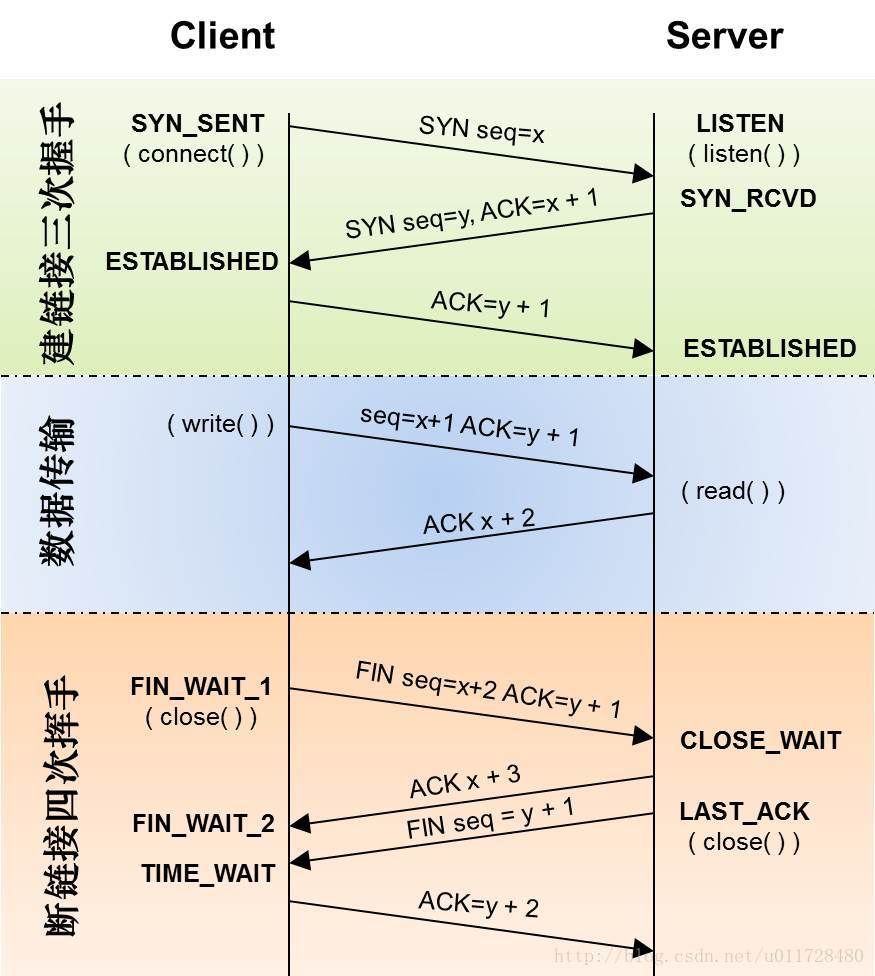

2 TCP的基本要点,三次握手,四次分手,分别代表了开始和结束。下图是我在百度图片上找的一个图,完全找不到原图出自哪里,很伤感。
说明:此图完全清晰可见的描述了一个tcp通信到底做了一些什么。我也不详细说明,改天可以给大家抓包分析分析。
3 通过上图我们可以看到,客户端connect后,就可以write和read了,而服务端accept后可以做同样的事情,最后只需要close就能够解决。下面我们简要的来分析一下这个流程。
上图是我写的一个服务端程序跑起来后,通过netstat可以看到此进程进入了listen状态。

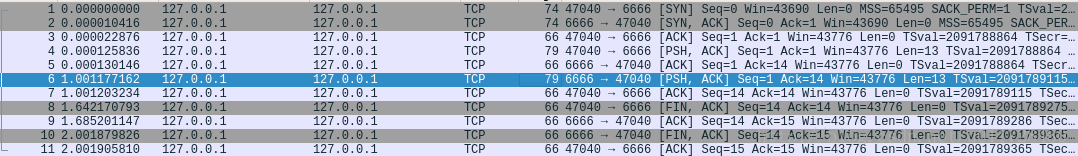

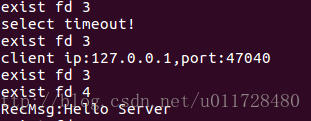

上面三个图演示了一个tcp通信的完整过程。第三图1-3是connect,4是write:Hello Server,5是对4的响应,代表收到,6是write:Hello Client,7同理5,8-11对应close,和上文所要展示的流程基本相同。

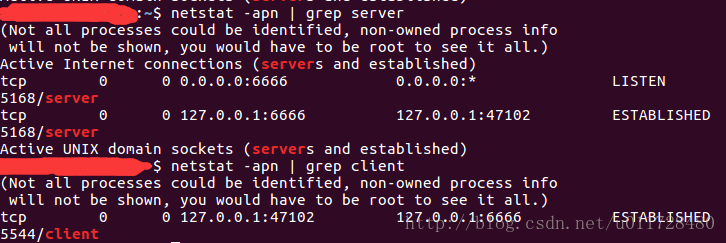

上图是查看端口,可见tcp的链接状况(图中pid和上文图中pid不对应的原因是非同一个测试)。
4 好了,上文BB了那么多,只是要科普一下而已,现在进入正题,首先来看几个定义及结构体。
结构体1
typedef unsigned short __kernel_sa_family_t;typedef __kernel_sa_family_t sa_family_t; struct sockaddr {//通用结构体,很多socket相关api都要使用它sa_family_t sa_family;char sa_data[14];}
结构体2
typedef uint32_t in_addr_t;struct in_addr//ip地址存放结构体{in_addr_t s_addr;};#define __SOCKADDR_COMMON(sa_prefix) \sa_family_t sa_prefix##familystruct sockaddr_in//ip4 地址结构{__SOCKADDR_COMMON (sin_);in_port_t sin_port; //Port number. struct in_addr sin_addr; // Internet address. // Pad to size of `struct sockaddr'unsigned char sin_zero[sizeof (struct sockaddr) -__SOCKADDR_COMMON_SIZE -sizeof (in_port_t) -sizeof (struct in_addr)];};
结构体3
#define _K_SS_MAXSIZE 128 //Implementation specific max size #define _K_SS_ALIGNSIZE (__alignof__ (struct sockaddr *))//Implementation specific desired alignment typedef unsigned short __kernel_sa_family_t;struct __kernel_sockaddr_storage {//此结构体是新内核提出的,可以存储所有协议地址类型__kernel_sa_family_t ss_family; //address family // Following field(s) are implementation specific char __data[_K_SS_MAXSIZE - sizeof(unsigned short)];// space to achieve desired size, // _SS_MAXSIZE value minus size of ss_family } __attribute__ ((aligned(_K_SS_ALIGNSIZE))); /* force desired alignment
结构体1,2是ip4网络编程常用的一些结构体,结构体3是新内核对于多种协议地址结构提出的一个新的通用的存储结构体。
5 关于这些结构体的知识我们就到这里了。现在来讲一讲linux上的socket编程。下面就是cs通信中,各自要使用的api及调用顺序,这也是最基本的socket通信,也是网上流传最广的通信例子。
client:
int socket(int domain, int type, int protocol);
int connect(int sockfd, const struct sockaddr *addr, socklen_t addrlen);
read/write
close
server:
int socket(int domain, int type, int protocol);
int bind(int sockfd, const struct sockaddr *addr,socklen_t addrlen);
int listen(int sockfd, int backlog);
int accept(int sockfd, struct sockaddr *addr, socklen_t *addrlen);//阻塞io
read/write
close
6 非阻塞通信,关键select(注意,这里没有使用更高级的epoll,因为我对这个api也是一个菜鸡)
int select(int nfds, fd_set *readfds, fd_set *writefds,fd_set *exceptfds, struct timeval *timeout);void FD_CLR(int fd, fd_set *set);int FD_ISSET(int fd, fd_set *set);void FD_SET(int fd, fd_set *set);void FD_ZERO(fd_set *set);
对于这个api,简单来说,就是监控 所有传入的 文件描述符集合,当相关文件描述集合可读, 可写 ,异常时,select正常返回,否则可能是等待超时,可能是出错。
对于本文,就是监控客户端socket fd,监控服务端socket fd和accept接受的fd。
7 其他的都不说了,口水都干了,直接上例子代码,然后喝口水,上个厕所,洗个手,坐等下班
client.c
#include <stdio.h>
#include <unistd.h>
#include <sys/types.h> /* See NOTES */
#include <sys/socket.h>#include <errno.h>
#include <string.h>#include <arpa/inet.h>#include <sys/select.h>/* According to earlier standards */
#include <sys/time.h>
#include <sys/types.h>
#include <unistd.h>#define TARGETPORT 6666
#define TARGETIP "127.0.0.1"
int main(int argc, char *argv[])
{/*
int socket(int domain, int type, int protocol);domain:AF_UNIX, AF_LOCAL Local communication unix(7)AF_INET IPv4 Internet protocols ip(7)AF_INET6 IPv6 Internet protocols ipv6(7)AF_IPX IPX - Novell protocolsAF_NETLINK Kernel user interface device netlink(7)AF_X25 ITU-T X.25 / ISO-8208 protocol x25(7)AF_AX25 Amateur radio AX.25 protocolAF_ATMPVC Access to raw ATM PVCsAF_APPLETALK AppleTalk ddp(7)AF_PACKET Low level packet interface packet(7)AF_ALG Interface to kernel crypto API
type:SOCK_STREAM Provides sequenced, reliable, two-way, connection-basedbyte streams. An out-of-band data transmission mecha‐nism may be supported.SOCK_DGRAM Supports datagrams (connectionless, unreliable messagesof a fixed maximum length).SOCK_SEQPACKET Provides a sequenced, reliable, two-way connection-based data transmission path for datagrams of fixedmaximum length; a consumer is required to read anentire packet with each input system call.SOCK_RAW Provides raw network protocol access.SOCK_RDM Provides a reliable datagram layer that does not guar‐antee ordering.SOCK_PACKET Obsolete and should not be used in new programs; seepacket(7).protocol:The protocol specifies a particular protocol to be used with thesocket. Normally only a single protocol exists to support a particularsocket type within a given protocol family, in which case protocol canbe specified as 0. However, it is possible that many protocols mayexist, in which case a particular protocol must be specified in thismanner. The protocol number to use is specific to the “communicationdomain” in which communication is to take place; see protocols(5). Seegetprotoent(3) on how to map protocol name strings to protocol numbers.
*/int fd;if (0 > (fd = socket(AF_INET, SOCK_STREAM, 0))){perror("socket create error:");return -1;}/*int bind(int sockfd, const struct sockaddr *addr,socklen_t addrlen);typedef unsigned short __kernel_sa_family_t;typedef __kernel_sa_family_t sa_family_t; struct sockaddr {sa_family_t sa_family;char sa_data[14];}typedef uint32_t in_addr_t;struct in_addr{in_addr_t s_addr;};#define __SOCKADDR_COMMON(sa_prefix) \sa_family_t sa_prefix##familystruct sockaddr_in{__SOCKADDR_COMMON (sin_);in_port_t sin_port; /* Port number. struct in_addr sin_addr; /* Internet address. // Pad to size of `struct sockaddr'. unsigned char sin_zero[sizeof (struct sockaddr) -__SOCKADDR_COMMON_SIZE -sizeof (in_port_t) -sizeof (struct in_addr)];};#define _K_SS_MAXSIZE 128 //Implementation specific max size #define _K_SS_ALIGNSIZE (__alignof__ (struct sockaddr *))//Implementation specific desired alignment typedef unsigned short __kernel_sa_family_t;struct __kernel_sockaddr_storage {__kernel_sa_family_t ss_family; /* address family /* Following field(s) are implementation specific char __data[_K_SS_MAXSIZE - sizeof(unsigned short)];/* space to achieve desired size, *//* _SS_MAXSIZE value minus size of ss_family } __attribute__ ((aligned(_K_SS_ALIGNSIZE))); /* force desired alignment */struct sockaddr_in addr;memset(&addr, 0, sizeof(struct sockaddr_in));addr.sin_family = AF_INET;addr.sin_port = htons(TARGETPORT);//addr.sin_addr.s_addr = htonl//int inet_pton(int af, const char *src, void *dst);inet_pton(AF_INET, TARGETIP, (void *)&(addr.sin_addr.s_addr));//int connect(int sockfd, const struct sockaddr *addr,\socklen_t addrlen);if (0 > connect(fd, (const struct sockaddr *)&addr, sizeof(struct sockaddr))){perror("socket connect error:");return -1;}int ret;struct timeval timeout;char SendMsg[] = {"Hello Server"};char RecBuf[100] = {0};fd_set rec_set;FD_ZERO(&rec_set); FD_SET(fd, &rec_set); while (1){//ssize_t write(int fd, const void *buf, size_t count);if ( 0 > write(fd, SendMsg, sizeof(SendMsg)) ){printf("write failed\n");}timeout.tv_sec = 5; timeout.tv_usec = 0; //int select(int nfds, fd_set *readfds, fd_set *writefds,\fd_set *exceptfds, struct timeval *timeout);ret = select(fd + 1, &rec_set, NULL, NULL, &timeout); //select返回表示检测到可读事件 switch(ret){case 0:{printf("select timeout!\n");break;}case -1:{perror("select error:");return -1;break;}default:{//ssize_t read(int fd, void *buf, size_t count);read(fd, RecBuf, sizeof(SendMsg));printf("RecBuf:%s\n",RecBuf);sleep(1);}}}close(fd);return 0;
}
server.c
#include <stdio.h>
#include <unistd.h>
#include <sys/types.h> /* See NOTES */
#include <sys/socket.h>#include <errno.h>
#include <string.h>#include <arpa/inet.h>#include <sys/select.h>/* According to earlier standards */
#include <sys/time.h>
#include <sys/types.h>#include <sys/select.h>#define TARGETPORT 6666
#define TARGETIP "127.0.0.1"
typedef struct _MyFdSet
{int FdNum;int AllFdSet[FD_SETSIZE];
} MyFdSet;void MyFdSet_INSERT(MyFdSet *set, int fd){set->AllFdSet[set->FdNum] = fd; set->FdNum++;
}int MyFdSet_GETMAX(MyFdSet *set){int i = 1;int max_fd = set->AllFdSet[0];for ( ; i < set->FdNum; i ++) { if ( max_fd < set->AllFdSet[i]){max_fd = set->AllFdSet[i];}}return max_fd;
}void MyFdSet_REMOVE(MyFdSet * set,int fd) {MyFdSet tmp;tmp.FdNum = 0;int i = 0;for ( ; i < set->FdNum; i++ ){if ( fd != set->AllFdSet[i] ){tmp.AllFdSet[tmp.FdNum] = set->AllFdSet[i];tmp.FdNum++;}}set->FdNum = tmp.FdNum;for ( i = 0; i < set->FdNum; i++){set->AllFdSet[i] = tmp.AllFdSet[i];}
}int main(int argc, char *argv[]){int fd;if (0 > (fd = socket(AF_INET, SOCK_STREAM, 0))){perror("socket error:");return -1;}struct sockaddr_in addr;struct sockaddr_in client_addr;memset(&addr, 0, sizeof(struct sockaddr_in));addr.sin_family = AF_INET;addr.sin_port = htons(TARGETPORT);addr.sin_addr.s_addr = htonl(INADDR_ANY);// int bind(int sockfd, const struct sockaddr *addr,\socklen_t addrlen);if (0 > bind(fd, (const struct sockaddr *)&addr, sizeof(struct sockaddr))){perror("bind error:");return -1;}//int listen(int sockfd, int backlog);if (0 > listen(fd, 5)){perror("bind error:");return -1;}fd_set ser_set;FD_ZERO(&ser_set);FD_SET(fd, &ser_set);struct timeval timeout;int ret;MyFdSet myfdset = {0,{0}};MyFdSet_INSERT(&myfdset, fd);char RecBuf[100];char SendMsg[] = {"Hello Client"}; while (1){int n = 0;FD_ZERO(&ser_set);for ( ; n < myfdset.FdNum; n++){FD_SET(myfdset.AllFdSet[n], &ser_set);printf("exist fd %d\n",myfdset.AllFdSet[n]);}timeout.tv_sec = 5;timeout.tv_usec = 0;//int select(int nfds, fd_set *readfds, fd_set *writefds,\fd_set *exceptfds, struct timeval *timeout);ret = select( MyFdSet_GETMAX(&myfdset) + 1, &ser_set, NULL, NULL, &timeout);switch (ret){case 0:{printf("select timeout!\n");break;}case -1:{perror("select error:");return -1;break;}default:{ int i = 0;for ( ; i < myfdset.FdNum; i ++ ){if (FD_ISSET(myfdset.AllFdSet[i], &ser_set)){if ( fd == myfdset.AllFdSet[i] ){//client connectint c_fd;int client_addr_len = sizeof(struct sockaddr);if ( 0 > (c_fd = accept(fd, (struct sockaddr*)&client_addr, &client_addr_len)) ){perror("accept error:");break;}printf("client ip:%s,port:%d\n", inet_ntoa(client_addr.sin_addr), ntohs(client_addr.sin_port));MyFdSet_INSERT(&myfdset, c_fd);FD_SET(c_fd, &ser_set);break;}else{//client sent datas in bufret = read(myfdset.AllFdSet[i], RecBuf, sizeof(SendMsg));if ( 0 > ret ){MyFdSet_REMOVE(&myfdset, myfdset.AllFdSet[i]);close(myfdset.AllFdSet[i]);perror("read error:");break;}else if( ret == 0 ){//client disconnectedMyFdSet_REMOVE(&myfdset, myfdset.AllFdSet[i]);close(myfdset.AllFdSet[i]);printf("client disconnected\n");break;}else{printf("RecMsg:%s\n", RecBuf);write(myfdset.AllFdSet[i], SendMsg, sizeof(SendMsg));}}}}sleep(1);}}}int i;for ( i = 0; i < myfdset.FdNum; i++ ){//close fdclose(myfdset.AllFdSet[i]);}return 0;}
直接gcc client.c -o client gcc server.c -o server 就可以使用了
#PS:请尊重原创,不喜勿喷
#PS:要转载请注明出处,本人版权所有.
有问题请留言,看到后我会第一时间回复
