一个简单的Swing程序(通讯录)
来东软一个月了,前天学了一个上午的Swing,老师要求做一个通讯录图形界面程序,就试着做了做,还有许多不完善的地方,如果有时间的话,后面还会接着改的,开发工具是MyEclipse,数据库使用的是Oracle数据库。首先把界面都摆出来吧!

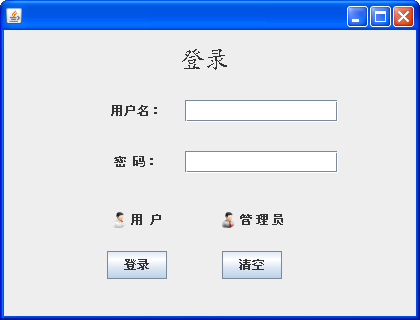

登录界面

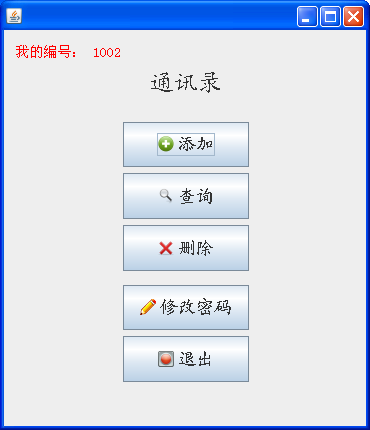

1.用户界面

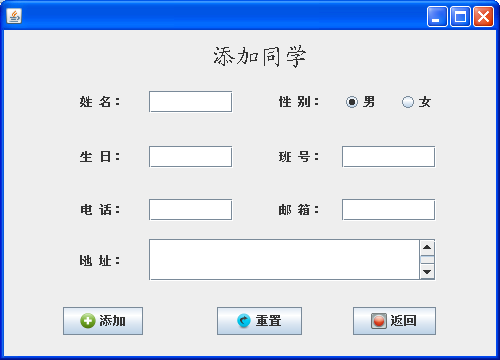

2.用户添加自己同学信息

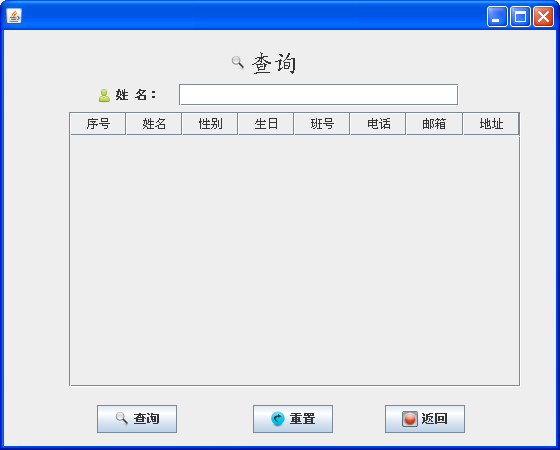

3.查询自己的同学信息

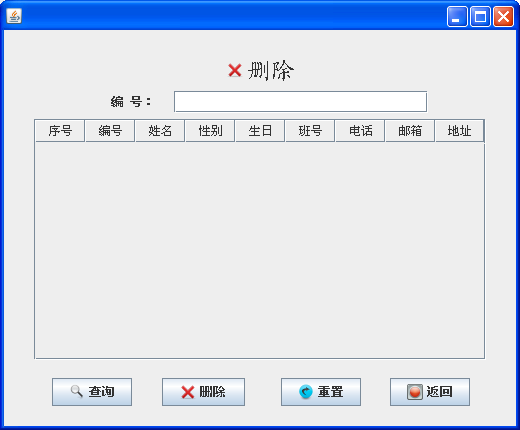

4.删除同学信息

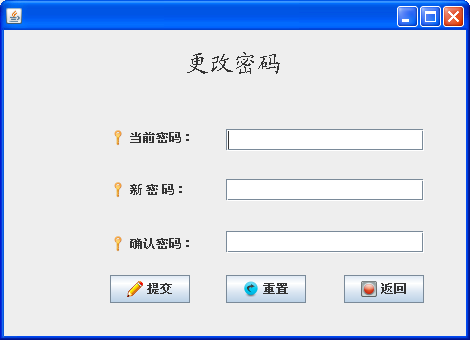

5.修改个人密码

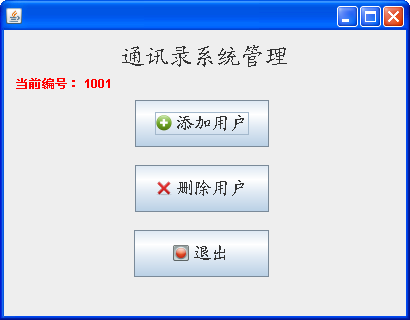

管理员界面

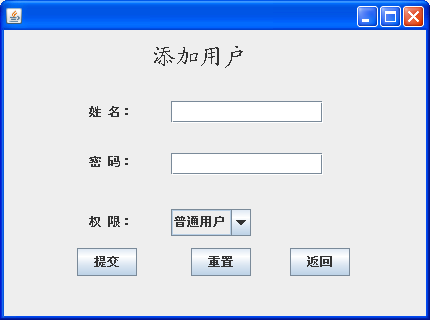

1.管理员添加用户
2.删除用户(非管理员用户)
接下来是数据库表的设计,就两张表,一个用户表,一个学生表
--用户信息表
create table user_info(
userid number primary key, --用户编号
username varchar(10 char) not null, --用户姓名
passwd varchar(32 char) not null, --用户密码
priv varchar(10) default 'common' not null check (priv in('common','director')), --用户权限 --1.admin 2.普通用户
registertime date default sysdate not null,
intime date default sysdate not null,
outitme date default sysdate not null
);
create table u_student
(
sno number primary key,
sname varchar(10 char) not null,
sex char(2) default '男' not null check (sex in('男','女')),
birthday date,
classno varchar(8 char) not null,
tel varchar(20 char) ,
email varchar(20 char),
address varchar(40 char),
userid number not null,
foreign key (userid) references user_info(userid)
);
这里就只要注意一下学生表的userid和用户的userid之间的关系,在用户删除那里要同时删除两张表中的数据,使用的是存储过程。
----存取过程----用来删除两张表中的数据---
create or replace procedure pro_s_u_userid(in_userid number) is
begindelete from u_student where userid = in_userid;delete from user_info where userid = in_userid;
end;call pro_s_u_userid(1040);
对学生表的操作类:StudentService.class
package com.edu.services;import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.util.ArrayList;
import java.util.List;import com.edu.db.DBUtils;public class StudentService {private Connection conn = null;private PreparedStatement pstm = null;private ResultSet rs = null;public boolean del(String sno,String userid) throws Exception{try{conn = DBUtils.getConnectiOn();String sql = "DELETE FROM U_STUDENT WHERE SNO = ? AND USERID = ?";pstm = conn.prepareStatement(sql);pstm.setString(1, sno);pstm.setString(2, userid);return pstm.executeUpdate() > 0;} finally{DBUtils.close(pstm);DBUtils.close(conn);}}/*** 通过sno查询* @param sno* @return* @throws Exception*/public List<String []> queryForDel(String sno,String userid) throws Exception{try{conn = DBUtils.getConnectiOn();StringBuilder sql = new StringBuilder().append("SELECT S.SNO,S.SNAME,S.SEX,S.BIRTHDAY,S.CLASSNO,").append(" S.TEL,S.EMAIL,S.ADDRESS FROM U_STUDENT S ").append(" WHERE USERID = ? ");if (sno != null && !sno.equals("")) {sql.append(" AND S.SNO = ? ");}sql.append(" ORDER BY S.SNAME");pstm = conn.prepareStatement(sql.toString());pstm.setString(1, userid);if (sno != null && !sno.equals("")) {pstm.setString(2, sno);}rs = pstm.executeQuery();List<String []> list = new ArrayList<String[]>();String val [] = null;int count = 0;while(rs.next()){val = new String [] {String.valueOf(++count),rs.getString(1),rs.getString(2),rs.getString(3),rs.getString(4),rs.getString(5),rs.getString(6),rs.getString(7),rs.getString(8)};list.add(val);}return list;} finally{DBUtils.close(rs);DBUtils.close(pstm);DBUtils.close(conn);}}/*** 模糊查询姓名* @param username* @return* @throws Exception*/public List<String []> query(String username,String userid) throws Exception{try{conn = DBUtils.getConnectiOn();StringBuilder sql = new StringBuilder().append("SELECT S.SNAME,S.SEX,TO_CHAR(S.BIRTHDAY,'YYYY-MM-DD'),S.CLASSNO,").append(" S.TEL,S.EMAIL,S.ADDRESS").append(" FROM U_STUDENT S").append(" WHERE USERID = ? ");if (username != null && !username.equals("")) {sql.append(" AND S.SNAME LIKE ?");}sql.append(" ORDER BY S.SNAME");pstm = conn.prepareStatement(sql.toString());pstm.setObject(1, userid);if (username != null && !username.equals("")) {pstm.setObject(2, "%" + username + "%");}
// System.out.println("SQL : " + sql.toString());rs = pstm.executeQuery();List<String []> list = new ArrayList<String[]>();String val [] = null;int count = 0;while(rs.next()){val = new String []{String.valueOf(++count),rs.getString(1),rs.getString(2),rs.getString(3),rs.getString(4),rs.getString(5),rs.getString(6),rs.getString(7)};list.add(val);
// System.out.println("list of service : " + list);}return list;} finally{DBUtils.close(rs);DBUtils.close(pstm);DBUtils.close(conn);}}/*** 添加* @param val* @return* @throws Exception*/public boolean add(String...val) throws Exception{try {conn = DBUtils.getConnectiOn();StringBuilder sql = new StringBuilder().append("INSERT INTO U_STUDENT(SNO,SNAME,SEX,BIRTHDAY,CLASSNO").append(" ,TEL,EMAIL,ADDRESS,USERID)").append(" VALUES (S_U_STUDENT_SNO.NEXTVAL,?,?,TO_DATE(?,'YYYY-MM-DD'),").append(" ?,?,?,?,?)");
// System.out.println("SQL :" + sql.toString());pstm = conn.prepareStatement(sql.toString());int size = val.length;for (int i = 0; i < size; i++) {pstm.setObject(i + 1, val[i]);}return pstm.executeUpdate() > 0;} finally{DBUtils.close(pstm);DBUtils.close(conn);}}}
对用户表的操作类:UserInfoService.class
package com.edu.services;import java.sql.CallableStatement;
import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;import com.edu.db.DBUtils;public class UserInfoServices {private Connection conn = null;private PreparedStatement pstm = null;private ResultSet rs = null;private CallableStatement cstm = null;public String queryPriv(String userid) throws Exception{try{conn = DBUtils.getConnectiOn();StringBuilder sql = new StringBuilder().append("SELECT PRIV").append(" FROM USER_INFO U").append(" WHERE U.USERID = ?");pstm = conn.prepareStatement(sql.toString());pstm.setObject(1, userid);
// System.out.println("-" + userid + "-");rs = pstm.executeQuery();String priv = null;if(rs != null){while(rs.next()){priv = rs.getString(1);}}return priv;}finally{DBUtils.close(rs);DBUtils.close(pstm);DBUtils.close(conn);}}public void delUser(String userid) throws Exception{try {conn = DBUtils.getConnectiOn();String sql = "{call pro_s_u_userid(?)}";cstm = conn.prepareCall(sql);cstm.setString(1, userid);cstm.execute();} finally{DBUtils.close(cstm);DBUtils.close(conn);}}public boolean addUser(String username,String passwd,String priv) throws Exception{try{conn = DBUtils.getConnectiOn();StringBuilder sql = new StringBuilder().append("INSERT INTO USER_INFO(USERID,USERNAME,PASSWD,PRIV,REGISTERTIME)").append(" VALUES (S_USER_INFO_USERID.NEXTVAL,?,?,?,SYSDATE)");pstm = conn.prepareStatement(sql.toString());pstm.setString(1, username);pstm.setString(2, passwd);pstm.setString(3, priv);return pstm.executeUpdate() > 0;} finally{DBUtils.close(pstm);DBUtils.close(conn);}}public boolean updatepwd(String userid,String pwd,String newpwd) throws Exception{try{conn = DBUtils.getConnectiOn();StringBuilder sql = new StringBuilder().append("UPDATE USER_INFO U").append(" SET U.PASSWD = ?").append(" WHERE U.USERID = ?").append(" AND U.PASSWD = ?");pstm = conn.prepareStatement(sql.toString());pstm.setString(1, newpwd);pstm.setString(2, userid);pstm.setString(3, pwd);return pstm.executeUpdate() > 0;} finally{DBUtils.close(pstm);DBUtils.close(conn);}}/*** 用户登录* @param username* @param passwd* @param priv* @return* @throws Exception*/public String login(String username,String passwd,String priv) throws Exception{try {conn = DBUtils.getConnectiOn();StringBuilder sql = new StringBuilder().append("SELECT U.USERID ").append(" FROM USER_INFO U ").append(" WHERE U.PASSWD = ? ").append(" AND U.PRIV =? ").append(" AND U.USERNAME = ? ");pstm = conn.prepareStatement(sql.toString());pstm.setObject(1, passwd);pstm.setObject(2, priv);pstm.setObject(3, username);rs = pstm.executeQuery();String userid = null;while(rs.next()){userid = rs.getString(1);}return userid;} finally{DBUtils.close(rs);DBUtils.close(pstm);DBUtils.close(conn);}}}
接下来只需要在对应的按钮执行对应的方法就行了!
一个简单的Swing程序就完成了!
源码链接:源码下载
